A robust calibration method for seven-hole pressure probes

verfasst von: Guangxing Wu, Xia Guo, Ke Yang, Hailong Yang

Erschienen in: Experiments in Fluids | Ausgabe 8/2019

Einloggen, um Zugang zu erhalten
share
TEILEN

Abstract

Multi-hole pressure probe remains an incomparably efficient method of flow measurement due to its simplicity and convenience. An appropriate calibration method is necessary to establish the relations between flow parameters and pressure data. In this paper, a robust calibration method for seven-hole pressure probes is presented, which can also be applied when a hole port is malfunctioning. First, a seven-hole probe was designed and manufactured by 3D printing techniques, and calibration measurements were conducted with a two-degree of freedom calibration apparatus in wind tunnel. Second, theoretical expressions for static pressure coefficients of seven-hole probes were deduced, which guides the establishment of new pressure normalization method in the absence of static and total pressure. Thereafter, a calibration algorithm using the new pressure normalization method was proposed. Finally, effects of sample selection criteria, sample size, and atmospheric static pressure offset on the calibration accuracy of the new algorithm were evaluated. And the case that one port is invalid was studied. Based on the findings obtained from this study, the feasibility and robustness of the new calibration method were validated, and the method can also be easily applied to other multi-hole (including but not limited to seven-hole) pressure probes.

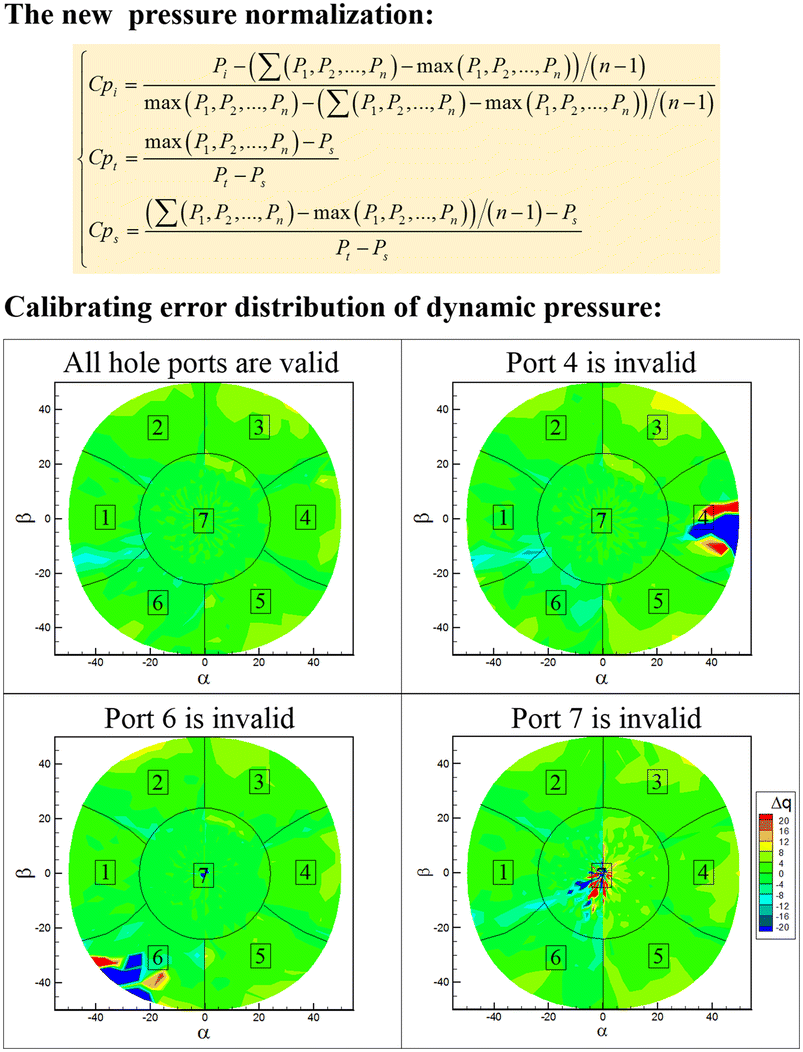

Graphic abstract

Sie möchten Zugang zu diesem Inhalt erhalten? Dann informieren Sie sich jetzt über unsere Produkte:

Springer Professional "Wirtschaft+Technik"

Online-Abonnement

Mit Springer Professional "Wirtschaft+Technik" erhalten Sie Zugriff auf:

  • über 69.000 Bücher
  • über 500 Zeitschriften

aus folgenden Fachgebieten:

  • Automobil + Motoren
  • Bauwesen + Immobilien
  • Business IT + Informatik
  • Elektrotechnik + Elektronik
  • Energie + Nachhaltigkeit
  • Finance + Banking
  • Management + Führung
  • Marketing + Vertrieb
  • Maschinenbau + Werkstoffe
  • Versicherung + Risiko

Jetzt 90 Tage mit der neuen Mini-Lizenz testen!

Springer Professional "Technik"

Online-Abonnement

Mit Springer Professional "Technik" erhalten Sie Zugriff auf:

  • über 50.000 Bücher
  • über 380 Zeitschriften

aus folgenden Fachgebieten:

  • Automobil + Motoren
  • Bauwesen + Immobilien
  • Business IT + Informatik
  • Elektrotechnik + Elektronik
  • Energie + Nachhaltigkeit
  • Maschinenbau + Werkstoffe






Jetzt 90 Tage mit der neuen Mini-Lizenz testen!

Literatur
Zurück zum Zitat Babu CV, Govardhan M, Sitaram N (1998) A method of calibration of a seven-hole pressure probe for measuring highly three-dimensional flows. Meas Sci Technol 9:468 CrossRef Babu CV, Govardhan M, Sitaram N (1998) A method of calibration of a seven-hole pressure probe for measuring highly three-dimensional flows. Meas Sci Technol 9:468 CrossRef
Zurück zum Zitat Benay R (2013) A global method of data reduction applied to seven-hole probes. Exp Fluids 54:1535 CrossRef Benay R (2013) A global method of data reduction applied to seven-hole probes. Exp Fluids 54:1535 CrossRef
Zurück zum Zitat Crawford J, Birk AM (2013) Improvements to common data reduction and calibration methods for seven hole probes. J Fluids Eng 135:031206 CrossRef Crawford J, Birk AM (2013) Improvements to common data reduction and calibration methods for seven hole probes. J Fluids Eng 135:031206 CrossRef
Zurück zum Zitat Ericksen A, Gallington R, Rao B, Barankiewicz W (1995) Rapid calibration of seven-hole probes. NASA Technical Memorandum 107040 Ericksen A, Gallington R, Rao B, Barankiewicz W (1995) Rapid calibration of seven-hole probes. NASA Technical Memorandum 107040
Zurück zum Zitat Gallington RW (1980) Measurement of very large flow angles with non-nulling seven-hole probes. 04I Force Academy, 60 Gallington RW (1980) Measurement of very large flow angles with non-nulling seven-hole probes. 04I Force Academy, 60
Zurück zum Zitat Gerner A, Maurer C, Gallington R (1984) Non-nulling seven-hole probes for high angle flow measurement. Exp Fluids 2:95–103 CrossRef Gerner A, Maurer C, Gallington R (1984) Non-nulling seven-hole probes for high angle flow measurement. Exp Fluids 2:95–103 CrossRef
Zurück zum Zitat Hölle M, Bartsch C, Jeschke P (2017) Evaluation of measurement uncertainties for pneumatic multihole probes using a Monte Carlo method. J Eng Gas Turbines Power 139:072605 CrossRef Hölle M, Bartsch C, Jeschke P (2017) Evaluation of measurement uncertainties for pneumatic multihole probes using a Monte Carlo method. J Eng Gas Turbines Power 139:072605 CrossRef
Zurück zum Zitat Jeyan JVML, Kumar MS (2014) Performance evaluation for multi-hole probe with the aid of artificial neural network. J Theor Appl Inf Technol 65:665–679 Jeyan JVML, Kumar MS (2014) Performance evaluation for multi-hole probe with the aid of artificial neural network. J Theor Appl Inf Technol 65:665–679
Zurück zum Zitat Krause LN, Dudzinski TJ (1969) Flow direction measurement with fixed position probes in subsonic flow over a range of Reynolds number. NASA TMX-52576, May Krause LN, Dudzinski TJ (1969) Flow direction measurement with fixed position probes in subsonic flow over a range of Reynolds number. NASA TMX-52576, May
Zurück zum Zitat Madsen HA, Bak C, Paulsen U et al (2010) The DAN-AERO MW experiments conference proceedings—48th AIAA aerospace sciences meeting including the New horizons forum and aerospace exposition Madsen HA, Bak C, Paulsen U et al (2010) The DAN-AERO MW experiments conference proceedings—48th AIAA aerospace sciences meeting including the New horizons forum and aerospace exposition
Zurück zum Zitat Paul AR, Upadhyay RR, Jain A (2011) A novel calibration algorithm for five-hole pressure probe. Int J Eng Sci Technol 3:89–95 CrossRef Paul AR, Upadhyay RR, Jain A (2011) A novel calibration algorithm for five-hole pressure probe. Int J Eng Sci Technol 3:89–95 CrossRef
Zurück zum Zitat Pisasale A, Ahmed N (2002) A novel method for extending the calibration range of five-hole probe for highly three-dimensional flows. Flow Meas Instrum 13:23–30 CrossRef Pisasale A, Ahmed N (2002) A novel method for extending the calibration range of five-hole probe for highly three-dimensional flows. Flow Meas Instrum 13:23–30 CrossRef
Zurück zum Zitat Ramakrishnan V, Rediniotis OK (2007) Development of a 12-hole omnidirectional flow-velocity measurement probe. AIAA J 45:1430 CrossRef Ramakrishnan V, Rediniotis OK (2007) Development of a 12-hole omnidirectional flow-velocity measurement probe. AIAA J 45:1430 CrossRef
Zurück zum Zitat Rediniotis O, Chrysanthakopoulos G (1998) Application of neural networks and fuzzy logic to the calibration of the seven-hole probe. J Fluids Eng 120:95–101 CrossRef Rediniotis O, Chrysanthakopoulos G (1998) Application of neural networks and fuzzy logic to the calibration of the seven-hole probe. J Fluids Eng 120:95–101 CrossRef
Zurück zum Zitat Rediniotis OK, Vijayagopal R (1999) Miniature multihole pressure probes and their neural-network-based calibration. AIAA J 37:666–674 CrossRef Rediniotis OK, Vijayagopal R (1999) Miniature multihole pressure probes and their neural-network-based calibration. AIAA J 37:666–674 CrossRef
Zurück zum Zitat Shaw Ward S, Titchmarsh A, Birch DM (2015) Calibration and use of n-hole velocity probes. AIAA J 53:336–346 CrossRef Shaw Ward S, Titchmarsh A, Birch DM (2015) Calibration and use of n-hole velocity probes. AIAA J 53:336–346 CrossRef
Zurück zum Zitat Simms D, Hand MM, Fingersh L et al (2001) Unsteady aerodynamics experiment phase V: test configuration and available data campaigns. National Renewable Energy Laboratory, Golden Simms D, Hand MM, Fingersh L et al (2001) Unsteady aerodynamics experiment phase V: test configuration and available data campaigns. National Renewable Energy Laboratory, Golden
Zurück zum Zitat Sumner D (2002) A comparison of data-reduction methods for a seven-hole probe. Trans Am Soc Mech Eng J Fluids Eng 124:523–527 Sumner D (2002) A comparison of data-reduction methods for a seven-hole probe. Trans Am Soc Mech Eng J Fluids Eng 124:523–527
Zurück zum Zitat Telionis D, Yang Y, Redinioti O (2009) Recent developments in multi-hole probe (mhp) technology. In: 20th international congress of mechanical engineering Telionis D, Yang Y, Redinioti O (2009) Recent developments in multi-hole probe (mhp) technology. In: 20th international congress of mechanical engineering
Zurück zum Zitat Treaster AL, Yocum AM (1978) The calibration and application of five-hole probes. Pennsylvania State University, University Park Applied Research Lab, Pennsylvania CrossRef Treaster AL, Yocum AM (1978) The calibration and application of five-hole probes. Pennsylvania State University, University Park Applied Research Lab, Pennsylvania CrossRef
Zurück zum Zitat Wang H, Chen X, Zhao W (2012) Development of a 17-hole omnidirectional pressure probe. AIAA J 50:1426–1430 CrossRef Wang H, Chen X, Zhao W (2012) Development of a 17-hole omnidirectional pressure probe. AIAA J 50:1426–1430 CrossRef
Zurück zum Zitat Wenger CW, Devenport WJ (1999) Seven-hole pressure probe calibration method utilizing look-up error tables. AIAA J 37:675–679 CrossRef Wenger CW, Devenport WJ (1999) Seven-hole pressure probe calibration method utilizing look-up error tables. AIAA J 37:675–679 CrossRef
Zurück zum Zitat Yasa T, Paniagua G (2012) Robust procedure for multi-hole probe data processing. Flow Meas Instrum 26:46–54 CrossRef Yasa T, Paniagua G (2012) Robust procedure for multi-hole probe data processing. Flow Meas Instrum 26:46–54 CrossRef
Zurück zum Zitat Zilliac GG (1989) Calibration of seven-hole pressure probes for use in fluid flows with large angularity. NASA Technical Memorandum 102200 Zilliac GG (1989) Calibration of seven-hole pressure probes for use in fluid flows with large angularity. NASA Technical Memorandum 102200
Zurück zum Zitat Zilliac G (1993) Modelling, calibration, and error analysis of seven-hole pressure probes. Exp Fluids 14:104–120 CrossRef Zilliac G (1993) Modelling, calibration, and error analysis of seven-hole pressure probes. Exp Fluids 14:104–120 CrossRef
