A robust LSTM-based defect identification methodology for imbalanced data of solder paste inspection

In 2020, the global printed circuit board (PCB) industry benefited from the increase in remote working and learning. Additionally, the rapid development of fifth-generation mobile communication networks and the Internet of Things (IoT) has further stimulated the demand for consumer electronic products, including computers, communication devices, and gaming consoles. Surface-mount technology (SMT) is a crucial application during PCB manufacturing process. PCB assembly typically comprises five stages, namely solder paste printing (SPP), solder paste inspection (SPI), chip placement, reflow, and automated optical inspection (AOI). During the assembly process, approximately 50%–70% of circuit board defects occur in the SPP stage [1‐3].

However, AOI systems can only detect defects such as air welding, solder bridges on PCBs, and missing electronic components. They are not effective in identifying defects arising from the SPP process, which often leads to high misjudgment rates and consequently reduces the overall quality of PCB manufacturing. Therefore, SPI plays a crucial role in the inspection process. Given that PCB clients generally demand extremely high-quality standards, manufacturers place great emphasis on screening out potentially faulty boards. In practice, they prefer to accept a higher false-alarm rate rather than allow any defective products to be delivered to their customers. As a result, PCB manufacturers continuously seek to improve the production yield.

Owing to the rapid development of IoT and broadband Internet technology, real-time big data generated by equipment in manufacturing systems can be effectively collected, stored, analyzed, and applied to realize the vision of smart manufacturing. Big data analysis is used to rapidly identify undetected problems in a manufacturing system. Such analysis also facilitates the early detection of these problems and provides manufacturing engineers with the essential decision-making information for problem-solving in manufacturing systems. This, in turn, enables the continuous system optimization, improves product quality, and reduces production costs. So far, PCB manufacturers have installed IoT applications in manufacturing systems to collect big data from SPI machines. To accelerate data analysis, this research utilizes principal component analysis (PCA) to reduce the dimensionality of the SPI data. In addition, PCB manufacturers generally employ high-sensitivity settings for SPI machines to avoid delivering defective products to clients. However, this practice has greatly increased the number of products flagged as defective. Hence, professional quality inspectors on the production line must manually determine whether these products are truly defective. This results in manufacturing companies allocating quality inspectors to repeatedly inspect these products, which increases labor costs and decreases production efficiency. In addition, during the manual inspection process, professional quality inspectors may also misjudge whether a product is defective. As a consequence, clients may still receive defective products. Because clients in the electronics industry impose stringent quality requirements on PCBs, manufacturers strive to minimize defect rates. Consequently, this research integrates data generation and dimensionality reduction techniques with a long short-term memory (LSTM) deep learning network to identify detective electronic parts.

Firstly, this study performs PCA to extract the feature variables of SPI data for reducing data dimensionality and removing less significant feature variables. In PCB assembly, defects arising from the solder paste deposition primarily encompass excessive or insufficient solder paste deposition, misalignment of solder paste, and inappropriate solder paste height. This study investigates the feature variables influencing these defects.

Moreover, defective samples are rare in the PCB industry, resulting in a highly imbalanced dataset. Therefore, this research employs the borderline synthetic minority over-sampling technique (SMOTE) to generate additional minority instances and thereby alleviate the class imbalance problem. Misjudgment by quality inspectors during the manual detection of defective products may result in the incorrect data labels. When training a deep learning model, the quality of the training data is crucial because even a small number of mislabeled samples may significantly decrease prediction accuracy. Hence, the Edited Nearest Neighbor (ENN) method is used to remove suspiciously misjudged samples, thus preventing mislabeled samples from being used to train the deep learning model. Subsequently, the LSTM deep learning network is employed to construct a robust defect identification model for SPP. The proposed model can reduce the mental workload associated with repetitive manual reinspection and improve the manufacturing yield of PCBs.

Regarding the key factors affecting SPP quality, Huang et al. [2] established the criteria for SPI. Their study indicated that increasing the printing pressure results in fewer solder paste deposits. In addition, the configuration of the soldering fixture determines the movement direction of the squeegee blade, which leads to considerable differences in the number of solder paste deposits. Rahman et al. [4] employed the Taguchi method to determine the optimal movement speed and pressure of the squeegee blade for different solder printers. Yu et al. [5] employed discrete-time signals and the discrete-state Markov chain to develop a performance-declining model of squeegee blades. The proposed model helps determine the optimal cleaning duration for the squeegee blade and identify a favorable balance between quality loss and idle time loss. To improve the manufacturing process of PCB assembly, Fung and Yung [6] integrated K-means clustering into the multi-response Taguchi method to screen for key features in the SMT manufacturing process and to optimize the process parameters, including squeegee blade pressure, speed, angle, and cleaning duration. Herchenbach et al. [7] developed an AI-based adaptive causal control system to identify optimal offline and online printing parameters. Overall, these studies focused on tuning SMT process parameters to reduce solder paste defects.

Paulo et al. [8] used the low-cost Raspberry Pi compute module and a camera to construct an optical SPI system to determine the appropriate amount of solder paste. However, the proposed system could not detect other types of solder paste defects. Zeng et al. [9] used curvatures and geometric parameters to analyze the three-dimensional shapes of soldering points. In their study, experts first defined the rules for detecting defects on the basis of their practical experience before detecting defects in the soldering points. Some scholars have used scientific data analysis to define rules for detecting SPP defects. Yuk et al. [10] employed the speeded-up robust features to extract the fault patterns from 10 scratched circuit boards and computed the probability of the pattern being defective. Subsequently, they used the random forest method to distinguish qualified and defective PCBs. Most PCBs are qualified. However, the classification performance of the random forest method significantly decreased when it processed extremely imbalanced data. Therefore, the PCB defective detection of the random forest method cannot satisfy industrial requirements. In the AOI step, Dai et al. [11] employed the deep convolutional neural network to locate the soldering points for various configurations of PCBs. Through the clustering-based method, the system selected highly homogeneous clusters with a high-level of confidence. The SVM classifier, trained on a limited set of labeled data, is employed to predict the classes for all unlabeled soldering points within these clusters. Next, the automatically labeled samples are incorporated into the manually annotated dataset to retrain the current SVM classifier. Due to the inherent inaccuracy of the K-means algorithm, it could introduce the incorrectly labeled samples into the training dataset to potentially degrading the SVM classifier’s performance.

Li et al. [12] applied single-shot multi-box detection to label the type and position of objects in images. They used the convolutional neural network (CNN) to analyze the types of holes on PCBs. However, this method cannot be used to detect PCB defects. Volkau et al. [13] employed the VGG16 architecture [14], which is based on transfer learning, to extract features from image samples of qualified PCBs. That study also adopted unsupervised representation learning to establish a one-class decision boundary. Samples of PCB images that exceeded the boundary were considered anomalies. The current model relies on a global threshold that is set manually to distinguish between normal and defective samples. The authors acknowledge that their approach lacks flexibility and an adaptive threshold.

Because the defect detection performance of AOI systems does not meet the industry standards, Mujeeb et al. [15] employed the deep autoencoder to develop a one-class feature learning method to enable the AOI system to correctly detect defect-free SPP images. To enable the AOI system to rapidly detect defect-free SPP images, the authors selected a golden sample and used data augmentation to generate training samples for the deep learning model. They then trained the model to correctly detect defect-free samples. However, because this method only uses one golden sample to generate the training samples, the trained neural network may not be able to correctly screen for other types of defect-free SPP samples. Sezer and Altan [16] combined a population-based optimization algorithm with a convolutional neural network to identify defects in SPP images. That algorithm was trained and tested on a relatively small dataset with balanced classes. Consequently, the dataset may not fully capture the diversity and complexity encountered in real production environments. Xia et al. [17] employed a region-based fully convolutional network and a focal loss function to detect minor defects on circuit boards. The focal loss function assigns more weight to hard samples to improve the detection of minor defects in circuit boards. They addressed the scarcity of minor defect samples by employing a data enhancement technique in which defective regions are randomly pasted onto different positions of the PCBs. However, such randomly generated samples are not guided by the decision boundary, which may weaken the model’s discriminative capability.

The above-mentioned methods are applicable in the AOI stage but cannot be used for the early-stage defect detection in the SMT manufacturing process. Therefore, studies have also proposed defect detection methods for the SPP phase. SPI machines typically assume that the volumes of solder paste deposits follow the normal distribution and then computes their mean and the variance. If the volume of a solder paste deposit differs considerably from the mean value, the SPI machine classifies that deposit as defective. However, this method has difficulty detecting PCB defects produced by SPP. Therefore, Yoo et al. [3] applied a convolutional recurrent reconstructive network (CRRN) to analyze the patterns of solder paste volumes under different temporal and spatial conditions. This method does not require the assumption of a normal distribution. The temporal condition depends on the cleaning cycle of the stencil and the movement direction of the squeegee blade. The spatial condition is determined by the positions of the soldering pads and the solder paste volumes. Most defects in SMT processes are caused by poor SPP quality. SPI machines mainly monitor the solder paste deposits. The threshold values of solder paste deposits are based on statistical analysis and expert experience. Consequently, SPI machines cannot effectively detect these defects.

Wei et al. [18] proposed the automatic threshold adjustment algorithm that employs density-based spatial clustering of applications with noise to identify arbitrarily shaped clusters on the basis of each feature of solder paste deposits, including the volume, area, and height. The largest cluster of each feature is identified and considered to represent defect-free SPP. On the basis of the three largest clusters formed in each feature, the upper and lower limits of the volume, area, and height of a solder paste deposit can be determined and used to initially screen out defective solder paste deposits. After the solder paste deposits are processed by the reflow oven, AOI is conducted, and experts manually determine whether they are defect-free and establish the labelled data. Subsequently, the SVM model is trained, and the upper and lower limits of the SPP features are updated. However, if two or more clusters identified by using the density-based spatial clustering of applications are misclassified as defect-free SPP, the upper and lower limits of the SPP features may be misjudged. Such misjudgment may lead to an increase in the number of defective products.

To increase AOI accuracy, Chang et al. [19] employed a Sigmoid function to establish a three-layer neural network. The feature variables of the input layer of the neural network comprised the volume, area, height, and offset of a solder paste deposit. The customized demand for PCBs has increased the variety of PCBs and decreased the production quantity of each type of PCB. Therefore, constructing an anomaly detection model of SPP for every PCB type is difficult. To overcome the insufficient number of training samples for the SPI data for customized PCBs, Zheng [20] employed the K-means clustering method to cluster SPP tasks with high similarity. Within each cluster, the same anomaly detection model can be used, and a small number of training samples are applied to adjust the model parameters to increase its accuracy. The feature variables of the model comprise the volume, area, and height of a solder paste deposit. That study compared the classification performance of isolation forest, XGBoost, random forest, and the neural network. Isolation forest demonstrated the highest F1 score. Isolation forest is an unsupervised algorithm used in global anomaly detection. If anomalies occur only in localized regions, isolated forest is less suitable for detection. This limitation is reflected in its accuracy for detecting solder paste defects. The detection accuracy of isolated forest was only 0.8, which cannot satisfy the quality requirements of the electronics industry. Hence, this research proposes a robust LSTM-based defect identification methodology to solve the above-mentioned issues.

Based on the literature review, few studies simultaneously consider both training efficiency and identification performance in solder paste defect detection models. To address the research gap, this study applies PCA to reduce data dimensionality, thereby shortening the training and validation time of artificial intelligence models. This facilitates the rapid deployment of intelligent solder paste defect detection systems on SMT production lines. Although several studies employ clustering-based approaches to reduce the time and labor required for data annotation, the class imbalance problem remains unresolved, which degrades the classification performance of machine learning models. In addition, noise samples located near the decision boundary may adversely affect the classification accuracy and robustness of AI model training. Therefore, this study adopts the ENN technique to remove noisy samples, which has not been considered in previous studies for SPI. Regarding classification models, most prior studies rely on decision trees, SVMs, and CNNs. To further enhance classification performance, this study integrates borderline SMOTE and ENN to propose the LSTM-based defect identification model. This model can effectively improve the detection of defective samples and prevent defective components from entering subsequent manufacturing processes.

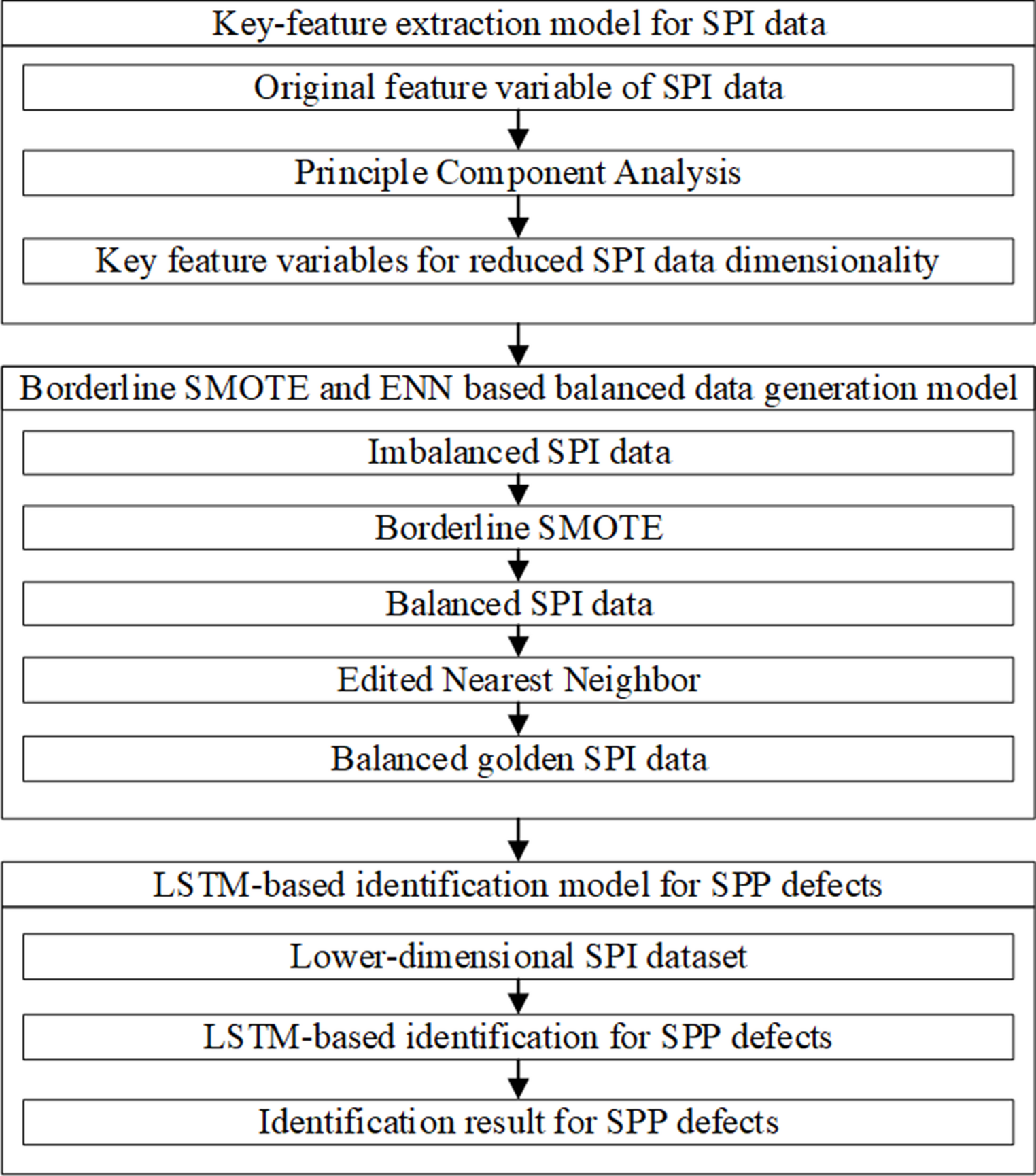

Figure 1 presents the framework of robust LSTM-based defect identification methodology for imbalanced data of solder paste inspection. The research comprises three parts: (1) the key-feature extraction model for SPI data, (2) a borderline SMOTE and ENN based balanced data generation model, and (3) an LSTM-based identification model for SPP defects. The following subsection describes each part of the proposed methodology in detail. The first part uses PCA to develop the key-feature extraction model for SPI data to remove redundant information from the SPI dataset, accelerate model training, and enhance the performance of the LSTM deep learning network. Through this key-feature extraction model, a reduced-dimensional SPI dataset is obtained. In practice, the defect rate of SPP is very low, resulting in a severe shortage of defective samples. Such data Imbalance substantially degrades the training performance of deep learning models and therefore needs to be addressed. To improve the binary classification ability of the deep learning model, this research adopts the borderline SMOTE to oversample instances near the decision boundary and generate informative minority-class samples. Moreover, the electronics industry requests extremely high yield rates for electronic components and does not allow defective products to be shipped. However, the classification results generated by the SPI machine may contain misjudgment. To alleviate this issue, this study removes potential majority-class outliers that may actually be defective but are labeled as non-defective. Therefore, Edited Nearest Neighbor (ENN) is used to identify suspicious instances near the decision boundary and eliminate them, thereby improving the ability to identify defective electronic parts. After obtaining the balanced and screened samples, the third part employs the lower-dimensional SPI dataset to create the LSTM-based identification model. The model prevents defects from entering subsequent manufacturing processes, which would lead to higher defect rates and increased PCB manufacturing costs.to identify SPP defects at early stages of assembly.

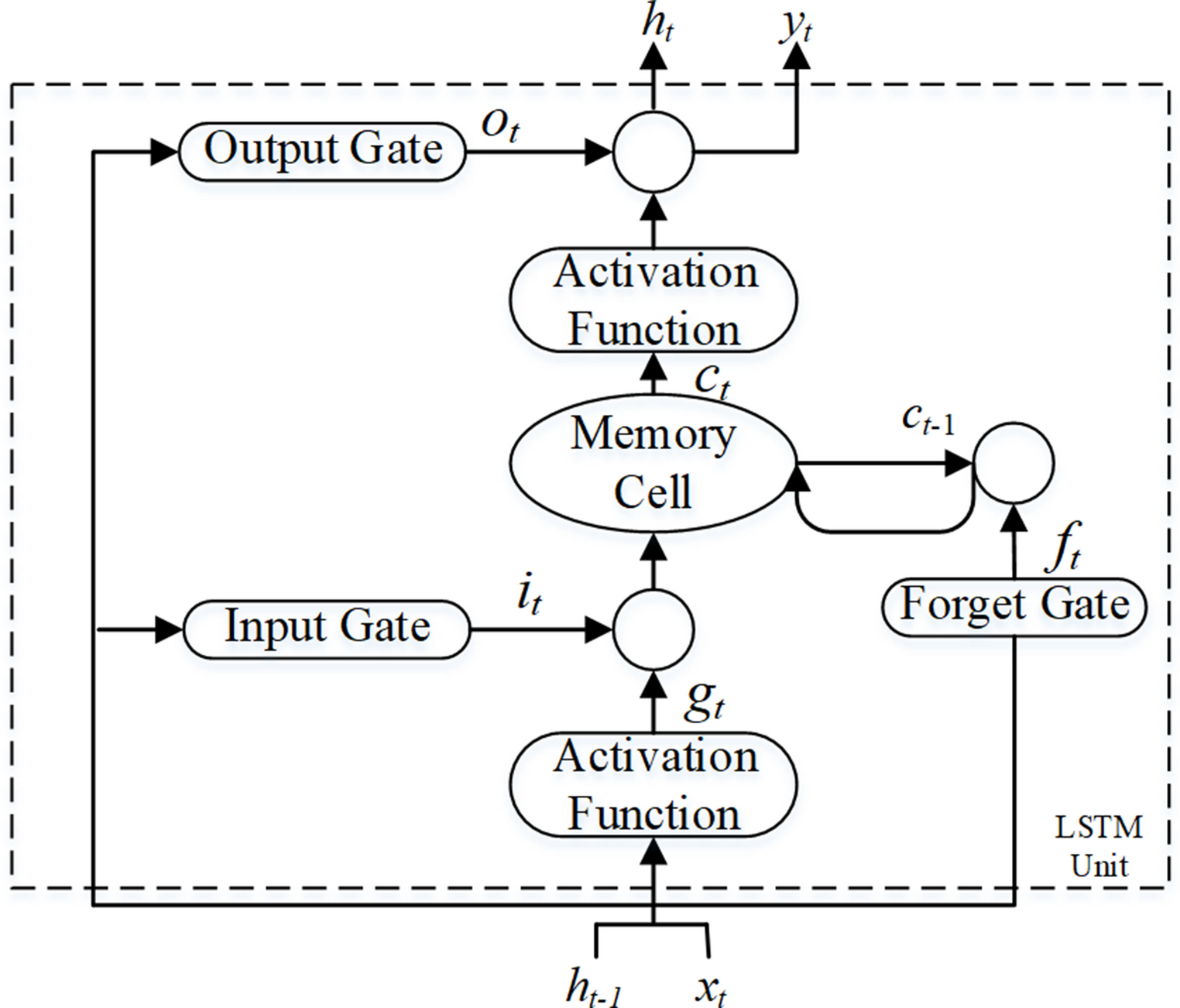

Bild vergrößern

This research collected 401,393 SPI samples from an electronics company in Taiwan, of which only 1,393 were non-defective. The SPI machine automatically inspects each sample and assign it a label of either non-defective or defective. To prevent defective samples from entering subsequent manufacturing processes, the SPI system is configured with a high sensitivity level. However, this high sensitivity inevitably generates pseudo-defective labels. Therefore, inspection engineers manually re-evaluate these samples and assign the final verified labels.

The SPI dataset contains five feature variables. The first three feature variables are the volume, area, and thickness of a solder paste deposit. The fourth and fifth variables are the x-axis offset and the y-axis offset for the location of the solder paste deposit. Owing to the different units and scales of these feature variables, we firstly used the min-max normalization technique to scale all feature values to the range of 0 to 1. To decrease the computational time during the model training and testing while retaining as much important information as possible, the key-feature extracting model is applied to analyze the principal components to reduce the dimensionality of SPI data. The explained variance ratios of five principal components are 0.9390, 0.0319, 0.0197, 0.0075, 0.0028, separately. Because the fifth principal component has the lowest explained variance ratio, i.e., 0.0028, it contributes minimal information. Hence, this study reduces data dimensionality to obtain the four-dimensional SPI dataset. To assess the effect of principal component analysis on computational efficiency, all experiments were conducted on a laptop computer with an Intel Core i7-8700 CPU, 8 GB of RAM, and an NVIDIA RTX 4070 GPU with 16 GB of Video Random Access Memory (VRAM). The system operated on Windows 11 (64-bit), and all deep learning models were implemented using Python 3.9.18 and TensorFlow 2.1. We compared the computation times of the original and reduced-dimensional data, which resulted in a reduction of 11.08%.

In this case, the defective solder paste deposits belong to the minority class. Owing to the severe data imbalance affecting the training performance of the identification model for SPP defects, this research employed borderline SMOTE to augment the defective solder paste deposits to achieve the balanced data. Next, the ENN algorithm was used to remove potentially mislabeled samples, thereby decrease misclassification of solder paste deposits. The defective samples and non-defective samples are 399,104 and 399,909, respectively. Then, the lower-dimensional balanced SPI dataset was then split into 80% training samples and 20% testing samples. The LSTM network was utilized to create the identification model for SPP defects. Table 1 summarizes the key parameter settings used for training the LSTM-based identification model for SPP defects. The model was trained for 20 epochs using the Adam optimizer. The binary cross-entropy loss function was employed to measure the discrepancy between predicted and true labels, and a batch size of 32 was applied during the training stage.

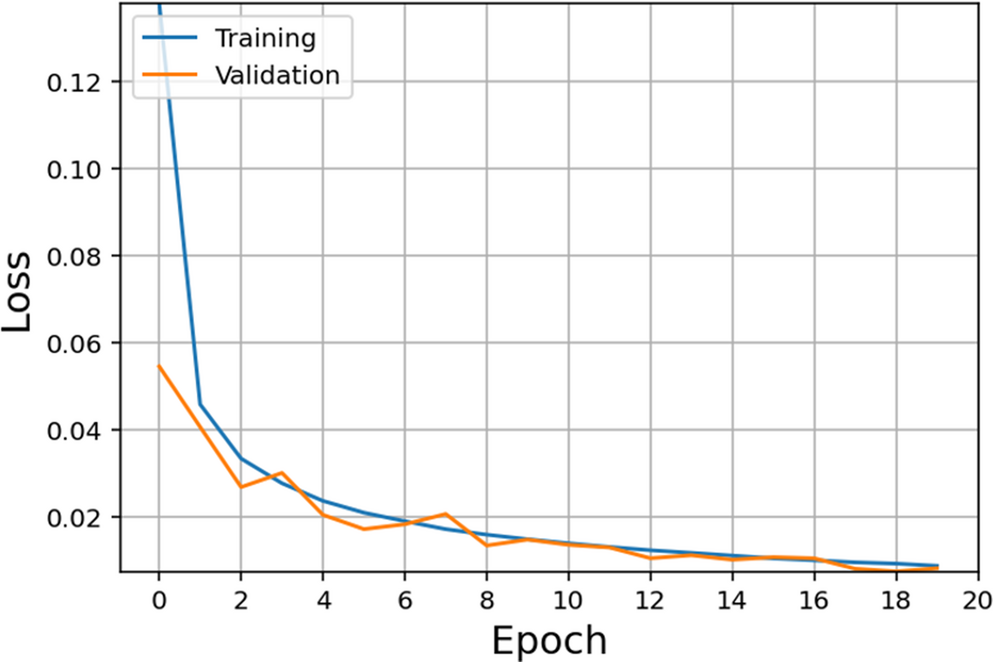

Figure 3 illustrates the training and validation loss trajectories across 20 epochs. The training loss decreases sharply during the initial epochs and subsequently converges smoothly toward a low and stable value, indicating effective optimization. The validation loss exhibits a comparable downward trend with only minor fluctuations. In parallel, both training and validation accuracies exceed 0.99, confirming generalization capability, as shown in Fig. 4. Figure 5 presents the confusion matrix of the identification model for SPP defects. The model correctly classifies the vast majority of both non-defective (label 0) and defective (label 1) samples, achieving true negative and true positive rates of 0.9967 and 0.9969, respectively. Only a small proportion of samples are misclassified, with false positive and false negative rates of 0.0031 and 0.0033. Without applying the borderline SMOTE and ENN techniques, the LSTM model attains a true negative rate of only 0.7735, as shown in Table 2. These results demonstrate that the proposed model exhibits highly reliable discrimination capability across both classes.

Bild vergrößern

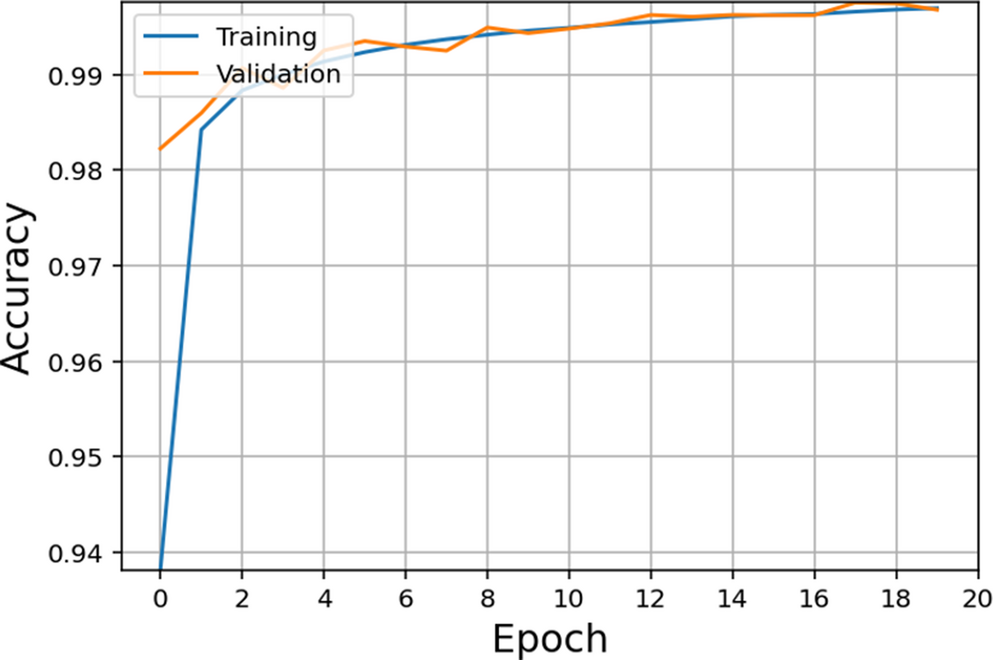

Bild vergrößern

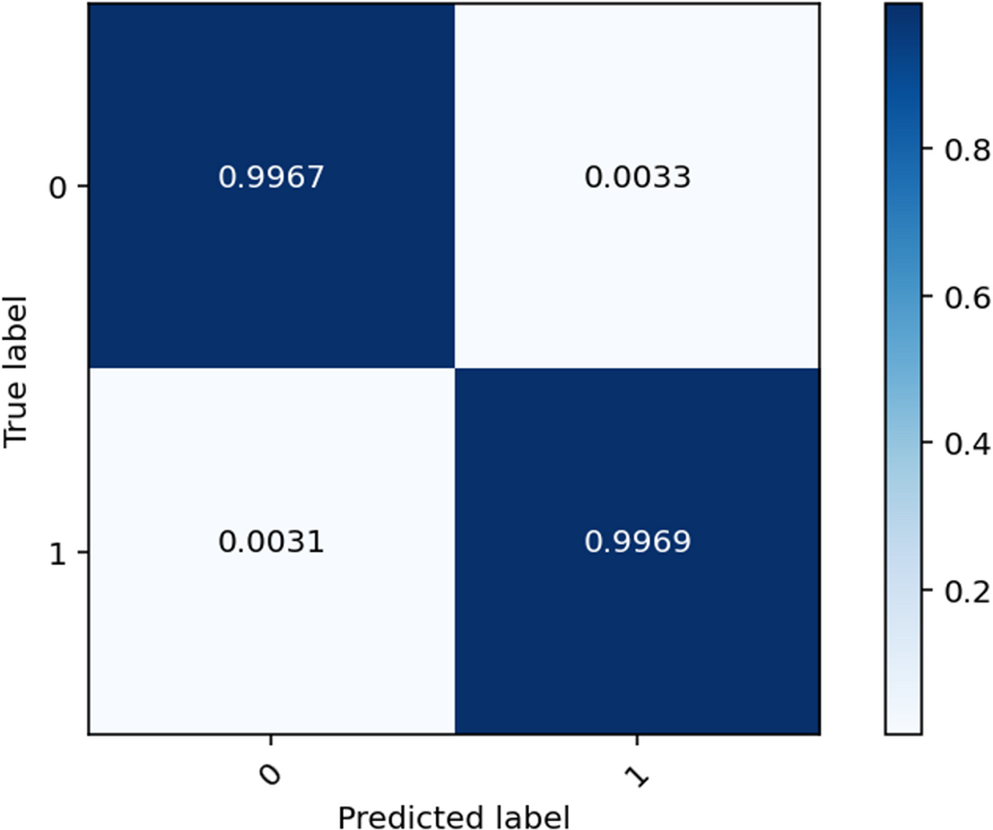

Bild vergrößern

Table 2 summarizes the performance of the proposed identification model in comparison with four widely used classifiers, including Random Forest, Convolutional Neural Network (CNN), Gated Recurrent Unit (GRU), and LSTM. Across all metrics, the proposed method consistently outperforms the benchmark models, particularly in identifying defective samples, which represent the minority and more challenging class. For the non-defective class, all models exhibit high precision, recall, and F1-scores, indicating that distinguishing non-defective samples is relatively straightforward across traditional machine learning and deep learning approaches. However, substantial performance differences emerge in the defective class. Random Forest achieves an F1-score of 0.8736, while CNN, GRU, and LSTM show moderate improvements with F1-scores of 0.8221, 0.8394, and 0.8522 respectively. In contrast, the proposed method attains an F1-score of 0.9968 for defective samples, representing a significant enhancement in minority-class recognition. A similar trend is observed in terms of Area Under the Receiver Operating Characteristic (ROC) Curve (AUC). The proposed model achieves an AUC of 0.9999, surpassing CNN (0.9843), GRU (0.9724), LSTM (96.49) and Random Forest (0.8972). With regard to precision and recall for the defective class, the proposed method also outperforms other models. This substantial improvement highlights the superior discrimination capability of the proposed approach under highly imbalanced conditions.

Table 3 compares the classification performance of the proposed method with representative studies in the literature. As shown in the table, the proposed method achieves a precision of 99.67% and an accuracy of 99.68%, outperforming all selected benchmark approaches. Dai et al. (2020) and Zeng et al. (2021) reported precision values of 95.16% and 98.3%, respectively. In contrast, Kong et al. [24] presented an accuracy of 90.33%. Overall, the superior performance of the proposed method highlights its effectiveness in classification tasks compared with existing papers.

Due to the rapid development of AI algorithms and the significant improvement in computing power, the implementation of smart manufacturing to boost the competitiveness has become critical issue. Through Industrial Internet of Things (IIoT) devices, PCB manufacturers can collect large volumes of manufacturing data at low cost. Based on consumer demand, the high reliability of electronic products is a key factor influencing purchasing decisions. Therefore, system integrators have stringent quality requirements for electronic component suppliers. To meet this challenge, companies need to strengthen the defect-identification capability of the SMT process. Hence, this research proposes the robust identification methodology for SPP defects. First, PCA is used to reduce the dimensionality of SPI data by removing the low-information feature, thereby speeding up the analysis. To address the common problem of data imbalance in the electronics industry, this study employs the borderline SMOTE technique to generate defective samples, preventing the deep learning model from being biased toward non-defective samples when building a binary classification model. In addition, the ENN method is used to eliminate the misclassified instances to obtain the more balanced and reliable training and testing dataset. Finally, a robust identification model for SPP defects by using LSTM deep learning model is created to enable PCB manufacturers to deliver qualified components to system integrators.
