Application of stabilized contaminated soils as metaconcrete aggregates

Numerous studies in the literature have demonstrated that the stabilization and solidification (S/S) process is highly effective in remediating contaminated soils (see, for example, [1] and references therein). Stabilization, also known as the immobilization phase of contaminants, combined with solidification, which encapsulates contaminants within a solid matrix, significantly reduces environmental and human health risks. In the early applications of this technique, Portland cement was the primary binding agent used as the solid matrix [2]. However, advancements in the stabilization process have led to the incorporation of alternative materials, such as pozzolanic compounds, fly ash [3], rice husk ash [4], ground granulated blast furnace slag (GGBS) [5], and bentonite [6]. These additions have enhanced the efficiency and versatility of the process, allowing it to be applied to a broader range of contaminated sites. The partial substitution of Portland cement with alternative materials that have lower energy content and carbon footprints significantly reduces the material’s embedded carbon. These materials, often by-products of industrial processes like fly ash (FA) and ground granulated blast furnace slag (GGBFS), offer an eco-friendly alternative. Their use in contaminated soil stabilization minimizes reliance on Portland cement while efficiently managing industrial waste, improving sustainability [7].

FA, a coal combustion by-product, enhances mechanical strength and reduces porosity due to its pozzolanic properties, forming calcium silicate hydrates when reacting with calcium hydroxide [8]. It also binds with contaminants, reducing their mobility and preventing environmental spread. GGBFS, with its hydraulic properties, improves resistance to expansion, contraction, and sulfate-induced corrosion critical in hazardous soil stabilization [9‐13]. The combined use of FA and GGBFS lowers cement demand, cutting CO₂ emissions and enhancing ecological sustainability [14]. This approach not only strengthens mechanical properties and durability but also promotes sustainable stabilization techniques, repurposing industrial by-products for environmental remediation and engineering applications [15]. A critical aspect of S/S treatment is the proper characterization of contaminated soil, which includes analyzing contaminant type, concentration, pH, and leaching behavior. The S/S technique has demonstrated remarkable effectiveness in treating a wide variety of hazardous waste, including inorganic, organic, and mixed contaminants [16]. It has also been successfully applied to the remediation of marine sediments [17, 18], which pose additional environmental challenges due to their complex composition and potential for contaminant migration. Long-term studies further confirm the reliability of this approach. For instance, findings by [19] indicate that even 17 years after treatment, stabilized soil continues to meet performance criteria, underscoring S/S as a robust and durable remediation strategy. At the conclusion of the process, the treated soil is structurally stable, non-hazardous, and environmentally safe, as the encapsulation mechanism effectively prevents pollutant release into the surrounding environment.

Over the past decade, metaconcretes have emerged as a new class of concrete materials incorporating engineered aggregates with metamaterial properties [20, 21]. A research group led by Anna Pandolfi and Michael Ortiz first explored combining local resonant metamaterials (LRM) with cement to create materials resilient to extreme loads like explosions [20]. This led to the development of metaconcrete, which is characterized by an external soft coating encapsulating a heavy spherical core (the resonator) instead of conventional gravel. Internal resonators dissipate energy when the dynamic load frequency matches that of the aggregates, creating frequency bandgaps where mechanical waves cannot propagate due to a negative mass effect [21]. Mitchell et al. later quantified resonant behavior within aggregates using the transmission coefficient to measure wave energy absorption [22]. Since 2017, experiments on metaconcrete’s ability to mitigate explosive loading have yielded promising results. Non-destructive dynamic tests have shown a significant reduction in transmitted signal amplitude compared to conventional concrete, depending on the type of inclusions and material properties [23, 26]. Building on this research, Chen et al. [27] developed an analytical predictive formula for local resonant bandgap generation, linking bandgap initiation to the resonator’s translational vibration mode and the cutoff frequency to the resonator-matrix coupling strength. Xu et al. [28] expanded this study using finite element simulations to analyze bandgap regions, demonstrating how core size, coating thickness, and core density influence attenuation performance. They also proposed a flowchart for designing metaconcretes with multiple resonance frequencies. A 2024 study introduced rubber aggregates with shielding functionality to enhance metaconcrete’s resistance, analyzing mesoscale wave attenuation and performance regulation [29]. The effects of aggregate shape on the bandgap properties of metaconcretes have been studied in [30]. Different mechanical nacre-like metamaterials, featuring a brick-and-mortar architecture and potential applications in civil engineering, have been proposed in in [31, 32].

This study explores the potential use of contaminated soils, which are effectively treated through a stabilization/solidification (S/S) process, as encapsulated aggregates in the creation of novel metaconcretes. The S/S process involves treating contaminated soils to render them inert and stable, effectively eliminating the environmental hazards they may present. The final product of this process is a safe material that no longer poses a risk to human health or the environment. By encapsulating this stabilized material within a soft coating, which is then surrounded by a cementitious matrix, the contaminated soil can be safely integrated into a composite material without direct exposure to the surrounding environment. This encapsulation approach could lead to the development of a new type of metaconcrete, a material that combines the advantages of waste reuse with advanced engineering properties. This novel material, which we will refer to as StabSoil MetaConcrete (SSMC), represents an innovative way to repurpose contaminated soils, turning them into functional components of construction materials. The resulting SSMC material offers the potential to enhance the performance of traditional concrete, particularly in applications requiring improved wave attenuation, such as, e.g., in blast protection structures and meta-foundations of earthquake proof buildings [20]. We begin by investigating the physical and mechanical properties of various mix designs of contaminated soils that have been treated through the stabilization/solidification (S/S) process (Sect. 2). This section lays the foundation for understanding how different soil treatments affect the overall material properties, which are crucial for determining their suitability as components of metaconcrete. Sect. 3 provides a brief overview of the analytical formulation used to predict the bandgap response of metaconcretes, as presented in [27]. This formulation serves as the basis for the parametric study conducted in Sect. 4, where we analyze the bandgap response of different StabSoil MetaConcrete (SSMC) configurations. Finally, Sect. 5 offers concluding remarks and outlines potential directions for future research, emphasizing opportunities for further optimizing and applying SSMC in various engineering applications.

Figure 2 shows the cross-section of a rubber-coated spherical particle of stabilized and solidified soil, forming the aggregate element of a cubic unit cell with edge length \(a\) in an SSMC. The core of the aggregate, which acts as an internal resonator, consists of a spherical particle of a stabilized soil (StabSoil) with radius \({r}_{1}\), or alternatively, a sphere of equivalent mass made from the same material but exhibiting a different shape [30]. The soft coating is made of a natural rubber with density \({\rho }_{w}\) of 900 kg/m³, Young modulus \({E}_{w}=0.01\) GPa and Poisson’s ratio \({\upsilon }_{w}=0.49\) [28, 29]. The coating exhibits external radius \({r}_{2}\) and thickness \(\Delta r={r}_{2}-{r}_{1}\) (Fig. 2).

Bild vergrößern

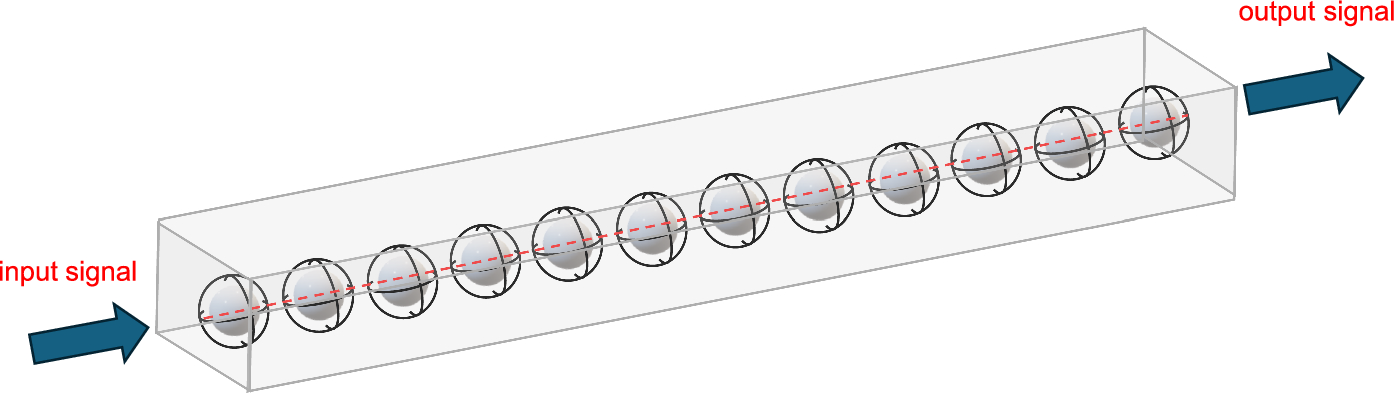

The theory presented in [27] studies the frequency bandgap response of a strip of metaconcrete unit cells forming a rod element (Fig. 3), using a simplified homogenization theory. It predicts that mechanical waves impacting the rod with a frequency \(f\) within the bandgap interval \([{f}_{1},{f}_{2}]\) cannot propagate through the system. The lower frequency \({f}_{1}\) corresponds to the activation of a pure translational vibration motion of the resonator, with the matrix remaining (theoretically) at rest. In contrast, the cutoff frequency \({f}_{2}\) marks the activation of a relative vibration motion between the matrix and the resonator.

Bild vergrößern

According to the theory presented in [27], the bandgap limiting frequencies can be computed using the following equations:

Here, \({m}_{1}\) and \({m}_{2}\) represent the equivalent (homogenized) masses of the resonator and the matrix, respectively, while \(k\) is the equivalent stiffness coefficient of the soft coating, computed as follows\({\lambda }_{w}\) and \({\mu }_{w}\) being the Lamé constants of the material forming the soft coating. These constants are given by

In Eq. (4), \({E}_{w}\) and \({\nu }_{w}\) denote the Young modulus and Poisson’s ratio of the soft coating material, respectively. Equation (3) assumes that the coating material is subdivided into multiple elements distributed around the resonator, with their stiffness properties suitably combined to determine the overall stiffness constant \(k\) (see [27] for more details). Regarding the equivalent masses, the model presented in [27] divides the coating into regions (A) and (B), as shown in Fig. 2. It assumes that region (B) vibrates with the resonator, carrying its mass \({m}_{wB}\). The mass \({m}_{wA}\) of region (A) is instead partially attributed to \({m}_{1}\) and partially to \({m}_{2}\), in such a way that it results in

Here, \({m}_{a}\) and \({m}_{c}\) denote the mass of the StabSoil resonator and the mass of the matrix in the SSMC unit cell, respectively, while \(\alpha\) denotes the coefficient defined through

The following expressions for the individual masses appearing in Eqns. (5)–(6) are easily obtained.\({\rho }_{a}\), \({\rho }_{c}\) and \({\rho }_{w}\) respectively denoting the mass densities of the resonator, the matrix, and the soft coating.

We conducted a parametric study on the frequency bandgap response of various rod elements made of SSMC, utilizing the analytical formulation presented in the previous section. We considered the three mix designs illustrated in Sect. 2, along with different geometries of the SSMC unit cell. Our analysis covers four scenarios, each corresponding to a different unit cell design, with every design examined for each mix design analyzed.

The parametric analysis utilizes the material properties presented in Tables 5 and 6 for the employed mix designs and soft coating, respectively. A lightweight mortar matrix with mass density of 1130 kg/m³ was employed [28]. The analyzed unit cell geometries correspond to the designs illustrated in Table 7, labeled in the format “SSMC-Scenario Label-Design Number ID”.

The first three scenarios use a cell size of \(a=35\) mm and assume various values for the radius of the StabSoil core particle (\({r}_{1}\)) and the external radius of the soft coating (\({r}_{2}\)). In particular, the SSMC-CS cases assume \({r}_{1}\) varies between 10 and 13 mm in increments of 0.5 mm, while \({r}_{2}\) varies between 12 and 15 mm, maintaining a constant coating thickness \(\Delta r={r}_{2}-{r}_{1}=2\) mm. The SSMC-CT cases keep \({r}_{1}\) constant at 9 mm, while allowing the coating thickness to vary between 0.5 and 5.0 mm. In contrast, the SSMC-CB cases keep \({r}_{2}\) constant at 12 mm, while \({r}_{1}\) varies between 7 and 11.5 mm, thereby altering both the core radius and the soft coating thickness (combined effect). Similar scenarios were examined in [27‐29] for different types of metaconcrete. Finally, the SSMC- \(a\) cases allow the cell size \(a\) to vary between 35 and 45 mm, while keeping the core radius fixed at 10 mm and the soft coating thickness fixed at 2 mm.

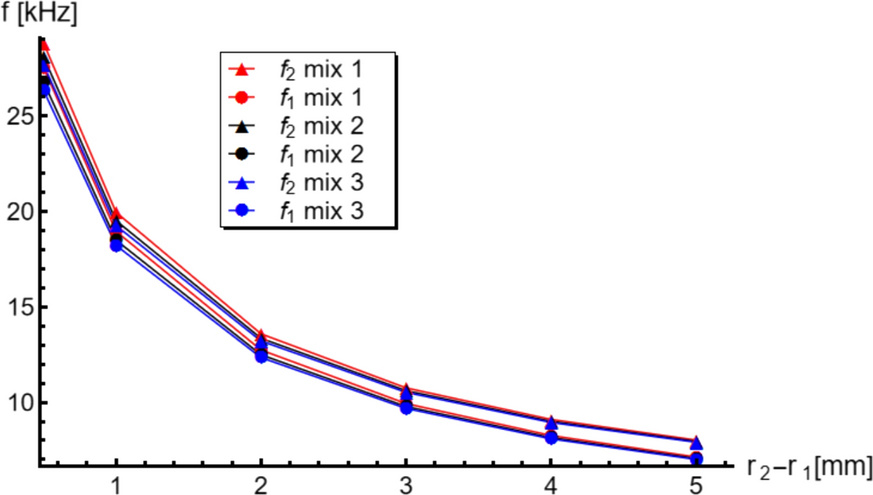

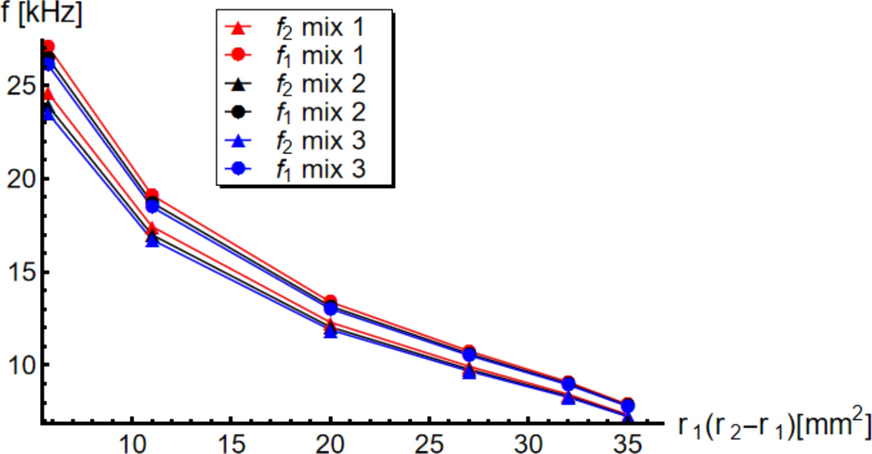

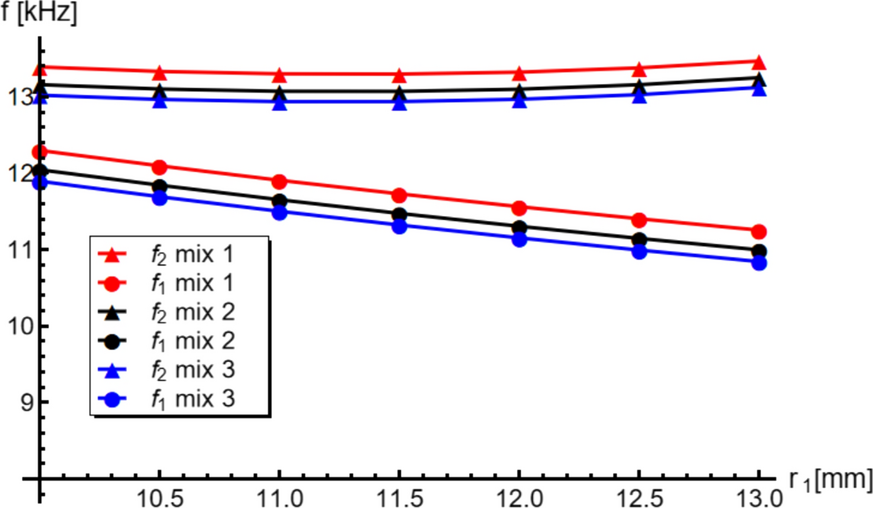

The results shown in Figs. 4, 5 and 6 align with similar findings reported in references [27‐29] for different types of metaconcretes. Figure 4 illustrates that the bandgap-limiting frequencies range between 10.8 and 13.5 kHz, with \({f}_{2}\) nearly constant and \({f}_{1}\) slightly decreasing as the size of the SSMC aggregates increases within the analyzed range of \({r}_{1}\), while the thickness of the soft coating remains fixed (Scenario 1). Additionally, the difference \({f}_{2}-{f}_{1}\), which represents the bandgap width, increases as \({r}_{1}\) increases under the same SSMC design scenario. An increase in the soft coating thickness, as studied in Scenario 2, as well as the combined change in core radius and soft coating thickness analyzed in Scenario 3, results in a noticeable decrease in the values of both \({f}_{2}\) and \({f}_{1}\) with increasing \(\Delta r={r}_{2}-{r}_{1}\) and \({r}_{1}\Delta r\), respectively, as observed in Figs. 5 and 6. These frequencies decrease to approximately 7–8 kHz, starting from a maximum value of 27–29 kHz (\({f}_{2}\)), depending on the mix design of the core particles.

Bild vergrößern

Bild vergrößern

Bild vergrößern

Lastly, increasing the overall SSMC cell size while keeping the SSMC aggregate size unchanged (Scenario 4) results in a slight reduction of the bandgap-limiting frequencies, with a more pronounced decrease in the cut-off frequency \({f}_{2}\) (Fig. 7). In all the above design scenarios, we observed limited variations in the bandgap limiting frequencies when modifying the mix design of the examined StabSoil particles. This is because their mass densities, a crucial factor influencing the bandgap frequency, are highly similar. However, we observe a slight decrease in both \({f}_{2}\) and \({f}_{1}\) when transitioning from Mix 1 to Mix 3, due to an increase in the mass density of the StabSoil core particles (cf. Table 5).

Bild vergrößern

We have introduced a novel type of metaconcrete, labeled SSMC, which incorporates core particles of stabilized and solidified soil to form concrete aggregates encapsulated in a soft material coating (e.g., natural rubber). Various SSMC mix designs were developed, and a detailed parametric analysis was conducted to examine how the bandgap frequency of SSMC varies with the physical and geometric properties of its components [27]. The results indicate that while small variations in core density have a minimal effect on bandgap width, changes in core radius have a more significant influence. Additionally, the study found that as coating thickness and unit cell size increase, the limiting bandgap frequencies decrease. These findings demonstrate that contaminated soils can be safely repurposed for environmental protection and serve as valuable components in civil engineering applications, particularly in blast and seismic-resistant structures [20]. Furthermore, the production of SSMC offers notable environmental benefits, including the remediation of large quantities of contaminated soil and the reuse of waste materials such as municipal solid waste incineration ash.

Several aspects of this study open promising avenues for further research. First, laboratory testing of SSMC core particles is essential to accurately assess their mechanical properties, such as stiffness, strength, and failure mechanisms. These experimental results will be critical for informing and refining numerical simulations of SSMC-based structural elements subjected to blast loading and wave propagation phenomena [27‐29], thereby helping to validate the analytical findings presented in this study. A better understanding of the core particle behavior under high strain-rate conditions will also improve the predictive capabilities of the simulation models. Second, experimental testing of SSMC samples under dynamic loading conditions [23‐26] is needed to corroborate the trends and sensitivities identified in the parametric analysis. Dynamic experiments will help capture complex material responses, such as strain-rate effects and energy dissipation mechanisms, that are difficult to fully characterize through analytical or numerical methods alone. Such experimental validation will enhance the reliability of the proposed models when applied to real-world scenarios. Additionally, future research will aim to explore a broader range of StabSoil mix designs with increasingly diverse compositions [33], including variations in particle types, cementitious binders, and additive contents. This expanded experimental campaign will not only help optimize material performance for specific applications but also support the development of tailored SSMC formulations with enhanced mechanical and dynamic properties. Overall, the experimental outcomes from these future studies will provide a robust foundation for multiscale mechanical modeling of SSMC cementitious materials, accounting for crack-damage phenomena [34‐36] and bridging the gap between microscale particle behavior and macroscale structural performance. A promising direction for future research also involves the use of stabilized soils within seismic metamaterials composed of rubber-coated aggregates. In particular, further investigation is warranted into the seismic wave shielding effects of suitably designed metamaterials incorporating rubber-coated StabSoil inclusions [37].
