Decoherence mitigation by embedding a logical qubit in a qudit

Schemes for quantum computation (QC) rely on networks of quantum bits (qubits) that are mutually coupled and subjected to sequences of controlled operations (quantum gates). Each individual qubit is represented by an algebra of zero-trace \(2 \times 2\) unitary Hermitian matrices, while a classical computer utilizes classical bits that take the value 0 or 1 [1‐4]. The resulting topological manifold describing the state of the qubit is the Bloch sphere, which encodes an uncountably infinite number of possible states, as compared to the two discrete states of a classical bit. Because Hilbert spaces are complex projective spaces, the points on the Bloch sphere are isomorphic to the unit vectors in \(\mathbb {C}^2\), representing the probabilistic outcomes of observing \(\mid 0\rangle \) and \(\mid 1\rangle \) under projective measurements. Multi-qubit states are linear combinations of vectors that are constructed from tensor products of single-qubit computational basis vectors, i.e., \(\mid \psi \rangle = \sum _{\vec {q}} a_{\vec {q}} \mid \alpha _{q_1} \rangle \otimes \mid \alpha _{q_2}\rangle \otimes \dots \otimes \mid \alpha _{q_n} \rangle \). The richness of information encoded by qubits endow quantum computers with unique computational capabilities. Early on, Shor [5, 6] Grover [7] proposed algorithms that have almost become synonymous with QC. Unfortunately, the creation of clean quantum gates exhibiting high fidelity in the presence of decoherence have proven to be a formidable challenge. Quantum error correction (QEC) codes were proposed to mitigate these problems [8, 9]. The highly important toric and surface codes have had a great impact in the field [9‐16]. Improvements in quantum technology over the last two decades have led to the successful realization of the surface code [17, 18]; see also [19, 20].

There currently exist several different schemes for the realization of physical qubits (e.g., molecular magnets [21], defects in solids, cold ions, atoms and molecules, Rydberg atoms, nuclear and electron spin resonances, to name a few); superconducting qubit platforms are currently the most popular thanks to their public availability on cloud computing platforms made possible by companies such as Google, IBM, Rigetti, and IonQ [22]. These platforms are termed NISQ (noisy intermediate scale quantum) devices. As pointed out by Preskill [23], NISQ devices have found many immediate applications, such as variational quantum algorithms [24‐27] and quantum-inspired algorithms [28‐31]. As of today, it is unclear whether any of these methods provide a clear quantum advantage over classical computers in applications of current interest. We note, on the other hand, that the feasibility of quantum supremacy has been demonstrated in experiments [18].

Indeed, while these NISQ platforms provide excellent research, development and educational tools, the realization of large-scale QC algorithms remains out of reach, as the qubits remain too fragile, not well-controlled, and limited by decoherence as well as leakage effects. The impact of quantum errors can be mitigated using error correction schemes. However, those are based on fault-tolerant architectures, which require additional hardware resources (qubits and related controls). The added overhead limits the usefulness of error correction schemes. To overcome this problem, physical devices that are inherently fault tolerant have been proposed as a way to overcome logical errors [32]. With physical fault tolerance, no special architectures are needed, as the fault tolerance is built into the design of the qubit itself. This circumvents the problem of different setups producing different sources of errors. In this context, the realization of robust qubits is of great interest and utmost importance.

In the context of generating robust qubits, we note the proposals for multi-level systems, such as error-correcting codes for molecular magnets [33, 34], optical systems [35] as well as the Kerr-cat qubit (superposition of coherent states) [36]. In Ref. [37], the authors proposed molecular spin qudits as elements of a quantum simulator. In Ref. [38], dysprosium (Dy), whose spin J is 8, was used for enhanced quantum sensing. Furthermore, bosonic codes have been extensively studied: the binomial code [39], the cat code [40‐44], the Gottesman–Kitaev–Preskill (GKP) code [36, 45‐48], and the rotation-symmetric bosonic codes [49]. To realize the bosonic codes, truncated bosonic modes are required and optical systems are possible platforms that may provide us with bosonic modes. Nuclear spins with \(I > 1/2\) are examples of multi-level spin systems, and they exhibit faster relaxation rates, which are a function of the nuclear quadrupole moment and local electric-field gradient. In Ref. [50‐53], the structure and control of such systems are analyzed in the context of NMR experiments.

The description of qudit systems and their uses in QC is often done in terms of generalized Pauli and Clifford operators [54], qudit stabilizer code [55, 56], qudit surface code [57], a decoder for the qudit surface code [58], and a quantum error correction architecture for qudits [59, 60]. Finally, in Ref. [61] qudit-based QC is discussed, including implementations of qudit variants of known quantum algorithms. In this study, we examine the case of qudits (d-level systems) that encode quantum states in a superposition of two energy sublevels playing the role(s) of logical qubits. The remaining unused levels (the “nonencoding subspace”) are not explicitly addressed. Instead, this subspace naturally enhances the lifetime of the logical qubits. We focus on the spin–lattice relaxation mechanism, where enhanced relaxation motivates the use of such systems in quantum memory applications. Specifically, we show that when the quantum information is stored into the two most polarized spin states (e.g., \(\mid \psi \rangle = c_1 \mid d-1 \rangle + c_2 \mid 0 \rangle \)), one obtains a more robust quantum memory in which quantum information can be stored for longer periods of time compared to a pure two-level system (qubit) with no intermediate sublevels separating the pair of qubit levels. In numerical computations, we show that the lifetime of the proposed quantum memory is longer than the conventional qubit system. In order to understand the flow of information between encoding and nonencoding subspaces, entropy production provides an explanation for why qudits exhibit fundamentally different behavior compared to qubits. This paper is organized as follows. In Sects. 2, 4, and 5, we describe the mathematical prerequisite. In Sects. 6 and 7, we show numerical simulations and give discussions. Finally, Sect. 8 concludes this paper. In “Appendix,” we compare the qudit embedding method to a simple QEC model and identify a potentially interesting direction for future research, namely, the use of qudits in quantum memory applications with inherent robustness to information loss.

In this section, we describe how to embed qubit information into a qudit system. Consider a qudit with spin s whose Hilbert space is spanned by \(d = 2s + 1\) energy levels. The density matrix for a qubit \({\hat{\rho }}'\) is specified via two basis states \(\mid \uparrow \rangle , \mid \downarrow \rangle \) and four complex numbers \(\rho _{\uparrow \uparrow }, \rho _{\uparrow \downarrow }, \rho _{\downarrow \uparrow }, \rho _{\downarrow \downarrow }\) that satisfy \(\rho _{\uparrow \uparrow } + \rho _{\downarrow \downarrow } = 1\) and \(\rho _{\uparrow \downarrow }^* = \rho _{\downarrow \uparrow }\):We denote a single-qudit state by \({\hat{\rho }}\) and the d states in the d-level qudit by \(\mid 0 \rangle , \mid 1 \rangle , \mid 2 \rangle , \dots , \mid d - 1 \rangle \). The state described in Eq. (1) is encoded into the d-level qudit as follows:Note that \(\mid 0 \rangle \) and \( \mid d-1 \rangle \) are often referred to as \(\mid s, s \rangle \) and \(\mid s, -s \rangle \), respectively. They are also called “maximally polarized” states. In this paper, we investigate some properties of Eq. (2), such as its lifetime by using an error model that will be explained below. Our analysis shows that encoding of the qubit state in the maximally polarized states leads to longer lifetimes compared to the use of intermediate levels.

We start by defining the generalized Pauli operators [62]:where \(\omega :=e^{2 \pi i / d}\). Note that the definition of \(\hat{X}'\) in Eq. (3) is different from the definition of \(\hat{X}\) in Ref. [62] since \(\hat{X}\) is not symmetric. As justified in A.4 of “Appendix,” there exist physical models where symmetric X-errors occur. We therefore use \(\hat{X}'\) to represent that class of error. For a n-qudit system, \(\hat{X}'\) in Eq. (3) and \(\hat{Z}\) in Eq. (4) acting on the ith qudit are denoted byEvolution of open quantum systems is continuous in time, as described by a master equation such as the Lindblad equation [63]. However, in the QEC literature it is customary to consider a discrete-time dynamical model called the quantum map:where \(\Delta t\) is a discrete-time step taken to be \(\Delta t=1\) (without loss of generality). For \(\mathcal {E}_p (\cdot )\) in Eq. (10), we consider the following model:where andNote that the notation used in Eq. (8) is not the tensor product. It merely denotes the composition of operations, as shown in Eq. (9). Here, p is the probability of error in the model and K is the number of error channels. For the \(X'\)-type error model and the Z-type error model, \(K=1\), but for the \(X'+Z\)-type error model, K = 2. For \(\mathcal {E}_p ({\hat{\rho }}; \{ \hat{K}_{i, k} \}_{k=1}^K)\) in Eq. (10) being trace-preserving, we have divided the second term of the right-hand side of Eq. (10) by \(\textrm{Tr} [\hat{K}_{i, k} {\hat{\rho }} \hat{K}_{i, k}^\dagger ]\). Note that in general, \(\textrm{Tr} [\hat{K}_{i, k} {\hat{\rho }} \hat{K}_{i, k}^\dagger ]\) can be zero, but we have checked that in our setup, it is nonzero. Single-qudit operators, \(\{ \hat{K}_{i, k} \}_{\begin{array}{c} k=1, 2, \dots , K, \\ i = 1, 2, \dots , n \end{array}}\), are denoted as:Note that \(\bigodot _{i = 1, 2, \dots , n} \mathcal {E}_p (\cdot ; \{ \hat{K}_{i, k} \}_{k=1}^K)\) does not depend on the order of terms in the product since we consider only single-qudit errors.

A variety of measures [64] exist to quantify the time evolution of quantum states. We use the process fidelity [65, 66] since our calculations do not invoke a random number generator (e.g., the Haar measure) and its interpretation is relatively clear. The definition of process fidelity is based on the concept of quantum state fidelity for the maximally entangled state. Maximally entangled state is used because the dynamics of decoherence depends on not only maps but also initial states. When we consider the maximally entangled state and an error model (map) is applied to only one of them, fidelity appears to be monotonically decreasing. The fidelity between two quantum states \({\hat{\rho }}\) and \({\hat{\sigma }}\) is given by [64]The initial state iswhereas error models are applied to the second qudit. We compute the fidelity between the initial state and the state at time step \(\tau \).

The general definition of the process fidelity is given by [65, 66]where \({\hat{\rho }}_\mathcal {A} :=\mathcal {A} ({\hat{\rho }})\) and \({\hat{\rho }}_\mathcal {B}' :=\mathcal {B} ({\hat{\rho }}')\). In this study, we use the identity map for \(\mathcal {A}\) in Eq. (14) and the error maps defined in Sect. 3.

To interpret the results from numerical simulations, we used entropy production, which is defined aswith \(S_{-1} = 0\) and \(S :=- \textrm{Tr} [{\hat{\rho }} \ln {\hat{\rho }}]\). Furthermore, we define entropy productions in the total space, the encoding subspace, and the nonencoding subspace in terms Eq. (15) with \({\hat{\rho }}\), \({\hat{\rho }}^\textrm{en}\), and \({\hat{\rho }}^\mathrm {non-en}\), respectively, whereHere, \(\hat{P}^\textrm{en}\) is the projection onto the most polarized states \(\mid 0_\textrm{L} \rangle \) and \(\mid 1_\textrm{L} \rangle \), whereas \(\hat{Q}^\textrm{en}\) is the projection in the orthogonal complement of \(\hat{P}^\textrm{en}\) (i.e., the nonencoding subspace):

To quantify decoherence of quantum states, we use the process fidelity, Eq. (12), by computing the quantity:where \({\hat{\rho }}_t^\textrm{en} :=\hat{P}^\textrm{en} {\hat{\rho }}_t \hat{P}^\textrm{en}\) and \({\hat{\rho }}_t\) is defined, recursively, via \({\hat{\rho }}_t = \mathcal {E}_p ({\hat{\rho }}_{t-1})\). We denote the actions of the qudit operators \(\hat{X}_i', \hat{Z}_i\) and \(\hat{X}_i'+ \hat{Z}_i\) in Eq. (8) by \(\mathcal {E}_p^{(X')} (\cdot )\), \(\mathcal {E}_p^{(Z)} (\cdot )\), and \(\mathcal {E}_p^{(X'+Z)} (\cdot )\), respectively. Figure 1 shows process fidelity for the Z-, \(X'\)-, and \(X'+Z\)-type error models and its dependence on d. Here, we take \(\mid 0_\textrm{L} \rangle = \mid 0 \rangle \) and \(\mid 1_\textrm{L} \rangle = \mid d-1 \rangle \) (maximally polarized state) and increase the dimensionality of the qudit manifold (d).

Bild vergrößern

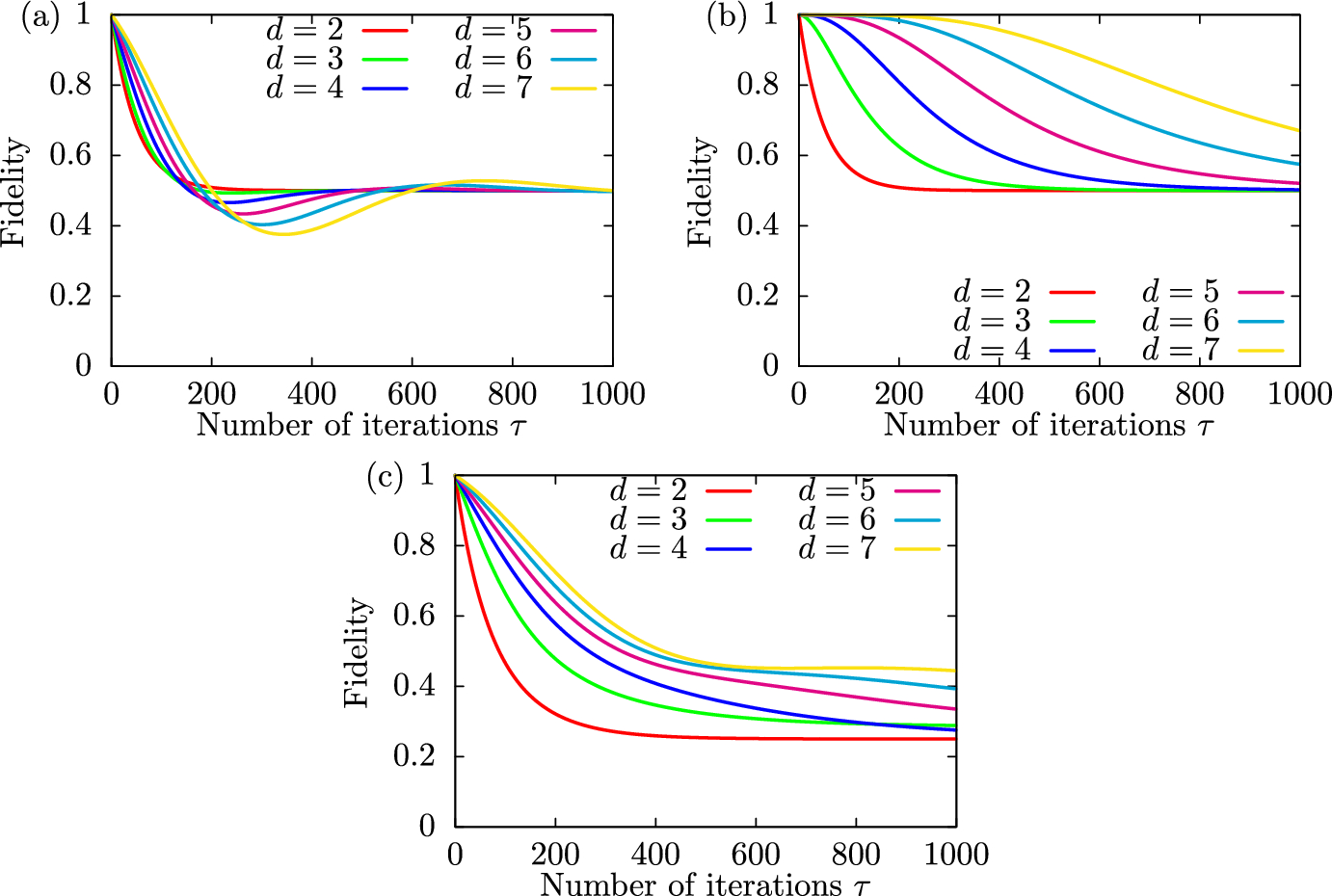

For all three error models, process fidelity increases with d, at least initially. Thus, quantum information is preserved over longer times. The logical qubit’s lifetime appears to increase with its dimensionality (d). It is still unclear whether this is due to dimensionality or separation between the levels of the logical qudit. We observe non-monotonic behavior in Fig. 1a. The fidelity initially drops because the errors move the “weights" away from the most polarized levels to intermediate levels. After several steps, all levels possess nonzero “weights," and some weights begin to flow back to the most polarized levels at a higher rate, resulting in higher fidelity. Mathematically, the time evolution of the population of any given sublevel is dictated by a set of coupled ODEs (one for each sublevel and coupling to its neighboring levels), and such coupled ODEs generally lead to non-exponential decays.

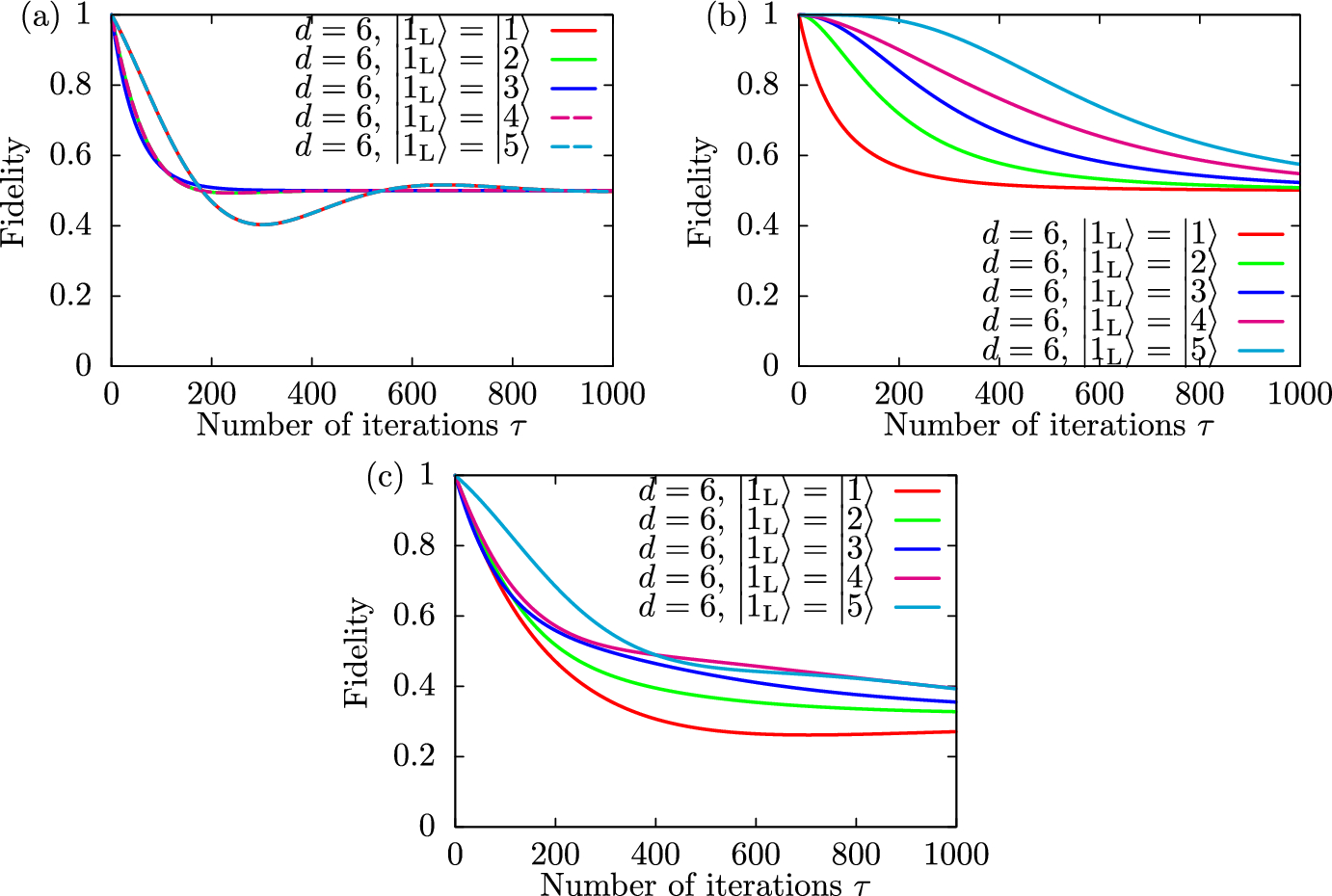

To investigate this, we fix the value \(d=6\) as well as the state \(\mid 0_\textrm{L} \rangle = \mid 0\rangle \) but vary the distance between two logical states by increasing \(\mid 1_\textrm{L} \rangle \). In Fig. 2, we show the \(\mid 1_\textrm{L} \rangle \)-dependence of the process fidelity for the Z-, \(X'\)- and \(X'+Z\)-type error models.

Bild vergrößern

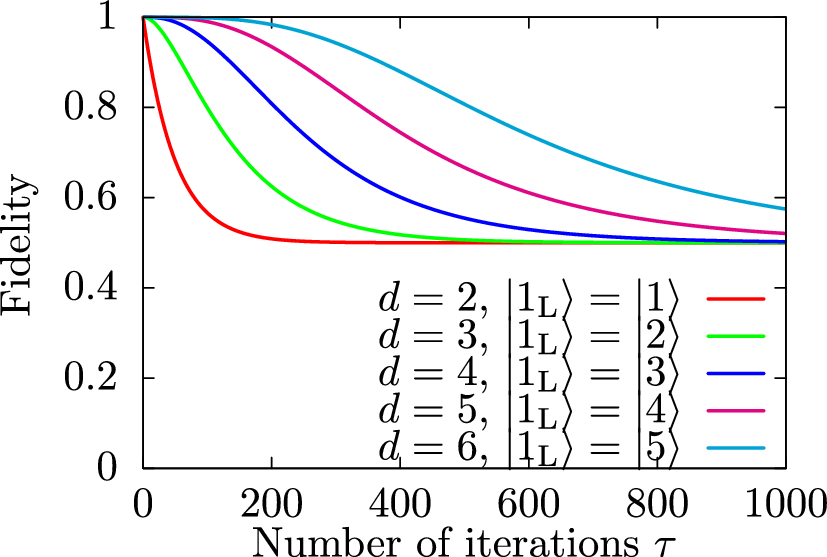

The observed trends are similar to those of Fig. 1. We therefore conclude that the distance between \(\mid 0_\textrm{L} \rangle \) and \(\mid 1_\textrm{L} \rangle \) is the key factor, not the dimensionality of the qudit itself (although dimensionality d needs to be high). Figure 3 shows that the lifetime enhancement holds regardless of whether d is fixed and the logical qubit \(\mid 1_L \rangle \) is increased, or if d is varied along with \(\mid 1_L \rangle \).

Bild vergrößern

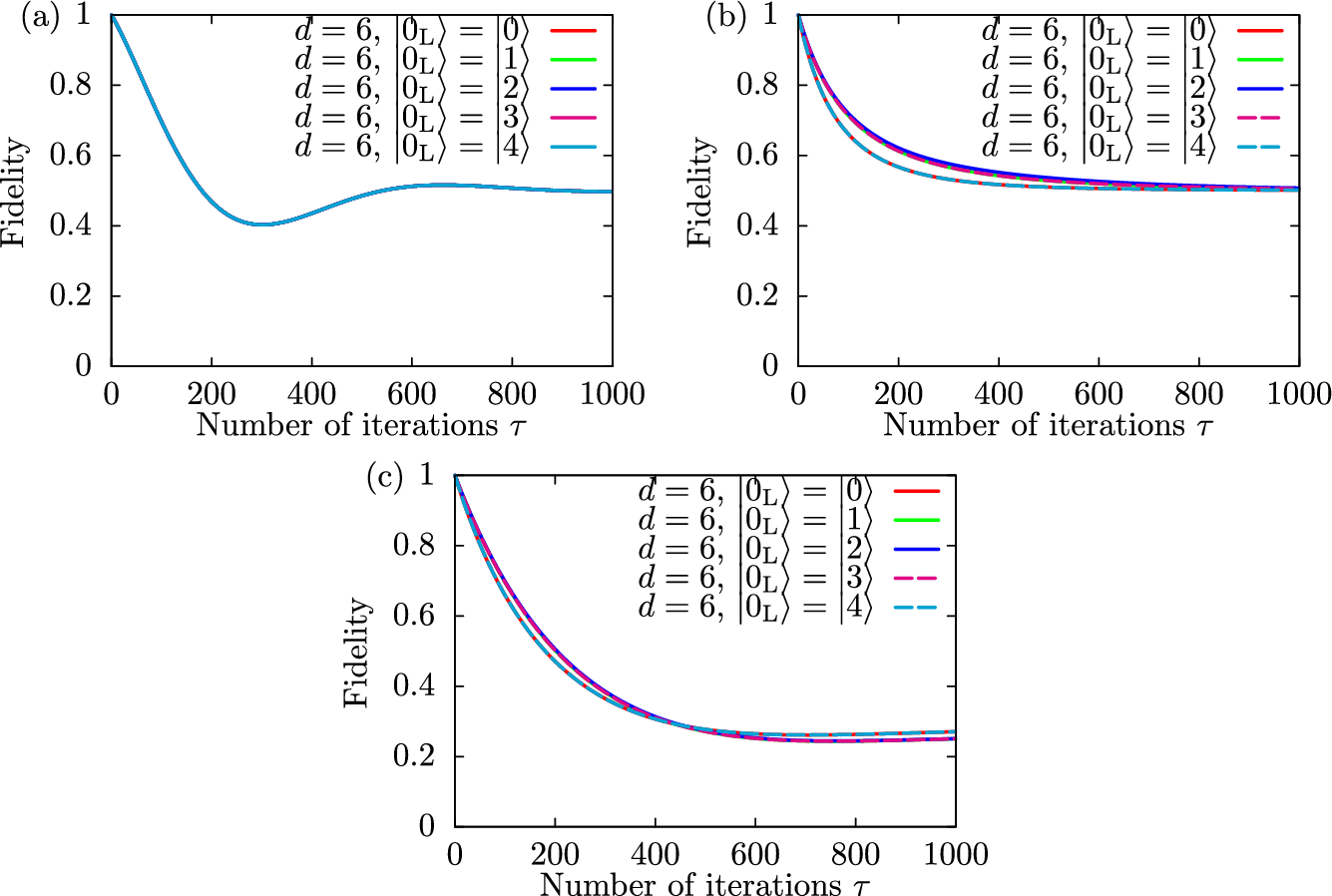

In Fig. 4, we show process fidelity when we vary \(\mid 0_\textrm{L} \rangle \) and \(\mid 1_\textrm{L} \rangle \) simultaneously while keeping the distance fixed (set equal to 1).

Bild vergrößern

All curves are nearly identical, meaning that the lifetime does not depend on the choice of sublevels. This result supports the view that lifetime depends primarily on distance between levels.

Thus, the process fidelity decays slower as the separation between logical levels is increased. Consider the experiment where d is increased and the logical qubit is encoded in the maximally polarized states. We fit the Kohlrausch (stretched exponential) function [67, 68]for each d and obtain its parameters \(\alpha \), \(\tau \), and b. (A parameter estimation method was proposed in Ref. [69].) In Table 1, the values of b, \(\tau \), and \(\alpha \) obtained from the fit are shown.

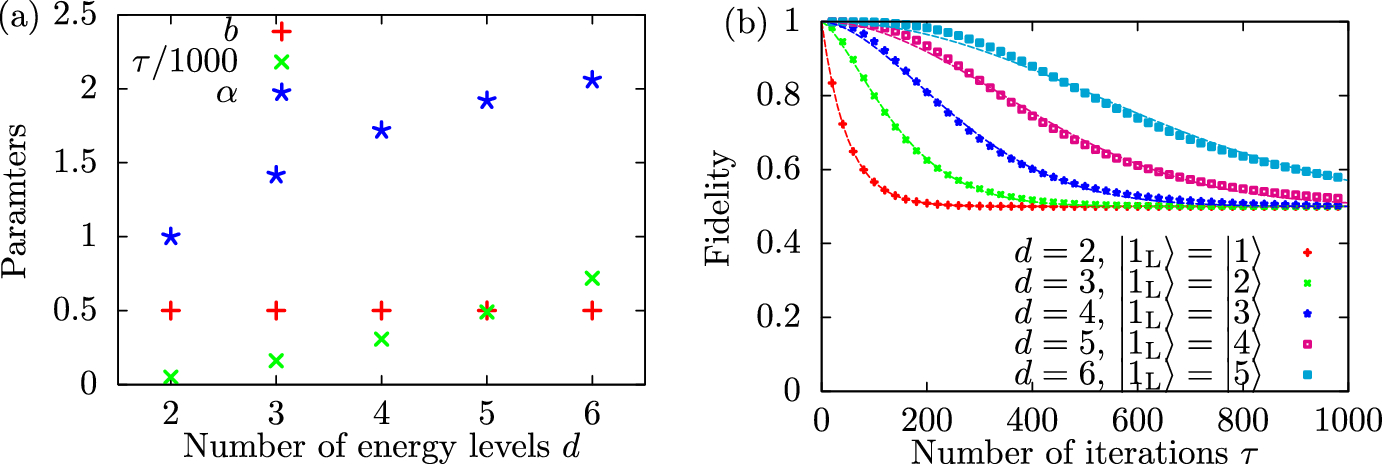

In Fig. 5a, the results shown in Table 1 are plotted and, in Fig. 5b, the raw values and the fitting curves are shown.

Bild vergrößern

Figure 5b shows good agreement between raw data (symbols) and the fitted curve. The value of \(\alpha \) increases from 1 to \(\sim 2\), whereas the lifetime \(\tau \) increases by a factor of \(\sim 15\) (more than an order of magnitude). This result for \(\tau \) is important, as it supports the use of qudits as building blocks for more robust quantum memories. The result for \(\alpha \) indicates that for the \(X'\) error model. This can be understood from the form of the \(X'\) operator (Eq. 3) which, when inserted into the quantum map (Eq. 10), leads to a set of coupled ODEs for the elements of the density matrix that describe a detailed balanced first-order rate process with transitions between neighboring levels. It is well known that distributions of rate processes lead to stretched exponential relaxation.

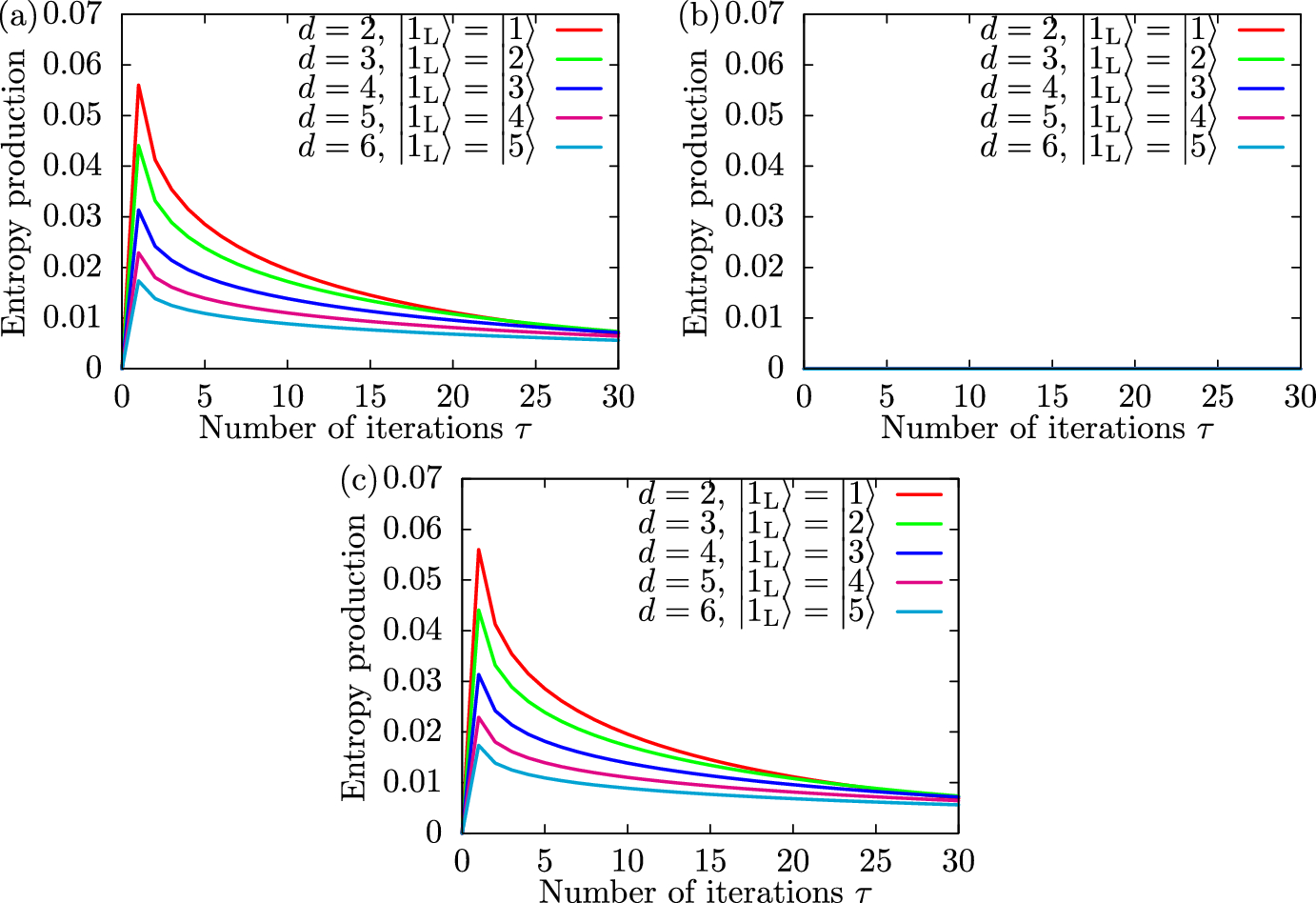

To shed light on the results of Sect. 6, we compute entropy production (defined in Sect. 5). Figure 6 shows entropy production of the total space, the encoding subspace, and the nonencoding subspace for the Z-type error model.

Bild vergrößern

We see that in Fig. 6a entropy production decreases with d. This behavior is consistent with the results of Fig. 1a: Shorter lifetimes are associated with high entropy production (rapid loss of information). The results of Fig. 6 also show that entropy production in the encoding subspace and the total space are the same, but entropy production in the nonencoding subspace is always zero. We interpret this to mean that information initially stored in the logical qubit flows out of the qudit system. This leakage of information out of the system is less pronounced at large d. The lack of entropy production in the nonencoding subspace (Fig. 6b) is a consequence of the Z-type error model, which does not have any channels connecting encoding and nonencoding subspaces (i.e., none of the operators \(\mid k\rangle \langle k \mid \) present in Z connect pairs of energy levels).

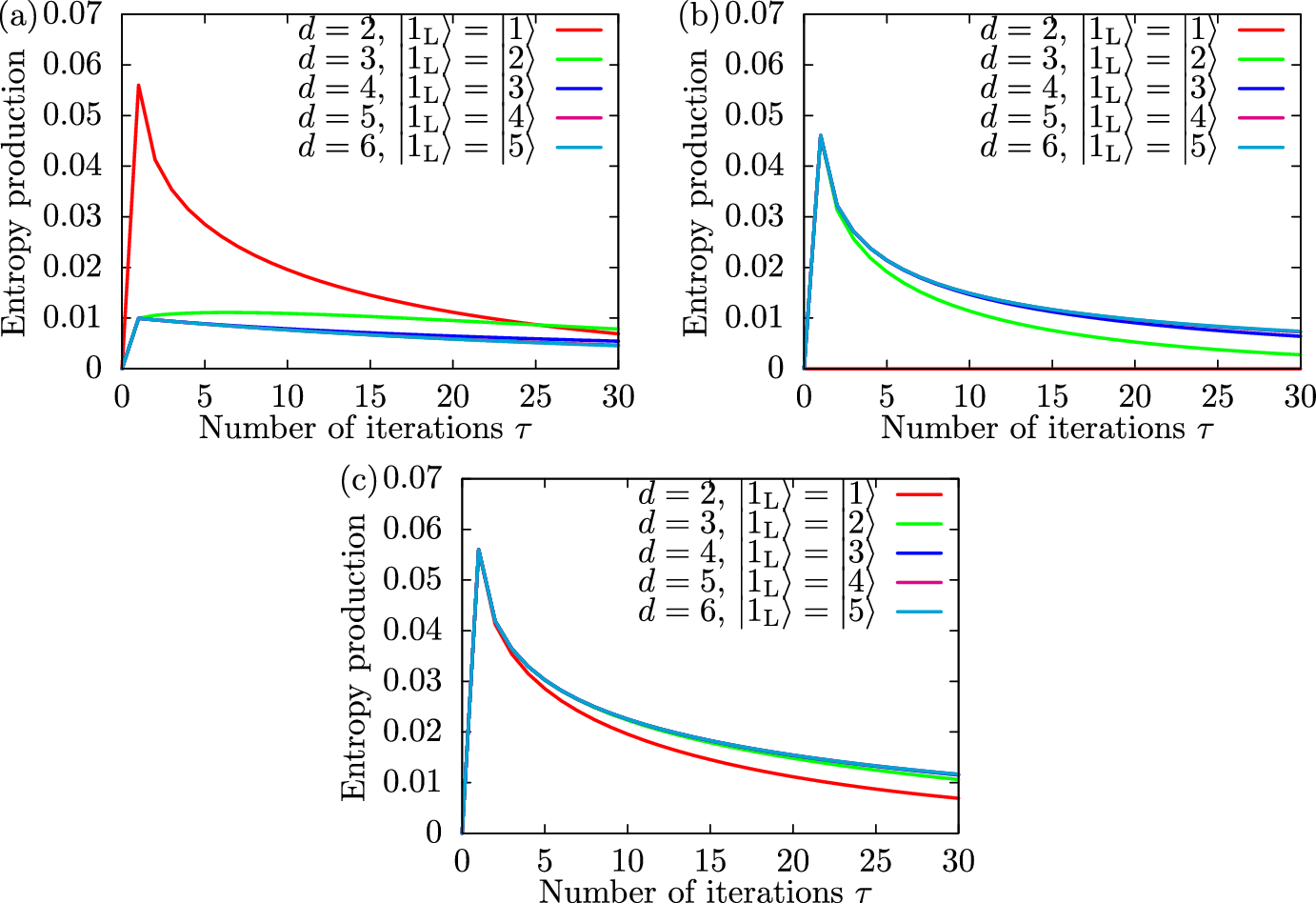

Figure 7 shows entropy production of the total space, the encoding subspace, and the nonencoding for the \(X'\)-type error model.

Bild vergrößern

In Fig. 7a, entropy production within the encoding subspace is drastically suppressed with d. This observation is again consistent with the results of Fig. 1(b) (i.e., longer lifetimes with increased d due to the preservation of information). However, there is an important difference between the cases of the \(X'\)-type error model and the Z-type error model. For \(X'\), the entropy production in the nonencoding subspace is nonzero. In fact, entropy production in the nonencoding subspace dominates. This feature enables recovery of qubit information by post-selection. Contrary to the case of the Z-type error model, the entropy production in the nonencoding subspace and the total space are nearly identical except for the case \(d = 2\). This leads to increased robustness of the state in the encoding subspace. We note that for \(d = 2\) the nonencoding subspace does not exist; therefore, \(d = 2\) is an important exception. It is the reason why physical qubits are less ideally suited for use as quantum memories: The only allowed pathway for information transfer is irreversible, whereas for the qudit some of the leakage channels are reversible.

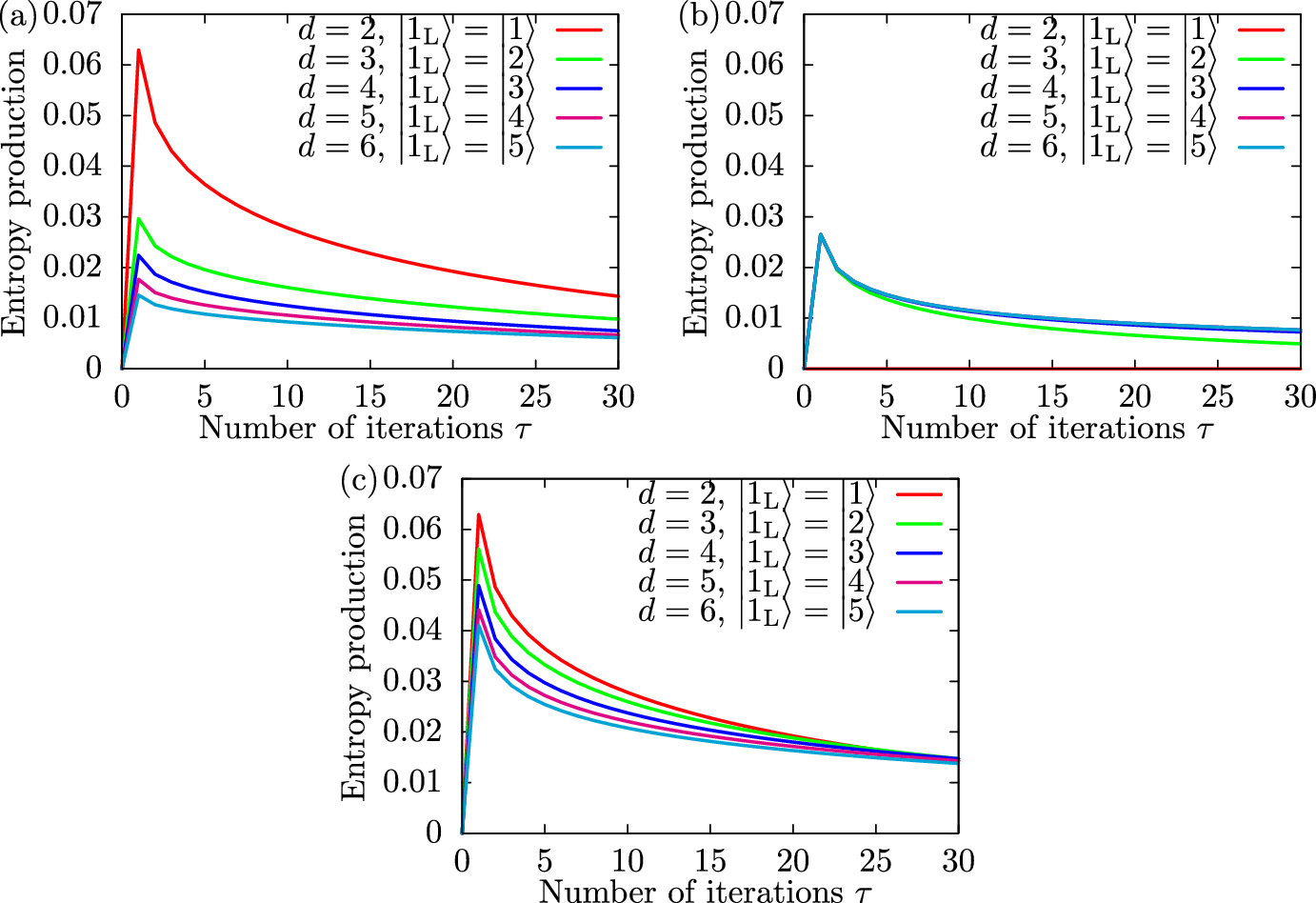

In Fig. 8, we show entropy production of the total space, the encoding subspace, and the nonencoding for the \(X'\)-type error model and Z-type error model.

Bild vergrößern

In the case of the \(X'+Z\)-type error model, intermediate behavior between the above two cases is observed. Though the improvements become smaller compared to the case of the pure \(X'\)-type error model, entropy production can still be suppressed by increasing d.

These results suggest that the encoding of logical qubits in the levels of qudits can provide increased robustness due to the inherent physics of such systems. Interesting avenues to pursue would be to (i) explore how such physics-aided robustness—potentially requiring less extra overheads—compare with the algorithm-aided robustness created in QEC schemes, more specifically, estimating the circuit complexity of a QEC circuit that could afford similar robustness, and (ii) how to integrate the two schemes to obtain simpler circuits and reduced operation overheads that plague direct QEC implementations. In order to determine the actual performance gains, a real physical system and its precise characteristics should be modeled. Performance gains over QEC (if any) can only be determined by simulating the precise physical system under consideration, using realistic modeling. A proper QEC scheme for qudits must also be devised. “Appendix” presents a simple, but unoptimized one. Nonetheless, we conclude that these findings are encouraging and warrant further investigations. This work may lead to new strategies for quantum processors and quantum memories based on the use of qudits.

There are, of course, important physical considerations involved when using physical qudits, such as the faster relaxation rates of nuclei with large quadrupolar moments or the difficulty of selectively addressing pairs of sublevels. Optical qubits [70‐72] and superconducting qubits could be adapted for such applications. Another possible test platform would be the nuclear spins in bullvalene in a liquid crystal solvent [73, 74]. Because of rapid bond shifting, every one of the ten protons is equivalent, and every dipolar coupling is the same; so the totally symmetric representation in such a system is effectively a spin-N system [74]. A simple (X/2)-\(\tau \)-(X/2) sequence will produce the theoretical maximum possible N-quantum coherence just by making the delay equal to 1/3D [74].
