Effect of Tension Temperature on the Anisotropy of Tensile Behavior for Az31 Alloys: A Visco-Plastic Self-Consistent Analysis

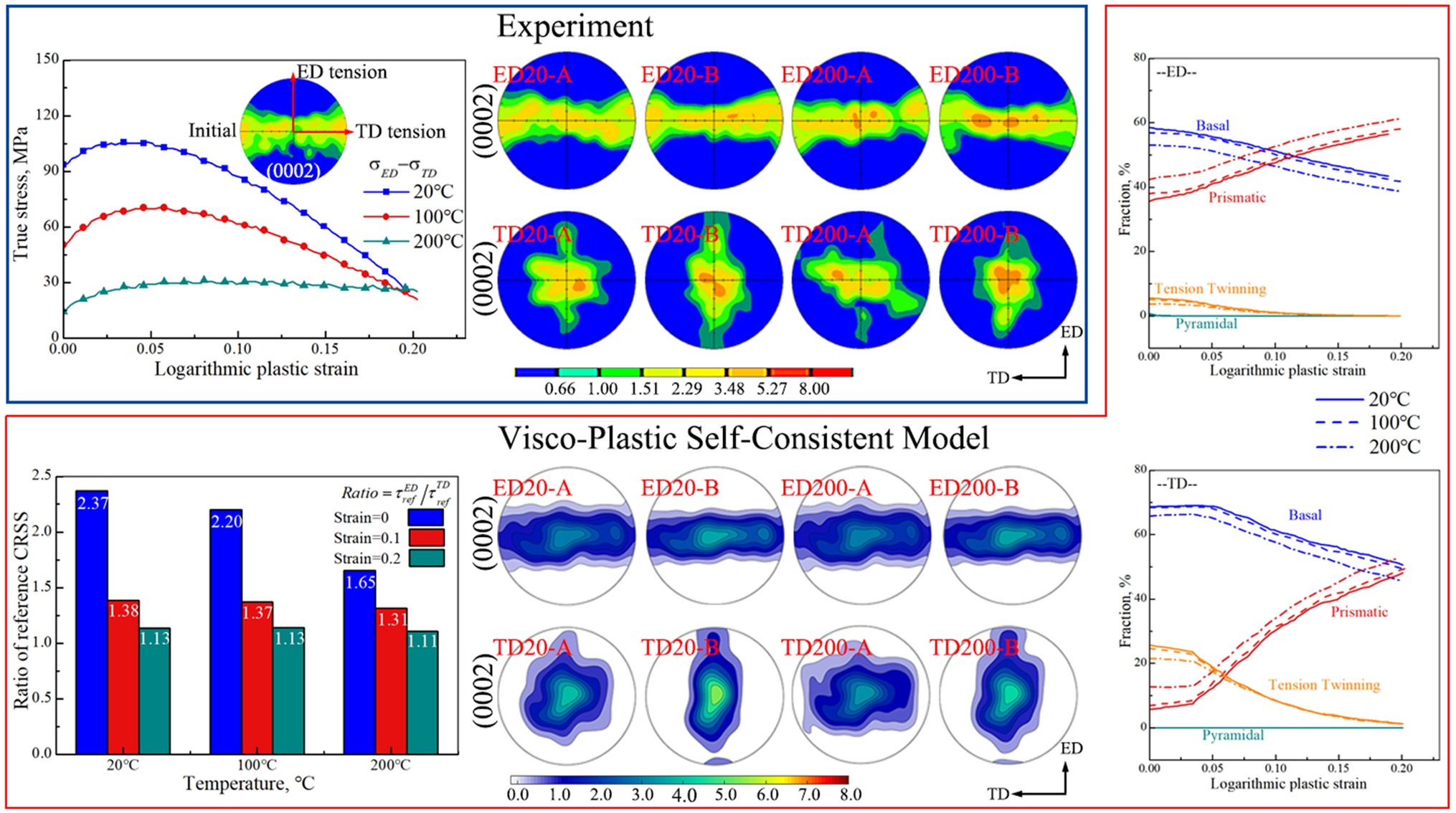

In this work, the anisotropy variation of tensile flow stress for AZ31 magnesium alloys was investigated at various temperatures and tensile strains with the help of the visco-plastic self-consistent model. The results showed that the anisotropy of flow stress was weakened with the increase of tensile temperature, while such anisotropy presented a slightly increasing stage first and then a continuously decreasing stage with the increase of tensile strain. During the tension deformation, the activations of basal slip and tension twinning, together contributed to the development of a (0002)//LD (LD: loading direction) type texture. In contrast, the activations of prismatic slip produced a 〈10–10〉//LD type texture. Such texture variations influenced the Taylor factors, but did not cause significant differences in the flow stress. By comparison, the difference in the macroscopic average resolved shear stress, which was calculated according to the critical resolved shear stress of each deformation mode and their respective activation fractions, decreased significantly with the increase of tensile temperature or tensile strain. This was the major reason for the decline of the tension deformation behavior anisotropy.

Bild vergrößern
