Abstract
Generalized Nash Equilibrium is an extended version of the standard Nash Equilibrium with important implications in real-life problems such as economics, wireless communication, the electricity market, or engineering among other areas. In this paper, we propose a first approach to computing Generalized Nash Equilibria using Membrane Computing techniques. We model an efficient P system that, based on Euler’s method, computes approximations of Generalized Nash Equilibria of population games under Brown–von Neumann–Nash dynamics, bridging both areas and opening a door for a flow of problems and solutions in both directions.
Notes
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
1 Introduction
Evolutionary Game Theory (EGT) studies the evolution of a population of agents that interact with each other and get a payoff in each interaction Hofbauer and Sigmund (2000). The obtained payoff depends on the chosen strategies of the agents which participate in the interaction. Each agent selects only one strategy at a time, but this choice can be modified over time. The driving principle in this situation is that individuals tend to be selfish, choosing strategies that result in higher payoffs for themselves. In this context, a Nash equilibrium is reached when no agent can increase its payoff by changing its strategy while other agents maintain their current ones Nash (1951).
In a Nash equilibrium problem, all the agents compete among them to maximize their payoffs, and each agent can freely choose its strategy. The generalized Nash equilibrium problem (GNEP) is a variant of the Nash problem introduced in 1952 by G. Debreu Debreu (1952). In a GNEP, the strategy set of each player may also depend on the other players’ strategies. This GNEP models a large number of real-life situations, such as power allocation in a telecommunication system, environmental pollution control, or energy market model (for a detailed survey, see, e.g., Facchinei and Kanzow (2007)).
Advertisement
In this paper, we propose to study the GNEP in the framework of Membrane Computing Păun (2002); Păun et al. (2010). Membrane Computing is a well-known area of Computer Science that takes inspiration from the biochemical reactions inside the vesicles of living cells. P systems Păun (2000), the so-called Membrane Computing devices, have been successfully considered to model many dynamic processes in real-life problems Colomer et al. ( 2010, 2011); García-Quismondo et al. (2017). From the initial definition of P systems, many variants have been explored by adding new features to the initial model (see, e.g., Song (2021) for a recent survey). Recently, Probabilistic P systems Cardona et al. (2011), a kind of P system designed to deal with probability distributions in the application of rules, was considered to model the spread of behaviors in structured populations in the framework of EGT García-Victoria et al. (2022). In this paper, we study the GNEP by considering transition P systems with active membranes Păun (2001), also called membrane polarization.
The paper is organized as follows: Sect. 2 establishes some background on P systems and specifies the type of P system we use: transition P systems with membrane polarization. Section 3 introduces population games under the Brown-von Neumann-Nash (BNN) dynamics, that will be used as the framework to define our P system. In Sect. 4, we describe the design of our P system and analyze its time complexity, showing that it does not depend on the number of players or strategies involved. We also present an experiment to illustrate its functioning. Finally, some conclusions and hints for future work are presented.
2 Transition P systems with membrane polarization
In this section, we define the variant of P systems that we used to solve our problem: transition P systems with membrane polarization. Then, in section 2.1, we provide an example of such a P system.
After the development of the first model of P system by Gh. Pǎun in 1998 Păun (2000), many variations have been presented. In this work, we use a combination of two proposed variants. The P system designed is a transition P system Păun (2000) with active membranes Păun (2001) without division rules, i.e., a transition P system with membrane polarization. A transition P system with membrane polarization of degree \(q \ge 1\) is a construct:
\(\mu \) is a hierarchical tree-like membrane structure of q membranes that have a polarization among \(0,+,-\);
3.
\(w_1, \dots , w_q\) are multisets of objects over \(\Gamma \);
4.
\(\mathcal {R}_1, \dots , \mathcal {R}_q\) are finite sets of evolution rules of the form:
\(u [v]_h^\alpha \rightarrow u' [v']_h^\beta \) where \(u,u',v,v'\) are multisets over \(\Gamma \), \(h \in \{1,\dots ,q\}\), h is not the label of the root membrane in \(\mu \), and \(\alpha , \beta \in \{0,+,-\}\).
\([v]_h^\alpha \rightarrow u' [v']_h^\beta \) where \(u,u',v,v'\) are multisets over \(\Gamma \), \(h \in \{1,\dots ,q\}\), h is the label of the root membrane in \(\mu \), and \(\alpha , \beta \in \{0,+,-\}\).
The difference between the expressions resides in that no objects should be able to enter the skin membrane (the root of \(\mu \)) from the environment. The meaning of these rules can be easily understood as combinations of the following examples:
\([u]_h^\alpha \rightarrow [v]_h^\alpha \), also expressed as \([u \rightarrow v]_h^\alpha \), is an object evolution rule, that transforms the multiset u into the multiset v.
\([u]_h^\alpha \rightarrow v [ \ ]_h^\beta \) is a send-out communication rule, that ejects the multiset u, and transforms it into the multiset v.
\(u [ \ ]_h^\alpha \rightarrow [v]_h^\beta \) is a send-in communication rule, that absorbs the multiset u, and transforms it into the multiset v.
The general expression considers combinations of these cases, where some multisets can be absorbed into membrane h at the same time as others are transformed or ejected.
5.
\(\rho _1, \dots , \rho _q\) are partial order relations over \(\mathcal {R}_1, \dots , \mathcal {R}_q\), called priority relations. Given two rules \(r, r'\), we represent that r has higher priority than \(r'\) by \(\rho _{r} > \rho _{r'}\). Priority indicates what rule should be applied if both are applicable.
6.
\(i_{out} \in \{0, 1, \dots , q\}\) is the output region, where 0 represents the environment.
A configuration of \(\Pi \) is defined by \(C_t = ((w_{1,t}, \alpha _{1,t}), \dots , (w_{1,t}, \alpha _{1,t}), w_{0,t})\) for an instant t, where \(w_{h,t}\) is the multiset of objects in membrane h at instant t, \(\alpha _{h,t}\) is the membrane polarization of membrane h, and \(w_{0,t}\) is the multiset of objects of the environment. The initial configuration of \(\Pi \) is \(C_0 = ((w_1, 0), \dots , (w_q, 0), \emptyset )\). We use the notation \(\mathbb {C}_t = \mu '\) to denote specific parts from the configuration \(C_t\) where only the membranes in the subtree \(\mu '\) from \(\mu \) are considered.
Advertisement
For each configuration, the rules are applied in a parallel and maximal way. By maximal, we indicate that no more rules can be applied at the same time. Formally, a multiset U of rules is maximal if there is no multiset of applicable rules \(U'\) such that \(U \subset U'\). If two applicable rules with the same priority are exclusive, this is, triggering one would prevent the other one from triggering, then only one of them is selected at random and applied.
As in García-Victoria et al. (2022), the semantics of the P system follow the next principles:
(I1)
When an object crosses a membrane, its polarization may change. Rules can only be applied if the polarization is appropriate.
(I2)
If two rules that affect the same membrane can be applied at the same time, and one of the rules changes the polarization of the membrane, both rules are applied. This means that the change of polarization is performed after all other evolution rules are applied.
Notice that principle (I2) ensures that rules are applied in a parallel and maximal way. If this principle is not assumed, and a rule can change the membrane polarization, then the order of application of the rules would be important during a single transition step. In that case, multisets of rules that can be applied would not be well-defined, breaking the parallelism and maximality of the system.
Notice also that, while the membranes in \(\Pi \) have labels in \(\{1,\dots , q\}\), we can always define a set H of labels with \(|H| = q\) such that there is a bijection between the elements of H and the membranes of \(\mu \). The same applies to the rules, that we can express as the tuple \((\mathcal {R},\rho )\). We use this fact in Sect. 4.1 to provide a better indexing.
We have that \(U_1 = \{r_1, r_3, r_4, r_5\}\), \(U_2 = \{r_3\}\), \(U_3 = \{r_1,r_4^3, r_5\}\) are multisets of applicable rules. \(U_2\) is not maximal because \(U_2 \subset U_1\). \(U_1\) and \(U_3\) are the only maximal multisets of applicable rules, and they could both be applied in this configuration because there is no priority between the rules involved in each set. \(r_2\) can not be part of a maximal multiset of applicable rules because rule \(r_1\) has priority over rule \(r_2\) (\(\rho _{r_1} > \rho _{r_2}\)).
The multiset \(U_1\) would lead to the configuration \(\mathbb {C}_1 = [ \ [ b^2c k ]^+_2]_1^0\), and the multiset \(U_3\) would lead to \(\mathbb {C}_1 = [ \ [ b c^3 k ]_2^+]_1^0\). Because the polarization of membrane 2 changed to \(+\) in both configurations, none of the rules in \(\mathcal {R}_2\) can now be applied. Because there are no objects \(k_0\) in membrane 1, none of the rules in \(\mathcal {R}_1\) can be applied. The computation of the system is then finished for both cases after one transition step.
3 Population games under BNN dynamics
The purpose of this section is to introduce population games. Specifically, we introduce population games under BNN dynamics, which are central to this paper. In section 3.1, we give an example of such a game: the Energy Market Game, where players decide when to buy energy and modify their strategies depending on the decisions of the rest until an equilibrium is reached. We use the Energy Market Game as a framework to define our P system, and we explain how the P system can be modified to adapt it to other population games under BNN dynamics.
In a population game, we have a society of decision-making agents divided into disjoint populations that receive different payoffs depending both on the decisions they make and the decisions the rest of the agents make. The goal of each population is to maximize the payoff received. The decisions that agents can make depend on the population they form part of. Each agent is endowed with a revision protocol, which provides conditional switch rates between strategies according to their associated payoffs Sandholm (2010). These rates allow the agents to change their strategies over time. When the number of agents is large enough, this process can be described by differential equations, referred to as the evolutionary dynamics model (EDM). In EDMs, the agents can be modeled as real numbers, the mass of agents, instead of being modeled as discrete independent entities. There are multiple EDMs, but we focus on a specific EDM known as BNN dynamics Brown and von Neumann (1951), which are described next (see Martinez-Piazuelo et al. (2022) for details).
Let us consider a society of agents divided into \(N \in \mathbb {Z}_{\ge 1}\) disjoint populations indexed by \(\mathcal {P} = \{1, 2,..., N\}\). Each population \(k \in \mathcal {P}\) is comprised of a constant mass of decision-making agents \(m^k \in \mathbb {R}_{>0}\). The set of strategies of each agent in population \(k \in \mathcal {P}\) is \(\mathcal {S}^k \subset \mathbb {Z}_{\ge 1}\) with \(2 \le n^k = |\mathcal {S}^k| < \infty \). The amount of agents selecting strategy \(i \in \mathcal {S}^k\) at population k is denoted as \(x_i^k \in \mathbb {R}_{\ge 0}\). Notice that agents from different populations \(k_1\) and \(k_2\) can select the same strategy i if \(i \in S^{k_1}\) and \(i \in S^{k_2}\). Similarly, the proportion of agents selecting strategy \(i \in \mathcal {S}^k\) at population k is denoted as \(z_i^k = x_i^k / m^k\). Furthermore, \(x^k = (x_{i_1}^k,..., x_{i_{n^k}}^k)^\top \) and \(z^k = (z_{i_1}^k,..., z_{i_{n^k}}^k)^\top \) denote the strategic distributions of population k, \(x = ({x^1}^\top , {x^2}^\top ,..., {x^N}^\top )^\top \), and \(z = ({z^1}^\top , {z^2}^\top ,..., {z^N}^\top )^\top \). Let \(t \in \mathbb {Z}_{\ge 0}\) be the discrete-time index; x(t) the value of x at time t; z(t) the value of z at time t and \(p_i^k(t) \in \mathbb {R}\) the payoff received by the agents selecting strategy \(i \in \mathcal {S}^k\) at population \(k \in \mathcal {P}\).
Following the revision protocol introduced in Martinez-Piazuelo et al. (2022), the equations that define the EDM describing the evolution of x(t) over time are:
where \([\cdot ]_+ = \max (\cdot ,0)\), and \(\dot{x}\) denotes the derivative of x. This EDM is known as the BNN dynamics Brown and von Neumann (1951).
Intuitively, Eq. (2) computes the benefit of having more agents following strategy j in population k. The reason is that Equation (2) computes the difference between the payoff obtained by agents \(x_j^k\) and the average payoff obtained at time step t. A positive value of \(\hat{p}_j^k(t)\) would indicate that it would be better for population k to have agents switch to strategy j. Equation (1) can then be used to decide how many agents should switch to other strategies at the next time step, given by the derivatives \(\dot{x}_i^k(t)\).
A payoff dynamics model (PDM) that describes the evolution of p(t) is also introduced, defined by:
$$\begin{aligned} \dot{\mu }(t) = Ax(t) - b \end{aligned}$$
where f is a fitness function that provides the payoff for the strategies chosen at a given population state, \(\mu \) represents some constraints over such decisions, and such constraints are given by a matrix A and a vector b that depends on the specific problem. In this context, A and b just introduce penalizations to the payoff, instead of introducing hard constraints.
Since the importance of this system lies in updating the payoff signal p(t) and having a closed-loop configuration between p(t) and x(t), a simplified version of this system, where we remove the constraints over the strategies chosen, is considered:
$$\begin{aligned} p(t) = f(x(t)) \end{aligned}$$
(5)
An EDM whose payoff function follows a PDM is then called an EDM-PDM.
It is not hard to modify the P system proposed later in Sect. 4.1 to compute the effect of the constraints introduced by A and b in Eq. (5). Because they are linear, the extra computation time required is constant per iteration t. However, because our goal is to show how can P systems be used for computing Generalized Nash Equilibria (GNE), we limit ourselves to the case without constraints.
3.1 Energy market game
In the previous section, we expressed a population game under BNN dynamics through Eqs. (1) (2) and (5). To solve a specific population game, we need to define the payoff function (Eq. 5) considering a specific function f that is different for each game. Taking this into account, a specific EDM must be selected as a framework to define our P system. Because of this, we consider an example of the Energy Market Game Martinez-Piazuelo et al. (2022) as the framework.
In the Energy Market Game, \(N \in \mathbb {Z}_{\ge 1}\) players compete to purchase energy over a time horizon of \(T \in \mathbb {Z}_{\ge 1}\) time slots. Players who try to purchase energy in the same time slots will end up paying more for the energy, and the base price for energy is higher for some time slots than for others. The goal is to buy energy as cheaply as possible, considering that other players have the same goal. For this problem, we can consider each player a population k, and the agents \(x_i^k\) represent the amount of energy purchased by player k in the time slot i.
Following the notation described at the beginning of Sect. 3, let \(C^k \in \mathbb {R}^{T \times n^k}\) be a matrix such that each column of \(C^k\) has exactly one element equal to 1 and the rest equal to 0, each row of \(C^k\) has at most one element equal to 1, and the j-th element of the i-th column of \(C^k\) is 1 iff player k competes in time slot \(j \le T\). Let \(C = [C^1, C^2, \dots , C^N] \in \mathbb {R}^{T \times n}\) be the concatenation of the \(C^k\) matrices of all players, where \(n = \sum _{k \in \mathcal {P}} n^k\). Then Cx corresponds to the collective energy demand for all time slots. Let \(J: \mathbb {R}^n \rightarrow \mathbb {R}^T\) be the pricing function given by \(J(x) = DCx + \bar{J}\), where \(D \in \mathbb {R}^{T \times T}_{\ge 0}\) is diagonal and \(\bar{J} \in \mathbb {R}^T_{\ge 0}\), and let \(Q^k: \mathbb {R}_{\ge 0}^{n^k} \rightarrow \mathbb {R}\) be the individual cost of each player \(k \in \mathcal {P}\), given by \(Q^k(x^k) = \sum \limits _{i \in S^k} \big ( (\alpha _i^k / 2) (x_i^k)^2 + \beta _i^k \cdot x_i^k \big )\), where \(\alpha _i^k \in \mathbb {R}_{\ge 0}\) and \(\beta _i^k \in \mathbb {R}_{\ge 0}\).
Following the results from Martinez-Piazuelo et al. (2022), the payoff function \(p(t) = f(x(t))\) for the Energy Market Game can be expressed by \(f(x(t)) = -S \cdot x(t) - C^\top \bar{J} - \alpha \odot x(t) - \beta \) where
In this section, we introduce first the general idea behind the design of a P system proposed to compute approximations of GNE for population games under BNN dynamics. Then, we define the P system in Sect. 4.1. After that, we perform a computation analysis in Sect. 4.2, where we indicate the evolution rules defined in Sect. 4.1 that are applied to the configurations. Finally, we include our experimental results in Sect. 4.3.
Let us consider the EDM-PDM system introduced in Sect. 3.1 by Eqs. (6), (7), and (8). In this section, a P system that computes approximations of GNE under the BNN dynamics for this system is described. The computation can be summarized in a loop of five stages, represented in Algorithm 1. Stages 1 and 2 are used to compute \(\hat{p}(t)\) using Eq. (8), Stages 3 and 4 are used to compute \(\dot{z}(t)\) using Eq. (7), and Stage 5 is used to update the value of z(t). To solve any other EDM-PDM system, only the first stage of the P system has to be modified, while the rest remains unchanged.

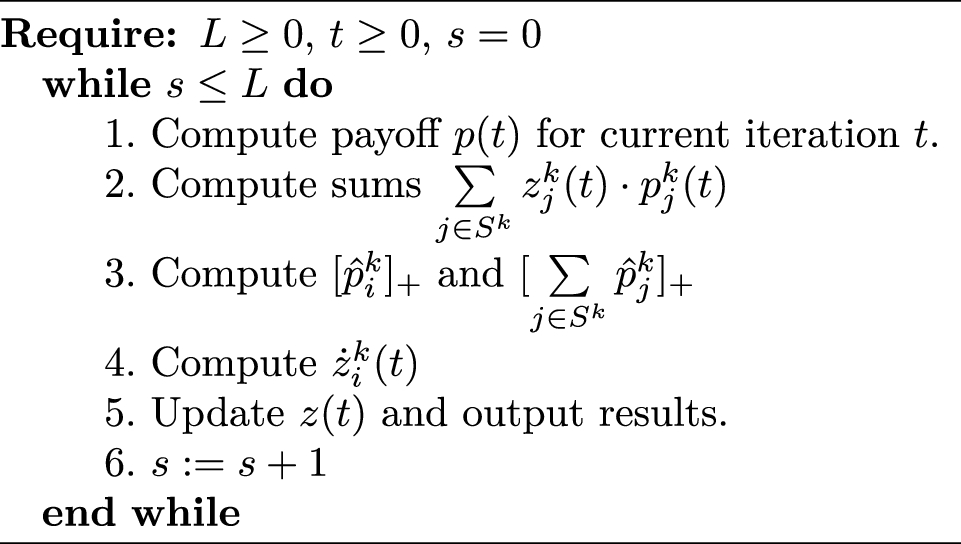

The fundamental idea behind the system is to compute approximations and discretize the values involved in the EDM-PDM system by rounding to n decimals and multiplying by \(10^n\). To show the functioning of our P system, we fix \(n=2\) from now on. However, the system can easily be modified for other values of n, providing better approximations with the cost of a longer runtime. After discretizing, a P system can evolve objects representing z(t) to compute GNE. For \(n=2\), a single object that represents \(z_i^k(t)\), represents 1% of the agents of population k that follow the strategy i. For example, if we have 16 objects that represent \(z_i^k(t)\), then \(z_i^k(t) = 0.16\). Formally, to approximate and discretize, we perform round\((x,n) = \lfloor 10^n \cdot x \rfloor \). To obtain the next value of the variables in the next instant \(t+t_{step}\) using the values of instant t, we use Euler’s method Butcher (2016), this is, \(z(t+t_{step}) = z(t) + \dot{z}(t) \cdot t_{step} \).
In Algorithm 1, other stop conditions can be easily defined, for example, comparing the z(t) values of one iteration with those of the previous one (in constant time) and stopping if no difference is found, but more rules would be necessary. For the sake of simplicity, our stop condition is to limit the number of iterations in the loop.
Because performing multiplications using P systems is not trivial, we define a P system that replicates the Russian peasant multiplication algorithm Cameron (1994) in Appendix A. The reason for using this specific algorithm is that the number of time steps required to compute a multiplication is upper bound by a constant for all multiplications of our P system. We use this multiplication P system as a module for our P system.
the output region \(i_{out}\) is the skin (label 0);
the initial multisets are \(w_P = {y_0}\), \(w_{S_{i,k}} = \langle k,i,l \rangle ^{z_i^k}\)\(\forall i \in S^k\)\(\forall k \in \mathcal {P}\) with \(z_i^k:= \lfloor \frac{100}{n^k} \rfloor \) for \(1 \le i < \max \{S^k\}\) and \(z_{max \{S^k\}}^k:= 100 - (|S^k| - 1) \cdot \lfloor \frac{100}{n^k} \rfloor \), \(w_{RES_{i,k}} = \langle AUX, 0 \rangle \)\(\forall i \in S^k\)\(\forall k \in \mathcal {P}\), and for any other membrane m, the initial multiset is \(w_m = \emptyset \);
and the set of rules \(\mathcal {R}\) is given by the following rules, separated by the corresponding stage of Algorithm 1, where \(\lambda \) represents the empty multiset, the rule \(RS_{m,n}\) represents the n-th rule of the m-th stage, the rules are defined \(\forall k \in \mathcal {P}\), \(\forall i \in S^k\), and \(l = \sum \limits _{j < k} |S^j| + i\), and \(\rho _{m,n}\) represents the priority of the rule \(RS_{m,n}\):
Stage 1 (Computate payoff p(t))
To use f(z(t)) in the P system, let \(\kappa := \lfloor 100 \cdot (- C^\top \bar{J} - \beta ) \rfloor \) be the constant part of Eq. (6), and let \(a_{j,l}:= \lfloor (S \cdot M)_{jl} \rfloor \) and \(b_{l}:= \lfloor (S \cdot M)_{ll} + (\alpha \cdot M)_{l} \rfloor \) for \(1 \le j,l \le \sum _{k \in \mathcal {P}} |S^k|\) be the coefficients that will multiply \(z_i^k\) in Eq. 6. Notice that because \(a_{j,l}\) and \(b_l\) are used to compute products by multiplying them by \(z_i^k\), and \(z_i^k\) is already multiplied by 100, neither \(a_{j,l}\) nor \(b_l\) are multiplied by 100 when rounded.
The intuition behind the rules of this stage is that objects \(\langle k,i,l \rangle \) represent \(z_i^k(t)\), and they will be used to compute \(p_l(t)\) by generating objects \(p_l\) (see Eq. (6)).
Rules \(RS_{1,1}\), \(RS_{1,3}\), and \(RS_{1,4}\) move objects \(\langle k,i,l \rangle \), which represent \(z_i^k(t)\), until they are in membrane P. At the same time, they produce objects that will be used in later stages (c, \(\langle Prod, k, i, l \rangle \)), and objects that will be used for coordination (\(C_k\)). Rule \(RS_{1,2}\) generates objects \(p_l\) representing the constant part of Eq. 6.
Rules \(RS_{1,5}\) and \(RS_{1,6}\) are used to coordinate the system. Once the polarization of the membrane P changes to \(+\), rule \(RS_{1,7}\) is applied, and the objects \(p_l\) generated are mixed with the objects \(p_l\) that were already in membrane P because of rule \(RS_{1,2}\), computing indeed p(t) as expressed in Eq. 6.
Rules \(RS_{1,8}\), \(RS_{1,9}\), and \(RS_{1,11}\) are used for coordinating. The coordination is achieved by changing the polarization of membrane P. Rule \(RS_{1,10}\) extracts from P objects \(p_l\), that now represent \(p_l(t) = p_i^k(t)\), as objects \(\langle a,k,i,l \rangle \).
Rule \(RS_{1,12}\) moves each object \(\langle a,k,i,l \rangle \) to its corresponding membrane k. These objects will later be used in Stage 2. Rules \(RS_{1,13}\) to \(RS_{1,15}\) are used to coordinate the beginning of Stage 2. Rule \(RS_{1,16}\) is a cleaning rule used to remove objects rem that are now useless.
To compute the products of \(z_j^k(t)\) and \(p_j^k(t)\), we use the membranes \(MULT_{i,k}\), which work as multiplication modules. These modules compute the product of two numbers and return the result in a maximum of 43 transition steps.

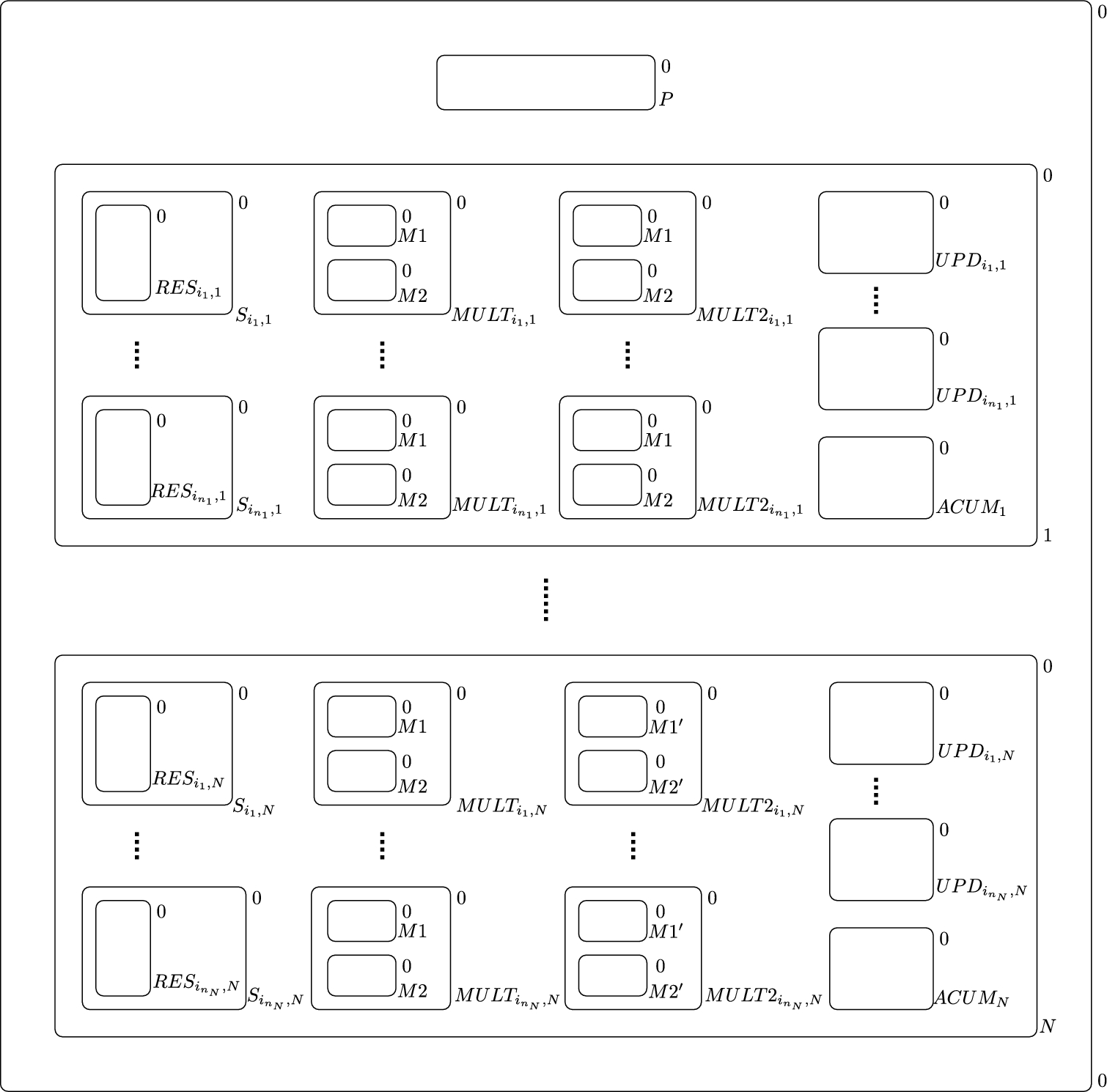

Each membrane \(MULT_{i,k}\) contains two membranes, M1 and M2. When objects a are placed in M1, objects b are placed in \(MULT_{i,k}\), an object \(k_1\) is placed in M1, and the polarization of the three membranes is 0, the multiplication module will compute the product of the numbers represented by objects a and b. Membranes \(MULT_{i,k}\) expel objects d, representing the product, and an object f representing that the multiplication process is finished. For the sake of simplicity, we left the details about the multiplication process in Appendix A, including a computation analysis.
The intuition behind the rules of this stage is that objects \(\langle Prod,k,i,l \rangle \) were produced in Stage 1 to represent \(z_i^k(t)\). These objects are transformed into objects prod. Together with objects \(\langle a,k,i,l \rangle \), that represent \(p_i^k(t)\), and the multiplication modules \(MULT_{i,k}\), we obtain the result of multiplying \(z_i^k(t)\) by \(p_i^k(t)\). The sum \(\sum _{j \in S^k} z_j^k(t) p_j^k(t)\) is obtained by grouping all the resulting objects in the membranes \(ACUM_{i,k}\). The rest of the rules are for coordination, rounding, or producing objects necessary for later stages.
Rules \(RS_{2,1}\) to \(RS_{2,9}\) are used to coordinate the generation of objects a, b, and \(k_1\) in membranes M1, \(MULT_{i,k}\), and M1, respectively. Once this is done, the multiplication process will begin, and the product of \(z_i^k(t)\) (represented by objects a) and \(p_i^k(t)\) (represented by objects b) will be computed. Objects \(\langle Prod2, k, i, l \rangle \) and \(pos_i\) are also generated for later stages.
Rule \(RS_{2,12}\) takes the multiplication results, represented by objects d, and sends them to membrane \(ACUM_k\) transformed into objects neg. When all multiplications are finished, the sum \(\sum _{j \in S^k} z_j^k(t) p_j^k(t)\) is given inside \(ACUM_k\), represented by objects neg. Then, rule \(RS_{2,11}\) changes the polarization of \(ACUM_k\) to indicate that the sum is computed. Because \(z_j^k(t)\) and \(p_j^k(t)\) were rounded by multiplying by 100, it is necessary to use rules \(RS_{2,13}\), \(RS_{2,14}\), and \(RS_{2,15}\) to round the product again and eject them from membrane \(ACUM_k\).
The goal of this rules is, because of Eq. (8), to compute \(\hat{p}_i^k\) by computing the difference of two numbers: \(p_i^k(t)\) and \(\sum _{l \in \mathcal {S}^k} z_l^k(t) \cdot p_l^k(t)\) In this stage, we compute \([\hat{p}_i^k]_+\) and \(\sum _{j \in S^k} [\hat{p}_j^k ]_+\).
From now on, in this stage, let \(S^k = \{ i_1, \dots , i_{|S^k|} \} \).
Rules \(RS_{3,1}\) and \(RS_{3,2}\) are used for coordination.
Because we need to compute \(\hat{p}_i^k(t)\) for each i, we use rule \(RS_{3,3}\) to create \(|S^k|\) copies of \(\sum _{l \in \mathcal {S}^k} z_l^k(t) \cdot p_l^k(t)\), each represented by \(neg_i\). These copies are then sent into membranes \(UPD_{i,k}\) by using rule \(RS_{3,4}\).
Rules \(RS_{3,5}\) and \(RS_{3,6}\) are used to coordinate the computation of \(p_i^k(t) - \sum _{l \in \mathcal {S}^k} z_l^k(t) \cdot p_l^k(t)\) by changing the polarization of membranes \(UPD_{i,k}\) to −.
Rules \(RS_{3,7}\), \(RS_{3,8}\), and \(RS_{3,9}\) compute \(p_i^k(t) - \sum _{l \in \mathcal {S}^k} z_l^k(t) \cdot p_l^k(t)\). If the difference is positive, objects \(q_i\) remain. Otherwise, because we are interested in using this difference to compute \( [ \hat{p}_i^k ]_+ \), objects \(neg_i\) are eliminated. \( [ \hat{p}_i^k ]_+ \) is then represented by objects \(q_i\).
Rules \(RS_{3,10}\) and \(RS_{3,11}\) are used for coordination. Rule \(RS_{3,12}\) generates objects q and ejects them from membranes \(UPD_{i,k}\). By doing this, we compute the sum \(\sum _{j \in S^k} [\hat{p}_j^k ]_+\), while \( [ \hat{p}_i^k ]_+ \) is still represented by objects \(q_i\). Rule \(RS_{3,13}\) coordinates the beginning of the next stage.
Because of Eq. (7), to compute \(\dot{z}_i^k(t)\) we need to compute first \(z_i^k \cdot \sum _{j \in S^k} [\hat{p}_j^k ]_+\). From Stage 3, we have objects q that represent \(\sum _{j \in S^k} [\hat{p}_j^k ]_+\), and from Stage 2 we have objects \(\langle Prod2,k,i,l \rangle \) that represent \(z_i^k\). As in Stage 2, we can use membranes \(MULT2_{i,k}\) as multiplication modules. These modules work the same as \(MULT_{i,k}\) from Stage 2, computing products in a maximum of 43 transition steps, and with the only difference that \(MULT2_{i,k}\) returns objects \(d_i\) instead of d and objects \(f_1\) instead of f (see Appendix A for more details).
When the multiplication process is finished, we will have objects \(q_i\) from Stage 3 that represent \([\hat{p}_i^k]_+\), and we will have obtained objects \(d_i\) that represent \(z_i^k \cdot \sum _{j \in S^k} [\hat{p}_j^k ]_+\). We can then compute \(\dot{z}_i^k(t)\) (see Eq. (7)), resulting in objects zvarp if it is positive, or zvarn if it is negative.
From now on, in this stage, let \(S^k = \{ i_1, \dots , i_{|S^k|} \} \).
Rules from \(RS_{4,1}\) to \(RS_{4,12}\) coordinate the beginning of the multiplication process inside membranes \(MULT2_{i,k}\), multiplying \(z_i^k\), represented by objects \(\langle Prod2,k,i,l \rangle \), and \(\sum _{j \in S^k} [\hat{p}_j^k ]_+\), represented by objects q.
Rules \(RS_{4,13}\) and \(RS_{4,14}\) coordinate the beginning of the computation of \([\hat{p}_i^k(t)]_+ - z_i^k(t) \cdot \sum \limits _{j \in \mathcal {S}^k} [\hat{p}_j^k(t)]_+\) in membranes \(S_{i,k}\).
\(RS_{4,26} \equiv [ y_{4,3}]^+_{S_{i,k}} \rightarrow [y_{5,0} ]^-_{S_{i,k}} rem \)
Stage 5 (Update z(t) and output results)
Since Stage 1, we have objects c that represent \(z_i^k\). In this stage, we combine them with objects zvarp or zvarn, representing \(\dot{z}(t)\), to update z(t) using Euler’s method: \(z(t + t_{step}) = z(t) + t_{step} \cdot \dot{z}(t)\).
Rule \(RS_{5,1}\) is used for coordination. Because we take \(t_{step} = 0.01\), rules \(RS_{5,2}\) to \(RS_{5,10}\) are used to compute \(z(t) + t_{step} \cdot \dot{z}(t)\). Because nothing guarantees that the new values satisfy \(0 \le z_i^k(t) \le 100\), there are some special cases to consider. Most of the rules from \(RS_{5,11}\) to \(RS_{5,38}\) are used to deal with these cases, and the rest are for coordination. These cases are further developed in section 4.2, Stage 5.
Rules from \(RS_{5,39}\) to \(RS_{5,47}\) are used for coordination and for preparing the output of the P system. Objects \(\langle AUX, n \rangle \) are used to count how many iterations of Algorithm 1 have been completed. Objects \(\langle EXIT, k, i, l, n \rangle \) represent the values \(z_i^k(t)\) at iteration n. Objects \(\langle INIT, k, i, l \rangle \) are used to reset the P system, preparing Stage 1 for a new iteration of the algorithm.
\(RS_{5,44} \equiv [ \langle AUX1, n \rangle \rightarrow \langle AUX, n \rangle ]^0_{RES_{i,k}} \), with \(n \ge 1\)
\(\begin{aligned} RS_{5,45} \equiv&[ \langle EXIT, k, i, l, n \rangle ]^0_{S_{i,k}} \rightarrow \ [ \langle INIT, k, i, l \rangle ]^0_{S_{i,k}} \langle EXIT, k, i, l, n \rangle \text {, with} \ n \ge 1 \end{aligned}\)\(RS_{5,46} \equiv [ y_{5,10} ]^0_{S_{i,k}} \rightarrow [ \ ]^0_{S_{i,k}} y_{5,11,i} \)
\(\begin{aligned} RS_{5,47} \equiv&[ \langle EXIT, k, i, l, n \rangle ]^0_k \rightarrow \ [ \ ]^0_k \langle EXIT, k, i, l, n \rangle \text {, with} \ n \ge 1 \end{aligned}\)
Rules \(RS_{5,48}\) to \(RS_{5,60}\) coordinate a new iteration of Algorithm 1, sending an object \(y_0\) to membrane P and initializing the new objects \(\langle k,i,l \rangle \) for Stage 1. \(RS_{5,48} \equiv [ y_{5,11,i_1} \dots y_{5,11,i_{|S^k|}} ]^0_k \rightarrow [ \ ]^0_k \ y_{5,12,k} \)
This subsection provides an analysis of the computation for each stage of Algorithm 1. The result of the computation analysis is that for each time step t, the number of transition steps is upper bound by a constant. This means that the computation time complexity of the global computation only grows linearly with t.
Stage 1: Computation of payoff p(t) In this stage, the payoff of the current iteration is computed. To do this, it is necessary to consider the function f involved in Eq. (6). The computation starts with the initial configuration. If we only consider the membranes involved in this stage, we have the following configuration:
We computed then p(t), as intended. Some rules in Stage 2 will transform the objects \(\langle a,k,i,l \rangle \) that are in the membranes \([ \ ]_k\), but for now, we are interested in seeing when Stage 1 will finish. Two iterations later, after applying rules \(RS_{1,14}\) and \(RS_{1,15}\):
Stage 2: Computation of the sums \(\sum \limits _{j \in S^k} z_j^k(t) p_j^k(t)\)
Stage 2 starts with the last configuration of Stage 1: \(\mathbb {C}_{10}\). After \(\mathbb {C}_{2}\) and \(\mathbb {C}_{8}\), because of the effects of rules \(RS_{1,3}\) and \(RS_{1,12}\), there are some elements \(\langle Prod,k,i,l \rangle \) and \(\langle a,k,i,l \rangle \) in \([ \ ]_k\). These membranes k changed their polarization from 0 to − in \(\mathbb {C}_{10}\), initiating Stage 2. After only three transition steps, and applying rules from \(RS_{2,1}\) to \(RS_{2,9}\):
In this configuration, \(p_l=p_i^k\), so \(z_i^k\cdot p_i^k\) is computed in each membrane \(MULT_{i,k}\). Because the round function multiplies by 100, the (rounded) result of the multiplication will be \(100 \cdot z_i^k \cdot p_i^k\). Furthermore, each product is computed after (at most) 43 transition steps, as proven in Appendix A. Some objects d may be introduced as objects pos into membranes \(ACUM_k\) before finishing these 43 transition steps. After (at most) 44 steps, having applied rule \(RS_{2,10}\), and ignoring membranes \(MULT_{i,k}\):
where \(\pi _k = \sum \limits _{i \in S^k} z_i^k(t) \cdot p_i^k(t)\). By the end of this stage, we computed then \(\pi _k\), as intended.
Stage 3: Computation of \([ \hat{p}_i^k ]_+\) and \(\sum \limits _{j \in S^k} [\hat{p}_j^k ]_+\)
This stage starts with the last configuration of Stage 2: \(\mathbb {C}_{\le 60}\). The change of polarization of membranes \([ \ ]_k\) from − to 0 and the presence of objects \(y_{3,0}\) initiate Stage 3. Following all rules of Stage 3 (\(RS_{3,1}\) to \(RS_{3,13}\)), we can see that after 7 steps we have the configuration:
where \(\sigma _k = \sum \limits _{j \in S^k}[\hat{p}_j^k]_+\).
Stage 4: Computation of \(\dot{z}_i^k(t)\)
Stage 4 starts with the last configuration of Stage 3: \(\mathbb {C}_{\le 67}\). After objects \(\langle Prod2,k,i,l \rangle \) were created in computation \(\mathbb {C}_{11}\), they are processed and introduced in membrane \(MULT2_{i,k}\) in computation \(\mathbb {C}_{12}\), but the product is not initiated until all objects \(y_{3,7,i}\) are generated using rule \(RS_{3,13}\):
Now, depending on the result, the objects generated will be different. We represent by zvar(p||n) the possibility of having objects zvarp or zvarn.
Considering that \(\dot{z}_i^k = [\hat{p}_i^k]_+ - z_i^k \cdot \sum \limits _{j \in S^k}[\hat{p}_j^k]_+\), after applying rules from \(RS_{21}\) to \(RS_{4,23}\) depending on the case, and \(RS_{4,26}\), we have:
Stage 5: Update ofz(t), coordination for next iteration and results output
This stage starts with the last configuration of Stage 4: \(\mathbb {C}_{\le 120}\). In the initial multiset, there were some copies of \(\langle AUX, 0 \rangle \) that have not been processed yet. Since configuration \(\mathbb {C}_{1}\), there are also objects c in membranes \(S_{i,k}\) that have not been processed because the polarization has changed from 0 to − in the last configuration for the first time since:
To update z(t), we use Euler’s method with \(z(t+0.01) = z(t) + 0.01 \cdot \dot{z}(t)\). Depending on the objects existing at the end of Stage 4, there are three possible cases. Let \(m_i = z_i^k + 0.01 \cdot \dot{z}_i^k\). Then:
Case 1: If \(0 \le m_i < 100\), then three transition steps later using rules from \(RS_{5,1}\) to \(RS_{5,11}\), \(RS_{5,13}\), and \(RS_{5,18}\):
Case 2: If \(m_i < 0\), then three transition steps later using rules from \(RS_{5,1}\) to \(RS_{5,3}\), from \(RS_{5,6}\) to \(RS_{5,8}\), \(RS_{5,11}\), and \(RS_{5,13}\):
Case 3: If \(m_i \ge 100\), then three transition steps later using rules \(RS_{5,1}\), \(RS_{5,4}\), \(RS_{5,5}\), from \(RS_{5,9}\) to \(RS_{5,13}\), and \(RS_{5,15}\):
Notice that, in this stage, objects \(y_{5,3,i}\) are always created in the same configuration in each of the three cases. Finally, using rules \(RS_{5,14}\), \(RS_{5,25}\), and \(RS_{5,28}\):
Regardless of the result of each case, objects \(w_i\) represent the new \(z_i^k\), objects \(compw_i\) represent the difference between \(z_i^k\) and 100, and objects p and n represent positive and negative overflow respectively. If both overflows exist, they will cancel each other for the next configuration. These objects are introduced because, while using Euler’s method, there is nothing that assures that \(0 \le z_i^k(t) \le 100\)\(\forall t \ge 1\). The next configuration, using rules from \(RS_{5,20}\) to \(RS_{5,24}\), \(RS_{5,26}\), and \(RS_{5,29}\), is then:
Objects err are created only in case some overflow appears. Seven transition steps later, using rules \(RS_{5,27}\) and from \(RS_{5,30}\) to \(RS_{5,48}\), the objects EXIT will be in the skin. These objects will represent the final result of z(t) for each t:
Finally, after six more iterations, using rules from \(RS_{5,49}\) to \(RS_{5,60}\):
$$\begin{aligned} \mathbb {C}_{\le 138} = [ [ [ \langle AUX, 1 \rangle \ &]^0_{RES_{i,k}} \ \langle k, i, l \rangle ^{\hat{z}_i^k} ]^0_{S_{i,k}} rem ]_k^0 \langle EXIT, k, i, l, 1 \rangle ^{\hat{z}_i^k} [ y_0 ]_P^0]_0^0 \end{aligned}$$
It is important to notice that, in this last configuration, object \(y_0\) is in membrane P and the objects \(\langle k,i,l \rangle \) are in \(S_i^k\). This configuration is then analogous to configuration \(\mathbb {C}_0\), so we know that the system can run another iteration of Algorithm 1. When rule \(RS_{5,61}\) is eventually triggered, object \(y_{5,9}\) will be consumed, and this will prevent the generation of new objects \(y_0\) and \(\langle k,i,l \rangle \). This will eventually make the P system stop evolving (see rules \(RS_{5,43}\), \(RS_{5,46}\), \(RS_{5,48}\), \(RS_{5,49}\), and from \(RS_{5,51}\) to \(RS_{5,59}\)).
In conclusion, the transition from z(t) to \(z(t+t_{step})\) has a constant upper bound of 138 steps, and it does not depend on the size of the problem or the \(t_{step}\) chosen. If we had to compute GNE by using Euler’s method iteratively to compute the evolution of z(t), we would have to update the values \(z_i^k(t)\) in each iteration using Eqs. (6), (7), and (8) for each \(k \in \mathcal {P}\) and each \(i \in S^k\). This would require a computation time proportional to \(\sum _{k \in \mathcal {P}}|S^k|\) for each iteration. If t iterations of Euler’s method are required to compute the GNE, then the computation time complexity is proportional to \(\mathcal {O}(t \cdot \sum _{k \in \mathcal {P}}|S^k|)\). In contrast, the computation time our P system requires to update z(t) is upper bound by a constant that does not depend on \(\sum _{k \in \mathcal {P}}|S^k|\). This implies that the computation time complexity is proportional to \(\mathcal {O}(t)\). Because of the massive parallelism inherent to P systems, the computation time complexity is reduced by a factor of \(\sum _{k \in \mathcal {P}}|S^k|\).
To define this system, it was required to select a specific f(z(t)) to compute p(t) (see Eq. (6)). In our case, f(z(t)) was given by the Energy Market Game (Sect. 3.1) and involves real numbers. We also used objects that represent \(1\%\) of the agents z(t) as explained at the beginning of Sect. 4. Because of these decisions, we rounded every number to two decimals. We can take smaller values of \(t_{step}\) to get better approximations if we round to more decimals, but then Euler’s method will require more time steps to compute the GNE. However, this does not affect the difference in computation time complexity stated above.
4.3 Experimental results
4.3.1 Setup
Researchers have developed different P system simulators that are available, like P-lingua (MeCoSim) Gutiérrez-Naranjo et al. (2008); García-Quismondo et al. (2009); Pérez-Hurtado et al. (2010) or UPSimulator Guo et al. (2019, 2018). To perform experiments, we use MeCoSim for its simplicity. This simulator allows the design of P systems with particular properties, in this case, transition P systems with membrane polarization.
One limitation of every P system simulator is that it still runs on a computer, so the parallelism inherent to P systems is lost. However, we can use MeCoSim to perform experiments and test the P system designed in Sect. 4.1.
Although some implementations of P systems on GPU devices can be found in the literature (see, e.g., Martínez-del-Amor et al. (2015); Zhang et al. (2021)), our experiment was conducted on a machine with a 3.59GHz 6-core CPU and with 16GB of RAM. We consider the possibility of adapting the implementation to GPU devices, and empirically studying the improvements in time, as future work.

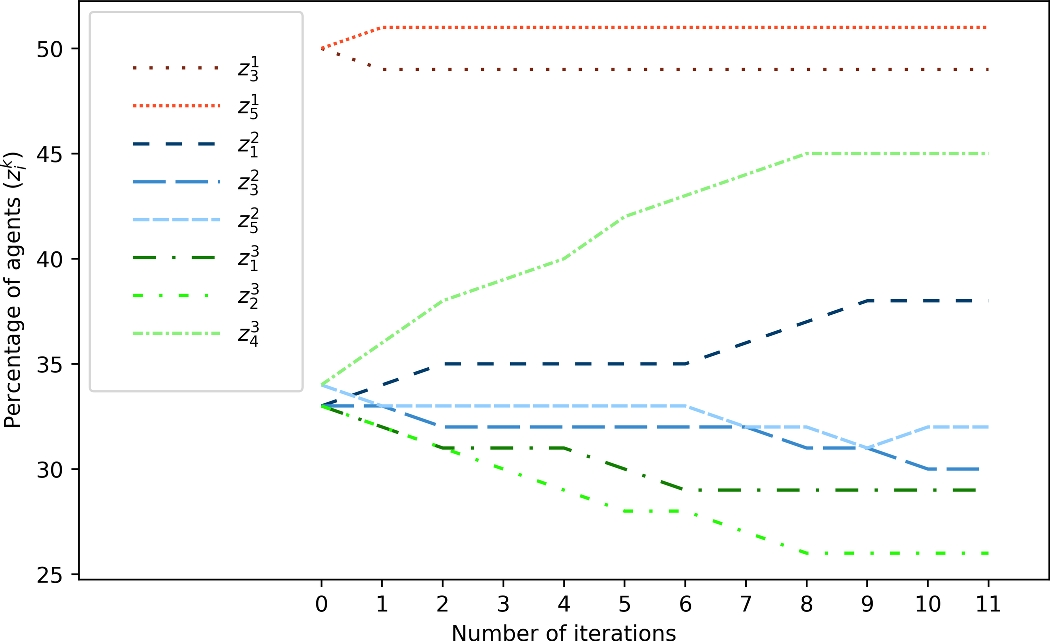

Fig. 2
Small experiment with three players (populations) and five strategies, distributed such that \(S^1 = \{3,5\}\), \(S^2 = \{1,3,5\}\), \(S^3 = (S^1)^c = \{1,2,4\}\). Players 1, 2, and 3 are represented by lines \(z^1_i\), \(z^2_i\), and \(z^3_i\), respectively
To test the correct behavior of our P system, we have considered a small example, where \(N=3\), \(T=5\), \(S^1 = \{3,5\}\), \(S^2 = \{1,3,5\}\), \(S^3 = (S^1)^c = \{1,2,4\}\), and we randomly sample the nonzero elements of D, \(\bar{J}\), \(\alpha \), \(\beta \) and \(m^k\) from [0, 1], [2, 4], [1, 10], [0, 1] and Debreu (1952); Facchinei and Kanzow (2007) respectively. The parameters are sampled from the same distributions described in Martinez-Piazuelo et al. (2022).
In Fig. 2, we can see how the trajectories of the values \(z_i^k\) initialize as equally distributed for each player k as possible, and they evolve until reaching a stable distribution after only 10 time steps: \(\dot{z} = 0\) after ten steps. At that moment, a GNE is found. It was expected that player 3 would concentrate more agents over time slot 4 (\(z_4^3\)) or 2 (\(z_2^3\)) since it is the only player with access to those resources. The difference is a consequence of the cost difference. As expected, the results coincide with those obtained by applying Euler’s method independently.
Notice that, as explained in Sect. 3, \(z_i^k\) represents the proportion of agents in population k that follow strategy i. In the Energy Market Game that we are solving, \(z^i_k\) is the proportion of energy purchased in time slot i by player k.
5 Conclusions
We propose a P system based on Euler’s method that computes approximations of GNE for population games under BNN dynamics. If Euler’s method requires t iterations to compute GNE, we have proved that the computation time complexity of the P system is linear with respect to t, independently of the size of the problem.
Our P system presents some limitations. First, if the function f representing the game is complex enough, it is possible that P systems are not powerful enough to compute it in constant time, increasing the system’s time complexity. Second, the system presented only works for population games under BNN dynamics.
This work can be extended in some directions. First, in this paper, some of the evolution rules of the P system are defined specifically for instances of the Energy Market Game as a representative of population games under BNN dynamics. As future work, we propose modifying this P system to compute GNE for other population games under BNN dynamics by changing the payoff function and the corresponding rules. Second, our P system is also easily generalizable for studying the evolution of other EDM-PDM systems besides population games under BNN dynamics, even if equilibria are not reached.
Finally, as pointed out in sect. 4.3, the current study can also be simulated in a GPU device to explore further time improvements.
Acknowledgements
M.A.G.N. acknowledges the support by the European Union HORIZON-CL4-2021-HUMAN-01-01 under grant agreement 101070028 (REXASI-PRO) and by TED2021-129438B-I00 / AEI/10.13039/501100011033 / Unión Europea NextGeneration EU/PRTR.
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Appendix A Russian peasant multiplication in membrane computing

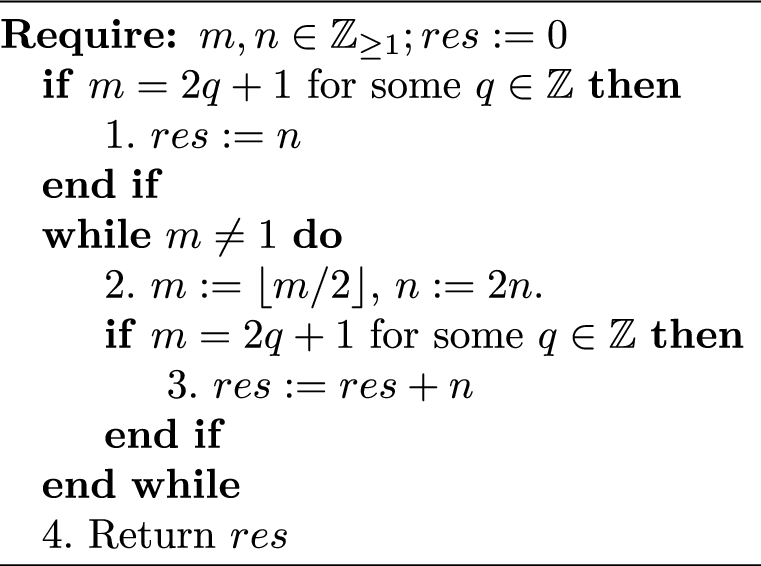

A P system that computes the product of two numbers \(m,n \in \mathbb {N}_0\), inspired by the Russian peasant multiplication algorithm Cameron (1994), is defined in this appendix. The goal is to use it as a multiplication module for the P system defined in Sect. 4.1.
For example, if we want to multiply \(m=37\) by \(n=16\) using Algorithm 2, we get the result of Table 1, where t is the iteration of the while loop.
Table 1
Multiplication of \(m=37\) and \(n=16\) using the Russian Peasant Multiplication algorithm (Algorithm 2)
t
m
n
res
0
37
16
16
1
18
32
16
2
9
64
80
3
4
128
80
4
2
256
80
5
1
512
592
The structure of the P system has three membranes: \(\mu = [[]_1[]_2]_0\) and the initial multisets are \(w_1 = \{a^m k_1\}\), \(w_2 = \emptyset \) and \(w_0 = \{b^n\}\). The output region \(i_{out}\) is the environment.
The alphabet of objects is given by:
$$\begin{aligned} \Gamma&= \{ a, b, c, d, f, m, y_0, y_1, rem \} \cup \{k_i : 1 \le i \le 6 \} \cup \{a_i : 1 \le i \le 5 \} \\&\cup \{b_i : 1 \le i \le 4 \} \cup \{m_i : 1 \le i \le 3 \} \cup \{f_i : 1 \le i \le 4 \} \end{aligned}$$
The ruleset of this system is the following:
\(RS_1 = [k_1 \rightarrow k_2 \ y_0]_1^0\)
\(RS_2 = [k_2 \rightarrow k_3]_1^0\)
\(RS_3 = [k_3 \rightarrow k_4]_1^0\)
\(RS_4 = [k_4 \rightarrow k_5]_1^0\)
\(RS_5 = [k_5 \rightarrow k_6]_1^0\)
\(RS_6 = [k_6 \rightarrow k_1]_1^0\)
\(RS_7 = [a^2 \rightarrow a_1 \ y_1^2]_1^0\)
\(RS_8 = [a \rightarrow m \ y_1]_1^0\), with \(\rho _7 > \rho _8\)
\(RS_{45} \equiv [rem \rightarrow \lambda ]_m^s\), \(\forall m \in \{0,1,2\}\), \(\forall s \in \{+,-,0\}\) (Cleaning rule).
A.1Computation analysis
The behavior of this P system is correct. It is easy to prove this by analyzing the following four cases: \(m=0\), \(m=1\), \(m = 2p\) with \(p \ge 1\) and \(m = 2p + 1\) with \(p \ge 1\). Notice that, because the rules are applied in a parallel and maximal way as described in Sect. 2, the behavior of this P system is deterministic, and no other sets of rules can be applied in each configuration.
If \(m = 0\), then \(m \cdot n = 0\), and the following computation takes place:
The computation is then done in 7 iterations, and because the output is n copies of object d, the result is correct.
If \(m = 2p\) with \(p\ge 1\) and we follow the Russian peasant multiplication algorithm, then the result of the partial computation doesn’t contribute directly to the final result. In our system, this means that no objects d will be saved in membrane \([ \ ]_2\):
The computation goes from multiplying by \(m=2p\), represented by objects a, to multiplying by \(m=p\) in 6 iterations. We can see also that no objects d were created, and that n, represented by objects b, is raised to 2n as in the Russian peasant multiplication algorithm.
If \(m = 2p+1\) with \(p\ge 1\) and we follow the Russian peasant multiplication algorithm, then in this case the result of the partial computation contributes directly to the final result. In our system, this means that n objects d will be saved in membrane \([ \ ]_2\):
The computation goes from multiplying by \(m=2p+1\), represented by objects a, to multiplying by \(m=p\) in 6 iterations. We can see also that n objects d were created in membrane \([ \ ]_2^0\), and that n, represented by objects b, is raised to 2n as in the Russian peasant multiplication algorithm.
Finally, if we observe rules \(RS_{40}\) and \(RS_{41}\), we see that the objects d will be extracted from \([ \ ]_2^0\) when the whole computation is finished, giving the result as output.
It takes 6 iterations to reduce the problem of multiplying by m to the problem of multiplying by \(\lfloor m/2 \rfloor \), this is, to complete an iteration of the while loop in Algorithm 2. Because n doesn’t influence the number of operations, we have an upper bound over the number of transition steps of \(1 + 6 \cdot \lceil log_2(m) \rceil \).
For the P system defined in Sect. 4.1, we take advantage of the previous bound by always doing \(m=z_i^k\) and \(n=p_i^k\) or \(n=\sum _{j \in S^k} [\hat{p}_j^k]_+\), depending on the multiplication we have to compute. Because \(0 \le z_i^k \le 100\), we have that if we multiply m by any number, the number of iterations will be bounded by \(1 + 6 \cdot \lceil log_2(100) \rceil = 43\).
In the P system defined in Sect. 4.1, the membranes \(MULT_{i,k}\) will be almost exactly as described, with the structure changing from \(\mu = [[ \ ]_1^0 [ \ ]_2^0]_0^0\) to \(\mu ' = [[ \ ]_{M1}^0 [ \ ]_{M2}^0]_{MULT_{i,k}}^0\). Membranes \(MULT2_{i,k}\) will have \(\mu '' = [[ \ ]_{M1'}^0 [ \ ]_{M2'}^0]_{MULT2_{i,k}}^0\) as membrane structure, and will return objects \(d_i\) instead of d (rules \(RS_{40}\), \(RS_{41}\)) and objects \(f_1\) instead of f (rule \(RS_{39}\)).
