01-01-2024 | Special
Charging Technology + Grid Infrastructure
Published in: MTZ worldwide | Issue 1/2024
Log inActivate our intelligent search to find suitable subject content or patents.
Select sections of text to find matching patents with Artificial Intelligence. powered by
Select sections of text to find additional relevant content using AI-assisted search. powered by (Link opens in a new window)
Excerpt

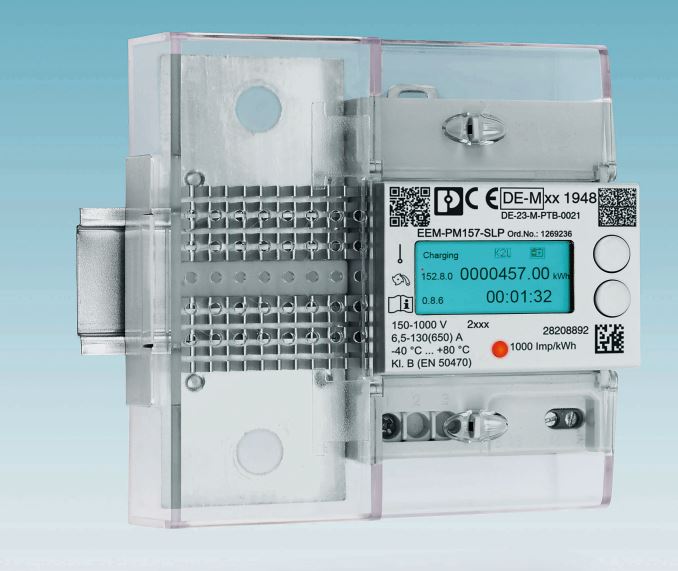

The compact EMpro DC energy meter enables the space-saving, precise, and tamper-proof direct measurement of currents and voltages of up to 650 A/1000 V DC. The DC energy meter fulfils the accuracy-class-B (EN 50470-3) without the need for an additional current transformer. With an overall width of just 107.2 mm, the product requires a space of just six horizontal pitches on the DIN rail. The product allows the signing of the meter values and time synchronization of the meter. Due to its heatsink with integrated shunt measurement it operates in a temperature application range from -40 to +80 °C. Thanks to the built-in RS-485 interface with SLIP protocol and the approval in accordance with German calibration law it can be used for billing purposes.
© Phoenix Contact
× ![]()
…
