Clustered Automated Machine Learning (CAML) model for clinical coding multi-label classification

In the healthcare industry, around 80% of the data generated by healthcare organizations, is unstructured [18], which presents a significant challenge for healthcare providers who want to leverage this data for analysis and integration with other healthcare solutions. The transformation of unstructured medical reports into structured data has, therefore, become an essential process for healthcare organizations. This transformation can be useful in data analysis, integration with other solutions and processes such as Clinical Documentation Improvement (CDI), and Revenue Cycle Management (RCM) systems [19, 20]. Machine learning models in the form of Computer Assisted Coding systems (CACs), can help this transformation by automating the clinical coding process.

The use of CACs has numerous advantages, including improved clinical coding accuracy, reduced time and cost needed for the coding process, and integration with other healthcare systems. Currently, there are a few CAC systems available in the market, such as 3 M 360 Encompass [21] and DeepMed CodeDoctor [22]. However, despite these advancements, CAC systems have not yet reached a level of independence where they can function without human intervention. Clinical coders are still required to confirm the accuracy of diagnoses and procedures before they can be used in further processes [23‐25].

In addition, building CAC models require human skills, such as data science and Natural Language Processing (NLP). Currently, there is no CAC solution that uses AutoML technologies to identify the best ML algorithm for high accuracy coding based on the healthcare organization’s training dataset. This means that the development of CACs still requires human input to ensure their effectiveness. A potential intriguing automation path is the use of AutoML in CAC solutions. This could be a significant step forward, allowing healthcare providers to leverage the large amount of unstructured data generated in the industry effectively [10, 11].

Clinical coding has been extensively studied in the literature, with a focus on developing models that improve coding classification accuracy. These models have utilized various techniques at different stages of their machine learning development, including data preparation. Gehrmann et al. used cTAKES as the main tool to prepare clinical notes data. Their work demonstrates that models using cTAKES have a comparable F1-score compared to 2-gram and 3-gram models, with the exception of CNN Models [26, 27]. Feature extraction methods, such as Bag of Words (BOW) [28, 29], Term Frequency-Inverse Document Frequency (TF-IDF) [30, 31], and cTAKES [32, 33], have been employed. These models have also made use of feature selection techniques like \(\chi ^2\) [34], Information Gain (IG) [35], and Leave-One-Out (LOO) [36], along with algorithm selection techniques, including random forest [30, 37], logistic regression [38], and Support Vector Machines (SVMs) [39], in addition to configuring and evaluating the selected algorithms.

The Deep Neural Network algorithms have demonstrated effectiveness as models for clinical coding classifications; however, they represent a distinct approach from AutoML, which offers an automated solution encompassing all steps of the machine learning process [40]. In the extensive examination of research papers within the realm of clinical coding, cTAKES emerged as a noteworthy tool delivering favorable outcomes in the realm of data preparation for clinical notes. cTAKES has been widely utilized in numerous studies [32, 33]. Interestingly, a notable gap in the literature is the absence of any papers employing AutoML in the context of clinical coding. This void presents various opportunities for enhancing the outcomes of clinical coding classification.

Most of the studies in the literature on diagnosis classification problems have focused on single-label classification [15, 41‐43], with only a few targeting multi-diagnosis classification [16]. Clinical coding systems are usually evaluated using various metrics such as F1-score [44], recall [38], precision [45], and Area Under the Curve (AUC) [46, 47], among others [15, 31, 48].

Full size image

Automated machine learning techniques have been proposed to streamline the development of clinical coding models and automate the aforementioned model development steps. In a previous article [40], An in-depth review of the methods and techniques enabling AutoML model development for clinical coding and, more broadly, clinical notes analysis was provided. Overall, the extensive research in clinical coding has produced a range of effective models that can accurately classify medical diagnoses, enabling healthcare providers to better manage patient data and improve the quality of care.

The International Classification of Diseases (ICD) is a comprehensive and widely-used tabulated list of diseases issued by the World Health Organisation (WHO) [49, 50]. It serves as a standardized system for identifying and classifying medical conditions and is adopted by healthcare organizations worldwide [51]. Currently, the most recent revision of the ICD is ICD-11, although it has not been adopted by as many healthcare organizations as its predecessor, ICD-10 [52].

ICD-10 is currently used by numerous healthcare organizations worldwide [53, 54]. Some countries, however, have modified ICD codes and issued their own revisions of ICD-10. For instance, Australia issued the ICD-10 AM, which stands for Australian Modification [55], the United States issued the ICD-10 CM (Clinical Modification) [56], and Canada issued ICD-10 CA through the Canadian Institute for Health Information (CIHI) [57]. Additionally, there is a procedure code version called ICD-10 PCS, which is the American version [49, 51].

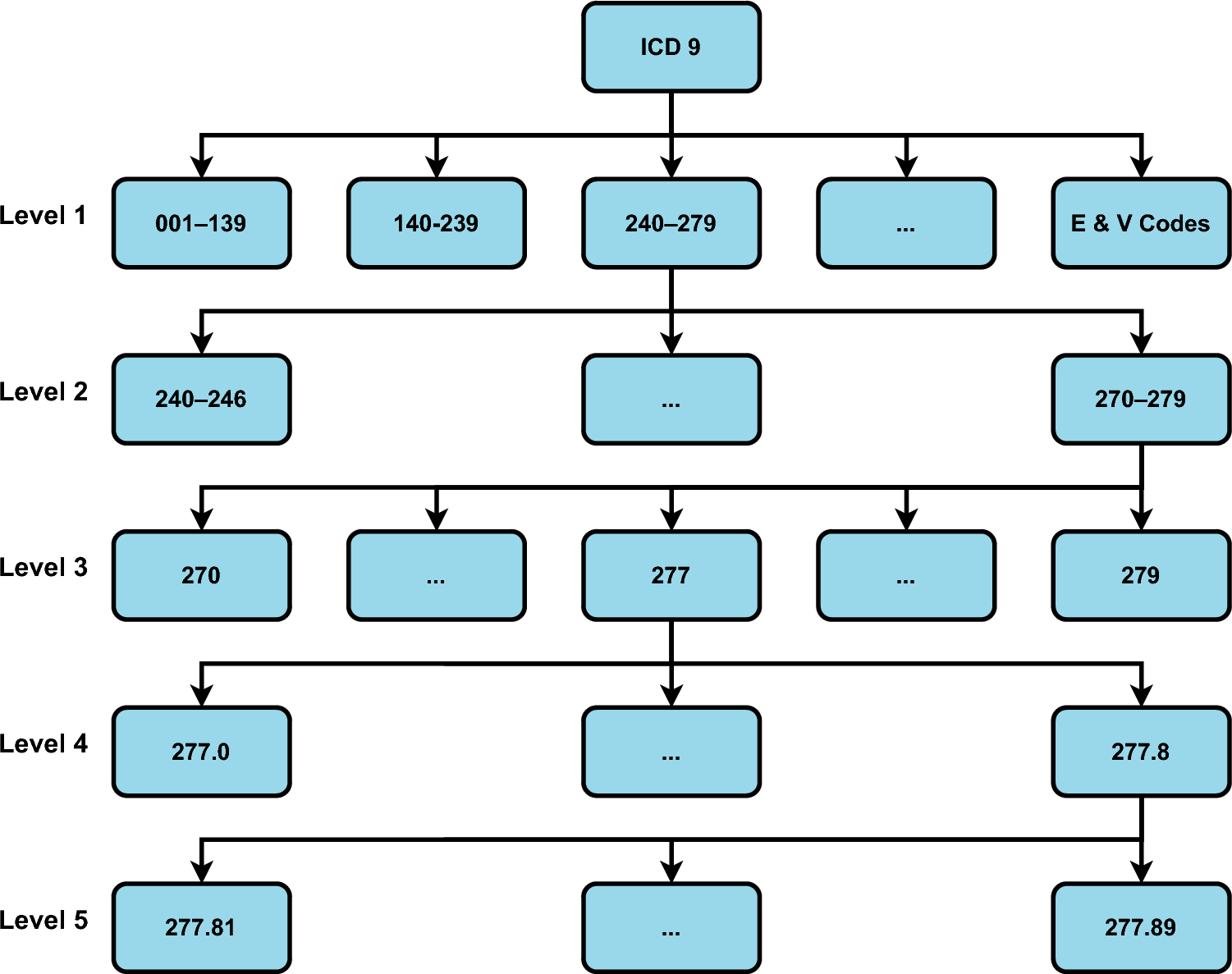

ICD-9, which preceded ICD-10, has approximately 13,000 different codes, which belong to 18 main categories referred to as Level 1 [58]. For example, codes from 001 to 139 denote infectious and parasitic diseases, codes from 140 to 239 denote neoplasms, and additional E and V codes are used for external causes of injury and supplemental classification. Under each category, there are more detailed subcategories referred to as Level 2, such as codes from 050 to 059 for viral diseases accompanied by exanthem. The disease name constitutes Level 3, such as code 053 for Herpes zoster, and goes into further detail for the fourth and fifth levels of the disease, such as 053.1 for Herpes zoster with other nervous system complications and 053.11 for Geniculate herpes zoster (Fig. 1) [30, 37, 59‐62].

Model evaluation can be approached through various methods, with the selection of the appropriate method contingent upon factors such as the target labels’ characteristics, whether numeric or categorical, the nature of the business model, and the specific objectives.

Numerous studies [16, 26, 30, 33, 38] have explored the task of classifying clinical diagnoses from clinical notes, and this has been well-documented in previous research [40]. Among the methods frequently employed in this domain, the F1-score stands out as a popular choice.

The F1-score leverages both precision and recall, as defined by the following equation:where precision measures the proportion of true positives among predicted positives, and recall represents the proportion of true positives captured among all actual positives.

In the context of multi-label classification, there exist three variations of the F1-score. First, the Micro F1-score computes the F1-score across all records and all classes. Conversely, the Macro F1-score determines the average F1-score for each class individually and then computes the overall average. Lastly, the Weighted F1-score calculates the average F1-score for each class, taking into account the weight assigned to each class. The choice of which F1-score variant to employ depends on the specific evaluation requirements and objectives [63].

Clinical coding is an essential task in the healthcare industry. This task is challenging due to the large number of labels involved in the ICD system [64, 65]. Many studies have utilized various neural network techniques and algorithms to improve the accuracy of clinical coding in multi-label classification, i.e. when more than one ICD code should be assigned to one record, namely multi-label coding [16, 38, 66].

CNN models have been used in several studies. For instance, Karmakar [59] used a CNN to classify medical reports. Because the ICD fifth level has a large number of labels, Karmakar employed two approaches. The first approach involved using the 20 most common labels of level 5, these labels represent the ICD codes that exhibited the highest frequency within the dataset. While the second approach utilized all level 1 ICD codes, limiting the target set to 17 labels only. The results showed that both approaches achieved high accuracy.

Similarly, Gehrmann et al. [26] employed a CNN model in a phenotyping experiment with 10 phenotype labels, utilizing a binary classification approach for each label. The CNN model outperformed models like Linear Regression and Random Forest, yielding higher F1-scores. Additionally, Xu [67] demonstrated the effectiveness of CNNs in classifying 32 ICD labels, with individual models for each label, and found that the CNN model consistently achieved superior accuracy compared to other models in their study.

In another study, Huang et al. [30] compared different deep neural network algorithms, such as CNN, LSTM, Gated Recurrent Unit (GRU), and Feed Forward Neural Network, along with other statistical algorithms like Logistic Regression and Random Forest. The study utilized ICD9 Level 4 (Codes) and ICD9 Level 3 (Categories) and built four different models for the top 10 level 4 codes, top 10 level 3 codes, top 50 level 4 codes, and top 50 level 3 codes. The results showed that Recurrent Neural Network (RNN) models (GRU and LSTM) achieved the highest accuracy, while RNN models along with Linear Regression had the highest F1-scores.

Binary relevance, as illustrated in Fig. 2, Section A, is an MLC technique that converts labels into a set of binary codes, either 0 or 1, and builds a separate model for each label in the targeted label set. In this technique, each label is independent and does not depend on the relations between labels [16, 38, 60]. However, in some cases, clinical diseases (labels) can be dependent, and one disease can be an indication of another disease, as is the case with diabetes and hypertension [68].

Classifier Chain is a technique for handling label dependence in MLC problems. It employs a chain of binary classifiers, each trained to predict a label and all preceding labels in the chain. Each classifier’s output becomes a feature for the next one, incorporating label dependencies into the prediction process [16, 62, 69, 70]. Figure 2, Section B illustrates this process. Classifier Chains can work through positive chaining, where diseases are linked, or negative chaining, where diseases are mutually exclusive [71]. An example of negative chaining is hemophilia type A which is related to chromosome X and ovarian cancer which is a female-only disease [72]. This technique is valuable for complex MLC tasks where label dependencies play a crucial role in accurate predictions.

Full size image

Finding relations between labels is an essential task in MLC techniques. However, a major challenge in achieving this task is the time complexity involved in identifying these relations. As the number of labels increases, the time taken to identify these relationships also increases significantly, resulting in a big-O complexity of \(2\left( {\begin{array}{c}n\\ 2\end{array}}\right) = n(n-1)\).

Label Powerset is a widely used approach for transforming a multi-label label set into a single label [38].

In comparison, Random K-Labelset (RAKEL) [73] extends this approach by randomly selecting label subsets for model training and classification. Another approach to multi-label classification is the Hierarchy of Multi-label Classifiers (HOMER) [74], which aims to convert large multi-label target sets into smaller hierarchical label sets. The effectiveness of these techniques has been demonstrated in various studies [70, 75‐77]. Figure 2, Section C illustrates the Label Powerset technique, and Fig. 2, Section D illustrates the Hierarchy of Multi-label Classifiers technique.

Correlation and Hamming Loss are common techniques utilized for MLC [71, 74, 78‐80]. Hamming Loss measures the percentage of unmatched labels to the total number of labels in the target set. Many studies have employed Hamming Loss as a measure to compare the actual and predicted label values [69, 81]. Huang [30], for instance, compared different models using Hamming Loss, AUC, and Precision. In another study, Su et al. [82] evaluated ten TPOT models using various evaluation methods, including Hamming Loss, Kappa Score, and Accuracy, among others [83].

The field of automated machine learning has experienced significant growth, with a multitude of models and tools being developed [84]. Some of these tools are limited to predetermined models and workflows, exemplified by Rapid Mine [85]. Alternatively, there exist tools that possess the ability to identify the optimal algorithm based on the characteristics of the training dataset and the desired outcome. Auto-WEKA [86, 87] is one of these tools. Auto-WEKA is a Java-based application that builds upon the functionality of WEKA. Specifically, it is designed to address the Combined Algorithm Selection and Hyperparameter Optimization (CASH) problem using single label classifiers. WEKA has undergone significant improvements since its initial release, culminating in the development of an extended version called MEKA [88]. This updated platform includes multi-label classifiers, multi-label targeted label transformation techniques (e.g., binary relevance and classifier chain), and multi-label evaluation methods. MEKA has also paved the way for the development of Auto-MEKA, an automated machine learning application that builds on the functionality of MEKA. Recently, De Sa et al. [89] developed Auto-MEKA_GGP, which is an automated machine learning model based on Grammar Genetic Programming that uses MEKA’s MLC algorithms and configurations.

Auto-Sklearn [90‐92] has emerged as a prominent AutoML framework, winning numerous AutoML competitions. However, it lacks native support for multi-class multi-label classification, which necessitates the utilization of alternative methods to convert MLC labels into another form, such as one-vs-all. Nonetheless, not all Auto-Sklearn algorithms can be employed with a one-vs-all structure. Consequently, Auto-Sklearn must either classify each label individually as a single-label model, which significantly impacts performance or exclusively employ algorithms that support multi-label classification. This issue has been discussed in prior research [12, 13].

In the proposed approach, a modified Hamming distance method is presented for determining the distance between each pair of diagnoses. Our approach involves constructing a binary array for each label result, which is subsequently used to compare each diagnosis in the label set with other diagnoses. The distance between diagnoses is expressed as a percentage of unmatching results compared to the total number of results. Furthermore, it is noted that the inverted diagnoses relation shares the same distance as the matching relation.

To illustrate the application of the approach, an example is provided in which the calculation of distances between diagnoses is performed using a binary array (see Table 2). Specifically, diagnoses 295 and 303 have 6 matching reports out of a total of 9, resulting in a 66.7% match. Diagnoses 295 and 560 have a 22.2% match, while diagnoses 330 and 560 have a 55.6% match. In cases where the percentage of unmatching results is less than 50%, the distance is calculated as the unmatching percentage. However, if the unmatching percentage exceeds 50%, the distance is expressed as the matching percentage. This is due to the negative correlation relation between labels. For example, in our example, the distance between diagnoses 295 and 303 is 33.3%, the distance between diagnoses 295 and 560 is 22.2%, and the distance between diagnoses 303 and 560 is 44.4%.

Full size image

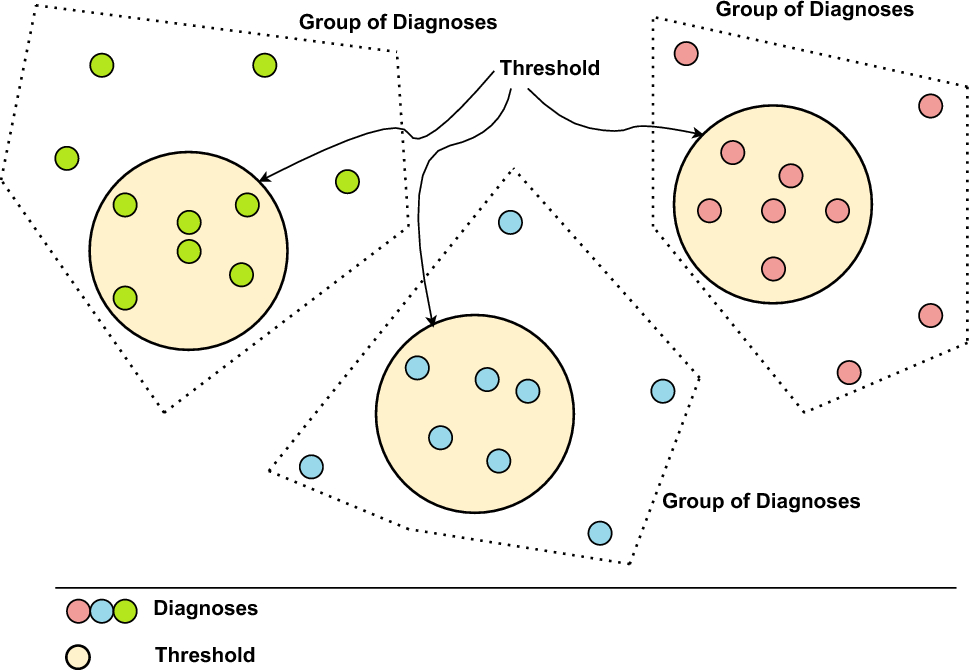

After the label results set is processed, diagnoses are grouped into multiple clusters based on their distances, with those diagnoses that are closer to each other being assigned to the same cluster. To ensure that only diagnoses that are very close to each other are included in a given cluster, a threshold or distance limit may be set. Figure 3 illustrates the grouping of diagnoses within the specified threshold.

In lieu of incorporating all labels in the classification procedure, the proposed approach involves selecting a single label from each group for model processing. Additionally, any labels beyond the prescribed threshold distance are handled individually, in conjunction with the selected label from each group. A visual representation of this methodology is depicted in Fig. 4.

Full size image

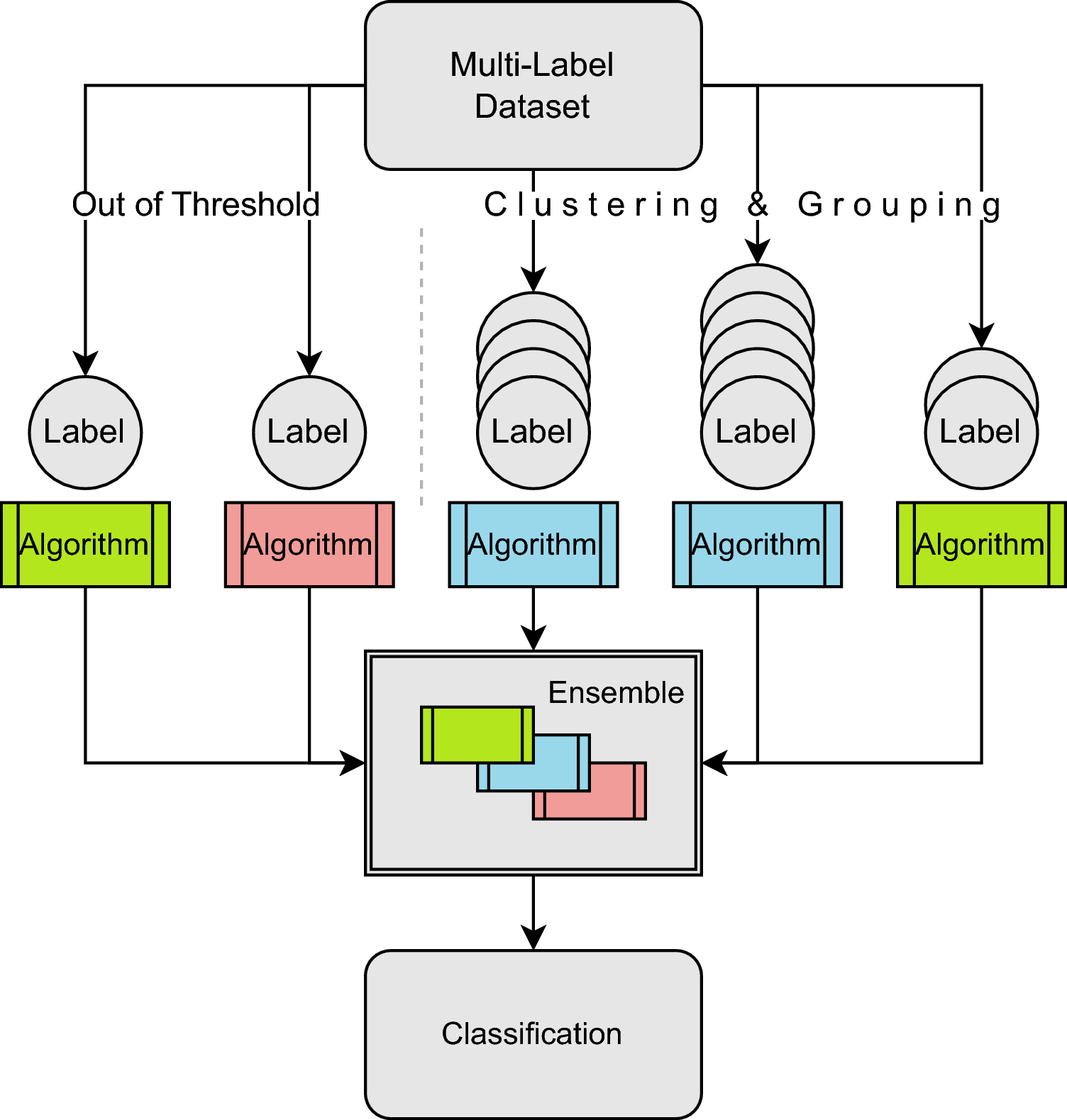

In this figure, the multi-label dataset undergoes clustering and grouping based on the distance between labels. The result is a partitioning of the multi-label dataset into sets of groups, where each group aggregates multiple labels under a single representation, while any remaining individual labels are left ungrouped. Each group is then subjected to an algorithm designed to optimize label accuracy within that specific cluster. For the ungrouped individual labels, they are treated as separate single-label datasets.

The collection of involves the ensemble of distinct algorithms chosen for each group forms an ensemble that collectively maximizes label accuracy across the entire dataset.

The Medical Information Mart for Intensive Care (MIMIC III) is currently the only available dataset that contains medical reports. This dataset is composed of over 2 million medical reports of various types including radiology reports, nursing reports, nutrition reports, and others. For the purpose of this research, the focus was on a subset of MIMIC III, which comprises 59,652 discharge summary reports.

To facilitate testing, the discharge summary dataset was randomly split into multiple subsets of varying sizes, including 1000, 2000, 4000, 8000, and 16,000 reports. This approach allowed us to obtain multiple datasets for testing purposes.

In this study, AutoML models were used for the analysis of large datasets with up to 10,000 features and more than 100 labels. Due to the increasing size of datasets, it was essential to employ high-performance computing resources. To ensure the efficient execution of the AutoML models, Tinaroo [95], a high-performance computer was used, provided by the University of Queensland.

Tinaroo consists of 244 compute nodes, each of which includes 2 Intel Xeon 12-core CPUs, 128 GB RAM, and 1 TB disk space, resulting in approximately 6000 CPU cores, 30 TB RAM, and 0.5 PB disk space. The vast computing resources available on Tinaroo allowed us to efficiently process and analyze our large datasets. Tinaroo operates on CentOS Linux 7 (Core), a widely used open-source operating system in the scientific computing community. The system’s stability and reliability ensured that the execution of the AutoML models was consistent across all experiments.

To ensure consistency across all machine learning techniques and models used in the experiments, The models were executed on a single node equipped with a maximum of 24 core CPU and 120 GB RAM. This approach ensured that each model received the same amount of computing resources and eliminated any variations that could arise from executing the models on different nodes.

The proposed model in this paper is designed to address the challenges of medical data classification by using a combination of preprocessing, clustering, grouping, and classification techniques. The model starts with the preprocessing of medical data using cTAKES to extract meaningful features from the data.

Following preprocessing, as demonstrated in Fig. 4, the model applies clustering and grouping techniques to group the extracted features into related clusters. This grouping helps to reduce the dimensionality of the data and identify patterns that can be used for classification. A single representative label is then identified for each group, and labels that fall outside the selected threshold are eliminated from the clustering process.

Full size image

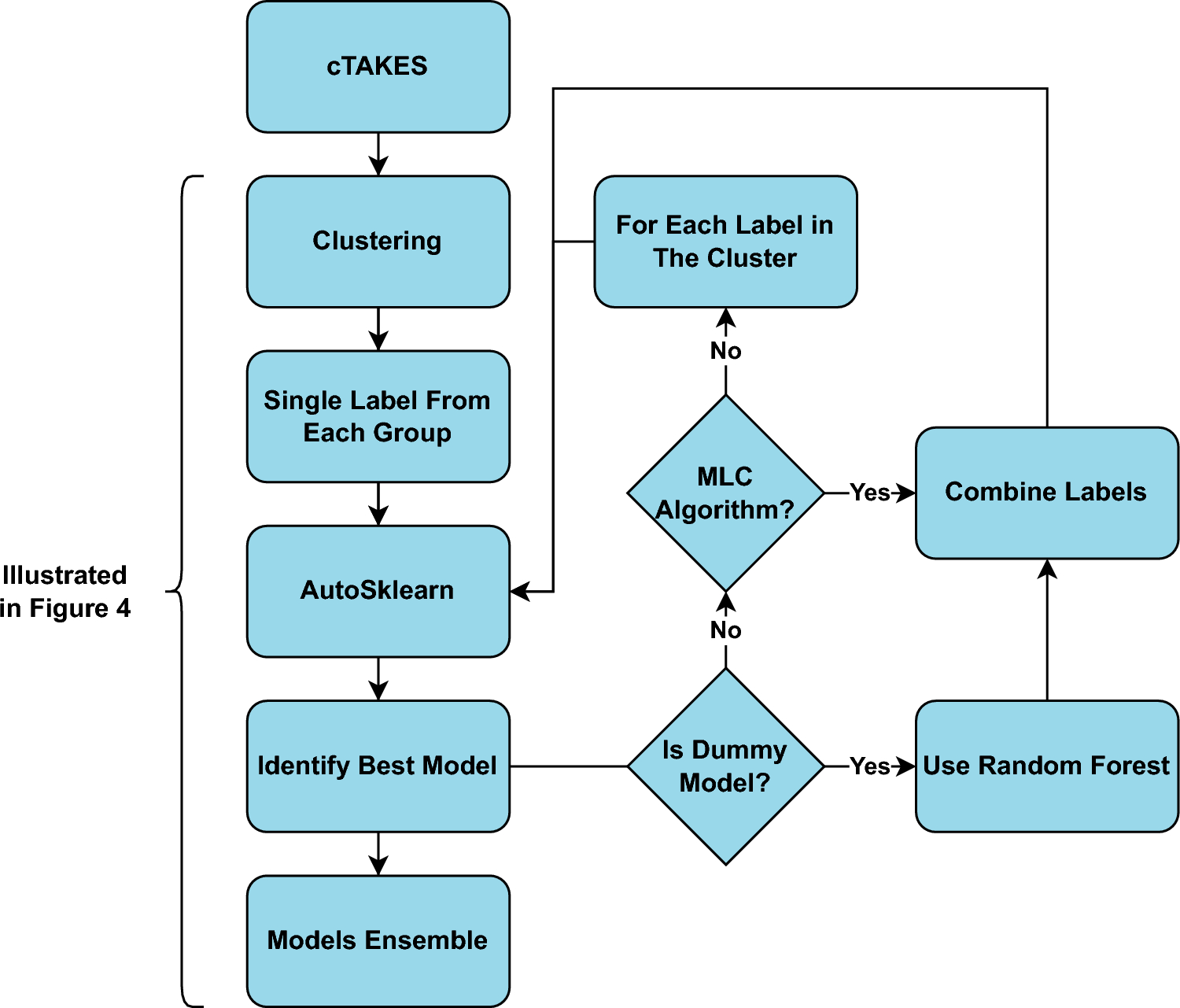

After grouping and labeling, the model, as shown in Fig. 6 applies classification techniques to each selected label using the Auto-Sklearn library. The best model that provides the highest F1-score is then identified for each label. In certain instances, the Auto-Sklearn library is unable to identify a model that outperforms a dummy model [96]. In such cases, the proposed model utilizes the Random Forest algorithm. This algorithm is chosen due to its documented superior performance in previous studies [15, 37]. This step is crucial in achieving high classification accuracy and reducing computational time.

If the best model supports multi-label classification, all labels within the cluster are directly classified using that algorithm. If not, the model loops through each label in the cluster. Finally, all selected models from the aforementioned steps are combined into a model ensemble to achieve the highest possible accuracy.

The initial step in the conversion of unstructured medical reports involves the utilization of cTAKES. Section 4.1.1 elucidates that medical reports are transformed into a CUI format, and subsequently, the BOW method is employed to quantify these features. Meanwhile, the list of diagnoses is employed to create a label set using the binary relevance method, as outlined in Sect. 4.1.2. These preprocessing steps are common to both the clustered AutoML model and the native Auto-Sklearn model. The subsequent stage involves label clustering and grouping, as explicated in Sect. 4.2. The duration of this process and the number of clusters generated vary, depending on the size of the dataset. Table 4 presents the time spent on clustering and grouping for each dataset, alongside the number of clusters generated for each. Notably, the lengthiest duration spent on this process was less than 2.5 min, and the number of clusters ranged between one and ten. In more detail, the Neoplasms dataset labels were consolidated into a single cluster, whereas the Injury and Poisoning datasets were grouped into two to ten clusters. Supplementary datasets were grouped into two to six clusters, and All Level 2 datasets were grouped into five to eight clusters. The time required for clustering is directly linked to the dataset’s size, ranging from 2 s for a Neoplasms Level 3 dataset with 1000 records to 141 s for an Injury & Poisoning Level 3 dataset with 16,000 records.

The present model relies solely on the threshold parameter, which serves as the key factor affecting its performance. Altering this parameter creates a trade-off between accuracy and performance, with higher thresholds leading to superior performance but lower accuracy and lower thresholds yielding inferior performance but higher accuracy. In the context of this model, the optimal threshold was determined to be 15% since it enabled high accuracy within a reasonable timeframe. The remaining parameters, while still relevant to the model, are not directly associated with it and instead pertain to the Auto-Sklearn library [97]. In this study, two Auto-Sklearn parameters were modified, namely, “time_left_for_this_task,” which represents the time limit in seconds for Auto-Sklearn to identify the best model, and “per_run_time_limit,” which indicates the time limit for each algorithm run in seconds. The values of these parameters were varied within the set 120, 240, 360 for time_left_for_this_task, while per_run_time_limit was restricted to 60 s due to limited resources. Given the large number of features and labels, these adjustments were deemed essential for ensuring optimal performance.

The performance of the CAML model was compared with that of the Auto-Sklearn model for the task of multi-label classification, utilizing identical datasets (Table 3). Both models were allocated equal running time; however, it was observed that the Auto-Sklearn model used slightly more runtime than the CAML model. This discrepancy arises from the initial consideration of the time required for the CAML model to complete each experiment. Subsequently, the time_left_for_this_task parameter in Auto-Sklearn was set to the same duration. However, it should be noted that Auto-Sklearn does not consistently terminate precisely at the designated time_left_for_this_task limit; often, it exceeds this predetermined duration. As a result, the elapsed time for each experiment in Auto-Sklearn is slightly longer compared to the time consumed by CAML for the corresponding experiment.

In our experiments, a comparison of two different types of F1-scores was conducted: micro, and weighted F1-scores. The micro F1-score was computed by treating all discharge summaries and diagnoses in the dataset equally. This approach aimed to assess the overall performance of the models by assigning equal weight to each discharge summary and diagnosis. The weighted F1-score computed the F1-score for each diagnosis separately. However, it also took into consideration the number of discharge summaries associated with each diagnosis. In other words, it considered the dataset’s imbalance and assigned a higher weight to diagnoses that appeared more frequently. This approach aimed to provide a better representation of each experiment’s performance by accounting for the varying instances of diagnoses within the dataset.

Both CAML and Auto-Sklearn were utilized to classify multi-label datasets, with Neoplasms (L3-1k) serving as the first dataset used (row 1 of Table 3). For the CAML model, the Neoplasms (L3-1k) dataset was configured for a time limit of 120 s (2 min) for time_left_for_this_task and a per_run_time_limit of 60 s (1 min), with a 15% model threshold. The 15% threshold was subsequently employed for the remaining datasets. The labels were categorized into a single group, and all distances, except for two labels, fell within the 15% threshold. The Secondary malignant neoplasm of respiratory and digestive systems (ICD: 197) and Secondary malignant neoplasm of other specified sites (ICD: 198) was 16.1% and 18.3% distant, respectively, from the closest label. Random Forest was the algorithm that generated the clustered labels list and served as the leader of the ICD 197 and ICD 198 labels model. The entire process took 6.5 min, with a 56.52% Micro F1-score (see row 1 of Table 6).

To compare the efficacy of the CAML model against the Auto-Sklearn model in classifying multi-label datasets with similar parameters, the time_left_for_this_task parameter was set to 8 min, and the per_run_time_limit was set to 4 min, reflecting a 2 : 1 ratio similar to the CAML model. The Auto-Sklearn model required a total of 8.2 min and produced a Micro F1-score of 38.33%, with BernoulliNB emerging as the most effective algorithm in generating these results (see row 1 of Table 10).

For the L3-2k dataset, AdaBoost was identified for both of the out-of-the-threshold labels and provided a 55.63% Micro F1-score in 6.5 min using the CAML model. In contrast, Auto-Sklearn using the MLP algorithm achieved a lower Micro F1-score of 36.46% in 8.2 min (see row 2 of Tables 6 and 6).

Similarly, the other dataset size comparisons are shown in Tables 6 and 6 for a ratio of 2:1. When the dataset size increased to 4000 records (L3-4k), 3 Random Forest algorithms took 6.9 min to produce a higher Micro F1-score of 60.66%. Auto-Sklearn using the Decision Tree algorithm achieved a lower Micro F1-score of 42.62%.

CAML model on Neoplasms (L3-8k) dataset demonstrated a slight reduction in the processing time of 6.4 min and achieved a Micro F1-score of 52.32% when utilizing 2 BernoulliNB and Decision Tree algorithms. In comparison, Auto-Sklearn yielded a Micro F1-score of 46.56% using the Decision Tree algorithm and required 8.7 min to complete processing.

When considering the Neoplasms (L3-16k) dataset, CAML achieved a Micro F1-score of 60.44% in 6.3 min by employing the Linear Support Vector Classifier (SVC) and BernoulliNB algorithms, while Auto-Sklearn yielded a Micro F1-score of 49.67% utilizing the Decision Tree algorithm, with a processing time of 10.4 min. It is noteworthy that in all datasets examined, CAML exhibited superior performance in terms of F1-score when compared to the Auto-Sklearn model.

The same experiments as explained above, were also conducted to investigate the efficacy of the CAML and Auto-Sklearn models on Injury & Poisoning, Supplementary, and All Level 2 datasets (see Table 3). These experiments were iterated only altering the initial 2:1 timing configurations, as 4:1 (time_left_for_this_task=4 min, and per_run_time_limit=1 min), 4:2 (time_left_for_this_task=4 min, and per_run_time_limit=2 min), and 6:1 (time_left_for_this_task=6 min, and per_run_time_limit=1 min). Tables 6 to 13 present the outcomes of these experiments.

Overall, these Tables show 73 experimental results across 20 different datasets of varying sizes and configurations, as shown in Table 3. It is worth noting that, out of the 80 possible experiments (shown in Tables 6 to 13 for the different dataset sizes and ratio settings), Seven experiments involving extended timing configurations could not be executed within the established experimental environment, as detailed in section 5.2. However, the experimental environment was not altered to maintain consistency in comparisons. Therefore, no results are shown for these experiments.

Full size image

Both CAML and Auto-Sklearn were evaluated across the remaining 73 datasets. Results indicated that CAML outperformed Auto-Sklearn in the majority of cases, with 66 out of 73 cases demonstrating superior performance. This represents a success rate of over 90%. Furthermore, CAML consistently demonstrated higher F1-scores in all dataset sizes and configurations compared to Auto-Sklearn. This is evidenced by the Micro F1-score improvement ratio depicted in Fig. 7, which demonstrates a significant improvement in performance achieved by CAML compared to Auto-Sklearn. For datasets consisting of 1000 records, an average Micro-F1 improvement ratio of 23% was observed. This improvement is calculated by taking the average of the improvements in all five 1K dataset cases shown in Tables 6, 7, 8, 9, 10, 11, 12 and 13. The improvement in each of the five cases is calculated by dividing the difference in the F1-Score of CAML and Auto-Sklearn by the Auto-Sklearn F1-score value (i.e. the base value) for that case. For instance, the Micro F1-Score improved from 38.33% using Auto-Sklearn to 56.52% when utilizing CAML on the Neoplasms 1K dataset, achieving 47.46% improvement in this case. Similarly, for the Injury & Poisoning 1K dataset, an improvement ratio of 10.83% was observed, while the Supplementary 1K dataset showed an improvement ratio of 11.24%. When considering all level 2 1K datasets, the improvement ratio across the board amounts to 24.09%. Evaluating the average improvement ratio for the 2:1 configuration and a dataset size of 1K records then yields a value of 23.40%, which is shown as 23% in the most left bar of Fig. 7. All other improvement values shown in this figure are calculated similarly. Overall, comparing CAML to Auto-Sklearn across all datasets of various sizes reveals an average F1-Score improvement ratio of 35.15% for CAML.

The results presented in Tables 6, 7, 8, 9, 10, 11, 12 and 13 demonstrate instances where the CAML model performed less effectively compared to the Auto-Sklearn model in seven specific cases. Among these cases, two involved datasets on Injury & Poisoning with 8000 and 16,000 records, respectively, using a 2:1 configuration. In these instances, Auto-Sklearn exhibited significantly superior Micro F1-score results of 37.89% and 35.38% as opposed to CAML’s results of 27.22% and 22.19%. Furthermore, the Supplementary datasets with 4000, 8000, and 16,000 records, employing a 2:1 configuration, exhibited three cases where Auto-Sklearn outperformed CAML. The Micro F1-score results for Auto-Sklearn were significantly higher at 33.20%, 33.91%, and 22.12% compared to CAML’s results of 28.20%, 27.20%, and 13.56%, respectively. Additionally, there was one case involving 8000 records in the Injury & Poisoning datasets with a 4:1 configuration, where Auto-Sklearn displayed slightly better Micro F1-score of 47.79% in contrast to CAML’s 46.81%. Lastly, for the 4000 records in the Supplementary datasets using a 4:2 configuration, Auto-Sklearn showcased marginally superior Micro F1-score results of 33.31% compared to CAML’s results of 32.96%. The reason for these findings can be attributed to providing Auto-Sklearn with extended time to explore a wider range of algorithms, particularly considering the substantial availability of algorithms that facilitate single-label classification.

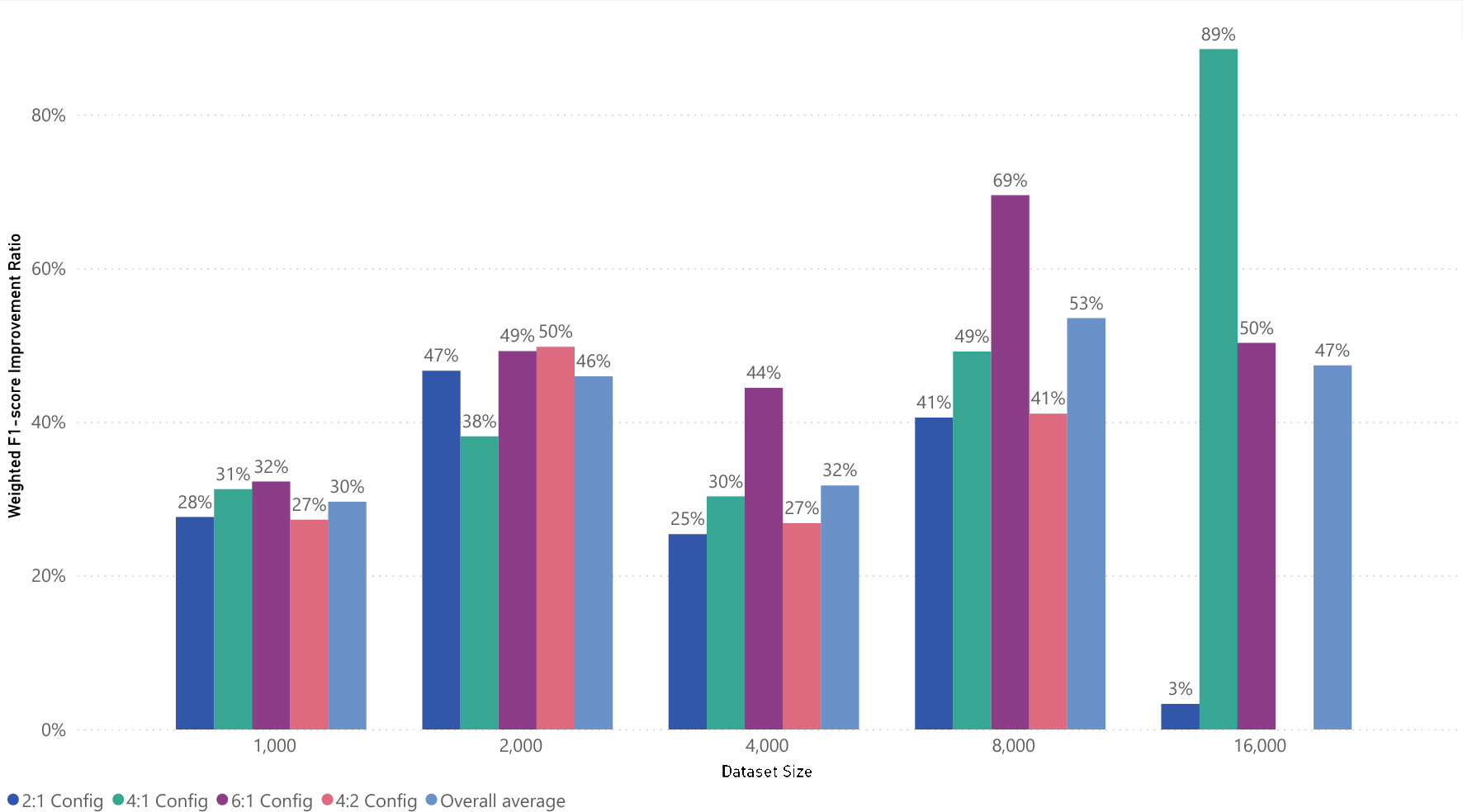

When considering the Weighted F1-score, compared to the micro F1-score, our performance analysis still demonstrated the superiority of CAML over Auto-Sklearn. Specifically, CAML achieved a higher Weighted F1-score in 63 cases out of the overall 73 experiments. The weighted F1-score improvement ratios for the various experimental dataset sizes and configurations are shown in Fig. 8. These values, which were calculated in a similar manner to those in Fig. 7, result in an average weighted F1-score improvement ratio of 40.56%.

Full size image

To gain a comprehensive understanding of the algorithms employed by CAML and Auto-Sklearn models, a thorough investigation was conducted. Random Forest (RF) is the most frequently utilized algorithm in CAML, appearing in 67 CAML ensembles, followed by Ada Boost (Ada) and Decision Tree (DT), each appearing in 27 ensembles. Extra Trees (ET) is also utilized frequently, appearing in 26 ensembles. Table 5 provides a breakdown of the frequency of algorithm utilization in these ensembles, with a total of 14 distinct algorithms employed. Conversely, Auto-Sklearn models employ only three algorithms, with Bernoulli Naive Bayes (BNB) appearing 40 times, Decision Tree (DT) appearing 22 times, and Multi-layer Perceptron (MLP) appearing 11 times across our experiments.

The superior performance of CAML models over Auto-Sklearn models can be attributed, in part, to the diversity of algorithms utilized in their construction. While Auto-Sklearn exclusively employs algorithms that natively support multi-label classification, CAML models are able to utilize any classification algorithm, thus increasing the likelihood of identifying an algorithm that yields a higher F1-score. Ensembles, which consist of a combination of multiple algorithms ranging from a single algorithm to as many as nine, are commonly utilized in CAML models and can be another reason for CAML’s improved performance.

The F1 score exhibits a consistently low performance across various tested datasets. This issue arises from the inherent difficulty associated with handling a large set of labels in Multi-Label Classification models. The inclusion of a large label set significantly amplifies the model complexity, subsequently diminishing its accuracy [98, 99]. Many prior research endeavors have sought to address this complexity by constraining the clinical coding classification to a more manageable scenario involving a single label, often limited to a specific set [26, 27, 33]. While this strategy has proven to enhance accuracy in those studies, it comes at the cost of overlooking the intricacies and nuances present in datasets with a broader range of labels. In contrast to these limitations, our model operates with a more expansive label set, spanning from 72 to 192 labels, encompassing diverse codes. Furthermore, the nature of multi-label datasets introduces an additional layer of complexity through the inherent imbalance among labels. This imbalance is evident as certain labels are more prevalent than others, with instances where one label may be more frequently observed than its counterparts [100].

In summary, the study employed both CAML and Auto-Sklearn to classify multi-label datasets, starting with the Neoplasms (L3-1k) dataset. CAML demonstrated superior performance, achieving a Micro F1-score of 56.52% in 6.5 min, compared to Auto-Sklearn’s 38.33% in 8.2 min. This trend continued across various dataset sizes and configurations, with CAML consistently outperforming Auto-Sklearn in 66 out of 73 cases, representing a success rate of over 90%. Notably, CAML exhibited higher F1-scores across all dataset sizes, with an average improvement ratio of 35.15% compared to Auto-Sklearn. Despite a few cases where Auto-Sklearn performed better, the study attributes CAML’s superior performance to its diverse use of algorithms in constructing ensembles, enabling a broader exploration of classification algorithms. Overall, CAML’s versatility and ability to create ensembles contribute to its improved performance in multi-label classification tasks.
