Abstract
This article delves into the performance of high-resolution Ni/Y₂O₃/4H-SiC MOS detectors, focusing on the influence of 4H-SiC epilayer thickness. The study examines three detectors with epilayer thicknesses of 50 µm, 150 µm, and 250 µm, all featuring a 40 nm Y₂O₃ dielectric layer. Key topics include electrical characterization through I-V and C-V measurements, radiation detection capabilities assessed via alpha-particle spectroscopy, and deep-level defect analysis using DLTS. The results highlight the superior performance of detectors with thinner epilayers, particularly in terms of energy resolution and charge collection efficiency. The study also explores the impact of deep-level defects on detector performance and suggests that interface states or localized defects at the Y₂O₃/SiC interface may contribute to the observed variations in device response. The findings underscore the potential of incorporating Y₂O₃ gate dielectrics into 4H-SiC-based detectors for high-performance operation in extreme environments.
AI Generated
This summary of the content was generated with the help of AI.
Abstract
This study investigates the performance of Ni/Y₂O₃/4H-SiC metal–oxide–semiconductor (MOS) radiation detectors fabricated on 4H-SiC epilayers of 50, 150, and 250 µm thicknesses. The impact of epilayer thickness on electrical behavior, defect dynamics, and alpha particle response in Y₂O₃-gated 4H-SiC detectors is systematically examined. Leveraging the wide bandgap of 4H-SiC and the high dielectric constant and thermal stability of Y₂O₃, the devices are optimized for high-resolution radiation detection in harsh environments. A 40 nm Y₂O₃ dielectric layer, deposited via pulsed laser deposition, retained the Schottky-like behavior and efficient charge transport of the detectors. Device characterization included current–voltage and capacitance–voltage measurements to assess Schottky barrier properties, deep-level transient spectroscopy to analyze defect states, and alpha pulse height spectroscopy to evaluate detection response. The detector with a 250 µm epilayer exhibited lower leakage current and reduced concentrations and capture cross-sections of Z1/2 and EH6/7 traps—defects known to impair charge collection. However, despite these favorable electrical and defect characteristics, the 250 µm device showed a comparatively lower alpha detection response than thinner epilayer detectors. This behavior suggests an influence of the Y₂O₃/4H-SiC interface, particularly in thicker epilayers, where interfacial states or field distortions may hinder carrier transport. Overall, the findings provide new insights into optimizing thick epilayer MOS detector architectures and underscore the importance of interface engineering to advance robust, high-performance 4H-SiC-based radiation detectors for space, nuclear, and high-energy physics applications.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
1 Introduction
The 4H polytype of silicon carbide (4H-SiC) offers several advantageous material properties that make it an excellent electronic material for radiation detection applications in harsh environment. Its wide bandgap (3.27 eV at 300 K) contributes to a high breakdown electric field (3 × 106 V/cm), low leakage current, and low thermal noise and its exceptional thermal conductivity (490 W/m.K) allows for fast heat dissipation during high-temperature applications. The Si and C atoms in the 4H-SiC lattice have very high displacement thresholds making it far less susceptible to radiation induced displacement damages than conventional semiconductor devices in intense radiation environments. Epitaxially grown 4H-SiC thin films exhibit high crystallinity that enables to achieve high drift mobility of 1000 cm2/V-s [1‐4]. Furthermore, the relatively low electron–hole pair (ehp) generation energy of 4H-SiC (7.28 eV) compared to ultra-wide bandgap semiconductors such as single crystalline diamond, Ga₂O₃, and GaN enables the generation of a higher number of charge carriers per incident particle, leading to superior energy resolution under comparable experimental and device conditions. In addition, unlike these materials—which often suffer from high fabrication costs, limited wafer availability, and lower growth yields—4H-SiC offers a mature, scalable, and cost-effective platform suitable for large-area radiation detector applications [5]. The combination of the above properties makes 4H-SiC a superior harsh-environment electronic device material, specifically for radiation detectors in extreme environments such as nuclear reactor cores, space missions, and high-energy astrophysics.
Extensive research over the past few years has focused on reducing defect concentrations in 4H-SiC epitaxial layers to enhance charge collection efficiency and overall detector performance [6]. Studies have demonstrated that 4H-SiC alpha-particle detectors achieve energy resolutions comparable to those of silicon-based detectors [7‐9]. Among different detector architectures, vertical Schottky barrier detectors (SBDs) are widely used due to their ability of high-resolution radiation detection [10‐14].
Advertisement
Thick epitaxial layers are particularly useful for detecting penetrating radiation. The creation of a Schottky barrier on the surface of the epilayer facilitates the depletion of mobile charges within the epilayer. The depletion region constitutes the active detector volume, where charge pairs responsible for generating the detector signal are produced. While the present work focuses on alpha-particle measurements, thicker detectors are also of interest for detecting more penetrating radiation such as gamma rays and neutrons, where the increased active volume enhances interaction probability and overall detection efficiency. However, to fully deplete thick epitaxial layers require extremely high electric fields, which can lead to increased leakage currents—primarily due to surface conductivity—thereby degrading device performance. To mitigate this issue, dielectric layers are often employed to passivate semiconductor surfaces and to minimize surface leakage currents [15‐17]. Additionally, incorporating a metal–oxide–semiconductor (MOS) structure helps reduce bulk leakage currents within the junction, further enhancing device performance and reliability [18].
While silicon dioxide (SiO₂) is the native oxide layer formed on 4H-SiC, its high interface trap density can result in increased leakage current, reduced channel mobility, and threshold voltage instability [6, 19‐22]. To overcome these challenges, high-κ gate dielectrics such as HfO₂, Al₂O₃, TiO₂, CeO₂, La₂O₃, and Y₂O₃ [23‐28], have been explored for deposition on 4H-SiC. The use of high-κ materials reduces the likelihood of premature dielectric breakdown, improves reliability, and lowers gate capacitance, thereby enhancing switching speed [18, 29].
Yttrium oxide (Y₂O₃) has emerged as a promising alternative to conventional high-κ dielectrics for wide bandgap semiconductor devices, particularly when integrated with 4H-SiC. Compared to the above mentioned high-κ materials, Y₂O₃ offers a unique combination of desirable properties, including a relatively high dielectric constant (κ ≈ 14—18), exceptional thermal stability (up to ~ 2300 ℃), and a wide bandgap of ~ 5.5 eV [30]. These characteristics are particularly advantageous for high-temperature applications, where dielectric reliability and interface integrity are critical. Additionally, Y₂O₃ exhibits good chemical compatibility with SiC and a favorable band alignment, which helps suppress leakage currents and minimize interface trap density [30]. In our earlier studies, we demonstrated that Ni/Y₂O₃/n-4H-SiC (NiYOSiC) vertical MOS radiation detectors exhibit significantly improved electrical and charge transport behavior compared to conventional Schottky barrier diodes, further highlighting the potential of Y₂O₃ as a superior dielectric material in SiC-based device platforms [31‐33]. The results showed that a 40 nm Y₂O₃ layer on 20 µm-thick 4H-SiC epilayers yielded the best radiation detection performance, exhibiting high energy resolution and the highest reported charge collection efficiency (CCE) under self-biased operation.
In this study, we investigate radiation detectors comprising a fixed 40 nm-thick Y₂O₃ dielectric layer deposited on 4H-SiC epilayers of varying thicknesses, aiming to understand how the epilayer properties influence overall device performance. Although the Y₂O₃ layer remains constant, varying the epilayer thickness provides an opportunity to examine potential effects on electrical characteristics and radiation response. Differences in performance may be influenced by factors such as mechanical strain, thermal mismatch, or variations in interface quality, which can be indirectly affected by the underlying epilayer structure. The device interfaces were electrically characterized using current–voltage \((I - V)\) and capacitance–voltage \((C - V)\) measurements, and the detector response was evaluated through alpha-particle spectroscopy. Furthermore, deep level transient spectroscopy (DLTS) was employed to investigate point defects in the 4H-SiC epilayers, helping to discern whether the observed differences in device performance are attributable to intrinsic defects or the epilayer thickness.
Advertisement
2 Detector fabrication
Three n-type 4H-SiC epitaxial layers with thicknesses of 50, 150, and 250 μm were used in this study. The samples are designated AS050, AS150, and AS250, respectively, based on their epilayer thicknesses. All epilayers, with an unintentional nitrogen doping concentration of approximately 1014 cm⁻3, were homoepitaxially grown using a hot-wall chemical vapor deposition (CVD) method, following a consistent recipe [34]. Each epilayer was grown on the (0001) Si-face of a 350-μm-thick, heavily doped n-type 4H-SiC substrate (resistivity ≈ 0.028 Ω-cm), with a 4° off-cut toward the ⟨\(11\overline{2}0\)⟩ direction.
Square-shaped specimens (8 mm × 8 mm) were diced from the parent wafer for further processing. The samples were cleaned using the Radio Corporation of America (RCA) wafer processing protocol to remove organic and metallic contaminants [35]. Following the cleaning process, the wafers were immersed in a 10% diluted aqueous HF solution for 1 min to etch away the native SiO₂ layer from the 4H-SiC surface before the oxide deposition.
The three 4H-SiC samples with different epilayer thicknesses were provided to the Nanostructured Materials for Energy Laboratory, located in the Department of Mechanical Engineering at the University of South Carolina, where epitaxial pulsed laser deposition (PLD) was performed to synthesize 40 nm-thick epitaxial Y₂O₃ thin films on the 4H-SiC epilayers. PLD offers several advantages for thin film growth, including precise control over film stoichiometry, accurate thickness tuning, and relatively high deposition rates [36]. For the growth of the Y₂O₃ oxide epilayers, a Coherent Inc. COMPex excimer laser operating at a wavelength of 248 nm was employed to ablate a Y₂O₃ ceramic disk target. The deposition was carried out using a laser fluence of 2 J/cm2 and a repetition rate of 5 Hz, resulting in a growth rate of approximately 2.7 nm per minute. The 4H-SiC epilayer samples were affixed to the sample holder using silver epoxy on the bulk side of the samples and loaded into an NBM Design PLD chamber. During deposition, an oxygen partial pressure of 100 mTorr was maintained, and the substrate temperature was held at 700 ℃ to facilitate high-quality epitaxial growth.
After the deposition, the residual silver paste was etched off from the bulk side of the 4H-SiC samples using nitric acid and thoroughly cleaned again. Metallization on the samples for electrical contacts were achieved by depositing 10 nm thick circular (diameter ∼ 2.9 mm) nickel contacts on the top of Y2O3 thin films using a Quorum Q150T sputter coater. Additionally, 100 nm thick gold contacts with a much smaller diameter of 1 mm were sputtered on the top of the circular Ni contacts of each sample using a shadow mask to have stable contacts with the fine tipped probes for electrical measurements while leaving majority of the contact as semitransparent for radiation measurement purposes. Square shaped (6 mm × 6 mm) nickel contacts with a thickness of 100 nm were deposited on the bottom of the samples to form the Ohmic back contact. It may be noted that no post-deposition annealing was employed in this work. The high interface quality and stable Ohmic contacts were achieved through meticulous surface cleaning and preparation, highly polished epitaxial and bulk surfaces, and optimized doping profiles, which minimized interface defects and eliminated the need for additional thermal processing. The schematic of the detector structure has been shown in Fig. 1a and a photograph of the detector mounted on a printed circuit board (PCB) has been shown in Fig. 1b.

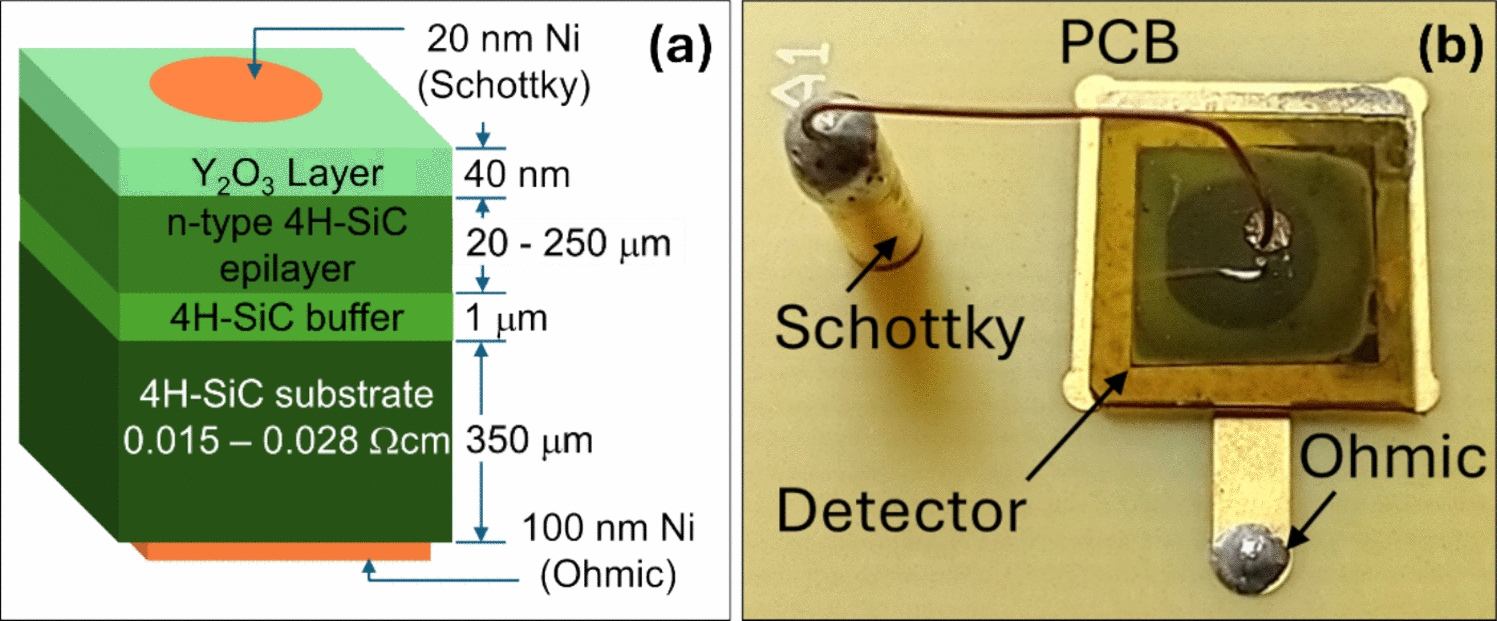

Fig. 1
a Schematic of a Ni/Y2O3/n-4H-SiC epitaxial MOS detector. b Photograph of an 8 mm × 8 mm detector mounted on a PCB. An unmounted bare detector was used for the C-DLTS measurements
I-V and high-frequency (1 MHz) \(C\)-\(V\) measurements were carried out at room temperature to characterize the interface/barrier properties. Room temperature I-V measurements were taken using a Keithley 237 source-measure unit with the detector mounted on a printed circuit board (PCB) and placed inside an electromagnetic interference shielded box. A Sula Technologies DDS-12 Deep Level Transient Spectrometer (DLTS) system equipped with a pulse generator unit, a capacitance meter unit, a pre-amplifier unit, and an interface to communicate with a PC based data acquisition and analysis software, was used for \(C\)-\(V\) measurements. In these measurements bare samples were mounted on the sample stage inside the liquid nitrogen cryostat of the DLTS set up and the measurements were carried out at room temperature.
3.2 Radiation spectroscopy
Pulse-height spectroscopy measurements were carried out to evaluate the radiation detection response of the detectors. A 0.9 µCi 241Am radioisotope emitting alpha particles α1, α2, and α3 with energies 5486 (85%), 5443 (14%), and 5381 (1%) keV, respectively, was used as a test source. The detector, mounted on a PCB and the alpha-source, was placed inside an electromagnetically shielded box continually evacuated using a vacuum pump to minimize the scattering of alpha particles with the air molecules. The detector signal was fed to a Cremat CR110 charge-sensitive preamplifier. The output of the preamplifier was fed to a standard benchtop alpha spectrometer comprising an Ortec 671 spectroscopy amplifier and a Canberra Multiport II multi-channel analyzer (MCA) module controlled by Genie 2000 data acquisition software. An absolute calibration method was used to convert the channel numbers in the MCA to energy (keV) units, as reported in our previous publication [37].
3.3 Deep-level Transient Spectroscopy (DLTS)
The DLTS measurements were conducted using a Sula Technologies DDS-12 deep-level transient spectrometer [18, 33]. Bare samples were placed onto a temperature-controlled copper stage housed within a VPF-800 liquid nitrogen-cooled cryostat. The temperature of the copper stage was regulated using a Lakeshore LS335 temperature controller. The detector was connected to a bias supply and a pulse generator module. A steady-state reverse bias of −12 V was applied. The traps under investigation were electrically filled by pulsing the devices to 0 V from the steady state-state reverse bias with a pulse duration ranging from 5 to 1000 ms depending on the selected rate window. A pulse width of 2 ms was used to ensure saturated trap filling. Once the filling pulse ended, the trapped charges were released, and the capacitance gradually returned to its initial value forming the capacitance transients. To obtain the DLTS spectra temperature scans typically in the range 80–800 K were carried out with an increment of 1 K. The capacitance transients were analyzed at each temperature. During the temperature scans, a peak in the DLTS spectrum was observed when the emission rate of a specific trap matched the set rate window. The rate windows were configured using a digital boxcar averaging technique. A dedicated data acquisition and analysis program processed the pulse signals to generate DLTS spectra. Key defect characteristics, such as trap concentration, capture cross-section, and energy level, were determined through analysis of the DLTS spectrum and Arrhenius plots.
4 Results
4.1 Electrical characterization
Figure 2 presents the dark current as a function of gate bias (I–V characteristics) for both bias polarities for all three devices, measured at room temperature. The strong asymmetry in current density with respect to bias polarity highlights the pronounced rectifying behavior of the MOS junctions. As summarized in Table 1, the current density at a bias of –500 V ranges between 1 × 10⁻10 and 7 × 10⁻10 A/cm2. A slight decrease in leakage current density is observed with increasing epilayer thickness from AS050 to AS150 and AS250. The lower leakage current—by approximately a factor of six for the 150 µm and 250 µm detectors—may be attributed to the wider depletion region available at higher bias voltages. Overall, the reverse leakage currents remain low and comparable among all detectors. Since the \(I\)-\(V\) characteristics resembled Schottky behavior, a thermionic model applicable to Schottky barrier diodes as given below in (1) has been used to obtain the interfacial properties such as the ideality factor (n) and Schottky barrier height \({(\Phi }_{B})\) [38]. Also, the positive and negative polarity bias at the top circular Ni contact measured with respect to the bulk side square Ni contact, will be referred to as the forward and reverse bias, respectively, henceforth.
where A* is the Richardson constant for 4H-SiC (146 A/K2/cm2), T is the absolute temperature of the diode, q is the elementary charge, and kB is the Boltzmann’s constant. The diode parameters extracted using (1) are listed in Table 1. As observed in our previous study, the presence of the interfacial oxide layer in MOS devices influences the bulk current by increasing the Schottky barrier height, reducing tunneling probability, and mitigating surface leakage through passivation effects [18]. In general, a diode ideality factor close to unity suggests a homogeneous barrier height distribution across the contact area but as seen in Table 1, the higher ideality factors observed in the three devices indicate inhomogeneous barrier heights, likely due to local structural defects [39‐41]. The deviation of the ideality factor from unity arises from spatial variations in the Schottky barrier height across the device surface, leading to localized current flow through regions of lower barrier height. Such effects, rather than uniform interface states or recombination mechanisms, can result in ideality factors greater than unity, and in some cases exceeding two, depending on the degree of barrier non-uniformity. These regions contributed to lower barrier height and hence to increased leakage.

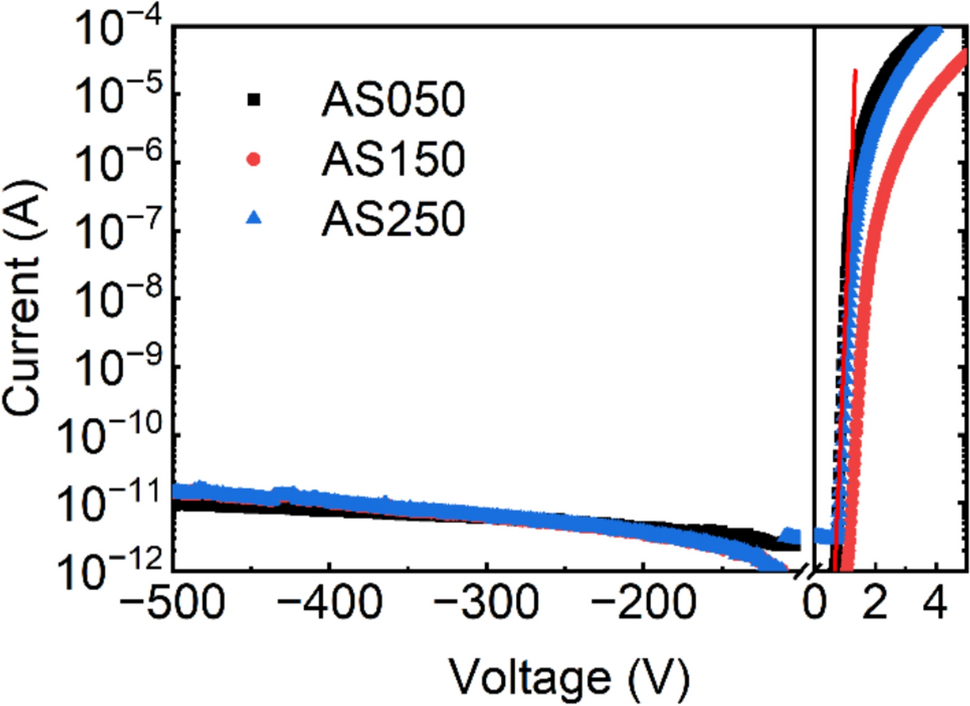

Fig. 2
Variation of junction current as a function of forward (positive) and reverse (negative) bias (I–V characteristics) for the AS050, AS150, and AS250 MOS detectors. The solid red line represents a linear fit to the AS050 I–V data based on the thermionic emission model described by Eq. (1)
Device properties obtained from electrical measurements
Sample ID
Ideality Factor
Barrier
Height
(eV)
Effective Donor Conc
(cm−3)
Leakage Current Density @ −500 V
(A/cm2)
Operating Bias
(V)
Depletion Width at Operating Bias
(µm)
5486 keV Resolution
(%)
Minority Carrier Diffusion Length
(µm)
AS050
1.34
1.57
1.46 × 1014
6.78 × 10–10
−40
17.1
0.43
28
AS150
1.67
1.50
1.55 × 1014
1.16 × 10–10
−50
18.5
0.42
32
AS250
1.97
1.42
5.22 × 1013
1.2 × 10–10
−60
34.9
0.81
-
Figure 3a–c presents the Mott–Schottky (1/C2 vs V) plots obtained from the capacitance–voltage (C-V) measurements. Based on a parallel-plate capacitance model, a linear fit to the Mott–Schottky data allows extraction of the effective doping concentration Neff and built-in potential Vbi using the equation [38]:
Fig. 3
Variation of junction capacitance as a function of bias (in black squares, plotted on the left y-axis) and the corresponding Mott-Schottky plots (in blue circles, plotted on the right-y axis) for AS050 (a) AS150 (b) and AS250 (c) MOS detectors
Here, \(A\) denotes the contact area, \({\varepsilon }_{0}\) is the electrical permittivity of vacuum and \({\varepsilon }_{4H-SiC}\) = 9.7 is the dielectric constant of 4H-SiC. The variation in \({N}_{eff}\) ranges from (0.5–2) × 1014 cm−3, aligns with the spatial doping concentration variations observed across the 10 cm-diameter parent wafers. Among all detectors, AS250 exhibited the lowest Neff which is advantageous for achieving a wider depletion region at a given bias. The lower Neff observed in AS250 is specific to the present sample and results from slight unintentional doping non-uniformities across the 4-inch parent wafer.
4.2 Radiation detection
Figure 4a and c depict the pulse height spectra recorded for the MOS detectors (AS050 and AS150) at their respective optimized operating voltages and a shaping time of 2 µs. In both the detectors all the primary alpha peaks viz. α1, α2, and α3 were observed to be well-resolved depicting the high energy-resolution of the detectors. The peaks were fitted using a multiple Gaussian peak fitting program to determine crucial peak parameters such as the full width at half maximum (\(fwhm\)) and the peak centroid (\({E}_{p}\)). The percentage energy resolution of the detectors for the 5486-keV (α1) peak listed in Table 1 has been calculated as \((fwhm/{E}_{p})\times 100 \%.\)
Fig. 4
Pulse height spectra with three distinct α-peaks recorded with the AS050 (a) and AS150 (c) detectors exposed to the 241Am alpha emitting source under optimised settings (Shaping time = 2 µs). The dotted lines show the Gaussian fitting of the individual peaks while the solid line shows the cumulative peak fitting. The variation of the CCE measured for the 5486-keV alpha peaks as a function of the reverse bias for the AS050 (b) and AS150 (d) detectors. The solid lines are the fits following a drift–diffusion model given by (3)
Resolution of \(\approx\) 0.4% for the 5486-keV alpha peak, as observed for the AS050 and AS150, is indeed among the reported high energy resolution detectors. The AS250 detector showed a relatively lower energy resolution (higher fwhm) and will be discussed in detail in the following sections. The optimum bias voltages, corresponding depletion widths, and percentage energy resolutions are listed in Table 1 for ease of comparison. It may be noted that the detectors are only partially depleted at these voltages. Nevertheless, this level of depletion is sufficient for the present alpha-particle measurements, as their penetration depth is approximately 18 µm. With suitable high-voltage adjustments and careful biasing measures, the detectors can be fully depleted for the detection of more penetrating radiation such as gamma rays.
Figure 4b and d illustrates the variation in charge collection efficiency (CCE) as a function of negative gate bias for the AS050 and AS150 detectors. The CCE corresponding to the α1 peak has been calculated as the ratio \({E}_{p}/5486.\) The CCE for all detectors was modeled using a drift–diffusion framework, as expressed in Eq. (3), which describes how the theoretical CCE (\({\eta }_{theory}\)) varies with applied bias in Schottky-type junctions [42]:
In the above equation, \(d\) is the depletion width at a set bias, \({x}_{r}\) is the penetration depth of the incident alpha particles in 4H-SiC, \(x\) is the distance measured from the metal/Y2O3 interface, dE/dx is the electronic stopping power of the alpha particles calculated using SRIM-2008—a simulation tool that models ion interactions with matter [43].The first term, \({\eta }_{drift}\), accounts for charge carriers generated within the depletion region that contribute to CCE through drift under an applied electric field. The second term, \({\eta }_{diffusion}\), represents this contribution due to diffusion of charge carriers produced beyond the depletion region.
To determine the hole diffusion length (\({L}_{d}\)), experimental CCE values (\({\eta }_{exp}\)) were fitted to (3). Table 1 lists the extracted \({L}_{d}\) values, revealing that detectors AS150 showed higher hole diffusion length. A larger \({L}_{d}\) suggests reduced hole trapping, implying a lower density of hole-trapping defects in these devices, which was slightly higher than AS050.
For all detectors except AS250, the relative peak intensities aligned well with the expected intensity ratio of α1, α2, and α3. However, in the case of AS250, the two alpha components, α2 and α3, could not be deconvoluted due to the poorer resolution of the detector compared to the other two. Also, at lower bias voltages no discernable peaks could be obtained which limited our ability to obtain readings at low bias voltages, and consequently, fitting to the drift–diffusion model could not be performed. However, both detectors, AS050 and AS150 successfully generated distinct alpha peaks even in self-biased mode (0 V applied bias). AS050 delivered the best energy resolution, achieving the lowest FWHM at its optimal bias.
4.3 Deep-level transient spectroscopy (DLTS)

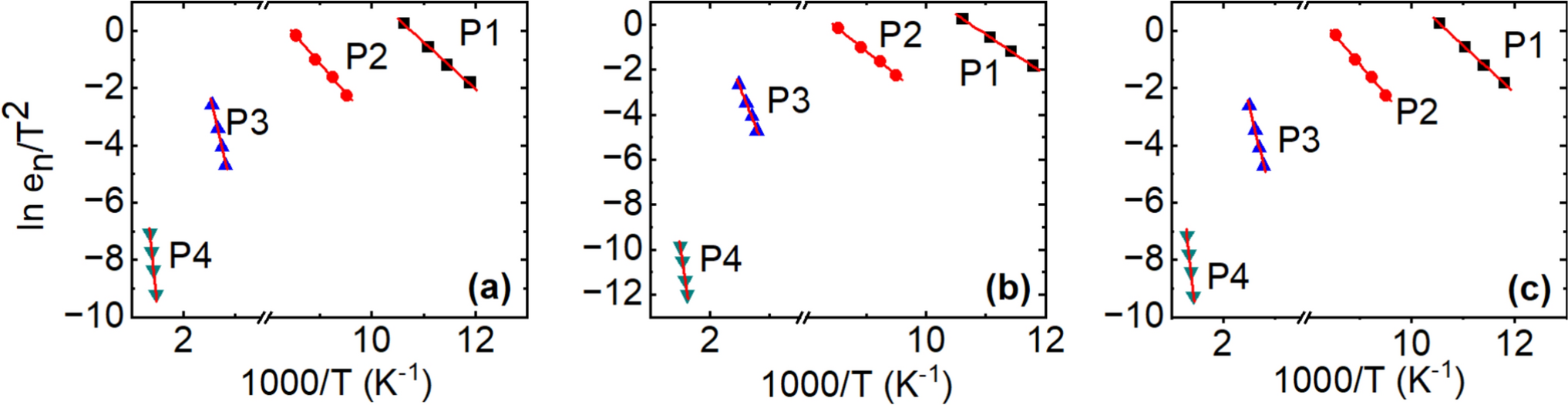

Figure 5a–f presents the DLTS spectra for a set of four rate windows obtained from the three different detectors. Figure 6a–c shows the Arrhenius plots of all the peaks for the three detectors. Each peak in the DLTS spectrum corresponds to an individual trap center or a combination of unresolved trap states. The peak positions (\({T}_{m}\)) on the temperature axis of a DLTS spectrum align with the emission rate (\({e}_{n}\)) set by the boxcar rate window \({\tau }_{m}\), where \({\tau }_{m}=1/{e}_{n}\).

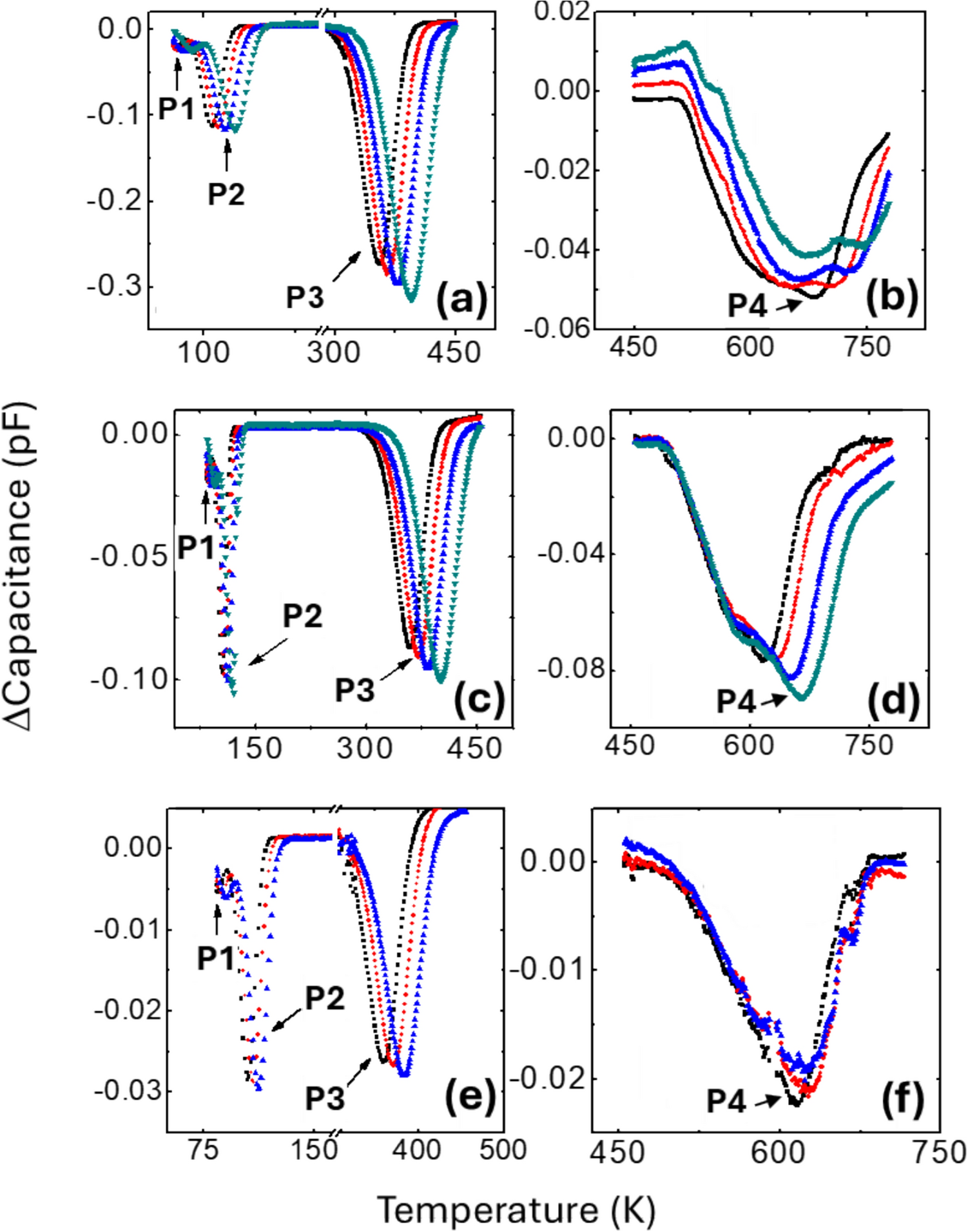

Fig. 5
DLTS spectra obtained for the AS050 (a), AS150 (b) and AS250 (c) MOS detectors in the temperature range 80–800 K. A set of four rate windows out of twelve has been shown in the Figure
where \({\sigma }_{n}\) is the capture cross section, \(\langle {v}_{\text{th}}\rangle\) is the mean electron thermal velocity, which varies as \({T}^{1/2}\); \({N}_{C}\) is the effective density of states in the conduction band which varies as \({T}^{3/2}\); \(g1\) is the degeneracy of the trap level, which is assumed to be unity; and \(\Delta E\) is the activation energy defined as the location of the trap energy level measured with respect to the conduction band minimum. Since the temperature-dependent factors in \(\langle {v}_{\text{th}}\rangle\) and \({N}_{C}\) combine to yield a \({T}^{2}\) dependence, a linear fit to the Arrhenius plot [\(\text{ln}\)(\({e}_{n}/{T}^{2}\)) vs. 1000/\(T\)] provides an estimate of both the activation energy and the capture cross-section for each defect state. The concentration of deep-level traps \({N}_{t}\) was determined using (5) below [44]. All the above defect parameters have been calculated and listed in Table 2 for each identifiable peak observed in each of the detectors.
Table 2
Defect parameters obtained from DLTS measurements of MOS detectors
All the three detectors showed three distinct peaks P1, P2, and P3 located respectively around 0.14, 0.18, and 0.67 eV below the conduction band edge \({E}_{C}\). The activation energies have been given in Table 2. These peaks are commonly noticed in our 4H-SiC epilayers. The first two peaks correspond to the substitutional titanium impurity centers Ti(h) and Ti(c) that occupies the hexagonal and cubic Si sites, respectively. These trap centers are considered as shallow levels and do not participate in trapping that may substantially affect the device performance.
The peak P3 is the Z1/2 center that is attributed to carbon vacancies or vacancy-related complexes. They are commonly referred to as “lifetime-killer” defects due to their strong impact on carrier recombination and charge collection efficiency. The Z₁/₂ center is one of the most critical trap centers affecting the performance of our radiation detectors [45‐47].
Unlike the well-resolved and symmetric peaks discussed earlier, the apparent asymmetry observed in the fourth peak (P4) clearly indicates the presence of unresolved peaks associated with multiple trapping centers having closely spaced activation energies. Due to this overlap, the individual components could not be deconvoluted, and only the dominant peak, designated as P4, was analyzed. The activation energy of P4 was determined to be 1.56, 1.55, and 1.42 eV from the conduction band minimum for the detectors AS050, AS150, and AS250, respectively. These levels are generally attributed to carbon vacancies or carbon–silicon divacancies, commonly referred to as EH6/7 centers [45, 48‐50]. EH6/7 centers are known electron traps and have been observed to impact device performance fabricated in our laboratory.
Point defects or trapping centers such as Z1/2 and EH6/7 in 4H-SiC epilayers can capture charge carriers generated by incident radiation, reducing the number of carriers contributing to the output signal. This carrier trapping leads to incomplete charge collection, thereby lowering charge collection efficiency and broadening the energy spectrum, ultimately degrading the detector’s energy resolution. Defects with higher concentrations or larger capture cross-sections exert a more pronounced impact by increasing the likelihood of trapping events during carrier transit. Interestingly, as shown in Table 2, the trap concentrations and capture cross-sections of the dominant Z1/2 and EH6/7 centers in the AS250 detector are significantly lower than those in AS050 and AS150. Yet, AS250 exhibited inferior radiation detection performance compared to the thinner epilayer detectors. Notably, Schottky barrier detectors (without the Y₂O₃ layer) fabricated on 250 µm-thick 4H-SiC sister samples with similar defect concentrations and capture cross-sections demonstrated performance comparable to AS050 and AS150 [13, 34, 51]. These findings suggest that the degraded performance of AS250 is not primarily caused by electron trapping at deep-level defects but may instead originate from variations in the physical or electrical characteristics of the Y₂O₃/4H-SiC interface. In particular, interface states resulting from differences in surface quality, residual stress from the SiC growth process, or microstructural non-uniformities prior to oxide deposition could contribute to the observed behavior. However, this observation may also be specific to the present sample set and may not reflect a general trend associated with epilayer thickness. Other mechanisms, such as bulk defects or charge-trapping effects, could also play a role. Further investigations, including detailed electrical characterization of interfacial defects through frequency-dependent C-V and conductance–frequency measurements, are required to confirm the precise interfacial origins of this response.
5 Conclusion
This study highlights the significant potential of 4H-SiC-based metal–oxide–semiconductor (MOS) radiation detectors incorporating Y₂O₃ gate dielectrics for high-performance operation in extreme environments. By leveraging the intrinsic advantages of 4H-SiC – such as its wide bandgap, high thermal conductivity, and excellent radiation hardness – alongside the high dielectric constant, thermal stability, and favorable interface characteristics of Y₂O₃, we demonstrate enhanced electrical performance and charge transport behavior in devices with varying epitaxial layer thicknesses.
We have conducted a comprehensive investigation of Ni/Y₂O₃/4H-SiC Schottky barrier detectors fabricated on 4H-SiC epilayers of three different thicknesses: 50 µm, 150 µm, and 250 µm. The Y₂O₃ layer, deposited via pulsed laser deposition (PLD), was maintained at a thickness of 40 nm – a value previously identified as optimal for achieving favorable interface and electrical properties. Despite the inclusion of this thin dielectric layer, the devices exhibited characteristics typical of Schottky barrier diodes, owing to the minimal oxide thickness and resultant tunnelling behavior at the metal–oxide–semiconductor interface.
Electrical characterization was performed through current–voltage (I-V) and capacitance–voltage (C-V) measurements, while capacitance-based deep level transient spectroscopy (DLTS) was used to probe and quantify electrically active deep-level defects. The radiation detection capabilities of the devices were assessed by evaluating their alpha particle response and charge collection efficiency.
The variation in epilayer thickness was explored due to its known influence on charge collection efficiency, electric field distribution, and defect response. Thicker epilayers, such as the 250 µm layer, are generally expected to support increased energy deposition and broader depletion widths, which can contribute to enhanced spectral response. Interestingly, while the AS250 detector exhibited the lowest concentrations and capture cross-sections for the Z1/2 and EH6/7 traps, its alpha detection response did not quite match the levels observed in the AS050 and AS150 devices.
This finding is particularly intriguing in light of our previous work, which demonstrated that 250 µm-thick 4H-SiC Schottky barrier detectors – fabricated without the Y₂O₃ layer – exhibited excellent energy resolution, comparable to that of the AS050 and AS150 detectors in the present study.
The results suggest that the degraded response in the thickest detector may be influenced by interface states or localized defects at the Y₂O₃/SiC interface, although this observation may be specific to the present sample set. Future work will include further electrical characterizations such as frequency-dependent C–V and conductance–frequency measurements to quantitatively evaluate interface trap density and its correlation with detector performance. In addition, detailed surface and interface characterization, together with device-level simulations, will be carried out to better understand the origin of this behavior and to optimize the interface properties. These investigations will aim to refine the integration of high-quality dielectric layers with thick 4H-SiC epilayers to unlock the full potential of MOS-based detector architectures.
In conclusion, the results underscore the viability of incorporating 40 nm-thick Y₂O₃ gate dielectrics – deposited via PLD – into 4H-SiC-based detectors. This approach offers a promising route to fabricate robust, high-resolution radiation detectors with much thicker 4H-SiC epilayers suitable for operation in harsh environments.
