Introduction
Microcrystalline cellulose is widely used and has diverse applications across different industry sectors. MCC is used as a binder and filler in pharmaceutical formulations, a fat replacement and stabilizer in food products, a rheology control agent in cosmetics, and as a component of biodegradable polymers and wooden products (Gibis et al.
2015; Terinte et al.
2011; Thoorens et al.
2014; Vonbehren et al.
2010; Yang et al.
2018). The most common source of MCC is wood. Cellulose chains are present in wood pulp in the form of packed layers that are held together by lignin, and strong hydrogen bonds (Thoorens et al.
2014). MCC is obtained by purification of wood using mineral acid solution, i.e. acid hydrolysis, followed by rinsing and drying. The presence of hydroxyl groups in the product of this purification process and the relatively large surface to volume ratio of micro fibrils give rise to MCC’s hygroscopic character (Sun
2008).
MCC has an atypical semi-crystalline structure and its attributes can vary between suppliers and batches. Batch to batch variability can be caused by different factors, such as wood source (hard or soft wood), climate differences from region to region, harvesting time, the process of pulp delignification, hydrolysis reaction time, and the process of drying (O’Regan
2018; Rowe et al.
1994). The term crystallinity index (%CI) refers to the percentage by weight occupied by the crystallites (Foster et al.
2018). During depolymerization (hydrolysis) the acid preferentially attacks the amorphous regions of the pulp (Landín et al.
1993).
MCC crystallinity has been reported to influence its behaviour during processing. Tabletability was investigated with differences observed between batches with substantial differences in crystallinity. Suzuki and Nakagami used a rod mill to reduce crystallinity of a MCC batch from an initial %CI of 65%. A reduction in tabletability was observed for batches with a %CI below 12%, and an increase in dissolution rate was observed for acetaminophen tablets produced with MCC that had a %CI less than 26% (Suzuki and Nakagami
1999). The crystallinity of MCC has also been shown to influence water sorption (Amidon and Houghton
1995; Bolhuis and Chowhan
1996; Nokhodchi
2005). Increased water sorption was observed with decreased MCC crystallinity, as moisture sorption occurs predominately in amorphous regions which are more hydrophilic than the crystalline regions (Mihranyan et al.
2004; Segal et al.
1959; Suzuki and Nakagami
1999).
A range of techniques has been utilised to determine MCC crystallinity. Diffraction techniques are most widely reported, employing the Segal peak height method (Segal et al.
1959), peak decomposition or deconvolution (Lanson
1997; Park et al.
2010; Ahvenainen et al.
2016; Yao et al.
2020), and Rietveld refinement based methods (Madsen et al.
2011; Ling et al.
2019). Other spectroscopic techniques proposed include Fourier transform infrared (Liu and Kim
2015), solid state NMR (Atalla and Vanderhart
1984; Harris et al.
2012; Wickholm et al.
1998), and Sum frequency generation (Ling et al.
2019). Raman spectroscopy, the focus of this study, has been investigated to determine cellulose crystallinity (Agrawal et al.
2010; Agarwal et al.
2018; Agarwal
2019). An initial Raman approach for quantifying MCC crystallinity employed relatively weak bands at 1462 and 1481 cm
−1 (CH
2 bending modes) in conjunction with spectral deconvolution (Schenzel et al.
2005). Two further methods were proposed employing bands at 380 and 93 cm
−1 (Agarwal et al.
2018,
2010). The 93 cm
−1 method is advantageous compared to the 380 cm
−1 method as it differentiates crystalline and organized cellulose and an aggregated form which is not crystalline. However, the 93 cm
−1 method requires an FT-Raman instrument with 1064 nm excitation to avoid Rayleigh scattering that masks the sample Raman scattering at 93 cm
−1.
The quantification of cellulose crystallinity using Raman spectroscopic analysis has primarily employed instruments with laser spot sizes between 50 μm and 1 mm and limited depth of penetration (Agarwal et al.
2018,
2010; Foster et al.
2018). The irradiation area of such instrumental setups results in a limited area being sampled. Therefore, analysis requires the acquisition of multiple spectra at a number of locations to obtain a representative profile of the sample. Reduced depth of penetration also results in spectra that focus on surface spectral features. To date Raman probes with larger laser spot sizes and depth penetration, designed for non-contact analysis of solids, have not been applied to the quantification of cellulose crystallinity. The larger sample volume irradiated using these probes would reduce the requirement for multiple spectra acquisition and surface mapping.

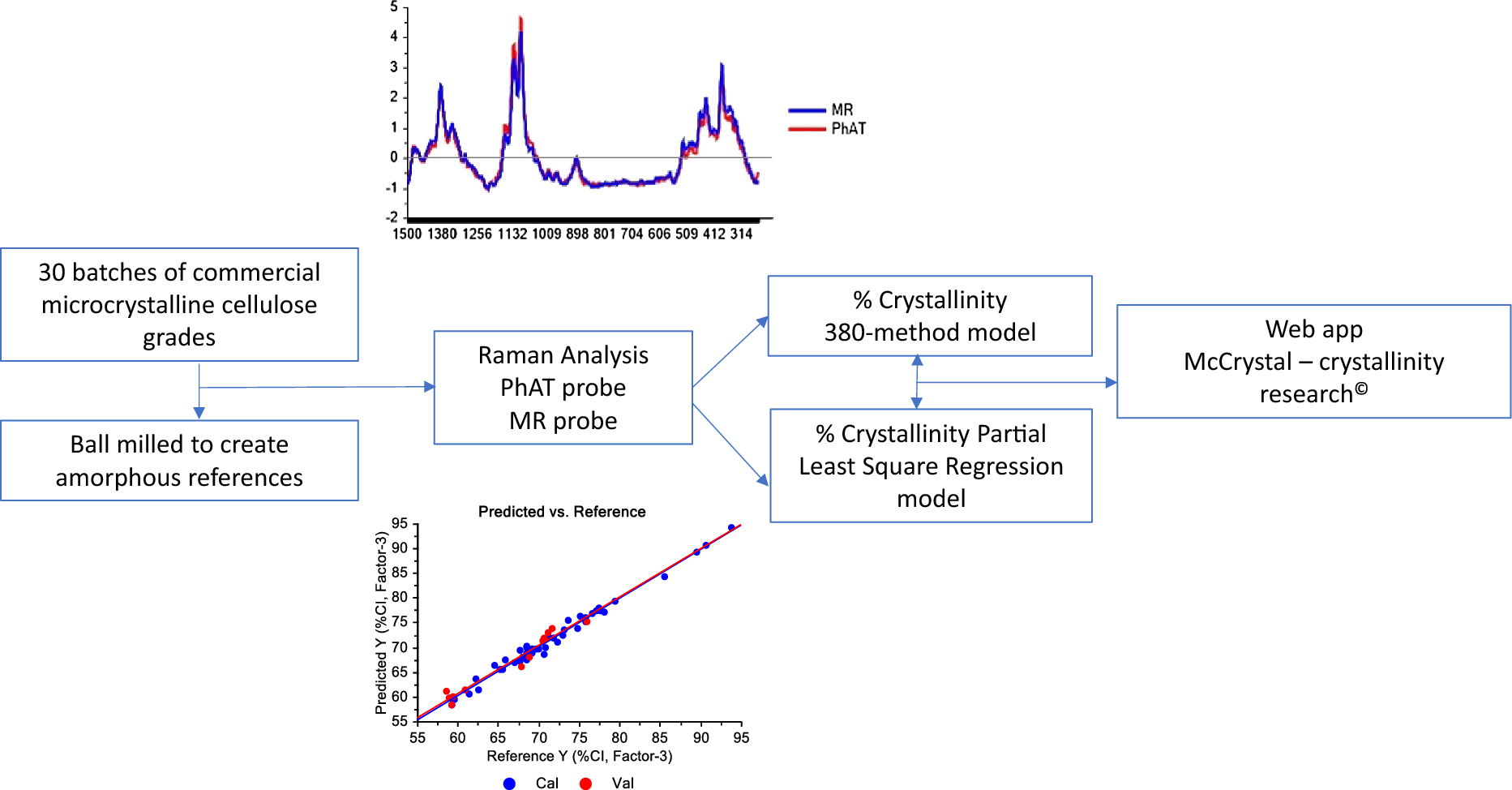

The objective of this study was to demonstrate the capability of Raman spectra acquired using non-contact Raman probes to predict the crystallinity index of commercial MCC batches. The %CI in this study refers to the ratio between the amount of crystalline cellulose and the total amount of sample. Raman spectra acquired for 30 commercial MCC batches, using two probes with spot sizes of 100 µm (MR probe) and 6 mm (PhAT probe), were used to develop models to determine %CI.
Methods
Milling standards to produce reference amorphous samples
Milling was performed in order to obtain amorphous reference spectra. Prior to milling, the samples were kept in the oven at 40 °C for 24 h. To produce amorphous reference materials for each batch 1 g of MCC was milled at 25 Hz in an oscillatory ball mill, Mixer Mill MM400 (Retsch GmbH, Germany), in order to decrease the crystallinity (Mattonai et al.
2018). All samples were milled for 90 min to replicate the methodology of previous studies (Agarwal et al.
2010). A break of 15 min was performed after every 30 min of milling operation. Samples were confirmed to be amorphous after 90 min milling by powder X-Ray diffraction (PXRD). A representative PXRD diffractogram of a batch before and after ball milling is included Fig. S2 in the supplemental material.
Powder X-ray diffraction
Powder X-Ray diffraction (PXRD) analysis was performed using a Stoe Stadi MP diffractometer operating in transmission mode, with a tube voltage of 40 kV and current of 40 mA, using Cu Kα1 monochromated radiation (1.5406 Å) and a gas-filled PSD detector. MCC powder samples were held between acetate foils and the diffractogram was collected between 10° and 30° 2θ. Environmental background was removed by subtracting a blank diffractogram (2 acetate films with no sample) from all spectra.
Preparation of MCC pellets for Raman spectroscopy
Cylindrical, flat, 13 mm diameter, 250 mg pellets were produced using an Atlas 15 T Manual Hydraulic Press (Specac Ltd, Orpington, UK). Three tonnes were applied for a duration of 30 s. Two pellets were produced for each batch; one from the powder ‘as received’ and one from the corresponding ball milled sample.
Raman spectroscopy
Raman spectra for each pellet were acquired using two different probes. The first was a MR probe connected to a RamanRxn™ instrument (Kaiser Optical Systems Inc., Ann Arbor, USA), with nominal laser beam diameter at a focal position of 100 μm. The exposure time set was 60 s, using a laser power of 785 mW, over the range 200–1500 cm−1, and analysis was performed in triplicate. The second was a PhAT probe connected to a RamanRxn2PhAT™ instrument (Kaiser Optical Systems Inc., Ann Arbor, USA), with nominal laser beam diameter at a focal position of 6 mm. The exposure time was set to 15 s, using a laser power of 785 mW, over the range 200–1500 cm−1, and analysis was performed in duplicate. Moreover, while the MR probe is primarily a surface technique, the PhAT probe has a collection zone depth of around 2 mm.
In addition to the sample Raman fingerprint, the spectra obtained contained a background contribution that may be caused by fluorescence or thermal fluctuations on the Charge Coupled Device (CCD detector) (Bocklitz et al.
2011; Gautam et al.

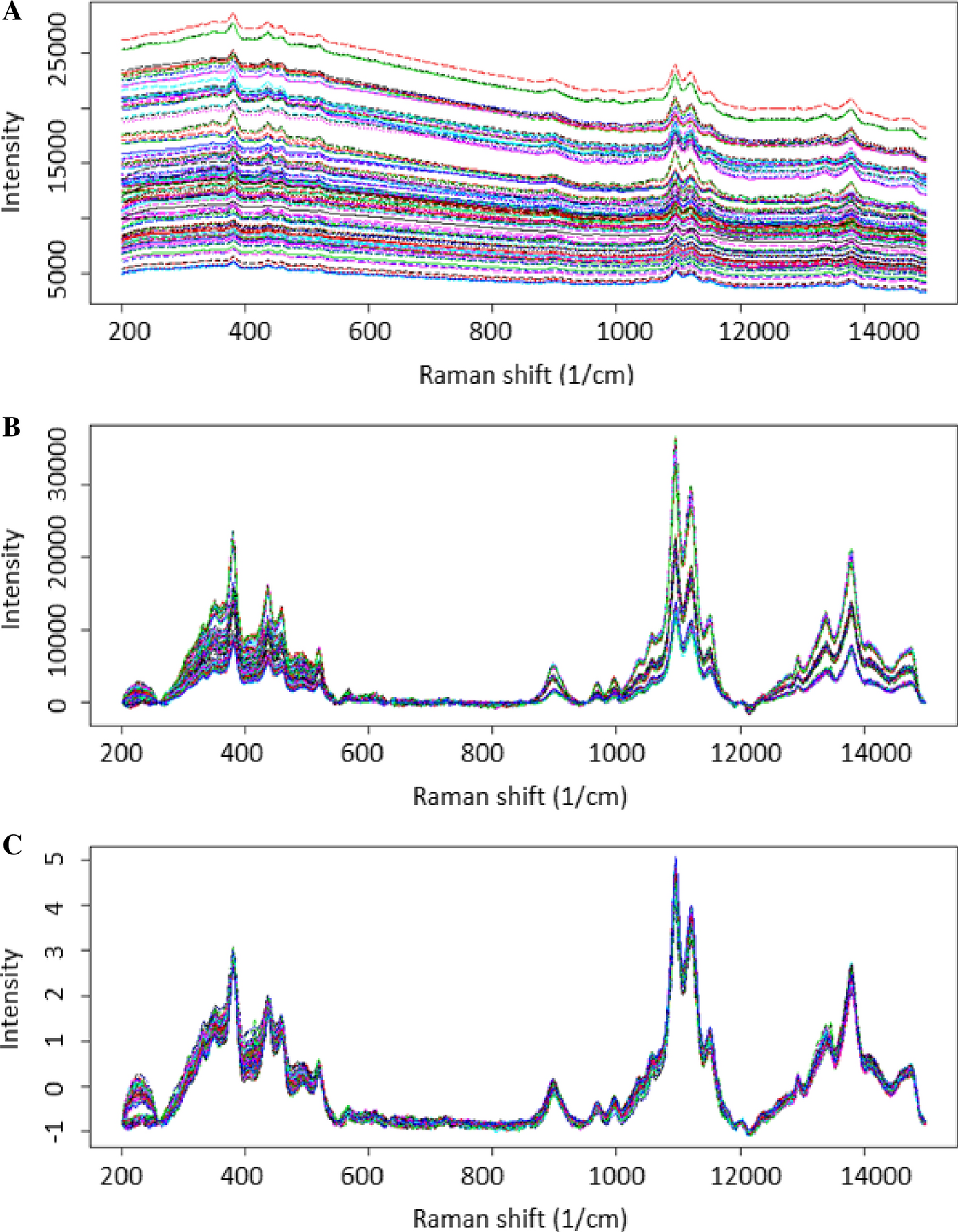

2015). The fluorescence background was removed by pre-processing. The spectra underwent a baseline subtraction of an interpolated linear fit between the anchor points fixed on the X axis: 1500, 1200, 952, 857, 743, 632, 550, 260, and 200 cm
−1. The intensity differences observed between the spectra were removed by standard normal variate (SNV). This normalization consisted of subtracting each spectrum from the mean and dividing the result by the spectrum standard deviation.
Univariate determination of crystallinity index
Crystallinity index was calculated according to the method proposed by Agarwal et al., which is based on the ratio between the intensity of the peaks at 380 cm
−1 and 1096 cm
−1 deconvoluted from a reference amorphous spectrum (referred to henceforth as the “380-method”) (Eq.
1) (Agarwal et al.
2010). Deconvolution in this study refer to the extraction of the amorphous and the crystalline spectral contributions from the actual measured spectrum. Deconvolution is required because cellulose Raman spectra are composed of the amorphous and crystalline spectra superimposed (Agarwal et al.
2010). The ratio of these peaks was compared to other peaks ratios and showed efficiency and great sensitivity to cellulose crystallinity changes (Agarwal et al.
2018,
2010).
$$\% CI = \frac{{\left( {{\raise0.7ex\hbox{${I_{380} - I_{380\_am} }$} \!\mathord{\left/ {\vphantom {{I_{380} - I_{380\_am} } {I_{1096} - I_{1096\_am} }}}\right.\kern-\nulldelimiterspace} \!\lower0.7ex\hbox{${I_{1096} - I_{1096\_am} }$}}} \right) - 0.0286}}{0.0065}$$
(1)
I
380 and I
380_am are the intensities at the Raman shift 380 cm
−1 of the commercial batch as received and its amorphous corresponding sample, respectively. I
1096 and I
1096_am are the intensities at the Raman shift 1096 cm
−1 of the commercial batch as received and its amorphous corresponding sample, respectively.
The spectra of corresponding amorphous samples were obtained by ball milling a sample of the batch, pressing the powder into a pellet, and acquiring spectra of the pellet. Each Raman spectrum was then pre-processed and peak normalized by equalizing the intensity values at Raman shifts above 857 cm
−1 to the intensity at 857 cm
−1, following the method previously reported by Agarwal et al. (Agarwal et al.
2010). The resulting spectrum was considered to represent the amorphous contribution to the Raman spectra of the sample as received (Agarwal et al.
2010). Thus, in Eq.
1, I
380_am and I
1096_am are equal to the intensity of the peaks at 380 cm
−1 and 857 cm
−1 in the spectrum of the milled sample, respectively.
Correction of 380-method due to Raman instrument-dependence
The 380-method was originally developed using a Raman instrument RFS-100 (Bruker Inc.) and the coefficients in Eq.
1 (used to calculate %CI) are specific to the study’s instrumental setup (Agarwal et al.
2010). Equation
1 was established by plotting the intensity ratios of interest from the Raman spectra against %CI of a calibration set samples determined using a PXRD peak intensity methodology (Segal et al.
1959). It is important to note that the %CI values determined by the 380-method show instrument-dependence and therefore it is recommended that a calibration be performed should the instrumental set-up alter (Foster et al.
2018). Therefore. It was necessary to perform a calibration study to correct this methodology for the specific Raman instruments used in the this study, i.e. the MR and the PhAT probes connected to a RamanRxn™ and a RamanRxn
2PhAT™ (Kaiser Optical Systems Inc., Ann Arbor, USA), respectively.
A single MCC batch (batch #7) was selected to create a series of MCC samples with a range of crystallinity values for the calibration study. To create samples with varying crystallinity, binary mixtures MCC prior to ball milling and MCC after ball milling (amorphous) were prepared at a total mass of 0.20 ± 0.03 g. The blends prepared contained 100%, 83%, 72%, 58%, 44%, 33%, and 22% w/w MCC prior to ball milling. The crystallinity index (
\({\%CI}_{PXRD}\)) of each blend was determined from its PXRD diffractogram (Eq.
2)
$$\% CI_{PXRD} = \frac{{\left( {I_{200} - I_{am} } \right)}}{{I_{200} }}$$
(2)
I200 is the averaged intensity in the range 22.55–22.65° 2θ representing the crystalline peak, and
I18.7 is the averaged intensity in the range 18.0.65–18.75° 2θ corresponding to the amorphous scatter (Segal et al.
1959). PXRD diffractograms for individual blends are shown in Fig S2 (supplemental data).

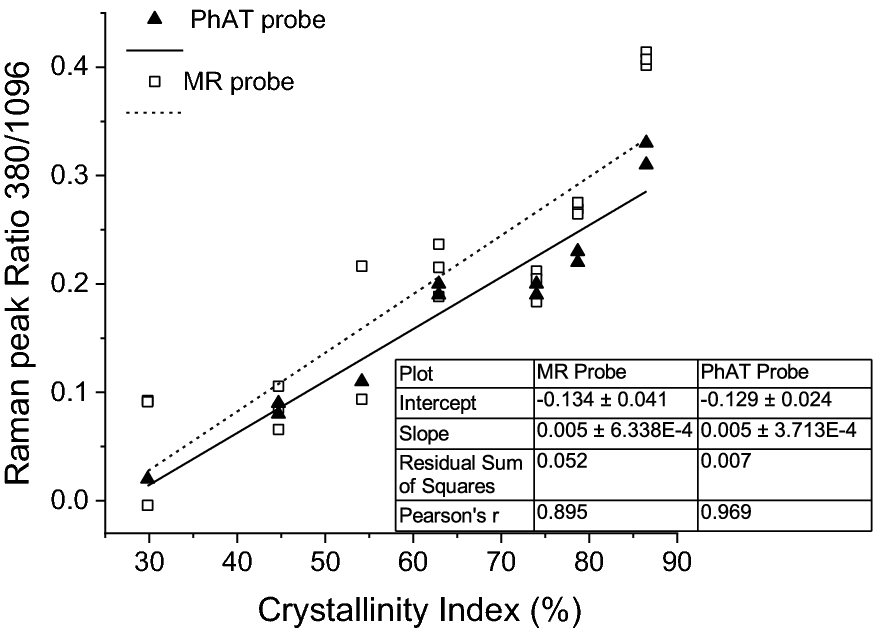

\(\% CI_{PXRD}\) determined for each blend from the PXRD data was plotted against the peak ratio of the Raman wavenumbers 380/1096 cm
−1 after amorphous contribution subtraction. The amorphous contribution subtraction was described in "
Raman spectroscopy" section. A linear regression between the theoretical %CI and the ratio 380/1096 cm
−1 was obtained for each instrument and the linear equation obtained was used to determine the %CI by 380-method ("
Raman spectroscopy" section) for all other batches.
Principal component analysis

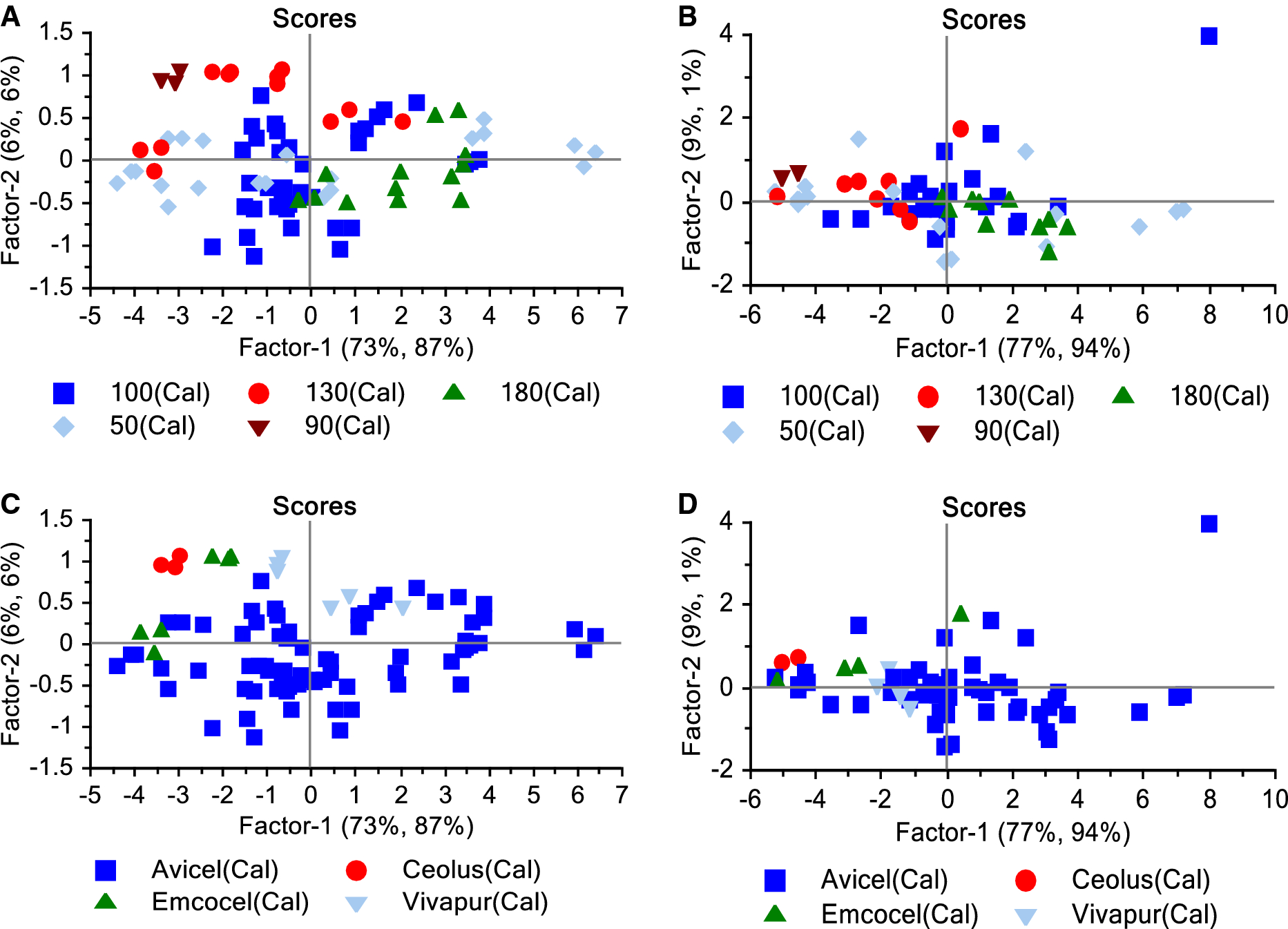

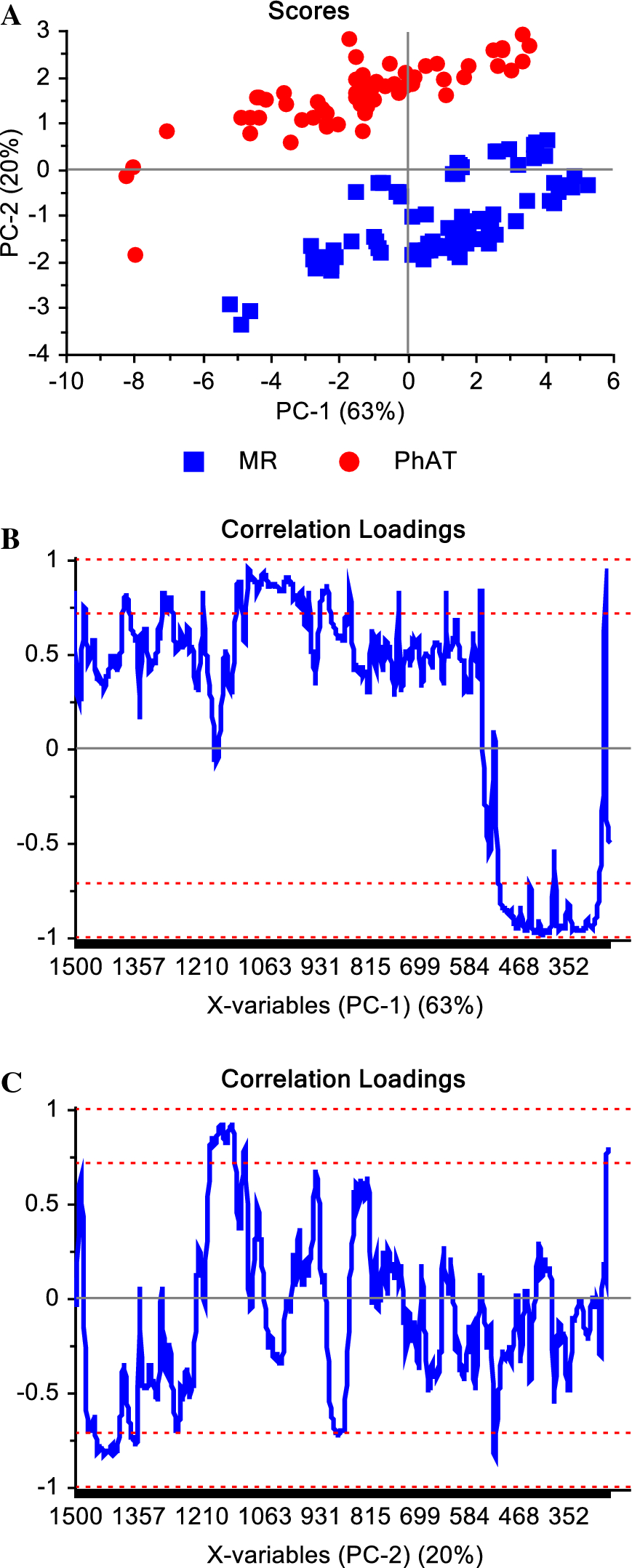

Principal component analysis (PCA) was performed in order to identify differences between the Raman spectra obtained for the 30 commercial batches of MCC investigated. Unscrambler® X 11.0 software (CAMO software, Norway) was used to perform the analysis on the pre-treated (baseline and SNV) Raman spectra. The algorithm NIPALS and cross validation were performed with 29 segments determined so that spectra of the same batch acquired using both probes were kept within the same segment to avoid overfitting. A total of 145 spectra were used to build the PCA model.
Partial least square regression
Two partial least square regression models were built using Unscrambler® X 11.0 software (CAMO software, Norway) aiming to predict crystallinity index from Raman spectral analysis of the 30 commercial MCC batches. One model was built using the pre-treated (baseline and SNV) Raman spectra acquired using the MR probe and another model using the pre-treated spectra acquired using the PhAT probe. The intensity of the pre-treated Raman spectra between 1500 and 250 cm−1 were used as X variables. For both models, the Y variable was the %CI determined by the 380-method. The algorithm Kernel was used. A total of 24 batches were used to calibrate the model and 6 batches were used to validate the model. The number of spectra used were 85 and 60 for MR probe and PhAT probe models, respectively.
Shiny web application
A web application, McCrystal–crystallinity research
©, was built using ‘shiny’ (Chang et al.
2019) version 1.4.0 in R (R Core Team
2019) using the development environment RStudio (RStudio Team
2019). This application was built to facilitate the dissemination of the models developed in this study. The web application framework for R was developed in tab set panels using the package ‘shinydashboard’ (Chang and Borges Ribeiro
2018) version 0.7.1. The package ‘RcppArmadillo’ (Eddelbuettel and Sanderson
2014) version 0.9.800.3.0 was used to manipulate matrices, graphics were built using the package ‘ggplot2’ (Wickham
2016) version 3.2.1, the spectra were normalized using the package ‘prospectr’ (Stevens and Ramirez-Lopez
2013) 0.1.3, and manipulated using the package ‘spectrolab’ (Meireles et al.
2018) version 0.0.8. Spectra baseline, i.e. linear interpolation between predetermined points, was performed using the package ‘spftir’ (Pozo Valenzuela and Rodriguez-Llamazares
2016) version 0.1.0 and ‘pracma’ (Borchers
2019) version 2.2.9. After the PCA analysis, samples were clustered in 2-D scores plots using the package ‘cluster’ (Maechler et al.
2019) version 2.1.0. The package ‘basicTrendline’ (Mei and Yu
2018) version 2.0.3 was used to plot the trendline between scores and crystallinity index. This web application can be accessed at
https://sspc.ie/mccrystal-registration/. The design code is available in the supplementary material.
Discussion
It is challenging to determine the properties of microcrystalline cellulose compared to other materials. MCC shows great variability due to its natural source, i.e. wood pulp, and the different processes from which the commercial grades are produced, especially different drying processes. In this study the application of two models to determine the crystallinity index of MCC commercial batches was investigated. Both models showed predictive power.
The crystallinity of MCC was firstly determined using the 380-method proposed by Agarwal et al. (Agarwal et al.
2010). A calibration curve was developed using %CI values of a calibration set of blends determined by PXRD and used to correct the model for each instrument employed in this study (MR and PhAT probes, Kaiser Optical Systems Inc., USA). This modification was previously performed for a different instrument (Foster et al.

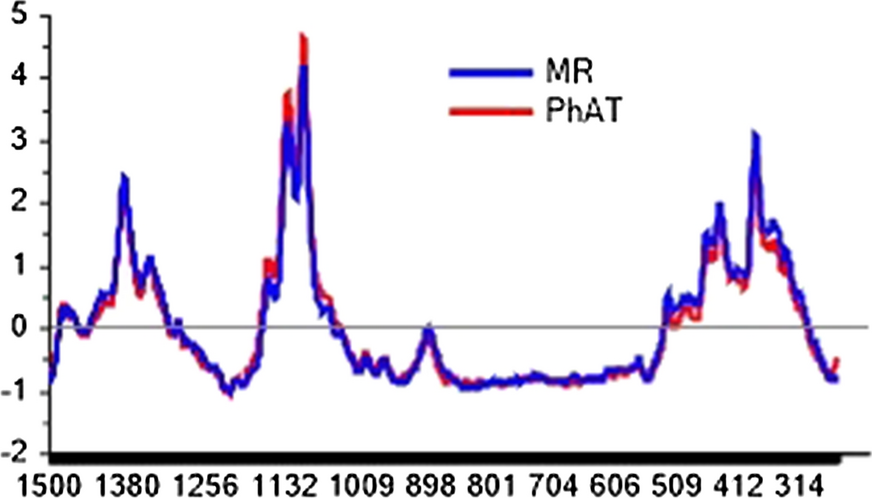

2018). Reference amorphous spectra for each batch were produced and an averaged spectrum (n = 30 batches) was determined for each probe. As a result, the production of a reference amorphous material and spectral subtraction for new batches are no longer required for future analysis. The time for analysis was shortened and milling and PXRD analysis steps (required to confirm that the sample is indeed amorphous) can be eliminated from the analytical procedure.

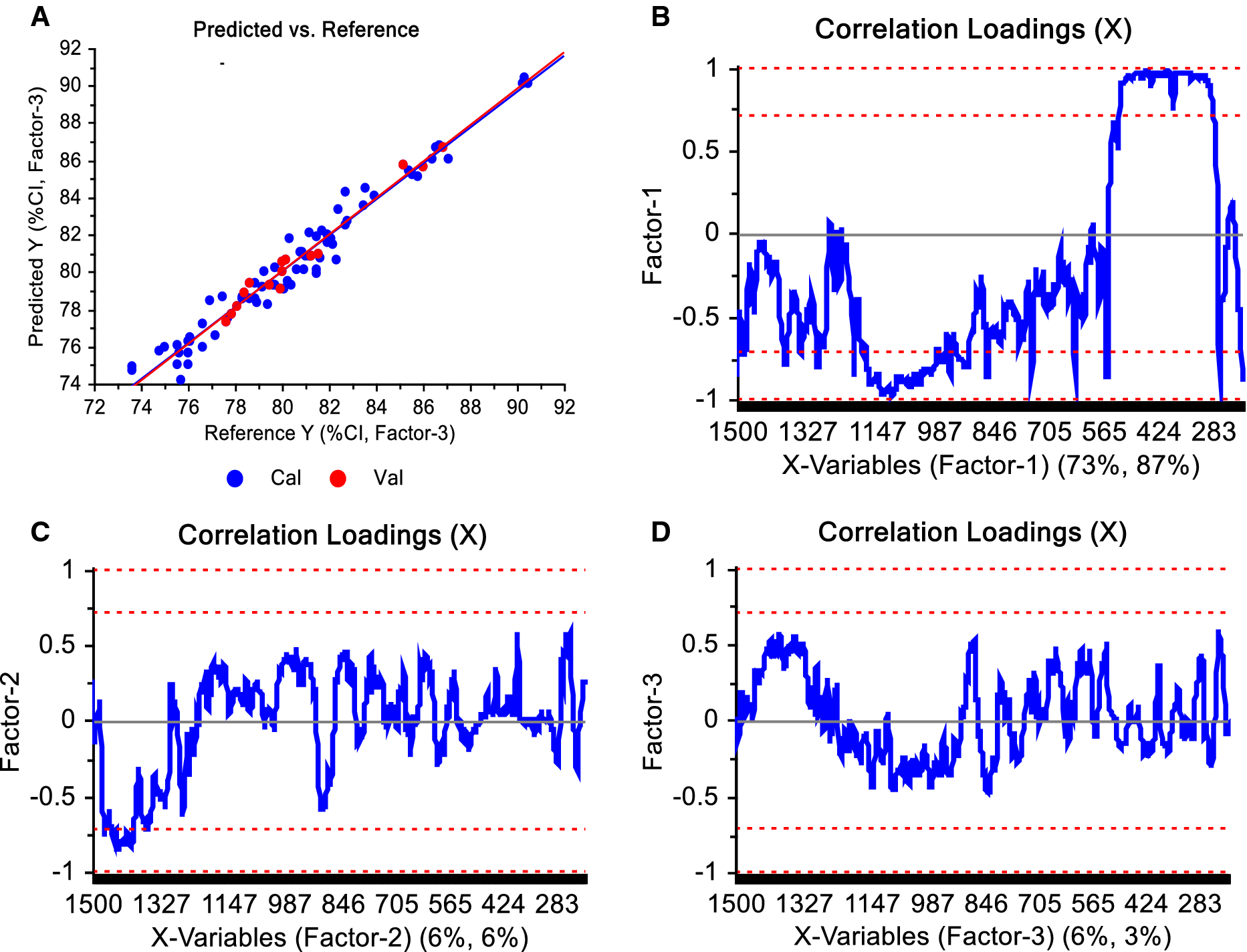

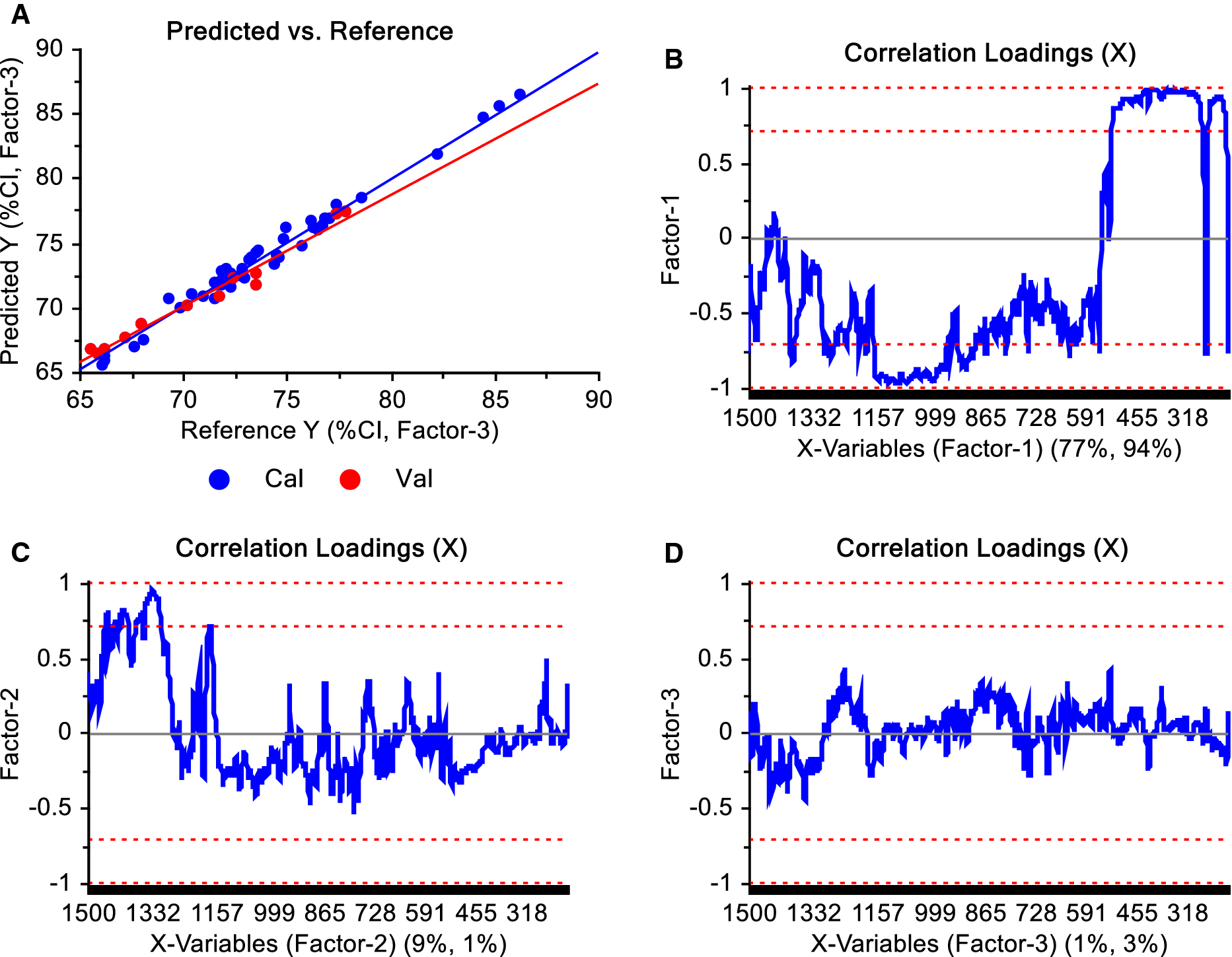

Crystallinity of MCC was also determined by partial least squares regression models. The crystallinity values used in this regression analysis were those determined using the established 380-method. The ability of the models to predict crystallinity from Raman spectra were 97.47% for MR and 97.16% for PhAT probes and the predicted values for the test set showed a small prediction error (RSMEP equal to 0.4596 and 0.7900 for MR and PhAT probe, respectively). The correlation loadings showed that the main wavenumbers used to build the model were 380, 437, 458, 521, 1,096, 1,120, 1,330, 1,340, 1,380, and 1,475 cm
−1. Those wavenumbers were correlated to a change in cellulose crystallinity due to contributions from OH rocking and bending, CH and CH
2 bending, CO and COC stretching, CH wagging, and anhydroglucose ring stretching, twisting, and torsion modes (Agarwal et al.
2010). The models built may be used to rapidly determine crystallinity for future MCC batches without the necessity to produce an amorphous reference spectrum. A PLS model had been previously used to predict crystallinity (Agarwal
2019; Agarwal et al.
2010), however, the model was built with only ten samples (a control, 4 mixtures, 3 samples milled during different times and 2 commercial MCC grades). The present study investigated thirty MCC commercial batches including ones with different particle sizes (from 50 to 180 µm average particle size) and MCC grades. Thus, the present study confirmed the finding of the previous study reported by Agarwal et al. and enriched the validation of the models by investigating the variability encountered in commercial grades of MCC.
In this study Raman probes that can scan large surface areas and give an averaged spectrum in a short time were used (1 min for MR probe and 15 s for PhAT probe). Previous studies used Raman spectra of microscopic surface areas (Agarwal
2019; Agarwal et al.
2010; Foster et al.
2018). The PhAT probe used in the present study acquires spectra from an area of 12.57 mm
2 and the MR probe from an area of 7.85 × 10
–3 mm
2. A PhAT probe also has a depth of analysis of approximately 2 mm. Thus, less replicates are necessary to achieve a representative sample when a PhAT probe is used. As a result, Raman spectrum containing more averaged information of the overall semi-crystalline structure of MCC samples is obtained. Comparing the PhAT and the MR probes, the larger coverage area of the PhAT probe resulted in better fits for both the 380-method and PLS models. This was quantified by Pearson’s coefficients obtained from the calibration of the 380-method (Fig.

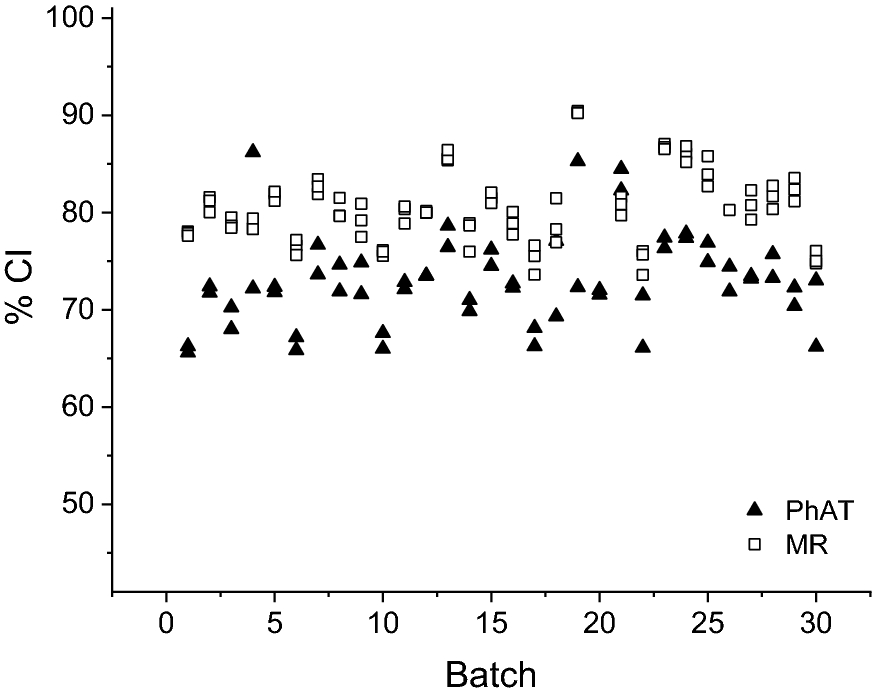

7, Pearson’s-r of 0.969 and 0.895 for PhAT and MR probes, respectively) and the PLS model (correlation of 0.982 and 0.964 for PhAT and MR probes, respectively). The variability observed between duplicate values determined using the PhAT probe was greater than when using the MR probe, for a number of the commercial samples. A possible explanation may be due to spectra being acquired on the same surface of the pellet (top surface) for the MR probe, while for the PhAT probe one spectrum was acquired on the top surface and another was acquired on the bottom surface of the pellet. The difference in %CI due to the differences in the positions from which the Raman spectra were may be due to the characteristic of uniaxial compression, which does not hold a homogeneous stress distribution in the interior of the pellet (Takeuchi et al.
2004).
It is important to also emphasis the limitations of quantifying the %CI of cellulose materials, including MCC, using the Raman spectroscopy. Key limitations include the lack of 100% crystalline or amorphous cellulose standards or references and the need to adjust model parameters for each instrumental set-up by calibration against diffraction data. Therefore, the %CI determined by Raman analysis is dependent on the diffraction analysis methodology. In this study, a simplistic approach was undertaken which mimicked that of Agarwal et al. (
2010). The %CI of calibration set samples were determined using the Segal peak height method and theoretical %CI values were determined based on the %CI of a single MCC batch. It is proposed that an improvement to this approach should include a wider calibration set of samples in the calibration study to improve model robustness. It is also important recognize the limitations of the Segal peak height method employed. Driemeier and Calligaris (
2011) highlighted that peak area is more representative of the crystalline fraction and French Santiago Cintrón (
2013) demonstrated that the use of the Segal method to determine MCC %CI is influenced by sample crystallite size. The respective strengths and limitations of more commonly diffraction method discussed by French (
2020), as are standards for conducting crystallographic work to study cellulose crystallinity (French
2020). Advancement from the Segal peak height method during calibration, towards other methods such as decomposition or deconvolution of peak area during calibration (Lanson
1997; Park et al.
2010; Ahvenainen et al.
2016; Yao et al.
2020), and Rietveld refinement based methods (Madsen et al.
2011; Ling et al.
2019) could further improve the models proposed in this study.
A R Shiny web application (McCrystal–crystallinity research©), was designed (i) to perform baseline correction and SNV normalization, (ii) to predict MCC crystallinity using the 380-method for the MR and the PhAT probes, (iii) to predict MCC crystallinity from PLS models, and (iv) to perform PCA analysis from Raman spectra within the range of 1500–250 cm−1. This application was developed based on the knowledge generated in this study. Thus, baseline correction, SVN normalization, and the PCA model can be applied to Raman spectra of microcrystalline cellulose obtained using different Raman instruments. However, the prediction of the crystallinity index can only be undertaken if a MR or a PhAT probe was used to acquire the Raman spectra. Even if those instruments are used, results should be evaluated with caution since different units of a same instrument design might require instrument-specific correction of the model.
