Abstract

The article presents a comprehensive study of a one-dimensional nonlinear model of thermo-electroelasticity, which examines the complex interactions between thermal, electric, and mechanical fields. It builds upon existing literature in extended thermodynamics to investigate the effects of nonlinear couplings on material behavior under thermal load. The model introduces a Cattaneo-type evolution equation for heat flux and accounts for various nonlinearities arising from geometrical deformations and material parameter dependencies. The authors derive explicit formulae for the speeds of coupled thermoelastic waves and heat waves, showing their dependence on temperature, heat flux, and electric field. Numerical simulations are conducted using a finite-difference scheme to illustrate the wave propagation nature of the solution and the effects of different coupling constants. The results provide valuable insights for designing new electro-thermoelastic materials and understanding nonlinear thermo-mechanical responses in specialized applications.

AI Generated

This summary of the content was generated with the help of AI.

Notes
Abbreviations

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Quantity

Description

$ \rho $

Material density in the reference configuration

$ \epsilon _{KL} $

Dielectric tensor

$ \beta _{IJK} $

Dependence of dielectric tensor on electric field

$ \gamma _{IJK} $

Dependence of permanent electric displacement on strain

$ \beta ^{*}_K $

Dependence of specific entropy on electric field

$ \zeta _K $

Dependence of specific heat capacity on electric field

$ \kappa _{IJKL}$

Dependence of dielectric tensor on strain

$ \zeta _{IJKLM} $

Quadratic dependence of permanent electric displacement on strain

$ \beta ^{*}_{KJ} $

Dependence of dielectric tensor on temperature

$\gamma ^{*}_{IJK} $

Dependence of thermoelastic tensor on electric field

$ C_{IJKLM} $

Stiffness tensor

$ \alpha _{KL}$

Thermoelastic tensor

$ \gamma '_{KLM} $

Piezoelectric tensor

$ C'_{IJKLMN} $

Second-order stiffness tensor

$\zeta '_{IJKLM}$

Dependence of piezoelastic tensor on strain

$ \kappa '_{IJKL}$

Electrostriction tensor

$ C'_{IJKL}$

Dependence of stiffness tensor on temperature and thermoelastic tensor on strain

$ \gamma '^*_{ILK} $

Involves $\gamma ^{*}_{IJK} $ and dependence of remanent polarization on temperature

$ \alpha '^*_{KL} $

Quadratic dependence of stress on temperature

$ C_T $

Specific heat capacity

$ \alpha '_{IJKL} $

Quadratic dependence of entropy on strain

$ \alpha ^*_{KL} $

Dependence of thermoelastic tensor on temperature and heat capacity on strain

$ A_{KL} $

Quadratic dependence of free energy on heat flux

$ \tau _h $

Thermal relaxation time

$ t_1 $

Dependence of thermal relaxation time on temperature

$ t_2 $

Dependence of thermal relaxation time on heat flux

$ k_1 $

Dependence of thermal conductivity on temperature

$ k_2 $

Dependence of thermal conductivity on heat flux

1 Introduction

Thermo-electroelasticity has been a subject of both theoretical and practical importance, because it involves interactions between three fields: thermal, electric and mechanical. The various thermo-electromechanical couplings between these fields have found interesting applications in the design and performance improvement of many new structures and devices involving materials with complex composition and working in highly nonlinear regimes. Ferroelectrics and elastomers are examples of such media. These materials have attracted interest because of their various applications as actuators, in refrigeration technology and in biomedicine.

Extensive work on nonlinear electroelasticity and thermo-electroelasticity in classical thermodynamics exists in the literature. This includes review expositions, general models and applications aimed at studying the effects of nonlinear couplings (see, for example, [1‐9]).

Nonlinear thermo-electroelasticity in extended thermodynamics has witnessed a growing popularity in the past few decades because of its ability to describe heat wave propagation in materials of practical interest. It allows to extend our knowledge of the different material properties, for example ferroelectricity, to new scales of length and time, and hence to produce new types of materials. Coleman et al. [10‐12] investigated the implications of the second law of Thermodynamics for the constitutive relations for which the free energy depends on heat flux, in addition to temperature, as an independent thermodynamical variable. Chandrasekharaiah [13] developed a model for piezoelectric materials with the heat flux taken as an independent state variable. He et al. [14] studied the dynamic thermal and elastic responses of a piezoelectric rod subjected to a moving heat source under Lord and Shulman generalized thermo-elastic theory with one relaxation time. Babaei and Chen [15] investigated the dynamic response of a thermopiezoelectric rod to a moving heat source under Lord and Shulman theory of generalized thermoelasticity. Montanaro [16] investigated the constitutive relations for an electrically polarizable and heat conducting elastic continuum with second sound. Ghaleb [17] presented a fully nonlinear model for electrically polarizable, heat conducting elastic continuous media including several couplings between the mechanical, thermal and electric fields in the quasi-electrostatic approximation and within the frame of extended thermodynamics. Kuang [18] considered two- and three-dimensional models of electroelasticity for complex materials allowing for the existence of heat waves. Montanaro [19] used a Green–Naghdi approach to investigate the nonlinear constitutive relations of piezoelectric ceramics for which the piezoelectric moduli depend on strain. One of the presented three theories has a dependence of the free energy on heat flux. Giorgi and Montanaro [20] investigated nonlinear thermo-electroelasticity using a Green–Naghdi approach. Mehnert et al. [21] formulated a thermodynamically consistent constitutive framework of coupled thermo-electro-elasticity, with an analytic solution of a non-homogeneous boundary-value problem to illustrate the influence of various thermo-electro-mechanical couplings. A numerical modelling of thermo-electro-elasticity was presented in [22]. Kuang [23] discussed some extensions of energy principles in classical and continuum thermodynamics, e.g. the inertial heat and inertial entropy concepts and the temperature wave equation. Montanaro [24] extended the Green–Naghdi theoretical approach for thermoelasticity to thermoelectro-mechanical simple materials with fading memory that are electrically polarizable. Ghaleb et al. [25] proposed a model exhibiting thermo-electro-mechanical couplings in extended thermodynamics. This fully nonlinear model involves a multitude of quadratic couplings, and was formulated in material coordinates, a fact that makes the resulting equations useful for the investigation of cases where the electrodes are attached to the medium. Simplified versions for thermoelasticity and for thermo-electroelasticity were investigated in [26, 27]. Chiril$\breve{a}$ et al. [28] developed a thermo-electro-mechanical continuum theory for biomedical purposes following a Green–Naghdi approach to thermodynamics. The well-posedness of the mathematical model was proved. Vatulyan et al. [29] discussed an inverse problem for the determination of material coefficients in pyroelectrics. Mahmoud et al. [30] presented nonlinear, one-dimensional equations of generalized thermodynamics to treat heat wave propagation in rigid thermal conductors. Zeverdejani and Kiani [31] investigated a problem of functionally graded material in the nonlinear generalized thermoelasticity under Lord and Shulman theory. These authors commented on the importance of nonlinearity in evaluating the stresses in the material. Mirparizi et al. [32] investigated nonlinear thermoelastic, transient responses and thermal wave propagation in functionally graded solids undergoing large deformations under a thermal shock and surface stress loading in Lagrangian formulation. Jani and Kiani [33] considered the generalized thermoelastic response of a finite hollow disk made of a piezoelectric material under Lord and Shulman theory. Shakeriaski, Salehi and Ghodrat [34, 35] studied the nonlinear responses in thermoelastic media under Lord and Shulman model of extended thermodynamics. These authors considered several thermal and mechanical nonlinearities, among which the dependence of the coefficient of heat conduction on temperature. Luo et al. [36] studied finite strain theory in application to the generalized coupled thermoelasticity of isotropic one-dimensional structures. These authors commented on the effects of nonlinearity of the model. Karmakar et al. [37] investigated wave scattering at the loosely bonded interface of two dissimilar rotating magneto-thermoelastic media under nonlinear thermoelasticity and dual-phase-lag model. Existence of smooth solutions and blowup of solutions of nonlinear problems of thermodynamics and thermoelasticity within extended thermodynamics were investigated in [38, 39].

The available literature on the subject of generalized electro-thermoelasticity clearly indicates the growing interest in exploring the response of new generations of materials to different stimuli, for example temperature, electromagnetic fields, rotation, applied shocks, etc., in view of various applications (C.f. [31, 36]). Expressed differently, the exploration of electro-thermoelastic couplings and the determination of the corresponding material coefficients have become the main target of many investigations. The present work should be situated within this context. It aims at investigating the model presented in [25] in more detail and in a one-dimensional setting, in order to assess the effect of the different nonlinear couplings on the behavior of the medium under thermal load. Nonlinearity may be geometrical when the body undergoes large deformations, or physical as the different material parameters may be dependent on strain, temperature and electric field, or else arising from the implications of extended thermodynamics (C.f. [12]). This is of primordial importance for the design of materials for special purposes in which nonlinear effects are essential in evaluating the response of the material, for example in the field of thermo-electromechanical actuators (multi-trigger actuators) in which there is coupling between the three fields [40, 41].

Formulae are derived for the speeds of the coupled thermoelastic wave and the heat wave, showing explicit dependence on temperature, heat flux and electric field. These formulae may be compared with available experimental data to determine some material constants of the medium. As illustration, we solve a one-dimensional boundary-value problem for the half-space in the quasi-electrostatic approximation and under thermal load at the boundary and initially at rest. The linear purely thermal case is briefly considered, in order to point out at the difficulties facing the evaluation of solutions even in the simplest case. Then the full nonlinear problem is investigated numerically using a simple, explicit finite-difference technique devised by the authors and used efficiently in previous work.

As presented below, the model contains a large number of coupling constants, up to second degree included. Considering the effect of each one of them separately would amount to a most difficult task and make the work exceedingly long. In fact, we have disregarded some of them from the outset, as these have been investigated somewhere else, and concentrated on the rest of them.

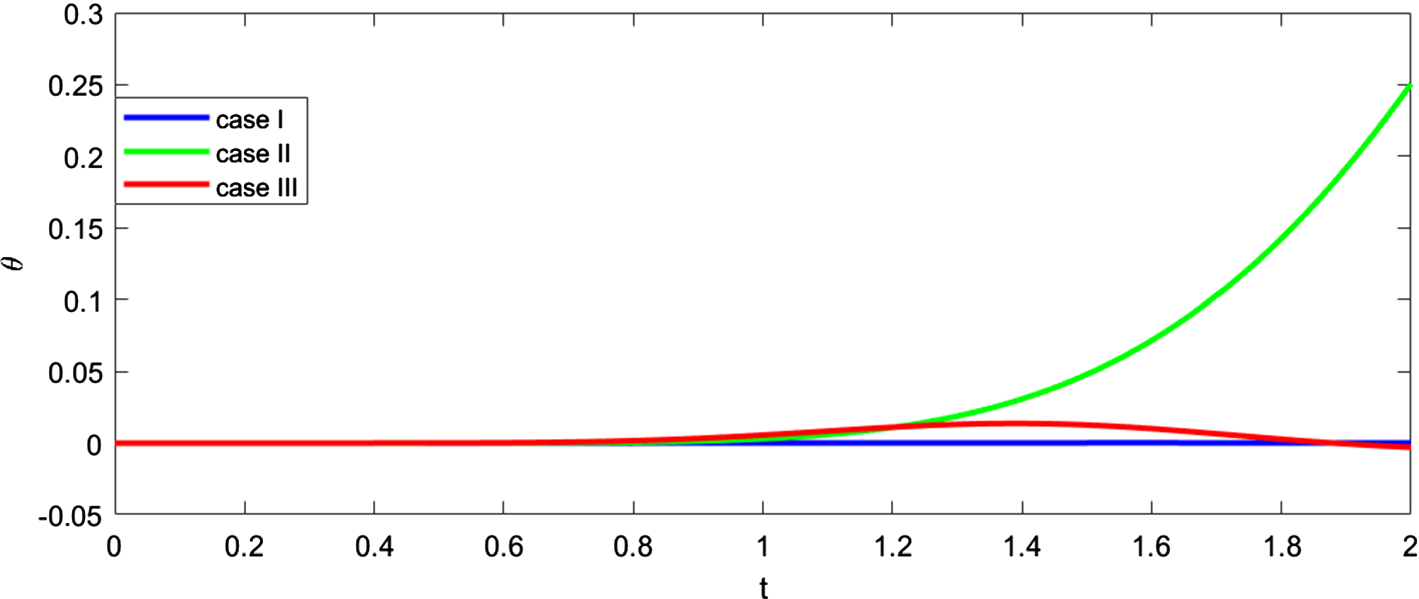

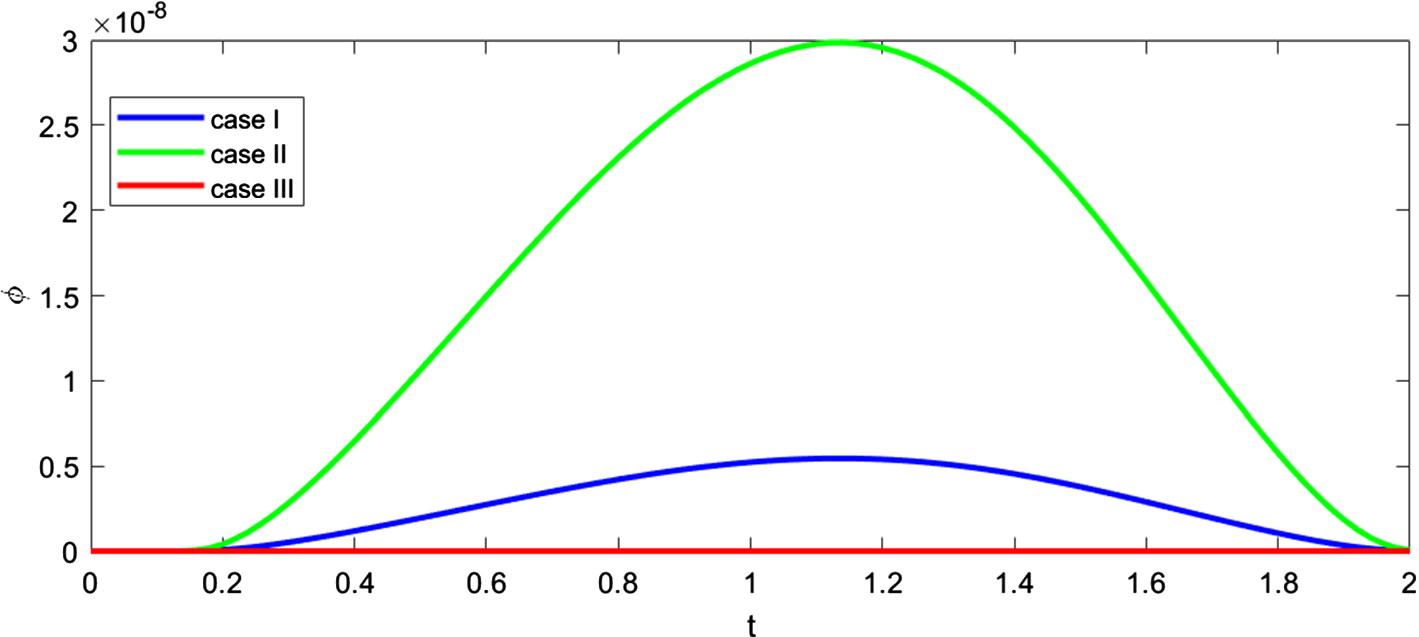

Three cases are considered, for which different values of the material constants are chosen. Some other constants will retain their values throughout the cases. During the calculations, some of the considered coupling constants will assume small enough values, by which their effect will be negligible in the numerical outcome.

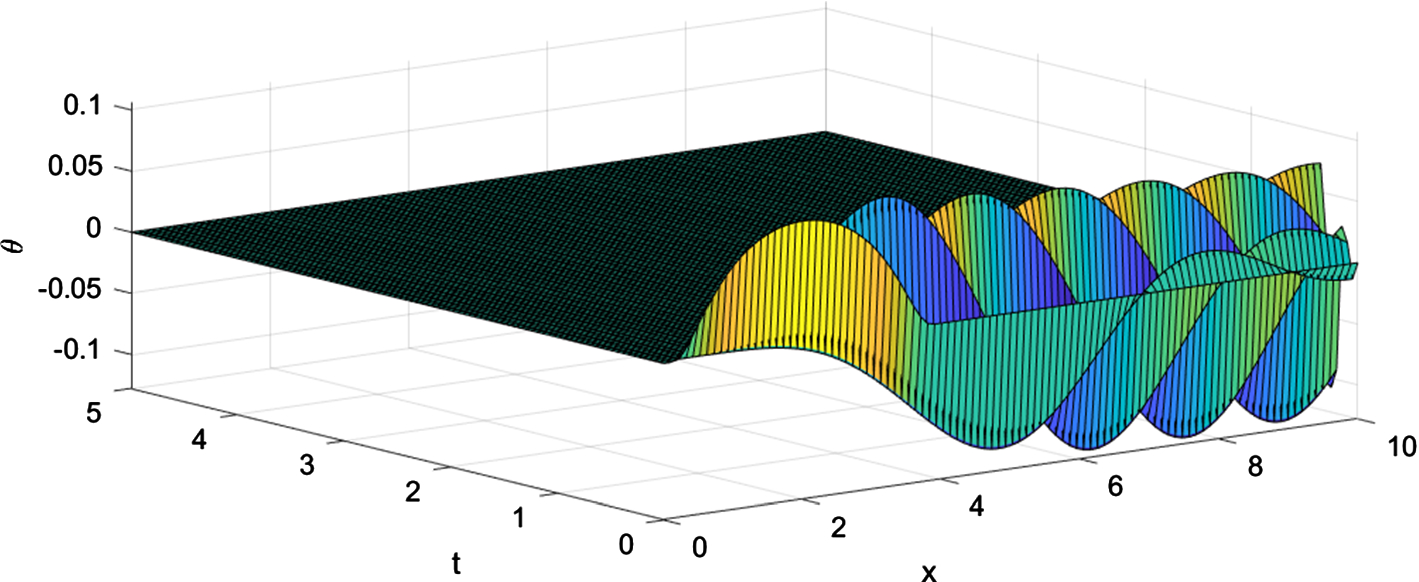

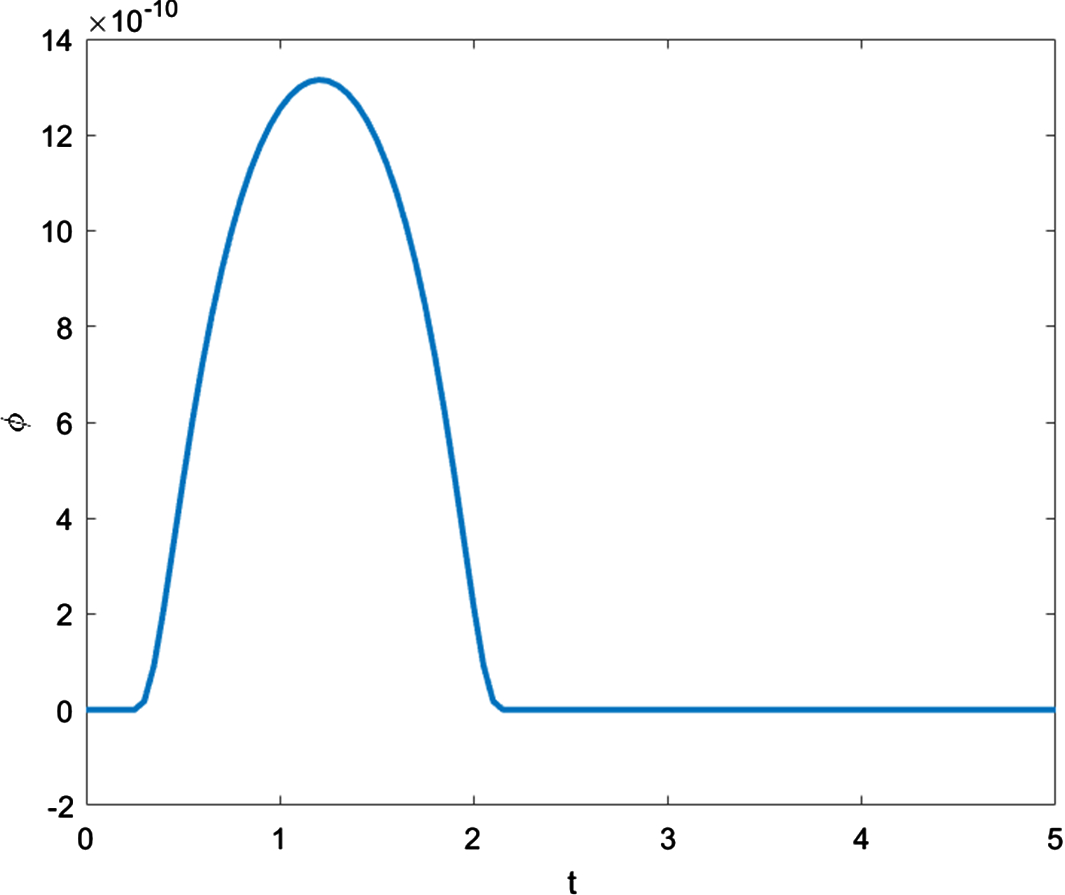

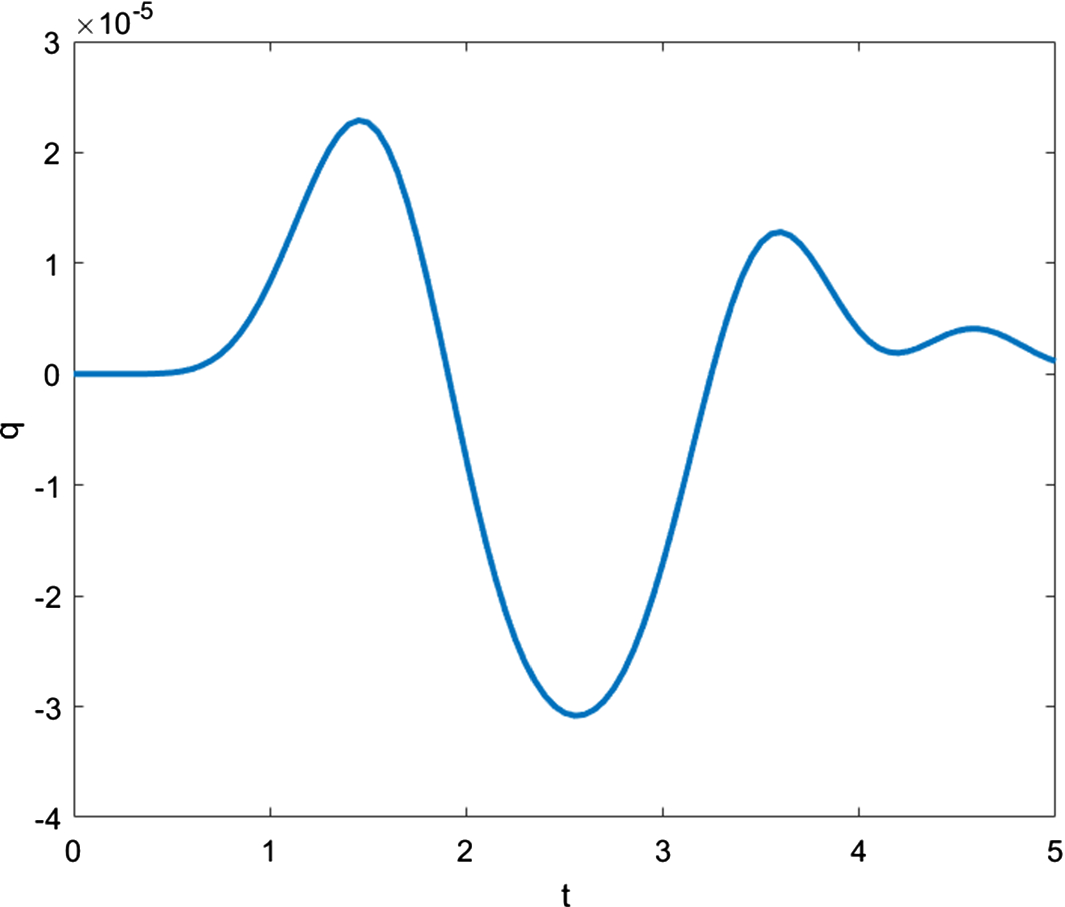

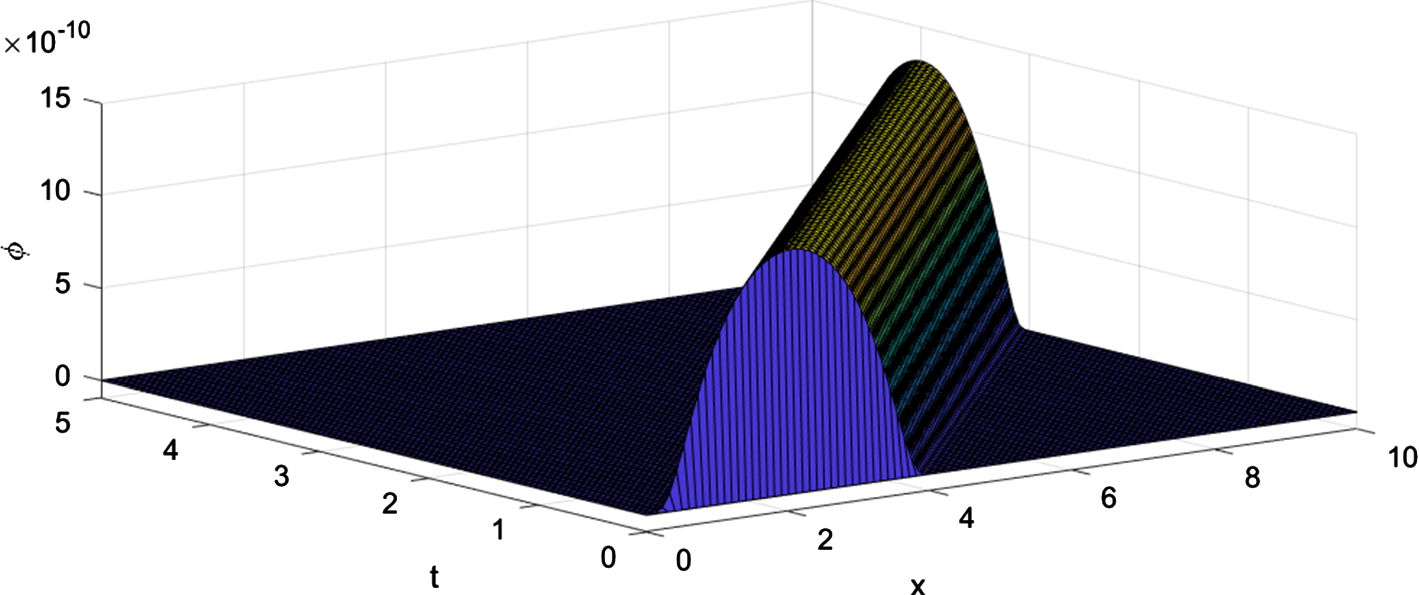

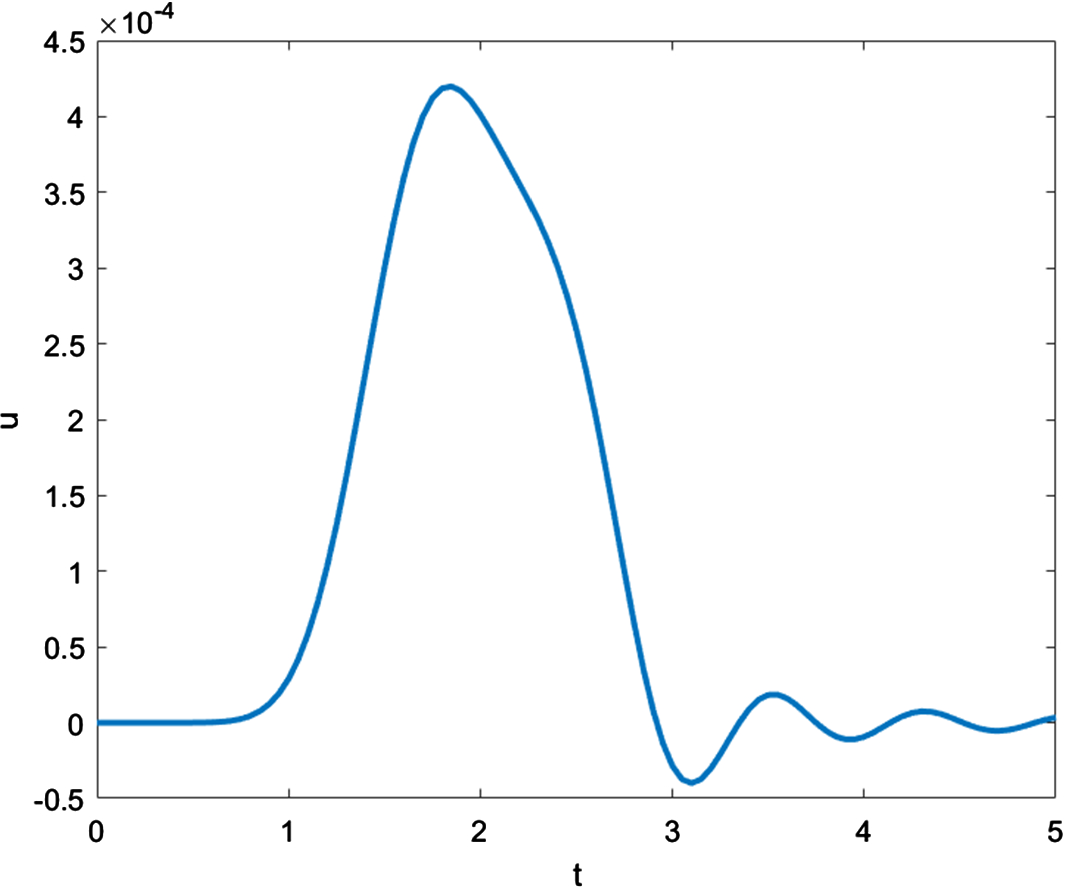

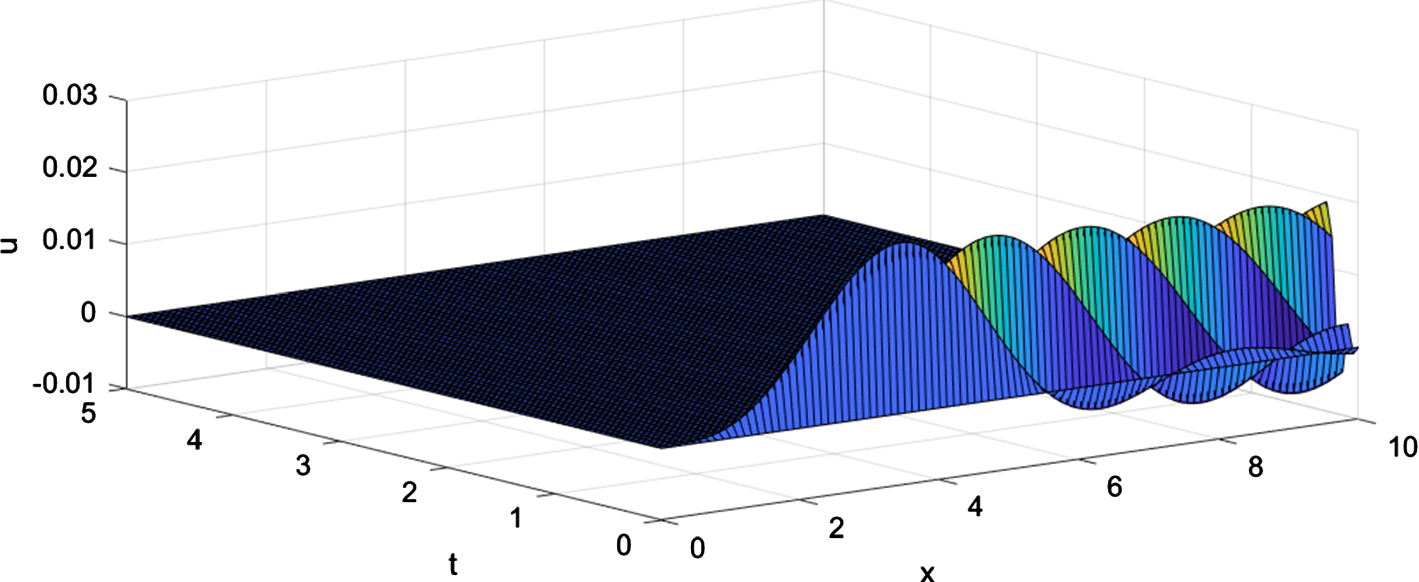

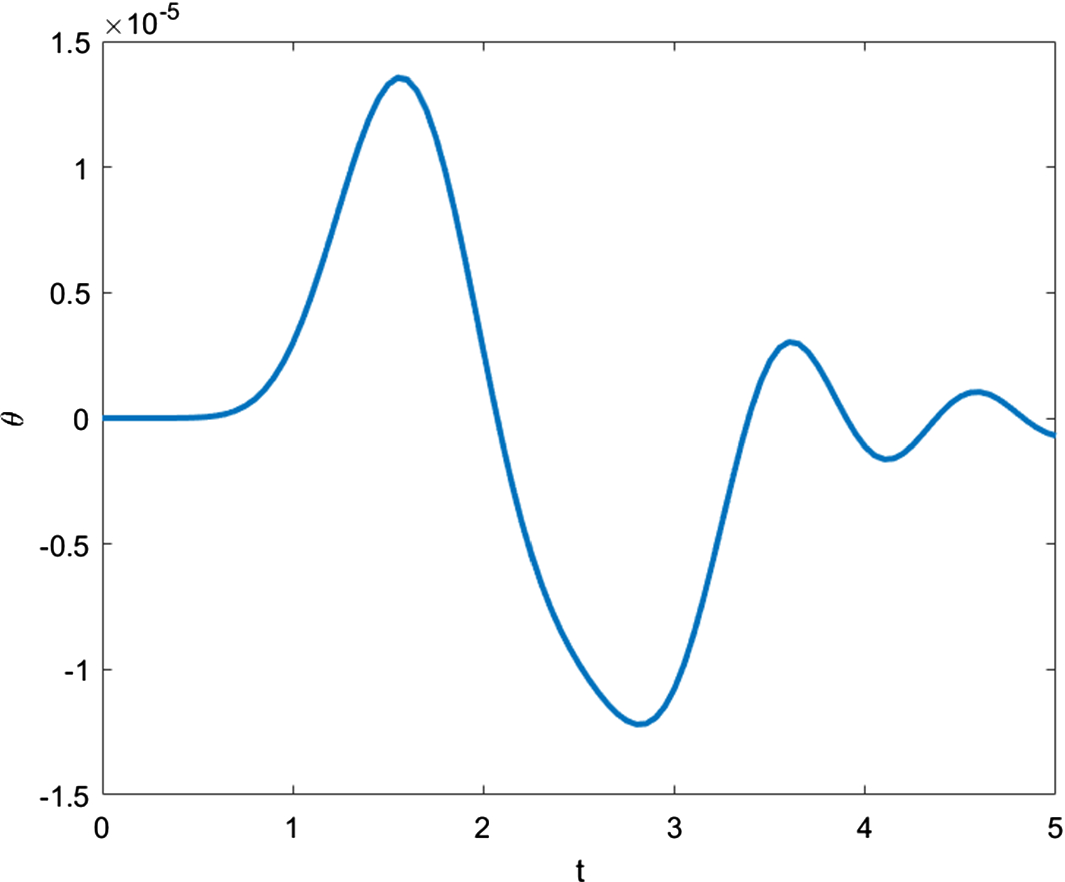

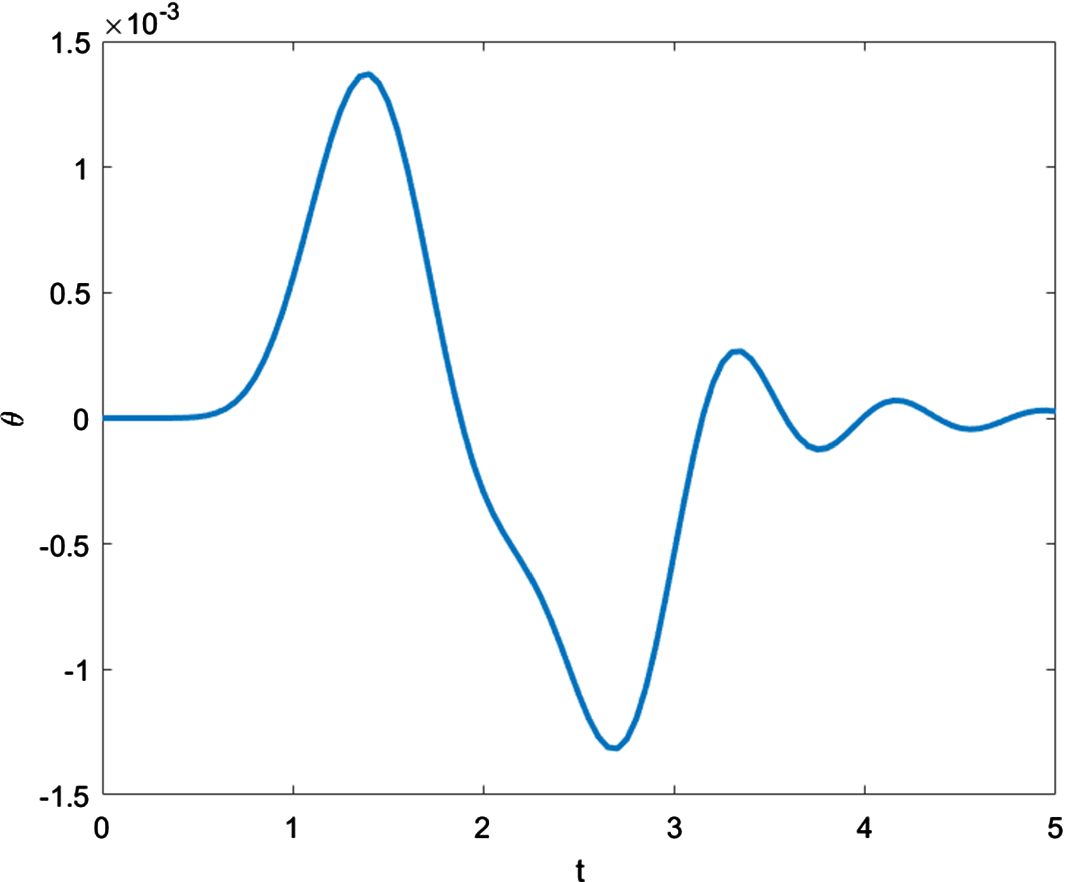

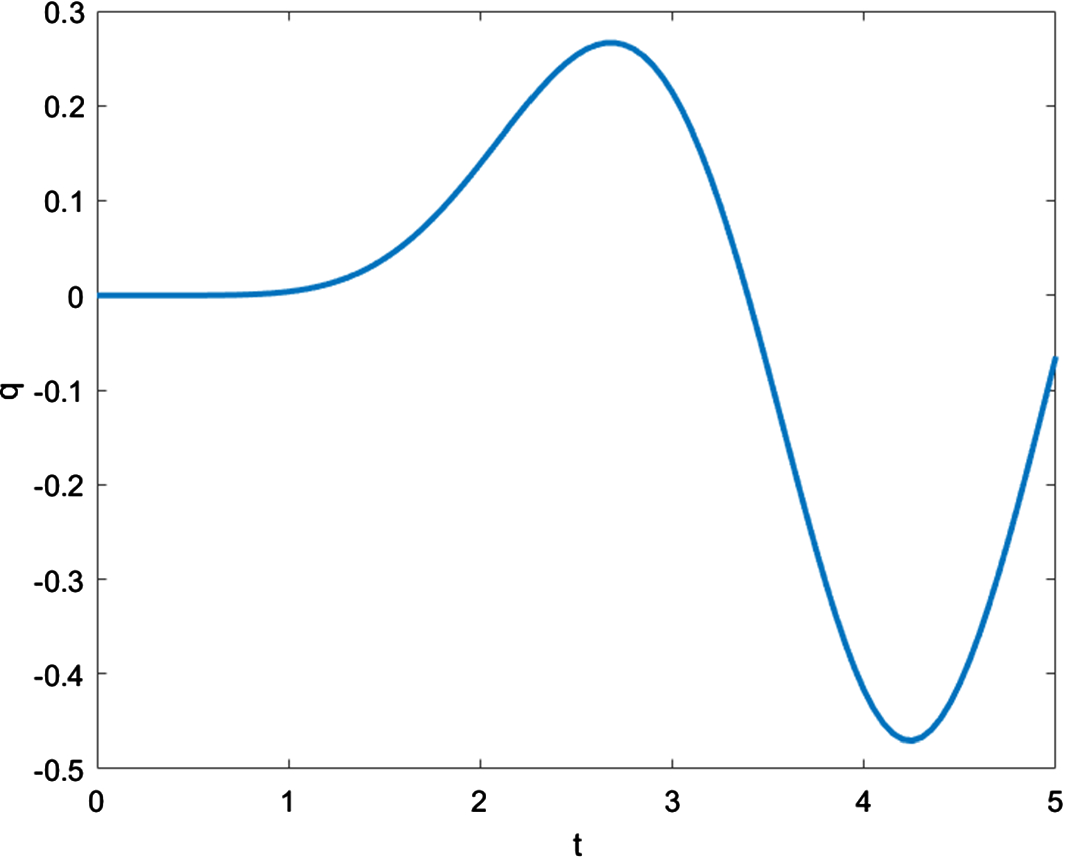

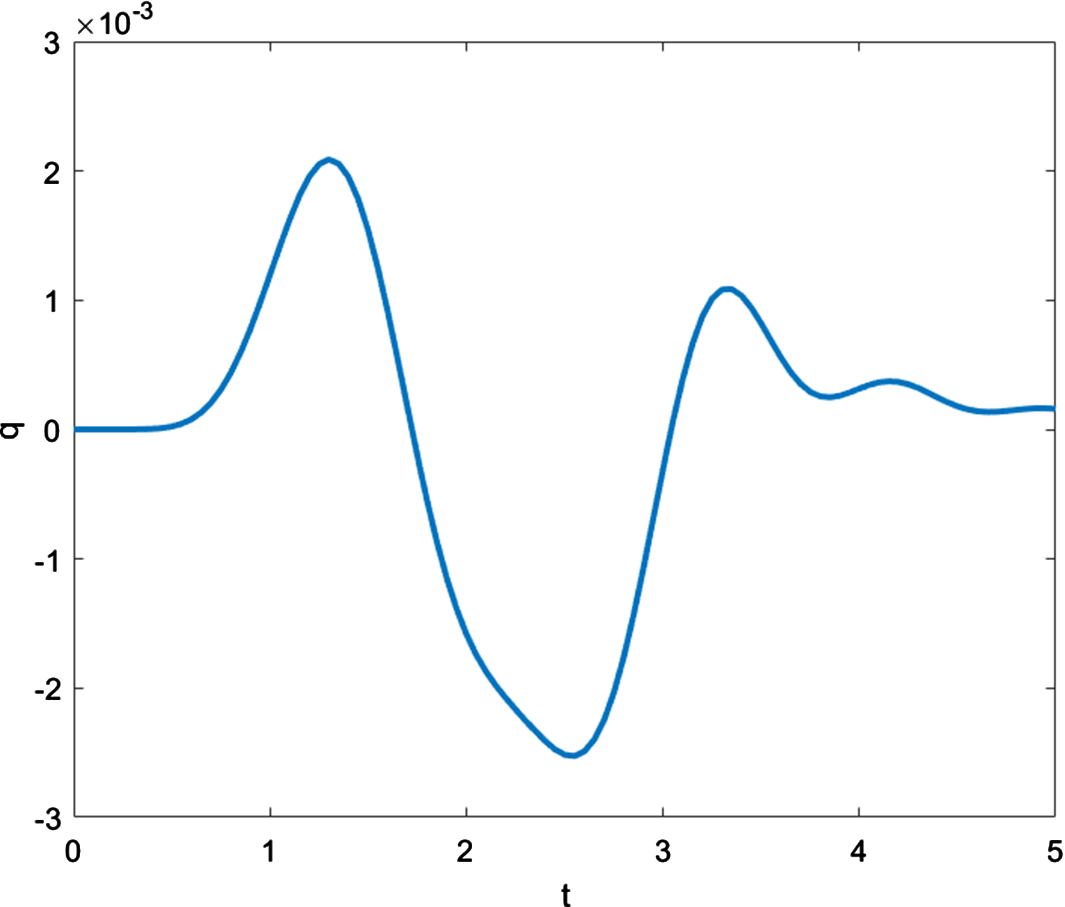

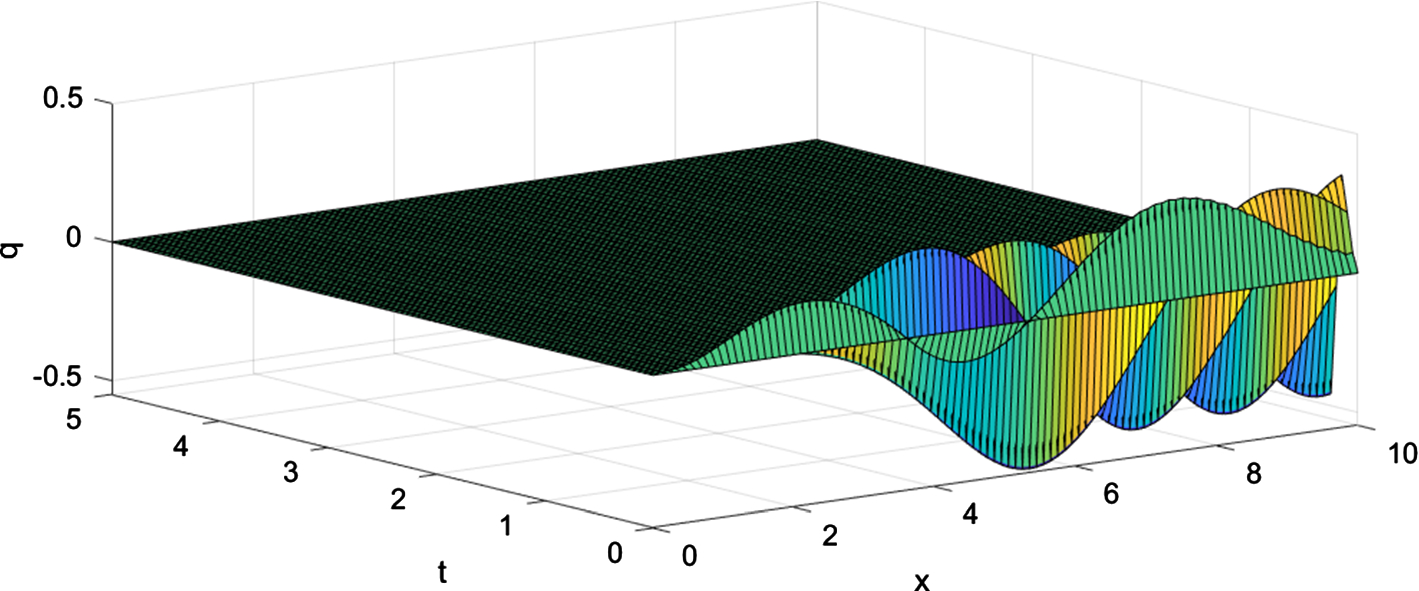

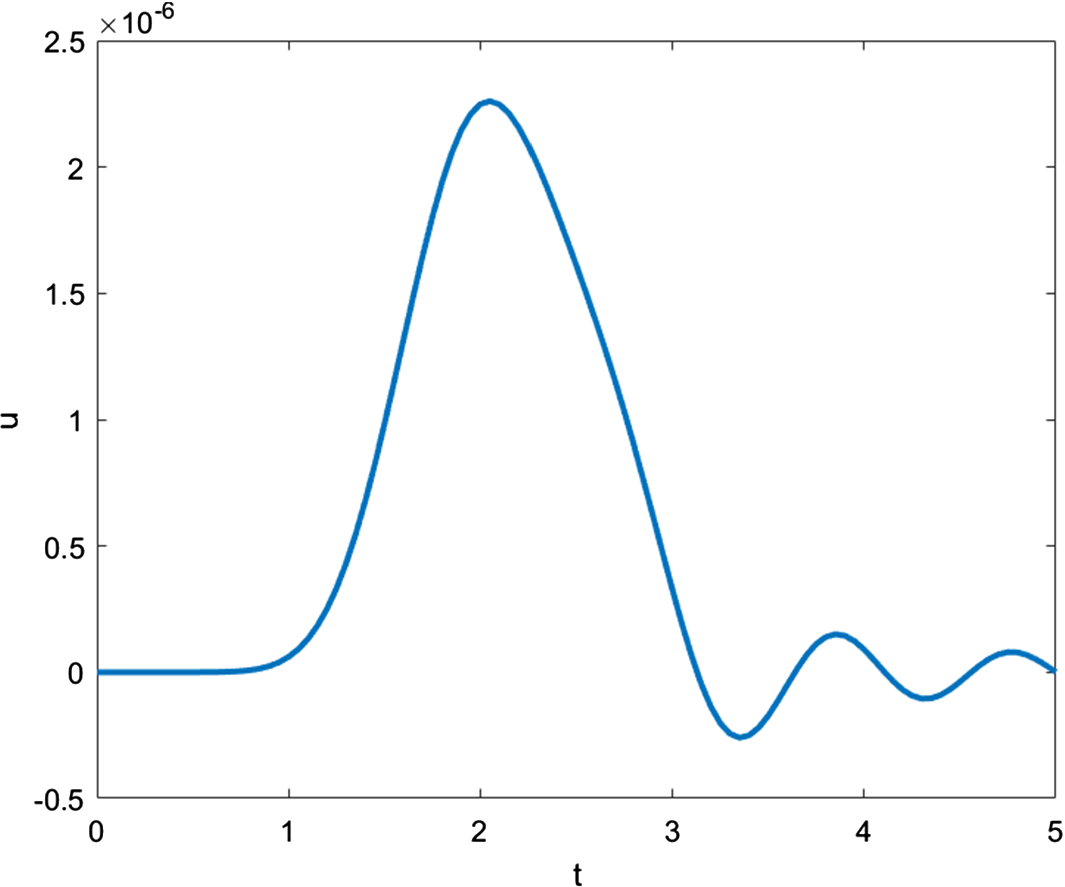

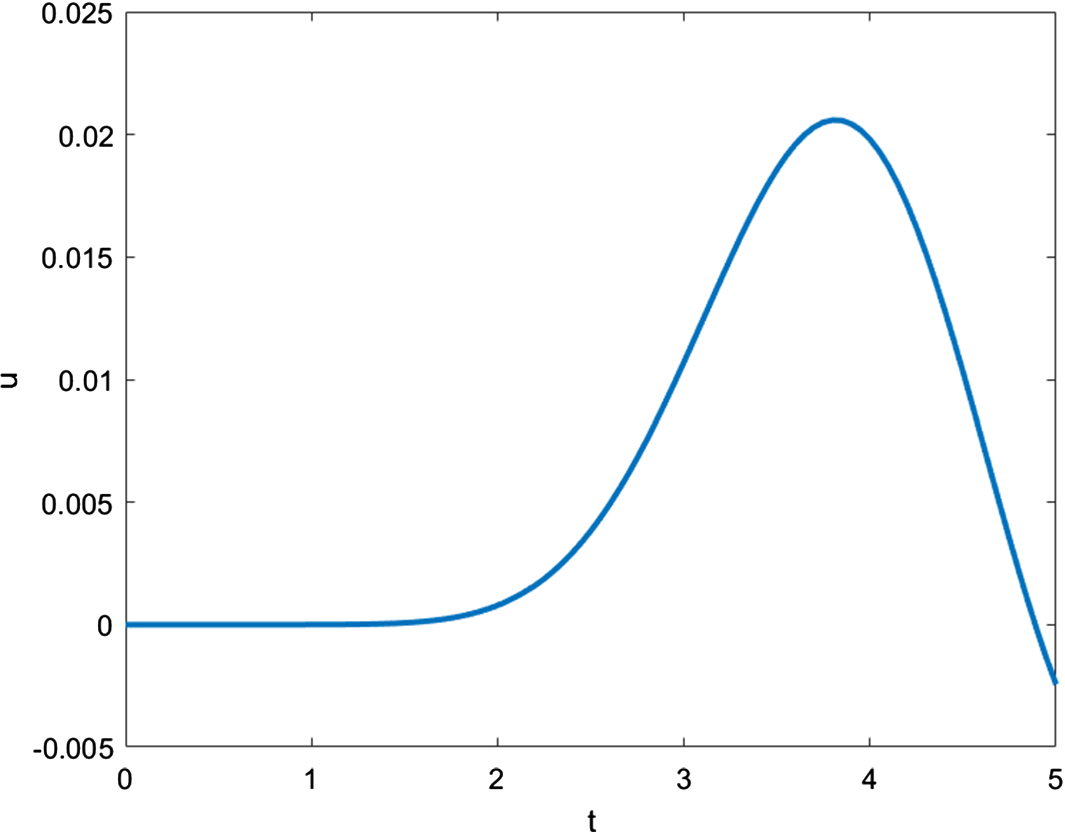

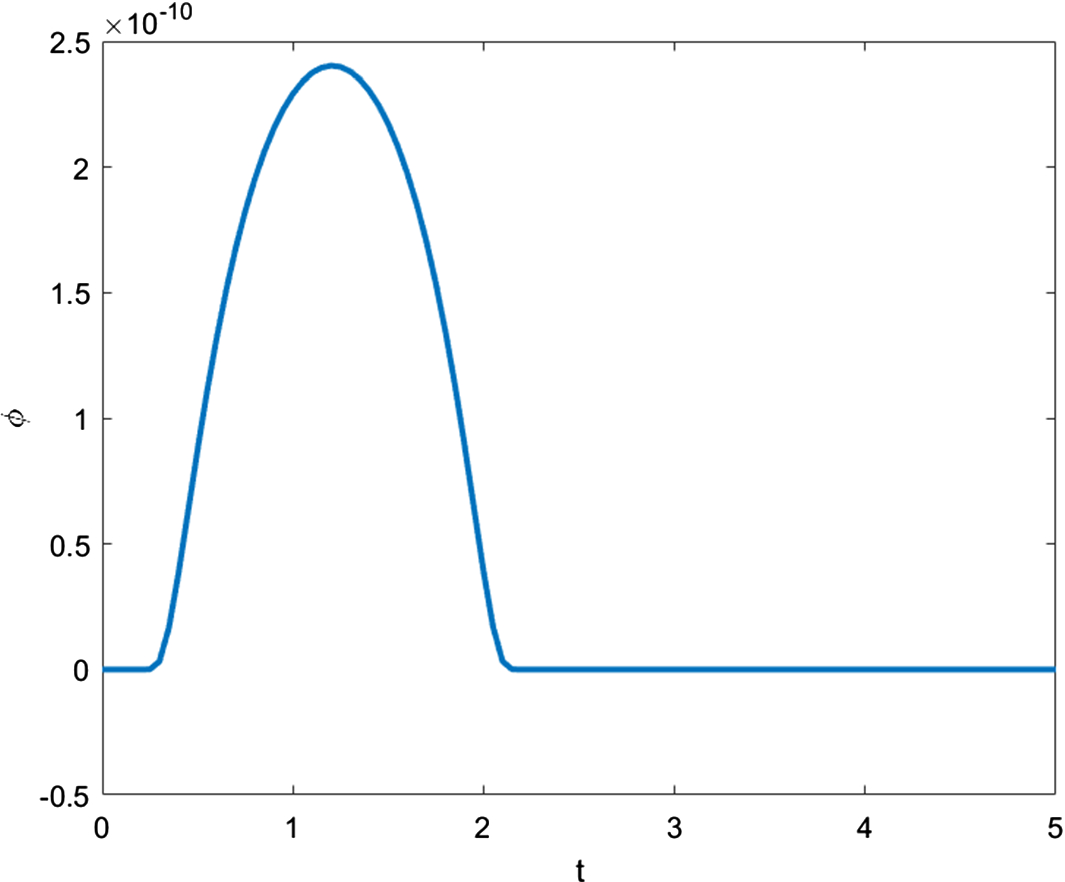

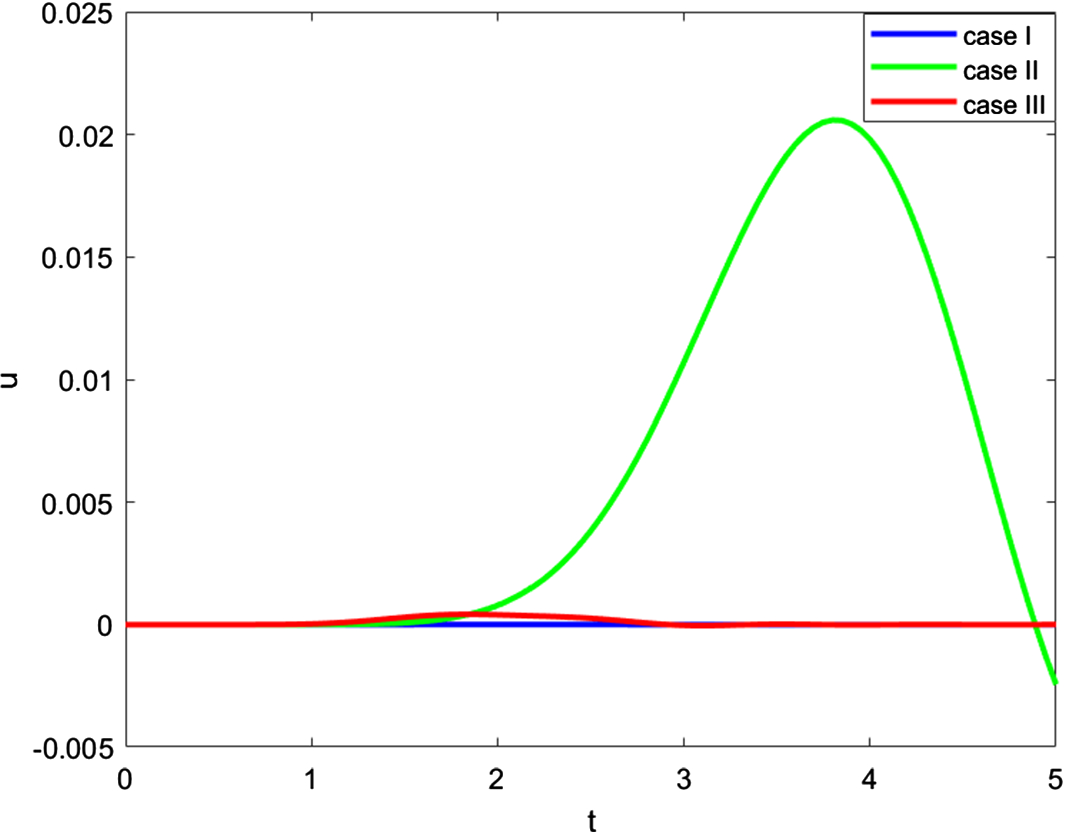

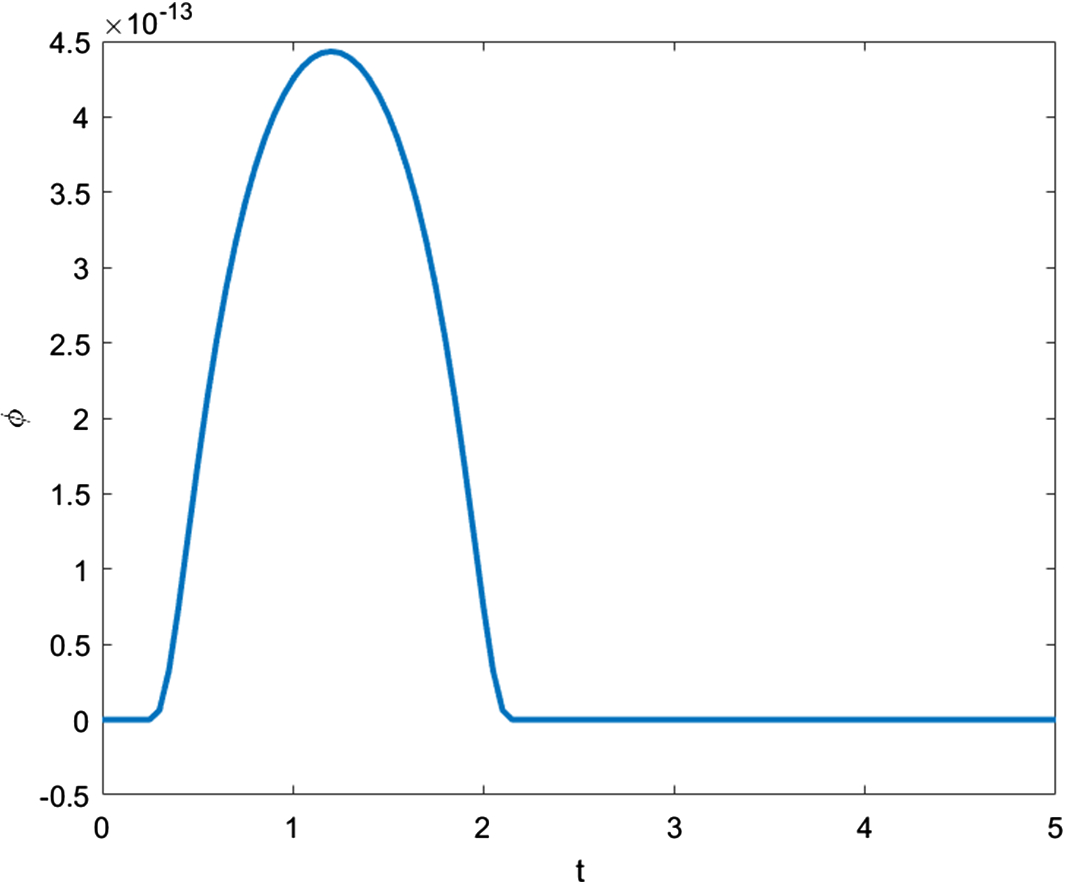

Two- and three-dimensional plots corresponding to these three cases are provided and discussed. In doing so, our choices of the different parameters aimed at obtaining comparable speeds for the coupled thermoelastic wave and for the heat wave in order to put in evidence the interaction of both waves. In solving the problem numerically, as is usually done for finite-difference schemes, an artificial far boundary had to be considered, at which all unknown functions identically vanish, so as not to take in consideration any reflected waves.

2 Basic three-dimensional equations

The basic features of the model under consideration is the introduction of the heat flux as an additional thermodynamical variable, together with the strain and the electric field. A Cattaneo-type evolution equation for the heat flux is assumed, in replacement of the classical Fourier law for heat conduction. Additionally, a linear dependence of the heat wave speed on temperature and heat flux is introduced. The proposed form of the free energy involves many of the usual thermo-electro-mechanical couplings, keeping only nonlinear terms up to the second degree included, in addition to a quadratic dependence on the heat flux as suggested in [11]. The nonlinearities involved in the system of basic equations arise from different sources: They may be of geometrical origin as the body can undergo large deformations, or physical through the dependence of the different material parameters on the unknown functions like temperature, strain, heat flux and electric field, or else from the implications of extended thermodynamics as the free energy of the body has a quadratic dependence on heat flux as stated earlier. The model accounts, among others, for residual polarization (ferroelectricity) which depends on various parameters, and for pyroelectric and electrocaloric effects which usually have a strong dependence on temperature (C.f. [42]). The electrocaloric effect can have important applications in new materials (C.f. [43, 44]). All of the other couplings may be considered in detail. For example, the dependence of entropy on electric field is found to be experimentally detectable only for sufficiently large electric fields of the order of $10^3 \, V/m$, a value that is in the range of nonlinear dielectric response (C.f. [45]). Importance of accounting for the dependence of material coefficients on temperature in piezoelectric composite materials is reported in [46]. Abundant literature exists on the design of new materials and their material properties (see, for example, [47, 48]). Mechanical and electric hystereses are disregarded. As to the dissipation function, it is a positive semi-definite quadratic form in the components of the heat flux. Thus the present model does not include the Green–Naghdi theories of types II and III which are characterized by the absence of dissipation. It does not include the Green–Lindsay theory of generalized thermoelasticity as well, in view of the hypotheses in the model. This becomes clear in the purely thermal case, noting that the heat equation (34) does not involve a third order derivative of temperature. It goes without saying that the model is thermodynamically consistent. Details may be found in [25]. Parent one-dimensional nonlinear models of thermodynamics and thermoelasticity with second sound in which the material coefficients may depend on strain and temperature were treated for the existence of smooth solutions and blowup of solutions in [38, 39].

After incorporating the constitutive relations into the field equations and disregarding the external forces and the heat supply, one is left with the final set of three-dimensional field equations involving eight basic unknown functions: three mechanical displacement components $U_K$, the temperature $\theta $ as measured from a reference temperature, three components of the heat flux $Q_K$ and the electric potential $\Phi $.

In the following equations, a “comma” is used to denote differentiation w.r.to the material coordinates. Written down in material coordinates following [25], the basic system of governing partial differential equations to be investigated below reads:

(i)

The equation of electrostatics:

$$\begin{aligned}{} & {} - \epsilon _{KJ} \Phi _{,JK} + 3\rho \beta _{IJK}\left( \Phi _{,IK} \Phi _{,J} + \Phi _{,I } \Phi _{,JK} \right) \nonumber \\{} & {} \quad +\rho \gamma _{IJK} U_{I,JK} +\rho \beta ^{*}_K \theta _{,K}-2 \rho \zeta _K \theta \theta _{,K} \nonumber \\{} & {} \quad +\varepsilon _{0}\left( U_{L,KK} \Phi _{,L} +U_{L,K} \Phi _{,LK} \right) - \varepsilon _{0} \left( U_{S,SK} \Phi _K +U_{S,S} \Phi _{,KK} \right) \nonumber \\{} & {} \quad +\varepsilon _{0} \left( U_{K,LK} \Phi _{,L} +U_{K,L}\Phi _{,LK} \right) + 2\rho \kappa _{IJKL}\left( \Phi _{,LK} U_{I,J}+ \Phi _{,L} U_{I,JK} \right) \nonumber \\{} & {} \quad - \frac{1}{2}\rho \gamma _{IJK}( U_{M,IK}U_{M,J}+U_{M,I}U_{M,JK})-\frac{1}{2}\rho \zeta _{IJKLM}(U_{I,JK}U_{M,L}+U_{I,J}U_{M,LK})\nonumber \\{} & {} \quad - \frac{1}{2}\rho \zeta _{IJKLM}(U_{I,JK}U_{L,M}+U_{I,J}U_{L,MK})\nonumber \\{} & {} \quad - \rho \theta _{,K} \left( - 2\beta ^{*}_{KJ} \Phi _{,J}+ \gamma ^{*}_{IJK} U_{I,J} \right) - \rho \theta \left( -2\beta ^{*}_{KJ}\Phi _{,JK}+ \gamma ^{*}_{IJK} U_{I,JK}\right) =0 \end{aligned}$$

(1)

(ii)

The equations of motion:

$$\begin{aligned} \rho \displaystyle \frac{\partial ^2 U_L}{\partial t^2}= & {} C_{IJKL} U_{I,JK}- \alpha _{KL}\, \theta _{,K} - \gamma '_{KLM} \Phi _{,MK} \nonumber \\{} & {} + C'_{IJKLMN} U_{I,JK} U_{M,N} + C'_{IJKLMN} U_{I,J} U_{M,NK} \nonumber \\{} & {} - \zeta '_{IJKLM} U_{I,JK}\Phi _{,M} - \zeta '_{IJKLM} U_{I,J} \Phi _{,MK} \nonumber \\{} & {} + \kappa '_{IJKL}\Phi _{,IK} \Phi _{,J} + \kappa '_{IJKL} \Phi _{,I} \Phi _{,JK} \nonumber \\{} & {} + C'_{IJKL} U_{I,JK} \theta + C'_{IJKL} U_{I,J}\theta _{,K} \nonumber \\{} & {} - \gamma '^*_{ILK}\theta \Phi _{,IK} - \gamma '^*_{ILK} \Phi _{,I} \theta _{,K} + 2\alpha ^{*}_{KL} \theta \theta _{,K}. \end{aligned}$$

(2)

(iii)

The equation of energy:

$$\begin{aligned}{} & {} \rho \Theta \left[ \alpha _{IJ}{\dot{U}}_{I,J} - \beta ^{*}_{I}{\dot{\Phi }}_{,I} + \frac{C_T}{\theta _0} {\dot{\theta }} \right. \nonumber \\{} & {} \qquad - \left( \alpha '_{IJKL} +\alpha '_{KLIJ} \right) {\dot{U}}_{I,J} U_{K,L} - \left( \beta ^{*}_{IJ}+\beta ^{*}_{JI}\right) {\dot{\Phi }}_{,I} \Phi _{,J} \nonumber \\{} & {} \qquad - 2\alpha ^{*}_{IJ} \left( {\dot{\theta }} U_{I,J} + \theta {\dot{U}}_{I,J}\right) \nonumber \\{} & {} \qquad +\left. 2\zeta _J\left( {\dot{\theta }} \Phi _{,J} + \theta {\dot{\Phi }}_{,J}\right) + \gamma ^{*}_{IJK}\left( {\dot{U}}_{I,J} \Phi _{,K} + U_{I,J}{\dot{\Phi }}_{,K} \right) \right] \nonumber \\{} & {} \quad = - \Theta \left( \frac{Q_{K}}{\Theta }\right) _{,K} + A_{MR} Q_M Q_R \end{aligned}$$

(3)

(iv)

The Cattaneo evolution equation for the heat flux:

$$\begin{aligned} \rho \Theta \, \tau _h \, {\dot{Q}}_L = - Q_L - A^{-1}_{LS} \theta _{,S}, \end{aligned}$$

(4)

and tensor A is identified with the inverse of the heat conduction tensor K:

$$\begin{aligned} A = K^{-1} \end{aligned}$$

The electric induction vector

$$\begin{aligned} {\bar{D}}_K=\varepsilon _{0}JX_{K,i}X_{L,i}{\bar{E}}_{L}+{\bar{P}}_{K} \end{aligned}$$

(5)

is finally obtained as:

$$\begin{aligned} {\bar{D}}_K = {\bar{D}}^0_K + \varepsilon _{KL}{\bar{E}}_{L}, \end{aligned}$$

(6)

with

$$\begin{aligned} {\bar{D}}^0_K= & {} -\rho \beta _K + \rho _R\beta ^{*}_K\theta + \rho \gamma _{IJK} U_{I,J} - \rho \zeta _K\theta ^2\nonumber \\{} & {} +\frac{1}{2}\rho \gamma _{IJK} U_{M,I}U_{M,J}-\frac{1}{2}\rho \zeta _{IJKLM}U_{I,J}U_{M,L} -\frac{1}{2}\rho \zeta _{IJKLM}U_{I,J}U_{L,M}\nonumber \\{} & {} - \rho \gamma ^{*}_{IJK} \theta U_{I,J} \end{aligned}$$

(7)

$$\begin{aligned} \varepsilon _{KL}= & {} \epsilon _{KL}-2\rho \beta ^{*}_{KL}\theta -3\rho \beta _{IKL}{\bar{E}}_I \nonumber \\{} & {} - 2\varepsilon _{0}U_{L,K}+\varepsilon _{0}U_{S,S}\delta _{KL}-2\rho \kappa _{IJKL} U_{I,J}, \end{aligned}$$

(8)

where

$$\begin{aligned} \epsilon _{KL} = \varepsilon _{0}\delta _{KL}-2\rho \beta _{KL} \end{aligned}$$

(9)

The material electric field and electric induction are endowed with a “bar”, the meanings of the coupling constants are explained in Nomenclature. Details of the derivation may be found in [25]. For the definition of material electromagnetic quantities, the reader is referred to [1].

The system of equations (1)–(4) is not pure “hyperbolic” due to the equation of electrostatics expressed in the quasi-electrostatic approximation. However, if one adds to this equation a term involving the time derivative of the electric potential endowed with a small multiplicative positive parameter and takes the limit of the solution as this parameter tends to zero, then one may assume that the considered system of equations is of mixed “hyperbolic-parabolic” type. This means that the solution will partly have a diffusive character, side by side with its wave nature.

Relying on the above equations, it is thus clear that the model accounts for both ferroelectricity and pyroelectricity, and for the dependence of the different material parameters on strain, temperature and electric field. In particular, the spontaneous polarization has a dependence on strain and temperature.

One-dimensional models have been extensively and efficiently used to describe a multitude of physical phenomena in large slab or half-space. We only cite a few for the sake of conciseness: Sherief and Dhaliwal [49] studied the one-dimensional problem of a thermoelastic half-space subjected to sudden heating in extended thermodynamics. Gryza and Kosłowski [50, 51] proposed analytical and numerical solutions to one-dimensional boundary-value problems in thermoelastic slabs. New aspects of the solutions could be obtained using such simplified models. Chandrasekharaiah [52] obtained exact solutions in closed form to the one-dimensional problem of wave propagation in a half-space in the linear theory of thermoelasticity without energy dissipation.

Nonlinear, one-dimensional models of pure thermodynamics or thermoelasticity with second sound and various dependences of the material coefficients on strain, temperature and heat flux may be found in [36, 38, 39].

In what follows, we shall consider a one-dimensional version of the basic equations for simplicity, then introduce a dimension analysis that will reduce the speed of the heat wave in the linear case to unity. Understandably, the speed of the coupled thermoelastic wave in this case is expected to be less than unity, but the choices of the characteristic parameters will be made in a way so as to make the two speeds comparable to each other in magnitude. We believe that such choice may be useful in studying the interactions between the heat wave and the coupled thermoelastic wave.

By writing the basic equations in alternative forms, it is possible to extract expressions showing the dependence of the two speeds of wave propagation on strain, temperature, heat flux and electric field. Comparing these expressions with available experimental data allows to determine some material parameters.

As already noted, the model contains a multitude of coupling constants, whether linear or quadratic nonlinear. Instead of looking separately for the effect of each material parameter on the response of the material, three choices of the set of material parameters are considered, in which the values of one and the same coefficient may differ by several orders of magnitude from one case to the other. Some of these parameters will retain their values throughout the three cases. In doing so, we will not have in mind a concrete medium. This way of dealing with the nonlinear couplings will allow to assess globally the effect of the material parameters on the electro-thermomechanical response of the medium. Each case will correspond to definite values of the two speeds of wave propagation.

Then we shall consider the purely thermal problem analytically by small parameter expansion in order to put in evidence the difficulties to be met for obtaining such solutions, before tackling the full nonlinear system of equations numerically. For the latter approach, it is worth mentioning that the solutions could be obtained only for relatively small time values due to lack of stability of the used explicit, finite-difference numerical scheme.

3 One-dimensional equations

In order to concentrate on the main goal of the present work, the equations are now written in one spatial dimension. Moreover, all the terms with the interactions $U-U$ and $U- \Phi $ have been deleted for conciseness. The unknown functions are now $U, \theta , Q, \Phi $. These unknowns satisfy a set of four coupled partial differential equations: The equation of Electrostatics, the equation of motion, the equation of energy and Cattaneo-like evolution equation for the heat flux.

$$\begin{aligned}{} & {} - \epsilon \frac{\partial ^2 \Phi }{\partial x^2} + 6 \rho \beta \left( \frac{\partial \Phi }{\partial x} \frac{\partial ^2 \Phi }{\partial x^2} \right) + \rho \gamma \frac{\partial ^2 U}{\partial x^2} + \rho \beta ^{\star } \frac{\partial \theta }{\partial x} - 2 \rho \zeta \theta \frac{\partial \theta }{\partial x} \nonumber \\{} & {} \quad - \ \rho \frac{\partial \theta }{\partial x} \left( - 2 \beta ^{\star } \frac{\partial \Phi }{\partial x} + \gamma ^{\star } \frac{\partial U}{\partial x} \right) - \rho \theta \left( - 2 \beta ^{\star }\frac{\partial ^2 \Phi }{\partial x^2} + \gamma ^{\star } \frac{\partial ^2 U}{\partial x^2} \right) = 0, \end{aligned}$$

(10)

$$\begin{aligned}{} & {} \rho \frac{\partial ^2 U}{\partial t^2} = C_E \frac{\partial ^2 U}{\partial x^2} - \alpha \frac{\partial \theta }{\partial x} - \gamma ' \frac{\partial ^2 \Phi }{\partial x^2} + C' \left( \theta \frac{\partial ^2 U}{\partial x^2} + \frac{\partial U}{\partial x} \frac{\partial \theta }{\partial x} \right) \nonumber \\{} & {} \quad + 2 \kappa ' \frac{\partial \Phi }{\partial x} \frac{\partial ^2 \Phi }{\partial x^2} - \gamma '^{\star } \theta \frac{\partial ^2 \Phi }{\partial x^2} - \gamma '^{\star } \frac{\partial \theta }{\partial x} \frac{\partial \Phi }{\partial x} + 2 \alpha ^{\star } \theta \frac{\partial \theta }{\partial x}, \end{aligned}$$

(11)

$$\begin{aligned}{} & {} \rho \theta _0 \left[ \alpha \frac{\partial ^2 U}{\partial x \partial t} - \beta ^{\star } \frac{\partial ^2 \Phi }{\partial x \partial t} - 2 B^{\star } \frac{\partial ^2 \Phi }{\partial x \partial t} \frac{\partial \Phi }{\partial x} + \frac{C_T}{\theta _0} \frac{\partial \theta }{\partial t} + 2 \zeta \left( \frac{\partial \theta }{\partial t} \frac{\partial \Phi }{\partial x} + \theta \frac{\partial ^2 \Phi }{\partial x \partial t} \right) \right] \nonumber \\{} & {} \qquad + \rho \theta \left( \alpha \frac{\partial ^2 U}{\partial x \partial t} - \beta ^{\star } \frac{\partial ^2 \Phi }{\partial x \partial t} + \frac{C_T}{\theta _0} \frac{\partial \theta }{\partial t} \right) -2 \alpha ^{\star } \left( \frac{\partial \theta }{\partial t} \frac{\partial U}{\partial x} + \theta \frac{\partial ^2 U}{\partial x \partial t} \right) \nonumber \\{} & {} \quad = - \frac{\partial Q}{\partial x} + \frac{1}{\theta _0} Q \frac{\partial \theta }{\partial x} + \frac{1}{K_0 \theta _0} Q^2, \end{aligned}$$

(12)

$$\begin{aligned}{} & {} \rho \tau _h \left( \theta _0 + \theta \right) \frac{\partial Q}{\partial t} = - Q - K \frac{\partial \theta }{\partial x}. \end{aligned}$$

(13)

The electric induction component is finally obtained as:

$$\begin{aligned} {\bar{D}} = {\bar{D}}^0 - \varepsilon \frac{\partial \Phi }{\partial x}, \end{aligned}$$

(14)

with

$$\begin{aligned} {\bar{D}}^0= & {} -\rho \beta + \rho \beta ^{*} \theta + \rho \gamma \frac{\partial U}{\partial x} - \rho \zeta \theta ^2 - \rho \gamma ^{*} \theta \, \frac{\partial U}{\partial x} \end{aligned}$$

(15)

$$\begin{aligned} \varepsilon= & {} \varepsilon _{0} - 2\rho \beta - 2 \rho \beta ^{*} \theta + 3 \rho \beta \, \frac{\partial \Phi }{\partial x} - \left( \varepsilon _{0} + 2\rho \kappa \right) \frac{\partial U}{\partial x}, \end{aligned}$$

(16)

Strain-, temperature- and electric field-dependences of the dielectric constant and other material coefficients were frequently reported in the literature (C.f. [53, 54]).

As a generalization of the model proposed in [25], we introduce a linear dependence of the heat conduction coefficient and the thermal relaxation time on temperature and heat flux. This does not alter in any way the thermodynamical consistency of the model:

$$\begin{aligned} K = K_0 \left( 1 + k_1 \theta + k_2 Q \right) \end{aligned}$$

(17)

and

$$\begin{aligned} \tau _h =\tau _0 \left( 1 + t_1 \theta + t_2 Q \right) . \end{aligned}$$

(18)

Various dependences of the thermal relaxation time and the other material coefficients on strain, temperature and heat flux have been presented in [38, 39].

4 Dimension analysis

No definite material was chosen for the purpose of numerical evaluations. Instead, our main goal was to include as many nonlinear couplings parameters as possible, and to put in evidence the propagation two waves, the coupled thermoelastic wave (slow) and the heat wave (fast), so that the difference in speeds is not too large. Three cases are considered for the numerical application. The values of the various material constants are shown in Table 1:

Table 1

Values of the material parameters

Quantity	Unit	Case I	Case II	Case III
$ C_E $	$ \text {N m}^{-2} $	$ 3.46\times 10^{10} $	$ 0.246\times 10^{10} $	$ 5.46\times 10^{10} $
$ C_T $	$ \text {J kg}^{-1} \text { K}^{-1} $	$ 0.3 \times 10^5 $	$ 0.4 \times 10^{8} $	$ 1.6 \times 10^{7} $
$ C' $	$ \text {kg m}^{-1} \text { s}^{-2}\text { K}^{-1} $	$ 0.3 \times 10^5 $	$ 0.4 \times 10^{5} $	$ 1.6 \times 10^{5} $
$ K_0 $	$ \text {W m}^{-1}\text { K}^{-1} $	$ 1.0 \times 10^4 $	$ 1.0 \times 10^4 $	$ 1.0 \times 10^4 $
$ \alpha $	$ \text {J kg}^{-1}\text { K}^{-1} $	$ 0.5 \times 10^{5} $	$ 0.4 \times 10^{8} $	$ 1.5 \times 10^{7} $
$ \alpha ^{\star } $	$ \text {kg m}^{-1} \text { s}^{-2}\text { K}^{-2}$	$ 0.2 \times 10^{6} $	$ 0.1 \times 10^{6} $	$ 0.5 \times 10^{6} $
$ \beta $	$ \text {Coul m}^4 \text { kg}^{-1} \text { J}^{-1} $	$ 0.1 \times 10^{-13} $	$ 0.1 \times 10^{-13} $	$ 0.1 \times 10^{-13} $
$ \beta ^{\star } $	$ \text {m}^3 \text { kg}^{-1} \text { K}^{-1} $	$ 0.9 \times 10^{-6} $	$ 0.1 \times 10^{-9} $	$ 0.1 \times 10^{-6} $
$ \gamma $	$ \text {m}^3 \text { kg}^{-1} $	$ 0.5 \times 10^5 $	$ 0.3 \times 10^3 $	$ 0.3 \times 10^5 $
$ \gamma ' $	$ \text {Coul m}^{-2} $	$ 0.1 \times 10^{3} $	$ 0.2 \times 10^{5} $	$ 0.2 \times 10^{3} $
$ \gamma ^{\star } $	$ \text {m}^2 \text { J kg}^{-1} \text { K}^{-1} \text { Coul}^{-1} $	$ 0.5 \times 10^3 $	1.0	$ 0.1 \times 10^3 $
$\gamma '^{\star }$	$ \text {Coul m}^{-2} \text { K}^{-1} $	0.1	$ 0.2 \times 10^2 $	0.2
$\epsilon $		2.0	2.0	2.0
$ \zeta $	$ \text {m}^3 \text { kg}^{-1}\text { K}^{-2} $	$ 0.1 \times 10^{-7} $	$ 0.3 \times 10^{-2} $	$ 1.3 \times 10^{-5} $
$ \theta _{0} $	K	293	293	293
$ \kappa ' $	$ \text {Coul}^2 \text { kg}^{-1} \text { m}^{-3} \text { s}^2 $	$ 0.2 \times 10^{-7} $	$ 0.5 \times 10^{-3} $	$ 1.0 \times 10^{-7} $
$ \rho $	$ \text {kg m}^{-3} $	8954	8954	8954
$ \tau _0 $	$ \text {s m}^3 \text { kg}^{-1} \text { K}^{-1} $	$ 0.5 \times 10^{-18} $	$ 0.1 \times 10^{-20} $	$ 0.8 \times 10^{-21} $

The characteristic parameters of length, time, heat flux and electric potential are as follows:

$$\begin{aligned} L_0= \frac{\theta _0 K_0}{Q_0}, \quad T_0 = \rho \theta _0 \tau _0, \quad Q_0 = \sqrt{\frac{\theta _0 C_T K_0}{\tau _0}}, \quad \Phi _0 = \frac{\rho L_0^3}{\gamma ' T_0^2}. \end{aligned}$$

(19)

For the used set of material coefficients one has:

Table 2

Values of the characteristic parameters

Quantity	Unit	Case I	Case II	Case III
$ L_0 $	m	$ 0.69 \times 10^{-10} $	$ 8.559 \times 10^{-12} $	$ 1.210 \times 10^{-11} $
$ T_0 $	s	$ 1.31 \times 10^{-12} $	$ 2.623 \times 10^{-15} $	$ 2.099 \times 10^{-15} $
$ Q_0 $	$ \text {W m}^{-2} $	$ 0.42 \times 10^{15} $	$ 3.422 \times 10^{17} $	$ 2.421 \times 10^{17} $
$ \Phi _0 $	volt	$ 0.18 \times 10^{2} $	$ 0.407783 \times 10^{-4} $	$ 1.802 \times 10^{-2} $

Cases II and III have much larger values of the specific heat capacity and the coefficient of linear thermal expansion, and much smaller values of the characteristic time and length, as compared to Case I. Again, Case II has much larger values of the coefficients $\gamma '$, $\gamma '^{\star }$ $\zeta $ and $\kappa '$, and much smaller values for the coefficients $\beta ^{\star }$, $\gamma $ and $\gamma ^{\star }$, as compared to the other two cases.

Carrying out the dimension analysis, the basic equations are cast in a more convenient form to show the dependence of the various coupling constants on temperature, heat flux and electric field:

$$\begin{aligned}{} & {} - \left( 1 - 2 \frac{\rho \theta _0 \beta ^{\star }}{\epsilon } \, \theta - \frac{6 \rho \beta \Phi _0}{\epsilon L_0} \, \, \frac{\partial \Phi }{\partial x} \right) \frac{\partial ^2 \Phi }{\partial x^2} + \left( \frac{\rho \gamma L_0}{\epsilon \Phi _0} - \frac{\rho \theta _0 \gamma ^{\star } L_0}{\epsilon \Phi _0} \, \theta \right) \frac{\partial ^2 U}{\partial x^2} \nonumber \\{} & {} \quad + \left( \frac{\rho \theta _0 \beta ^{\star } L_0}{\epsilon \Phi _0}- 2 \frac{\rho \zeta \theta _0^2 L_0}{\epsilon \Phi _0} \, \, \theta - \frac{\rho \theta _0 \gamma ^{\star } L_0}{\epsilon \Phi _0} \, \, \frac{\partial U}{\partial x} + 2 \frac{\rho \theta _0 \beta ^{\star }}{\epsilon } \, \, \frac{\partial \Phi }{\partial x} \right) \frac{\partial \theta }{\partial x} = 0, \end{aligned}$$

(20)

$$\begin{aligned}{} & {} \frac{\partial ^2 U}{\partial t^2} = \left( v_e^2 + C' \gamma _0 \theta _0 \, \theta \right) \, \, \frac{\partial ^2 U}{\partial x^2} - \left( \alpha \theta _0 \gamma _0 - 2 \alpha ^{\star } \gamma _0 \theta _0^2 \, \, \theta + C' \gamma _0 \theta _0 \, \frac{\partial U}{\partial x} + \frac{\gamma '^{\star } \theta _0}{\gamma '} \, \, \frac{\partial \Phi }{\partial x} \right) \frac{\partial \theta }{\partial x} \nonumber \\{} & {} \quad - \left( 1 + \frac{\gamma '^{\star } \theta _0}{\gamma '} \, \theta - \frac{2 \kappa '}{\gamma _0 \gamma '^2} \, \frac{\partial \Phi }{\partial x} \right) \frac{\partial ^2 \Phi }{\partial x^2}, \end{aligned}$$

(21)

$$\begin{aligned}{} & {} \frac{\alpha }{C_T} \left[ 1 + \left( 1 - \frac{2 \alpha ^{\star } }{\rho \alpha } \right) \theta \right] \frac{\partial ^2 U}{\partial x \partial t} + \left( 1 + \theta - \frac{2 \alpha ^{\star }}{\rho C_T} \, \frac{\partial U}{\partial x} + 2 \frac{\zeta \theta _0 \Phi _0}{C_T L_0} \, \frac{\partial \Phi }{\partial x} \right) \frac{\partial \theta }{\partial t} \nonumber \\{} & {} \quad - \left[ \frac{\beta ^{\star } \Phi _0}{C_T L_0} + \left( \frac{\beta ^{\star } \Phi _0}{C_T L_0} - 2 \, \frac{\zeta \theta _0 \Phi _0}{C_T L_0} \right) \theta + 2 \frac{B^{\star } \Phi _0^2}{C_T L_0^2} \, \frac{\partial \Phi }{\partial x} \right] \frac{\partial ^2 \Phi }{\partial x \partial t} = - \frac{\partial Q}{\partial x} + Q \frac{\partial \theta }{\partial x} + \, Q^2, \end{aligned}$$

(22)

$$\begin{aligned}{} & {} \left[ 1 + \left( 1 + \tau _1 \right) \theta + \tau _2 Q \right] \frac{\partial Q}{\partial t} = - Q - \left( 1 + q_1 \theta + q_2 Q \right) \, \frac{\partial \theta }{\partial x}. \end{aligned}$$

(23)

Here

$$\begin{aligned} \gamma _0 = \frac{\rho \theta _0 C_T \tau _0}{K_0}, \quad \left[ \gamma _0 \right] = \text {kg}^{-1} \text { m} \text { s}^2, \quad v_e = \sqrt{C_E \gamma _0} \end{aligned}$$

and

$$\begin{aligned} \tau _1 = t_1 \theta _0, \quad \tau _2 = t_2 Q_0, \quad q_1 = k_1 \theta _0, \quad q_2 = k_2 Q_0. \end{aligned}$$

is the speed of propagation of the coupled thermoelastic wave in the linearized theory. From Eqs. (21) and (22) it is seen that the adimensionalized thermoelastic coefficient

$$\begin{aligned} \gamma _{TE} = \alpha \theta _0 \gamma _0 - 2 \alpha ^{\star } \gamma _0 \theta _0^2 \, \, \theta + C' \gamma _0 \theta _0 \frac{\partial U}{\partial x} + \frac{\gamma '^{\star } \theta _0}{\gamma '} \, \, \frac{\partial \Phi }{\partial x} \end{aligned}$$

(24)

and specific heat capacity

$$\begin{aligned} C_T' = \left( 1 - \frac{\frac{2 \alpha ^{\star }}{\rho C_T} \frac{\partial U}{\partial x}-2 \frac{\zeta \theta _0 \Phi _0}{C_T L_0} \frac{\partial \Phi }{\partial x}}{1 + \theta } \right) \, C_T \end{aligned}$$

(25)

have a dependence on temperature, strain and electric field, due to coupling effects.

The dimensionless speed of the coupled thermoelastic wave in the linearized theory and the coefficient of linear thermal expansion for the three cases under consideration are shown on Table 3:

Table 3

Dimensionless speed of the coupled thermoelastic wave and coefficient of linear thermal expansion

Quantity	Unit	Case I	Case II	Case III
$ v_e $		0.37	0.16	0.43
$ \alpha \theta _0 \gamma _0 $		$ 0.58 \times 10^{-4} $	0.12	0.01

With the used characteristic quantities, the speed of propagation of the heat wave is close to unity as verified from (22) and (23), provided its dependence on temperature and heat flux is small enough.

After some manipulations on eqs.(20) and (21) to eliminate the second spatial derivative of the electric potential, the equation of motion may be cast into the form of a wave equation with various damping terms:

$$\begin{aligned} \frac{\partial ^2 U}{\partial t^2} = v_{E}^2 \, \, \frac{\partial ^2 U}{\partial x^2} + \text {terms depending only on functions } \theta \text { and } \Phi , \end{aligned}$$

(26)

yielding the following relation for the squared velocity of propagation of the coupled thermo-electroelastic wave as function of temperature and electric field:

$$\begin{aligned} v_{E}^2 = \left( v_e^2 + C' \gamma _0 \theta _0 \, \theta \right) - \left( 1 + \frac{\gamma '^{\star } \theta _0}{\gamma '} \, \, \theta - \frac{2 \kappa '}{\gamma _0 \gamma '^2} \, \, \frac{\partial \Phi }{\partial x} \right) \frac{\rho \gamma L_0}{\epsilon \Phi _0} \, \frac{ 1 - \frac{ \theta _0 \gamma ^{\star }}{\gamma } \, \, \theta }{ 1 - \frac{3 \rho \beta \Phi _0}{\epsilon L_0} \, \, \frac{\partial \Phi }{\partial x} + \frac{2 \rho \theta _0 \beta ^{\star }}{\epsilon } \theta }. \end{aligned}$$

(27)

For the present model, the velocity $v_{E}$ does not depend of heat flux.

Again, by cross-differentiation in (22) and (23) and elimination of a second mixed derivative of the heat flux, one obtains:

$$\begin{aligned} \frac{\partial ^2 \theta }{\partial t^2} = v_H^2 \, \, \frac{\partial ^2 \theta }{\partial x^2} + \text {terms depending only on functions }U, Q \text { and } \Phi , \end{aligned}$$

(28)

which gives the squared velocity of propagation of the heat wave:

$$\begin{aligned} v_{H}^2 = \frac{1}{1 + \theta - \frac{2 \alpha ^{\star }}{\rho C_T} \, \frac{\partial U}{\partial x} + 2 \frac{\zeta \theta _0 \Phi _0}{C_T L_0} \, \, \frac{\partial \Phi }{\partial x} } \, \, \frac{ 1 + k_1 \theta + k_2 Q}{1 + \left( 1 + t_1 \right) \theta + t_2 Q } \end{aligned}$$

(29)

depending on temperature, strain, heat flux and electric field. In the linearized theory, the value of this speed is unity. Dependence of the second sound speed on heat flux was reported by Coleman and Newman [12]. A similar wave equation for Q may be obtained as well.

The above formulae for $v_E$ and $v_{H}$ have not been reported previously, and can be used in conjunction of experimental results to provide values for some material constants. They are suitable for evaluating the effect of nonlinearity on the wave speeds.

Systems of nonlinear hyperbolic equations have been investigated by many authors, among whom we cite [55‐58]. In the following two sections we find solutions to our equations under some initial and boundary conditions using either Poincar$\acute{\text {e}}$ expansion or by numerical techniques.

5 The purely thermal case

A few investigations were carried out on rigid thermal conductors within the theory of extended thermodynamics, among which we cite [59, 60]. In what follows, we show that the reduced equations for purely thermal problem still lead to cumbersome solutions if one tries the analytical techniques. Here the basic nonlinear one-dimensional adimensionalized equations reduce to two only for the functions of temperature $\theta (t,x)$ and heat flux Q(t, x):

$$\begin{aligned}{} & {} \frac{\partial \theta }{\partial t}+ \theta \frac{\partial \theta }{\partial t} = - \frac{\partial Q}{\partial x} + Q \frac{\partial \theta }{\partial x} + \, Q^2, \end{aligned}$$

(30)

$$\begin{aligned}{} & {} \left[ 1 + \left( 1 + \tau _1 \right) \theta + \tau _2 Q \right] \frac{\partial Q}{\partial t} = - Q - \left( 1 + q_1 \theta + q_2 Q \right) \frac{\partial \theta }{\partial x}. \end{aligned}$$

(31)

Let us try an expansion of the solution in terms of a small Poincar$\acute{e}$ parameter $\nu $:

$$\begin{aligned} \theta = \nu \theta _1 + \nu ^2 \theta _2 + \cdots , \qquad Q = \nu Q_1 + \nu ^2 Q_2 + \cdots . \end{aligned}$$

(32)

The equations to the first-order of approximation are:

$$\begin{aligned} \frac{\partial \theta _1}{\partial t} = - \frac{\partial Q_1}{\partial x}, \qquad \frac{\partial Q_1}{\partial t} = - Q_1 - \frac{\partial \theta _1}{\partial x}, \end{aligned}$$

(33)

with

$$\begin{aligned} \lim _{x \rightarrow \infty } \theta _1(t,x) = 0, \qquad \lim _{x \rightarrow \infty } \frac{ \partial \theta _1(t,x)}{\partial x} = 0 \end{aligned}$$

and similar radiational conditions on the function Q(t, x).

By differentiation one can easily decouple equations (33) and obtain two identical wave equations with damping for $\theta $ and Q of the form:

$$\begin{aligned} \frac{\partial ^2 \theta _1}{\partial x^2} - \frac{\partial ^2 \theta _1}{\partial t^2} - \frac{\partial \theta _1}{\partial t} = 0, \end{aligned}$$

(34)

showing that the non-dimensional speed of the heat wave is equal to unity as expected.

We shall find a solution in the half-space with given initial and boundary conditions:

$$\begin{aligned} \theta _1(t,0) = f_0(t), \quad Q_1(t,0) = g_0(t), \quad \theta _1(0,x) = f_1(x), \quad Q_1(0,x) = g_1(x). \end{aligned}$$

(35)

The missing initial conditions on the time rates of change may be obtained using (33):

$$\begin{aligned} \frac{\partial \theta _1}{\partial t}(0,x) = - g_1'(x), \quad \frac{\partial Q_1}{\partial t}(0,x) = - g_1(x) - f_1'(x). \end{aligned}$$

(36)

Applying the Fourier sine transform with respect to the x variable:

$$\begin{aligned} {\tilde{\theta }}_1(t, \xi ) = \int _0^{\infty } \theta _1(t,x) \sin (x \xi ) \, \textrm{d}x, \end{aligned}$$

(37)

to Eq. (34), one is finally led to the following solution for the transform:

$$\begin{aligned}{} & {} {\tilde{\theta }}_1(t,\xi ) = \frac{\xi }{\lambda _1 - \lambda _2} \int _0^t \left[ e^{\lambda _1 (t- \tau )} - e^{\lambda _2 (t- \tau )} \right] f_0(\tau ) \, \textrm{d}\tau \nonumber \\{} & {} \quad + \frac{\lambda _2 \tilde{f}_1(\xi )- \tilde{G}_1(\xi )}{\lambda _2 - \lambda _1} e^{\lambda _1 t} - \frac{\lambda _1 \tilde{f}_1(\xi ) + \tilde{G}_1(\xi )}{\lambda _2 - \lambda _1} e^{\lambda _2 t}. \end{aligned}$$

(38)

the values $\lambda _1$ and $\lambda _2$ being the roots of the quadratic algebraic equation:

$$\begin{aligned} \lambda ^2 + \lambda + \xi ^2 = 0 \quad \rightarrow \quad \lambda _{1,2} = - \frac{1}{2} \pm \frac{1}{2} \sqrt{1- 4 \xi ^2}, \end{aligned}$$

(39)

and $\tilde{f}_1(\xi )$, $\tilde{G}_1(\xi )$ are the Fourier sine transforms of $f_1(x)$ and $g'_1(x)$ respectively, whence the solution:

$$\begin{aligned} \theta _1(t,x) = \frac{2}{ \pi } \int _0^{\infty } {\tilde{\theta }}_1(t, \xi ) \sin (x \xi ) \, \textrm{d} \xi , \end{aligned}$$

(40)

The steps of the solution are straightforward and details have been omitted for conciseness. The solution for $Q_1(t,x)$ can be found in an analogous manner.

Turn now to the second-order solution. The system of equations reads:

$$\begin{aligned} \frac{\partial \theta _2}{\partial t} + \frac{\partial Q_2}{\partial x} =F(t,x), \qquad \frac{\partial Q_2}{\partial t} + Q_2 + \frac{\partial \theta _2}{\partial x} = G(t,x), \end{aligned}$$

(41)

with

$$\begin{aligned}{} & {} F(t,x) = - \theta _1 \frac{\partial \theta _1}{\partial t} + Q_1 \frac{\partial \theta _1}{\partial t} + Q_1^2, \end{aligned}$$

(42)

$$\begin{aligned}{} & {} G(t,x) = - (1+ \tau _1) \theta _1 \frac{\partial Q_1}{\partial t} + \tau _2 Q_1 \frac{\partial Q_1}{\partial t} - q_1 \theta _1 \frac{\partial \theta _1}{\partial x} + q_2 Q_1 \frac{\partial \theta _1}{\partial x} \end{aligned}$$

(43)

Equations (41) can be solved using exactly the same technique as for the first-order approximation, the only difference being the existence of the non-homogeneous terms on the r.h.s. of the equations. The solution is quite cumbersome and is expressed in terms of a quadruple integral. We shall refrain from writing down the second-order solution. The complexity of the calculations makes a case in favour of the numerical methods of solution.

Fig. 1

3D-temperature distribution for the linear case

Quantity	Unit	Case I	Case II	Case III
\( C_E \)	\( \text {N m}^{-2} \)	\( 3.46\times 10^{10} \)	\( 0.246\times 10^{10} \)	\( 5.46\times 10^{10} \)
\( C_T \)	\( \text {J kg}^{-1} \text { K}^{-1} \)	\( 0.3 \times 10^5 \)	\( 0.4 \times 10^{8} \)	\( 1.6 \times 10^{7} \)
\( C' \)	\( \text {kg m}^{-1} \text { s}^{-2}\text { K}^{-1} \)	\( 0.3 \times 10^5 \)	\( 0.4 \times 10^{5} \)	\( 1.6 \times 10^{5} \)
\( K_0 \)	\( \text {W m}^{-1}\text { K}^{-1} \)	\( 1.0 \times 10^4 \)	\( 1.0 \times 10^4 \)	\( 1.0 \times 10^4 \)
\( \alpha \)	\( \text {J kg}^{-1}\text { K}^{-1} \)	\( 0.5 \times 10^{5} \)	\( 0.4 \times 10^{8} \)	\( 1.5 \times 10^{7} \)
\( \alpha ^{\star } \)	\( \text {kg m}^{-1} \text { s}^{-2}\text { K}^{-2}\)	\( 0.2 \times 10^{6} \)	\( 0.1 \times 10^{6} \)	\( 0.5 \times 10^{6} \)
\( \beta \)	\( \text {Coul m}^4 \text { kg}^{-1} \text { J}^{-1} \)	\( 0.1 \times 10^{-13} \)	\( 0.1 \times 10^{-13} \)	\( 0.1 \times 10^{-13} \)
\( \beta ^{\star } \)	\( \text {m}^3 \text { kg}^{-1} \text { K}^{-1} \)	\( 0.9 \times 10^{-6} \)	\( 0.1 \times 10^{-9} \)	\( 0.1 \times 10^{-6} \)
\( \gamma \)	\( \text {m}^3 \text { kg}^{-1} \)	\( 0.5 \times 10^5 \)	\( 0.3 \times 10^3 \)	\( 0.3 \times 10^5 \)
\( \gamma ' \)	\( \text {Coul m}^{-2} \)	\( 0.1 \times 10^{3} \)	\( 0.2 \times 10^{5} \)	\( 0.2 \times 10^{3} \)
\( \gamma ^{\star } \)	\( \text {m}^2 \text { J kg}^{-1} \text { K}^{-1} \text { Coul}^{-1} \)	\( 0.5 \times 10^3 \)	1.0	\( 0.1 \times 10^3 \)
\(\gamma '^{\star }\)	\( \text {Coul m}^{-2} \text { K}^{-1} \)	0.1	\( 0.2 \times 10^2 \)	0.2
\(\epsilon \)		2.0	2.0	2.0
\( \zeta \)	\( \text {m}^3 \text { kg}^{-1}\text { K}^{-2} \)	\( 0.1 \times 10^{-7} \)	\( 0.3 \times 10^{-2} \)	\( 1.3 \times 10^{-5} \)
\( \theta _{0} \)	K	293	293	293
\( \kappa ' \)	\( \text {Coul}^2 \text { kg}^{-1} \text { m}^{-3} \text { s}^2 \)	\( 0.2 \times 10^{-7} \)	\( 0.5 \times 10^{-3} \)	\( 1.0 \times 10^{-7} \)
\( \rho \)	\( \text {kg m}^{-3} \)	8954	8954	8954
\( \tau _0 \)	\( \text {s m}^3 \text { kg}^{-1} \text { K}^{-1} \)	\( 0.5 \times 10^{-18} \)	\( 0.1 \times 10^{-20} \)	\( 0.8 \times 10^{-21} \)

Quantity	Unit	Case I	Case II	Case III
\( L_0 \)	m	\( 0.69 \times 10^{-10} \)	\( 8.559 \times 10^{-12} \)	\( 1.210 \times 10^{-11} \)
\( T_0 \)	s	\( 1.31 \times 10^{-12} \)	\( 2.623 \times 10^{-15} \)	\( 2.099 \times 10^{-15} \)
\( Q_0 \)	\( \text {W m}^{-2} \)	\( 0.42 \times 10^{15} \)	\( 3.422 \times 10^{17} \)	\( 2.421 \times 10^{17} \)
\( \Phi _0 \)	volt	\( 0.18 \times 10^{2} \)	\( 0.407783 \times 10^{-4} \)	\( 1.802 \times 10^{-2} \)

Quantity	Unit	Case I	Case II	Case III
\( v_e \)		0.37	0.16	0.43
\( \alpha \theta _0 \gamma _0 \)		\( 0.58 \times 10^{-4} \)	0.12	0.01

Springer Professional

Abstract

Publisher's Note

1 Introduction

2 Basic three-dimensional equations

3 One-dimensional equations

4 Dimension analysis

5 The purely thermal case

6 Numerical results for the nonlinear problem by finite differences

7 Conclusions

Acknowledgements

Declarations

Conflict of interest

Publisher's Note

Experimental identification of high damping ratios in single-degree-of-freedom systems

One dimensional transient thermoelastic and associated fracture analysis of long porous ceramic plate

Modeling and dynamics characteristics analysis of six-bar rocking feeding mechanism with lubricated clearance joint

Experimental research and dynamics analysis of multi-link rigid–flexible coupling mechanism with multiple lubrication clearances

Reduced order homogenization of thermoelastic materials with strong temperature dependence and comparison to a machine-learned model

Transient response of vibration energy harvester incorporating inertial rotation structure
