Abstract
Introduction
Wood has been extensively used since ancient times in construction, furniture, and tool-making due to its versatility and mechanical properties. The complexity of wood’s hierarchical structure, combined with the variability of its biological composition, has been further enhanced by several technological advancements that promote more efficient use of this resource. In recent decades, increasing attention has been directed toward modifying and selectively controlling wood’s microstructure to enhance its optical properties, enabling the development of transparent wood composites with diverse applications spanning structural and functional use, energy efficiency, solar energy harvesting, and advanced light management systems (Zhu et al. 2016a, b; Li et al. 2016a, 2019).
For this purpose, the properties of wood can be controlled and modified through physical and chemical treatments that aim to overcome the weaknesses of native wood by acting on the chemical and physical properties of its primary components: cellulose, hemicellulose, and lignin. In particular, by modifying and adjusting the lignin content in wood via an initial chemical treatment, white wood templates can be created that have a non-transparent appearance, due to light scattering within the wood’s porous structure. Subsequently, by infiltrating these porosities with polymers that closely match cellulose in refractive index, most light can pass through the wood-polymer composite, resulting in either a transparent or translucent appearance, depending on the sample’s haze level. This phenomenon arises from the wood’s intrinsic anisotropic structure, which diffuses some light within the composite.
Advertisement
To perform the first step, there are two strategies to modify the color of the wood and increase its whiteness: (i) delignification and (ii) bleaching.
Most wood treatment processes focus on achieving nearly complete removal of lignin, with reductions of over 80% through delignification methods (Li et al. 2016b). The dark color of the wood is primarily attributed to lignin, which accounts for 80–95% of light absorption (Davidson 1996). In the absence of lignin, cellulose and hemicellulose are colorless. However, they appear white due to light scattering phenomena within the hierarchical porous structure of wood (Zhu et al. 2016a).
The initial method for delignifying wood and producing bleached templates was introduced by Fink, (1992), who used a 5% aqueous solution of sodium hypochlorite for 24 to 48 h to eliminate colour-causing compounds, particularly lignin and extractives. In a study by Li et al. (2016b) delignification was achieved by treating wood with sodium chlorite at 80 °C for 6 to 12 h, significantly reducing lignin content from approximately 25 to less than 3%. Zhu et al. (2016a) proposed a method for removing lignin that involved wood immersion in a boiling solution of NaOH and Na2SO3 for 12 h, followed by bleaching with hot H2O2, which also resulted in a lignin content of less than 3%. In another study, Zhang et al. (2023) demonstrated that the lignin content could be reduced from 22 to 1% using a highly concentrated H2O2 vapor at 95 °C for 10 h. However, these lignin removal processes result in weakened wood structures that can entirely disintegrate the hierarchical organization and lead to the separation of cellulose fibers, which become unbonded (Sirviö et al. 2023). For instance, following delignification, pine breaks down into pieces containing condensed cellulose fibers (Li et al. 2017). In fact, lignin, constituting approximately 30 wt% of wood, plays a vital structural role by cross-linking with polysaccharides to reinforce the cell wall and maintain mechanical integrity (Vanholme et al. 2010). Therefore, preserving lignin within the wood matrix through alternative approaches to complete removal is essential to maintain structural integrity.
Moreover, the delignification processes are often characterized by long processing times and poor environmental compatibility. As the temperature increases during the treatments with chlorinated agents, toxic by-products, such as chlorinated dioxins, could form (Tarvo et al. 2009). To avoid and control the formation of these by-products during delignification processes, chlorinated reagents must be prevented and operated at lower temperatures.
Advertisement
Recent studies have focused on optimizing the preparation of white wood by modifying the lignin structure using mild oxidizing agents. This approach overcomes these processing issues while achieving desirable optical and mechanical properties (Li et al. 2017; Xia et al. 2021a).
The second strategy implies bleaching, meaning selective lignin modification to target the chromophore units responsible for the wood’s color. Only a few studies have utilized hydrogen peroxide as a key reagent in chemical modification processes while retaining most of the lignin. For example, Li et al. (2017) treated various types of wood with an alkaline hydrogen peroxide solution at 70 °C, incorporating different reagents, including magnesium sulfate. This resulted in bleached wood that retained about 80% of its lignin, creating 1.5 mm thick samples that maintained a structure similar to natural wood. Subsequently, Xia et al. (2021a) created a solar-assisted white wood template with a thickness of 1 mm by applying a hydrogen peroxide solution to balsa coated with a small amount of alkali powder. This resulted in 80% lignin preservation.
While these studies have demonstrated the feasibility of producing white wood templates, they also present significant drawbacks. The method reported by Li et al. generates sulfur compounds (e.g., methyl mercaptan, dimethyl sulfide, hydrogen sulfide) upon heating, raising concerns about environmental impact and process safety. The approach by Xia et al., although milder, is ineffective for thicker and denser samples and requires a UV source to enhance the action of hydrogen peroxide. However, this reliance on UV not only produces ozone, with associated risks to human health and the environment, but also limits the scalability of the process in industrial applications. More generally, bleaching strategies considered more sustainable in terms of energy demand still depend on external activation sources (e.g., high temperatures or UV) and remain effective only for thin samples (< 2 mm). This limitation arises from the challenging diffusion of the bleaching solution within the hierarchical wood structure, which restricts whitening to the surface rather than the bulk.
In light of these concerns, we introduce an innovative bleaching method designed to overcome the inefficiencies of conventional processes by enhancing optical reflectivity, preserving structural integrity, and retaining most of the native lignin. The novelty of our treatment lies in achieving bulk and surface whitening under mild conditions, without the need for external heating or sulfur-based reagents, such as those used in Kraft pulping. The synergistic action of hydrogen peroxide and potassium hydroxide at the reported concentrations enables efficient penetration into the wood matrix at room temperature within a shorter time frame (2–4 h), eliminating the need for additional activation sources (e.g., heat or UV). This effective penetration makes it possible to treat wood species of different densities and thicknesses—up to 3 mm for both balsa and birch, and up to 1 cm for balsa wood—thus overcoming the limitations reported in the literature, where low-density woods were typically restricted to thicknesses below 2 mm. This one-pot process, followed by a simple sodium bicarbonate washing step, selectively modifies lignin chromophores while preserving the mechanical integrity of the substrate. Importantly, potassium hydroxide can be recovered and reused, thereby lowering chemical demand and operational costs in industrial applications. As a result, the treatment can be defined as an eco-friendly, non-delignifying bleaching approach that minimizes waste and energy consumption while providing a scalable route for producing bleached wood across different species and thicknesses.
To further highlight the versatility of the method, two hardwood species with markedly different characteristics were selected: low-density balsa and high-density birch, each tested at thicknesses of 1 and 3 mm. Their contrasting hierarchical structures, pore connectivity, and densities, together with the extensive availability of data on their chemical and physical properties in the literature, made them suitable model systems for validating the scalability and general applicability of the proposed treatment (Borrega et al. 2015; Luostarinen et al. 2000).
Therefore, this study aims to establish a mild alkaline bleaching process that enhances wood whitening while preserving lignin within the cell wall, where it continues to function as a natural structural binder. We hypothesize that stabilized hydrogen peroxide under alkaline conditions at room temperature can selectively deconjugate chromophoric groups in lignin without significantly altering the native structure.
Materials and methods
Materials and chemicals
Raw balsa wood was purchased from Specialized Balsa Wood, LLC in the USA in two different thicknesses: 1 and 3 mm. The density of the balsa wood ranges from 0.15 to 0.17 g/cm³. Raw birch wood with a thickness of 1 mm was provided from VNT Trinciati S.p.a (Italy), with a density of 0.70 g/cm³. Birch wood with a thickness of 3 mm was sourced from Woodenave in China, with a density of 0.70 g/cm³. Both species were cut into two sets of 50 sample units, with known dimensions of 25 × 25 × 1 mm3 and 25 × 25 × 3 mm3 (tangential x longitudinal x radial). This was done to guarantee an accurate comparison between the two wood species.
For the bleaching process, a 30% v/v hydrogen peroxide (H2O2) solution (supplied by Sigma Aldrich), potassium hydroxide (KOH) granules (Sigma Aldrich, purity ≥ 85%), and sodium bicarbonate (NaHCO3) powder (Solvay S.p.a, purity: 99%) were used.
Alkaline H2O2 bleaching for Balsa wood
An alkaline H2O2 solution was prepared by dissolving KOH granules in 30% v/v H2O2 to reach a 2 M concentration. Sheets of balsa wood, with thicknesses of 1 and 3 mm, were immersed in 20 mL of such solution at room temperature. The wood: solution ratio was 1:10 g/mL (1:16 v/v). The samples were left to soak at room temperature in a 60 mm diameter glass crystallizer under the action of a glass weight for 2 h, until completely bleached. Then, they were immersed in a 0.5 M NaHCO3 solution to wash and stabilize the final color. Afterwards, the samples were rinsed thoroughly with deionized water to remove residual components and dried in an oven at 65 °C overnight.
Alkaline H2O2 bleaching for Birch wood
The procedure used for balsa wood was applied to birch specimens, with the difference that samples were treated twice with the alkaline H2O2 solution for 4 h, until complete bleaching. The wood: solution ratio was 1:3 g/mL (1:16 v/v).
Characterisation
The morphological analysis was performed using Field-emission Scanning Electron Microscopy (FESEM, Hitachi S4000, Tokyo, Japan) to analyze the wood’s hierarchical structure and porosity features before and after bleaching.
The percentage of lignin removed was determined gravimetrically using an analytical balance ED224S Extend (Sartorius), with measurements repeated on five samples of each type. For each sample, the weight before and after treatment was measured after drying in an oven at 105 °C for 4 h. The percentage of lignin removed was calculated using Eq. 1:
$$\:Removed\:lignin\:\%=100-\frac{White\:wood\:sample\:weight\:}{Raw\:wood\:sample\:weight-moisture\:content\:}*100$$
(1)
The UV-visible analysis was conducted using an Avantes AvaSpec-ULS2048XLUSB2 model spectrophotometer (Apeldoorn, The Netherlands) alongside an AvaLight HAL-S-IND tungsten halogen light source. The detector and light source were linked via fibre optic cables to a probe with a 1.5 mm diameter FCR-7UV200-2-1.5 × 100. The incident and detecting angles were both set at 45° from the surface normal to eliminate specular reflectance. The spectral range of the detector was from 350 to 1100 nm, and the analysis was collected from 400 to 750 nm.
The ATR-FTIR structural analyses were performed on bleached and raw wood sheets using a Nicolet IS50 IR spectrometer (Thermo Fisher Scientific). The spectra of the analyzed samples were collected at an IR beam temperature of 35 °C, with 32 scans performed at a 4 cm-1 resolution in a spectral range of 4000 to 550 cm-1.
The relative lignin content was estimated from FTIR spectra by calculating the ratio between the intensity of the aromatic skeletal vibration of lignin at 1509 cm⁻¹ (I1509) and the intensity of the C–H deformation in cellulose at 893 cm⁻¹ (I893). The relative lignin content for each treated sample was then expressed as a percentage with respect to the corresponding untreated native wood, considered as 100%, according to the Eq. 2:
$$ $$$$ {\text{Relative~lignin~content}}~\% = \frac{{\left( {\frac{{I_{{1509}} }}{{I_{{893}} }}} \right){\text{Bleached}}~{\text{wood}}}}{{\left( {\frac{{I_{{1509}} }}{{I_{{893}} }}} \right){\text{Natural}}~{\text{wood}}}}~ \times ~100 $$
(2)
For each specimen, spectra were collected on three different points of the sample surface, and the reported values correspond to the average of these measurements.
The relative crystallinity percentage was determined using an Empyrean X-Ray Diffractometer (XRD) from Malvern Panalytical, equipped with a Cu source at 40 kV and 40 mA. The samples were tested in the 2θ range of 5–40° with a scan rate of 3°/min. The diffractometer was equipped with soller slits (0.04 rad), anti-scatter slit (P7.5), beam mask (10 mm), divergence (¼ °), and axial (½ °) slits. All wood slices were dried at 60 °C for 24 h before analysis. In particular, through Segal’s method, the crystallinity percentage was determined using Eq. 3:
$$ $$$$ ~C_{r} I = ~\frac{{I_{{002}} ~ - ~I_{{am}} }}{{I_{{002}} }}~ \times ~100 $$
(3)
Where: (i) CrI is the percentage of relative crystallinity; (ii) I002 represents the maximum intensity of the diffraction angle for the cellulose I002 lattice; (Popescu2009) and (iii) Iam is the scattering intensity of the amorphous background diffraction at 2θ, which is approximately 18°.
The diffractograms were deconvoluted using a fitting procedure with the OPUS V. 5.5 software to calculate the entire crystalline contribution. Multiple runs were performed to achieve the minimal residual error, with a Root Mean Square Error (RMSE) of less than 2 × 10⁻⁴. Five components were included, utilising five Gaussian bands to deconvolve the crystalline phases (101, 10 − 1, 012, and 200) and the amorphous halo. The resulting fitting curve closely matches the experimental curve. Following the deconvolution, the crystalline index was successfully determined using Eq. 4:where the term Ic, which replaces I002, indicates the total area of the crystalline component. This value is derived from the sum of the integral contributions attributed to the deconvoluted crystallographic planes 101, 10 − 1, 012, and 200.
$$ $$$$ C_{r} I = ~\frac{{Ic}}{{Ic~ + ~I_{{am}} }}~ \times ~100 $$
(4)
The specific surface area (SSA) of the wood samples was analyzed utilizing N2 physisorption measurements performed at 77 K. Before analysis, the samples were outgassed at 70 °C for 16 h, resulting in a residual pressure lower than 10− 6 Torr. The N2 measurements were performed in the relative pressure range from 5 × 10− 5 to 1 P/P0 using a Quantachrome Autosorb 1MP instrument. The apparent surface areas were determined using the Brunauer-Emmett-Teller (BET) equation within the relative pressure range from 0.05 to 0.25 P/P0. Pore size distributions and cumulative pore volume were obtained by applying the QSDFT model of N2 at 77 K on carbon (slit pore, equilibrium model).
The tensile strength of the samples was determined using a Shimadzu AGSX tensile/compressive machine. A total of twenty samples measuring 10 × 100 × 1 mm3 and twenty samples 10 × 100 × 3 mm3 (tangential x longitudinal x radial) were tested. The twenty samples, consisting of ten balsa wood and ten birch wood, were divided into two sets of five samples each. One of these sample sets for the two chosen species was treated with a whitening solution before testing. Sample preparation and tensile tests were performed in accordance with ISO 13061-6. Tests on treated and untreated balsa and birch samples are the average of five measurements conducted for each sample. The displacement rate was 1 mm/min, with the clamp distance ranging from 60 to 70 mm. A 1 kN force sensor was used for the thinner samples, while a 50 kN force sensor was employed for the thicker samples. Strain was measured as the ratio of cross-head displacement to the initial distance between the grips. Stress was calculated as a ratio of force to the cross-sectional area.
Results and discussion
The discoloring process
The pictures of the 3-mm samples obtained by the discoloring process are shown in Fig. 1, both in the fiber direction and in the inner cross-section. These images confirm a homogeneous bleaching, with a uniform white color characterizing both surface and bulk of the specimens, overcoming the thickness limitations reported in previous studies (< 2 mm) (Li et al. 2017; Xia et al. 2021a).

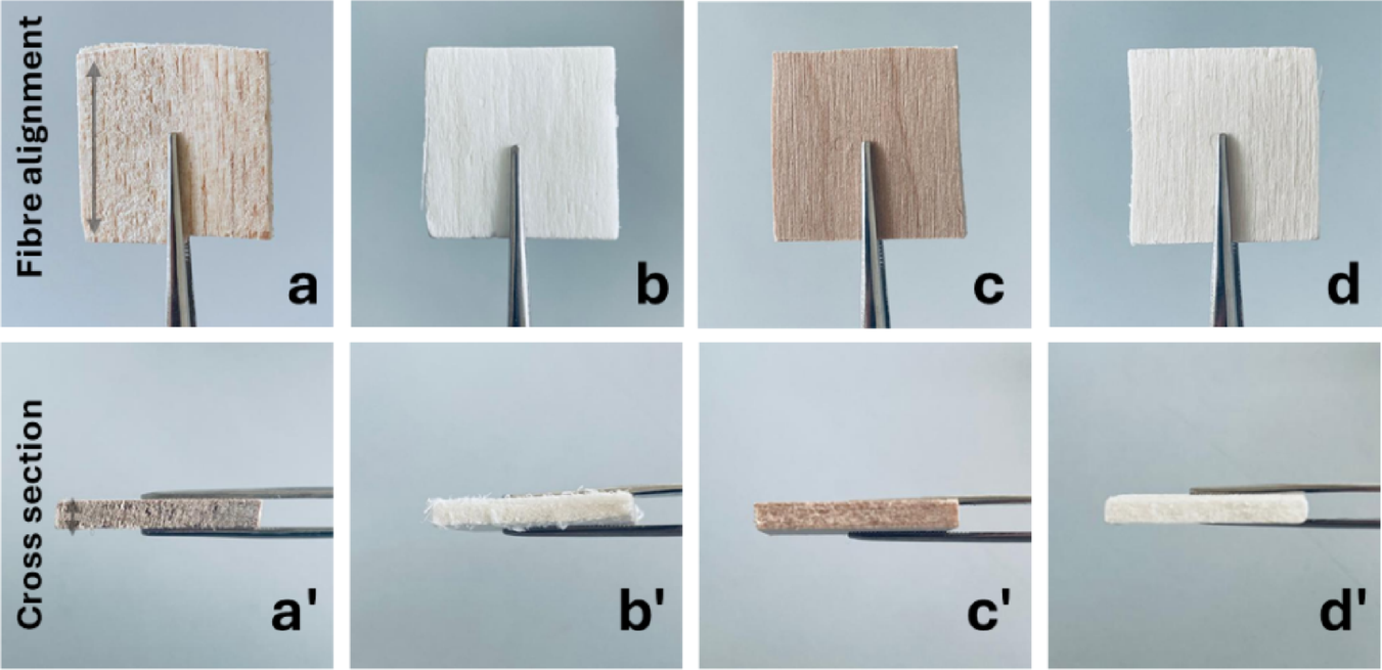

Fig. 1
Images 0.6x of: Natural and bleached balsa (a-b) and birch (c-d) wood in fiber direction; Natural and bleached balsa (a’-b’) and birch (c’-d’) wood in cross section
The color of the wood may vary depending on the treatment conditions. In an alkaline environment, lignin may undergo chromogenic reactions, leading to darkening (Liu et al. 2023). However, when combined with a mild oxidizing agent, such as H2O2, chromophore units, including benzene rings, quinoids, vinyl groups, phenolic hydroxyls, and carbonyls, are deconjugated (Ding et al. 2022), generating intermediates such as coniferaldehyde and quinones while preserving the overall lignin macrostructure.
This effect is achieved through the synergistic combination of H2O2 and the basic activator KOH, without the need for external energy sources.
KOH’s high solubility in concentrated H₂O₂ ensures uniform distribution of the reagents, while careful control of reaction conditions prevents instability, uncontrolled exothermic reactions, or hazardous byproduct formation, preserving the structural integrity of the wood. The optimized combination of reagents allows deep penetration into both low-density and high-density structures of the sample, enabling effective treatment of wood species with thicknesses from 1 to 3 mm, and up to 1 cm for balsa, far exceeding previous thickness limitations (Li et al. 2017; Xia et al. 2021a). Operating at room temperature with carefully selected concentrations balances penetration efficiency and safety, minimizing the risk of lignin or cellulose degradation and preventing premature H₂O₂ decomposition. Treatment times of 2–4 h ensure complete saturation of the wood, promoting uniform bleaching throughout the sample.
During the process, chromophore structures are selectively reacted or removed while non-participating lignin is preserved.
The bleaching protocol involves two steps (Fig. 2): (i) immersion in an alkaline H₂O₂ solution until complete bleaching (2–4 h); (ii) a subsequent washing phase with aqueous NaHCO₃, which stabilizes the pH and the final color. This step acts as a buffer: as H₂O₂ is gradually consumed, NaHCO₃ prevents KOH from promoting the reconjugation of previously deconjugated lignin chromophores. By maintaining a controlled pH, this washing phase ensures uniform whitening and preserves the integrity of the bleached wood.

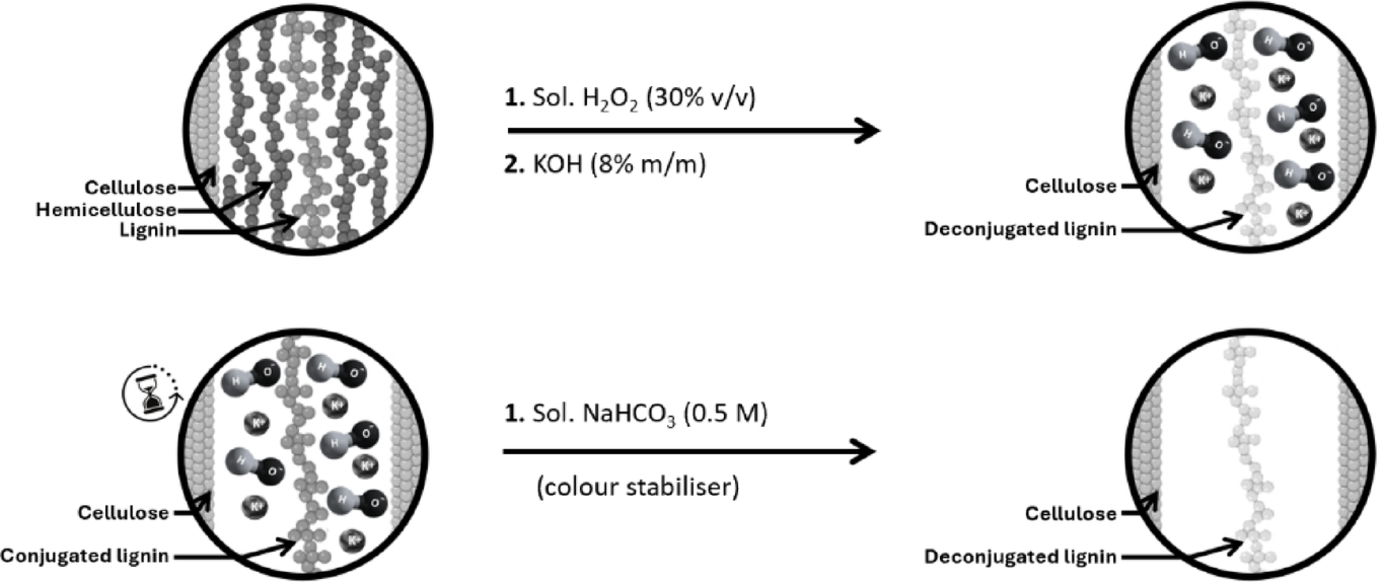

Fig. 2
Two-step proposed reaction scheme for the H2O2 alkaline whitening process
To validate the predicted penetration and bleaching uniformity, this method was applied to wood types with different densities and hierarchical structures. The results confirm the effective diffusion of reagents across various wood architectures, achieving uniform lignin modification while maintaining structural integrity, and demonstrating the versatility and scalability of the proposed treatment.
FE-SEM analysis
The influence of the bleaching treatment on the microstructure was evaluated through FE-SEM analysis. Figure 3 shows balsa wood (a–d) and Fig. 4 birch wood (a–d) before and after treatment.
Fig. 3
FE-SEM images at 400x and 1800x of natural balsa wood (a and b) and bleached balsa wood (c and d)
Fig. 4
FE-SEM images at 500x and 10000x of natural birch wood (a and b) and bleached birch wood (c and d)
The balsa wood sample was chosen as the representative example because it is the most sensitive wood species to chemical treatments. Specifically, its lower density, reduced lignin content, high porosity, and thinner cell walls permit easier access to the lignin within its hierarchical structure (Alqrinawi et al. 2024).
As shown in Fig. 3 at the microscopic level, low-magnification images (a and c) reveal that both samples exhibit the typical structure of balsa wood fibers, characterized by porosity with irregular polygonal shapes resembling hexagons (Borrega et al. 2015). The orientation of wood fibers is parallel to the tree’s growth direction, creating an orderly structure.
The pore diameters of both samples, at the microporous hierarchical level, range from 10 to 50 μm. As a result, no significant structural changes are observed before and after treatment, nor is there any fiber collapse during the delignification process (Liu et al. 2019).
A combination of lignin and hemicellulose mainly causes strong adhesion between neighboring fibers. The images at high magnifications (see images b and d, Fig. 3) show that the lignin, which is predominantly located in the middle lamella between the cell walls, has been preserved.
In contrast, the birch samples (Fig. 4a–d) exhibit a denser and more compact structure, with smaller and more uniformly distributed lumina compared to balsa. At low magnification (Fig. 4a and c), the characteristic arrangement of hardwood vessels is evident, showing no evidence of collapse or major structural alterations after bleaching. High-magnification images (Fig. 4b and d) confirm that lignin remains preserved in the middle lamella, ensuring adhesion between fibers and maintaining the integrity of the wood structure.
Optical properties and total mass loss
The effect of lignin removal can be observed by monitoring changes in the colour of the wood surface and measuring the percentage of mass loss.
A UV-visible analysis was conducted to measure the reflectivity of the white template after the bleaching treatment and is reported in Fig. 5. Every treated sample shows a high reflectance level at 550 nm (92–97%), indicating that the samples produced using this approach are suitable for creating transparent composites (Li et al. 2017). Additionally, the samples made with this method demonstrate superior reflectance compared to the previously used bleaching techniques. For example, Xia et al. (2021b) reported an average reflectance of 93% for balsa wood.

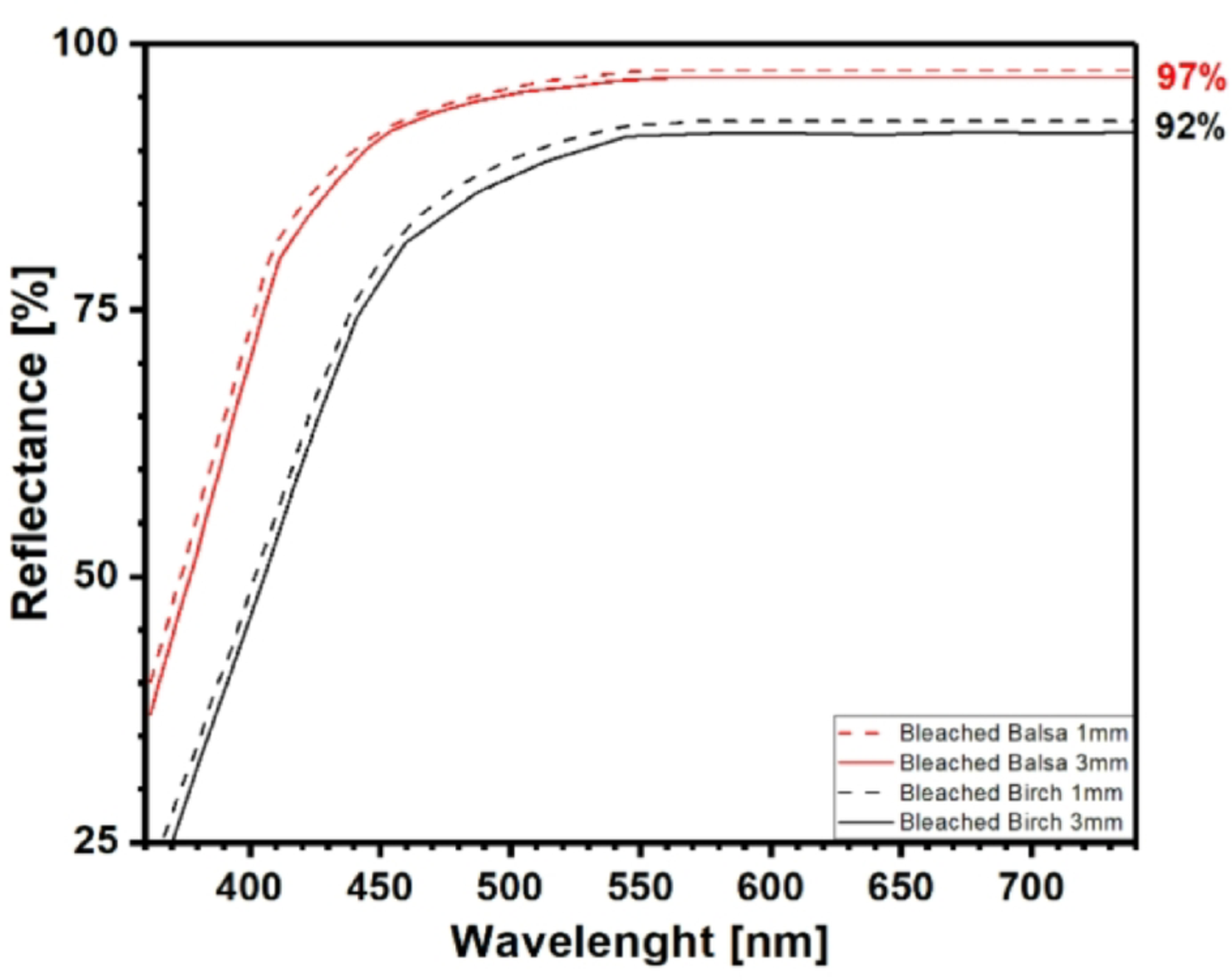

Fig. 5
Reflectance from 360 to 740 nm of the low-density and high-density wood species, 1 mm and 3 mm thick
The difference in measured reflectance values was smaller for birch wood than for balsa wood. This outcome may be attributed to the lower diffusion of the solution in birch wood, which has a higher density and lower porosity than balsa wood. As a result, the deeper chromophore groups in the lignin may be less accessible, reducing bleaching efficiency.
A gravimetric analysis was conducted to evaluate the effectiveness of the bleaching process in performing a semi-quantitative assessment of the percentage of all the removed components compared to the untreated sample. This treatment allows for the retention of most of the lignin, unlike conventional delignification methods, which typically result in the removal of over 80% of lignin and a total mass loss of around 25–26% for both balsa and birch wood (Li et al. 2017; Zhang et al. 2024; Alves-Ferreira et al. 2021).
In addition to lignin removal, certain cellulose, hemicellulose, and extractives in the raw sample may also be removed during extraction. Thus, lignin preservation is evaluated with further structural analysis. Table 1 presents the weight loss from both types of wood studied for the two thicknesses (1 and 3 mm).
Table 1
Percentage of all the removed components from balsa and birch samples based on the pre- and post-treatment weight ratio, using a 2 M KOH solution in H2O2
Sample | Weight [g] | Weight loss [wt%] | ||
|---|---|---|---|---|
Thickness | 1 mm | 3 mm | 1 mm | 3 mm |
Natural Balsa a | 0.052 ± 0.007 | 0.151 ± 0.009 | ||
Bleached Balsa | 0.047 ± 0.005 | 0.138 ± 0.007 | 9.6 ± 1.1 | 8.6 ± 0.9 |
Natural Birch a | 0.387 ± 0.015 | 1.339 ± 0.014 | ||
Bleached Birch | 0.360 ± 0.012 | 1.253 ± 0.015 | 7.0 ± 1.0 | 6.4 ± 0.8 |
The data presented in Table 1 demonstrates a similar trend for both balsa and birch samples. Specifically, as the wood’s thickness increases, the percentage of mass loss decreases. This percentage decreases from 9.6 to 8.6% for the balsa samples, while for the birch samples, from 7.0 to 6.4%. This result is due to a reduced diffusion of reagents within the bulk of the material, which leads to a less complete deconjugation of lignin and a lower solubilization of hemicellulose, resulting from the more challenging access to components in the central zone from the basic solution.
The higher mass losses for low-density wood confirm that balsa is more susceptible to overall structural modifications under the treatment conditions, due to its lower density, lower lignin content, and higher cellulose ratio. In contrast, denser hardwoods like birch necessitate more aggressive treatment conditions to achieve comparable overall modification of wood components (Alqrinawi et al. 2024; Santos et al. 2011). Nevertheless, the total weight loss varies between 9.5 and 6.5% for both wood species under mild room temperature conditions. These results are lower than the previous bleaching treatment proposed by Li et al. (2017), ranging from 12 for balsa to 10.6% for birch. In addition, the lower weight loss with our treatment could lead to a further high volume fraction transparent wood composite because a higher initial wood content in the white wood template leads to a lower resin content after infiltration and polymerization. It is crucial to consider the final composite’s sustainability and mechanical properties. Many resins used are petroleum-based, (Zhu et al. 2016b; Li et al. 2016b) and incorporating a wood template enhances the mechanical properties of the infiltrating resin (Li et al. 2016b).
IR analysis
Fourier-transform infrared spectroscopy in attenuated total reflectance (FTIR-ATR) was performed to assess the impact of the bleaching process on the chemical and physical structure of the treated balsa and birch samples. This assessment was conducted by analyzing the changes in signals related to the functional groups present before and after the lignin deconjugation process.
The analyses, as shown in Fig. 6, allowed for identifying the peaks corresponding to the lignocellulosic components present in the materials.

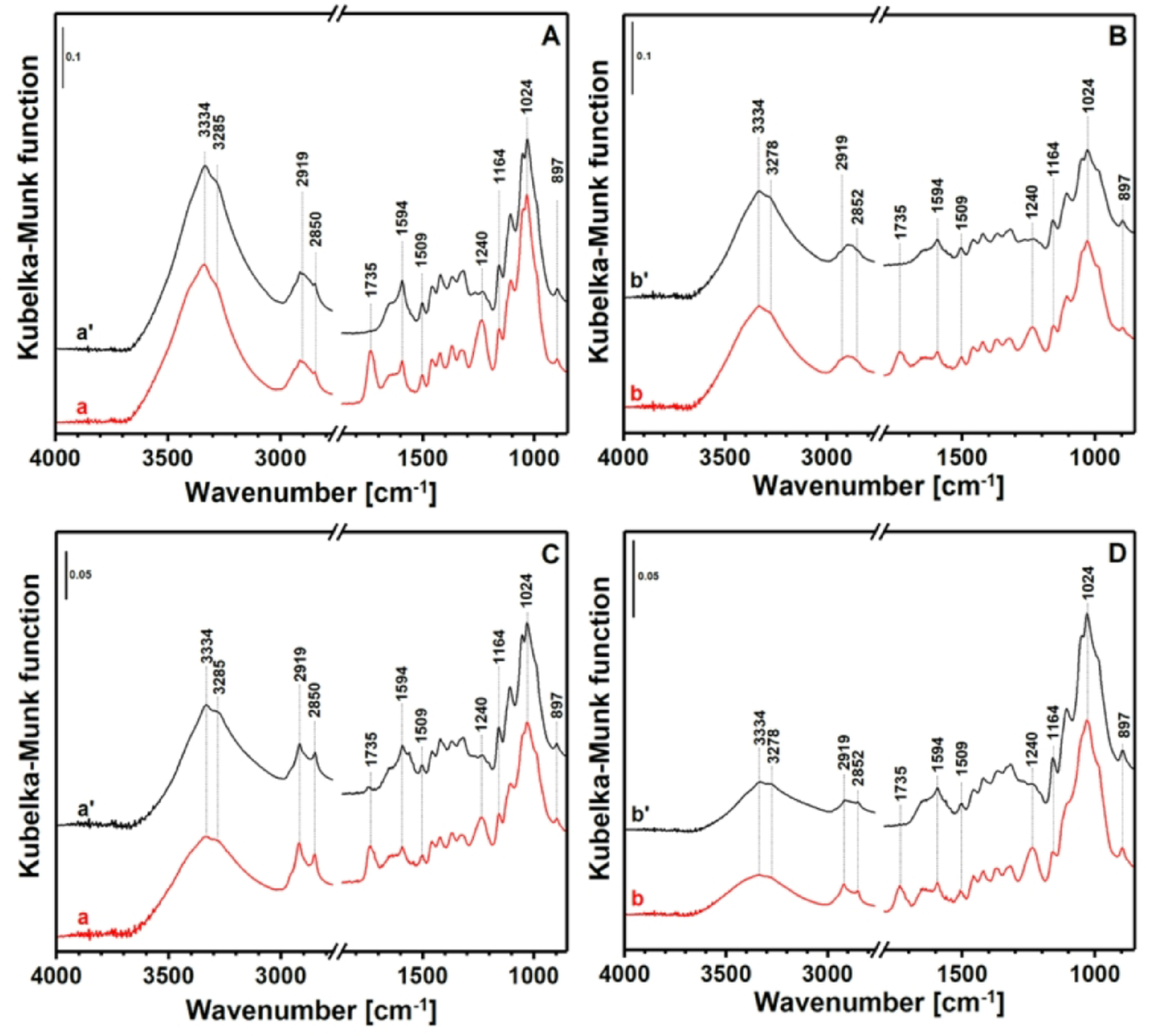

Fig. 6
ATR-FTIR analysis in the range 4000–850 cm-1 for: (A) balsa, 1 mm thick; (B) birch, 1 mm thick; (C) balsa, 3 mm thick; and (D) birch, 3 mm thick. In all the figures, red curves refer to natural wood, and the black ones to the bleached wood
For clarity, the band’s assignments are presented in Table 2.
Table 2
Assigned mode of infrared bands for balsa and birch wood samples
Band [cm-1] | Assigned mode | REF |
|---|---|---|
4000 − 2750 | n -OH | (Adel et al. 2011) |
2919 | nas CH2 in cellulose, hemicellulose, and sugars | |
2852 | na CH2 in cellulose, hemicellulose, and sugars | |
1735 | Acetyl and uronic ester groups of hemicellulose Ester bonding of carboxylic groups of phenuryl and p-coumaric acids of lignin and/or hemicellulose | |
1594 | nC=C aromatic ring skeletal | (Liu et al. 2020) |
1509 | nC–C aromatic ring skeleton of flavonoids | |
1240 | n-CO hemicellulose | (Schwanninger et al. 2004) |
1164 | nC-O-C cellulose | |
1024 | nC-O ester in methoxyl and β-O-4 linkages in lignin | (Popescu et al. 2013) |
897 | d-CH in the plane aromatic lignin |
Due to wood’s significant structural and compositional variability, it is highly complex to correlate the vibrational mode of the functional groups that compose only lignin with the corresponding peaks. However, some of the distinguishable peaks can be associated with aromatic rings and can be compared to understand whether there are structural changes before and after treatment. By comparing the spectra of balsa and birch woods, both in their natural and bleached states, for the two thicknesses (see Fig. 6A-D), we observe that the intensity and shape of the broadband between 4000 and 2750 cm-1, which is related to the stretching of -OH groups, remain consistent. The peaks at 2919 and 2852 cm-1, which correspond to the stretching of the -CH₂ bonds in holocellulose, are also preserved. This behaviour indicates that the structure of the cellulose and hemicellulose skeleton remains unchanged after treatment with alkaline H2O2 (Yang et al. 2018).
The band at 1737 cm-1, associated with the balsa sample (Fig. 6A and C) and the birch sample (Fig. 6B and D), is attributed to hemicellulose and/or lignin and is absent after bleaching. This result is due to the cleavage of the lignin and hemicellulose ester groups due to the alkaline hydrolysis induced by KOH in the bleaching solution (Agarwal and McSweeny 1997; Horikawa et al. 2013). The bands at 1594 and 1509 cm-1, related to the aromatic ring stretching of lignin, remain stable before and after treatment for both types of wood. This demonstrates that most of the lignin has been deconjugated through the action of H2O2, which selectively acts on the chromophore groups while preserving its aromatic structure (Li et al. 2017; Wójciak et al. 2010). In addition to the qualitative observations, a semi-quantitative evaluation of the residual lignin was conducted by calculating the ratio of absorbance at 1509 cm⁻¹ to the absorbance at 893 cm⁻¹, which is associated with the β-glycosidic vibrations of cellulose, as reported in the literature (Kostryukov et al. 2022; Sun et al. 1997; Tryjarski et al. 2022). The analysis revealed that the relative lignin content decreased by approximately 18% in the balsa samples (1 and 3 mm) and by 27% in the 1 mm birch samples, and by 26% in the 3 mm birch samples, respectively (see Table S1). The differences in relative lignin loss between balsa and birch can be attributed to the distinct structural properties of the two species: balsa’s lower density, higher porosity, and thinner cell walls facilitate easier penetration of the bleaching solution, whereas birch’s denser structure and thicker cell walls limit diffusion, leading to variations in the degree of lignin deconjugation as detected by the surface-sensitive FTIR measurements.
The band at 1240 cm-1, associated with the stretching of the C-O bond in hemicellulose, is absent after treatment of both the balsa and birch bleached samples. This confirms the occurrence of alkaline hydrolysis in the presence of the basic agent. Finally, the bands at 1024 and 897 cm-1 related to the C-O ester stretching vibrations in methoxyl and β-O-4 linkages in lignin and the bending in the plane of the aromatic -CH groups of the lignin macromolecule, respectively, appear unchanged for all bleached materials, confirming the occurrence of deconjugation and not the complete removal of lignin, leaving the aromatic skeleton intact. The analyses shown indicate that after our process, a large part of the hemicellulose was removed through basic attack, while the lignin structure was only deconjugated. Furthermore, it can be assumed that the original molecular structure of cellulose was maintained even after the chemical treatment at room temperature. This behaviour may suggest that the treatment with H2O2 at basic pH is more selective for the deconjugation of lignin and the removal of hemicellulose, and does not degrade cellulose, in contrast to the delignification treatments. It is also important to note that the relative lignin values obtained from FTIR analysis are semi-quantitative and sensitive to surface changes. Therefore, they cannot be directly compared to the absolute Klason lignin contents reported in the literature. Instead, these values provide insights into structural modifications and relative compositional changes.
XRD analysis
An X-ray diffraction analysis was conducted to assess the impact of bleaching treatment on the crystalline structure of wood samples.
Figure 7 presents the X-ray diffraction patterns for two types of wood samples at two thicknesses: raw and bleached balsa (diffractograms A and C for raw samples at 1 mm and 3 mm, respectively, and diffractograms A’ and C’ for bleached samples at the same thicknesses). Diffractograms B and D relate to raw birch samples at 1 mm and 3 mm, respectively, and diffractograms B’ and D’ for the corresponding bleached samples.

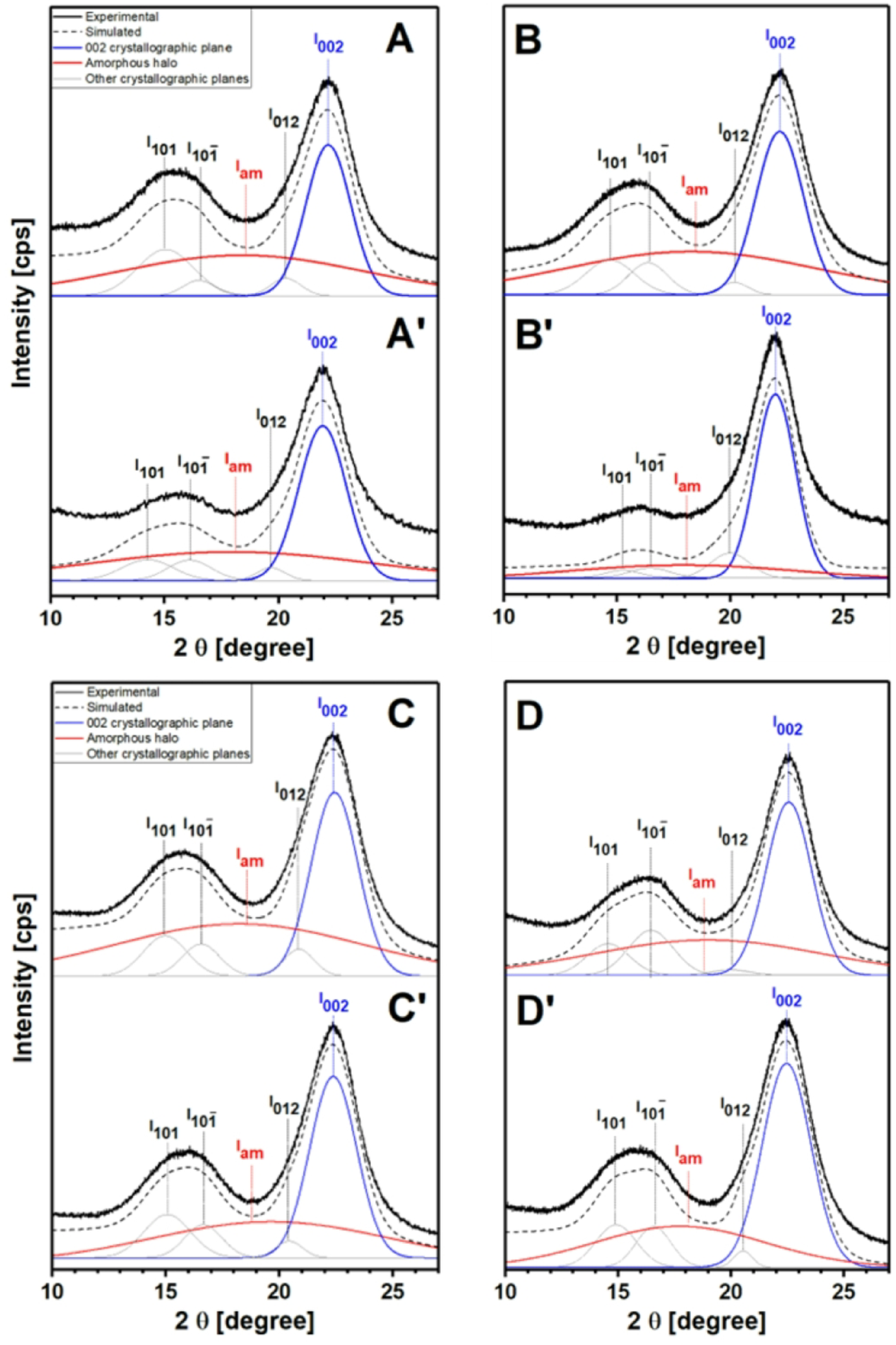

Fig. 7
Deconvoluted X-ray diffractograms for: Natural balsa 1 and 3 mm thick (A and C); Bleached balsa 1 and 3 mm thick (A’ and C’); Natural birch 1 and 3 mm thick (B and D) and Bleached birch 1 and 3 mm thick (B’ and D’). Line plot: ― Experimental; --- Simulated; blue line: 002 crystallographic plane; red line: amorphous halo and grey line: other crystallographic planes
To evaluate the relative crystallinity of the samples, both the Segal method (Segal et al. 1959) and the Rietveld method (Rietveld 1967, 1969) were applied, as reported in the literature (Xu et al. 2013). The Segal method, which provides a general estimation of the crystallinity index, is reported in Table 3 together with Fig. S1 (Supporting Information). The Rietveld method, instead, involves deconvolution with Gaussian curves designed to refine and model the peaks, thus considering contributions from the entire crystalline component. This analysis is presented in Fig. 7; Table 3.
Table 3 reports the crystalline content of the wood samples calculated using both selected methods.
Sample | Size [mm] | I002 | Segal method | Rietveld method | |||
|---|---|---|---|---|---|---|---|
Iam | Crystallinity [%] | Ic | Iam | Crystallinity [%] | |||
Natural Balsa | 1 | 2566.1 | 439.3 | 82.9 | 8545.4 | 5601.4 | 60.4 |
3 | 6295.9 | 1182.4 | 81.2 | 21003.0 | 15572.1 | 57.4 | |
Bleached Balsa | 1 | 2842.0 | 461.1 | 83.8 | 8674.1 | 7181.8 | 54.7 |
3 | 4354.1 | 677.5 | 84.4 | 14340.3 | 8243.9 | 63.5 | |
Natural Birch | 1 | 6765.8 | 2302.1 | 66.0 | 21189.5 | 20983.4 | 50.2 |
3 | 6503.4 | 1934.9 | 70.2 | 29224.3 | 10542.1 | 73.5 | |
Bleached Birch | 1 | 5715.1 | 349.3 | 93.9 | 14873.9 | 2835.2 | 84.0 |
3 | 4087.4 | 778.4 | 80.9 | 14874.0 | 2835.2 | 84.0 | |
As demonstrated in Fig. 7, an analysis of the data reveals that the position of diffraction peak 200 in the area related to the presence of crystalline cellulose I remains unchanged for the bleaching of both balsa (Fig.s A’ and C’) and birch wood (Fig.s B’ and D’). This observation indicates that the bleaching process does not affect the crystallinity of cellulose type I (Lionetto et al. 2012). This type of cellulose is associated with the most intense peak in the diffractogram, as it is the most abundant, ordered and stable crystalline organisation of cellulose in wood and plants. (Newman 1994; Kulasinski et al. 2014) However, an increase in both relative and total crystallinity was observed and calculated using the Segal and Rietveld methods for all the samples except for balsa wood with 1 mm thickness. This finding suggests that the treatment influenced the amorphous regions by partially removing most of the hemicellulose and a small part of the lignin (9.6–6.4%, see Table 1) and rearranging the remaining hemicellulose, cellulose and lignin components (Xu et al. 2013). The results indicate that lignin and hemicellulose in the cell walls were partially degraded during bleaching due to basic attack at room temperature. As previously mentioned, KOH facilitates the hydrolysis of amorphous cellulose by breaking the ether bonds in the molecular chains, allowing the exposed hydroxyl groups to recombine through hydrogen bonding (Liu et al. 2023; Xu et al. 2013). As demonstrated in Table 3, which utilizes the Segal method to estimate the degree of crystallinity of cellulose type I, divergent responses may be observed between the two types of wood following treatment. These findings are consistent with results reported in the literature for balsa wood, which shows a crystallinity degree of 80–90% (Borrega et al. 2015), and birch wood, which ranges from 40 to 60% (Wikberg and Maunu 2004). The percentage of crystallinity in balsa wood remains stable before (82.9 and 81.2%) and after treatment (83.8 and 84.4%) for the two analyzed thicknesses. In contrast, birch exhibits a significant increase in crystallinity after bleaching, rising from 66.0 to 70.2% to 93.9 and 80.9% for 1 and 3 mm, respectively. Utilising the Rietveld method, which incorporates the contributions of all crystalline components, a discernible discrepancy in the behaviour of the two wood types upon treatment is evident (see Table 3). For the thicker balsa, an increase in crystalline content is shown, while a decline in crystalline content is evident in thinner balsa wood, decreasing from 64.4 to 54.7%. This reduction can be attributed to the bleaching solution’s strongly oxidizing action in the thinner and lower-density balsa wood, which leads to the unselective deconjugation/removal of part of the amorphous component and causes partial damage to the crystalline component (Alqrinawi et al. 2024; Quintana et al. 2015). On the contrary, for the two birch wood samples, an increase in the degree of crystallinity was observed even when utilizing the Rietveld method. The percentage increases from 50.2 to 84.0% at 1 mm and from 73.5 to 84.0% at 3 mm. This fact is attributed to the more orderly arrangement of cellulose microfibrils in the amorphous region following basic treatment (Tyufekchiev et al. 2019). In this instance, the amorphous lignin component exhibits enhanced resistance, making it more difficult to modify or remove while simultaneously protecting the crystalline part from degradation (Higuchi et al. 1977; Lourenço and Pereira 2018). Consequently, the oxidizing alkaline solution is an effective preservation agent for the cellulose component, achieving this by selectively targeting the amorphous fractions and as a consequence, the crystalline content associated with cellulose is enhanced (Lionetto et al. 2012). The assessment of the material’s crystallinity post-treatment was monitored, as higher crystallinity in the bleaching treatments indicates superior fibre orientation and less amorphous loss, which could lead to enhanced mechanical properties (e.g., fracture toughness) compared to the weak delignified woody materials (Frey et al. 2019).
Since the Rietveld method considers the entire contribution of all crystalline phases, unlike the Segal method that primarily targets the 002 diffraction plane, the results from the Rietveld refinement were deemed more reliable. Consequently, these results were used for further correlation with the mechanical properties discussed in Sect. "Mechanical properties".
N2 physisorption analysis at 77 K
The textural properties of the materials before and after treatment were analyzed to assess the impact of the process on pore size and distribution. Nitrogen (N₂) physisorption analysis was conducted at 77 K on wood samples, each 3 mm thick, including natural and bleached balsa and birch. The resulting isotherms are presented in Fig. S2 (Supporting Information). The N₂ physisorption isotherms for these wood materials are classified as type V. All hysteresis loops extend to low relative pressures (below 0.4 P/P₀) and remain visibly open throughout desorption.
In woody materials, Wang et al. (2023) suggest that the open hysteresis loops of N2 at cryogenic conditions result from the weak interaction between the gas and the particular hierarchical structure of wood as indicated by the low value of the constant C (Table 4) calculated from BET model applied on the isotherms and which limits the accessibility of nitrogen in porosity (Lowell et al. 2012; Fukuzumi et al. 2013). Indeed, using the constant C derived from the BET model, it is possible to describe the intensity of the interaction between the adsorbed gas and the material’s surface. When the values of C are < 10, as in this case, the gas adsorption on the surface is unselective, resembling a liquid-like condensation (Lowell et al. 2012). Nevertheless, the C values can still be deemed reliable for applying the BET model (Lowell et al. 2012).
The analysis of the pore size distribution curves in Fig. 8 reveals the presence of micro- and mesopores in all the materials examined. These pores exhibit a dimensionality that varies uniformly between 15 and 100 Å, with a maximum distribution centred at approximately 20 Å in all cases. However, when the total porous volumes are considered, it becomes evident that the values related to the pore distributions are negligible (Fig. 8A; Table 4).

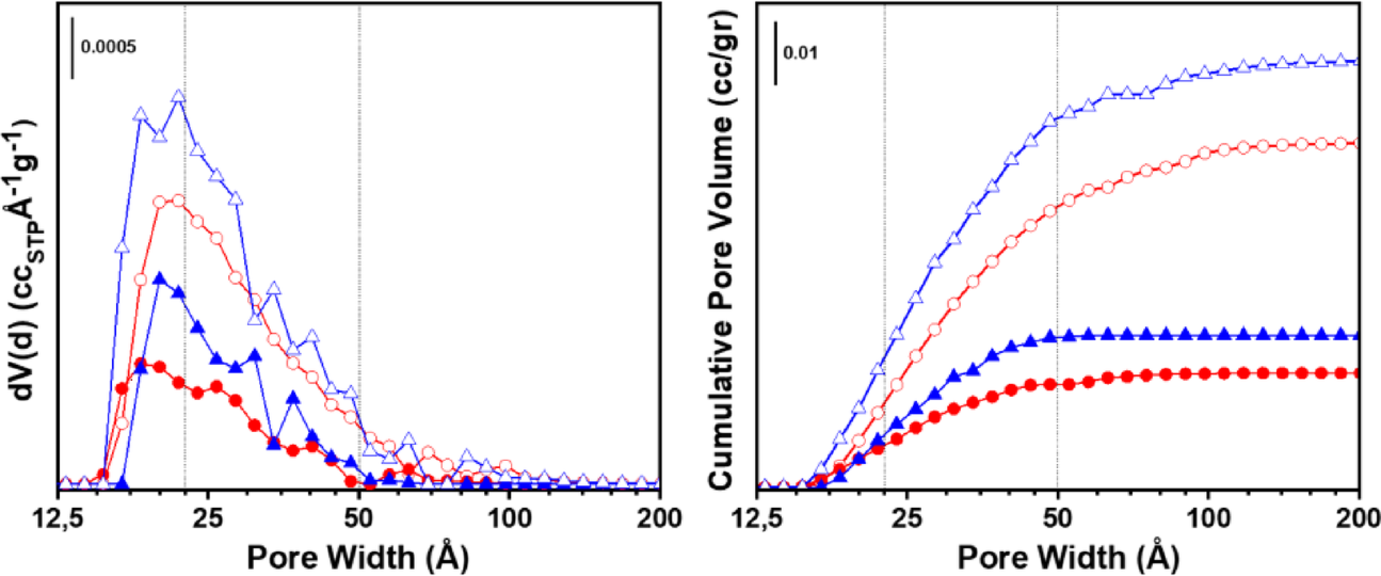

Fig. 8
Pore size distribution (A) and cumulative pore volume (B) of: natural balsa (filled blue triangle); natural birch (filled red circle); bleached balsa (unfilled blue triangle) and bleached birch (unfilled red circle)
Table 4
Specific surface area calculated with BET method and total pore volume of the raw and bleached wood
Sample | SSABET [m2 g− 1] | CBET | VTotal [cc g− 1] |
|---|---|---|---|
Natural Balsa | 8.7 | 2.233 | 0.024 |
Bleached Balsa | 44.3 | 2.198 | 0.054 |
Natural Birch | 4.8 | 5.429 | 0.018 |
Bleached Birch | 41.8 | 3.278 | 0.066 |
In particular, the overall quantity of adsorbed N2 is lower for natural birch and balsa wood, at approximately 4.8 and 8.7 m²/g, in accordance with the literature data (Garemark et al. 2023; Montanari et al. 2020). The specific surface area calculated by the BET method for bleached balsa and birch wood is assessed at 44.3 and 41.8 m²/g, respectively (Table 4), with a total pore volume of 0.054 and 0.066 cc/g, respectively (Fig. 8B; Table 4). In addition, the overall pore volume of the two materials was observed to be lower than that of the two treated materials analyzed, with values of 0.018 and 0.024 cc/g, respectively (see Fig. 8B; Table 4). The slight variation in surface area aligns with the treatment applied to the materials, which aims to modify lignin in situ rather than remove it. This approach helps prevent microporosity formation in the cell wall, which could lead to partial detachment of the cellulose fibres and structural weakening (Liu et al. 2019). Deep delignification treatments can significantly increase the surface area and microporous volume of the resulting wood (Montanari et al. 2020, 2023). Consequently, the excessive increase in microporosity of white wood templates may create greater challenges for later infiltration with transparent resins, leading to longer processing times to achieve optimal performance in terms of high transmittance and low haze.
Mechanical properties
Tensile strength tests were conducted to evaluate the mechanical behaviour before and after treatment. The stress-strain curve of the treated and untreated wood is shown in Fig. S3 (Supporting Information). This analysis is important because the properties, interactions, and arrangement of components in wood materials directly affect their mechanical properties. Treatments designed to modify or selectively remove specific components, such as lignin and hemicelluloses, can significantly alter the mechanical characteristics of natural wood (Zhang et al. 2013). Bleaching treatments can notably increase the crystallinity of cellulose microfibrils, which strongly adhere to each other due to rigid lignin, leading to enhanced mechanical properties (Ottesen et al. 2019; Wang et al. 2014).
Figure 9 illustrates the ultimate tensile strength of the two types of wood examined in this study, comparing results before and after treatment at two different thicknesses: 1 mm and 3 mm.

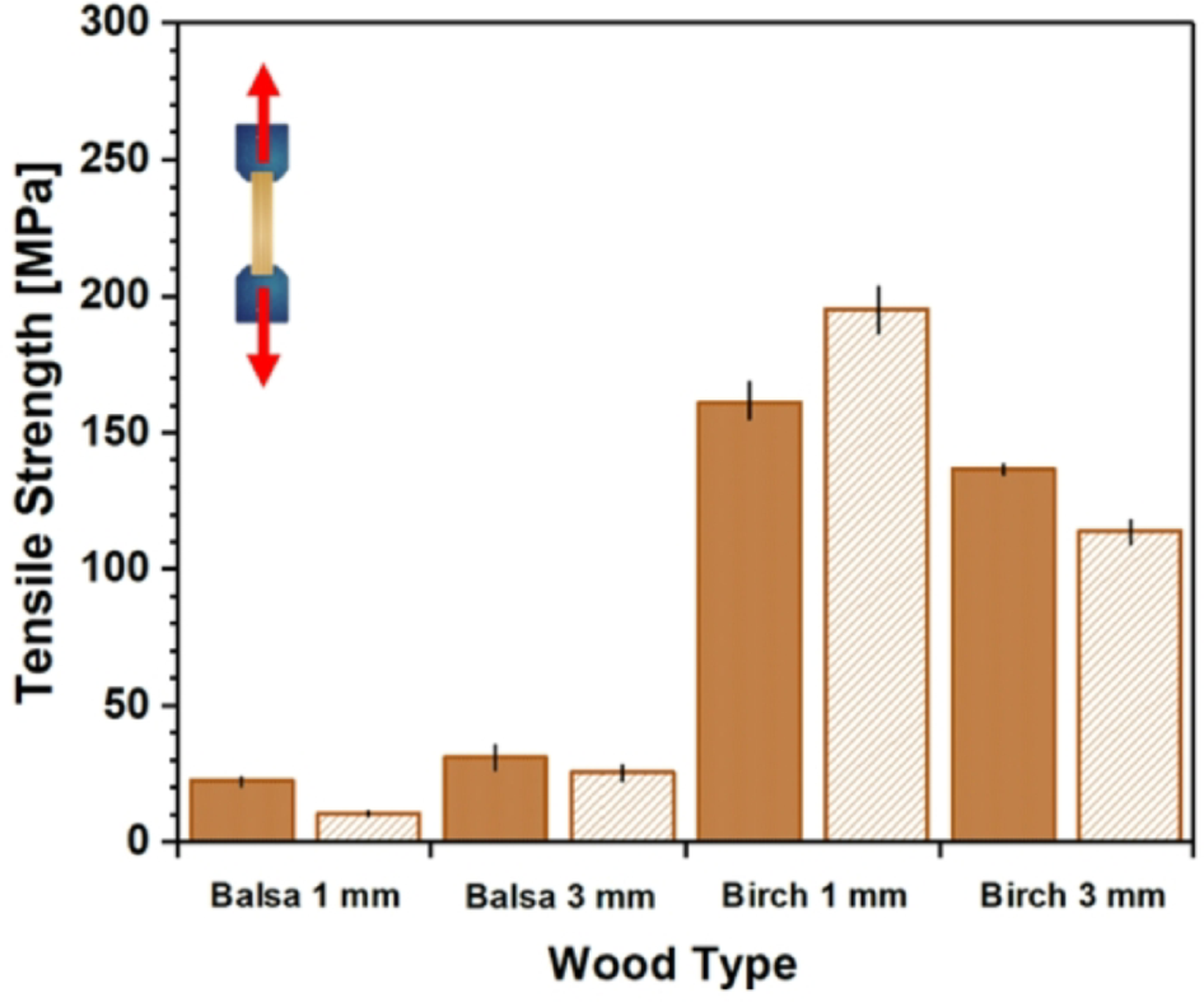

Fig. 9
Tensile strength of natural (
) and bleached (
) balsa and birch wood with 1 mm and 3 mm thicknesses
) and bleached (
) balsa and birch wood with 1 mm and 3 mm thicknessesTable 5 shows a clear correlation between cellulose crystallinity (CrI) and the mechanical behaviour of the wood species studied (see Table 3). The crystallinity values discussed in this section, and reported in Table 3, are derived from the Rietveld method, which was selected as the most reliable approach since it considers the entire crystalline contribution rather than only the intensity of the 002 reflection. For 1 mm birch, CrI increased significantly from 50% to 84% after treatment, resulting in a higher tensile strength of ~196 MPa compared to ~162 MPa in the native wood. This improvement is attributed to better alignment of cellulose fibrils and partial removal of amorphous lignin and hemicellulose (~7% of the total). In contrast, 1 mm balsa showed a slight decrease in CrI from 60% to 55%, while both birch and balsa exhibited a small increase in relative crystallinity via the Rietveld method, accompanied by a corresponding decrease in ultimate strength.
Table 5
Comparison of the ultimate strength of the bleached and natural wood types at different thicknesses. Natural woods are identified with N and treated ones with W
Wood | Process | Thickness [mm] | Treatment Time [h] | Weight Loss [wt%] | Crystallinity [%] | Ultimate Strength [MPa] | |
|---|---|---|---|---|---|---|---|
Balsa | N | - | 1.0 | - | - | 60.4 | 22.7 ± 3.3 |
W | Lignin deconjugation | 1.0 | 2 | 9.6 | 54.7 | 10.4 ± 2.0 | |
N | - | 3.0 | - | - | 57.4 | 30.5 ± 7.7 | |
W | Lignin deconjugation | 3.0 | 2 | 8.6 | 63.5 | 25.6 ± 5.9 | |
Birch | N | - | 1.0 | - | - | 50.2 | 161.5 ± 13.5 |
W | Lignin deconjugation | 1.0 | 4 | 7.0 | 84.0 | 195.7 ± 17.0 | |
N | - | 3.0 | - | - | 73.5 | 137.1 ± 9.1 | |
W | Lignin deconjugation | 3.0 | 4 | 6.4 | 84.0 | 114.4 ± 3.3 | |
The effects of the bleaching treatment on mechanical properties correlate with changes in cellulose crystallinity (CrI). Three trends were observed: (i) decreased properties when CrI decreases; (ii) preserved properties when CrI slightly increases; and (iii) improved properties when CrI significantly increases.
Both 1 mm birch and 1 mm balsa samples were selected for this study. The thin 1 mm thickness allows the chemical solution to access the entire structure, making any modifications to the cellulose–lignin network more pronounced.
For 1 mm birch, selective deconjugation of lignin at room temperature preserves cellulose, promotes fibril alignment, and maintains lignin as a natural binder, enhancing rigidity and strength while supporting stress transfer along the fibers. Its rigid structure complements the flexibility of cellulose, allowing stress to be effectively transferred along the wood cell walls, which enhances compressive strength and dimensional stability (Kurei et al. 2024; Salmén et al. 2016). During processing, structural changes in lignin can further improve its bonding capabilities, illustrating its versatility as a binder (Wang et al. 2016). Unlike traditional delignification, which removes most lignin and compromises mechanical support (Li et al. 2017; Wu et al. 2019; Xia et al. 2021b; Bolognesi et al. 2024), this approach retains structural integrity.
In contrast, 1 mm balsa exhibited a moderate reduction in CrI (from 60% to 55%) and a corresponding decrease in tensile strength (from 22.7 to 10.4 MPa). Despite the preservation of about 80% of lignin and the absence of visible structural collapse in SEM images, the lower density and higher porosity of balsa make it more sensitive to slight changes in the cellulose–lignin network. The partial removal and redistribution of amorphous domains may induce local heterogeneities and a weaker inter-fibrillar interface, reducing stress transfer efficiency (Alqrinawi et al. 2024; Li et al. 2017). In low-density woods such as balsa, even mild chemical modification can lead to disproportionate mechanical losses, as mechanical strength relies more on cell wall cohesion than on overall lignin content (Alqrinawi et al. 2024).
In thicker or denser samples (3 mm birch), limited solution diffusion reduced fibril alignment, slightly decreasing mechanical performance, while balsa, being more porous, showed smaller differences. These results indicate that both CrI and lignin retention are crucial for maintaining mechanical integrity, and that optimizing solution penetration could further improve the properties of thicker samples.
Moreover, our approach to delignification and bleaching presents several advantages over traditional methods: (i) it is eco-sustainable, utilizing minimal hydrogen peroxide, avoiding using on external energy sources (like light or UV), and resulting in alkaline water as a by-product that can be readily purified for future applications of the recovered base (KOH) until it is completely exhausted. Additionally, it generates no toxic gases during H2O2 decomposition, unlike delignification or other bleaching techniques that emit volatile chlorine, sulfur compounds or ozone; (ii) the oxidation of chromophore groups is enhanced by the base’s more penetrating action, which releases K+ ions, occurring faster than in previously mentioned delignification and bleaching methods. Additionally, this method preserves the wood volume fraction with a total weight loss of less than 10%. To showcase the scalability of our process and the simplicity of solution diffusion at room temperature, we prepared a sample measuring 100 × 100 × 10 mm3 (longitudinal × tangential × radial) in just 3 hours of treatment performed on a dry sample, as shown in Fig. 10. Balsa was selected for this demonstration because its lower density facilitates homogeneous bleaching at larger thicknesses, allowing us to highlight the feasibility of extending the process to centimeter-scale specimens.

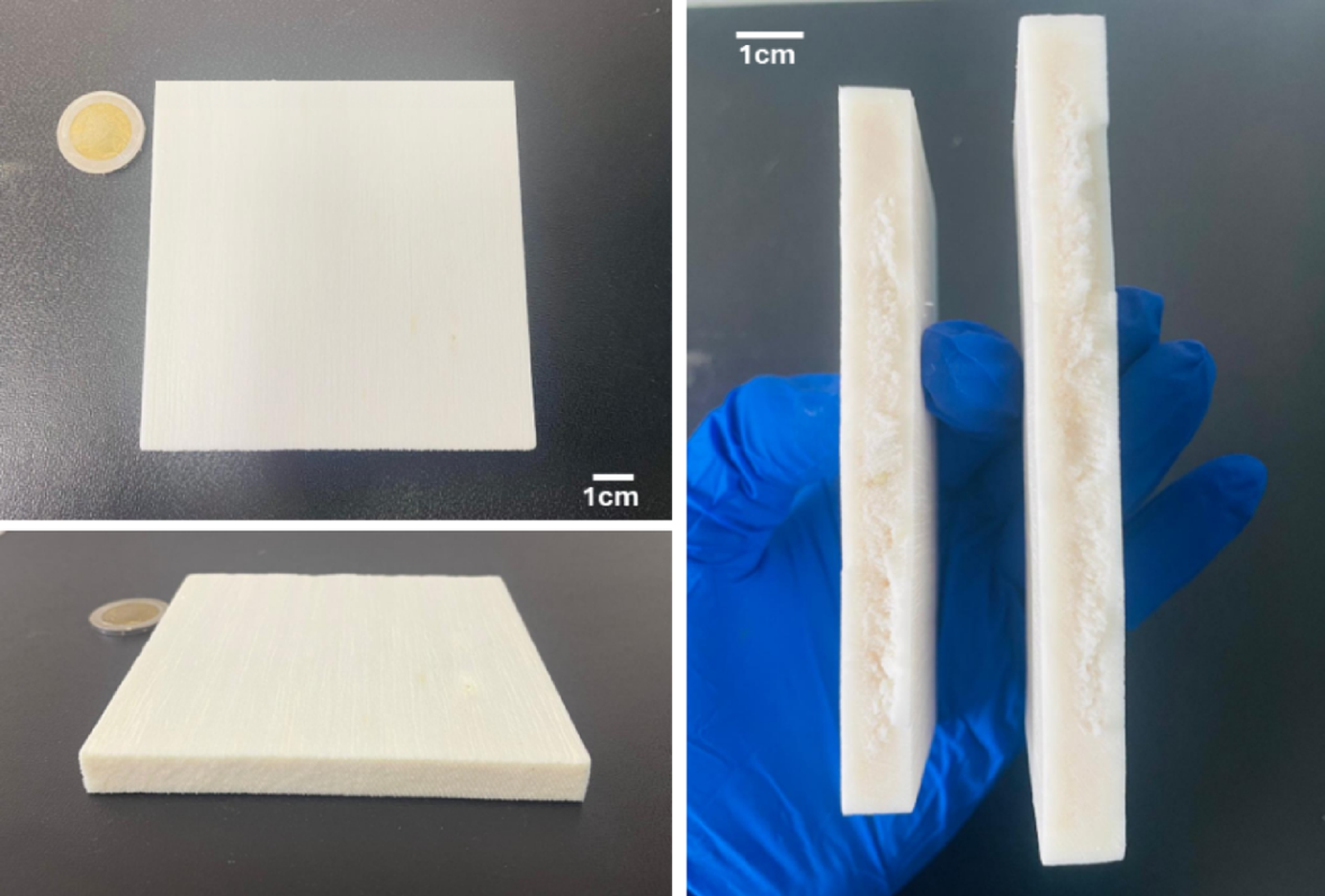

Fig. 10
Optical image of balsa wood template with dimensions of 100 × 100 × 10 mm3
Conventionally, preparation times for samples of this thickness range from 6 to 14 h and are generally conducted on wet samples. Additionally, retaining a significant portion of lignin as a binder facilitates the creation of mechanically durable wood samples compared to traditional techniques, resulting in improved optical properties (92–97% reflectance) for both low- and high-density wood types after bleaching.
Conclusion
This study presents an innovative method for producing a white wood template using stabilized alkaline bleaching agents without an external heating source. The wood samples were successfully bleached by targeting the deconjugation of chromophore groups in lignin. This scalable method enables wood bleaching at room temperature, resulting in extremely white wood products (with a reflectivity of 97%) that, unlike other preparation methods, essentially preserve the wood’s component content (> 90%) as well as the mechanical properties of the original wood.
Scanning Electron Microscopy analysis confirmed that the lignin remained intact within the cell wall. Fourier Transform Infrared and X-ray Diffraction analyses demonstrated that the treatment primarily affected the amorphous components of lignin, resulting in their deconjugation and the removal of hemicelluloses, leaving the crystalline cellulose structure unaffected.
Semi-quantification of residual lignin by FTIR, using the aromatic peak at 1509 cm⁻¹ relative to the cellulose peak at 893 cm⁻¹, confirmed that a large fraction of lignin was retained after treatment, supporting the preservation of wood’s structural integrity.
N2 physisorption analysis at 77 K indicated that the shape and distribution of meso- and microporosities were similar before and after treatment. However, there was a partial increase in both porous volume and surface area due to the complete removal of hemicellulose and partial removal of lignin, resulting from the alkaline action of KOH.
The mechanical properties of wood, especially its tensile strength, are closely linked to the degree of crystallinity. A higher alignment of cellulose fibres is associated with improved tensile strength. Conversely, a lower alignment of the cellulose fibres may be related to the varying diffusion of the solution into the thicker network.
Future research should explore the applicability of this method to different types of wood. It should focus on enhancing diffusion as thickness increases and assess the long-term implications of these treatments in large-scale industrial. Overall, this study contributes to ongoing efforts toward more sustainable and eco-friendly practices in wood processing to obtain fully transparent wood.
