## 1 Introduction

Since its growth on the 1980s, machine learning (ML) has attracted the attention of many disciplines which are based on quantitative methods. Machine learning uses automated algorithms to discover patterns from data and enable high-quality forecasts, although the relationships between input data have not been widely studied. This is contrary to classic statistics and econometrics, which are designed to use formal equations, make inferences and test hypotheses to conclude on population having a sample, while forecasts are of secondary importance. ML often works similar to a black-box testing approach, not as an explicitly defined, commonly used statistical and econometric model. ML has three primary purposes: clustering of data into unknown a priori groups, classification of data into known groups based on a trained model and prediction. According to Google Ngrams, its current applications are found approximately ten times more frequently in text than those of econometrics, but still around seven times less frequently than those of statistics. In many research areas (such as epidemiology, geology, ecology and climate), it has become a standard, but this is yet to occur in the field of regional science. Spatial methods need spatial data. Recent assessment has found that around 80% of all data can have a geographic dimension, and much of these data can be geo-referenced (VoPham et al. 2018). Spatial information can stem from conventional sources such as regional databases in statistical offices, grid datasets and geo-located points. One can also easily gather data from Open Street Map and Google Maps (in the form of background maps, points of interest (POI), roads and traffic, for example), as well as from geo-referenced images (such as satellite photographs (Rolf et al. 2021), night light photographs and drone photographs), geo-tagged social media posts on Twitter and climate sensors. This type of data requires powerful computational methods due to its complexity, diversity and volume.

Machine learning (ML) is the ability of a machine to improve its performance based on previous results. It is a part of artificial intelligence and can be divided into unsupervised learning, supervised learning and semi-supervised learning, depending on the algorithms used. Deep learning, being a subfield of machine learning, uses neural networks for training the models. Big data is linked to data mining and knowledge discovery on large datasets by using machine learning techniques.

^{1}Machine learning algorithms can be implemented on ready-to-use data to obtain simple, self-standing machine learning forecast or used with workflow and data processing or even apply it to artificial intelligence, where decisions are made by algorithms.^{2}The hermetic nature of the scientific communities may give the impression that ML methods are largely inaccessible to a wider audience. However, ML has a great potential in non-big data analysis in terms of its methods being used as supplements to spatial statistics and econometrics. The goal of this paper is to present a methodological overview of machine learning in the spatial context. Firstly, it outlines the nature of the information ML gives us, and concludes if ML is substitutive or complementary to the traditional methods. Secondly, it presents two ways in which ML has been incorporated into spatial studies—by using typical ML on spatial data and by developing new ML methods dedicated to spatial data only. Thirdly, it aims to promote the application of ML to regional science. The paper concentrates solely on the following selected ML methods: unsupervised learning, which is closer to traditional statistics and encompasses clustering, and supervised learning, which is closer to econometrics and encompasses classification and regression.^{3}A general overview of these methods is presented in “Appendix 1” and their R implementation in “Appendix 3”.Advertisement

## 2 Statistical applications of machine learning in regional science

Unsupervised learning is the collection of machine learning methods that are equivalent to statistics. Like data mining, it does not study relationships or causality, but instead looks for unknown but meaningful data patterns. Unsupervised learning covers mainly clustering, dimension reduction and association rules. In spatial data analysis, of course, the core area of interest is geographical location. The methodological question is how to address this unique attribute of spatial data. The separation between observations is measured with distance. It can be an intuitive, shortest (Euclidean) distance from one point to another point on the plane but can also be a multi-dimensional distance between quantitative and qualitative variables. This is why machine learning, in addition to Euclidean distance, also uses Manhattan, Minkowski, Gower, Mahalanobis, Hamming, cophenetic and cosine distances (see “Appendix 1”).

One should remember that the remarkable progress observed in recent years related to ML has caused the methodological standards to change—new developments have replaced previous innovations, and some solutions have transpired to be a dead end. The discussion below presents an overview of these diverse methods, including their development trajectories and their usefulness in spatial analysis.

^{4}### 2.1 Clustering of points in space

Geo-located points, independently of having features assigned, are characterised by the longitude and latitude (x, y) projected coordinates. Based on this information, one can group observations into spatial clusters, which will be spatially continuous and covering all analysed points. In the case of a small- or medium-sized sample n, one can use the k-means algorithm, mostly with Euclidean distance metrics. It works well for limited values of n, as it requires the computation of resource-consuming n × n mutual distance matrix and solves the problem as an optimisation model.

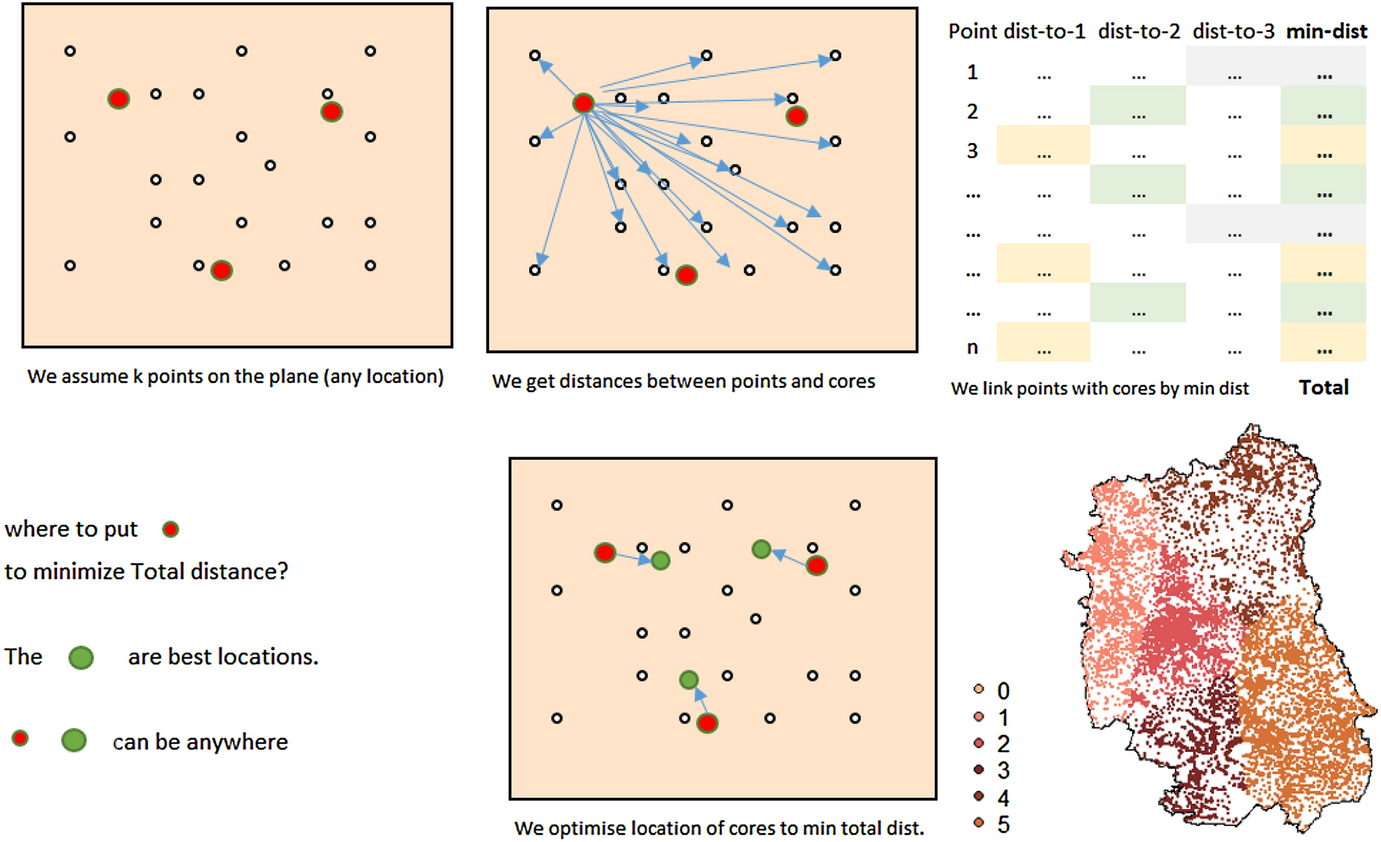

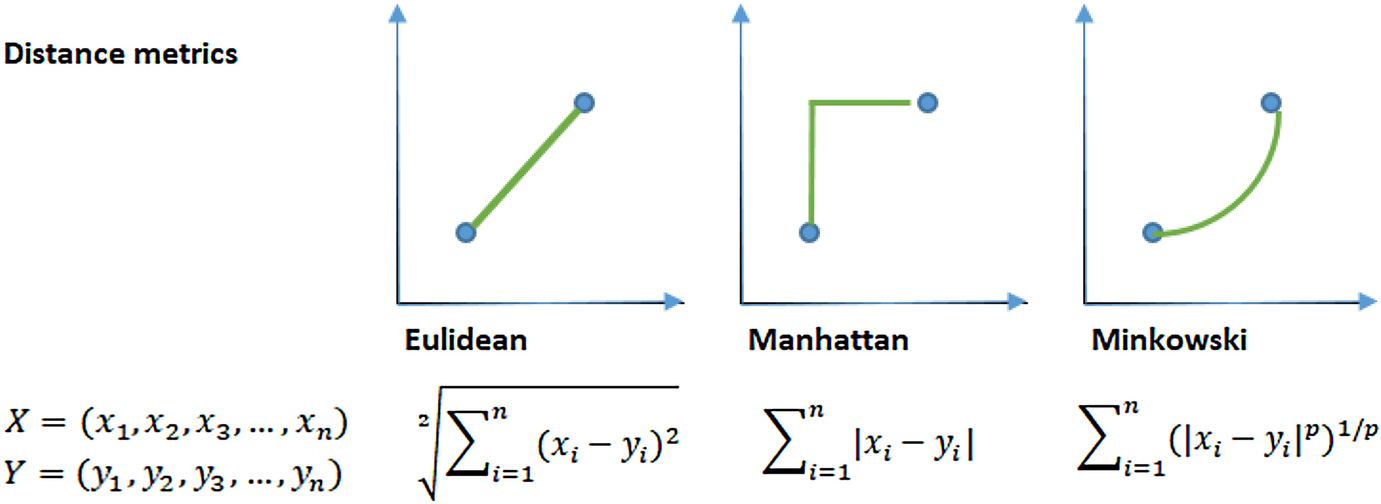

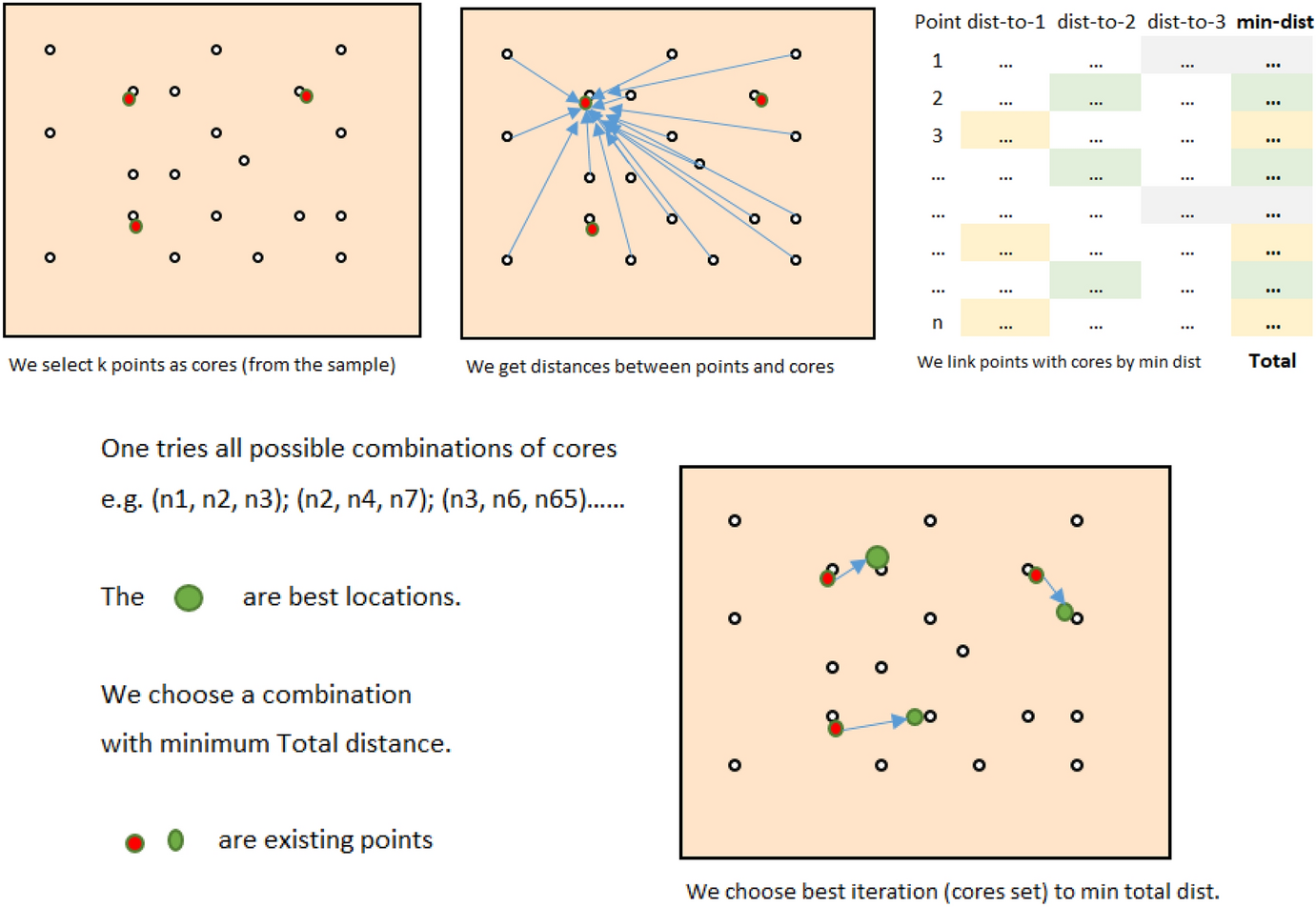

^{5}Centroids of k-means clusters are artificial points (potentially not existing in a sample), located in order to minimise distances between points within a cluster. With larger datasets, one applies the CLARA (clustering large applications) algorithm, which is the big data equivalent of PAM (partitioning around medoids). Both methods also apply distance metrics (such as Euclidean) but work iteratively in search of the best real representative point (medoid) for each cluster. In CLARA, the restrictive issue of the n × n distance matrix is solved by sample shrinking when sampling; PAM suffers from the same limitations as the k-means algorithm in this regard. Quality of clustering is typically tested with silhouette or gap statistics (see “Appendix 1”). This mechanism can be applied to delineating catchment areas (e.g. for schools, post offices and supermarkets) or to divide the market for sales representatives—in both instances, the challenge is to organise individual points around centres, with possible consideration of capacity and/or fixed location of the centre. Aside from statistical grouping, clustering has huge potential for forecasting. A calibrated clustering model enables the automatic assignment of new points to established clusters. The prediction mechanism works on the basis of the k-nearest neighbours algorithm.In a portfolio of clustering methods based on a dissimilarity matrix (being equivalent to a matrix of distances between points), one can assign hierarchical grouping. For n observations, the results are presented in a dendrogram, showing continuous division from 1 to n clusters. It is based on the k-nearest neighbours (knn) concept and can be applied to clustering points or values. The hierarchical clustering algorithm works iteratively, starting from the state in which each observation is its own cluster. In the next steps, the two most similar clusters are combined into one until point is reached when a single cluster is created. The final result is the assignment of points to clusters, as is also the case with k-means, PAM and CLARA.

Advertisement

Clustering with the k-means algorithm has the significant advantages of ease of interpretation, a high degree of flexibility and computational efficiency; however, its main disadvantage lies in the need to specify a priori the number of k clusters. If it does not result from analytical assumptions (e.g. known number of schools to define catchment areas), it can be optimised by checking partitioning quality measures for different k values, or it can follow density. Brimicombe (2007) proposed a dual approach to cluster discovery, which is to find density clusters (“hot spots”) using, for example, GAM or kernel density and use these as initial points in k-means clustering. This automates the selection of k and speeds up the computations by setting starting centroids.

In other applications, k-means helps to build irregular, non-overlapping spatial clusters so that spatially stratified sampling can be run from those clusters (e.g. Russ and Brenning 2010; Schratz et al. 2019). This solves the problem of inconsistency in bootstrapping (Chernick and LaBudde 2014; Kraamwinkel et al. 2018) and addresses the issue of autocorrelation in cross-validation (as discussed later in the text). K-means irregular partitioning can also be applied to the block bootstrap (Hall et al. 1995; Liu and Singh 1992). Sampling blocks of data from spatially pre-defined subsamples allows for drawing independent blocks of data but lowers the computational efficiency.

### 2.2 Clustering of features regardless of location

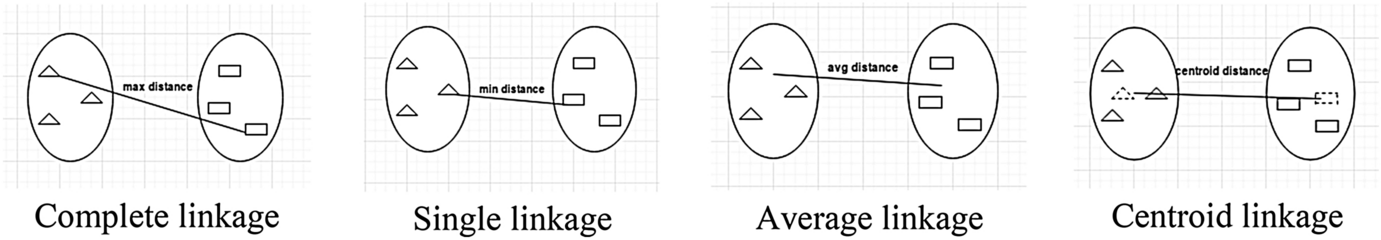

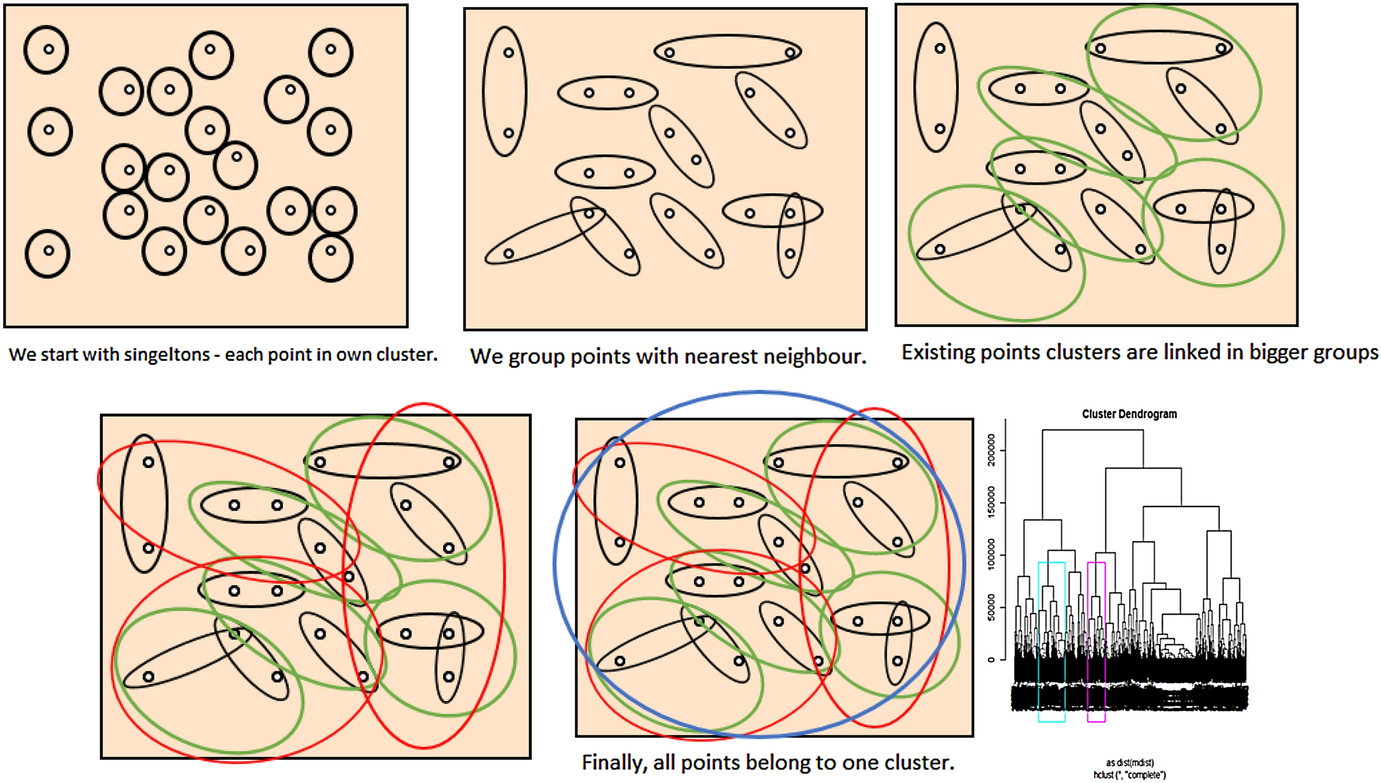

Features measured in regions (or territorial units) can also be clustered to form possible homogenous clusters, which are later mapped. A very interesting example of a spatial study with hierarchical clustering presented in a dendrogram analyses fire distribution in Sardinia. It evidences phenological metrics as well as spatio-temporal dynamics of the vegetated land surface (normalised difference vegetation index [NVDI] from satellite photographs) (Bajocco et al. 2015) of each territorial unit. Hierarchical clustering groups the territorial units into similarly covered areas. For each cluster group, the fire frequency is determined in order to assess the natural conditions that increase and decrease fire-proneness.

^{6}Non-spatial k-means clustering may also help in the detection of urban sprawl. Liu et al. (2008) proposed a-spatial partitioning of local spatial entropy H calculated for a gridded population. Local spatial entropy is expressed as \(H = \sum\nolimits_{i} {p_{i} \ln (p_{i} )}\), where p

_{i}is the relative population in the analysed cell and eight neighbouring grid cells and \(\sum\nolimits_{i = 1}^{i = 9} {p_{i} = 1}\). Clustering of entropy, when mapped, may delineate areas with high and low local density.Clustering assignments may reveal uncertainty, which can be addressed. Hengl et al. (2017) mapped soil nutrients in Africa, by selecting a number of clusters through running hierarchical clustering for parameterised Gaussian mixture models and optimising the Bayesian information criterion. Clustering itself is run on Aitchison compositions of data, which helps to avoid highly skewed variable space. They use fuzzy k-means, which may classify observations into a few clusters with some probabilities. This uncertainty of multi-cluster assignment can be mapped using the scaled Shannon entropy index (SSEI). In the Hengl et al. (2017) study, the SSEI reflected the density of sample points and extrapolation effects.

### 2.3 Clustering of locations and values simultaneously

The clustering of locations and values in the individual procedures presented above can be linked. In the literature, some examples of spatially restricted clustering can be found. All of them deal with the issue of integrating spatial and non-spatial aspects. In general, they take two approaches: order of clustering—spatial issues first and then data (spatial-data-dominated generalisation) or the opposite (non-spatial-data-dominated generalisation) or evaluating a trade-off by mixing or weighting dissimilarity matrices of data and space. As Lu et al. (1993) show, the order of spatial and non-spatial clustering matters for the result.

Historically, the oldest application is SKATER (Spatial “K”luster Analysis by Tree Edge Removal) introduced by Assunção et al. (2006), extended as REDCAP (Regionalisation with dynamically constrained agglomerative clustering and partitioning) by Guo (2008) and recently improved as SKATER-CON (Aydin et al. 2018). It is based on pruning the trees. For each region, it formulates a list of contiguous neighbours, and for each neighbour, it calculates the cost, that is, the total distance between all variables attached to areas. For each region, an algorithm chooses the two closest neighbours (in terms of data) and finally groups areas into the most coherent spatially continuous clusters. SKATER can be used in dynamic data analysis for robust regionalisation—as in drought analysis in Pakistan (Jamro et al. 2019). It is also used to group GWR coefficients (see below).

Among the latest solutions is ClustGeo (Chavent et al. 2018) which examines the potential clustering of data and locations by studying the inertia of parallel hierarchical grouping of space and values. It derives two inertia functions (for space and values) depending on division. A compromise, when both inertia functions cross, sets the proportion of both groupings expressed by mixing parameter α. It weights both dissimilarity matrices,

^{7}D_{0}for values and D_{1}for locations, in order to increase the clusters’ spatial coherence. ClustGeo (CG) developed by Chavent et al. (2018) was extended as Bootstrap ClustGeo (BCG) by Distefano et al. (2020). The bootstrapping procedure generates many CG partitions. Spatial and non-spatial attributes are combined with the Hamming distance based on dissimilarity measures (silhouette, Dunn, etc.) and are used in CG to obtain final partitioning, which minimises the inertia within clusters. The BCG approach outperforms CG, as proved by dissimilarity measures. However, the algorithms are very demanding due to the dissimilarity matrix, which limits their application in the case of big data.Clustering of locations and values jointly is also possible with k-means. It was applied to seismic analysis of the Aegean region (Weatherill and Burton 2009), for which not only the location of earthquakes but also their magnitude is essential. Proposed k-means clustering of locations refers to the magnitude in a quality criterion—the k-means optimisation requires minimising the total sum of squares within clusters, which means subtracting the individual values from the cluster average within each cluster. This cluster average was replaced by a magnitude-weighted average, which shifts the centroid of a cluster towards the stronger earthquakes.

Spatially oriented k-means clustering appears not only in regional science but also in biostatistics. In mass spectrometry brain analysis, the imaging is based on pixels, in which one observes spectra—being technically equivalent to time series. Alexandrov and Kobarg (2011) proposed the idea of spatially-aware k-means clustering. As with every k-means approach, it is based on a dissimilarity (distance) matrix between pixels. To compare the distance between pixels, a composite distance between their spectra is determined. Instead of directly comparing two spectra (one from each pixel), the method compares two weighted spectra, each averaging the neighbouring spectra in radius r, similar to the spatial lag concept. Even if k-means clustering itself has no spatial component, the distances used in clustering include neighbourhood structure.

### 2.4 Clustering of regression coefficients

Clustering procedures are more frequently applied to values than to geo-located points. In regional science, a popular approach is to cluster beta coefficients using geographically weighted regression (GWR). GWR operates as multiple local regressions on point data, which estimate small models on neighbouring observations. This generates individual coefficients for each observation and variable, making those values challenging to summarise in a traditional manner. Mapping of the clustered regression coefficients enables an efficient overview to be had. As many studies show (e.g. Lee et al. 2017), clusters are predominantly continuous over space, even if computations do not include explicitly locational information.

These output data—clustered GWR coefficients—can be used in a few ways in further analysis. Firstly, they can be used in profiling the locations assigned to different clusters—a study by Chi et al. (2013) uses k-means clusters to present an obesity map. Secondly, one can model spatial drift (Müller et al. 2013), which addresses heterogeneity and autocorrelation. In the global spatial econometric model, which typically controls autocorrelation, one includes dummies for each cluster assignment, reflecting spatial heterogeneity. Müller et al. (2013) applied this approach to modelling public transportation services. Thirdly, one can model spatio-temporal stability (Kopczewska and Ćwiakowski 2021). For each period, GWR coefficients are estimated and clustered separately. Next, they are rasterised, and for each raster cell, the median or mode values of the cluster ID are calculated. Finally, the Rand index and/or Jaccard similarity index is applied to test the temporal similarity of the median/mode cluster ID in each cell. This approach, which originally has been applied to housing valuation, can test spatio-temporal stability of clusters in any context. Fourthly, one can try to generalise clusters based on inter-temporal data. Soltani et al. (2021) applied GTWR (geographically and temporally weighted regression) to obtain single-period local coefficients and used the SKATER algorithm, which clusters both locations and values, to delineate submarkets. Helbich et al. (2013) derived MGWR (mixed GWR), which keeps coefficients with non-significant variation constant for inter-temporal housing data. For fully spatial coverage, they kriged coefficients, reduced dimensions with PCA and clustered with SKATER, which allowed for the derivation of robust submarket division.

It is not only GWR coefficients that can be clustered. In general, clustering requires multiple values to be grouped. This occurs in bootstrapped regression. The majority of the literature runs bootstrapped OLS (ordinary least squares) models with a single explanatory variable only, enabling a simple summary of beta in one-dimensional distribution. However, for more than one explanatory variable, derivation of “central” coefficient values requires multi-dimensional analysis, which has not been presented in the literature until now. A solution to this problem is a PAM algorithm in the one-cluster study. As it searches for the in-sample “best representative”, it finds the best model, which is most central with regard to all its beta coefficients. This approach was presented in Kopczewska (2020, 2021) in bootstrapped spatial regression to solve big data limitations.

### 2.5 Clustering based on density

The above-discussed clustering procedure has three main features: (a) an algorithm used a distance matrix; (b) all points or regions were classified to one of the clusters; and (c) user assumed a priori a number of clusters. Density-based clustering differs in all those aspects. Its goal is to detect hot spots, defined as a localised excess of some incidence rate and understood as locally different density (e.g. dense and sparse areas). The implication of the hot spot approach is an automatic partitioning mechanism that assigns observations to clusters and leaves others as noise.

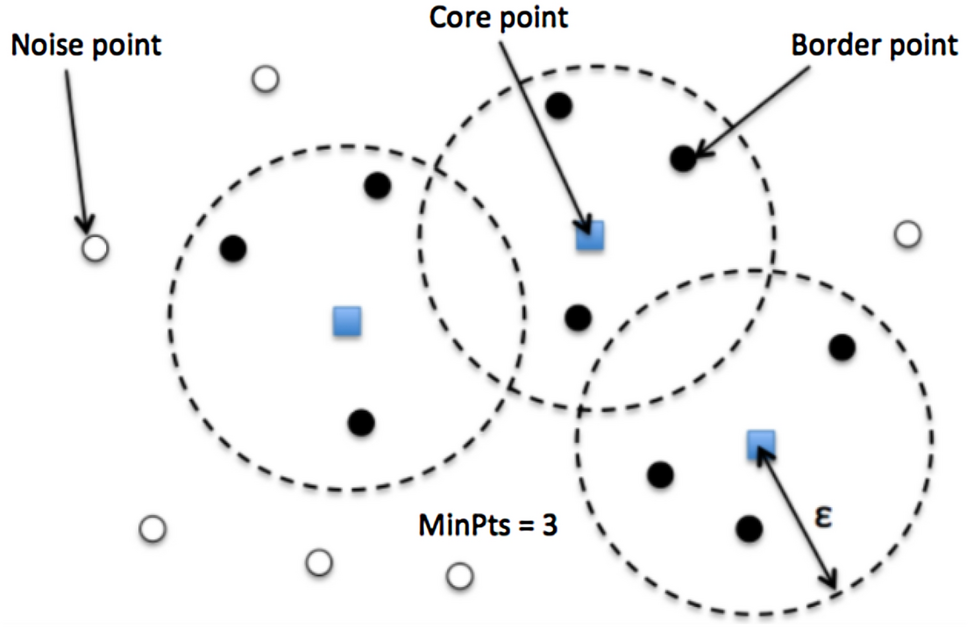

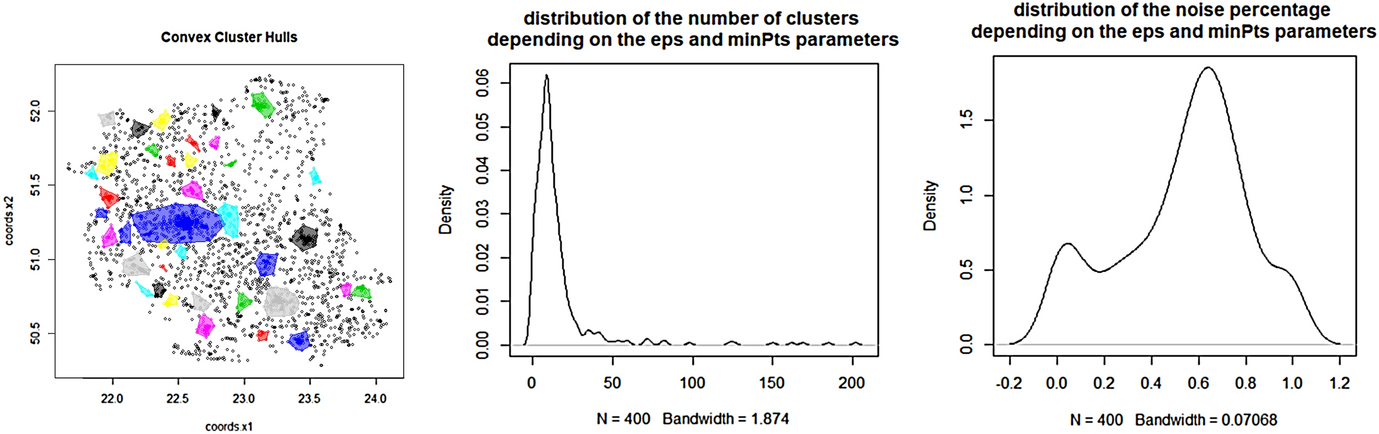

One of the most commonly used solutions is the DBSCAN algorithm (density-based spatial clustering of applications with noise) (Ester et al. 1996), which detects the local density of a point pattern. In simple terms, it screens the surroundings of each point iteratively by checking whether the minimum number of points is located in a specified radius. If yes, points are classified as the core; if not, points are classified as border points when the given point belongs to the core point radius or as noise if the point is located outside the radius of the core point. This algorithm works mostly in 2D (on the plane) or 3D (in the sphere); broader applications are rare but are slowly appearing (as 6D DBSCAN) (Czerniawski et al. 2018). What is essential is that it does not use a mutual n × n distance matrix, thus automatically increasing its efficiency in big data applications. It also does not assume any parametric distributions, cluster shapes or number of clusters and is resistant to weak connections and outliers. DBSCAN was extended in different directions, e.g. as C-DBSCAN (density-based clustering with constraints) (Ruiz et al. 2007), which controls for “Must-Link” and “Cannot-Link”, ST-DBSCAN (spatio-temporal DBSCAN) (Birant and Kut 2007), K-DBSCAN (Debnath et al. 2015) and OPTICS (Ankerst et al. 1999) for different density levels and HDBSCAN (hierarchical DBSCAN) (Campello et al. 2013) which finds epsilon automatically (Wang et al. 2019a, b). Joshi et al. (2013) have run multi-dimensional DBSCAN for polygons, in which the spatial ε-neighbourhood (points in a radius of ε) is substituted with a spatio-temporal neighbourhood. Khan et al. (2014) and Galán (2019) have reviewed the latest advances in DBSCAN and their applications.

DBSCAN has many applications. Pavlis et al. (2018) used DBSCAN to estimate the retail spatial extent. To address local variability, they used individual radii in subsets derived from a distance‐constrained k‐nearest neighbour adjacency list. Cai et al. (2020) estimate tropical cyclone risk with ST-DBSCAN. It can be used in astronomy, e.g. to test the spatial distribution of Taurus stars (Joncour et al. 2018), where the DBSCAN parameters were set based on correlation function and knn. It can be applied to the classification of objects from imaging with an airborne LIDAR technique (Wang et al. 2019a, b), WLAN indoor positioning accuracy (Wang et al. 2019a, b) and traffic collision risk in maritime transportation (Liu et al. 2020a, b). DBSCAN may also work with text data and computer codes. Mustakim et al. (2019) ran DBSCAN on the cosine distance obtained for text representation (frequency-inverse document frequency and vector space model) and checked partitioning quality with the silhouette. Reis and Costa (2015) clustered computer codes; they used tree edit distance (as Levenshtein distance) for strings to compare trees, which constituted the input data for DBSCAN. Their analysis clustered codes in terms of execution time, which helps in the pro-ecological selection of equivalent, but quicker codes.

Before the introduction of DBSCAN, there were a few other methods for scanning statistics, constructed based on a moving circle—GAM (geographical analysis machine), BNS (Besag–Newell statistic) and Kulldorff’s spatial scan statistics. GAM (Openshaw et al. 1987) works on point data within a rectangle and divides an area into grid cells, and for each grid, it plots a ring of the radius (radii) r specified by the user. It counts cases (e.g. disease) within a circle and makes a comparison of that number with the expected number of points from Poisson distribution (e.g. population) or other phenomena cases. The significant circle is the output. BNS (Besag and Newell 1991) works similarly to GAM but with a pre-defined cluster size k. This means that each ring expands to reach k cases inside and is then compared with the underlying distribution. Spatial scan statistics (Kulldorff 1997) compares within the moving ring the probability of being the case given populations at risk inside and outside the ring. The ring is adaptive (up to a given percentage of total cases). However, nowadays, only Kulldorff’s measure is still applied widely in epidemiological studies, while GAM and BNS have largely been forgotten. A notable progressive method stemming from GAM is a scan test for spatial group-wise heteroscedasticity in cross-sectional models (Chasco et al. 2018).

After DBSCAN,

^{8}there arose a group of methods based on the Voronoi/Dirichlet tessellation (Estivill-Castro and Lee 2002; Lui et al. 2008), called Autoclust. In the Voronoi diagram, for each point, the mean and standard deviation of the tile’s edges are calculated. In dense clusters, all edges are short; in the case of border points, the variance of edges increases, as one edge is significantly longer than the other. Analysis of edges and border points delineates the borders of dense clusters. The biggest advantage is that parameters (the number of clusters) are self-establishing, which is not the case with k-means or DBSCAN. This approach was also forgotten and did not become a part of machine learning due there being a lack of solutions for predictions. Recently, proposals of 3D implementations (Kim and Cho 2019) have been put forward, suggesting a revival of this method.### 2.6 Overview of ML spatial clustering

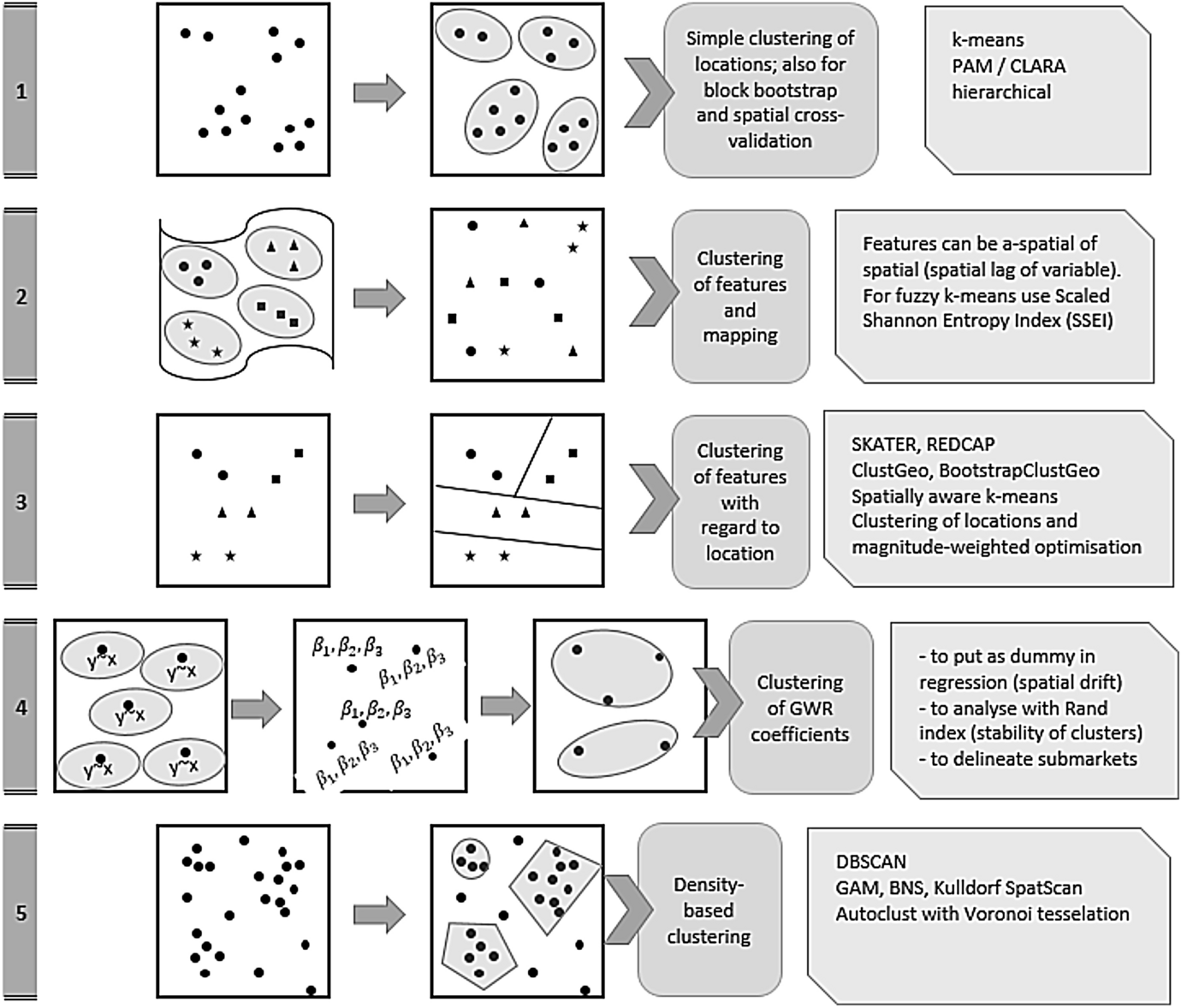

The above-discussed methods differ in their approaches, but their goal is similar. In any case, one may ask the question: to which cluster does a given spatial point belong? Depending on input data, the answer may be: (i) a cluster of spatially close points; (ii) a cluster of feature-similar observations; (iii) a cluster of points that are both spatially close and have similar features; (iv) a cluster of similar regression coefficients; or (v) a cluster of densely located points. Spatial locations can be addressed directly with geo-coordinates, but can also be addressed as one of the clustered features, as a restriction in the pairing of points, as weight in optimisation, as background in running the GWR regression, or as local density (Fig. 1).

×

This methodological summary can have applications for many regional science problems. It can facilitate the locating of clusters of features and can map them in a smart way, so as to ascertain whether or not geographic segmentation exists and whether points (customers) are clustered. It can be applied to the analysis of (co)location patterns emerging from the values, in order to determine where our customers are, where else they visit, where to locate the business, and who the best neighbours will be. Finally, it can help to reduce multi-dimensional data.

Machine learning combines older, more established statistical concepts with new challenges. Current methodological research efforts are focused on better forecasting, improving computational efficiency (especially with big data), and finding more sophisticated approaches, such as for spatial techniques. Even if this summary aims to provide a comprehensive description of spatial clustering designs, there are still more methods to be found in the literature. One of these is cluster correspondence analysis for multiple point locations, to address the occurrence of the same event in many places (Lu and Thill 2003).

## 3 Econometric applications of machine learning to spatial data

Machine learning approaches to the dependency between variables are demonstrated by another class of models, which differ from traditional econometrics in following ways: (a) even if the input data (x and y) seem similar, the structure of the model itself is much less transparent; (b) as the machine learning modelling searches numerically for the best model, the forecasts are mostly much better than in classical theory- and user-feeling-driven approaches; and (c) due to data selection via boosting, sampling, bootstrapping, etc., the machine learning model can work with much bigger datasets.

There are two general groups of ML models: (a) typical regressions, which link the levels of features of variables x and y, and (b) classifiers, which detect feature levels x in observed classes y. The fact of both features x and classes y being known in supervised machine learning is in contrast to the unsupervised learning approach, which clusters data without a priori knowledge of which observation is in which group. Many spatial classification problems are as follows: from an image (e.g. pixels of a satellite photograph) features of the land are extracted (e.g. vegetation index, water index, land coverage) and geographical information added (e.g. location coordinates). Additionally, one knows the real classification (e.g. type of crops), which is to be later forecasted with the model. A common application is to teach an algorithm to determine the desired image elements by linking information from the photograph with the real class, where an image pixel is an individual observation. Subsequently, the model can detect those elements in new photographs to predict the class. This is widely applied in agriculture to distinguish between different crops, landscape and land uses (Pena and Brenning 2015). It also works in geological mapping (e.g. Cracknell and Reading 2014). Possible new applications are regional socio-economic development indicators based on night-light data or land use satellite images (e.g. Cecchini et al. 2021).

The most common machine learning classifier models are: naive Bayes (NB), k-nearest neighbours (kNN), random forests (RF), support vector machines (SVM), artificial neural networks (ANN), XGBoost (XGB) or Cubist. (Details of methods are outlined in “Appendix 1”). Recent years have also seen the introduction of so-called ensemble methods, which are combinations of the aforementioned classifiers. There are many studies on which methods perform the best (very often, it is random forest), or which ones are equivalent to classical approaches. Table 1 presents the latest studies which use the ML toolbox.

Table 1

Usage of machine learning models in spatial applications (

Source: Own study)

Type of model | Examples of usage | Thematic area | Remarks |
---|---|---|---|

Naïve Bayes | Park and Bae (2015) | Housing valuation | Model worked not the best, as C4.5 and AdaBoost. Much better was RIPPER |

Cracknell and Reading (2014) | Lithology classification | Model worked not the best, random forest was better | |

k-Nearest neighbours | Cracknell and Reading (2014) | Lithology classification | Model worked not the best, random forest was better |

Random forest | Cracknell and Reading (2014) | Lithology classification | Model worked the best |

Meyer et al. (2019) | Land cover | Focus on selection of spatial variables and spatial CV, no other models in study | |

Behrens et al. (2018) | Soil | Focus on Euclidean distance fields, model worked well. Model was compared with bagged multivariate adaptive regression splines (MARS), which also worked well | |

Ahn et al. (2020) | Soil | Focus on coordinates, distances and PCA-reduced distances as covariates, model worked well | |

Appelhans et al. (2015) | Temperature | Model performed well | |

Poverty | Model performed well, better than regression tree | ||

Hengl et al. (2018) | Soil | Focus on buffer distance, model performed well | |

Goetz et al. (2015) | Landslide susceptibility | Model worked well the same as bootstrap aggregated classification trees (bundling) with penalised discriminant analysis (BPLDA) | |

Li et al. (2011) | Seabed mud | Focus on mixture with kriging, model performed well | |

Xu and Li (2020) | Housing valuation | Focus on stacking ensemble model, model performed well | |

Hengl et al. (2017) | Soil | Model with many spatial covariates, non-spatial CV, problems of high spatial clustering of sample points; model predicts individual data which are later clustered for composite prediction, model worked well | |

Pourghasemi et al. (2020) | Gully erosion | Random forest with many spatial covariates performed better than LASSO, generalised linear model (GLM), stepwise generalised linear model (SGLM), elastic net (ENET), partial least square (PLS), ridge regression, support vector machine (SVM), classification and regression trees (CART), bagged CART. No spatial cross-validation applied | |

Support vector machines | Behrens et al. (2018) | Soil | Focus on radial basis function support vector machines (SVM) and on Euclidean distance fields, model performed poorly |

Goetz et al. (2015) | Landslide susceptibility | Model worked well | |

Li et al. (2011) | Seabed mud | Focus on mixture with kriging, model performed not the best | |

Du et al. (2020) | Land use | Strategic comparison of ML models, model performed well | |

Cracknell and Reading (2014) | Lithology classification | Model worked not the best, random forest was better | |

Neural network | Behrens et al. (2018) | Soil | Focus on Euclidean distance fields, model averaged neural network performed poorly |

Appelhans et al. (2015) | Temperature | Model-averaged neural network performed well | |

Nicolis et al. (2020) | Seismic rate | Using deep neural network—long short-term memory (LSTM) and convolutional neural networks (CNN), model worked well | |

Masolele et al. (2021) | Land use | Using deep neural network in spatio-temporal application, models worked well, spatial or temporal structures can dominate depending on dataset | |

XGBoost | Appelhans et al. (2015) | Temperature | Focus on stochastic gradient boosting, model performed well |

Hengl et al. (2017) | Soil | Model with many spatial covariates, non-spatial CV, problems of high spatial clustering of sample points; model predicts individual data which are later clustered for composite prediction, model worked well | |

Xu and Li (2020) | Housing valuation | Focus on stacking ensemble model, using adaptive boosting, gradient boosting decision tree, light gradient boosting machine and extreme gradient boosting, models performed well | |

Cubist | Behrens et al. (2018) | Soil | Focus on Euclidean distance fields, model worked well |

Appelhans et al. (2015) | Temperature | Cubist combined with residual kriging performed well |

Machine learning models are not only more accurate than traditional methods, but might also be much faster. Sawada (2019) reports that applying machine learning and the Markov chain Monte Carlo approach to a land surface model decreases computation time by 50,000 times.

It is generally agreed that most machine learning methods in spatial applications do not consider relative location and neighbourhood features and that they analyse pixels regardless of their surroundings. However, many authors have proposed various measures to address the spatial dimension, which are presented below.

### 3.1 Simple regression models to answer spatial questions

The most basic application of ML is to run a classification or regression model on data that is spatial in nature. Examples published in recent years apply to spatial data just as they do to any other kind of data—one understands that data are geo-projected and were gained in specific locations, but no spatial information is included. There are many examples. Appelhans et al. (2015) explained temperatures on Kilimanjaro using elevation, hill slope, aspect, sky-view factor and vegetation index data—they used machine learning models in a regression, with the only spatial issue being spatial interpolation with kriging.

^{9}Similarly, Liu et al. (2020a, b) ran non-spatial regression and a random forest model on socio-economic and environmental variables to explain poverty in Yunyang, China, using data from 348 villages. The only computational spatial component was the Moran test of residuals, which showed no evidence of spatial autocorrelation. The study was effective because it merged different sources of geo-projected data: surface data for elevation, slope, land cover types and natural disasters (with spatial resolution of 30 m or 1:2000); point data, such as access to town, markets, hospitals, bank, schools, or industry, taken from POI (point-of-interest) or road density networks (on a scale of 1:120,000); and polygonal data for the labour force from a statistical office. Rodríguez‐Pérez et al. (2020) modelled lightning‐triggered fires in geo-located grid cells in Spain. They used RF, a generalised additive model (GAM) and spatial models to show instances of lightning‐triggered fires appearing in a given grid-cell were attributable to observable features in that location, such as vegetation type and structure, terrain, climate and lightning characteristics. Also, an applied example of statistical learning in a book by Lovelace et al. (2019) uses a generalised linear model on rastered data of landslides (e.g. slope, elevation) with point data of interest. The spatial location and autocorrelation are included in spatial cross-validation.Another interesting example is the mapping of rural workers’ health conditions and exposure to severe disease (Gerassis et al. 2020) using a ML approach. The study is based on geo-located medical interviews which provided health data—both hard medical data and the person's general health condition. Using a ML Bayesian network (BN), the authors discovered which variables were connected with the patient’s condition when they were flagged as ill. In the next step, with binary logistic regression run on individual cases and thresholds from the BN, model classification was obtained, and predictions of high disease risk for a person could be made. Spatial methods appear only for interpolation of illness cases observed, which is a separate model—Gerassis et al. (2020) used the point-to-area Poisson kriging model, which deals with spatial count data, unequal territories and diverse population composition. The spatial challenge was in the different granulation of data: point data in the study sample and polygonal data as a basis of prediction.

### 3.2 Spatial cross-validation

Current implementations of machine learning in the spatial context are often restricted to spatial k-fold cross-validation (CV) only, which can solve the issue of non-independence. This works by dividing points into irregular k clusters (by using k-means, for example) and selecting one cluster as an out-of-sample cross-validation part. Due to spatial autocorrelation between training and testing observations, simple spatial data sampling gives biased and over-optimistic predictions. However, spatial CV increases prediction error (Liu 2020). Lovelace et al. (2019) show that a spatially cross-validated model gives a lower AUROC (area under the receiver operator characteristic curve), as it is not biased by spatial autocorrelation. The same applies to models that tune hyper-parameters (e.g. SVM) using sampling (Schratz et al. 2019). In the case of spatio-temporal data, one should account for spatial and temporal autocorrelation when doing CV (Meyer et al. 2018). Spatial cross-validation is becoming a standard (e.g. Goetz et al. 2015; Meyer et al. 2019), but some studies still neglect this effect and do not address the autocorrelation problem (Park and Bae 2015; Xu and Li 2020).

### 3.3 Image recognition in spatial classification tasks

One of the typical applications of ML is image recognition in spatial classification tasks. A good example is supervised lithology classification, i.e. geological mapping (Cracknell and Reading 2014). As input (X), data from airborne geophysics and multispectral satellites are used, while as output (Y) for a given territory, the known lithology classification is used, shown as polygons on the image for each class. The xy coordinates of the pixels of those images are also known. In the modelling process, an algorithm is produced which discovers the lithology classification from airborne geophysics and multispectral satellites. Three kinds of models are run on pixel data: (i) X → Y, (ii) xy coords → Y and (iii) X and xy coords → Y, using the aforementioned NB, kNN, RF, SVM and ANN algorithms. In fact, this is an image processing phase, in which software is taught to understand what is in the picture, and each pixel is classified according to lithology. The goodness of fit and prediction differ between models. ML produces the model, which will generate a lithology classification when fed with new satellite and airborne data. A similar study was conducted by Chen et al. (2017), who used the following 11 conditioning factors to predict landslide data: elevation, slope degree, slope aspect, profile and plan curvatures, topographic wetness index, distance to roads, distance to rivers, normalised difference vegetation index, land use, land cover and lithology. They used maximum entropy, neural networks, SVM and their ensembles.

A very different approach is involved when dealing with dynamic spatial data. Nicolis et al. (2020) modelled earthquakes in Chile. Their dataset of seismic events spanned a period of 17 years, with 86,000 geo-located cases occurring over 6,575 days. For each day that an earthquake was recorded, they created a grid-based image (1° × 1°) of the territory; grid intensity was estimated by an ETAS (epidemic-type aftershock sequences) model. Using this, they applied deep learning methods, such as long short-term memory (LSTM) and convolutional neural networks (CNN) for spatial earthquake predictions—predicting the maximum intensity and the probability that this maximum will be in a given grid cell.

Images as predictors in spatial models are not always informative. Fourcade et al. (2018) proved that images that are meaningless for spatial process such as paintings or faces can predict environmental phenomena well. This finding formed the basis of deeper studies (Behrens and Rossel, 2020) which reached two major conclusions. Firstly, spurious correlations without causality raise the danger of meaningless but efficient predictors, which can be mitigated by using domain-relevant and structurally related data. Secondly, by comparing the variograms of regressors, it was recommended to use covariates with the same or a narrower range of spatial dependence than the dependent variable. Meyer et al. (2019) have similarly concluded that highly correlated covariates result in over-fitted models, which replicate data well and fail in spatial predictions.

### 3.4 Mixtures of GWR and machine learning models

An example of development and adaptation of traditional methods is the transformation of geographically weighted regression (GWR) into a machine learning solution. The process behind GWR lies in applying small local regressions to neighbouring points for each observation instead of one global estimation. Additional factors to consider are: (i) the radius and shape of the “moving geometry” (e.g. circle, ellipse), which indicates which points to include in a given local regression; (ii) its flexibility—fixed kernel for a fixed radius and adaptive kernel for a changing radius to react to various densities of the point data; and (iii) the weighting scheme—whether observations included in local regressions have the same weight when distance-decaying from the core point. These features of GWR can be applied to any machine learning model. Li (2019) mixed GWR with neural networks, XGB and RF to improve wind speed predictions in China by more effectively capturing local variability. It gave a 12–16% improvement in R

^{2}and a decrease in RMSE (root mean square error). Quiñones et al. (2021) applied GWR concept with RF in analysing diabetes prevalence and showed that it detects well the spatial heterogeneity.According to Fotheringham et al. (2017), traditional GWR should be replaced by multiscale geographically weighted regression (MGWR). In MGWR, the user decides on bandwidth not only with regard to location/local density but allows for optimisation of covariate-specific bandwidth. The performance of MGWR surpasses that of simple GWR. In both approaches, the problem of bias when “borrowing” data from territories with a different local process is negligible (Yu et al. 2020).

^{10}### 3.5 Spatial variables in machine learning models

It has become very popular to replace geo-statistical models with machine learning solutions in order to model and interpolate spatial point patterns. In fact, the current literature makes comparisons between geo-statistical models (such as regression kriging and geographically weighted regression), between prediction models (ordinary kriging and indicator kriging, for example) and between multiscale methods (such as ConMap and ConStat). It also compares contextual spatial modelling with ML models.

Over the last decade, researchers have been looking for the best model for spatial interpolation. The most straightforward approach, introduced in early studies (as Li et al. 2011), simply monitors the efficiency of non-spatial ML models in spatial tasks. Mostly, they have combined RF or SVM with ordinary kriging or inverse distance squared. Random forest was often proven to be the most accurate method, which increased its popularity in further studies. This approach is still used. For example, Sergeev et al. (2019) predicted the spatial distribution of heavy metals in soil in Russia by applying a hybrid approach: they simulated a general nonlinear trend using an artificial neural network (ANN) (by applying the generalised regression neural network and multilayer perceptron) and fine-tuned the residuals with the classical geo-statistical model (residuals kriging).

^{11}Later solutions have aimed to include spatial components among covariates, namely coordinates or distances between other points. Hengl et al. (2018) have promoted the use of a buffer distance among covariates of random forest. The buffer distance is calculated between each point of the territory and observed points. It can be a distance to a given point or a distance to low, medium or high values. Hengl et al. (2018) give a number of empirical examples to show that this solution is equivalent to regression kriging but is more flexible in terms of specification and allows for better predictions. Buffer distance is used to address spatial autocorrelation between observations and works better than the inclusion of geographical coordinates. Another example of this is in Ahn et al. (2020), who used the random forest model with spatial information to predict zinc concentration, having only its geo-location to work with. They considered PCA reduction of dimensions in distance vectors and used kriging for expanding predictions on new locations. They highlighted a trade-off between the inclusion of coordinates (which give lower model precision and do not allow for the controlling of spatial autocorrelation, but which do not overload computational efficiency) and the inclusion of the distance matrix (which works in the opposite manner). They showed that the best solution is to use PCA-reduced distance vectors, which limit the complexity and improved estimation performance. An alternative is to add spatial lag and/or eigenvector spatial filtering (ESF), which can deal with most autocorrelation issues (Liu 2020). The proposals of Ahn et al. (2020) and Liu (2020) may lead to an increased number of applications of random forest for spatial data, as it works for predicting 2D continuous variables with and without covariates, as well as binominal and categorical variables, and can effectively address extreme values and spatio-temporal and multivariate problems (Hengl et al. 2018). In general, random forest, compared with geo-statistical models, requires fewer spatial assumptions and performs better with big data.

An alternative approach to including spatial components is using Euclidean distance fields (EDF), which address non-stationarity and spatial autocorrelation and improve predictions (e.g. in soil studies) (Behrens et al. 2018). These are features of analysed territory generated in GIS. Typically, for each point of territory seven EDF covariates are derived: X and Y coordinates, the distances to the corners of a rectangle around the sample set and the distance to the centre location of the sample set. They prove that as long as spatial regressors have a narrower range of spatial dependence than the dependent variable, they improve the model.

The selection of spatial variables to the model is still ambiguous. In many papers, all collected variables are included, with trust that ML methods by their nature will eliminate the redundant ones. Some studies propose running standard a-spatial algorithms as BORUTA (Amiri et al. 2019) to indicate which variables should stay in the model. There are also proposals for the removal of correlated covariates and regularisation to cope with multi-collinearity (Farrell et al. 2019); these actions will not significantly impact the results—random forest showed the best performance on raw data; however, spatial autocorrelation was not addressed. There are also some controversies. Meyer et al. (2019) assessed the inclusion of spatial covariates using quality measures such as kappa or RMSE. They claim that longitude, latitude, elevation and the Euclidean distances (also as EDF) can be unimportant or even counterproductive in spatial modelling, and they recommend that those regressors be eliminated from models. They highlighted two other aspects: Firstly, contrary to the popular narrative, they do not approve of the high fit of ML models, treating them as over-optimistic and misleading; secondly, they claim that in the course of visual inspection, one observes artificial linear predictions resulting from the inclusion of longitude and latitude, and that their elimination helps in making predictions real.

### 3.6 Overview of spatial ML regression and classification models

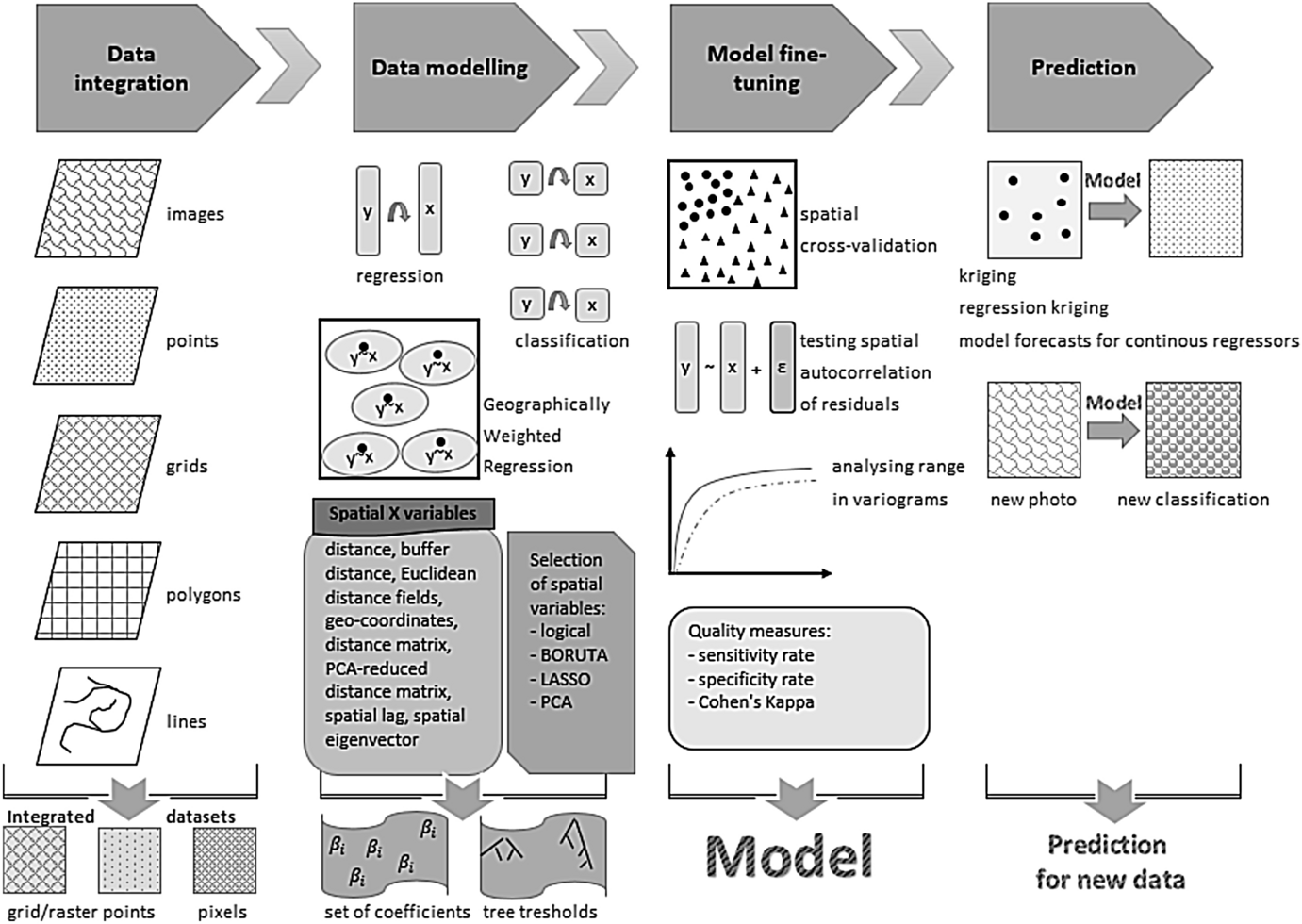

The above-described modelling patterns can be summarised in a general framework, which consists of four stages: data integration, data modelling, model fine-tuning and prediction (Fig. 2). All of them include spatial components.

1.

Data integration The central focus of many current spatial machine learning studies is in the integration spatial data in different formats. As a standard, one uses geo-located points (for observation location, point-of-interest, etc.), irregular polygons (for statistical data), regular polygons such as grids or rasters (for summed or averaged data within that cell), lines (such as rivers or roads) and images (such as satellite photographs, spectral data, digital elevation models, vegetation and green leaf indices, etc.). There is a diverse range of forms of individual observation: point, polygon, grid or pixel. Depending on the researcher’s choice of data target granulation, the dataset integration process may be only technical or may involve more or less advanced statistical methods. For classification purposes, the researchers may add the classes of objects manually.

2.

Modelling Machine learning methods differ from econometric

^{12}algorithms when obtaining a mutual relationship between the dependent (y) and explanatory (x) data. Regression models are used to explain usually continuous variables, while classification models are used for categorical variables. ML models for spatial data have mostly neglected the issue of spatial autocorrelation between observations. The latest studies, however, have aimed to address this issue by using spatial variables among covariates. These can be geo-coordinates, distance to a given point (e.g. core), mutual distances between observations, PCA-reduced mutual distances between variables, buffer distance, spatial lag of the variable and eigenvector or Euclidean distance fields. Addressing the spatial autocorrelation issue not only enables the training data to be successfully reproduced well but also allows predictions to be made in new locations beyond the dataset (Meyer et al. 2019). GWR-like local machine learning regression bridges the gap between spatial and ML modelling. This stage results in sets of global or local regression coefficients or thresholds of decision trees.3.

Model fine-tuning The common approach is to test and improve model estimation with k-fold cross-validation. For a long time, many scientists reported excellent performance among ML models when testing them on fully randomly sampled observations. The current literature suggests that not addressing autocorrelation falsely improves the quality of the model, and they recommend spatial cross-validation to overcome this—it takes as folds the k-means spatially continuous clusters of data. The other option is classical testing of spatial autocorrelation of model residuals (e.g. Moran’s I) and re-estimation of whether the spatial pattern is found.

4.

Prediction The majority of ML studies are oriented towards predictions based on the model. In regression tasks, they often use one of the kriging variants, which expands results from observations on all possible points within the analysed territory. In classification tasks primarily based on pixel data, the calibrated models are fed with a new image that enables running prediction for all input pixels.

×

The general overview from the literature is that visible progress has been made in the development of spatial machine learning modelling. Over the last decade, the following approaches have been developed:

1.

Classic ML + non-spatial variables + random cross-validation,

2.

Classic ML + spatial all variables + random cross-validation,

3.

Classic ML + spatial all variables + spatial cross-validation,

4.

Classic ML + spatial selected variables + spatial cross-validation,

5.

Spatial ML + spatial selected variables + spatial cross-validation.

The current standard of modelling is expressed by approach “(4) Classic ML + spatial selected variables + spatial cross-validation”. Models estimated with approaches (1), (2) or (3) may not be fully reliable, due to the autocorrelation issues discussed above. The progress and innovations in the development of approach (5) are mostly concerned with the formulation of ML methods to incorporate spatial components into the algorithms.

It is clear from many studies that unaddressed spatial autocorrelation generates problems, such as overoptimistic fit of models, omitted information and/or biased (suboptimal) prediction. Thus, an up-to-date toolbox dealing with spatial autocorrelation should be used in all ML models in order to ensure methodological appropriateness. One can mention here methods such as (i) adding spatial variables as covariates; (ii) GWR-like local ML regressions; (iii) using spatial cross-validation; (iv) testing for spatial autocorrelation in model residuals; v) running spatial models on grids or pixels a with spatial weights matrix W; and (vi) running spatial predictions with kriging. To sum up, the spatial dimension and spatial autocorrelation can be addressed at each stage of the modelling process, and combinations of these solutions seem to improve the quality of models. ML algorithms are often more efficient than classical spatial econometric models, which renders them more effective in dealing with big spatial data.

## 4 Perspectives of spatial machine learning

The methodological solutions presented above open up new pathways for advanced research using spatial and geo-located data.

Firstly, these methods enable more efficient computation in the case of big data and inclusion of new sources of information. Switching from regional data to a finer degree of data granulation—such as individual points or pixels of the image—brings about a significant increase in the magnitude of datasets. This higher level of granulation is especially troublesome for a classical spatial econometrics based on an n × n spatial weights matrix W or n × n distance matrix. As indicated by Arbia et al. (2019), the maximum size of the dataset for computation with personal computers is around 70,000, while even with 30,000 observations, the creation of W is already challenging (Kopczewska 2021). ML models, which are free of W, are automatically quicker, but the issue of autocorrelation, currently treated as critical, is addressed in another way. New sources of data, such as lightmaps of terrain (Night Earth, Europe At Night, NASA, etc.) or day photographs of landscape (Google Maps, Street View, etc.), bring new insights and information and are useful due to the robustness of their big-data analytics (see “Appendix 3”). Spatial data handling (e.g. processing remote sensing image classification or spectral–spatial classification, executed with supervised learning algorithms, ensemble and deep learning) is especially helpful in big data tasks (Du et al. 2020).

Secondly, the methods present a way to address spatial heterogeneity and isotropy. Classical spatial econometrics was focused on spatial autocorrelation and mostly neglected other problems. Local regressions, combined with global ones, help in capturing unstable spatial patterns. The overview of methods shows that integration of classical statistics and econometrics with machine learning enables more tools to be added to the modelling toolbox than with a single approach.

Thirdly, the methods open up possibilities for spatio-temporal modelling and for studies of the similarities between different layers: spatial, multi-dimensional and spatio-temporal, among others. The dynamics connected to location can be addressed in more ways than just the classical panel model. One of the approaches is to run similar to PCA method EOF (empirical orthogonal functions) decomposition (Amato et al. 2020).

Fourthly, these methods allow for better forecasting due to inherited boosting and bootstrapping in ML algorithms. ML results are also more flexible for spatial expansion into new points. Ensemble methods, popular in ML, are enabling researchers to make the best prediction. A shift from spatial econometrics towards spatial ML also represents a move from explanation to forecasting. The predictive power of classical spatial models was rather limited (Goulard et al. 2017), mostly due to simultaneity in spatial lag models. The second problem was that out-of-sample data were not included in W and therefore impossible to cover with the forecast. New solutions such as ML spatial prediction can be fine-tuned in line with spatial econometric predictions based on bootstrapping models (Kopczewska 2021).

Fifthly, these methods foster the development of new innovations, such as indicators based on vegetation or light indices. The methods presented also introduce 3D solutions to certain areas of spatial studies, such as social topography (with 3D spatial inequalities) (Aharon-Gutman et al. 2018; Aharon-Gutman and Burg 2019), 3D building information models (Zhou et al. 2019) or urban compactness growth (Koziatek and Dragićević 2019). There are urban studies that rely on information from Google Street View, such as those that count cars, pedestrians, bikers, etc., to predict traffic (Goel et al. 2018), or those recording indicators of urban disorder (such as cigarette butts, trash, empty bottles, graffiti abandoned cars and houses) to predict neighbourhood degeneration (Marco et al. 2017) or studies that count green vegetation indices in order to predict degrees of safety (Li et al. 2015).

All of the above demonstrates that spatial modelling built on econometrics, statistics and machine learning is the most effective approach. It has wide-ranging applications in such areas as epidemiology, health, crime, the safety of the surrounding area, location of customers, business, real estate valuation, socio-economic development and environmental impact, among many others.

In addition to all of this, the ML approach can still provide the answer to common questions, which have been asked over recent years in quantitative regional studies. On the one hand, these studies are designed to examine invisible policies and their impact on observable phenomena—by studying policy flows, core-periphery patterns and their persistence, urban sprawl patterns, diffusion and spillover from the core to the periphery, cohesion and convergence mechanisms, institutional rent, effects of administrative division, the role of infrastructure and the effects of agglomeration. On the other hand, these studies may be of an opposite nature, that is, analysing visible spatial patterns to draw conclusions about unobservable phenomena, such as studying clusters, tangible flows such as trade or migrations, similarity and dissimilarity of locations, spatio-temporal trends, spatial regularities in labour markets, GDP and its growth, education, location and movements of customers, and business development, location and co-location. In those studies, questions on spatial accessibility, spatial concentration and agglomeration, spatial separation, spatial interactions and spatial range have mostly been answered.

Progress in science over the past decades has involved the interdisciplinary transfers of knowledge and methods. Regional science is yet to experience such a transfer. The general findings presented in recent papers would suggest that it has already begun (with first literature reviews on ML for spatial data by Nikparvar and Thill (2021)), but the regional science filed still awaits mass interest from researchers.

## 5 Conclusions

This paper shows that, even if universal in terms of algorithms used, machine learning (ML) solutions are very specific in field applications. ML design in regional science presented above differs from designs in genetics and genomics (Libbrecht and Noble 2015), medicine (Fatima and Pasha 2017), robotics (Kober et al. 2013), neuroimaging (Kohoutová et al. 2020), etc. When applying ML in their fields, researchers should use general over-disciplinary knowledge as a basis and fine-tune their approach with field-specific solutions. This paper makes guidelines for regional and spatial analysts to better understand better how to include spatial aspects, geographical location and neighbourhood relations into the models.

The complexity of ML modelling finds its reflection in transparency and reproducibility. In many disciplines that heavily use ML, community-driven standards of ML reporting appear. This can be found in biology (Nature Editorial 2021a), for which one proposes DOME (Walsh et al. 2021) and AIMe (Matschinske et al. 2021) guidelines for reporting ML results. Present also are general recommendations to increase the transparency of all necessary steps in computations. It is important that it does not refer to the modelling phase only, but also to data curation, generation and division into training, validation and test datasets. It also covers data, code and model availability (Nature Editorial 2021b). Within life sciences, one considers three standards of reporting, Bronze, Silver and Gold, which differ in rigour for computational reproducibility (Heil et al. 2021). Bioinformatics proposes workflow managers, which are ready-to-use environments assuring shareable, scalable and reproducible biomedical research (Wratten et al. 2021). One can expect those solutions also in regional science to appear soon. However, the specificity of spatial data will require adjusted reporting standards, which may address the geographical information systems (GIS) issues.

Machine learning, which is booming in all computational disciplines, has become a new analytical standard, as OLS or p value was until now. The interdisciplinary dialogue requires using the same language; thus, it is a must essential to accept, use and develop ML methods in regional science research. The presented overview shows that many developments targeted towards spatial data and regional science problems are already available. However, some methodological gaps need new ideas dedicated to regional science problems. The biggest challenge is using information from the neighbourhood still (Hagenauer et al. 2019), accounting for spatial autocorrelation and heterogeneity, using information from satellites and photographs, predicting for new locations and scalability of methods.
