Estimation of resistance force at steady-state sinkage for cylindrical wheel-typed lunar/planetary exploration rovers with function of push–pull locomotion

Open Access
01.12.2020
Research Article

Erschienen in:

Verfasst von: Daisuke Fujiwara; Naoki Tsujikawa; Tetsuya Oshima; Kojiro Iizuka
Erschienen in: ROBOMECH Journal | Ausgabe 1/2020

Aktivieren Sie unsere intelligente Suche, um passende Fachinhalte oder Patente zu finden.

search-config

KI-gestützte Suche

Patentsuche

Aus

Abstract

Planetarische Erkundungsrover haben eine hohe Fahrleistung erfordert, um Hindernisse wie lockeren Boden und Felsen zu überwinden. Push-Pull-Fortbewegungsrover sind ein einzigartiges Schema, wie ein Inchwurm, und sie haben eine hohe Fahrleistung auf losem Boden. Push-Pull-Fortbewegung nutzt die Widerstandskraft, indem sie ein blockiertes Rad mit dem Boden in Beziehung hält, während das konventionelle Rotationsfahren die Scherkraft aus losem Boden nutzt. Das blockierte Rad ist ein Schlüsselfaktor für das Reisen im Push-Pull-Schema. Das Verständnis des Absenkverhaltens und seiner Widerstandskraft ist nützliche Information für die Einschätzung der Leistung des Roboters. Frühere Studien haben über die Bodenbewegung unter dem blockiertem Rad, die Zugkraft und das Fahrverhalten des Roboters berichtet. Diese Studien beschränkten sich jedoch auf die Untersuchung der Widerstandskraft und der Höhe der Absenkungskraft für die jeweilige Bedingung abhängig vom Rover. Darüber hinaus sinkt das blockierte Rad in den Boden, bis es die erforderliche Kraft zur Unterstützung der Bewegung der anderen Räder erhält.

Mit KI übersetzt

Hinweise

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Introduction

NASA, ESA, and JAXA have investigated past water activity or a clue to life on Martain or Lunar surfaces [1‐5]. For investigating such planetary surfaces, surface mobility is one of the key factors for achieving a reliable mission, and many rovers have been developed in the world. The rover that is equipped with the function of a push-pull locomotion is a unique scheme, like an inchworm locomotion, and has a good traveling performance in the cylindrical wheel-typed rovers [6, 8, 10]. This scheme is a scheme that one side (front or rear) wheels are locked against ground, and they support a push or pull locomotion of the other side wheels using resistance force from the ground.

The autonomous traveling on a planet requires information between the wheels and soil. Understanding the interaction between a wheel and soil helps to design the traveling performance and model of a rover. The interaction between the locked-wheel and soil is the key factor for the push-pull locomotion rovers.

For this reason, many researchers have investigated this interaction for each push-pull locomotion rover or wheel walking robot. Sybel et al. [7] investigated the resistance force of each locked-wheel for a wheel walking robot around the 1960s. In 1998, Andrade et al. tried to estimate the traveling performance of this locomotion by constructing the locked-wheel model against soil for Marsokhod rover [8]. Wong [9] investigated soil flow beneath a locked-wheel during towing. Creager et al. [10] also observed the soil flow under a wheel and measured the traction and sinkage of Scarab rover during traveling. According to Sybel et al. [7], the locked-wheel sinks into the soil with an increasing sinkage, and this sinkage reach to close value to the steady-state value. This phenomenon is also observed in our previous study using the testbed rover [11].

Slipping of a locked (supported) wheel is a negative effect on this locomotion, whereas the resistance force against soil increases with an increasing sinkage. A large resistance force helps to support the repositioning of the other wheels’ motion. Analyzing especially the steady-sinkage of the locked-wheel can lead to understanding the maximum resistance force. This analysis can contribute to constructing the accurate model for estimating the behavior of the locked-wheel and push-pull locomotion rovers. Although many studies have investigated the locked-wheel phenomenon and the traveling performance of push-pull locomotion, the amount of sinkage and its resistance force of each locked-wheel at different wheel seize and mass is yet to be determined. Additionally, the estimation model has not been developed.

This paper firstly aims to investigate sinkage and its resistance force of each locked-wheel on loose soil during towing through an experiment. Furthermore, this paper considers theoretically this phenomenon based on the terramechanics and soil mechanics and tries to estimate the steady-state sinkage and resistance force of each locked-wheel in the next.

Push-pull locomotion traveling mechanism

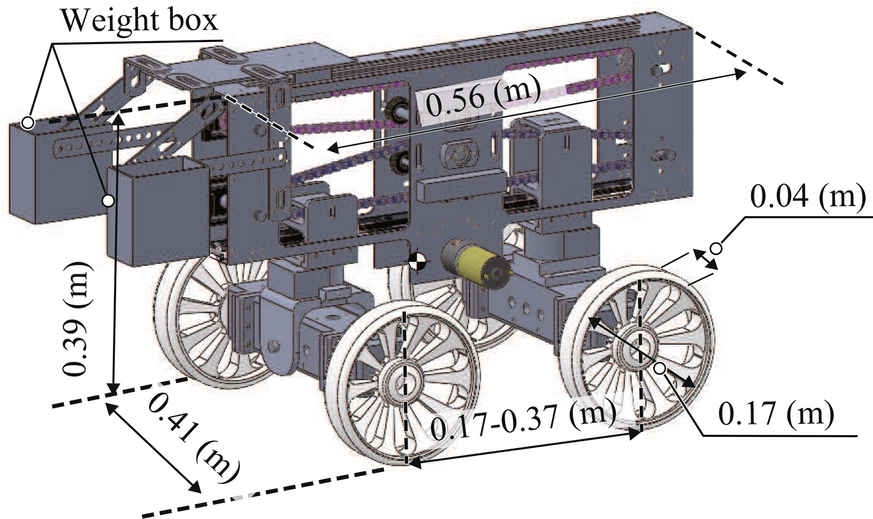

Figure 1 shows the schematic view of push-pull locomtoion testbed rover that is owned by our laboratory, and Fig. 2 also shows actual images of the traveling experiment on the surface with slope using this testbed.

Fig. 1

Schematic view of the testbed rover with function of push-pull locomotion [11]

Bild vergrößern

Fig. 2

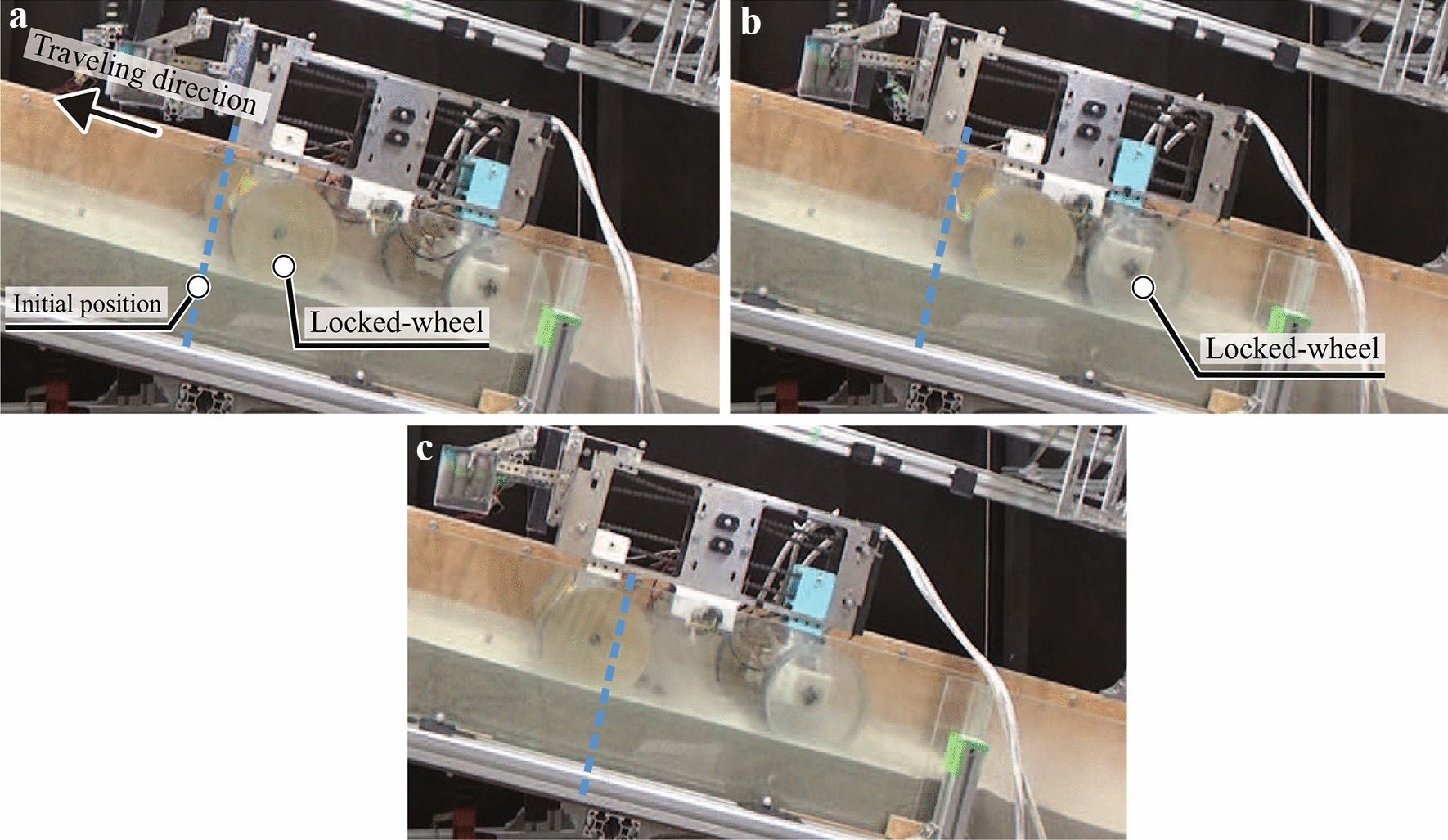

Actual image of the traveling experiment on the soil. The rover firstly shrinks its wheel-base, and the front wheel is fixed to the ground and supports the rear wheels’ motion (a–b). Next, the rover extends its wheel-base, and the rear wheel is also fixed to the ground and supports the front wheels’ motion (b–c)

Bild vergrößern

The front wheels of the rover are firstly fixed to the ground at the initial position (Fig. 2a). Next, the rover can shrink its wheel-base using the resistance force of the front wheels (Fig. 2a–b). In the next, the rear wheels of the rover are fixed to the ground. Then, the rover extends its wheel-base using the resistance of the rear wheels (Fig. 2b–c). The rover can move to forward direction by repeating this scheme.

When the required resistance force that supports the other wheels’ motion is small, the necessary accumulated soil behind the wheels is small, whereas the locked-wheel needs large accumulated soil that supports the other wheel’s motion when the required force is large.

The behavior of the locked-wheel

As mentioned earlier, when the push-pull locomotion rover moves, the rover uses the resistance force generated by keeping the wheel related to the ground. When the resistance force generated by sinkage that depends on a vertical load of the wheel is less, the wheel sinks into the soil until the required resistance force rises.

This section describes the force component of the total resistance force and sinking mechanism of the locked-wheel.

Resistance force

According to Wong’s study [9], when the locked-wheel acts on the soil, a wedge-shaped soil (area A) is formed in front of the wheel, and it pushes the soil mass area B, behaving like a bulldozing blade. Based on Wong’s study [9], this study assumes a virtual plane between soil-wedge area A and B and assumes that the soil-wedge area A moves together with the wheel and pushes soil-wedge area B. As shown in Fig. 3, this paper consider that the resistance force consists of five forces as follows:

$$\begin{aligned} F_{total} = F_1 + F_2 + F_3 + F_4 + F_5 \end{aligned}$$

(1)

where, $F_1$ is the passive earth force of area B, which is calculated as the force of a virtual plate. $F_2$ is the shear force under the soil wedge of area A. $F_3$ is the side friction force in area A. $F_4$ is the friction force on the side surface of the wheel, and $F_5$ is the friction force between the wheel surface and soil. In this study, the wheel for the experiment has a smooth side surface; therefore, the friction force $F_4$ is expected relatively small. Hence, force $F_4$ is negligible. $z_0$ indicates the sinkage of the wheel, and it increases depending on an increasing towing distance.

Fig. 3

Locked-wheel on the soil surface based on Wong’s observation [9]. The soil wedge (area A) beneath the wheel is assumed to move together with the wheel. The surface between soil wedge areas A and B is assumed as a virtual surface

Bild vergrößern

Wheel sinkage based on terramechanics theory

Terramechanics studies defined the interaction between a wheel and soil. In 1969, Bekker defined the pressure-sinkage relationship of a plate as shown in Fig. 4. According to Bekker [12], the normal stress p(z) acts on a plate when a plate sinks into loose soil as shown in Eq. (2).

$$\begin{aligned} p(z) = \left( \frac{k_c}{b} + k_\phi \right) z^n \end{aligned}$$

(2)

where $k_c$, $k_\phi, n $, are the pressure-sinkage parameters that depend on soil types. b indicates the width of a rectangular contact area of a plate.

Fig. 4

Relationship between the plate and soil

Bild vergrößern

Additionally, Bekker defined the rigid wheel-soil interaction model on loose soil based on the pressure-sinkage model as shown in Fig. 5. The phenomenon of a wheel differs from a plate because sinkage varies in its position. The sinkage under the wheel is large, whereas the sinkage that is close to the surface of the contact area is small. The equilibrium equations for the vertical direction of a towed rigid wheel can be writtern as follows Eq. (3):

$$\begin{aligned} \begin{aligned} W_h = w_w \int _{0}^{\theta _s} \sigma r \cos \theta d\theta \end{aligned} \end{aligned}$$

(3)

where $\sigma $ is the nromal pressure. $w_w$ and r are the wheel width and radius. $W_h$ is the wheel weight. $\theta _s$ is the contact angle. The normal pressure $\sigma $ acting on the wheel rim is assumed that it is equal to the normal pressure p beneath the plate at the same depth z. Hence, $\sigma r \cos \theta d\theta $ equals to p dx. Using the pressure-sinkage relationship Eq. (2), the equilibrium equation for the vertical direction is as follows:

$$\begin{aligned} W_h= & {} -w_w \int _{0}^{z_{0}} p(x) dx \nonumber \\= & {} -w_w \int _{0}^{z_{0}} \left( \frac{k_c}{w_w} + k_\phi \right) z^ndx \end{aligned}$$

(4)

where $z_0$ is the sinkage. When the wheel sinkage is small, from the geometry shown in Fig. 5, the position x is as follows:

$$\begin{aligned} x^2=\, &{} \left[ D - (z_0 - z)\right] (z_0 - z)\nonumber \\= \,& {} D(z_0 - z) \end{aligned}$$

(5)

where D is the wheel diameter.

$$\begin{aligned} \begin{aligned} 2x dx&= -D dz\\ \end{aligned} \end{aligned}$$

(6)

Then, substituting Eq. (6) into Eq. (4).

$$\begin{aligned} \begin{aligned} W_h = w_w\left( \frac{k_c}{w_w} + k_\phi \right) \int _{0}^{z_{0}} \left( \frac{z^n \sqrt{D}}{2\sqrt{(z_0 - z)}} \right) dz \\ \end{aligned} \end{aligned}$$

(7)

Then, using $z_0 - z =t^2 $, then $dz = -2t dt$, Eq. (7) is

$$\begin{aligned} \begin{aligned} W_h = w_w\left( \frac{k_c}{w_w} + k_\phi \right) \sqrt{D} \int _{0}^{\sqrt{z_{0}}} (z_0 - t^2) ^n dt \\ \end{aligned} \end{aligned}$$

(8)

Expanding $(z_0 - t^2)^n$, and using the first two terms $({z_0}^n-n{z_0}^{n-1}t^2)$, Eq. (8) is as follows:

$$\begin{aligned} \begin{aligned} W_h = \frac{w_w\left( \frac{k_c}{w_w} + k_\phi \right) \sqrt{z_0 D}}{3} {z_0}^n(3-n) \end{aligned} \end{aligned}$$

(9)

Rearranging Eq. (9) it becomes,

$$\begin{aligned} \begin{aligned} z_0 = \left[ \frac{3W_h}{w_w(3-n)\left( \frac{k_c}{w_w} + k_\phi \right) \sqrt{D}} \right] ^{[2/(2n +1)] } \end{aligned} \end{aligned}$$

(10)

Equation 10 indicates the sinkage of a wheel depends on its vertical load [9].

Fig. 5

Wheel-soil interaction on loose soil [12]

Bild vergrößern

Estimation method for the steady-state sinkage of the locked-wheel

This study applies the wheel-soil interaction model defined by Bekker to estimate the steady-state sinkage of the locked-wheel, especially using Eq. (10). When the wheel is towed, the wheel moves dynamically. However, previous studies indicated that the resistance force acting on a plate from soil has weak velocity dependency when the velocity is small [13, 14]. Although the wheel-soil interaction model is constructed based on the pressure-sinkage relationship, when the velocity is small, the phenomenon can be assumed close to a static. Thus, this paper postulates the wheel-soil model can be applied to the locked-wheel.

Estimation method for the maximum resistance force of the locked-wheel

The method was based on an observation by Wong [9]. As mentioned eariler, Wong’s observation assumed that soil wedge area A behaved like a plate and acted on soil mass area B. This paper, therefore, assumes that the soil wedge area A move together with wheel and pushes soil wedge area B, and the slipsurface beneath the soil wedge is a constant shape. This section describes each force acting on the locked-wheel as shown in Fig. 3.

Classical analytical model for calculating force $F_1$ against area B

There are several analytical models for predicting force of plate tools against soil mass have been widely studied since the 1960s [15‐20]. Analytical models have been developed for estimating or calculating earthmoving, excavation, and cutting force of a bucket. These models were summarized by [21], and the models have been verified by several types of research [22‐24]. Furthermore, Yeomans et al. and Scott et al. [14, 25] proposed the leg model for planetary rovers and estimated its resistance force using these analytical models.

The analytical model for applying to the locked-wheel model requires the ability to consider the accumulated soil behind the wheel. The analytical models, however, have different abilities depending on the model. According to Blouin et al. [21], Osman, Mckyes, Grisso, Swick and Perumpral, and Zeng [15, 17‐20] model can consider the accumulated soil. Osman model, however, contains indeterminate parameter referring to [22], and Mckeys and Swick & perumpral model represents equivalent results according to [23].

Furthermore, our previous plate bulldozing tests confirmed that Mckyes model indicates a close value to the experiments. Form this result, we chose Mckyes model for calculating force $F_1$ in this paper.

Mckyes model

In 1985, Mckyes et al. [17] proposed the earthmoving model that was first introduced by Reece [26]. Mckyes model can consider the effects of the soil-tool adhesion $C_a$, soil cohesion c, soil weight $W_b$, blade width $w_w$, and surcharge q. The model assumes that the soil slip on the tool surface and within the soil itself. Then, the frictional component of shear strength on the two slip lines have been combined with perpendicular forces to form resultant forces $F_T$ and R, and cohesional resistance forces $C_aL$ and $cL_1$ as shown in Fig. 6 [17]. The total force $F_T$ acting on the plate is derived using Terzaghi’s soil bearing capacity factor N as follows:

$$\begin{aligned} F_T=\, & {} (\gamma g z_0^2 N_r + cz_0N_c + qz_0N_q + C_az_0N_{ca}) w_w \end{aligned}$$

(11)

$$\begin{aligned} N_r= \,& {} \frac{(\cot \beta + \cot \rho )}{2\left[ \cos (\beta + \delta ) + \sin (\beta + \delta )\cot (\rho + \phi )\right] } \end{aligned}$$

(12)

$$\begin{aligned} N_c=\, & {} \frac{(1 + \cot \rho \cot (\rho + \phi ))}{\cos (\beta + \delta ) + \sin (\beta + \delta )\cot (\rho + \phi )} \end{aligned}$$

(13)

$$\begin{aligned} N_q=\, & {} 2N_\gamma \end{aligned}$$

(14)

$$\begin{aligned} N_{ca}= \,& {} \frac{1-\cot \beta \cot (\rho + \phi )}{\left[ \cos (\beta + \delta ) + \sin (\beta + \delta )\cot (\rho + \phi )\right] } \end{aligned}$$

(15)

where $\beta $ is the rake angle. g is the earth gravity. $\rho $ is the shear plane failure angle. $\phi $ is the internal friction angle. $\gamma $ is the soil density. $\delta $ is the external friction angle. q is the soil surcharge. Herein, this paper assumes that the soil surcharge q is constant along the wheel width, and $\rho $ is generally found based on the assumption that the soil failure will occur at the angle $\rho $ which give the weakest resistance force. This can be estimated by determining the value of $\rho $ at which $N_r$ is minimized.

$$\begin{aligned} F_{Th} = F_T\sin (\beta + \delta ) \end{aligned}$$

(16)

where $F_{Th}$ represents the horizontal force of the total force $F_T$ acting to the plate. Herein, force $F_{Th}$ indicates $F_ 1$ of area B (Fig. 3). This force can be generated by acting soil mass of area A, like a plate. The parameters used for the analytical model as shown in list of notations (Table 1).

Table 1

List of notations

Description (unit)	Symbol
Each area of soil wedge in area A $\mathrm {(m^2)}$	$A_{area}$
Cohesion of the soil $\mathrm {(N/m^2)}$	c
Soil-tool adhesion $\mathrm {(N/m^2)}$	$C_a$
Soil-wheel adhesion $\mathrm {(N/m^2)}$	$c_w$
Diameter of the wheel $\mathrm {(m)}$	D
Total resistance force of the locked-wheel $\mathrm {(N)}$	$F_{total}$
Force against soil mass area B $\mathrm {(N)}$	$F_1$
Shear force beneath the soil wedge area A $\mathrm {(N)}$	$F_2$
Side friction force of the soil wedge area A $\mathrm {(N)}$	$F_3$
Side friction force of the side surface of the wheel $\mathrm {(N)}$	$F_4$
Friction force on the wheel surface $\mathrm {(N)}$	$F_5$
Total force acting on the plate $\mathrm {(N)}$	$F_T$
Horizontal component of the total force $\mathrm {(N)}$	$F_{Th}$
Earth gravity $\mathrm {(m/s^2)}$	g
Coefficient of earth pressure at rest $\mathrm {(-)}$	$K_0$
Soil modulus of deformation depend on c ($\mathrm {N/m^{(n+1)}}$)	$k_c$
Internal friction angle modulus ($\mathrm {N/m^{(n+2)}}$)	$k_\phi $
Tool length $\mathrm {(m)}$	l
Slip surface length $\mathrm {(m)}$	$L_1$
Base line length of the soil wedge in area A $\mathrm {(m)}$	$l_s$
Sinkage ratio $\mathrm {(-)}$	n
Terzahgi’s soil bearing capacity factors $\mathrm {(-)}$	$N_\gamma , N_c, N_q, N_{ca}$
Normal stress ${\mathrm {(N/m^2)})}$	p
Surcharge on the soil surface $\mathrm {(N/m^2)}$	q
Surcharge loading $\mathrm {(N)}$	Q
Resultant force acting on slip surface $\mathrm {(N)}$	R
Wheel radius $\mathrm {(m)}$	r
Width of the plate or wheel $\mathrm {(m)}$	$b, w_w$
Weight of the plate $\mathrm {(N)}$	$W_p$
Weight of the soil wedge $\mathrm {(N)}$	$W_s$, $W_b$
Weight of the wheel $\mathrm {(N)}$	$W_h$
Position toward the horizontal direction of the wheel$\mathrm {(m)}$	x
Sinkage $\mathrm {(m)}$	$ z_0, z$
Rake angle $\mathrm {(^\circ )}$	$\beta $
Soil density $\mathrm {(kg/m^3)}$	$\gamma $
External friction angle $\mathrm {(^\circ )}$	$\delta $
Contact angle $\mathrm {(^\circ )}$	$\theta $
Static contact angle $\mathrm {(^\circ )}$	$\theta _s$
Shear plane failure angle $\mathrm {(^\circ )}$	$\rho $
Normal stress acting on wheel surface $\mathrm {(N/m^2)}$	$\sigma $
Horizontal normal stress $\mathrm {(N/m^2)}$	$\sigma _h$
Wheel weight per unit area $\mathrm {(N/m^2)}$	$\sigma _b$
Vertical normal stress $\mathrm {(N/m^2)}$	$\sigma _v$
Shear stress on the wheel surface $\mathrm {(N/m)}$	$\tau $
Internal friction angle $(^\circ )$	$\phi $

Fig. 6

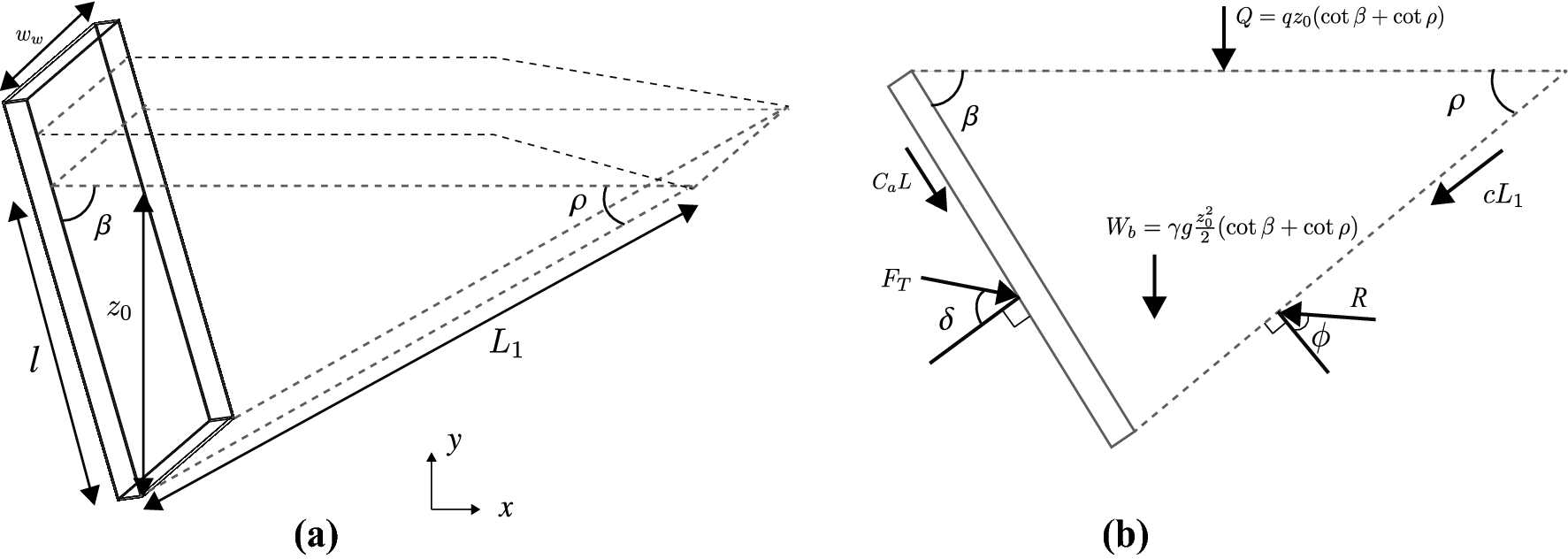

The wedge theory of passive soil failure. a Soil wedge. b Forces on soil wedge

Bild vergrößern

Shear and friction force $F_2$, $F_3$, $F_5$ of area A

In area A, shear strength $F_2$ beneath the soil wedge is derived from Coulomb’s failure criterion, and side friction force $F_3$ is calculated based on earth pressure at rest coefficient as follows:

$$\begin{aligned} F_2 = cw_wl_s + (W_s+W_h)\tan \phi \end{aligned}$$

(17)

where $W_s$ is the soil weight of the soil wedge and $W_h$ is the wheel weight. For the side friction force calculation, vertical normal stress at depth $z_0$ is:

$$\begin{aligned} \sigma _v = \gamma g z_0 + \sigma _b \end{aligned}$$

(18)

where $\sigma _b$ is the wheel weight per unit area. Then, the horizontal normal stress is:

$$\begin{aligned} \sigma _h = K_0 \sigma _v \end{aligned}$$

(19)

where $K_0 = 1-\sin \phi $ [27] is the coefficient of earth pressure at rest. Side friction force $F_3$ is derived as follows:

$$\begin{aligned} F_3 = 2(c + \sigma _h \tan \phi )A_{area} \end{aligned}$$

(20)

where $A_{area}$ is an area of the side surface of the soil wedge in area A.

The frictional force $F_5$ is determined by the shear stress $\tau $, which is calculated based on Mohr-Coulomb model, in the tangential direction at an arbitrary point on the wheel surface as follows [12]:

$$\begin{aligned} \tau = c_w + \sigma \tan \delta \end{aligned}$$

(21)

where $\sigma $ is the normal pressure on the wheel surface. $c_w$ is the soil-wheel adhesion. $\delta $ is the tool-soil friction angle. Therefore, the sum of the horizontal component of the shear force $\tau \cos (\theta )$ along the wheel surface is the force $F_5$ between the wheel surface and soil as follows:

$$\begin{aligned} \begin{aligned} F_5 =w_w r\int _{0}^{\theta _o} \tau \cos (\theta )d\theta \end{aligned} \end{aligned}$$

(22)

where $w_w$ is the wheel width. r is the wheel radius, and $\theta _o$ indicates the wheel contact angle at the soil surface. The calculation is performed using the soil and wheel parameters Tables 2, 3

Table 2

Experimental conditions for the locked-wheel towing test

Description (unit)	Value
Slope angle $\mathrm {(^\circ )}$	0
Soil	Silica Sand No. 5
Towing speed $\mathrm {(m/s)}$	0.00341, 0.017, 0.0341, 0.051	0.00341
Rotational speed of motor shaft $\mathrm {(rpm)}$	100, 500, 1000, 1500	100
Wheel diameter D $\mathrm {(m)}$	0.17	0.17	0.2, 0.28, 0.35
Wheel width $w_w$ $\mathrm {(m)}$	0.04	0.06, 0.08, 0.1	0.04
Wheel mass $\mathrm {(kg)} $	1.0, 1.5, 2.0, 2.5	2.5	2.5

Table 3

Soil parameters and values for the calculation of the wheel force

Modulus	Value	Unit	Name of parameters	References
c	762	$\mathrm {(N/m^2)}$	Soil cohesion	[31]
$C_a$	762	$\mathrm {(N/m^2)}$	Soil-tool adhesion	[31]
$c_w$	0	$\mathrm {(N/m^2)}$	Soil-wheel adhesion	–
g	9.81	($\mathrm {m/s^2}$)	Earth gravity	–
$k_c$	1000	($\mathrm {N/m^{(n+1)}}$)	Soil modulus of deformation depend on c	Decided by experiment
$k_\phi $	500000	($\mathrm {N/m^{(n+2)}}$)	Internal friction angle modulus	Decided by experiment
n	1.1	(–)	Sinkage ratio	Decided by experiment
q	Measured	$\mathrm {(N/m^2)}$	Surcharge on the soil surface	Measured by experiment
$\delta $	15	$\mathrm {(^\circ )}$	External friction angle	Decided by plate towing experiment
$\beta $	90	$\mathrm {(^\circ )}$	Rake angle	–
$\gamma $	1430	($\mathrm {kg/m^3}$)	Soil density	Measured by experiment
$\phi $	22.3	($^\circ $)	Internal friction angle	[31]

Experiment

Fig. 7 depicts the schematic view of the experimental setup for the towing test. The soil bin area is width, length, and high of $\mathrm {0.3}$, $\mathrm {1.2}$, and 0.18–0.2 $\mathrm {m}$, respectively, and Silica Sand No. 5 fills that area. The size of the wheel is set as a basis of the rover testbed (Fig. 1) [11]. For the towing test at different wheel sizes, the wheel size is 0.17, 0.20, 0.28, and 0.35 $\mathrm {m}$ in diameter, 0.04, 0.06, 0.08, and 0.1 $\mathrm {m}$ in width (Fig. 8). The wheel mass is from 1.0 to 2.5 $\mathrm {kg}$. Tables 2, 3 summarizes the experimental conditions, the soil parameters, and variables for calculating the resistance force. In this system, the wheel can move to a vertical direction freely; that is, the towing motion does not affect the vertical motion. The wheel sinkage depends on the vertical load of the wheel. The wheel unit connects to the towing unit via the towing rope. For investigating the effect of the towing velocity on the force, the towing speed is 0.00341, 0.017, 0.0341, and 0.051 $\mathrm {m/s}$. The rotational speed of the towing motor shaft is 100, 500, 1000, and 1500 rpm by PID control, and the towing speed of the wheel unit becomes the abovementioned velocities. The Motion Capture System measures the displacement, and the force sensor also measures the resistance force of the wheel. Tables 4, 5 summarize the specification of each system. The experimental trials are 5–10 times in each condition. The detailed procedure is as follows:

A leveling plate with spikes stirs up the soil at first. Then, the leveling plate smooths the soil surface along the sidewall of the soil box without compaction.
The wheel slowly and carefully is set on the soil surface.
The rope tows the wheel unit at each constant speed.

Table 4

Specification of motion capture system

Description (unit)	Value
Model type (–)	OptiTrack Prime13
Frame rate (FPS)	100
Resolution $\mathrm {(pixel)}$	1280 $\times $ 1024
Accuracy $\mathrm {(m)}$	$\le 0.001$
Operation range $\mathrm {(m)}$	1–12
View angle $\mathrm {(^\circ )}$	Horizontal FOV:56, Vertical FOV:46

Table 5

Specification of force sensor

Description (unit)	Value
Model type (–)	Leptrino PFS080YS102U6S
Rating capacity $F_z$ $\mathrm {(N)}$	$\pm {1000}$
Rating capacity $F_x, F_y$ $\mathrm {(N)}$	$\pm {500}$
Rating capacity $M_x, M_y, M_z$ $\mathrm {(Nm)}$	$\pm {30}$
Sampling frequency $\mathrm {(Hz)}$	100
Resolution (–)	$\pm {1/4000}$

Fig. 7

Single wheel tester

Bild vergrößern

Fig. 8

Each wheel for the test. a Diameter 0.17 m, width 0.04 m, b Diameter 0.2 m, width 0.04 m, c Diameter 0.28 m, width 0.04 m. d Diameter 0.35 m, width 0.04 m. e Diameter 0.17 m, width 0.06 m. f Diameter 0.17 m, width 0.08 m. g Diameter 0.17 m, width 0.1 m

Bild vergrößern

Experimental result

Raw data

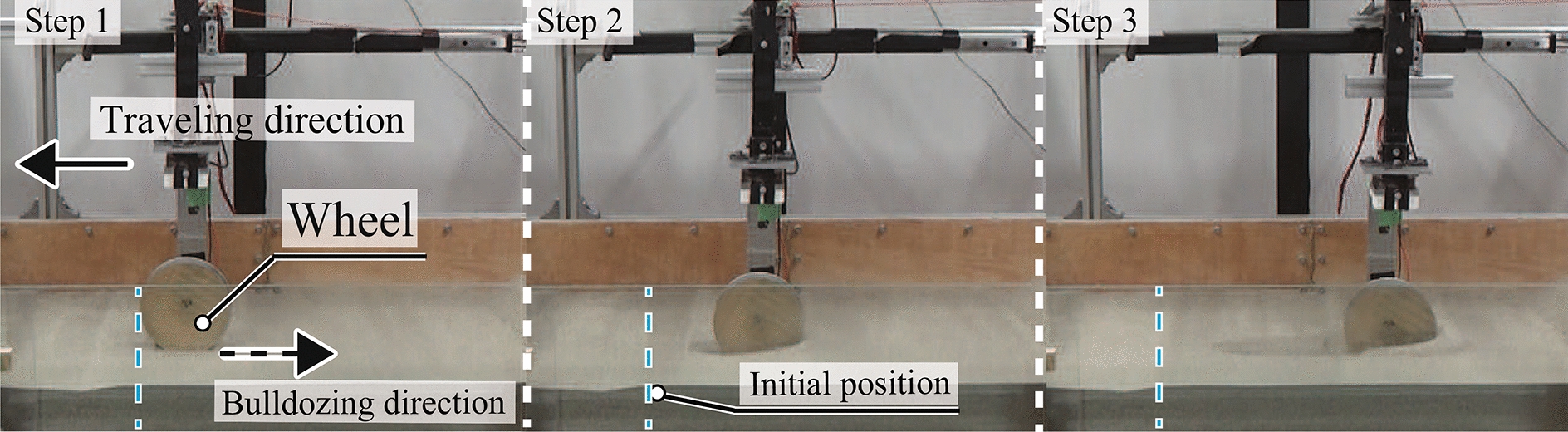

Figure 9 provides the actual image of the towing experiment. Figure 10 also shows the raw data of the typical experiment. Each graph indicates the sinkage and resistance force. As shown in Fig. 9, 10, the wheel sinks into the soil with an increasing sinkage, and the resistance force also rises. Then, the sinkage reaches a steady-state value.

Fig. 9

Actual image of the wheel towing experiment. Diameter 0.17 m; width 0.04 m; mass 2.5 kg

Bild vergrößern

Fig. 10

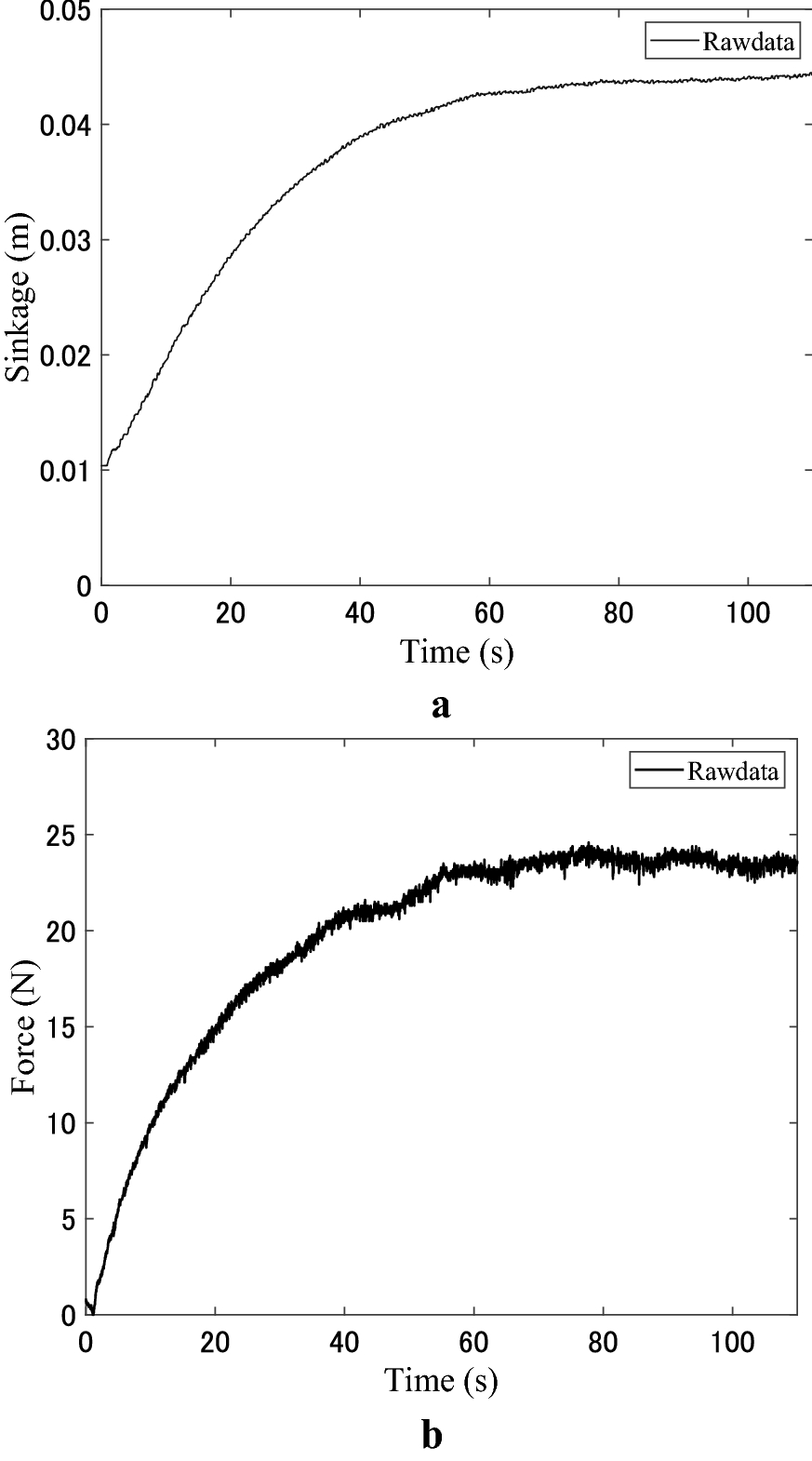

Raw data of the sinkage and resistance force. Diameter 0.17 m; width 0.04 m; initial sinkage 0.01 m; wheel mass 2.5 kg; towing speed 0.00341 m/s. a Sinkage, b Resisatnce force

Bild vergrößern

Velocity dependency

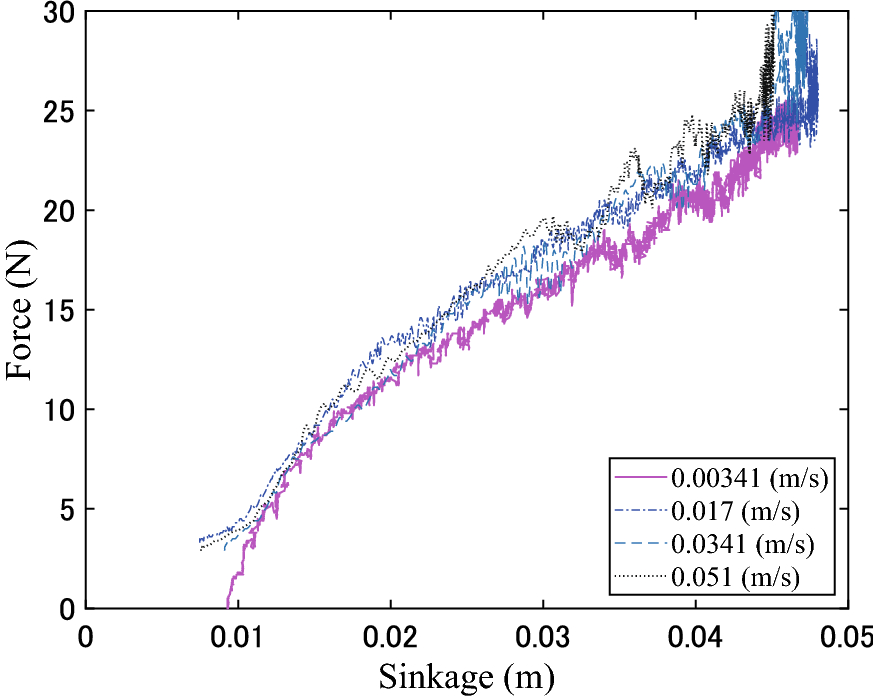

Figure 11 shows the relationship between the resistance force and sinkage at different towing velocity. The difference between each value is small; therefore, the velocity dependency of the resistance force is weak under the towing velocities adopted in this paper.

Fig. 11

Relationship between the wheel sinkage and resistance force at the different towing velocity

Bild vergrößern

Sinkage at the steady-state condition

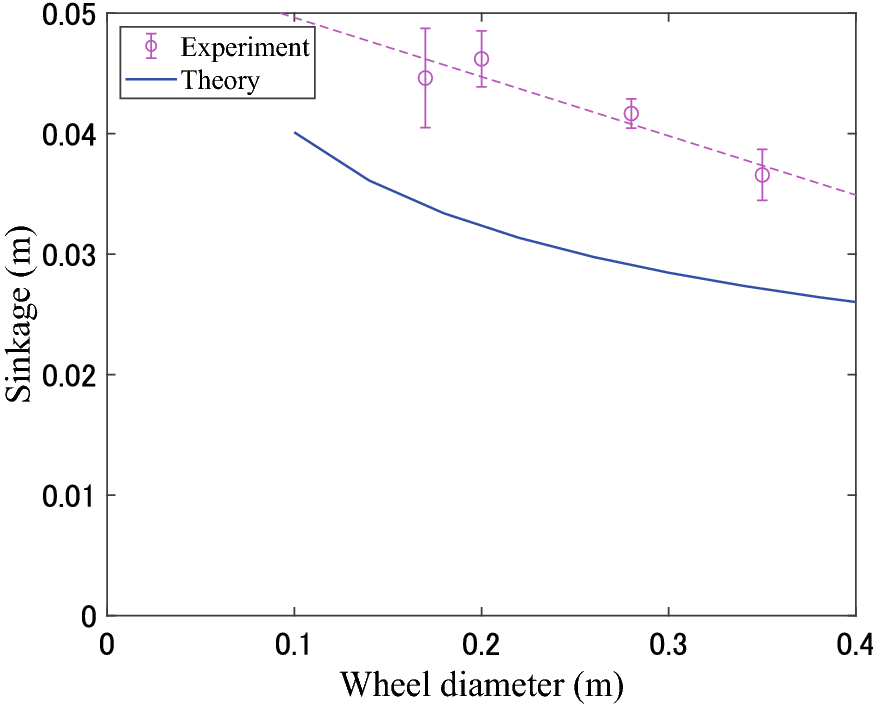

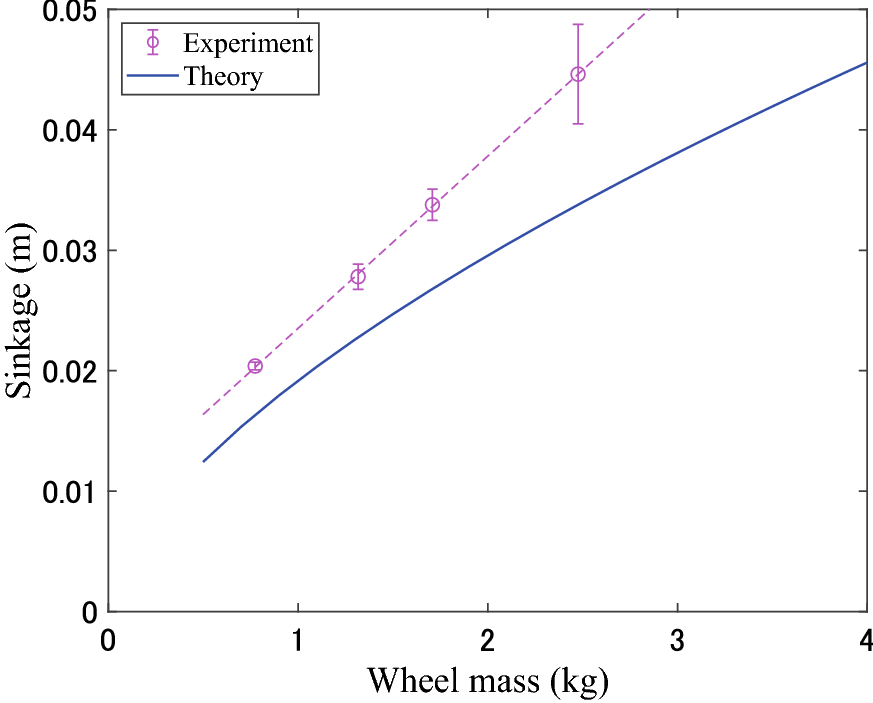

Figures 12, 13, 14 present the steady-state sinkage at different wheel mass, width, and diameter. The continuous lines indicate the theoretical results calculated by the sinkage model Eq. (10), and each plotted points indicates the experimental results of the sinkage at each steady-state condition.

The amount of sinkage increases with an increasing wheel mass, whereas it decreases with an increasing wheel width and diameter. This is because when the wheel width and diameter increases, the ground contact area becomes large. Consequently, the amount of sinkage can be reduced. The calculated results capture relatively the same trend as the experimental results.

Fig. 12

Mean $\mathrm {\pm {SD}}$ steady-state sinkage at different wheel mass. Diameter 0.17 m; width 0.04 m

Bild vergrößern

Fig. 13

Mean $\mathrm {\pm {SD}}$ steady-state sinkage at different wheel width. Diameter 0.17 m; mass 2.5 kg

Bild vergrößern

Fig. 14

Mean $\mathrm {\pm {SD}}$ steady-state sinkage at different wheel diameter. Width 0.04 m; mass 2.5 kg

Bild vergrößern

Resistance force at the steady-state condition

Figures 15, 16, 17 also provide the resistance force at different wheel mass, diameter, and width. The continuous line indicates the theoretical value calculated by the resistance force model Eq. (1) and the data points indicate the resistance force when the sinkage becomes a steady-state value.

Fig. 15

Mean $\mathrm {\pm {SD}}$ resistance force of steady-state sinkage at different wheel mass. Diameter 0.17 m; width 0.04 m

Bild vergrößern

Fig. 16

Mean $\mathrm {\pm {SD}}$ resistance force of steady-state sinkage at different wheel width. Diameter 0.17 m; mass 2.5 kg

Bild vergrößern

Fig. 17

Mean $\mathrm {\pm {SD}}$ resistance force of steady-state sinkage at different wheel diameter. Width 0.04 m; mass 2.5 kg

Bild vergrößern

The resistance forces of the experimental results increase with an increasing wheel mass, whereas when the wheel diameter and width increase, the trend of the resistance force indicates a relatively decreasing trend as shown in the graphs Figs. 16, 17. The decreasing trend can be considered to be caused by decreasing the steady-state sinkage with an increasing wheel width and diameter. Although the theoretical value captures the trend of the resistance force depending on the wheel mass and diameter, the trend of the resistance force depending on the wheel width is relatively different. Furthermore, the change of the resistance forces depending on the wheel width and diameter is relatively small.

Discussion

Steady-state sinkage and resistance force of the locked-wheel

According to Sybel et al. [7], the sinkage increased with an increasing distance where a wheel was towed, and the sinkage and force finally reached to a steady-value. The same increasing trend was confirmed as shown in Fig. 10. Additionally, experimental results in this paper confirmed that the steady-state sinkage depended on the contact area and wheel mass (Figs. 12, 13, 14), and the maximum resistance force depended on this sinkage (Fig. 15, 16, 17). Although the sinkage becomes large, the wheel mass especially contributes to improving the resistance force. When the wheel width and diameter increases, the contact area becomes large. However, the amount of sinkage decreases. Consequently, the change of the resistance force at steady-state sinkage depending on the wheel width and diameter can be considered small. To decide the required resistance force and the allowable steady-sinkage, this information can help to estimate the traveling performance of push-pull locomotion.

Estimation model of the steady-state sinkage and resistance force

Previous studies mainly confirmed the sinking behavior and resistance force experimentally [7, 9, 10, 28]. Andrade et al. [8] developed the estimation model of the resistance force especially for the locked-wheel of the Mrasokhod rover. However, theoretical consideration between the steady-state sinkage and maximum resistance force at different wheel size has remained unclear.

From experimental results, the velocity dependency of the resistance force was weak under the velocity adopted in this paper. Previous studies confirmed that the dependence of the plate force on the velocity at the low-speed range 1 or 10–50 mm/s [13, 14] was weak. Additionally, the dependence of the towing speed at 20–180 cm/s for the plate force was confirmed small effect [29]. The experimental results indicated the same trend as the previous studies and suggested that the velocity dependency on the resistance force of the locked-wheel was weak. From this, the pressure-sinkage relationship of the locked-wheel can be considered as a static phenomenon under the towing velocity in this paper. This result suggested that the wheel-soil interaction model defined by Bekker can be applied to estimate sinkage of the locked-wheel.

The theoretical calculation for the steady-state sinkage based on terramchanics theory represented the same trend as the experimental results of the steady-state sinkage at different wheel mass, diameter, and width (Figs. 12, 13, 14, 15, 16, 17). This result suggested that the model can be used for estimating the steady-state sinkage of the locked-wheel.

Although the trend of resistance force at different wheel width calculated by Eq. (1) relatively differed from the experimental results (Fig. 16), the theoretical result at different wheel diameter and mass indicated relatively the same trend of the experimental results (Figs. 15, 17).

The model indicated Eq. (1) includes some assumption. For example, the accumulated soil toward the towing direction was assumed uniform. However, our previous observation confirmed that the shape of an embankment behind the wheel along the wheel’s width direction is nonuniform, like a fan-shaped. Furthermore, Higa et al. [30] indicated that the stress distribution beneath the wheel along the wheel’s width direction was also nonuniform. That is, the phenomenon and geometry in the soil wedge along the wheel width direction can be present nonuniform.

Furthermore, the theoretical model assumed a virtual plane between the soil wedge area A and B and assumed a constant slip surface beneath the soil wedge.

Further improvement in the locked-wheel model for steady-state values should consider the nonuniform phenomenon along the wheel width and validate assumption of the soil wedge, and slip surface. These considerations may allow an even closer value to the experimental values.

Conclusion

Locked-wheel behavior is a key factor for designing a push-pull locomotion rover. Understanding steady-state sinkage and its resistance force lead to understanding the maximum force that the locked wheel can generate. For this reason, this paper investigated the relationship between steady-state sinkage and the resistance force of the locked-wheel at different wheel mass, diameter, and wide. Additionally, we estimated the steady-state sinkage using the wheel-soil interaction model based on terramechanics at first, then tried to estimate the resistance force against its sinkage using the locked-wheel model based on soil mechanics. The experimental results clarified the steady-state sinkage and resistance force at different wheel sizes. Furthermore, the estimation of the sinkage and resistance force gave theoretical consideration. The main conclusions are as follows:

The steady-state sinkage depends on the contact area and mass of the locked wheel. As the width and diameter increases, the steady-state sinkage becomes small, whereas when the width and diameter become small, the sinkage also becomes large. As the mass increases, the stady-state sinkage also increases.
The maximum resistance force especially depends on the steady-state sinkage. Although the sinkage becomes large, increasing the wheel mass contributes to an increasing resistance force. Additionally, as an increasing wheel width and diameter, the resistance force becomes small because of decreasing the steady-state sinkage.
The wheel-soil interaction model based on terramechanics captured relatively the same trend as the steady-state sinkage of the experimental results. Although the further consideration of the accuracy of the model and validating assumptions included in the model are necessary, the resistance force model using steady-state sinkage indicated relatively the same trend as the experimental results at different wheel diameter and mass.

This knowledge can contribute to the design for the traveling performance of push-pull locomotion. Furthermore, when the accurate model of the locked-wheel will be constructed through further consideration, the model can be used for unmanned control of the rovers. Further works comprise validating the accuracy of each model, considering the gravity effect, analyzing the behavior of the locked-wheel on any soil types such as regolith simulant of the planet, and constructing the push-pull locomotion model that uses the locked wheel model for autonomous control.

Acknowledgements

This work was supported by JKA and its promotion funds from KEIRIN RACE.

Competing interests

The authors declare that they have no competing interests.

Open AccessThis article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Vorheriger Artikel A robotic end-effector with rolling up mechanism for pick-and-release of a cotton sheet

Nächster Artikel Dynamic manipulation of unknown string by robot arm: realizing momentary string shapes

Metadaten
Literatur

Titel: Estimation of resistance force at steady-state sinkage for cylindrical wheel-typed lunar/planetary exploration rovers with function of push–pull locomotion
Verfasst von: Daisuke Fujiwara
Naoki Tsujikawa
Tetsuya Oshima
Kojiro Iizuka
Publikationsdatum: 01.12.2020
Verlag: Springer International Publishing
Erschienen in: ROBOMECH Journal / Ausgabe 1/2020
Elektronische ISSN: 2197-4225
DOI: https://doi.org/10.1186/s40648-020-00183-0

NASA (2020) NASA MARS 2020 Mission. https://mars.nasa.gov/mars2020/. Accessed 15 Apr 2020

Orosei R, Lauro SE, Pettinelli E, Cicchetti A, Coradini M, Cosciotti B, Di Paolo F, Flamini E, Mattei E, Pajola M, Soldovieri F, Cartacci M, Cassenti F, Frigeri A, Giuppi S, Martufi R, Masdea A, Mitri G, Nenna C, Noschese R, Restano M, Seu R (2018) Radar evidence of subglacial liquid water on mars. Science 361(6401):490–493. https://doi.org/10.1126/science.aar7268CrossRef

ESA (2020) ESA ExoMars mission 2022. http://www.esa.int/Science_Exploration/Human_and_Robotic_Exploration/Exploration/ExoMars. Accessed 15 Apr 2020

JAXA (2020) JAXA Hayabusa2. http://www.hayabusa2.jaxa.jp/. Accessed 15 Apr 2020

Tsuda Y, Yoshikawa M, Saiki T, Nakazawa S, ichiro Watanabe S (2019) Hayabusa2-sample return and kinetic impact mission to near-earth asteroid ryugu. Acta Astronautica 156:387–393. https://doi.org/10.1016/j.actaastro.2018.01.030CrossRef

Azkarate M, Zwick M, Hidalgo Carrió J, Nelen R, Wiese T, Poulakis P, Joudrier L, Visentin G (2015) First experimental investigations on wheel-walking for improving triple-bogie rover locomotion performances. In: Conference: ASTRA 2015-13th ESA Workshop on Advanced Space Technologies for Robotics and Automation, At Noordwijk, The Netherlands

Sybel HV, Grosse-Scharmann F (1961) Triebkraftsteigerung bei geländefahrzeugen durch das schub-scritt-verfahren (increasing of driving forces in terrain through push-walk process). In: Proc First International Conference on Terrain-Vehicle Systems, Edizioni Minerva Techinca, pp 895–912

Andrade G, Amar FB, Bidaud P, Chatila R (1998) Modeling robot-soil interaction for planetary rover motion control. In: Proceedings. 1998 IEEE/RSJ International Conference on Intelligent Robots and Systems. Innovations in Theory, Practice and Applications (Cat. No.98CH36190), vol 1, pp 576 – 581. https://doi.org/10.1109/IROS.1998.724680

Wong J (1978) Theory of ground vehicles. Wiley, New Jersey

10.

Creager C, Johnson K, Plant M, Moreland S, Skonieczny K (2015) Push-pull locomotion for vehicle extrication. J Terramech 57:71–80. https://doi.org/10.1016/j.jterra.2014.12.001CrossRef

11.

Fujiwara D, Iizuka K, Asami D, Kawamura T, Suzuki S (2019) Study on traveling performance for variable wheel-base robot using subsidence effect. Int J Mech Eng Robotics Res. https://doi.org/10.18178/ijmerr.8.2.233-238CrossRef

12.

Bekker G (1969) Introduction to terrain-vehicle systems. University of Michigan Press, Ann Arbor

13.

Albert R, Pfeifer MA, Barabási AL, Schiffer P (1999) Slow drag in a granular medium. Phys Rev Lett 82:205–208. https://doi.org/10.1103/PhysRevLett.82.205CrossRef

14.

Yeomans B, Saaj CM, Winnendael MV (2013) Walking planetary rovers-experimental analysis and modelling of leg thrust in loose granular soils. J Terramech 50(2):107–120. https://doi.org/10.1016/j.jterra.2013.01.006CrossRef

15.

Osman MS (1965) The mechanics of soil cutting blades: osman, m.s., jour. agric engr res, 9, 4, 1965. J Terramech 2(1):98. https://doi.org/10.1016/0022-4898(65)90115-1CrossRef

16.

Gill WR, Vanden Berg GE (1967) Soil dynamics in tillage and traction. Washington, D.C. : Agricultural Research Service, U.S. Dept. of Agriculture, includes index

17.

McKyes E (1985) Soil cutting and tillage. Developments in agricultural engineering. Elsevier Science, Amsterdam

18.

Grisso R, Perumpral J (1985) Review of models for predicting performance of narrow tillage tool. Trans ASA. https://doi.org/10.13031/2013.32388CrossRef

19.

Swick W, Perumpral J (1988) A model for predicting soil-tool interaction. J Terramech 25(1):43–56. https://doi.org/10.1016/0022-4898(88)90061-4CrossRef

20.

Zeng X, Burnoski L, Agui J, Wilkinson A (2007) Calculation of excavation force for isru on lunar surface. https://doi.org/10.2514/6.2007-1474

21.

Blouin S, Hemami A, Lipsett M (2001) Review of resistive force models for earthmoving processes. J Aerospace Eng. https://doi.org/10.1061/(ASCE)0893-1321(2001)14:3(102)CrossRef

22.

Wilkinson A, DeGennaro A (2007) Digging and pushing lunar regolith: classical soil mechanics and the forces needed for excavation and traction. J Terramecha 44(2):133–152. https://doi.org/10.1016/j.jterra.2006.09.001CrossRef

23.

King R, Susante PV, Gefreh M (2011) Analytical models and laboratory measurements of the soil-tool interaction force to push a narrow tool through jsc-1a lunar simulant and ottawa sand at different cutting depths. J Terramecha 48(1):85–95. https://doi.org/10.1016/j.jterra.2010.07.003CrossRef

24.

Xi B, Jiang M, Cui L, Liu J, Lei H (2019) Experimental verification on analytical models of lunar excavation. J Terramech 83:1–13. https://doi.org/10.1016/j.jterra.2019.01.002CrossRef

25.

Scott G, Saaj C (2012) The development of a soil trafficability model for legged vehicles on granular soils. J Terramech 49:133–146. https://doi.org/10.1016/j.jterra.2011.12.002CrossRef

26.

Reece AR (1964) Paper 2: the fundamental equation of earth-moving mechanics. Proceedings of the Institution of Mechanical Engineers, Conference Proceedings 179(6):16–22. https://doi.org/10.1243/PIME_CONF_1964_179_134_02CrossRef

27.

Jaky J (1944) The coefficient of earth pressure at rest. in hungarian (a nyugalmi nyomas tenyezoje). J Soc Hungarian Arch Eng 78(22):355–358

28.

Scott J Moreland DWCCVA Krzysztof Skonieczny (2011) Soil motion analysis system for examining wheel-soil shearing. In: 17th International Conference of the International Society for Terrain Vehicle Systems 2011 (ISTVS 2011), Blacksburg, Virginia

29.

Wieghardt K (1975) Experiments in granular flow. Ann Rev Fluid Mech 7(1):89–114. https://doi.org/10.1146/annurev.fl.07.010175.000513CrossRefMATH

30.

Higa S, Nagaoka K, Nagatani K, Yoshida K (2015) Measurement and modeling for two-dimensional normal stress distribution of wheel on loose soil. J Terramech 62:63–73. https://doi.org/10.1016/j.jterra.2015.04.001CrossRef

31.

Noriaki M (2013) Study on development locomotion performance based on terramechanics for wheeled rover on soft ground. PhD thesis, SOKENDAI

Description (unit)	Symbol
Each area of soil wedge in area A \(\mathrm {(m^2)}\)	\(A_{area}\)
Cohesion of the soil \(\mathrm {(N/m^2)}\)	c
Soil-tool adhesion \(\mathrm {(N/m^2)}\)	\(C_a\)
Soil-wheel adhesion \(\mathrm {(N/m^2)}\)	\(c_w\)
Diameter of the wheel \(\mathrm {(m)}\)	D
Total resistance force of the locked-wheel \(\mathrm {(N)}\)	\(F_{total}\)
Force against soil mass area B \(\mathrm {(N)}\)	\(F_1\)
Shear force beneath the soil wedge area A \(\mathrm {(N)}\)	\(F_2\)
Side friction force of the soil wedge area A \(\mathrm {(N)}\)	\(F_3\)
Side friction force of the side surface of the wheel \(\mathrm {(N)}\)	\(F_4\)
Friction force on the wheel surface \(\mathrm {(N)}\)	\(F_5\)
Total force acting on the plate \(\mathrm {(N)}\)	\(F_T\)
Horizontal component of the total force \(\mathrm {(N)}\)	\(F_{Th}\)
Earth gravity \(\mathrm {(m/s^2)}\)	g
Coefficient of earth pressure at rest \(\mathrm {(-)}\)	\(K_0\)
Soil modulus of deformation depend on c (\(\mathrm {N/m^{(n+1)}}\))	\(k_c\)
Internal friction angle modulus (\(\mathrm {N/m^{(n+2)}}\))	\(k_\phi \)
Tool length \(\mathrm {(m)}\)	l
Slip surface length \(\mathrm {(m)}\)	\(L_1\)
Base line length of the soil wedge in area A \(\mathrm {(m)}\)	\(l_s\)
Sinkage ratio \(\mathrm {(-)}\)	n
Terzahgi’s soil bearing capacity factors \(\mathrm {(-)}\)	\(N_\gamma , N_c, N_q, N_{ca}\)
Normal stress \({\mathrm {(N/m^2)})}\)	p
Surcharge on the soil surface \(\mathrm {(N/m^2)}\)	q
Surcharge loading \(\mathrm {(N)}\)	Q
Resultant force acting on slip surface \(\mathrm {(N)}\)	R
Wheel radius \(\mathrm {(m)}\)	r
Width of the plate or wheel \(\mathrm {(m)}\)	\(b, w_w\)
Weight of the plate \(\mathrm {(N)}\)	\(W_p\)
Weight of the soil wedge \(\mathrm {(N)}\)	\(W_s\), \(W_b\)
Weight of the wheel \(\mathrm {(N)}\)	\(W_h\)
Position toward the horizontal direction of the wheel\(\mathrm {(m)}\)	x
Sinkage \(\mathrm {(m)}\)	\( z_0, z\)
Rake angle \(\mathrm {(^\circ )}\)	\(\beta \)
Soil density \(\mathrm {(kg/m^3)}\)	\(\gamma \)
External friction angle \(\mathrm {(^\circ )}\)	\(\delta \)
Contact angle \(\mathrm {(^\circ )}\)	\(\theta \)
Static contact angle \(\mathrm {(^\circ )}\)	\(\theta _s\)
Shear plane failure angle \(\mathrm {(^\circ )}\)	\(\rho \)
Normal stress acting on wheel surface \(\mathrm {(N/m^2)}\)	\(\sigma \)
Horizontal normal stress \(\mathrm {(N/m^2)}\)	\(\sigma _h\)
Wheel weight per unit area \(\mathrm {(N/m^2)}\)	\(\sigma _b\)
Vertical normal stress \(\mathrm {(N/m^2)}\)	\(\sigma _v\)
Shear stress on the wheel surface \(\mathrm {(N/m)}\)	\(\tau \)
Internal friction angle \((^\circ )\)	\(\phi \)

Description (unit)	Value
Model type (–)	Leptrino PFS080YS102U6S
Rating capacity \(F_z\) \(\mathrm {(N)}\)	\(\pm {1000}\)
Rating capacity \(F_x, F_y\) \(\mathrm {(N)}\)	\(\pm {500}\)
Rating capacity \(M_x, M_y, M_z\) \(\mathrm {(Nm)}\)	\(\pm {30}\)
Sampling frequency \(\mathrm {(Hz)}\)	100
Resolution (–)	\(\pm {1/4000}\)

Erweiterte Suche

Suchoperatoren:

Springer Professional

Estimation of resistance force at steady-state sinkage for cylindrical wheel-typed lunar/planetary exploration rovers with function of push–pull locomotion

Abstract

Abstract

Publisher's Note

Introduction

Push-pull locomotion traveling mechanism

The behavior of the locked-wheel

Resistance force

Wheel sinkage based on terramechanics theory

Estimation method for the steady-state sinkage of the locked-wheel

Estimation method for the maximum resistance force of the locked-wheel

Classical analytical model for calculating force \(F_1\) against area B

Mckyes model

Shear and friction force \(F_2\), \(F_3\), \(F_5\) of area A

Experiment

Experimental result

Raw data

Velocity dependency

Sinkage at the steady-state condition

Resistance force at the steady-state condition

Discussion

Steady-state sinkage and resistance force of the locked-wheel

Estimation model of the steady-state sinkage and resistance force

Conclusion

Acknowledgements

Competing interests

Publisher's Note

Weitere Artikel der Ausgabe 1/2020

Suction pad unit using a bellows pneumatic actuator as a support mechanism for an end effector of depalletizing robots

Rubber artificial skin layer with flexible structure for shape estimation of micro-undulation surfaces

Microfluidic device for rapid investigation of the deformability of leukocytes in whole blood samples

Proposal for a layer-based IoT construction method and its implementation and evaluation on a rolling stand-up walker

A robotic end-effector with rolling up mechanism for pick-and-release of a cotton sheet

Development of a vibratory cueing system using an implicit method to increase walking speed in patients with stroke: a proof-of-concept study

Premium Partner

Marktübersichten

Description (unit)	Value
Slope angle \(\mathrm {(^\circ )}\)	0
Soil	Silica Sand No. 5
Towing speed \(\mathrm {(m/s)}\)	0.00341, 0.017, 0.0341, 0.051	0.00341
Rotational speed of motor shaft \(\mathrm {(rpm)}\)	100, 500, 1000, 1500	100
Wheel diameter D \(\mathrm {(m)}\)	0.17	0.17	0.2, 0.28, 0.35
Wheel width \(w_w\) \(\mathrm {(m)}\)	0.04	0.06, 0.08, 0.1	0.04
Wheel mass \(\mathrm {(kg)} \)	1.0, 1.5, 2.0, 2.5	2.5	2.5

Modulus	Value	Unit	Name of parameters	References
c	762	\(\mathrm {(N/m^2)}\)	Soil cohesion	[31]
\(C_a\)	762	\(\mathrm {(N/m^2)}\)	Soil-tool adhesion	[31]
\(c_w\)	0	\(\mathrm {(N/m^2)}\)	Soil-wheel adhesion	–
g	9.81	(\(\mathrm {m/s^2}\))	Earth gravity	–
\(k_c\)	1000	(\(\mathrm {N/m^{(n+1)}}\))	Soil modulus of deformation depend on c	Decided by experiment
\(k_\phi \)	500000	(\(\mathrm {N/m^{(n+2)}}\))	Internal friction angle modulus	Decided by experiment
n	1.1	(–)	Sinkage ratio	Decided by experiment
q	Measured	\(\mathrm {(N/m^2)}\)	Surcharge on the soil surface	Measured by experiment
\(\delta \)	15	\(\mathrm {(^\circ )}\)	External friction angle	Decided by plate towing experiment
\(\beta \)	90	\(\mathrm {(^\circ )}\)	Rake angle	–
\(\gamma \)	1430	(\(\mathrm {kg/m^3}\))	Soil density	Measured by experiment
\(\phi \)	22.3	(\(^\circ \))	Internal friction angle	[31]
