1 Introduction
The welding process constitutes a cost-effective and highly efficient technique for the joining of metallic components, and it is extensively applied across sectors such as construction, automotive manufacturing, shipbuilding, energy generation, aerospace, mining, railway systems, and the oil and gas industries [1‐3]. Nevertheless, microstructural imperfections arising from grain coarsening, solid-state phase transformations, geometric distortion, and the development of residual stresses—phenomena intrinsically linked to the complex thermal cycles imposed during welding—may significantly compromise weld integrity and deteriorate the resultant mechanical performance of the jointed materials [4, 5]. Historically, the development and optimization of welding procedures have relied predominantly on empirical trial-and-error approaches, grounded in the accumulated technical expertise and experimental knowledge of engineer’s familiar with analogous fabrication contexts [6].
Numerical modeling of welding processes has acquired increasing relevance due to the inherently transient and highly coupled thermo-metallurgical phenomena involved. During welding, steep thermal gradients and rapid temperature fluctuations promote continuous phase transformations and localized microstructural evolution. Direct instrumentation and experimental characterization of the weld pool and its adjacent regions are markedly challenging, given the extreme temperatures, small spatial scales, and rapid temporal dynamics. These limitations underscore the necessity and growing adoption of advanced computational models to accurately predict thermal behavior and phase evolution of welded joints [2, 3].
Anzeige
Thermal cycles, fusion zone geometry, and heat-affected zone generated during welding exert a pronounced influence on distortion, residual stress formation, phase transformations, and grain coarsening [7, 8]. In welding, phase transformation occurs primarily through melting, wherein the material absorbs thermal energy to undergo a transition from the solid to the liquid state. This absorbed energy is subsequently redistributed throughout the material via diffusion-driven heat transfer. The variation in enthalpy characterizes this transformation, reflecting the amount of energy absorbed or released during the welding process. The enthalpy function is therefore directly dependent on the phase state of the material (solid, liquid, or mushy), and the associated thermal properties may be assumed constant or allowed to vary as a function of temperature [9].
The use of thin plates is prevalent in various industrial sectors, where reduced thickness plays a crucial role in lowering structural mass. Welding remains one of the most widely adopted joining techniques in the fabrication of thin-sheet assemblies due to its design flexibility, high productivity, and relatively low cost [10]. However, it is well established that metallurgical transformations induced by the strong thermal gradients and nonlinear heat transfer inherent to welding processes can lead to detrimental effects, such as microstructural heterogeneities [11]. In this context, numerical modeling is an essential tool for predicting macro and microscopic behavior, thereby enhancing a deeper understanding of thermal, mechanical, and metallurgical interactions [12]. Welding processes inherently involve multiple physical complexities, which require the adoption of careful simplifications and constitutive assumptions to perform the numerical simulations. These modeling choices are crucial for ensuring the accuracy of the predicted thermal fields and their resulting metallurgical transformations. In particular, the most critical regions for heat transfer analysis are the fusion zone and the heat-affected zone, where high temperatures and steep thermal gradients are developed [13].
Numerical strategies commonly employed to solve the governing equations associated with phase-change phenomena include the finite difference method [14], the finite element method [15, 16], and the finite volume method [17]. More recently, the Element-based Finite Volume Method (EbFVM) has been introduced as a hybrid approach that integrates finite volume discretization with the element topology and interpolation functions characteristic of the finite element method [18‐21]. This formulation enables a more flexible representation of complex geometries while preserving local conservation properties, making it particularly suitable for coupled thermomechanical simulations in the welding processes.
Ferritic stainless steels are characterized by chromium as the primary alloying element, typically ranging from 10.5% to 30%, combined with a low carbon content. Additional alloying elements such as molybdenum, silicon, aluminum, niobium, or titanium may be incorporated to enhance specific mechanical or corrosion-resistant properties [22]. However, the relatively high chromium content can promote the precipitation of chromium carbides, which may lead to detrimental effects, including sigma-phase embrittlement, high-temperature brittleness, and a reduction in corrosion resistance. These steels are also generally regarded as having limited weldability, often resulting in extensive heat-affected zones (HAZ) during welding operations [23, 24]. When ferritic stainless steels are exposed to temperatures above the ferrite solvus, abnormal grain growth may occur because no secondary phase (e.g., austenite) or stable precipitates are present to inhibit grain coarsening. The extent of this grain growth is strongly dependent on both peak temperature and the duration for which the material is held above the ferrite solvus and can significantly degrade fracture toughness and overall mechanical performance [25].
Anzeige
In this study, a numerical framework was developed to simulate the autogenous welding process of thin AISI 409 ferritic stainless-steel plates using the Element-based Finite Volume Method (EbFVM) to solve the transient energy equation in terms of enthalpy. Thermal cycles were experimentally measured using type-K thermocouples positioned both on the surface and within the interior of the workpiece during autogenous TIG welding. The numerical model incorporates a moving Goldak double-ellipsoid heat source, along with convection and radiation boundary conditions, and temperature-dependent thermophysical material properties. The comparison between the simulated and experimentally measured thermal cycles is in good agreement, particularly in the inside region of the plate. Moreover, metallographic analysis of the welded samples revealed consistent characteristics between the numerical predictions and the observed fusion zone (FZ) and heat-affected zone (HAZ), confirming the model’s capability in reproducing the thermal–microstructural behavior of the welding process.
2 Mathematical model
2.1 Energy equation
The thermal distribution with phase change during the melting/solidification welding process can be outlined by the following the non-linear unsteady heat conduction equation. The energy equation according to [26‐29] is given by
where T is the temperature, \(\:\varvec{k}\left(\varvec{T}\right)\) is the thermal conductivity, \(\:\mathbf{H}\left(\mathbf{T}\right)\) is the enthalpy [27‐29], which is given by
where \(\:\rho\:\left(T\right)\) and \(\:c\left(T\right)\) denote the material density and the specific heat, respectively. The\(\:\:{\varvec{Q}}_{\varvec{S}}=\varvec{q}\left(\varvec{r},\varvec{t}\right)-{\varvec{q}}_{\varvec{L}}\left(\varvec{T},\varvec{t}\right)\), where \(\:\varvec{q}=\varvec{q}\left(\varvec{r},\varvec{t}\right)\) denotes the surface or volumetric heat input which is originated from the arc welding and \(\:{\varvec{q}}_{\varvec{L}}={\varvec{q}}_{\varvec{L}}\left(\varvec{T},\varvec{t}\right)\) is the term that takes into account the absorption or release of latent heat as a result of the heating or cooling of the orkpiece under investigation. The Latent heat according to [29] is given by
$$\:{q}_{L}=L{f}_{L}$$
(3)
where L is the latent heat and \(\:{f}_{L}\) denotes the liquid fraction defined by [29] as
where \(\:{T}_{sol}\) and \(\:{T}_{liq}\) denote the solidus and liquidus temperature, respectively, to consider an extended range for phase change (mushy zone). As shown in the above model, the advective effect of the liquid movement of weld bead was not considered. However, to take that effect into account, \(\:{k}_{L}\) was replaced by \(\:{k}_{eff}={\gamma\:k}_{L}\), where \(\:\gamma\:\) is a constant. In this work, this constant was equal to 4 [29]. It is important to stress that variations of k and H are considering in Eq. (1) to allow the energy equation in terms of enthalpy to be valid to the range of temperature reached in the welding process.
2.2 Initial and boundary conditions
The heat transfer from the external surfaces to the environment is given by
where h represents the contribution of the natural convection heat transfer coefficient hc together with the thermal radiation heat transfer coefficient hr, which is given in Eq. (7) in it is linearized form. The term n is the unit outward normal vector to the boundary and \(\:{T}_{\infty\:}\) is the ambient temperature.
where \(\:\sigma\:\) denotes the Stefan–Boltzmann constant and \(\:\epsilon\:\) represents the thermal emissivity of the material surface. Moreover, the workpiece is assumed to be initially at an ambient temperature
$$\:T\left(x,\:y,\:z,0\right)={T}_{\infty\:}$$
(8)
2.3 Input heat model
Arc welding can generally be modeled by prescribing the temperature in the weld. The prescribed temperature technique establishes the temperature value at nodes within an area or volume that simulates the weld pool. The prescribed temperature at specific nodes is increased linearly up to the temperature considered necessary for melting the material, being maintained at this value for a time interval [30]. The movement of the torch is simulated by repeating the procedure along a defined axis. This work used the volumetric model for the heat source proposed by Goldak et al. [31].
The double ellipsoid heat source can be represented according to [27, 28] by the following equations.
In the above equations, q has units of J/s.m³. This source model uses the energy released by the arc to the workpiece during the welding
$$\:U=I.V.\eta\:$$
(11)
where \(\:U\) denotes the energy released, \(\:I\) is the current intensity, \(\:V\) is the voltage, and \(\:\eta\:\) the efficiency of the source autogenous GTAW process, which in this work was set to 0.55. The geometric parameters that correspond to the front and back ellipsoidal shape are (a) width, (b) depth, (c1) front, and (c2) back lengths. The weight functions \(\:{f}_{f}\) and \(\:{f}_{r}\) indicate the volumetric distribution of heat at the front and back of the pool. Herein, we used the values of \(\:{f}_{f}\) equal to half of the weld and \(\:{f}_{r}\) equal to twice the width as proposed in [31], which are given by
In Eqs. (9) and (10), x, y, \(\:\xi\:\) denote respectively, the coordinates along the width, the thickness, and the length of the workpiece. The relationship between the fixed coordinate \(\:z\) and the moving coordinate system \(\:\xi\:\) is expressed by
$$\:\xi\:=\left(z-{z}_{0}\right)-vt$$
(15)
where \(\:{z}_{0}\) defines the position of the heat source at the initial time, and v is the welding speed.
3 EbFVM approach
Discretization techniques have been widely proposed for the solution of partial differential equations, such as; FEM (Finite Element Method), FDM (Finite Difference Method), and FVM (Finite Volume Method). The finite difference and finite volume methods have proven quite effective in CFD (Computational Fluid Dynamic) [18]. The finite element method has been widely used in commercial software [32‐35]. The finite volume method warrants the local conservation of the evaluated physical properties.
The finite volume method is divided into two main approaches: cell-centered and cell-vertex [36]. In the first approach, each element or cell is a control volume, and the independent variables are evaluated at the geometric center of each element. The second approach borrows the idea of element and shape functions from FEM [32, 35, 36]. In the cell-vertex approach, the control volume is built around each grid node (Fig. 1).
Fig. 1

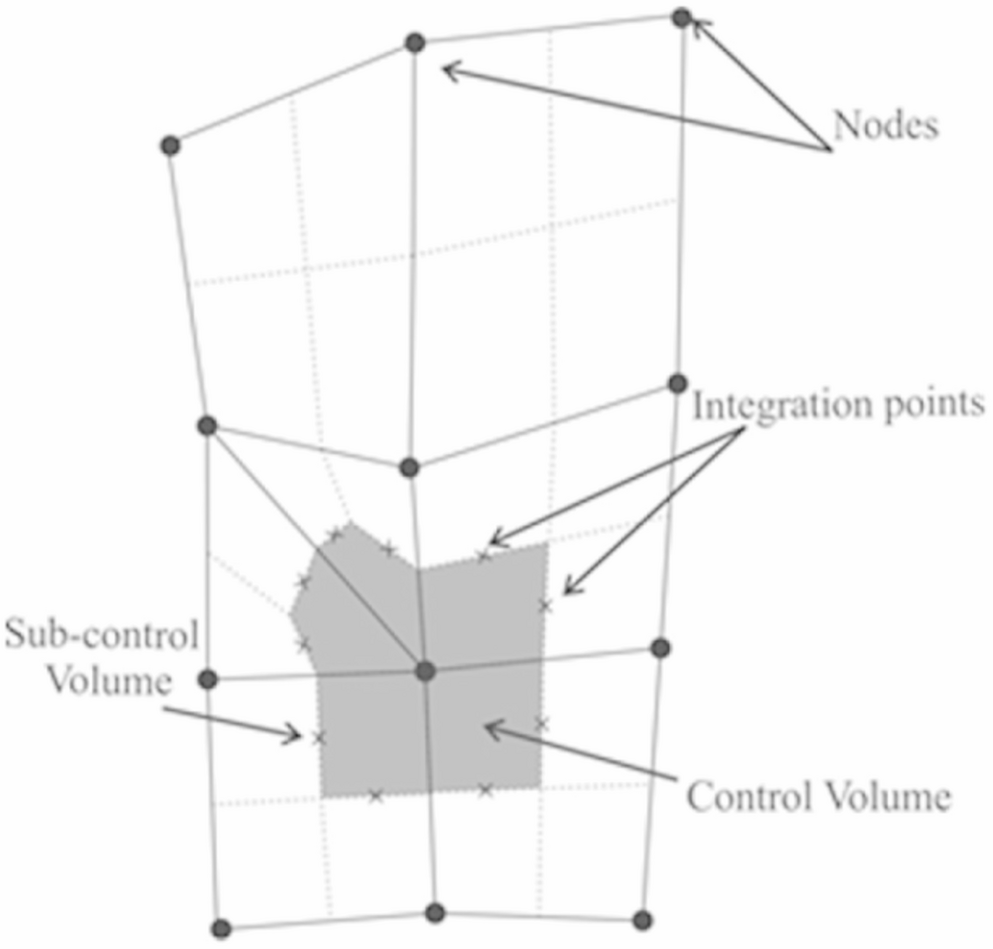

EbFVM discretization. Element, sub-control volumes, and control volumes
The cell-vertex approach has advantages over the cell-centered approach, as it is suitable for problems where the unknowns must be determined at the boundaries. It can also be easily implemented for structured and unstructured meshes [37].
The EbFVM was initially called the Control Volume Based Finite Element Method (CVFEM) [35, 38]. The CVFEM nomenclature gives the wrong idea that this is a FEM that is based on control volumes [18]. Then, the suggestion of replacing the CVFEM terminology with EbFVM [36] is used in this work.
4 EbFVM discretization procedure
In the EbFVM, the domain is first divided into elements. Then, according to the number of vertices, each element is further divided into sub-elements; herein, we will call these sub-elements sub-control volumes (SVC) [39‐41]. Figure 2 shows the hexagonal element with eight nodes and eight control sub-volumes.
Fig. 2

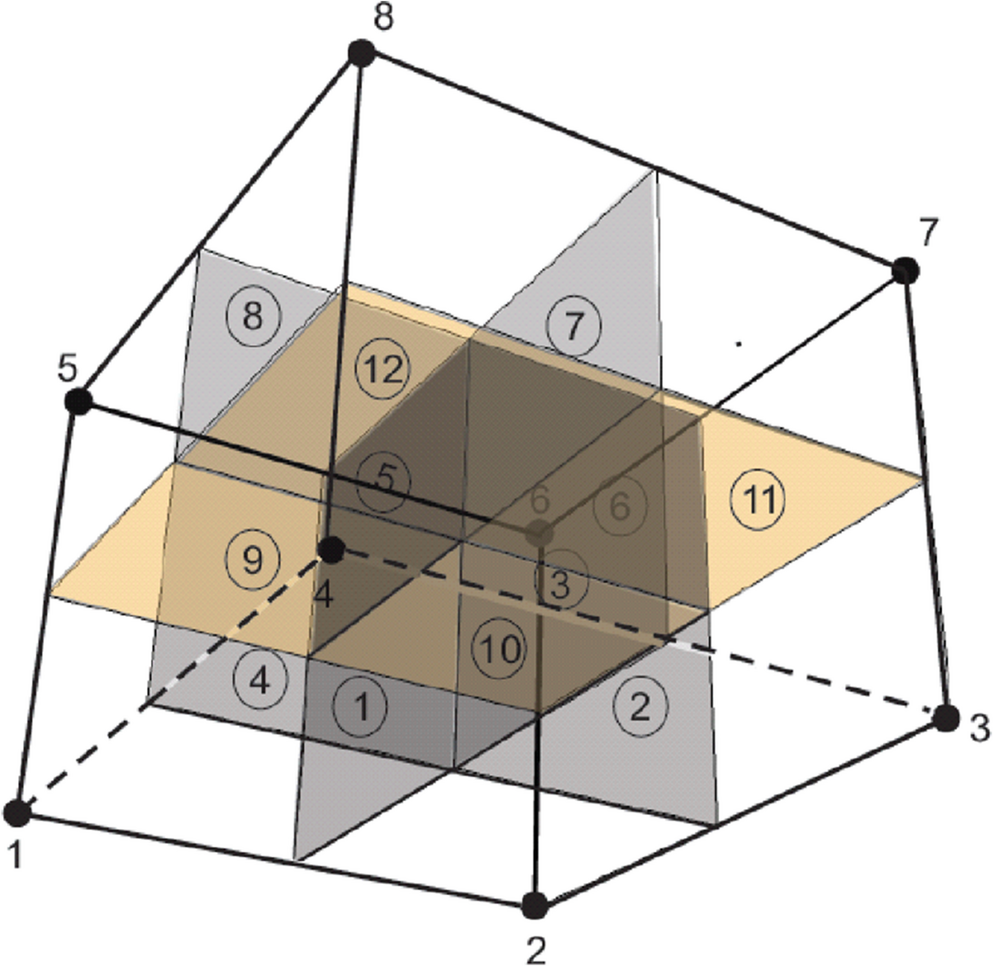

Parameterized hexagonal element highlighting the interfaces of each control sub-volume
Note that the parameter \(\:\theta\:\)\(\:\left(0\le\:\theta\:\le\:1\right)\) is employed as a weighting factor too evaluate the transport of the property of interest during the time interval \(\:\varDelta\:t\). In this work, an implicit interpolation scheme is adopted, which corresponds to \(\:\theta\:=1\). Thus, the entire contribution of the property transport is evaluated at the new time level \(\:n+1\).
Where the last term the right-hand side appears only when the sub control volume i is located on one of the boundaries of the domain. For the last term of Eq. (34), we have
where \(\:\mathbf{A}\) denotes the global coefficient matrix, \(\:\mathbf{H}\) the vector of nodal enthalpy values, and \(\:\mathbf{B}\) known vector. The nonlinear character of the system results from the dependence of material properties on temperature, as well as from the formulation of the heat source and boundary conditions.
An incremental iterative procedure is adopted to solve the thermal problem described in Eq. (40). Starting from an initial enthalpy field \(\:{\varvec{H}}_{0}\), the system of nonlinear algebraic equations is assembled and solved at each time step. The solution is iteratively updated until the convergence criterion associated with the right-hand side vector \(\:{\mathbf{B}}^{n}\) is fulfilled. Once convergence is achieved, the enthalpy field is updated (\(\:{\varvec{H}}^{n+1}\leftarrow\:{\varvec{H}}^{n}\)) and the computation advances to the subsequent time step.
5 Mesh refinement study

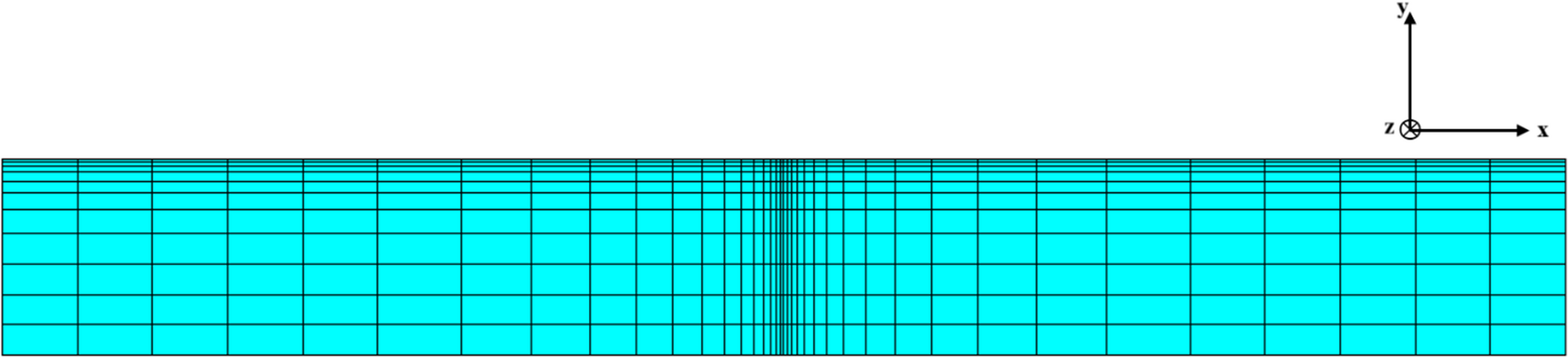

To obtain the temperature field and the welding cycles, Eq. (1) is integrated over to a control volume and in time to obtain the approximate temperature field. A non-uniformed mesh is employed to accurately capture the large gradients in critical zones such as in the weld bead and adjacent regions, see Fig. 3 [16]. Therefore, the mesh used has larger element sizes in regions far from the fusion zone when compared to those close to the fusion zone. This is a very desirable feature since the thermal problem in welding is highly non-linear [42].
Table 1 Shows the number of nodes and elements of the meshes used in the simulations. After the mesh refinement analysis, the third mesh was selected for the remaining simulations in this study
Table 1
Number of nodes used for each case
Welding process AISI 409 ferritic
Mesh
Node
Element
Hexahedron First Mesh
56350
47040
Hexahedron Second Mesh
81807
72000
Hexahedron Third mesh
150228
133760
Hexahedron Fourth mesh
284085
259840
Figure 4: Cross-section perpendicular to the torch movement. (a) torch position at t = 10 s - mesh with 259,840 elements. (b) torch position at t = 10 s - mesh with 133,760 elements. (c) torch position at t = 10 s - mesh with 72,000 elements. (d) torch position at t = 10 s - mesh of 47,040 elements.
Fig. 4

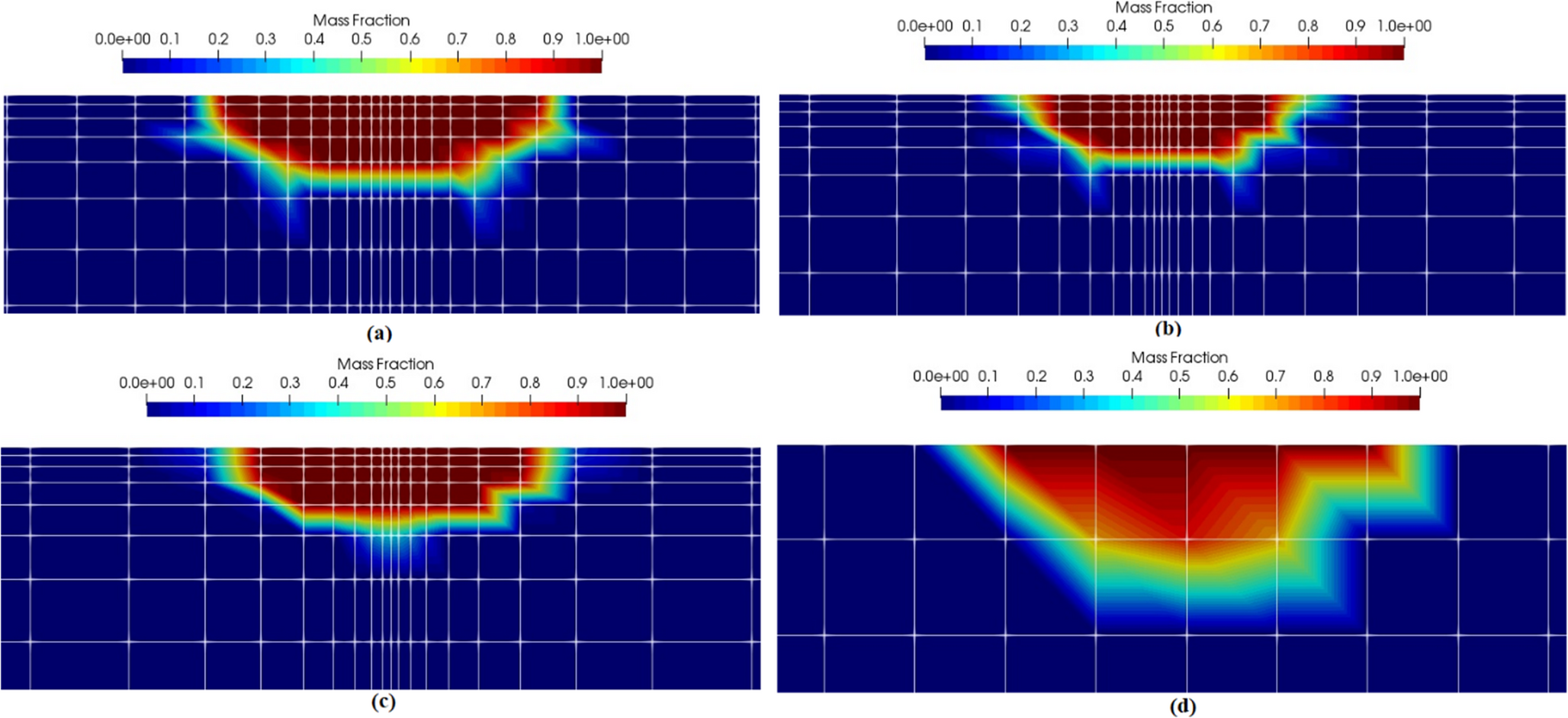

presents the liquid mass fraction using the four hexahedron grids at 10 s after the welding process starts
The model is sensitive to the heat-source input parameters. Figure 5 illustrates the distribution of the liquid fraction for three welding current values.
Fig. 5

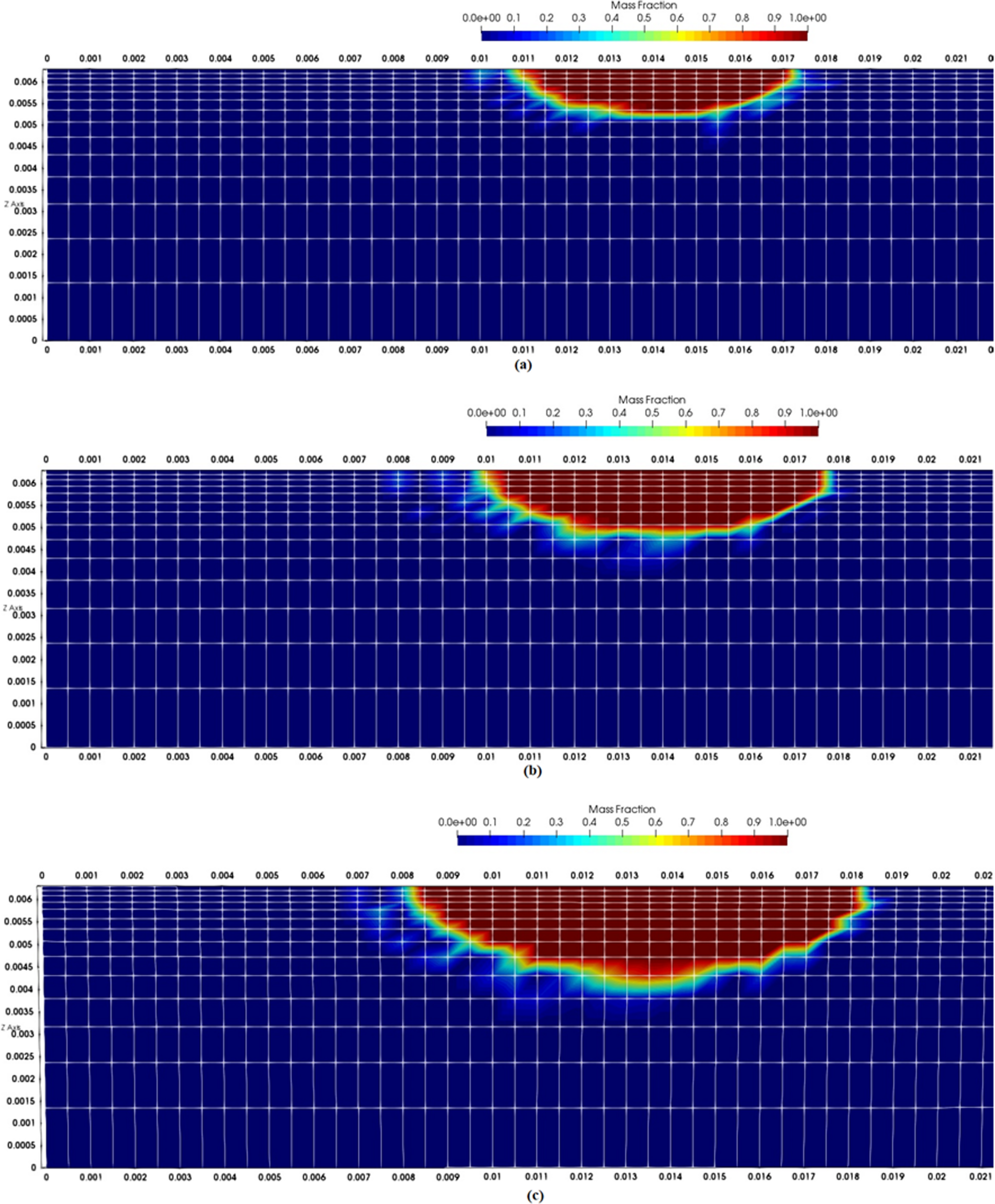

Effect of the current on the melt zone. (a) Current equal to 165 A. (b) Current equal to 215 A. (c) Current equal to 265 A

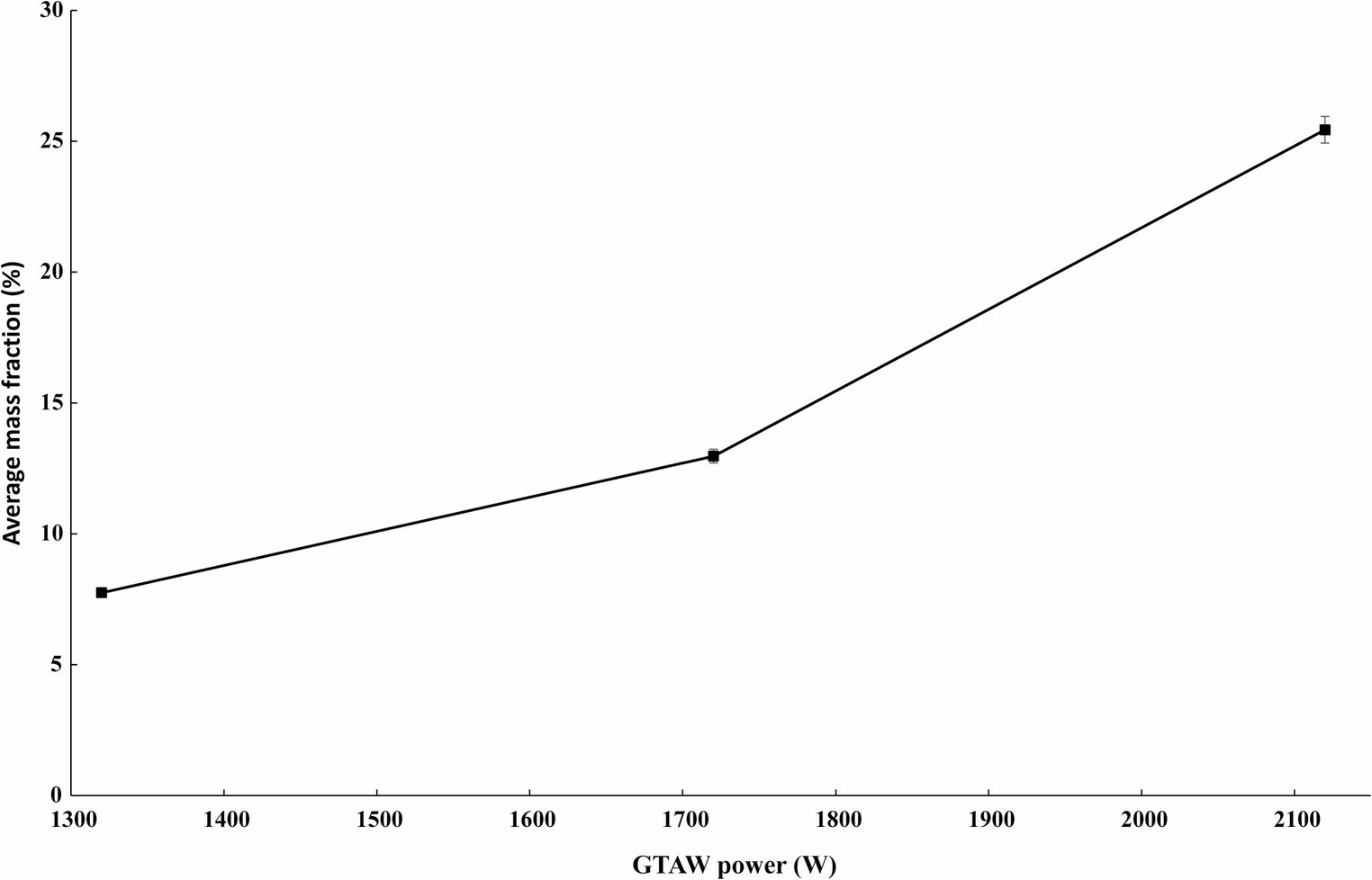

The present work conducted experiments using gas tungsten arc welding (GTAW) on the AISI 409 ferritic steel samples. An automatic displacement system warrants the constant speed of the torch. A capacitive discharge was used to fix the six K-type thermocouples to the workpiece. They recorded temperature values as a function of time for a fixed position, as shown in Fig. 7. Three thermocouples were fixed at the top of the workpiece (T3, T4, and T6); see Fig. 7a. We could not record the welding cycle from the thermocouple (T4), although it was assured that all thermocouples were well fixed to the workpiece before the beginning of the welding process. Thermocouples T3 and T6 were fixed at 8 mm and 13 mm from the welding line, respectively. Other three thermocouples were fixed on the bottom surface of the workpiece (T1, T2, and T5) along the welding line at 80 mm, 100 mm, and 120 mm from the arc’s starting point, respectively, see Fig. 7b. Thermocouples T1 and T5 were fixed in a blind hole with a diameter of 6.5 mm and deep of 2.92 mm and 2.96 mm, respectively.
Fig. 7

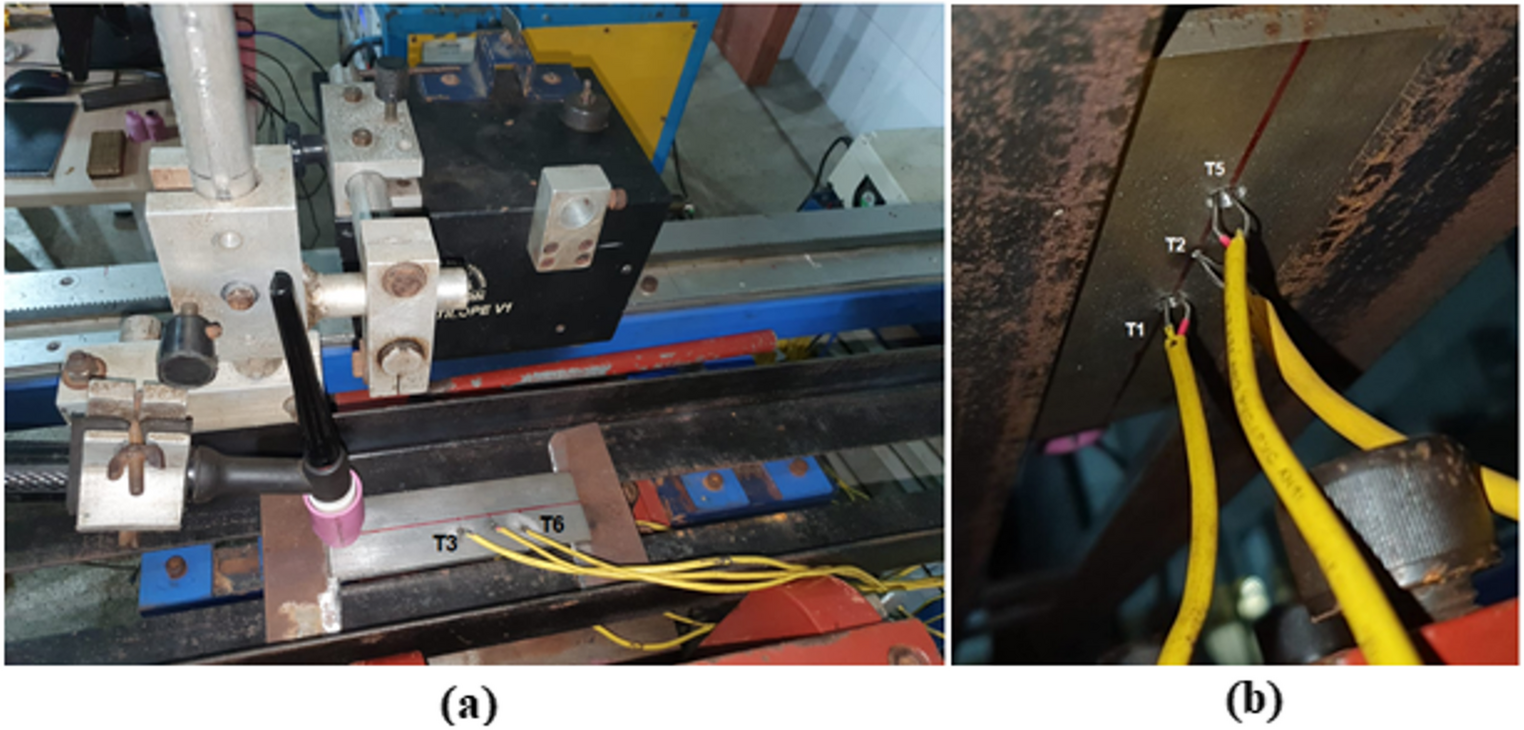

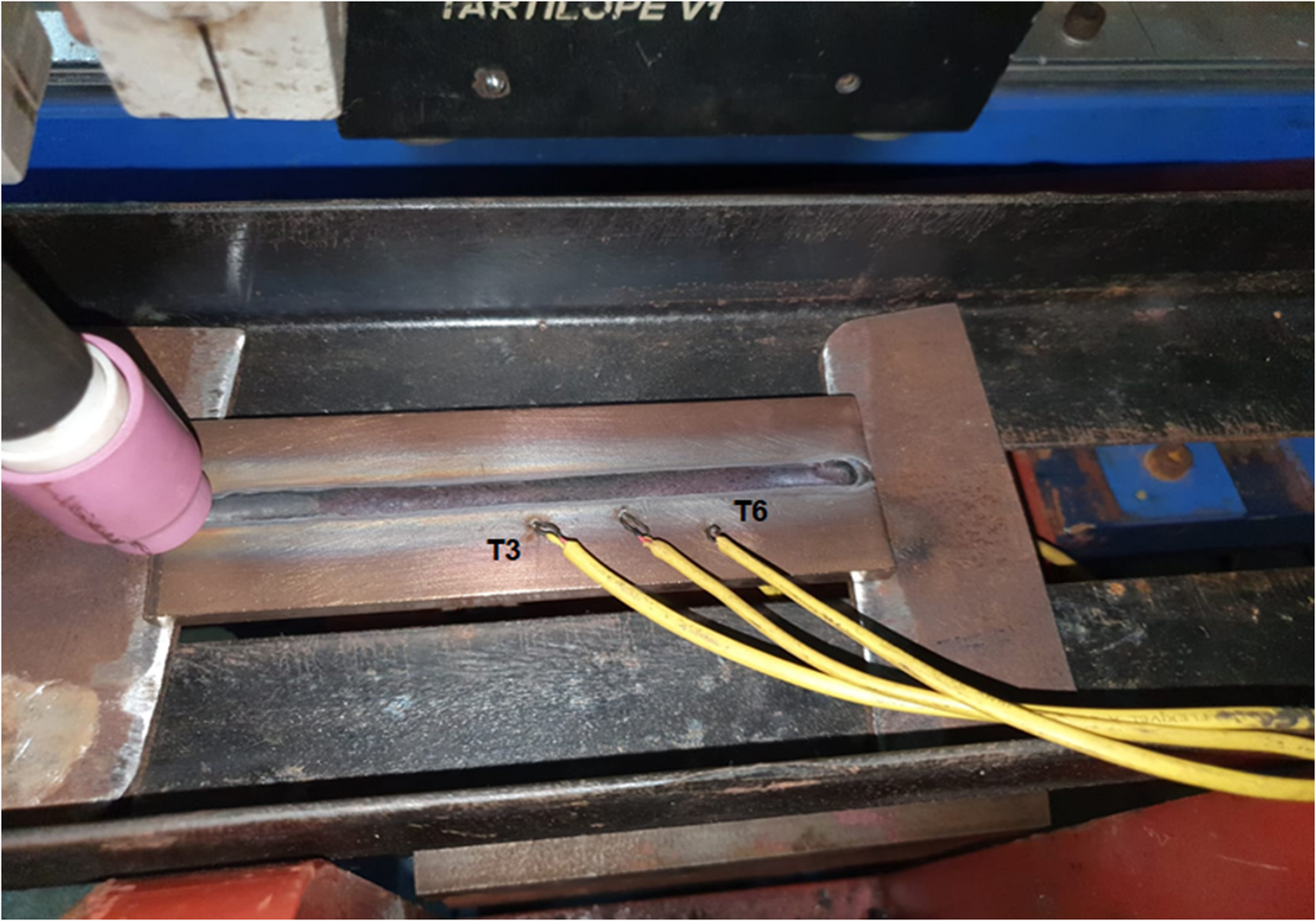

Experimental configuration. (a) Position of thermocouples on the top of the plate, from left to right: T3 and T6. (b) position of thermocouples on the base of the plate, front to back: T1, T2, and T5
The workpiece has the following dimensions: 160 mm (length) x 50 mm (width) x 6.3 mm (thickness), and the chemical composition is given in Table 2.
Table 2
Chemical composition of AISI 409 ferritic steel in mass fraction (%)
Cr
Mn
Fe
Si
P
S
Ni
10,75
0,821
87,05
0,706
0,034
0.033
0,455
In the GTAW process, the electric arc is produced between a non-consumable electrode and the workpiece. The welding process used in this work was autogenous. The distance from the tip of the non-consumable electrode to the piece was 2.4 mm, which is exactly the diameter of the electrode used in the process. The welding arc’s average current and average voltage were 165 A and 15.1 V, respectively. The torch was moved with a speed of 4 mm/s for each pass. The argon gas was used to protect the torch with a flux of 18 L/min.
Figure 8 shows the weld bead of the last pass. No irregularity was observed in this figure, and the same behavior was verified for the other three passes. Figure 8 also shows two steel plates placed at the ends of the workpiece to reduce energy loss by conduction.

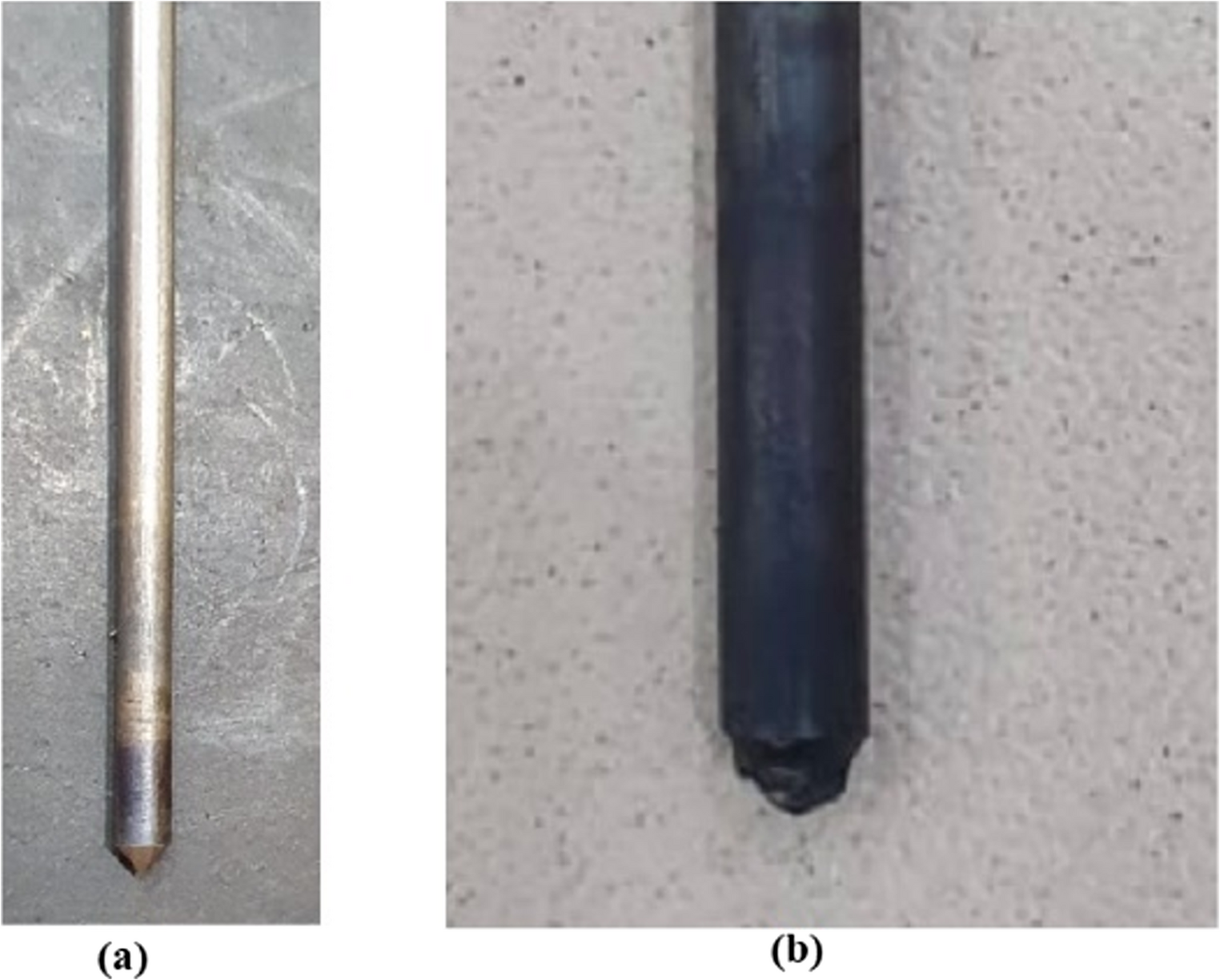

The tungsten electrode tip was sharpened to 45°, Fig. 9(a). At the end of the four-pass welding process, the electrode tip presented no wear, just oxidation, Fig. 9(b).
Fig. 9
Tungsten electrode tip. (a) Electrode tip before the welding (b) Electrode tip after the four-pass (zoom)
Table 3 summarizes the heat source parameters. The dimensions a and b of the weld pool were acquired by the macrograph from the first welding pass, as shown in Fig. 21.
Table 3
Heat source parameters for the TIG process
Parameter
TIG
v [mm/s]
4.0
current [A]
165.0
voltage [V]
15.1
Gas flow [L/min]
18
The thermal cycles of the TIG welding process of the AISI 409 steel simulated are compared with experimental cycles. The heat input provided by the electric arc is modeled by the volumetric double-ellipsoid model (VDE). The VDE parameters presented in Table 4 were chosen by measuring the dimensions of the weld bead.
Table 4
Heat source parameters for EbFVM
Parameter
VDE
a, b [mm]
4.0, 1.0
cf, cr[mm]
4.0, 8.0
ff, fr
0.6, 1.4
v [mm/s]
4.0
current [A]
165.0
voltage [V]
15.1
Efficiency [%]
55
h [W/m.K]
20
Using the chemical composition of the steel the JMatPro software was used to evaluate the variation of the thermal properties as a function of temperature, were incorporated into the numerical model. Figures 10, 11 and 12 present the temperature-dependent thermal properties of the material employed in the simulations.

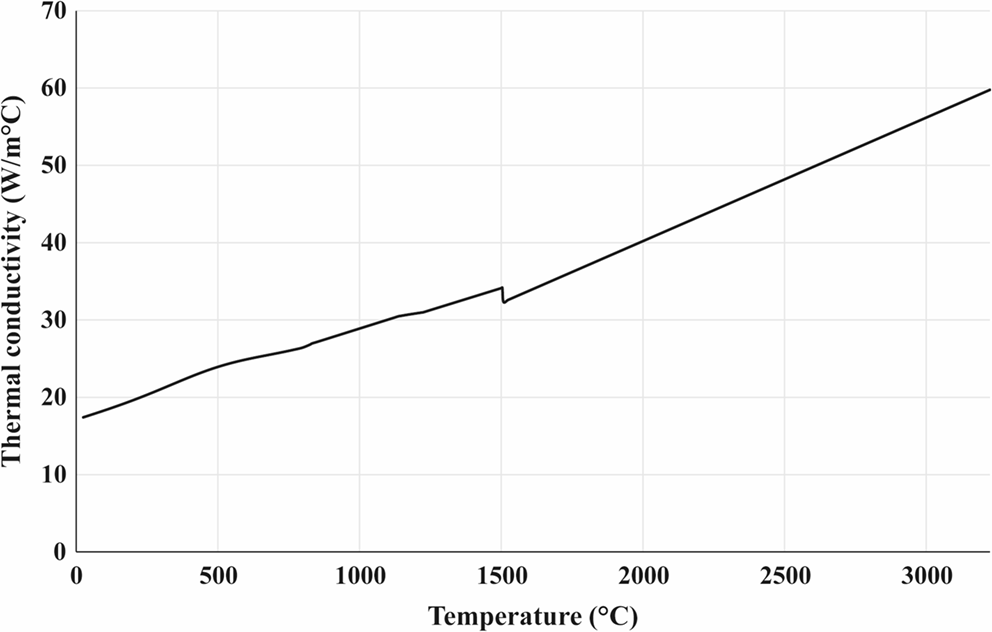

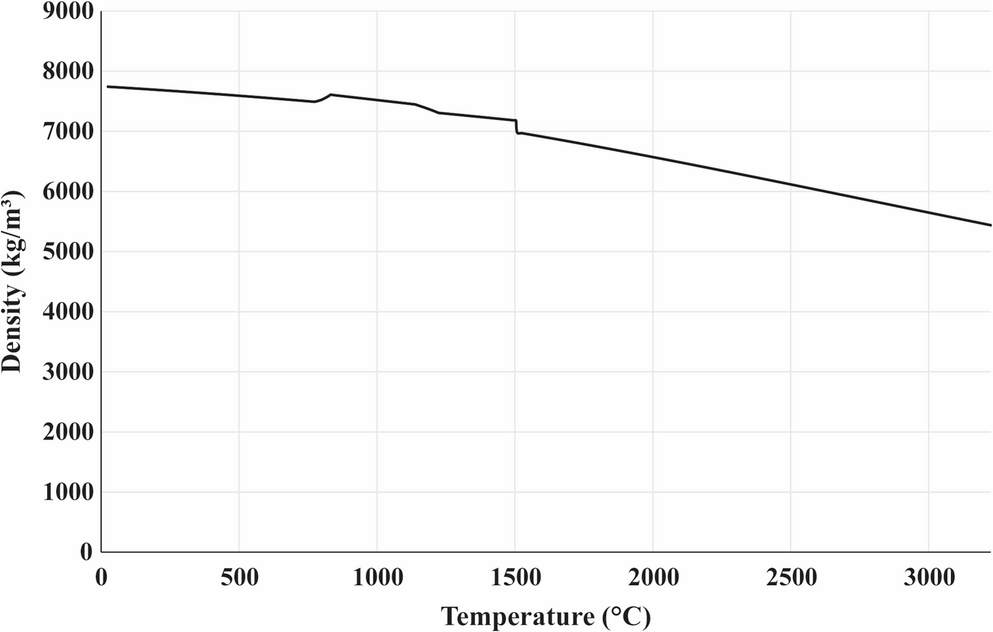

Fig. 10
Thermocouple 5 placed into a blind hole 2.96 mm on the bottom of the workpiece

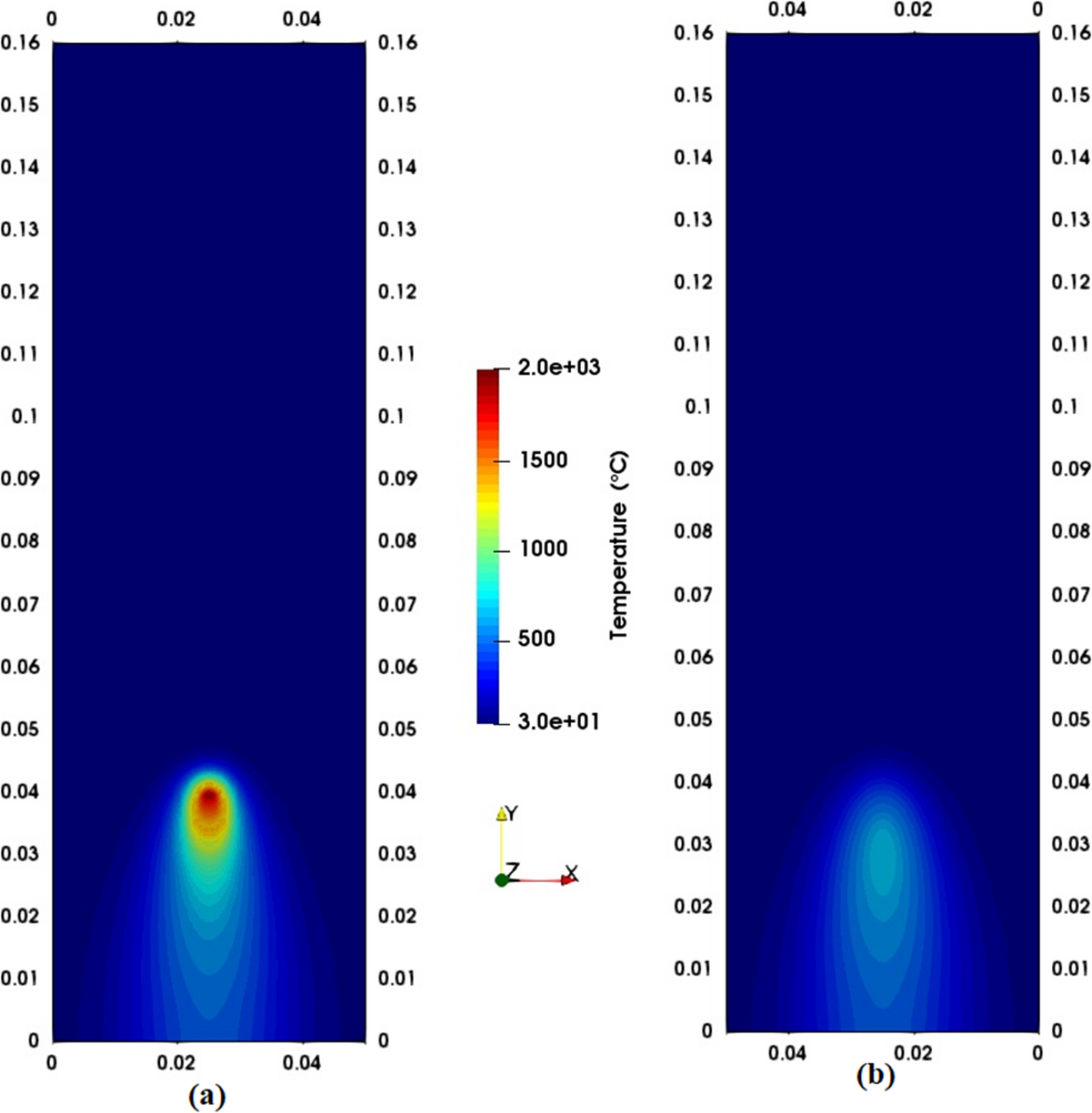

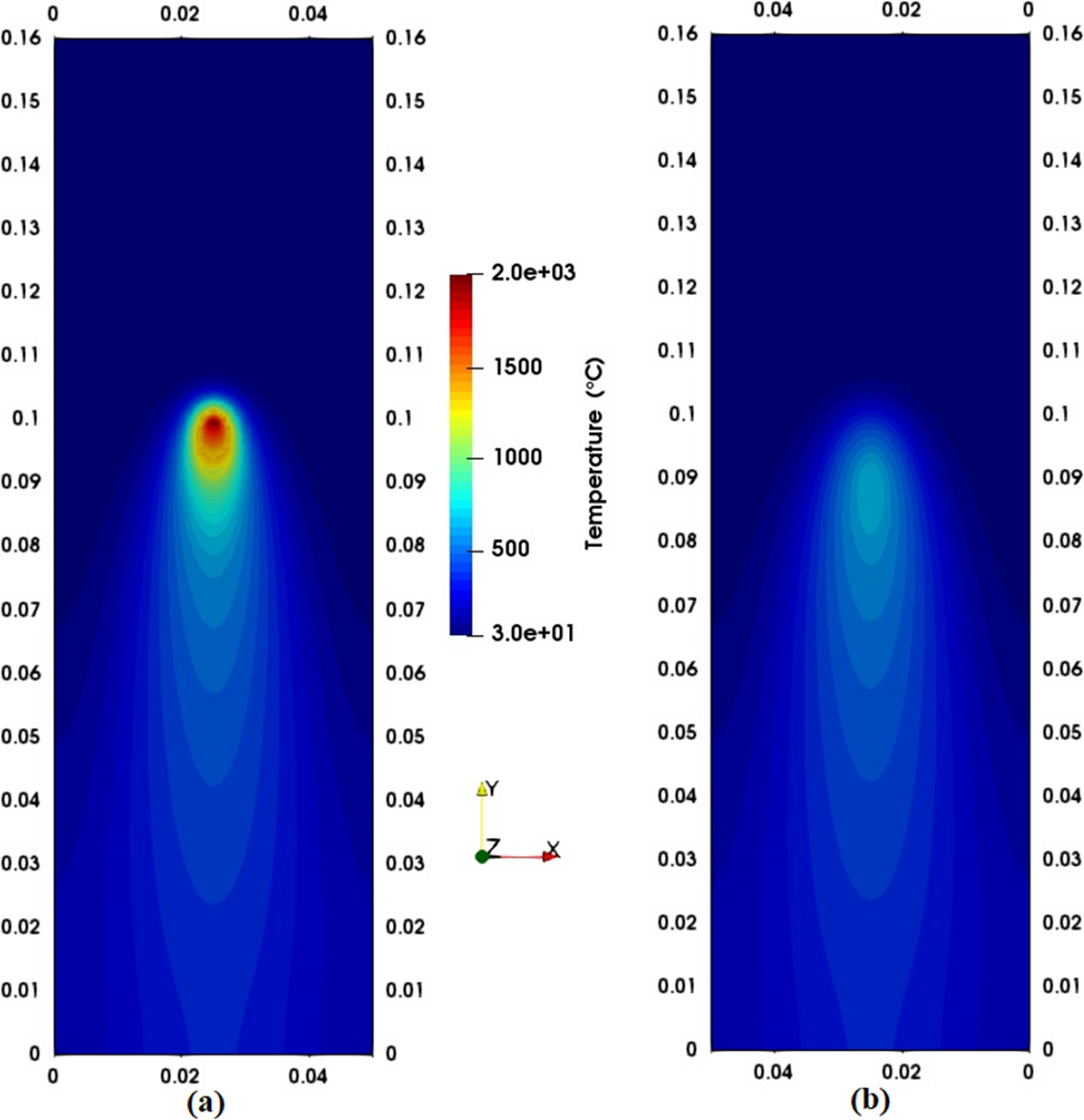

Figures 13 and 14 present the simulated temperature fields on the top and bottom surfaces of the workpiece at 10 s and 25 s, respectively. Figure 15 illustrates the temperature distribution along a transverse cross-section of the weld bead. The results were obtained using a hexahedral mesh consisting of 150,228 nodes and 133,760 elements. These visualizations clearly reveal the three-dimensional temperature gradients generated during the welding process. We can also see the fusion zone (FZ) and the heat-affected zone (HAZ), see Fig. 13(a), 14(a) and 15.
Fig. 13

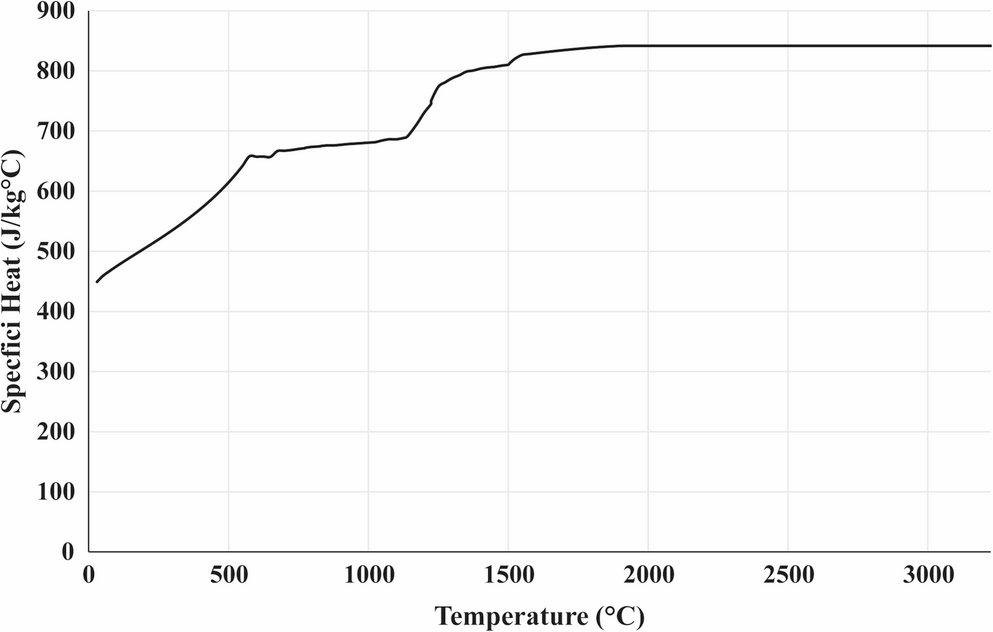

Specific heat variation of the AISI 409 ferritic steel
We now present a comparison between the numerical predicted and the experimental thermal cycle profiles. As we mentioned above, the temperature histories during the TIG welding process were recorded at five locations: thermocouples T3 and T6 positioned on the upper surface of the workpiece, and T1, T2, and T5 positioned on the lower surface. The comparative results are displayed in Figs. 16, 17, 18, 19 and 20. An inter-pass temperature of 250 °C was maintained between successive welding passes. Thermocouple T2 served as the reference for inter-pass temperature control; when its reading returned to 250 °C, the subsequent pass was initiated.

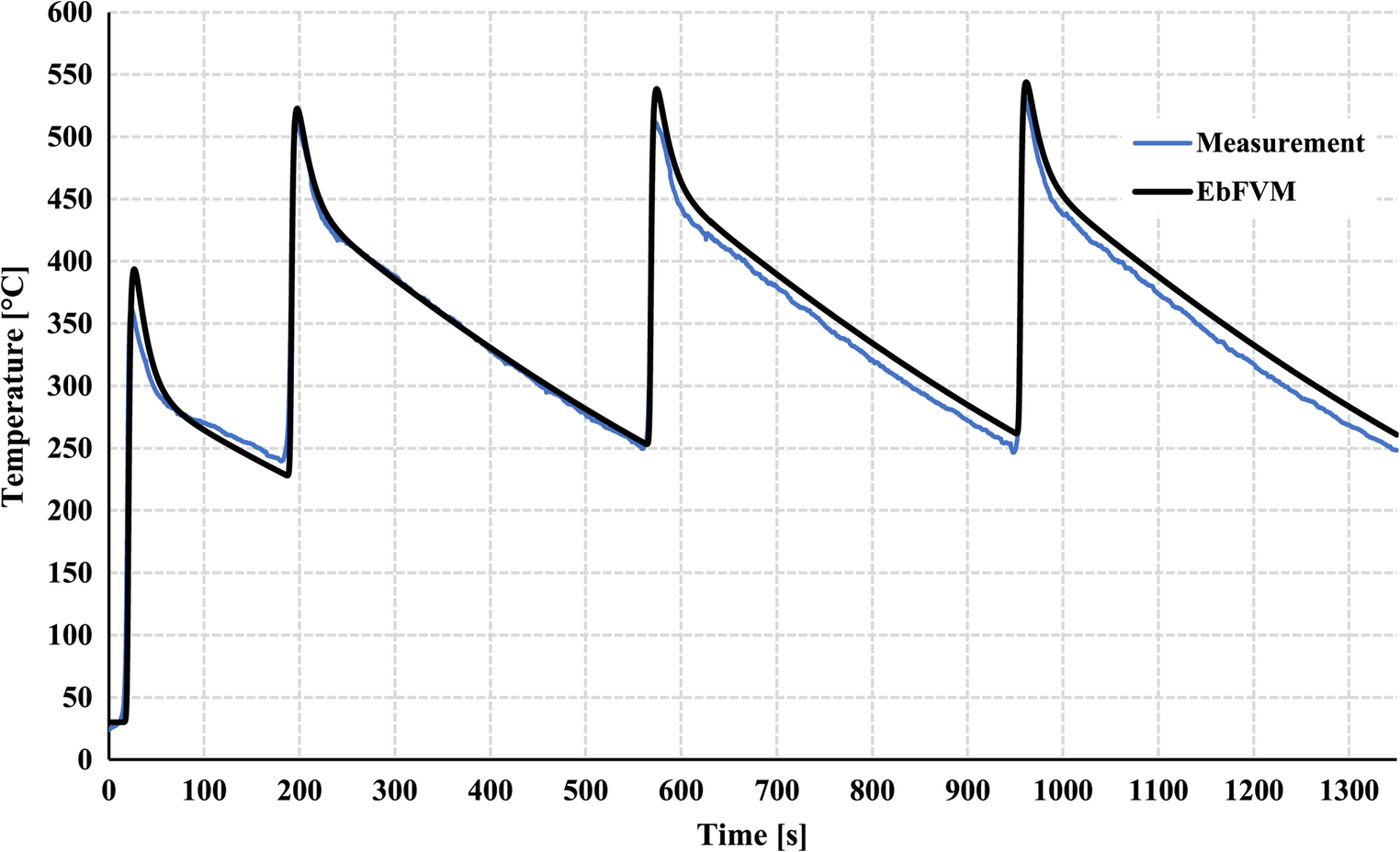

Fig. 16

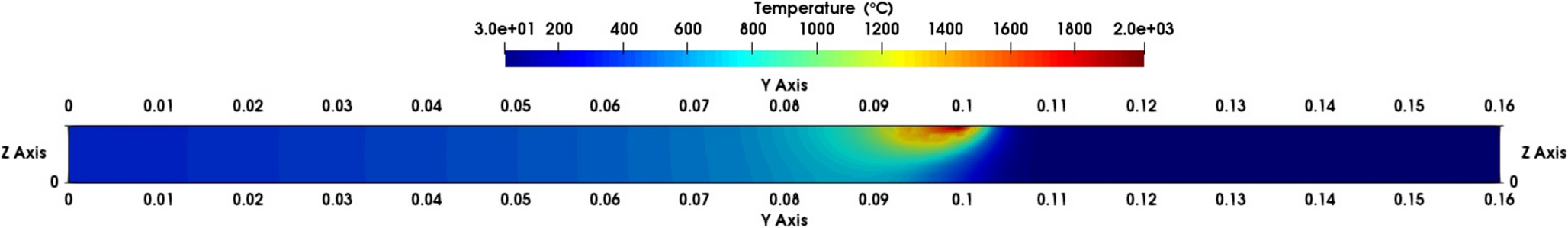

Temperature field along a cross-section of the weld bead at 25s

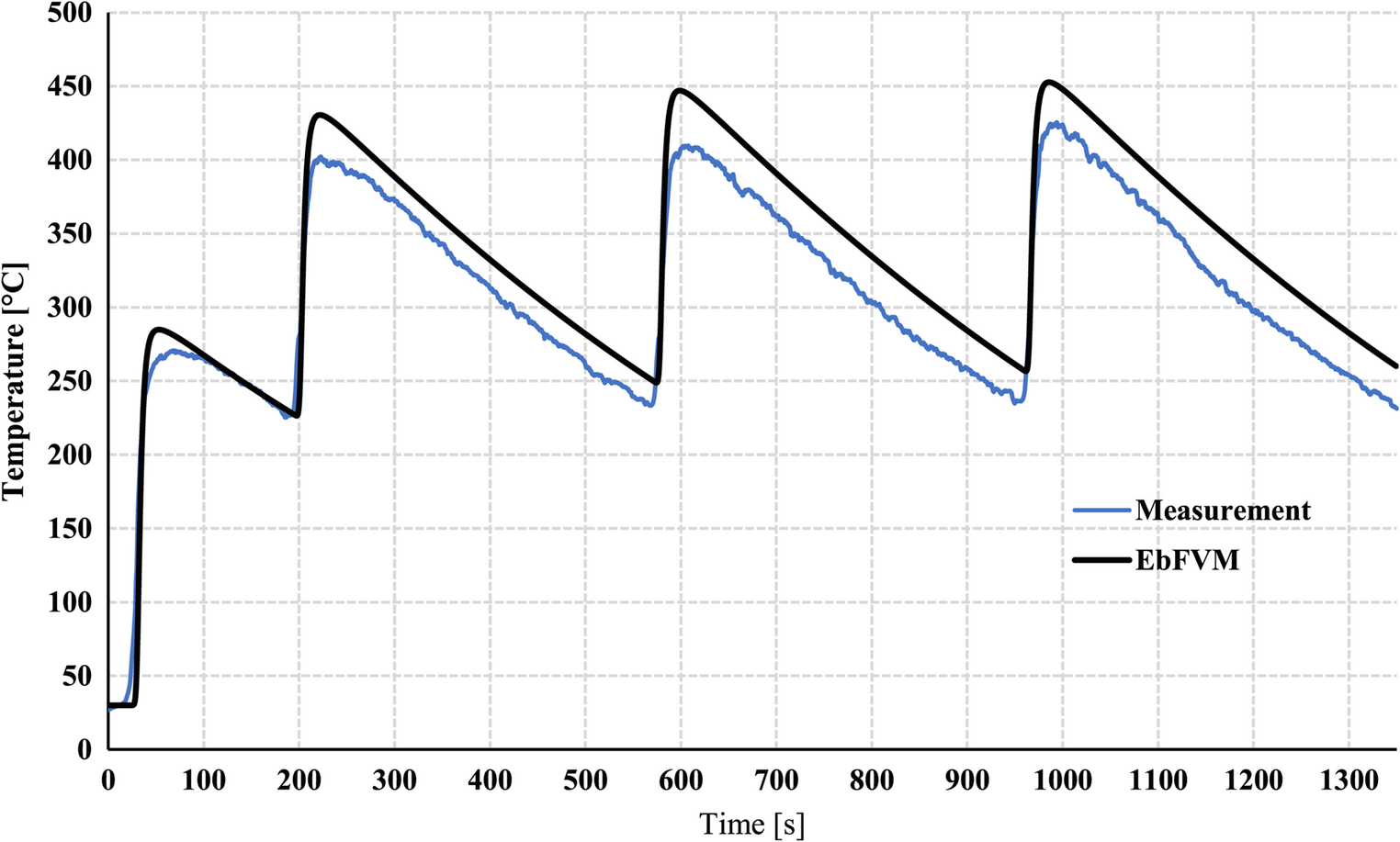

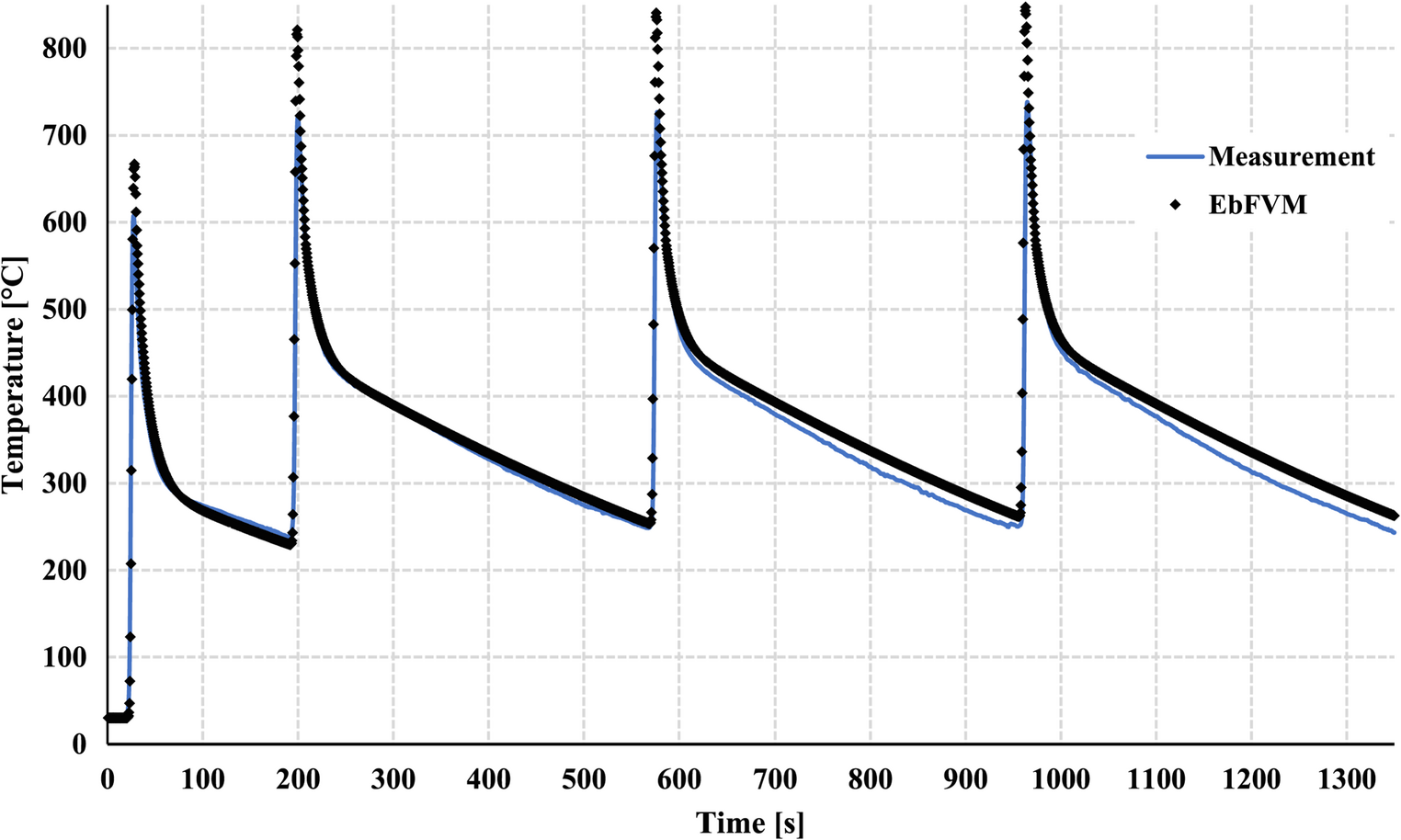

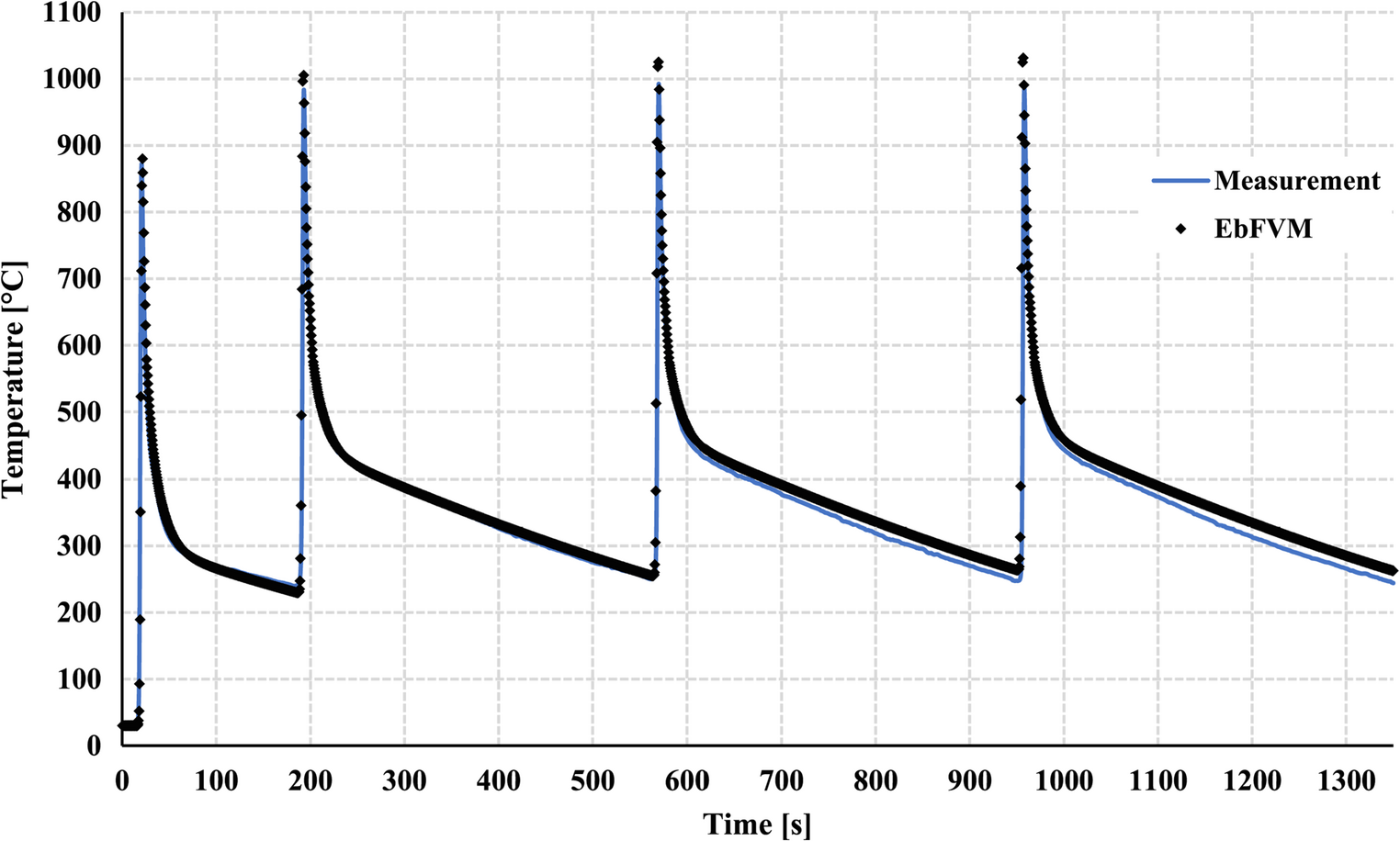

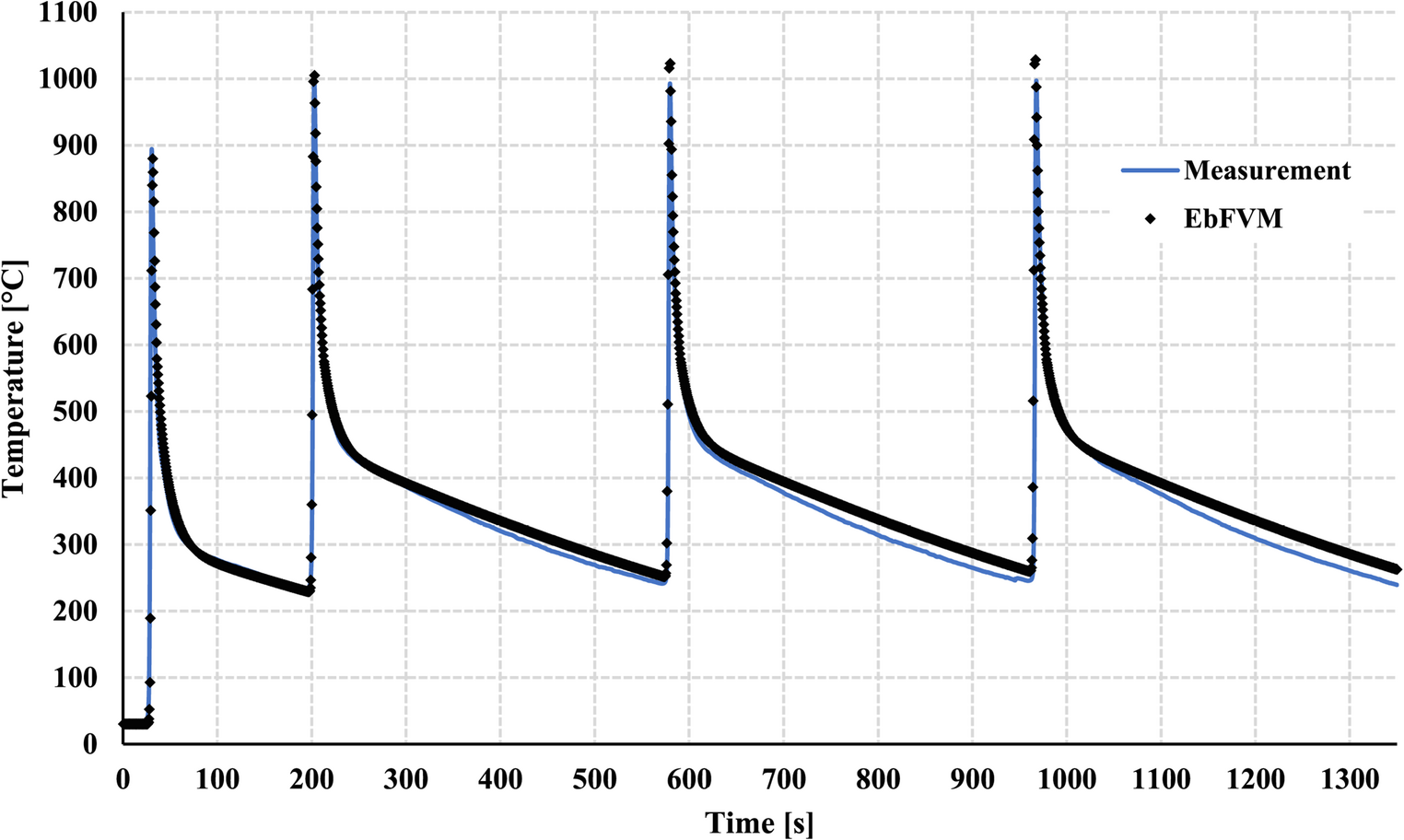

From the thermal cycle profiles presented in Figs. 16, 17, 18, 19 and 20, it can be observed that the numerical model adequately reproduces the general behavior of the experimental thermal cycles for all thermocouples and welding passes. Nevertheless, noticeable discrepancies in the peak temperatures were identified, particularly for thermocouple 6 (located 13 mm from the weld bead), for thermocouple 3 (located 8 mm from the weld bead), and for thermocouple 2 (positioned directly on the surface of the workpiece). Furthermore, these discrepancies tend to increase as the number of welding passes increases. On the other hand, for the thermocouples embedded in the blind holes (thermocouples 1 and 5) the difference in the peaks of temperature were much smaller. It is important to highlight that a single convection heat transfer coefficient was applied uniformly to the top, bottom, and lateral surface of the workpiece, an assumption that could be too strong. Additionally, we also assumed the thermal conductivity to be isotropic. As discussed in [43], material anisotropy can play a significant role in heat propagation during welding and should therefore be considered to improve the agreement between numerical predictions and experimental measurements. The iterative procedure adopted for calculating enthalpy was efficient in dealing with the phase change phenomenon into the material.
In Fig. 21 is presented the geometry of the weld zone using the micrographs and the numerical temperature field. When we compare the results, we can verify that the fusion on Fig. 21(a), that is shown on the upper right region, is similar to the numerical results shown on the upper left part of Fig. 21(b) (red region). Such a result indicates the accuracy in the calibration of the heat source parameters and deactivation management. The blue region in Fig. 21(b) shows the base metal of the numerically simulated region and has a good resemblance to Fig. 21(a) of the steel sample.
Fig. 21

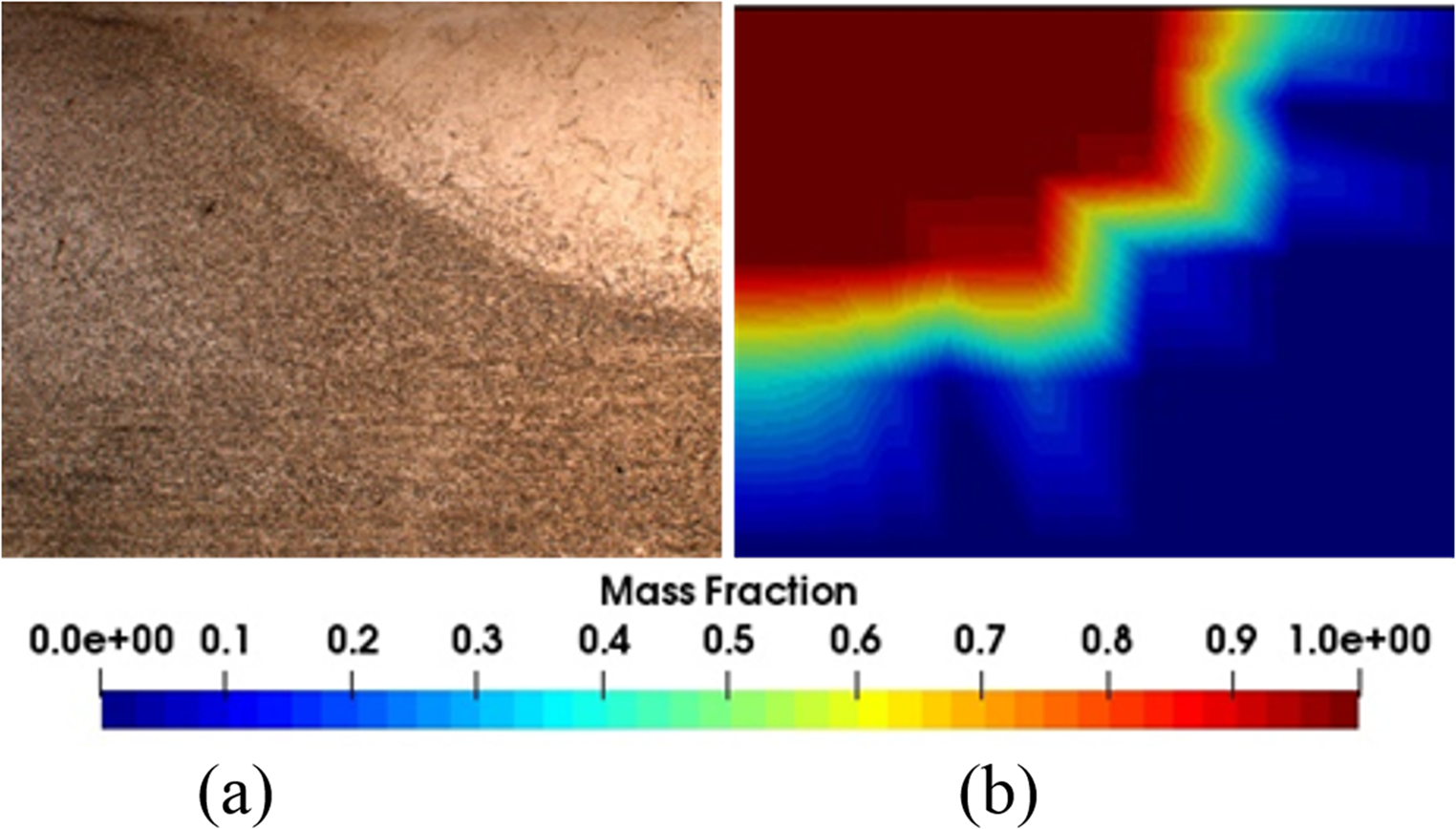

(a) Melt zone in AISI 409 ferritic steel (fusion zone, heat affected zone, base metal) with 1.53 mm depth and 3.56 mm of large. (b) Melt simulated zone (red – liquid, blue – solid and another color mush region) with 1.53 mm depth and 3.52 mm of large

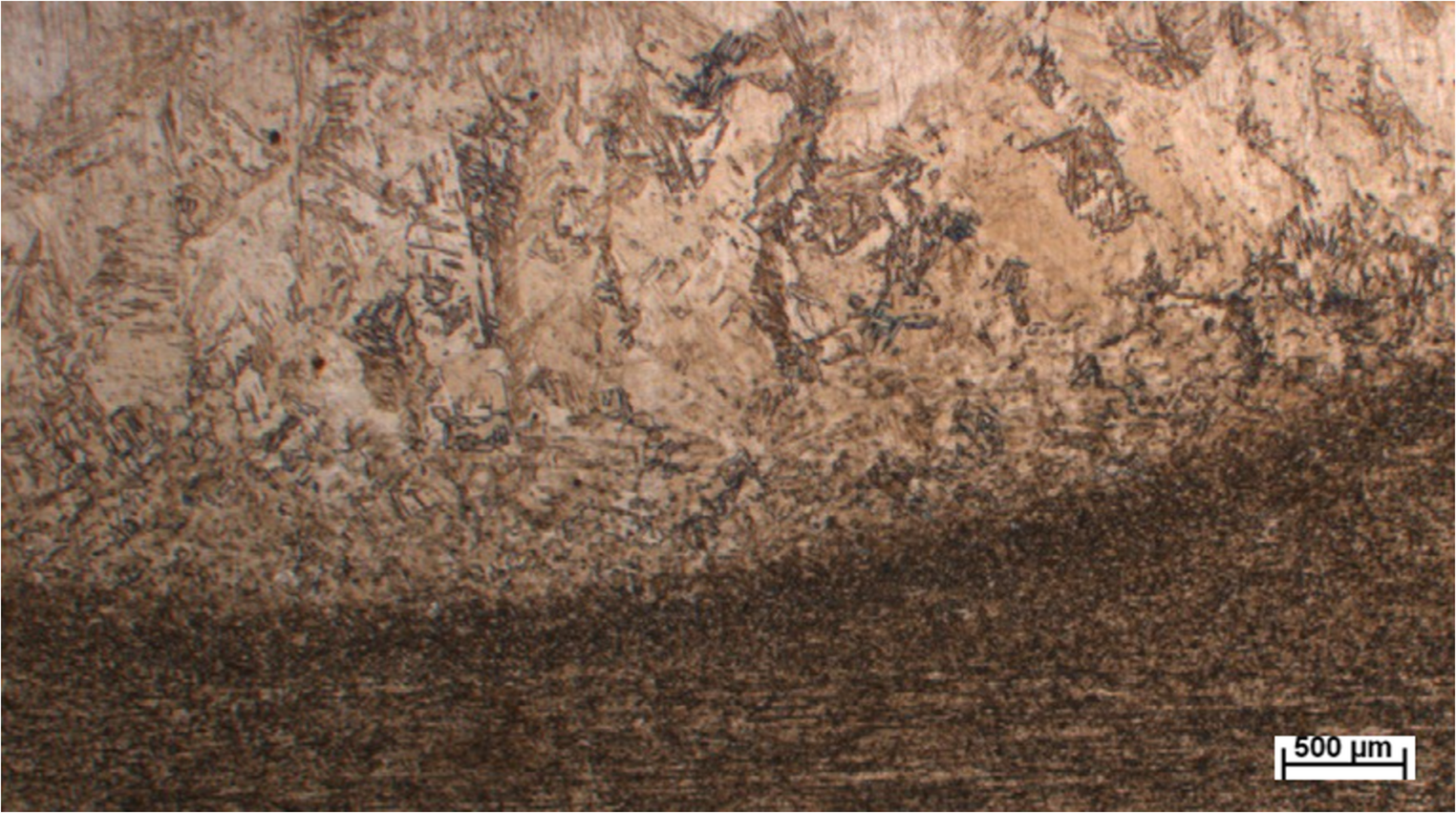

The micrograph clearly delineates the transition between the three characteristic regions of the weldment: Base Metal (BM), Heat-Affected Zone (HAZ), and Fusion Zone (FZ), see Fig. 22. Each region exhibits distinct microstructural features associated with its specific thermal exposure during welding. The base metal displays a predominantly ferritic microstructure, which is typical of AISI 409 stainless steel.
Figure 22 presents the microstructure in the heat-affected zone after the first welding pass. This region is characterized by relatively fine grains and a low volume fraction of carbides. In the heat-affected zone, significant ferritic grain coarsening is observed. The increase in the grain size and the elongated grain morphology indicate recrystallization and subsequent growth driven by the elevated thermal cycle experienced in this region. The fusion zone presents a more heterogeneous and dendritic microstructure, associated with primary ferritic solidification, as expected for ferritic stainless steels. Ferrite dendrites may exhibit mild segregation of alloying elements such as Cr and Ti. Additionally, depending on the cooling rate, small fractions of martensitic phase or carbide precipitates may form in the inter-dendritic regions, contributing to localized microstructural heterogeneity.
9 Conclusions
Thermal cycles measured near the weld pool showed better agreement with numerical predictions for peak temperatures than those obtained at locations further from the fusion zone. The numerical model accurately reproduced the residence time of the temperature range between the peak heating and cooling stages. Similar heating and cooling rates were observed for all thermocouples attached to the workpiece. The predicted dimensions of both the fusion zone and the heat-affected zone closely matched the experimentally observed morphology. However, the adoption of a single convection heat transfer coefficient for all exposed surfaces and the assumption of isotropic thermal conductivity may contribute to discrepancies between numerical and experimental thermal cycles at greater distances from the fusion zone, particularly as the number of welding passes increases.
