Gradient-based impedance synthesis for breast and lung cancer cell screening deploying planar and nano-structured electrodes

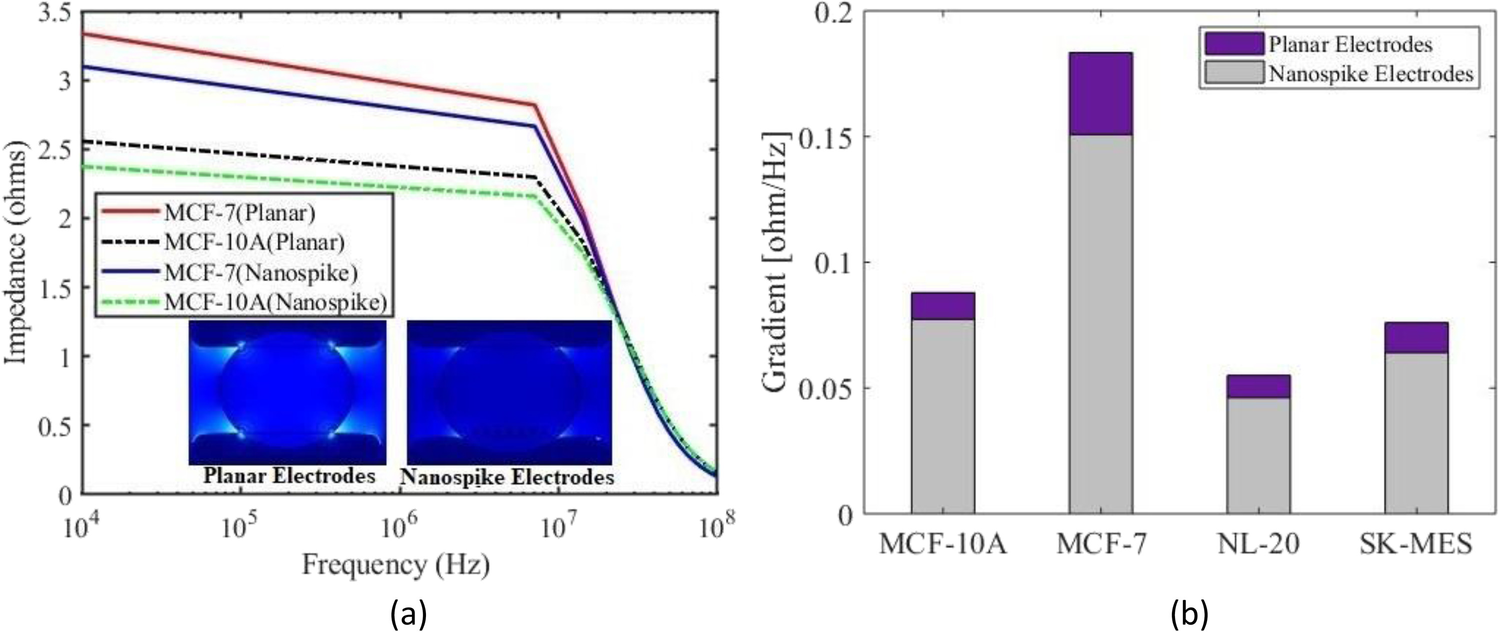

World Health Organization articulated 9.8 million casualties globally in 2018 due to cancer. Cancer, as the world’s second most fatal disease, can be recuperated well if diagnosed at an early stage. In this work, a gradient-based impedance synthesis of normal and cancerous cells of breast and lungs, is demonstrated numerically for early-stage cancer detection. Low-voltage single-cell level examination is employed for indomitable diagnosis. MCF-7 and MCF-10A are utilized as breast cancer and breast normal cells, respectively; likewise, SK-MES and NL-20 are utilized as lung cancer and lung normal cell. Pre-examination numerical setup validity ensured with multiple test regimes. Micro-scaled planar and nano-structured electrodes are employed individually to witness the effect of the electrode’s structure during electrical impedance examination of cancer and non-cancer cell. Frequency range, at which differential impedance effect is found detectable, for breast and lung cancer cell pairs is determined to be 10⁷ Hz and 10⁸ Hz, respectively. By surpassing the conventional impedance spectroscopy with tedious data fitting formalities, the gradient synthesis technique for cancer detection is introduced. The gradient synthesis for cancer detection is found independent of electrode shape effect. Gradient for breast cancer cell is found to be 2 times greater than the normal breast cell while for lung cancer cell it is found to be 1.5 times greater than the normal lung cell. Our results suggest that as the frequency of applied electrical stimulus increases, impedance of cancerous cell falls at the rate almost double than its counterpart normal cell. This work provides a theoretical basis for further experimental exploration of gradient-based impedance synthesis in cancer therapy and serves as a design tool for performance optimization.
