POPULATION III GAMMA-RAY BURST AFTERGLOWS: CONSTRAINTS ON STELLAR MASSES AND EXTERNAL MEDIUM DENSITIES

Recent studies on cosmology and primordial star formation predict that the first generation of stars (Population (Pop.) III stars) may be most prominent around z ∼ 20, consisting of metal-poor, mainly very massive stars (VMSs) with M_* ≳ 100 M_☉ (e.g., Abel et al. 2002; Omukai & Palla 2003; Yoshida et al. 2006; Ciardi & Ferrara 2005). These first stars are thought to play a significant role in setting off cosmic reionization, in the initial enrichment of the intergalactic medium (IGM) with heavy elements, and in seeding the intermediate and supermassive black holes (BHs) encountered in galaxies. The details of how these processes unfold remain elusive, since observational data for redshifts z ≳ 6 are very limited.

Observations of gamma-ray bursts (GRBs), however, may provide unique probes of the physical conditions of the universe at such redshifts. The GRB prompt emission and the afterglows were expected to be observable at least out to z ≳ 10, with their redshifts being determined through the detection of a Lyα dropoff in the infrared (IR), or through redshifted atomic lines back-lighted by the afterglows (e.g., Lamb & Reichart 2000; Ciardi & Loeb 2000; Gou et al. 2004). This can serve as a tracer of the history of the cosmic star formation rate (SFR; e.g., Totani 1997; Porciani & Madau 2001; Bromm & Loeb 2006; Kistler et al. 2009), providing invaluable information about the physical conditions in the IGM of the very high redshift universe (e.g., Barkana & Loeb 2004; Ioka & Mészáros 2005; Inoue et al. 2006). Currently, the most distant object that has been spectroscopically confirmed is GRB 090423 at z ≃ 8.2 (Tanvir et al. 2009; Salvaterra et al. 2009), and the detailed spectroscopic observation of GRB 050904 at z ≃ 6.3 has put a unique upper bound on the neutral hydrogen fraction in the IGM at that redshift (Totani et al. 2006; Kawai et al. 2006), indicating that GRB observations are very promising for exploring the high-redshift universe (see also Greiner et al. 2009 for GRB 080913 with z ≃ 6.7).

In those previous papers, the GRBs arising from Pop. III VMSs were considered to have similar properties as the GRBs arising from Pop. I/II stars, e.g., they were usually assumed to have similar luminosity functions, even if perhaps extending to somewhat higher masses, and most importantly, their radiation properties, durations, and spectra were modeled as being essentially similar to their lower redshift counterparts. However, this simplifying assumption may not be valid, as pointed out by Fryer et al. (2001) and Komissarov & Barkov (2010, hereafter KB10). One difference is that the accretion disks around the much larger BHs resulting from core collapse of a VMS progenitor would be too cool to lead to neutrino-cooled thin disks and conversion of neutrinos into electron–positron pairs (Eichler et al. 1989; Woosley 1993). Thus, the Pop. III GRBs are much likelier to be driven by magnetohydrodynamic (MHD) processes, converting the rotational energy of the central BH into a Poynting-flux-dominated jet (Blandford & Znajek 1977), rather than the usually assumed thermal-energy-dominated jets. The total energy of a Pop. III GRB is then proportional to the total disk (torus) mass, which in turn can be assumed to be proportional to the progenitor stellar mass, which can be much higher than that of a Pop. I/II GRB. In addition, the fall-back time and/or the disk accretion time, i.e., the active duration time of a Pop. III GRB jet, can be much longer than that of a Pop. I/II GRB jet, due to the larger progenitor star.

Building on this premise, Mészáros & Rees (2010, hereafter MR10) proposed a possible model of the prompt emission and afterglow of such Pop. III GRBs, and made rough predictions for their observational properties in the Swift and Fermi satellite bands. In this paper, we calculate in significantly more detail the very early afterglow properties of Pop. III GRBs and show that the combination of Swift and Fermi observations, complemented by deep IR observations of the afterglow immediately following the prompt emission, can constrain the total isotropic-equivalent energies (E_iso) of the Pop. III GRBs, as well as the particle densities n of their circumburst medium. The detection of a burst with a very high total isotropic-equivalent energy E_iso ≳ 10⁵⁷ erg and a very long (cosmological rest-frame) duration t_d ≳ 10⁴ s would be strong evidence for a VMS progenitor. To constrain the total energy and the duration, observations of the prompt emission, whose interpretation is more dependent on the model details, should be complemented with observations of the afterglow, which is much less model dependent.

The properties of the circumburst medium, i.e., the environments of the first stars prior to their collapse, have so far only been inferred from model numerical simulations, which differ significantly among each other. For example, the typical galactic gas environment could evolve as n∝(1 + z)⁴ (Ciardi & Loeb 2000), or it might be approximately independent of redshift, n ∼ 0.1 cm⁻³, as a result of stellar radiation feedback (Whalen et al. 2004; Alvarez et al. 2006). Observations and modeling of high-redshift GRB afterglows could distinguish between such numerical models. The small number of analyses of what are currently the most distant GRBs imply that the circumburst densities of these high-redshift GRBs could be very different from each other, e.g., n ≃ 10²–10³ cm⁻³ for GRB 050904 with z ≃ 6.3 (Gou et al. 2007), and n ≃ 1 cm⁻³ for GRB 090423 with z ≃ 8.2 (Chandra et al. 2010). A high total energy and a high circumburst medium density could lead, in principle, to such a high compactness parameter of the shocked afterglow emission region that a spectral break due to e⁺e⁻ pair production (i.e., γγ self-absorption break) may be observable in the Fermi Large Area Telescope (LAT) energy range. This is a unique and interesting point, which we explore here, since the γγ self-absorption is usually not significant for the afterglows of Pop. I/II GRBs (Zhang & Mészáros 2001). Using this, we could constrain the circumburst density n from the observation of a γγ self-absorption break, which is a new method to constrain the environment of the pre-explosion GRB host galaxy.

The external shock model of the GRB afterglows seems to be robust, since it can explain many of the late-time multi-band afterglows detected so far, and a simple extension of this model (e.g., continuous energy injection into the external shock) may explain many of the early-time (observer's time t_obs ≲ 1 hr) X-ray and optical afterglows detected by Swift (Liang et al. 2007). More importantly, some of the very early high energy afterglows (immediately following the prompt emission) recently observed by Fermi LAT are shown to be explained by this model (e.g., Kumar & Barniol Duran 2009; De Pasquale et al. 2010; Corsi et al. 2010).

The basic parameters of the Poynting-dominated Pop. III GRB model are defined in Section 2. The very early afterglow spectrum is calculated in Section 3 (based on the standard external shock model described in the Appendix), where we discuss how to constrain E_iso, t_d and n from the observations. In Section 4, we deduce the effective trigger threshold of the Swift BAT instrument and show that the prompt emission of Pop. III GRBs could trigger BAT. In Section 5, we compute the late-time radio afterglow flux for a typical set of parameters and evaluate the current radio survey data constraints on the Pop. III GRB rate, as well as the prospects for 21 cm absorption line detection in the Pop. III GRB radio afterglow spectra. In Section 6 we present a summary of our findings.

We consider VMSs rotating very fast, close to the break-up speed, as a representative case of Pop. III GRB progenitor stars. Those in the 140 M_☉ ≲ M_* ≲ 260 M_☉ range are expected to explode as pair instability supernovae without leaving any compact remnant behind, while those in the M_* ≳ 260 M_☉ range are expected to undergo a core collapse leading directly to a central BH, whose mass would itself be hundreds of solar masses (Fryer et al. 2001; Heger et al. 2003; Ohkubo et al. 2006). Accretion onto such BHs could lead to collapsar GRBs (Woosley 1993; MacFadyen & Woosley 1999). Prior to the collapse, the fast rotating VMSs may be chemically homogeneous and compact, without entering the red giant phase, so that the stellar radius is R_* ≃ 10¹² cm for M_* ≃ 10³ M_☉ (KB10; Yoon et al. 2006; Woosley & Heger 2006).

For such large BH masses M_h ≳ 100M_☉, the density and temperature of the accretion disk are too low for neutrino cooling to be important, and the low neutrino release from the accretion disk is insufficient to power a strong jet (Fryer et al. 2001). The rate of energy deposition through this mechanism may be estimated by using the formula recently deduced by Zalamea & Beloborodov (2011)

$$\begin{equation} L_{\nu \bar{\nu }} \simeq 5 \times 10^{46}\;\dot{M}_{-1}^{9/4} M_{h,2.5}^{-3/2} \;{\rm erg}\;{\rm s}^{-1}, \end{equation} \tag{ 1 }$$

where $\dot{M} = 0.1 \dot{M}_{-1} M_\odot \;{\rm s}^{-1}$ is the accretion rate and M_{h, 2.5} = M_h/(10^2.5M_☉). This is clearly insufficient for detection from such high redshifts. However, strong magnetic field buildup in the accretion torus or disk could lead to much stronger jets, dominated by Poynting flux. Such jets will be highly relativistic, driven by the magnetic extraction of the rotational energy of the central BH through the Blandford–Znajek (BZ) mechanism (Blandford & Znajek 1977). The luminosity extracted from a Kerr BH with dimensionless spin parameter a_h threaded by a magnetic field of strength B_h is (Thorne et al. 1986)

$$\begin{equation} L_{\rm BZ} \approx \frac{a_h^2}{128} B_h^2 R_h^2 c, \end{equation} \tag{ 2 }$$

where R_h ≈ GM_h/c² is the event horizon radius of the BH. The dynamics of the radiatively inefficient accretion disk may be described (KB10) through advection-dominated (ADAF) model (Narayan & Yi 1994). For a VMS rotating at, say, half the break-up speed, the disk outer radius will be R_d ≃ R_*/4, and for a disk viscosity parameter α = 10⁻¹α₋₁, the accretion time is

$$\begin{equation} t_d \simeq \frac{7}{3\alpha } \left({\frac{R_d^3}{GM_h}}\right)^{1/2} \simeq 1.4 \times 10^4\;\alpha _{-1}^{-1} R_{*,12}^{3/2} M_{h,2.5}^{-1/2} \;{\rm s}, \end{equation} \tag{ 3 }$$

where we have defined R_{*, 12} = R_*/10¹² cm. This gives an estimate for both the disk lifetime and the duration of the jet, in the source frame. Given the jet propagation speed inside the star, ∼0.2c, deduced from MHD simulations (Barkov & Komissarov 2008), the intrinsic jet duration t_d ≃ 10⁴ s is sufficient to break through the star. The poloidal magnetic field strength in the disk should scale with the disk gas pressure, P, so that B²_h = 8πP/β, where β = 10 β₁ is the magnetization parameter (e.g., Reynolds et al. 2006). Then we have

$$\begin{eqnarray} B_h & \simeq & \left(\frac{4\sqrt{14}}{3 \alpha \beta } \frac{\dot{M} c}{R_h^2}\right)^{1/2}\nonumber\\ &\simeq & 6.6 \times 10^{13}\; \frac{1}{\alpha _{-1} \beta _1} M_{h,2.5}^{-1} M_{d,2.5}^{1/2} t_{d,4}^{-1/2}\; {\rm G}. \end{eqnarray} \tag{ 4 }$$

Combining these equations results in a jet luminosity

$$\begin{equation} L_{\rm BZ} \simeq \frac{\sqrt{14}}{96} \frac{a_h^2}{\alpha \beta } \dot{M} c^2 \simeq 2.2\times 10^{51}\; \frac{a_h^2}{\alpha _{-1} \beta _1} M_{d,2.5} t_{d,4}^{-1} \;{\rm erg}\;{\rm s}^{-1}, \end{equation} \tag{ 5 }$$

where for the second equalities in Equations (4) and (5) we have assumed a constant accretion rate $\dot{M} \simeq M_d/t_d$, and M_d = 10^2.5M_{d, 2.5}M_☉ is the total disk mass.

Let us assume that the factor a²_h/(αβ) is roughly constant, so that $L_{\rm BZ} \propto \dot{M}$. The total extracted energy during the accretion time t_d is then $E_{\rm BZ} \simeq (\sqrt{14}/96) (a_h^2/\alpha \beta) M_d c^2$. Assuming that the jet has an opening angle of θ_j = 0.1 θ_{j, −1}, we can then write the total isotropic-equivalent energy of the jet as

$$\begin{equation} E_{\rm iso} \simeq 4.4 \times 10^{57}\; \frac{(1-\epsilon _{\gamma }) a_h^2}{\alpha _{-1} \beta _1} M_{d,2.5} \theta _{j,-1}^{-2}\;{\rm erg}, \end{equation} \tag{ 6 }$$

where _γ is the radiation efficiency of the prompt emission and 1 − _γ is of order of unity. Equation (6) is also applicable to cases where $\dot{M}$ is not constant. As far as L_BZ∝t^−q (i.e., $\dot{M} \propto t^{-q}$) with q ⩽ 1, the jet can break out from the star and subsequently keep injecting energy into the external medium for the duration of the order of t_d. The forward shock produced in the external medium enters a self-similar expansion phase with total shock energy ≃ E_iso soon after t = t_d (Blandford & McKee 1976). Interestingly, the value of E_iso for a disk mass M_d ∼ 3 M_☉ is consistent with the observed largest value of the isotropic-equivalent γ-ray energy E_{γ, iso} ≃ 10⁵⁵ erg for GRB 080916C at redshift z ≃ 4.4 (Abdo et al. 2009). (On the other hand, the isotropic luminosity L_iso ≃ 4.4 × 10⁵³ (a²_h/αβ)M_{d, 2.5}t⁻¹_{d, 4}θ⁻²_{j, −1} erg s⁻¹ is comparable to the observed largest value.) Thus, if we were to observe a burst at redshift z ≳ 10 with E_iso ≳ 10⁵⁷ erg, and with a self-similar phase starting at t_{d, obs} = t_d(1 + z) ≳ 1 day, this would very likely be a burst from a Pop. III VMS with M_* ≳ 300 M_☉.

Rough predictions for the observational properties of the afterglows of Pop. III GRBs were made in MR10. The external shock driven by the jet in the circumburst medium powers the afterglow, which can be studied independently of the prompt emission (Mészáros & Rees 1997a; Sari et al. 1998; Sari & Esin 2001). This is true whether the jet is baryonic or Poynting dominated, the jet acting simply as a piston.⁷ The external shock amplifies the magnetic field in the shocked region via plasma and/or MHD instabilities and accelerates the electrons in the shocked region to a power-law energy distribution. The accelerated electrons produce synchrotron and synchrotron-self-Compton (SSC) radiation as an afterglow. Here we go beyond the previous schematic outlines and calculate the spectrum of this emission in detail, including the Klein–Nishina as well as e⁺e⁻ pair formation effects.

The bolometric luminosity of the external shock emission (with prompt emission light curve) is illustrated in Figure 1. We focus on the external shock emission at the observer's time t_obs ≃ t_{d, obs}, near the beginning of the self-similar expansion phase of the shock, when the emission is bright and may not be hidden by the prompt emission.

Zoom In Zoom Out Reset image size

Calculations of the external shock emission spectrum involve the parameters E_iso and t_d, as well as the external medium number density n, the fractions _B and _e of the thermal energy in the shocked region that are carried by the magnetic field and the electrons, respectively, and the index p of the energy spectrum of the accelerated electrons. We calculate the external shock emission spectrum of a Pop. III GRB at t_{d, obs} based on the standard model described in the Appendix.

As introduced in Section 1, the circumburst medium density in the very high redshift universe is likely to be n ≳ 0.1 cm⁻³. The microphysical parameters may be independent of E_iso, t_d, or n as long as the shock velocity is highly relativistic, so that _B, _e, and p are thought to be similar to those for the bursts observed so far. Those have been constrained by fitting the late-time afterglows through models (which are similar to our model shown in the Appendix). The parameters related to the electrons are constrained relatively tightly as _e ∼ 0.1 and p ∼ 2.3, while those for the magnetic field are not so tightly constrained, although typically for many afterglows 10⁻³ ≲ _B ≲ 10⁻¹ (e.g., Panaitescu & Kumar 2002; Wijers & Galama 1999).

The external shock emission at t_{d, obs} will have two intrinsically different cases, depending on the significance of the electron–positron pair creation within the emitting region. These cases are characterized by a negligible pair production regime and a significant pair production regime, for which we separately show examples of spectra below.

3.1. Case of Negligible Pair Production

An example of the negligible pair production case is obtained for the parameters

$$\begin{equation} E_{57.6} = t_{d,4} = n_0 = \epsilon _{B,-2} = \epsilon _{e,-1} = f(p) = 1, \end{equation} \tag{ 7 }$$

where the notation Q = 10^xQ_x in cgs units has been adopted (E_57.6 = E_iso/10^57.6 erg). The overall observer-frame spectrum for this case is shown in Figure 2 (see Appendix A.1). The synchrotron emission spectrum peaks at ε_m ≃ 5.4 eV with the flux $\varepsilon _m F_{\varepsilon _m} \simeq 4.4 \times 10^{-10}\;{\rm erg}\;{\rm cm}^{-2}\;{\rm s}^{-1}$, having spectral breaks at synchrotron self-absorption energy ε_a ≃ 9.7 × 10⁻⁴ eV and at energy corresponding to the maximum electron energy ε_M ≃ 1.8 × 10² MeV. The SSC emission spectrum peaks at ε^SC_m ≃ 1.8 × 10² MeV with the flux ε^SC_mF_εm^SC ≃ 1.2 × 10⁻⁹ erg cm⁻² s⁻¹ and has a spectral break at γγ self-absorption energy ε_γγ ≃ 21 GeV. Since ε_γγ > ε^SC_m, most of the SSC emission is observed without being converted into e⁺e⁻ within the emitting region.

Zoom In Zoom Out Reset image size

Even photons escaping without attenuation within the emitting region can be absorbed by interacting with the extragalactic background light (EBL; γγ → e⁺e⁻). Inoue et al. (2010) use a semi-analytic model of the evolving EBL and expect that high-energy photon absorption by the EBL for an arbitrary source at z ≃ 20 is significant at ε > ε_EBL ≃ 7 GeV. For the parameters adopted here, ε_γγ is larger than ε_EBL, which precludes obtaining intrinsic information about the emitting region from the observation of the γγ break.

The temporal evolution of the characteristic quantities during the self-similar phase, i.e., at t_obs > t_{d, obs}, is obtained by replacing t_d by the variable t_obs in the model equations in the Appendix and taking all other parameters as constant. On the other hand, for t_obs < t_{d, obs}, if the jet luminosity evolves as L_BZ∝t^−q with q ⩽ 1, one can obtain the temporal evolution of the characteristic quantities by taking E_iso∝t^{1 − q}_obs, replacing t_d by t_obs, and taking all the other parameters as constant. In the high-energy range, ε^SC_m < ε < ε_γγ, as an example, we obtain $F^{\rm SC}_{\varepsilon _m^{\rm SC} < \varepsilon < \varepsilon _{\gamma \gamma }} \propto t_{\rm obs}^{(3/4)(2-p) - (3/8)q(p+2/3)}$ for t_obs < t_{d, obs} and ∝t^{(10 − 9p)/8}_obs for t_obs > t_{d, obs}, which implies a steepening break at t_{d, obs} for p ∼ 2 and q < 1. Thus, one can identify the jet duration t_{d, obs} as the observed break time. (One can also estimate t_{d, obs} by the duration of the prompt emission.)

3.2. Case of Significant Pair Production

An example of the case of significant pair production is obtained with the parameter set

$$\begin{equation} E_{57.6} = t_{d,4} = \epsilon _{B,-2} = f(p) = 1, n_0 = 10^2, \epsilon _{e,-1} = 2. \end{equation} \tag{ 8 }$$

The overall observer-frame spectrum for this case is shown in Figure 3 (see Appendix A.2). The synchrotron emission spectrum of the original electrons peaks at ε_m ≃ 21 eV with the flux $\varepsilon _m F_{\varepsilon _m} \simeq 5.8 \times 10^{-10}\;{\rm erg}\;{\rm cm}^{-2}\;{\rm s}^{-1}$, having the maximum energy ε_M ≃ 1.0 × 10² MeV. The γγ self-absorption energy is ε_γγ ≃ 6.1 × 10² MeV, and thus most of the SSC emission with the spectral peak ε^SC_m ≃ 9.2 × 10² MeV with the peak flux ε^SC_mF_εm^SC ≃ 2.7 × 10⁻⁹ erg cm⁻² s⁻¹ is absorbed within the emitting region. The created pairs emit synchrotron emission peaking at ε_{±, p} ≃ 0.11 eV and SSC emission peaking at ε^SC _{±, p} ≃ 23 keV. In addition to these, the pairs inverse Compton (IC) scatter the original electron synchrotron emission and the original electrons IC-scatter the pair synchrotron emission, which have similar spectra peaking at ε^IC _{±, p} = ε_m^IC ≃ 4.5 MeV with different flux values, and they have been superposed in Figure 3.

Zoom In Zoom Out Reset image size

In this case, we can measure ε_γγ, since this is well below the expected EBL cutoff, so one would be able to draw inferences about the source parameters from the γγ self-absorption break (see the next section for details).

The temporal evolution of the flux in the LAT energy range will be $F_{\varepsilon _{\pm,p}^{\rm IC} < \varepsilon < \varepsilon _{\gamma \gamma }} \propto t_{\rm obs}^{-(7/8)(p-2)-(1/16)q(7p+2)}$ for t_obs < t_{d, obs} and ∝t^{(26 − 21p)/16}_obs for t_obs > t_{d, obs}, which implies a steepening break at t_{d, obs}. The light curve well after t_{d, obs}, however, may be complicated. The SSC component could become dominant at later times, since the SSC energy evolves as ε^SC_m∝t_obs^−9/4 and the γγ self-absorption energy evolves as ε_γγ∝t^{(3/4) − (2/p)}_obs for t_obs > t_{d, obs}.

3.3. Constraints on E_iso and n from Observations

We have shown two typical cases of the external shock emission of Pop. III GRBs, one being the case of negligible pair production and the other being the case of significant pair production for which the cascade process stops when the first generation pairs are created. There may be cases where the cascade process can create second (or higher) generation pairs, e.g., for larger _e and/or larger external n (in the above example we used _e = 0.2 and n = 10² cm⁻³). In any case, the important point is that one will be able to detect a spectral break at energy ε_γγ due to pair creation within the emission region in the Fermi LAT energy range, 50 MeV–30 GeV. This is a unique feature of GRB afterglows with very large E_iso (as expected for Pop. III GRB) and modest to large external density n. Equation (A18) or (A22) indicate that larger E_iso and n lead to smaller ε_γγ, increasing its diagnostic value. This is in contrast to the usual case of Pop. I/II GRBs, where the γγ self-absorption energy is not relevant for observations (Zhang & Mészáros 2001).

We can estimate the detection thresholds in the high energy ranges from the joint observation of GRB 090510 by Swift and Fermi (De Pasquale et al. 2010). This indicates that the thresholds of the 1 day averaged εF_ε flux are ∼6 × 10⁻¹⁵ erg cm⁻² s⁻¹ in the X-Ray Telescope (XRT) energy range 0.3–10 keV, ∼3 × 10⁻¹⁰ erg cm⁻² s⁻¹ in the BAT energy range 15–150 keV, and ∼3 × 10⁻¹¹ erg cm⁻² s⁻¹ in the LAT energy range 50 MeV–30 GeV. Compared to the results shown in Figures 2 and 3, it appears that the thresholds of the XRT and LAT are thus sufficiently low, and the BAT is marginally low only for the case of Figure 3, to observe the high-energy spectrum of the external shock emission of Pop. III GRB. Furthermore, for both cases of Figures 2 and 3, we find that the very high energy emission at ε ≳ 10 GeV could be detected with next generation facility such as Cherenkov Telescope Array,⁸ which will have a threshold of 1 day-averaged εF_ε flux ∼10⁻¹² erg cm⁻² s⁻¹ for ε ≳ 10 GeV, although this significantly depends on the EBL attenuation for individual burst. In Figure 4 we show, for reference, the similar results for a lower redshift of 1 + z = 10, using the same values of the other parameters as for the previous two figures. The above statement is also applicable to this case. The EBL attenuation effect for 1 + z = 10 is expected to be similar to that for 1 + z = 20 since the EBL intensity declines at z ≳ 10 (Inoue et al. 2010).

Zoom In Zoom Out Reset image size

One of the main questions that will be asked, if and when the redshift of a burst is determined to be z ≳ 10 (e.g., by observation of the Lyα cutoff at IR frequencies), is whether this burst is produced by a Pop. III VMS or not. An effective way to pinpoint a Pop. III progenitor is to examine whether the afterglow spectrum from its surrounding medium is devoid of metals through high-resolution IR and X-ray spectroscopy by ground-based facilities and/or future space experiments. Here we discuss in detail another way by estimating the duration and total energy of the jet through the X-ray and γ-ray observations of the afterglow and/or prompt emission. The jet duration timescale t_d can be estimated from the steepening of the afterglow light curve and/or the end of the prompt emission (see Sections 3.1 and 3.2, and Figure 1). A lower bound on the total isotropic-equivalent energy E_iso can be estimated from the observed flux level in a specific energy range. Thus, if one obtains E_iso ≳ 10⁵⁷ erg and t_d ≳ 10⁴ s, this burst is almost certainly bound to be a Pop. III GRB.

One could in principle attempt to constrain the electron spectral index p as well, using the observed photon spectral index, and the four physical parameters E_iso, n, _B, and _e, by measuring the observables ε_m, $F_{\varepsilon _m}$, ε^SC_m, and $F_{\varepsilon _m}^{\rm SC}$ with the Swift XRT, the Fermi LAT, and a possible IR detection. However, we have shown that there are some cases in which the spectral peak in the LAT energy range corresponds to ε^IC _{±, p}. In such cases, one cannot easily distinguish between the regime of negligible pair production and that of significant pair production, so that one would not be able to uniquely constrain all four physical parameters. Furthermore, the prompt emission may last until t_obs ≃ t_{d, obs}, which could hide the peak of the external shock synchrotron or IC/SSC emission, reducing the number of observables of the external shock emission.

We consider now the case in which the external shock emission is observed in the LAT energy range, without being hidden by the prompt emission component, and show how this can constrain E_iso as well as n. In this case we have two observables, the flux at some energy in the LAT energy range, $\varepsilon _L F_{\varepsilon _L}$, and the γγ self-absorption break energy ε_γγ, which is identifiable if it is well below ε_EBL.

The LAT flux can put a lower limit on E_iso, modulo the uncertainty on _e. The LAT flux should be lower than ε^SC_mF_εm^SC or ε^IC _{±, p}F_{ε±, p}^IC for the case of _e ≳ _B or $\varepsilon _m F_{\varepsilon _m}$ for the case of _e ≪ _B. In any case, we have $\varepsilon _L F_{\varepsilon _L} \lesssim \epsilon _e E_{\rm iso} t_d^{-1} (p-2)/[4\pi d_L^2(p-1)]$. We may approximate p to be 2λ_L, where λ_L is the measured spectral index in the LAT energy range. This leads to

$$\begin{eqnarray} E_{\rm iso} &\gtrsim & 2 \times 10^{57}\; \epsilon _{e,-1}^{-1} \left(\frac{\varepsilon _L F_{\varepsilon _L}}{10^{-9}\;{\rm erg}\;{\rm cm}^{-2} {\rm s}^{-1}}\right)\nonumber\\ &&\times t_{d,4} f_L(\lambda _L) d_{L,20}^2 \;{\rm erg}, \end{eqnarray} \tag{ 9 }$$

where f_L(λ_L) = (2/7)(λ_L − 0.5)/(λ_L − 1), and the luminosity distance d_L is normalized by the value for 1 + z = 20, 6.7 × 10²⁹ cm. This bound can be compared with the total isotropic-equivalent energy of the prompt emission, E_{γ, iso}.

From an observation of the γγ self-absorption break in the LAT band, we can then constrain the density of the medium around the Pop. III star before its collapse. The EBL cut-off energy ε_EBL can be estimated by some EBL models (e.g., Inoue et al. 2010) when we have the source redshift z. If we detect a spectral break which is well below the values of ε_EBL expected for practically all EBL models, the spectral break is likely to be the γγ self-absorption break. By using this, we can constrain the bulk Lorentz factor of the emitting region Γ_d (see the Appendix and Zhang & Mészáros 2001; Lithwick & Sari 2001). For the photons at ε_γγ in the LAT energy range, the main target photons have energies at ε_at ∼ Γ²_dm²_ec⁴/[(1 + z)²ε_γγ] ∼ eq7 (Γ_d/10²)²(ε_γγ/1 GeV)⁻¹[(1 + z)/20]⁻² keV. Thus, we can estimate the target photon number density by using the Swift XRT data. The equation for the optical depth $\tau _{\gamma \gamma }(\varepsilon _{\gamma \gamma }) \simeq (\sigma _T/10) (d_L^2/r_d^2) F_{\nu _X} (\varepsilon _{at}/\varepsilon _X)^{-\lambda } t_d/[h(1+z)]=1$, where ε_X, $F_{\nu _X}$, and λ are the observed X-ray energy, flux, and spectral index, with the equation for the emission radius r_d ≃ cΓ²_dt_d, leads to

$$\begin{eqnarray} \Gamma _d &\simeq & 60\;(20)^{\frac{\lambda -1.2}{\lambda +2}}\; \left(\frac{F_{\nu _X}}{10^{-4}\;{\rm Jy}}\right)^{\frac{1}{2\lambda +4}} \left(\frac{\varepsilon _X}{1\;{\rm keV}}\right)^{\frac{\lambda }{2\lambda +4}} \left(\frac{\varepsilon _{\gamma \gamma }}{1\;{\rm GeV}}\right)^{\frac{\lambda }{2\lambda +4}} \nonumber \\ &&\times \; t_{d,4}^{\frac{-1}{2\lambda +4}} d_{L,20}^{\frac{1}{\lambda +2}} [(1+z)/20]^{\frac{2\lambda -1}{2\lambda +4}}. \end{eqnarray} \tag{ 10 }$$

By using E_iso ≃ 4πr³_dΓ²_dnm_pc², we have an estimate of E_iso/n. Combining it with the above lower limit on E_iso, we can put a lower limit on n,

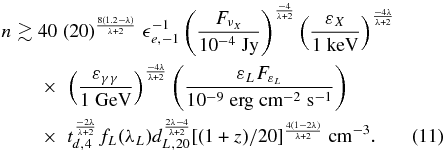

$$\begin{eqnarray} n &\gtrsim & 40\;(20)^{\frac{8(1.2-\lambda)}{\lambda +2}} \;\epsilon _{e,-1}^{-1} \left(\frac{F_{\nu _X}}{10^{-4}\;{\rm Jy}}\right)^{\frac{-4}{\lambda +2}} \left(\frac{\varepsilon _X}{1\;{\rm keV}}\right)^{\frac{-4\lambda }{\lambda +2}} \nonumber \\ &&\times \; \left(\frac{\varepsilon _{\gamma \gamma }}{1\;{\rm GeV}}\right)^{\frac{-4\lambda }{\lambda +2}} \left(\frac{\varepsilon _L F_{\varepsilon _L}}{10^{-9}\;{\rm erg}\;{\rm cm}^{-2}\;{\rm s}^{-1}}\right) \nonumber \\ &&\times \; t_{d,4}^{\frac{-2\lambda }{\lambda +2}} f_L(\lambda _L) d_{L,20}^{\frac{2\lambda -4}{\lambda +2}} [(1+z)/20]^{\frac{4(1- 2\lambda)}{\lambda +2}} \;{\rm cm}^{-3}. \end{eqnarray} \tag{ 11 }$$

Even if the prompt emission hides the external shock X-ray emission, taking the prompt emission X-ray flux as $F_{\nu _X}$ may provide us with a good estimate for a lower limit on n.

In principle, one could have a situation where _e ≪ _B, although this appears to be rare. In this case the SSC component would be dim, and any high-energy cutoff (or break) is due to a synchrotron maximum energy ε_M. Since ε_γγ∝t^−0.1_obs for p ∼ 2 and ε_M∝t^−3/8_obs, we can distinguish the cut-off origins. If the cutoff is ε_M, we can compute the bulk Lorentz factor by using Equation (A14) and a lower limit on n.

We have considered above the cases in which the afterglow emission can be well observed in the XRT and LAT energy ranges. It would be useful to examine for what ranges of parameters the emission cannot be well observed. At ε > ε_m, we have a rough but simple estimate of the flux as εF_ε ∼ _eE_isot⁻¹_d(p − 2)/[4πd²_L(p − 1)]∝_eL_isod⁻²_Lf(p), where L_iso = E_isot⁻¹_d∝M_dM^1/2_hR^−3/2_*θ⁻²_j, and the flux is found to be weakly dependent on _B or n. Although we still have several free parameters, we may examine the rough parameter dependence of the flux level. As an example of smaller progenitor mass M_* ∼ 100 M_☉ (which corresponds to M_{d, 2.5} ≃ M_{h, 2.5} ≃ 0.1), if we assume R_{*, 12} ≃ 0.5 and θ_{j, −1} ≃ _{e, −1} ≃ f(p) ≃ d_{L, 20} ≃ 1, we have εF_ε ∼ 1 × 10⁻¹⁰ erg cm⁻² s⁻¹ at t_{d, obs} ∼ 3 day, which is still well above the XRT threshold, but below the BAT threshold, for the 1 day integration of the flux (shown above). This flux is marginally above the LAT threshold, but the spectral break at ε_γγ may be difficult to be clearly identified. However, note that the flux could be much higher than this value, depending on the poorly constrained parameters R_*, θ_j, and _e. The XRT instrument seems to be very powerful for observing the emission for even smaller mass progenitors, but in any case, in order to identify the direction to the GRBs on the sky, the emission flux of the afterglow or the prompt emission has to be sufficiently high to trigger the BAT instrument. This issue is discussed below.

4.1. Swift BAT Detection Threshold

Instruments with large field of view need to be triggered by a GRB in order to observe them from early times. Here we investigate the detection threshold of the Swift BAT in detail to address whether Pop. III GRBs can trigger the BAT, by focusing on the "image trigger" mode.

The regular "rate trigger" mode looks for a rate increase in the light curves. The rate trigger is thus sensitive to a burst which is variable on a relatively short timescale. On the other hand, the image trigger searches for a burst by creating sky images every 64 s in the 15–50 keV band. The image trigger is purely based on whether a new source is found in the sky image or not in the given interval, without looking for a rate increase in the light curves. Generally, it is not simple to find the detection threshold of the BAT instrument, because 494 different trigger criteria (e.g., different energy bands, timescales, and combinations of detectors) have been running on-board. We are able to estimate a reasonable detection threshold, however, by investigating only the BAT image triggered GRBs, since the image trigger with the 64 s integration is based on a criterion with a fixed timescale and energy band.

There are some other reasons for focusing on the image triggered bursts to obtain a reasonable detection threshold of BAT. Figure 5 shows a diagram of the peak photon fluxes and the fluences in the 15–150 keV band of Swift GRBs in the BAT2 catalog which includes 64 s image triggered GRBs (Sakamoto et al. 2010). The BAT GRBs found by the 64 s image trigger have systematically weaker peak photon flux (but similar fluence) compared to those GRBs found by the rate triggers. Furthermore, the prompt emission and external shock emission of Pop. III GRBs are likely to have a lower peak flux and a longer duration, and to be less variable due to intrinsic property and high-redshift time stretching. The image trigger mode may be more sensitive to such emission than the rate trigger mode. Indeed, the high-redshift GRB 050904 (with z ≃ 6.3; Kawai et al. 2006) and the low-luminosity GRB 060218 (Campana et al. 2006; Toma et al. 2007) were image triggered bursts. Thus, the estimate of the threshold of the image trigger mode may be relevant especially for Pop. III GRBs. (Note, however, that GRB 090423 (with z ≃ 8.2; Tanvir et al. 2009; Salvaterra et al. 2009) and GRB 080913 (with z ≃ 6.7; Greiner et al. 2009) are the rate triggered bursts.)

Zoom In Zoom Out Reset image size

There are 72 GRBs (out of 467 GRBs) detected by the image trigger in the Second BAT GRB catalog. Out of 72 imaged triggered GRBs, there are 50 GRBs found by the image trigger with an integration time of 64 s,⁹ which are shown with the red points in Figure 5. We focus on this sample of 50 GRBs to estimate the BAT detection threshold. To understand the BAT detection threshold for the image trigger GRBs, we create the spectrum using the 64 s image trigger interval and extract the photon fluence of the interval in the 15–50 keV band (same energy band of the image trigger) and the best-fit photon index based on a simple power-law model. The image trigger interval has a duration of 64 s starting from the BAT trigger time. Figure 6 shows the distribution of the photon index and the photon fluence in the 15–50 keV band for a 64 s image interval of 50 image trigger GRBs. The imaged fluence in the 15–50 keV band does not have a strong dependence on the observed spectrum. Therefore, we conclude that the photon fluence threshold of the BAT 64 s image trigger is ∼1 photon cm⁻² in the 15–50 keV band, corresponding to a photon fluence threshold in the 15–150 keV band, of ∼2 photons cm⁻². This corresponds to the averaged photon flux ∼0.03 photons cm⁻² s⁻¹ in the 15–150 keV band. Note that this is the minimum averaged flux in the first 64 s interval of the image triggered GRBs, which is different from their minimum peak flux for the total observed duration, shown in Figure 5.

Zoom In Zoom Out Reset image size

We found 33 bursts (out of the 72 image triggered GRBs) with no optical counterpart observed, which are listed in Table 1, by looking through the Gamma-ray bursts Coordinates Network (GCN) circulars. These may be candidates for high-redshift bursts with z ≳ 6, and might include Pop. III GRBs. Their T₉₀ durations are relatively long, but not as long as the ∼1 day predicted for Pop. III GRBs in our model. These T₉₀ durations are just the time intervals during which BAT was able to detect 90% of the photons from the sources, which is not necessarily the same as the real duration of the bursts, although it provides a useful uniform measure approximating this quantity. If the burst flux is marginally above the BAT threshold initially and it gradually declines, the T₉₀ duration could be much shorter than the real duration.

Table 1. Prompt Emission Parameters for 33 Image Trigger GRBs with No Optical Counterpart

GRB	T90	S(15–150)	P1sph(15–150)		FIT(15–50)	PL PhIndexIT
	(s)	(erg cm−2)	(ph cm−2 s−1)		(erg cm−2 s−1)
050714B	46.9	(5.3 ± 1.0)  ×  10−7	0.6 ± 0.2		(6.0 ± 1.0)  ×  10−9	2.5 ± 0.4
050803	88.1	(2.2 ± 0.1)  ×  10−6	1.0 ± 0.1		(4.2 ± 0.8)  ×  10−9	1.6 ± 0.3
050916	80.0	(1.1 ± 0.2)  ×  10−6	0.5 ± 0.2		(4.3 ± 0.7)  ×  10−9	1.8 ± 0.3
050922B	156.3	(2.4 ± 0.4)  ×  10−6	1.1 ± 0.4		(7.2 ± 1.0)  ×  10−9	2.0 ± 0.3
051001	190.6	(1.8 ± 0.1)  ×  10−6	0.5 ± 0.1		(2.6 ± 0.6)  ×  10−9	2.0 ± 0.3
051213	71.1	(8.0 ± 1.0)  ×  10−7	0.5 ± 0.1		(3.4 ± 0.6)  ×  10−9	1.6 ± 0.3
051221B	39.9	(9.1 ± 1.0)  ×  10−7	0.6 ± 0.2		(2.4 ± 0.5)  ×  10−9	1.7 ± 0.3
060211A	118.2	(1.6 ± 0.1)  ×  10−6	0.4 ± 0.1		(3.0 ± 0.3)  ×  10−9	1.4 ± 0.2
060319	8.9	(2.4 ± 0.3)  ×  10−7	1.1 ± 0.1		(2.3 ± 0.4)  ×  10−9	2.0 ± 0.4
060413	117.3	(3.6 ± 0.1)  ×  10−6	0.9 ± 0.1		(2.3 ± 0.5)  ×  10−9	1.6 ± 0.3
060427	62.0	(5.0 ± 0.9)  ×  10−7	0.3 ± 0.1		(3.1 ± 0.5)  ×  10−9	2.0 ± 0.4
060516	161.2	(1.0 ± 0.2)  ×  10−6	0.4 ± 0.2		(3.4 ± 0.6)  ×  10−9	2.0 ± 0.3
060728a	...	(2.2 ± 0.7)  ×  10−7	0.08 ± 0.02		(1.2 ± 0.4)  ×  10−9	1.4 ± 0.4
060923C	67.4	(1.6 ± 0.2)  ×  10−6	0.9 ± 0.3		(1.1 ± 0.1)  ×  10−8	2.2 ± 0.2
061027a	...	(2.9 ± 0.9)  ×  10−7	0.2 ± 0.1		(2.2 ± 0.7)  ×  10−9	1.9 ± 0.5
061028	105.6	(9.5 ± 1.7)  ×  10−7	0.6 ± 0.2		(3.0 ± 0.6)  ×  10−9	1.9 ± 0.4
070126a	...	(1.3 ± 0.4)  ×  10−7	0.18 ± 0.04		(1.2 ± 0.4)  ×  10−9	1.9 ± 0.5
070429A	168.0	(9.4 ± 1.4)  ×  10−7	0.4 ± 0.1		(3.9 ± 0.6)  ×  10−9	2.2 ± 0.3
070520A	71.0	(5.0 ± 1.0)  ×  10−7	0.3 ± 0.1		(2.5 ± 0.5)  ×  10−9	1.9 ± 0.3
070704	377.6	(5.9 ± 0.3)  ×  10−6	2.0 ± 0.1		(1.1 ± 0.1)  ×  10−8	2.2 ± 0.2
070920A	51.5	(5.2 ± 0.7)  ×  10−7	0.3 ± 0.1		(2.9 ± 0.4)  ×  10−9	1.6 ± 0.2
071018b	288.0	(1.1 ± 0.2)  ×  10−6	<0.2		(1.0 ± 0.2)  ×  10−9	1.6 ± 0.3
071021	228.7	(1.4 ± 0.2)  ×  10−6	0.6 ± 0.1		(2.6 ± 0.5)  ×  10−9	1.8 ± 0.4
071028Ab	33.0	(3.3 ± 0.6)  ×  10−7	<0.4		(3.0 ± 0.5)  ×  10−9	1.8 ± 0.2
080207c	>290	...	...		(6.7 ± 0.5)  ×  10−9	1.3 ± 0.1
080325b	162.8	(4.9 ± 0.4)  ×  10−6	<2.0		(1.4 ± 0.3)  ×  10−8	1.5 ± 0.3
081017b	>320	(1.4 ± 0.2)  ×  10−6	0.2 ± 0.1		(1.9 ± 0.3)  ×  10−9	1.6 ± 0.2
081022	157.6	(2.6 ± 0.2)  ×  10−6	0.6 ± 0.1		(7.5 ± 0.6)  ×  10−9	1.4 ± 0.1
090308	25.1	(2.2 ± 0.5)  ×  10−7	0.3 ± 0.1		(3.1 ± 0.5)  ×  10−9	2.4 ± 0.4
090401A	117.0	(1.12 ± 0.03)  ×  10−5	11.0 ± 0.4		(6.3 ± 0.9)  ×  10−9	1.6 ± 0.2
090419b	460.7	(2.7 ± 0.3)  ×  10−6	...		(3.3 ± 0.5)  ×  10−9	1.3 ± 0.2
090807A	146.4	(2.2 ± 0.2)  ×  10−6	0.7 ± 0.2		(8.6 ± 0.9)  ×  10−9	2.1 ± 0.2
091104	107.1	(7.6 ± 1.2)  ×  10−7	0.4 ± 0.1		(3.0 ± 0.5)  ×  10−9	1.7 ± 0.3

Notes. T₉₀ is the T₉₀ duration of the burst. S(15–150) is the fluence in the 15–150 keV band. P^1s_ph(15–150) is the 1 s peak photon flux in the 15–150 keV band. F^IT(15–50) is the energy flux measured in the image triggered 64 s interval in the 15–50 keV band. PL PhIndex^IT is the photon index based on a simple power-law model to the spectrum of the 64 s image triggered interval. ^aPossible GRB. ^bPoor statistic to measure the 1 s peak flux form the spectrum. ^cIncomplete data to measure the fluence and peak flux.

Download table as:  ASCIITypeset image

A bright external shock emission of a Pop. III GRB would trigger the BAT even if the prompt emission flux is below the detection threshold. We calculated the 64 s photon fluences of the external shock emission in the 15–50 keV band for the cases of Figures 2 and 3 and obtained S_ph ≃ 0.33 photons cm⁻² and ≃ 1.5 photons cm⁻², respectively. The photon fluence in the latter case is marginally above the effective threshold ∼1 photon cm⁻². For the case of 1 + z = 10 (Figure 4), we obtained S_ph ≃ 2.0 photons cm⁻² for the negligible pair production case and S_ph ≃ 7.5 photons cm⁻² for the significant pair production case. These indicate that BAT will be triggered by the external shock emission in some cases. We have a rough relation S_ph∝_eL_isof(p)d⁻²_L (see the end of Section 3.3). When the progenitor mass is smaller, leading to L_iso three times smaller than the case of Figure 2, the external shock emission for the case of _{e, −1} ≃ f(p) ≃ 1 and 1 + z ≳ 10 will not trigger BAT (where the pair production is negligible for n₀ < 10⁴). In the next section, we use a specific model of the Pop. III GRB prompt emission to examine their detectability.

4.2. Prompt Photospheric Emission

Pop. III GRB jets are likely to be dominated by Poynting flux, as discussed in Section 2. The prompt emission mechanism of Poynting-dominated GRB jets (as opposed to the afterglow, on which we concentrated thus far) has been actively discussed in the literature (e.g., Thompson 1994; Mészáros & Rees 1997b; Spruit et al. 2001; Lyutikov 2006). The jet may have a subdominant thermal energy component of electron–positron pairs and photons, so that the emission from the photosphere can be bright. In addition to this, above the photosphere, the magnetic field could be directly converted into radiation via magnetic reconnection or the field energy could be converted into particle kinetic energy which can produce non-thermal radiation via shocks. The existence of the latter emission components is uncertain and they are currently difficult to model. Thus, for simplicity we focus on the photospheric emission, which is essentially unavoidable. Such photospheric emission models of the prompt emission are viable also for baryonic jets, which could work for Pop. I/II GRBs (e.g., Mészáros & Rees 2000; Rees & Mészáros 2005; Ioka et al. 2007; Toma et al. 2010). MR10 developed the Poynting-dominated jet model of Mészáros & Rees (1997b) for a Pop. III GRB jet and estimated the luminosity and temperature of the photospheric emission. Here we recalculate this emission component, taking into account the collimation of the outflow.

Let us assume for simplicity that the opening angle of the jet is roughly constant from the base of the jet, r_l = 2g_hR_h ≃ 9.4 × 10⁷ g_hM_{h, 2.5} cm where g_h is a numerical factor, out to the external shock region. The isotropic-equivalent luminosity of the jet is given by L_iso = L_BZ(2/θ²_j) ≃ 4.4 × 10⁵³ (a²_h/α₋₁β₁)M_{d, 2.5}t⁻¹_{d, 4}θ⁻²_{j, −1} erg s⁻¹. Denoting by σ the ratio of the Poynting energy flux and the particle energy flux at the base, the comoving temperature of the flow is estimated as T'_l = (L_iso/[(1 + σ)4πr²_lcaΓ²_l])^1/4 ≃ 5.3 × 10⁵ [(1 + σ)/10]^−1/4L^1/4_53.6r_{l, 8}^−1/2Γ^−1/2_l eV/k, where L_53.6 = L_iso/10^53.6 erg s⁻¹, r_{l, 8} = r_l/10⁸ cm, and Γ_l is the bulk Lorentz factor of the flow at the base. The dynamics of the flow while it is optically thick is governed by energy conservation (L_iso = const.), entropy conservation (r²T'³Γ = const.), and the MHD condition for the flow velocity to be close to the light speed (the lab-frame field strength B∝r⁻¹). The last condition indicates that the Poynting energy is conserved, and so the particle energy is also conserved, i.e., r²T'⁴Γ² = const. and σ = const. Then we have T'∝r⁻¹ and Γ∝r. At the photosphere radius r = r_a, where the electron–positron pairs recombine, the temperature is given by kT'_a ∼ 17 keV. This leads to

$$\begin{eqnarray} r_a &\simeq & 3.1 \times 10^9\; [(1+\sigma)/10]^{-1/4} L_{53.6}^{1/4} r_{l,8}^{1/2} \Gamma _l^{-1/2}\; {\rm cm}, \end{eqnarray} \tag{ 12 }$$

$$\begin{eqnarray} \Gamma _a &\simeq & 31\; [(1+\sigma)/10]^{-1/4} L_{53.6}^{1/4} r_{l,8}^{-1/2} \Gamma _l^{1/2}. \end{eqnarray} \tag{ 13 }$$

The observed temperature and the bolometric energy flux of the photospheric emission are then

$$\begin{eqnarray} kT_a &\simeq & \frac{\Gamma _a kT^{\prime }_a}{1+z} \nonumber \\ &\simeq& 26\; [(1+\sigma)/10]^{-1/4} L_{53.6}^{1/4} r_{l,8}^{-1/2} \Gamma _l^{1/2} [(1+z)/20]^{-1}\;{\rm keV},\nonumber\\ \end{eqnarray} \tag{ 14 }$$

$$\begin{eqnarray} F_a &\simeq & \frac{L_{\rm iso}/(1+\sigma)}{4\pi d_L^2}\nonumber \\ &\simeq& 7.1 \times 10^{-9} [(1+\sigma)/10]^{-1} L_{53.6} d_{L,20}^{-2} \;{\rm erg}\;{\rm cm}^{-2}\;{\rm s}^{-1}.\nonumber\\ \end{eqnarray} \tag{ 15 }$$

The photospheric photons can be scattered by MHD turbulence or Alfvén waves, induced by, e.g., the interaction of the jet with the stellar envelope, into a power-law spectrum extending up to comoving photon energies ∼m_ec² (Thompson 1994).¹⁰ The emission from the photosphere of Pop. III GRB would thus have a blackbody peak, and may have a non-thermal tail extending (in the observer frame) to photon energies ε ∼ Γ_am_ec²/(1 + z) ∼ 1 MeV. This photospheric emission may be detected until t_obs = t_{d, obs}. We plot this in Figures 2, 3, and 4 with dotted lines for the case of 1 + σ = 10 and L_53.6 = r_{l, 8} = Γ_l = 1.

We calculated the photon fluences in 64 s in the 15–50 keV band for the above parameter sets as S_ph ≃ 1.4 photons cm⁻² for the case of 1 + z = 20 and ≃ 1.3 photons cm⁻² for the case of 1 + z = 10. Thus, this emission can be marginally detected by the image trigger of BAT. The value of σ is highly uncertain, similar to R_* and θ_j for a specific value of M_*. For L_iso/(1 + σ) three times smaller than the above case (and similar values of r_l and Γ_l), the photon fluence is calculated as <1 photon cm⁻² both for 1 + z = 20 and 1 + z = 10, and thus BAT is not expected to be triggered.

4.3. Pop. III GRB Rate

The Pop. III GRB rate is largely uncertain, and has only been inferred from theoretical models. The observed rate of Pop. III GRBs originating between redshifts z and z + dz is computed by

$$\begin{equation} \frac{d\dot{N}_{\rm GRB}^{\rm obs}}{dz} = \psi _*(z) \eta _{\rm GRB}(z) P(z) \frac{1}{1+z} \frac{dV}{dz}, \end{equation} \tag{ 16 }$$

where ψ_*(z) is the Pop. III SFR per unit comoving volume, η_GRB(z) is the efficiency of the GRB formation, P(z) is the detection efficiency, i.e., the ratio of the Pop. III GRBs which would be detected by a specific instrument out of the entire number of Pop. III GRBs, and dV/dz is the comoving volume element of the observed area per unit redshift. The additional factor 1/(1 + z) represents the cosmological time dilation effect.

The factors ψ_*(z) and η_GRB(z) are both highly uncertain for the Pop. III VMSs as well as for the Pop. I/II stars. Just for a concrete discussion, here we use ψ_*(z) predicted by using the extended Press–Schechter formalism and the current observational results on the SFR for z ≲ 6 (Bromm & Loeb 2006; see also Naoz & Bromberg 2007). For Pop. I/II stars, they assumed a z-independent η_GRB ≃ 2 × 10⁻⁹ M⁻¹_☉ to set the total Pop. I/II GRB rate observed by Swift BAT to be ∼90 yr⁻¹. (Note that they assumed that Swift BAT covers 4π of the sky, while it actually covers only ∼2π/3 of the sky. Thus, the GRB formation efficiency should be normalized as ∼6 times their adopted value, η_GRB ≃ 1.2 × 10⁻⁸ M⁻¹_☉.) Their result predicts the Pop. I/II GRB rate observed by BAT at z > 6 to be ∼10 yr⁻¹. Since a small fraction ∼25% of GRBs detected by BAT have redshifts determined, because of bad conditions for optical and near-IR observations (cf. Fynbo et al. 2009; see also our implication from the image triggered GRBs in Section 4.1 and in Table 1), the predicted rate of Pop. I/II GRBs with z determined would be ∼3 yr⁻¹. This is somewhat higher than the current observed rate, 0.6 yr⁻¹, i.e., three GRBs (GRB 050904, GRB 080913, and GRB 090423) during the 5 year operation of Swift, but their model of ψ_*(z) and η_GRB is not interpreted as unacceptable, taking into account the uncertainties of the theoretical calculations and the poor statistics of the current observed data. For Pop. III stars, they assumed the same z-independent η_GRB as Pop. I/II stars and computed the nominal Pop. III GRB rate observed by BAT to be $R_{\rm BAT} \approx z d\dot{N}_{\rm GRB}^{\rm obs}/dz \sim 0.03\;{\rm yr}^{-1}$ for bursts around z ∼ 20 and ∼0.3 yr⁻¹ for bursts around z ∼ 10.

The detection efficiency P(z) is computed by assuming the GRB luminosity function and the detection threshold. Bromm & Loeb (2006) assumed that the Pop. III GRB luminosity function is the same as that of Pop. I/II GRBs and took a BAT detection threshold of f_{ph, lim} ≃ 0.2 photons cm⁻² s⁻¹. We can assume, however, that the Pop. III GRBs have a different luminosity function, with a brighter membership than Pop. I/II GRBs, and take the effective BAT threshold deduced by our analysis of the image trigger bursts (see Section 4.1), in which case R_BAT can be larger than the above estimate.

In order to estimate R_BAT in our Pop. III GRB model, let us first presume the observed rate (for ∼2π/3 of the sky) if we would detect the entirety of the Pop. III GRBs originating around z ∼ 10–20 without considering the detection efficiency, R_w, based on the calculations of Bromm & Loeb (2006). The detection efficiency is computed by

$$\begin{equation} P(z) = \int ^{\infty }_{L_{\rm ph,lim}(z)} p(L_{\rm ph}) dL_{\rm ph}, \end{equation} \tag{ 17 }$$

where L_ph is the isotropic-equivalent photon luminosity of a burst and p(L_ph) is the luminosity function normalized as ∫^∞₀p(L_ph)dL_ph = 1. They adopted L_{ph, lim} = 4πd²_Lf_{ph, lim} ≃ 1 × 10⁶⁰ photons s⁻¹ for bursts around z ∼ 20 and ≃ 2 × 10⁵⁹ photons s⁻¹ for bursts around z ∼ 10. The detection efficiency is then roughly estimated to be ∼p(L_{ph, lim})L_{ph, lim}/p(L_p)L_p ∼ 0.2 for z ∼ 20 and ∼0.5 for z ∼ 10, where L_p provides the peak of the function of p(L_ph)L_ph. Thus, we obtain R_w ∼ R_BAT/0.2 ∼ 0.2 yr⁻¹ for z ∼ 20 and ∼R_BAT/0.5 ∼ 0.6 yr⁻¹ for z ∼ 10.

According to our study in Sections 4.1 and 4.2, the photospheric prompt emission and/or the external shock emission of Pop. III GRBs can be detected by the BAT image trigger for our fiducial set of parameters, M_{d, 2.5} ≃ M_{h, 2.5} ≃ R_{*, 12} ≃ θ_{j, −1} ≃ _{e, −1} ≃ f(p) ≃ (1 + σ)/10 ≃ 1 and 1 + z ≳ 10, while not detected for L_iso, just three times smaller than that for the above set of parameters. Thus, if the distribution of the parameters of the Pop. III VMSs clusters around our fiducial set of parameters, BAT would detect, say, about half of the Pop. III GRBs out of the whole Pop. III GRBs, i.e., the detection rate could be R_BAT ∼ R_w/2 ∼ 0.1 yr⁻¹ for z ∼ 20 and ∼0.3 yr⁻¹ for z ∼ 10. These values have large uncertainties, but imply that the 5 year operation of Swift so far may already have detected a Pop. III GRB, or may detect it in the near future, if the factor ψ_*(z) × η_GRB is given as above.

We have focused so far on the high-energy emission just before and near the beginning of the external shock self-similar phase (t_obs ≃ t_{d, obs}, see Figure 1) to constrain the physical parameters E_iso and n of Pop. III GRBs and to examine their detectability by BAT. In this section, we argue that the radio afterglows of Pop. III GRBs in the self-similar phase (t_obs > t_{d, obs}) can be so bright that they also provide powerful tools for constraining the event rate. At t_{d, obs}, the flux of the external shock emission shown in Figure 2 at ν_a ≃ 230 E^1/6_57.6t^−1/2_{d, 4}n₀^1/6[(1 + Y)/3.7]^−1/3[(1 + z)/20]⁻¹ GHz is given by

$$\begin{eqnarray} F_{\nu _a} &\simeq & 2.6\; \epsilon _{B,-2}^{-1/4} E_{57.6}^{2/3} n_0^{-1/12} [(1+Y)/3.7]^{-5/6}\nonumber\\ &&\quad\times[(1+z)/20] d_{L,20}^{-2}\;{\rm Jy}. \end{eqnarray} \tag{ 18 }$$

The break frequency ν_a decreases (as t^−1/2_obs) but the flux at ν_a stays constant after t_{d, obs}, at least until the epoch when the jet effects become significant. This indicates that the Pop. III GRB afterglows can be very bright radio sources despite their large distances.

We briefly compute the light curves at various frequencies in the radio bands, 100 GHz, 5 GHz, 1 GHz, and 70 MHz, in our fiducial case, E_57.6 = t_{d, 4} = n₀ = _{B, −2} = _{e, −1} = f(p) = θ_{j, −1} = 1. As discussed above, the temporal evolution of the characteristic quantities of the external shock in the self-similar expansion phase can be obtained by replacing t_d by the variable t_obs and taking the other parameters as constant in the equations of the general afterglow model (shown in the Appendix). The jet effects are significant when the Lorentz factor of the shocked fluid is Γ ≃ θ⁻¹_j, i.e., at the observer's time

$$\begin{eqnarray} t_{\theta,{\rm obs}} &\simeq & \left(\frac{E_{\rm iso} \theta _j^8}{4\pi n m_p c^5}\right)^{1/3} (1+z) \nonumber \\ &\simeq & 9.9\times 10^2 \; E_{57.6}^{1/3} n_0^{-1/3} \theta _{j,-1}^{8/3} [(1+z)/20]\;{\rm day}. \end{eqnarray} \tag{ 19 }$$

After t_{θ, obs}, the temporal evolution of the characteristic quantities is obtained by replacing E_iso by t⁻¹_obs and t_d by t_obs, respectively, and taking the other parameters as constant (Sari et al. 1999). Such an evolution is derived under the assumption that the shocked fluid expands sideways rapidly after t_{θ, obs}. Recent detailed hydrodynamic simulations (Zhang & MacFadyen 2009; Granot 2007) have shown that the shocked fluid only undergoes a slow sideways expansion, while the afterglow light curves can be still approximated by those predicted by Sari et al. (1999) especially in the radio band. (In the optical and X-ray bands, the spectrum is so soft that the limb-brightening effect is significant. Then the brightest portion at an angle θ ∼ Γ⁻¹ from the line of sight becomes missing at t_{θ, obs}, which causes a steeper light curve than t^−p_obs.)

In an analytical treatment (e.g., Sari et al. 1999), the rapid sideways expansion of the fluid would lead to a nearly spherical (θ_j ∼ 1) configuration of the shocked fluid leading to the non-relativistic Sedov–von Neumann–Taylor (SNT) solution, starting around observer's time t_{SNT, obs} ≃ [E_isoθ²_j/(4πnm_pc⁵)]^1/3(1 + z) ≃ 9.9 × 10⁴ E^1/3_57.6n^−1/3₀θ^2/3_{j, −1}[(1 + z)/20] day. However, the detailed hydrodynamic simulations (Zhang & MacFadyen 2009) show that the much slower sideways expansion results in the later start of the SNT phase. The starting time is shown to be a few times t_{NR, obs}

$$\begin{eqnarray} t_{\rm NR,obs} &\simeq & \left(\frac{E_{\rm iso}}{4\pi n m_p c^5}\right)^{1/3} (1+z) \nonumber \\ &\simeq & 4.6 \times 10^5\;E_{57.6}^{1/3} n_0^{-1/3} [(1+z)/20]\;{\rm day}, \end{eqnarray} \tag{ 20 }$$

where the shocked fluid is still highly collimated. The temporal evolution of the characteristic quantities in the SNT phase is obtained by using r∝t^2/5_obs and v∝t^−3/5_obs, where v is the velocity of the shocked fluid, and the internal energy density is ∝v². This results in a light curve with a shallower decay at ν > ν_a (or a steeper rise at ν < ν_a) in the SNT phase, compared to the decay in the prior phase. Therefore, the assumption of the slow sideways expansion and the late SNT phase based on the numerical simulations leads to a smaller number of off-axis observers (due to the high collimation) and dimmer radio fluxes than that of the rapid sideways expansion based on the approximate analytical arguments. We here take the former, conservative assumption of the slow sideways expansion.

For calculating the radio emission, we need to compute only the synchrotron emission of the original electrons. At late times, the number of pairs is typically small, and the pair emission is negligible. The SSC emission is not relevant in the radio bands. The results are plotted in Figure 7. Here we confirmed the assumptions that all the electrons in the shocked region remain relativistic at least until t_obs = 10⁶ day.

Zoom In Zoom Out Reset image size

Figure 7 shows that the radio afterglows of Pop. III GRBs can be very bright with a very long duration. These could have been detected as quasi-steady point sources by the radio survey observations. As far as we know, the current largest radio survey data are based on the Very Large Array (VLA) FIRST survey (White et al. 1997), which observed a large area mainly around the north Galactic cap at 1.4 GHz, covering ∼1/5 of all the sky.¹¹ For the threshold, ∼6 mJy at 1.4 GHz, a Pop. III GRB radio afterglow at 1 + z = 20 (at 1 + z = 10) can be observed for t_{rd, obs} ∼ 300 yr (for t_{rd, obs} ∼ 200 yr). Therefore, if we denote by R_{w, 4π} the all-sky Pop. III GRB rate in unit of yr⁻¹, the number of the Pop. III radio afterglows that would have been detected in that survey is estimated to be ∼(R_{w, 4π}/5)t_{rd, obs} ∼ 60 (R_{w, 4π}/1 yr⁻¹)(t_{rd, obs}/300 yr) for bursts at 1 + z ∼ 20 and ∼200 (R_{w, 4π}/4 yr⁻¹)(t_{rd, obs}/200 yr) for bursts at 1 + z ∼ 10. A detailed analysis of the FIRST data would thus provide a powerful constraint on R_{w, 4π} of Pop. III GRBs such as discussed in this paper (even no sources like our model calculations would provide an upper limit on the rate). The Pop. III radio sources could have X-ray counterparts. In our model, the late-time X-ray afterglow is dominated by the SSC component, whose flux in the 0.3–10 keV range can be >10⁻¹⁵ erg cm⁻² s⁻¹ for t_obs ≲ 100 yr (which can be detected by Chandra X-ray Observatory).

The above predicted numbers of the Pop. III GRB radio afterglows are just based on the values of t_{rd, obs} calculated for our fiducial set of parameters. In order to obtain more realistic numbers taking into account the distributions of the model parameters, we require the calculation of the radio light curves for large ranges of parameter values. However, the radio light curves may highly depend on the parameters E_iso, t_d, n, _B, _e, and f(p). In other words, there are many patterns of light curves depending on the orders of characteristic times t_{a = c}, t_{m = a}, and t_{m = c}, which are the times when ν_a crosses ν_c, when ν_m crosses ν_a, and when ν_m crosses ν_c, respectively, as well as t_d, t_θ, and t_NR (we have t_d < t_θ < t_{m = a} < t_{m = c} < t_{a = c} < t_NR for our adopted parameter set). A thorough model analysis with different parameter sets would deserve another future work.

Recent radio transient searches without primary detections at any other frequencies have begun to open new observational frontiers (e.g., Niinuma et al. 2007; Bower et al. 2007; Ofek et al. 2010), but currently they do not appear to have good potentials for detecting Pop. III GRB radio afterglows. The interferometric drift-scanning observation with the Waseda Nasu Pulsar Observatory in Japan may scan a large area at 1.4 GHz (Niinuma et al. 2007), but its detection threshold, ∼0.3 Jy, is not sufficiently high for searching our typical Pop. III radio afterglows. Bower et al. (2007) reported results of a survey for transient sources by using archival data obtained with VLA observation of a single field at 5 or 8.4 GHz, but the field is very small, <0.1 deg².

The absorption line at 21 cm (associated with transitions between the hyperfine levels of the hydrogen atom) seen in the continuum radio spectrum of high-redshift sources would be one of the promising tools to reveal the reionization history of the universe (Tozzi et al. 2000; Shaver et al. 1999). GRB radio afterglows have been considered as candidate backlighting sources, but the bursts with the usual or slightly higher total energies have been found to be too dim for this aim (Furlanetto & Loeb 2002; Ioka & Mészáros 2005). However, the high-redshift GRBs arising from Pop. III VMSs, such as discussed in this paper, can emit a sufficiently bright radio afterglow to be of interest. For our fiducial parameter values, the radio flux at ν = 1420 MHz/(1 + z) is estimated to be ≃ 2.4 mJy (with peak time t_{p, obs} ≃ 850 yr) for 1 + z = 20 and ≃ 6.4 mJy (with peak time t_{p, obs} ≃ 430 yr) for 1 + z = 10, which are comparable to the lower bound on the radio flux for detection of the 21 cm absorption line, ∼1–10 mJy (Ioka & Mészáros 2005). Thus, the 21 cm absorption line could be marginally detected in the Pop. III GRB radio afterglows. A radio survey with telescopes like Low Frequency Array (LOFAR)¹² could detect such radio afterglows and determine their redshifts by their 21 cm lines themselves. The predicted number of detections is ∼R_{w, 4π}(Ω/4π)t_{p, obs} ∼ 1 (R_{w, 4π}/1 yr⁻¹)(Ω/50 deg²)(t_{p, obs}/850 yr) for bursts at 1 + z ∼ 20 and ∼1 (R_{w, 4π}/4 yr⁻¹)(Ω/20 deg²)(t_{p, obs}/430 yr) for bursts at 1 + z ∼ 10, where Ω is the solid angle of the survey area. Note that the jets will keep collimated even around ∼t_{NR, obs} due to the slow sideways expansions (Zhang & MacFadyen 2009), so that off-axis viewings of the afterglows are too dim to detect.¹³

Pop. III GRBs may have an isotropic-equivalent energy E_iso ≳ 10⁵⁷ erg and a cosmological-rest-frame duration t_d ≳ 10⁴ s. We have calculated the external shock emission spectrum at t_{d, obs} in detail based on the standard model (Mészáros & Rees 1997a; Sari et al. 1998; Sari & Esin 2001; Nakar et al. 2009). This model can explain many of the X-ray/optical/radio afterglows detected so far (e.g., Panaitescu & Kumar 2002; Liang et al. 2007) as well as the very early high energy afterglows detected by Fermi LAT (e.g., Kumar & Barniol Duran 2009; De Pasquale et al. 2010; Corsi et al. 2010).

We found that the external shock emission at t_{d, obs} can be detected by Fermi LAT and Swift XRT/BAT whose flux leads to a constraint on E_iso by using the source redshift (and distance) that will be determined by the observation of the Lyα dropoff in the IR band. The detection of a burst at z ≳ 10 with E_iso ≳ 10⁵⁷ erg and t_d ≳ 10⁴ s would be a very strong indication that this is a GRB arising from a Pop. III VMS with M_* ≳ 300 M_☉. This indication should be complemented with the constraint on the metal abundances in the surrounding medium through high-resolution IR and X-ray spectroscopy.

One of the important findings of the present study is that the γγ self-absorption break at energy ε_γγ in some cases of the external shock emission spectrum of a Pop. III GRB is expected to be observable in the LAT energy range. Given that the prompt emission at t_{d, obs} does not hide the external shock emission in the LAT range and ε_γγ is well below the values of the EBL γγ cut-off energy expected for practically all EBL models with the determined source redshift, we have shown that the flux and the energy ε_γγ, together with Swift XRT data, can lead to a constraint on the value of the external density n. The constraint on n would provide invaluable information about the environment and the radiative feedback processes of Pop. III stars.

Putting constraints on n from the γγ self-absorption break is a fairly new method, while constraints on n from the multi-wavelength observations of the late-time afterglows of Pop. I GRBs are common (e.g., Panaitescu & Kumar 2002; Wijers & Galama 1999). Here we have discussed the conditions under which these methods can be used in Pop. III GRBs. One caveat is that we have assumed that the electron acceleration processes work uniformly in the emitting region for calculating the afterglow spectra. As discussed below Equation (A19) in the Appendix, it is also possible that electron acceleration works only near the shock front, where ε_γγ may be far above the LAT energy range and ε_M depends on the unknown upstream magnetic field strength, which does not allow us to constrain n.

In order to identify the direction to GRB afterglows on the sky for observations with Swift, Fermi, and the IR telescopes, the emission needs to be high enough to trigger the large field instrument BAT. A reasonable trigger threshold of Swift BAT can be estimated by focusing on the image trigger mode, since it is based on a criterion with a fixed timescale and energy band, while a more general BAT threshold including the usual rate trigger is too complicated to estimate. The image trigger mode may be suitable for detecting weak and less-variable bursts like very high redshift bursts. We have used the samples in the BAT2 catalog and deduced the detection threshold of the BAT image trigger to be ∼1 photon cm⁻² for the 64 s interval in the 15–50 keV band. We have calculated the prompt photospheric emission flux of Pop. III GRBs with typical parameters and shown that these can be marginally detected by BAT. The external shock emission can also trigger BAT without the prompt emission trigger in some cases.

We have also briefly shown that the Pop. III GRB late-time radio afterglows can be very bright. For our fiducial parameters, the peak flux at 1 GHz is ≃ 140 mJy, which could be identified in the VLA FIRST survey data. This survey covered a sufficiently large area, which would provide a powerful upper bound on the rate of the Pop. III GRBs. The peak flux of the late-time 70 MHz radio afterglow for our fiducial parameters is ≃ 2.4 mJy, in which 21 cm absorption lines could be detected. This would provide a measure of the neutral hydrogen fraction in the IGM around the Pop. III star.

Putting constraints on the properties of Pop. III stars has recently become of great importance in modern cosmology. Planned IR surveys will be able to probe Pop. III stars. However, it is difficult to distinguish between a single Pop. III VMS and a cluster of less massive Pop. III stars. Thus, the detection of GRBs with very high E_iso and very long t_d could provide critical, "smoking gun" evidence for the existence of VMSs. Multi-wavelength observations of such GRBs with Swift, Fermi, and ground-based IR and radio telescopes should provide us with invaluable information on Pop. III stars and their environments.

We thank D. N. Burrows, A. D. Falcone, D. B. Fox, A. Gal-Yam, S. Gao, K. Murase, S. Naoz, and the anonymous referee for useful comments. We acknowledge NASA NNX09AT72G, NASA NNX08AL40G, and NSF PHY-0757155 for partial support.

The afterglow emission spectrum at the time t_d is determined by the radius r_d and the Lorentz factor Γ_d of the shocked fluid at this time, which are given via the relations E_iso ≃ 4πr³_dΓ²_dnm_pc² and r_d ≃ cΓ²_dt_d. Here we have assumed for simplicity that the circumburst medium density is uniform, n = 1 n₀ cm⁻³. These two equations lead to

$$\begin{eqnarray} r_d &\simeq & \left(\frac{E_{\rm iso} t_d}{4\pi n m_p c}\right)^{1/4} \simeq 2.8 \times 10^{18}\; E_{57.6}^{1/4} t_{d,4}^{1/4} n_0^{-1/4} \;{\rm cm}\qquad \end{eqnarray} \tag{ A1 }$$

$$\begin{eqnarray} \Gamma _d &\simeq & \left(\frac{E_{\rm iso}}{4\pi n m_p c^5 t_d^3}\right)^{1/8} \simeq 97\; E_{57.6}^{1/8} t_{d,4}^{-3/8} n_0^{-1/8},\quad \end{eqnarray} \tag{ A2 }$$

where E_57.6 = E_iso/10^57.6 erg and t_{d, 4} = t_d/10⁴ s. The magnetic field strength in the shocked region scales as

$$\begin{equation} B \simeq (32\pi \epsilon _B n m_p c^2)^{1/2} \Gamma _d \simeq 3.8\; \epsilon _{B,-2}^{1/2} E_{57.6}^{1/8} t_{d,4}^{-3/8} n_0^{3/8}\;{\rm G}, \end{equation} \tag{ A3 }$$

where _{B, −2} = _B/10⁻². The minimum injected electron Lorentz factor is

$$\begin{equation} \gamma _m \simeq \epsilon _e \Gamma _d \frac{m_p}{m_e} \frac{p-2}{p-1} \simeq 4.1 \times 10^3\; \epsilon _{e,-1} E_{57.6}^{1/8} t_{d,4}^{-3/8} n_0^{-1/8} f(p), \end{equation} \tag{ A4 }$$

where _{e, −1} = _e/10⁻¹ and f(p) = (13/3)(p − 2)/(p − 1). We have assumed that all the electrons are accelerated to a power-law spectrum dn/dγ_e∝γ^−p_e for γ_e ⩾ γ_m.

The accelerated electrons will lead to synchrotron and SSC emission. The radiative cooling timescale in the comoving frame is t'_c = 6πm_ec/[σ_Tγ_eB²(1 + Y(γ_c))], where Y(γ_c) is the luminosity ratio of the SSC to synchrotron emission for electrons with γ_c, while the comoving dynamical timescale is t'_d = Γ_dt_d. Thus, the electron Lorentz factor above which the radiative cooling is more significant than the adiabatic cooling is

$$\begin{eqnarray} \gamma _c &\simeq & \frac{6\pi m_e c}{\sigma _T B^2 \Gamma _d t_d [1+Y(\gamma _c)]}\nonumber\\ &\simeq & 56\; [1+Y(\gamma _c)]^{-1} \epsilon _{B,-2}^{-1} E_{57.6}^{-3/8} t_{d,4}^{1/8} n_0^{-5/8}. \end{eqnarray} \tag{ A5 }$$

All the injected electrons are radiatively cooled within the dynamical timescale if γ_c < γ_m, that is, if

$$\begin{equation} \epsilon _{B,-2} n_0^{1/2} [1+Y(\gamma _c)] > 1.4 \times 10^{-2}\; \epsilon _{e,-1}^{-1} E_{57.6}^{-1/2} t_{d,4}^{1/2} {f(p)}^{-1}. \end{equation} \tag{ A6 }$$

This condition can be rewritten using Equations (3) and (6) as

$$\begin{eqnarray} &&M_{d,2.5}^{1/2} M_{h,2.5}^{1/4} R_{*,12}^{-3/4} n_0^{1/2} \theta _{j,-1}^{-1} a_h \beta _1^{-1/2} (1-\epsilon _\gamma)^{1/2}\nonumber\\ &&\qquad > 10^{-2} \epsilon _{B,-2}^{-1} \epsilon _{e,-1}^{-1} {f(p)}^{-1} [1+Y(\gamma _c)]^{-1}. \end{eqnarray} \tag{ A7 }$$

Since the masses M_d and M_h are expected to be positively correlated with the radius R_*, this condition is found to be satisfied for reasonable parameter ranges. We thus focus on the fast-cooling regime, γ_c < γ_m, for the emission at t_d.

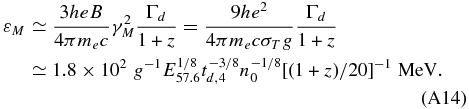

The peak energies of the εF_ε spectra of the synchrotron and SSC emission are given by

$$\begin{eqnarray} \varepsilon _m &\simeq & \frac{3heB}{4\pi m_e c}\gamma _m^2 \frac{\Gamma _d}{1+z} \simeq 5.4\; \epsilon _{e,-1}^2 \epsilon _{B,-2}^{1/2} E_{57.6}^{1/2} t_{d,4}^{-3/2}\nonumber\\ &&\quad\times {f(p)}^2 [(1+z)/20]^{-1}\;{\rm eV}, \end{eqnarray} \tag{ A8 }$$

$$\begin{eqnarray} \varepsilon _m^{\rm SC} &\simeq & 2\gamma _m^2 \varepsilon _m \simeq 1.8\times 10^2\; \epsilon _{e,-1}^4 \epsilon _{B,-2}^{1/2} E_{57.6}^{3/4} t_{d,4}^{-9/4} n_0^{-1/4}\nonumber\\ &&\quad\times {f(p)}^4 [(1+z)/20]^{-1} \;{\rm MeV}, \end{eqnarray} \tag{ A9 }$$

respectively. If ε^SC_m < Γ_dγ_mm_ec²/(1 + z), the Klein–Nishina (KN) suppression of the SSC emission is not significant (e.g., Nakar et al. 2009). This condition is rewritten as _{B, −2} < 3.2 × 10³⁻⁶_{e, −1}E⁻¹_57.6t_{d, 4}³f(p)⁻⁶, which is satisfied for reasonable parameter ranges. In the case of negligible KN effects, Y does not depend on γ_e for γ_e ≲ γ_m, which is calculated from

$$\begin{equation} Y \simeq \sigma _T \frac{r_d}{\Gamma _d} \int _{\gamma _c}^{\infty } d\gamma _e \frac{dn}{d\gamma _e} \gamma _e^2 \simeq \tau \gamma _c \gamma _m \frac{p-1}{p-2} \simeq \frac{\epsilon _e}{\epsilon _B} \frac{1}{1+Y}, \end{equation} \tag{ A10 }$$

where τ = σ_Tr_dn is the optical depth for the electron scattering. We obtain $Y \approx \sqrt{\epsilon _e/\epsilon _B} \sim 3\;\epsilon _{e,-1}^{1/2} \epsilon _{B,-2}^{-1/2}$ for the case of _e ≳ _B, while otherwise Y ≈ _e/_B < 1. The SSC spectrum above ε^SC_m has a softening break at

$$\begin{eqnarray} \varepsilon _{\rm KN} &\simeq & \frac{\Gamma _d^2 m_e^2 c^4}{(1+z)^2 \varepsilon _m} \simeq 1.2\; \epsilon _{e,-1}^{-2} \epsilon _{B,-2}^{-1/2} E_{57.6}^{-1/4} t_{d,4}^{3/4} n_0^{-1/4}\nonumber\\ &&\quad\times{f(p)}^{-2} [(1+z)/20]^{-1}\; {\rm TeV}. \end{eqnarray} \tag{ A11 }$$

The fluxes at ε_m and at ε^SC_m are given by

$$\begin{eqnarray} \varepsilon _m F_{\varepsilon _m} &\simeq & \frac{\epsilon _e E_{\rm iso} t_d^{-1}}{4\pi d_L^2} \frac{p-2}{p-1} \frac{1}{1+Y}\simeq 1.6\times 10^{-9}\;(1+Y)^{-1} \nonumber \\ &&\times\epsilon _{e,-1} E_{57.6} t_{d,4}^{-1} f(p) d_{L,20}^{-2} \; {\rm erg}\;{\rm cm}^{-2}\;{\rm s}^{-1},\quad \end{eqnarray} \tag{ A12 }$$

$$\begin{eqnarray} \varepsilon _m^{\rm SC} F_{\varepsilon _m}^{\rm SC} &\simeq & Y \varepsilon _m F_{\varepsilon _m}, \end{eqnarray} \tag{ A13 }$$

where the luminosity distance d_L is normalized by the value for 1 + z = 20, 6.7 × 10²⁹ cm. In the case of significant KN effects, i.e., ε^SC_m > Γ_dγ_mm_ec²/(1 + z), the SSC emission is not important and Y is smaller than the above value (see Nakar et al. 2009, for details).

The maximum energy of the electrons is determined by equating the acceleration timescale and the radiative cooling timescale. If the electron acceleration occurs in the whole region, we may estimate the (comoving) acceleration timescale as t'_a = g2πγ_em_ec/(eB) where g is a numerical factor. For electrons with maximum Lorentz factor γ_M, the KN effect is typically significant, and Y(γ_M) < 1. Then we have γ_M ≃ [3e/(gσ_TB)]^1/2, and its characteristic synchrotron energy is

$$\begin{eqnarray} \varepsilon _M &\simeq & \frac{3heB}{4\pi m_e c}\gamma _M^2 \frac{\Gamma _d}{1+z} = \frac{9h e^2}{4\pi m_e c \sigma _T g} \frac{\Gamma _d}{1+z}\nonumber \\ &\simeq& 1.8\times 10^2\; g^{-1} E_{57.6}^{1/8} t_{d,4}^{-3/8} n_0^{-1/8} [(1+z)/20]^{-1} \; {\rm MeV}.\nonumber\\ \end{eqnarray} \tag{ A14 }$$

The energy ε_a below which the synchrotron self-absorption effect is significant can be estimated by equating the synchrotron flux to the blackbody flux of the characteristic electrons in the shocked region, $F_{\varepsilon _a} = [(1+z)^3/d_L^2] 2\pi m_e \gamma _{ch} (\varepsilon _a/h)^2 (r_d^2/\Gamma _d)$ (e.g., Mészáros & Rees 1997a). The Lorentz factor γ_ch of the characteristic electrons is given by γ_a whose synchrotron energy is ε_a in the case of γ_a > γ_c, and otherwise by γ_c. Although more detailed calculations can be done by using the self-absorption coefficients (e.g., Melrose 1980; Matsumiya & Ioka 2003; Toma et al. 2008), the above approximate derivation is sufficient for our current study. Thus we obtain

$$\begin{equation} \gamma _a \simeq \left\lbrace \begin{array}{@{}l}69\; (1+Y)^{-1/6} \epsilon _{B,-2}^{-1/4} E_{57.6}^{-1/24} t_{d,4}^{1/8} n_0^{-1/24},\\ \ms \qquad{\rm for}\ \gamma _c < \gamma _a < \gamma _m, \cr \ms\ms 81\; (1+Y)^{1/2} \epsilon _{B,-2}^{7/20} E_{57.6}^{9/40} t_{d,4}^{1/8} n_0^{17/40},\\\ms \qquad{\rm for}\ \gamma _a < \gamma _c < \gamma _m. \end{array} \right. \end{equation} \tag{ A15 }$$

The characteristic synchrotron energy of electrons with this Lorentz factor is given by

$$\begin{equation} \varepsilon _a \simeq \left\lbrace \begin{array}{@{}l}1.5\times 10^{-3}\;(1+Y)^{-1/3} E_{57.6}^{1/6} t_{d,4}^{-1/2} n_0^{1/6} \\\ms \qquad\times\,[(1+z)/20]^{-1}\ {\rm eV}, {\rm for}\ \gamma _c < \gamma _a < \gamma _m, \cr\ms\ms 2.1 \times 10^{-3}\; (1+Y) \epsilon _{B,-2}^{6/5} E_{57.6}^{7/10} t_{d,4}^{-1/2} n_0^{11/10} \\\ms \qquad\times\,[(1+z)/20]^{-1}\ {\rm eV},\ {\rm for}\ \gamma _a < \gamma _c < \gamma _m. \end{array} \right. \end{equation} \tag{ A16 }$$

The high-energy absorption turnover energy ε_γγ due to the e⁺e⁻ pair creation can be estimated as follows (e.g., Zhang & Mészáros 2001; Lithwick & Sari 2001). The photons are assumed to be roughly uniform over the emitting region and isotropic in its comoving frame, so that ε_at ≃ Γ²_dm²_ec⁴/[ε_γγ(1 + z)²] is the main target photon energy for the photons with energy ε_γγ. Taking the spectral luminosity around ε = ε_at as $L_\varepsilon = L_{\varepsilon _{at}} (\varepsilon /\varepsilon _{at})^{-\lambda }$, the total number of photons with ε > ε_at is $N_{>\varepsilon _{at}} \simeq t_d \int _{\varepsilon _{at}}^{\infty } (L_\varepsilon /\varepsilon)d\varepsilon \simeq L_{\varepsilon _{at}} t_d$. By using $L_{\varepsilon _{at}} = 4\pi d_L^2 F_{\varepsilon _{at}}/(1+z)$, we obtain the opacity as $\tau _{\gamma \gamma }(\varepsilon _{\gamma \gamma }) \simeq (\sigma _T/10) N_{>\varepsilon _{at}}/(4\pi r_d^2) = 1$, leading to

$$\begin{eqnarray} \varepsilon _{at} &\simeq & 9.0 \times 10^2\; (170)^{\frac{2.3-p}{p}} (1+Y)^{-\frac{2}{p}} \epsilon _{e,-1}^{2-\frac{2}{p}} \epsilon _{B,-2}^{\frac{1}{2}-\frac{1}{p}}\nonumber\\ &&\times E_{57.6}^{1/2} t_{d,4}^{-\frac{3}{2}+\frac{2}{p}} n_0^{\frac{1}{p}} {f(p)}^{2-\frac{2}{p}} [(1+z)/20]^{-1}\; {\rm eV},\qquad \end{eqnarray} \tag{ A17 }$$

where we have taken λ = p/2 since ε_at is typically above ε_m. The γγ self-absorption energy is then given by

$$\begin{eqnarray} \varepsilon _{\gamma \gamma } &\simeq & 6.9\; (170)^{\frac{p-2.3}{p}} (1+Y)^{\frac{2}{p}} \epsilon _{e,-1}^{-2+\frac{2}{p}} \epsilon _{B,-2}^{-\frac{1}{2}+\frac{1}{p}}E_{57.6}^{-\frac{1}{4}} t_{d,4}^{\frac{3}{4}-\frac{2}{p}} n_0^{-\frac{1}{4}-\frac{1}{p}}\nonumber\\ &&\times {f(p)}^{-2+\frac{2}{p}} [(1+z)/20]^{-1}\; {\rm GeV}.\qquad \end{eqnarray} \tag{ A18 }$$

The condition for a significant absorption, ε_γγ < ε^SC_m, is rewritten as

$$\begin{equation} \epsilon _{B,-2}^{1-\frac{1}{p}} n_0^{\frac{1}{p}} (1+Y)^{-\frac{2}{p}} > 38\;(170)^{\frac{p-2.3}{p}} \epsilon _{e,-1}^{-6+\frac{2}{p}} E_{57.6}^{-1} t_{d,4}^{3-\frac{2}{p}} {f(p)}^{-6+\frac{2}{p}}. \end{equation} \tag{ A19 }$$

If this condition is satisfied and _e ≳ _B, the emission from the created pairs will significantly affect the observed spectrum.

Above we have assumed that the photon field is roughly uniform in the emitting region. This may not be valid, however, when electrons are in the fast-cooling regime (as is the case for our typical parameters). If the acceleration process of electrons works only near the shock front, the emission at ε ≳ ε_m is only produced in a thin layer from the shock front with a width of ∼(γ_c/γ_m)r_d/Γ_d in the comoving frame. The annihilation process of the high-energy photons then mainly occurs outside the shocked region. In such a case, the angles of the directions of motion of two given annihilating photons are typically very small, which significantly reduces the pair creation optical depth (Granot et al. 2008). The γγ self-absorption energy ε_γγ could then be much larger than the above estimate by Equation (A18). In addition to this, the maximum synchrotron energy ε_M is determined by the magnetic field in the upstream region, instead of the emitting region (Li & Waxman 2006), which may be smaller than the estimate by Equation (A14) by a factor of B_uΓ_d/B, where B_u is the upstream field strength measured in its own frame.

An issue which has been a long-standing concern with the model is the possibility that the magnetic field amplification and the electron acceleration microphysics may be confined to a region near the shock front. Such a small-scale magnetic field will decay within a couple of ion skin depths (e.g., Gruzinov 2001; Kato 2005), which may not explain the observed bright afterglows. On the other hand, the large-scale magnetic field amplified by macroscopic turbulence created by shock could survive over the whole emitting region, and the observed afterglows may be attributed to such a large-scale field (Sironi & Goodman 2007). In this case, the main acceleration process of electrons, e.g., second-order Fermi acceleration, could work uniformly in the shocked region, where the photons can be assumed to be roughly uniform and isotropic in the emitting region. If this is the case, ε_γγ and ε_M are given by the uniform photon field assumption, Equations (A18) and (A14), respectively. We take this uniform photon field assumption in the rest of appendix and in the main text.

A.1. Case of Negligible Pair Production

The parameter set of E_57.6 = t_{d, 4} = n₀ = _{B, −2} = _{e, −1} = f(p) = 1 satisfies the negligible pair production condition ε^SC_m < ε_γγ. The radius and Lorentz factor of the shocked fluid are given by r_d ≃ 2.8 × 10¹⁸ cm and Γ_d ≃ 97, respectively. We have Y ≃ 2.7, and then the characteristic electron Lorentz factors are γ_m ≃ 4.1 × 10³, γ_a ≃ 55, and γ_c ≃ 15. The characteristic photon energies are ε_m ≃ 5.4 eV, ε_a ≃ 9.7 × 10⁻⁴ eV, ε^SC_m ≃ 1.8 × 10² MeV (<Γ_dγ_mm_ec²/(1 + z) ≃ 10 GeV), ε_KN ≃ 1.2 TeV, ε_at ≃ 2.9 × 10² eV, and ε_γγ ≃ 21 GeV. The flux normalization is given by $\varepsilon _m F_{\varepsilon _m} \simeq 4.4 \times 10^{-10}\; {\rm erg}\;{\rm cm}^{-2}\;{\rm s}^{-1}$ and ε^SC_mF_εm^SC ≃ 1.2 × 10⁻⁹ erg cm⁻² s⁻¹.

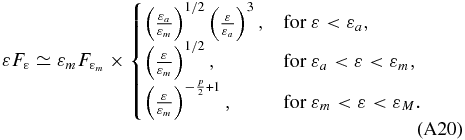

The overall spectrum for this case is shown in Figure 2. The synchrotron spectrum is approximately

$$\begin{equation} \varepsilon F_{\varepsilon } \simeq \varepsilon _m F_{\varepsilon _m} \times \left\lbrace \begin{array}{@{}ll}\left(\frac{\varepsilon _a}{\varepsilon _m}\right)^{1/2} \left(\frac{\varepsilon }{\varepsilon _a}\right)^3,& {\rm for}\ \varepsilon < \varepsilon _a, \cr \left(\frac{\varepsilon }{\varepsilon _m}\right)^{1/2},& {\rm for}\ \varepsilon _a < \varepsilon < \varepsilon _m, \cr \left(\frac{\varepsilon }{\varepsilon _m}\right)^{-\frac{p}{2}+1},& {\rm for}\ \varepsilon _m < \varepsilon < \varepsilon _M. \end{array} \right. \end{equation} \tag{ A20 }$$

The SSC spectrum is approximately

$$\begin{equation} \varepsilon F_{\varepsilon } \simeq \varepsilon _m^{\rm SC} F_{\varepsilon _m}^{\rm SC} \times \left\lbrace \begin{array}{@{}ll}\left(\frac{\varepsilon _a}{\varepsilon _m^{\rm SC}}\right)^{1/2} \left(\frac{\varepsilon }{\varepsilon _a}\right)^3, &{\rm for}\ \varepsilon < \varepsilon _a, \cr \left(\frac{\varepsilon }{\varepsilon _m^{\rm SC}}\right)^{1/2},& {\rm for}\ \varepsilon _a < \varepsilon < \varepsilon _m^{\rm SC}, \cr \left(\frac{\varepsilon }{\varepsilon _m^{\rm SC}}\right)^{-\frac{p}{2}+1},& {\rm for}\ \varepsilon _m < \varepsilon < \varepsilon _{\rm KN}, \cr \left(\frac{\varepsilon _{\rm KN}}{\varepsilon _m^{\rm SC}}\right)^{-\frac{p}{2}+1} \left(\frac{\varepsilon }{\varepsilon _{\rm KN}}\right)^{-p+\frac{3}{2}},& {\rm for}\ \varepsilon > \varepsilon _{\rm KN}, \end{array} \right. \end{equation} \tag{ A21 }$$

where we have neglected the segment of εF_ε∝ε^{−p + 2} at ε > ε_KN just for simplicity (see Nakar et al. 2009 for more details). The SSC emission is absorbed by the pair creation within the emitting region at ε > ε_γγ. The spectral shape is given by the intrinsic one multiplied by 1/τ_γγ(ε)∝ε^−p/2.

A.2. Case of Significant Pair Production

The parameter set of E_57.6 = t_{d, 4} = _{B, −2} = f(p) = 1, n₀ = 10², and _{e, −1} = 2 satisfies the significant pair production condition ε_γγ < ε^SC_m. The radius and Lorentz factor of the shocked fluid at t_d are r_d ≃ 8.9 × 10¹⁷ cm and Γ_d ≃ 55, respectively. The characteristic Lorentz factors of the electrons are γ_m ≃ 4.6 × 10³, γ_a ≃ 42, and γ_c ≃ 0.55, where we have used the value of Y calculated below. The cooling Lorentz factor γ_c < 1 would imply that the electron energy distribution has a bump at γ_e ≃ 1. The synchrotron self-absorption effect may be so strong that the electrons at γ_e ≃ 1 can be reheated to higher energies. In any case, however, the electron energy distribution above γ_a is not affected, and the synchrotron spectrum below ε_a is not relevant. The characteristic photon energies are ε_m ≃ 21 eV, ε_a ≃ 1.8 × 10⁻³ eV, ε^SC_m ≃ 9.2 × 10² MeV (<Γ_dγ_mm_ec²/(1 + z) ≃ 6.5 GeV), ε_KN ≃ 91 GeV, ε_at ≃ 3.2 × 10³ eV, and ε_γγ ≃ 6.1 × 10² MeV. The flux normalizations are given by $\varepsilon _m F_{\varepsilon _m} \simeq 5.8 \times 10^{-10}\;{\rm erg}\;{\rm cm}^{-2}\; {\rm s}^{-1}$ and ε^SC_mF_εm^SC ≃ 2.7 × 10⁻⁹ erg cm⁻² s⁻¹.

The pair creation opacity is larger than unity for photons with ε^SC_m, so most of the SSC radiation luminosity will be converted into e⁺e⁻ pairs. If the compactness parameter l' in the shocked region is as high as ∼10², the radiation will be thermalized by Compton scattering on the pairs, resulting in a Wien spectrum (Pe'er & Waxman 2004). In our case,

$$\begin{equation} l^{\prime } = \frac{\sigma _T \epsilon _e E_{\rm iso} t_d^{-1}}{8\pi m_e c^3 \Gamma _d^3 r_d} \simeq 0.6\; \left(\frac{\epsilon _e}{0.2}\right) E_{57.6}^{3/8} t_{d,4}^{-1/8} \left(\frac{n}{10^2}\right)^{5/8}, \end{equation} \tag{ A22 }$$

which is high compared to typical cases of Pop. I/II afterglows, but still not as high as 10². We can approximately derive non-thermal synchrotron and IC emission spectra by considering the following cascade process.

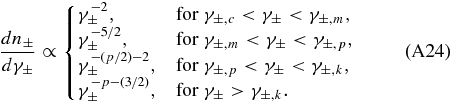

The Lorentz factors of the created pairs are determined by γ_±m_ec² ≈ (1 + z)εΓ⁻¹_d/2. The indices of the injected energy distribution of the pairs are the same as those of the photons with ε ⩾ ε_γγ, being dn_±/dγ_±∝γ^−3/2 _± for γ_{±, m} < γ_± < γ_{±, p}, ∝γ^{−(p/2) − 1} _± for γ_{±, p} < γ_± < γ_{±, k} and ∝γ^{−p − 1/2} _± for γ_± > γ_{±, k}, where

$$\begin{equation} \gamma _{\pm,m} \simeq \frac{\varepsilon _{\gamma \gamma }(1+z)}{2 \Gamma _d m_e c^2}, \gamma _{\pm,p} \simeq \frac{\varepsilon _m^{\rm SC}(1+z)}{2 \Gamma _d m_e c^2}, \gamma _{\pm,k} \simeq \frac{\varepsilon _{\rm KN}(1+z)}{2 \Gamma _d m_e c^2}. \end{equation} \tag{ A23 }$$

For the parameter values adopted here we have γ_{±, m} ≃ 220, γ_{±, p} ≃ 330, and γ_{±, k} ≃ 3.2 × 10⁴. The corresponding synchrotron energies are ε_{±, m} ≃ 4.7 × 10⁻² eV, ε_{±, p} ≃ 0.11 eV, and ε_{±, k} ≃ 1.0 keV, respectively. Since the synchrotron and SSC cooling is very fast, the averaged energy distribution of the pairs over the dynamical timescale is given by

$$\begin{equation} \frac{dn_\pm }{d\gamma _\pm } \propto \left\lbrace \begin{array}{@{}ll}\gamma _\pm ^{-2},& {\rm for}\ \gamma _{\pm,c} < \gamma _\pm < \gamma _{\pm,m}, \cr \gamma _\pm ^{-5/2},& {\rm for}\ \gamma _{\pm,m} < \gamma _\pm < \gamma _{\pm,p}, \cr \gamma _\pm ^{-(p/2)-2},& {\rm for}\ \gamma _{\pm,p} < \gamma _\pm < \gamma _{\pm,k}, \cr \gamma _\pm ^{-p-(3/2)},& {\rm for}\ \gamma _\pm > \gamma _{\pm,k}. \end{array} \right. \end{equation} \tag{ A24 }$$

The shapes of the synchrotron and IC emission spectra of the pairs are obtained straightforwardly. The SSC emission of the pairs peaks at ε^SC _{±, p} ≃ 2γ_{±, p}²ε_{±, p} ≃ 23 keV, and the pairs IC-scatter the original synchrotron emission, which peaks at ε^IC _{±, p} ≃ 2γ_{±, p}²ε_m ≃ 4.5 MeV. The KN effect is not significant since ε^SC _{±, p}, ε_{±, p}^IC < Γ_dγ_{±, p}m_ec²/(1 + z) ≃ 4.6 × 10² MeV. The original electrons IC-scatter the pair synchrotron emission, which peaks at ε^IC_m ≃ 2γ_m²ε_{±, p} = ε^IC _{±, p}.

In order to determine the flux normalization of the various emission components, we define

$$\begin{eqnarray} &&\frac{\varepsilon _m^{\rm SC} F_{\varepsilon _m}^{\rm SC}}{\varepsilon _m F_{\varepsilon _m}} = Y^{\rm SC},\quad \frac{\varepsilon _m^{\rm IC} F_{\varepsilon _m}^{\rm IC}}{\varepsilon _m F_{\varepsilon _m}} = Y^{\rm IC},\quad \frac{\varepsilon _{\pm,p} F_{\varepsilon _{\pm,p}}}{\varepsilon _m F_{\varepsilon _m}} = x,\qquad \end{eqnarray} \tag{ A25 }$$

$$\begin{eqnarray} &&\frac{\varepsilon _{\pm,p}^{\rm SC} F_{\varepsilon _{\pm,p}}^{\rm SC}}{\varepsilon _{\pm,p} F_{\varepsilon _{\pm,p}}} = Y^{\rm SC}_{\pm },\quad \frac{\varepsilon _{\pm,p}^{\rm IC} F_{\varepsilon _{\pm,p}}^{\rm IC}}{\varepsilon _{\pm,p} F_{\varepsilon _{\pm,p}}} = Y^{\rm IC}_{\pm }. \end{eqnarray} \tag{ A26 }$$

Here we cannot use Equations (A10) and (A13), using instead the following relations for the scattering by the original electrons

$$\begin{eqnarray} &&Y^{\rm SC} = \frac{Y^{\rm IC}}{x} \simeq \tau \gamma _c \gamma _m \frac{p-1}{p-2} \simeq \frac{\epsilon _e}{\epsilon _B} \frac{1}{1+Y}, \end{eqnarray} \tag{ A27 }$$

where Y = Y^SC + Y^IC.

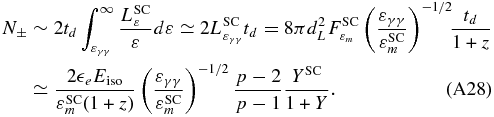

The total number of the pairs can be estimated as

$$\begin{eqnarray} N_\pm &\sim & 2t_d \int _{\varepsilon _{\gamma \gamma }}^{\infty } \frac{L_\varepsilon ^{\rm SC}}{\varepsilon } d\varepsilon \simeq 2 L_{\varepsilon _{\gamma \gamma }}^{\rm SC} t_d = 8\pi d_L^2 F_{\varepsilon _m}^{\rm SC} \left(\frac{\varepsilon _{\gamma \gamma }}{\varepsilon _m^{\rm SC}}\right)^{-1/2}\!\! \frac{t_d}{1+z} \nonumber \\ &\simeq & \frac{2 \epsilon _e E_{\rm iso}}{\varepsilon _m^{\rm SC} (1+z)} \left(\frac{\varepsilon _{\gamma \gamma }}{\varepsilon _m^{\rm SC}}\right)^{-1/2} \frac{p-2}{p-1} \frac{Y^{\rm SC}}{1+Y}. \end{eqnarray} \tag{ A28 }$$

On the other hand, the number of original electrons is N ∼ 4πr³_dn = E_iso/(Γ²_dm_pc²). These two equations lead to

$$\begin{equation} \frac{N_\pm }{N} \sim \frac{2 \Gamma _d \gamma _m m_e c^2}{\varepsilon _m^{\rm SC} (1+z)} \left(\frac{\varepsilon _{\gamma \gamma }}{\varepsilon _m^{\rm SC}}\right)^{-1/2} \frac{Y^{\rm SC}}{1+Y}. \end{equation} \tag{ A29 }$$

The flux ratio Y^SC _± satisfies the following relation:

$$\begin{eqnarray} Y_\pm ^{\rm SC} &=& Y^{\rm IC}_{\pm } x \simeq \sigma _T \frac{r_d}{\Gamma _d} \int _{\gamma _{\pm,c}}^{\infty } d\gamma _\pm \frac{dn_\pm }{d\gamma _\pm } \gamma _\pm ^2 \nonumber \\ &\simeq & 2 \tau \frac{N_\pm }{N} \gamma _{\pm,c} \gamma _{\pm,m}^{1/2} \gamma _{\pm,p}^{1/2} \frac{p-1}{p-2}\nonumber\\ &\simeq & 2 \tau \gamma _{\pm,c} \gamma _m \frac{p-1}{p-2} \frac{Y^{\rm SC}}{1+Y} \nonumber \\ &=& 2 Y^{\rm SC} \frac{\gamma _{\pm,c}}{\gamma _c} \frac{Y^{\rm SC}}{1+Y} = \frac{2 (Y^{\rm SC})^2}{1+Y_\pm }, \end{eqnarray} \tag{ A30 }$$

where Y_± = Y^SC _± + Y^IC _±, and we have used γ_{±, c}/γ_c = (1 + Y)/(1 + Y_±). The number ratio N_±/N is equal to the ratio of the synchrotron fluxes of the pairs and the original electrons, $F_{\varepsilon _{\pm,c}}/F_{\varepsilon _c}$. Thus, the ratio of the εF_ε fluxes is

$$\begin{eqnarray} x &=& \frac{\gamma _{\pm,p}^2 F_{\varepsilon _{\pm,c}} (\varepsilon _{\pm,m}/\varepsilon _{\pm,c})^{-1/2} (\varepsilon _{\pm,p}/\varepsilon _{\pm,m})^{-3/4}}{\gamma _m^2 F_{\varepsilon _c} (\varepsilon _m/\varepsilon _c)^{-1/2}} \nonumber \\ &=& \frac{Y^{\rm SC}}{1+Y_\pm }. \end{eqnarray} \tag{ A31 }$$

Equations (A27), (A30), and (A31) reduce to

$$\begin{equation} \frac{x(1-x-x^2)}{(1-2x-2x^2)^2} = \frac{\epsilon _e}{\epsilon _B}, Y^{\rm SC} = \frac{x}{1-2x-2x^2}, Y^{\rm SC}_\pm = 2x Y^{\rm SC}, \end{equation} \tag{ A32 }$$

which leads to a solution x ≃ 0.34, Y^SC ≃ 3.5, Y^IC ≃ 1.2, Y ≃ 4.7, Y^SC _± ≃ 2.4, Y^IC _± ≃ 7.1, and Y_± ≃ 9.5. These factors are only dependent on _B and _e, being constant as long as γ_{±, c} < γ_{±, m} < γ_{±, p} < γ_{±, k} is satisfied.

Figure 3 shows an approximate spectrum of the emission by the original electrons and the pairs. The synchrotron spectrum of the pairs is approximated as

$$\begin{equation} \varepsilon F_{\varepsilon } \simeq \varepsilon _{\pm,p} F_{\varepsilon _{\pm,p}} \times \left\lbrace \begin{array}{@{}l}\left(\frac{\varepsilon _{\pm,m}}{\varepsilon _{\pm,p}}\right)^{1/4} \left(\frac{\varepsilon _{a}}{\varepsilon _{\pm,m}}\right)^{1/2} \left(\frac{\varepsilon }{\varepsilon _{a}}\right)^3,\quad {\rm for}\ \varepsilon < \varepsilon _{a}, \cr \left(\frac{\varepsilon _{\pm,m}}{\varepsilon _{\pm,p}}\right)^{1/4} \left(\frac{\varepsilon }{\varepsilon _{\pm,m}}\right)^{1/2}, \ {\rm for}\ \varepsilon _{a} < \varepsilon < \varepsilon _{\pm,m}, \cr \left(\frac{\varepsilon }{\varepsilon _{\pm,p}}\right)^{1/4}, \ {\rm for}\ \varepsilon _{\pm,m} < \varepsilon < \varepsilon _{\pm,p}, \cr \left(\frac{\varepsilon }{\varepsilon _{\pm,p}}\right)^{-\frac{p}{4}+\frac{1}{2}}, \ {\rm for}\ \varepsilon _{\pm,p} < \varepsilon < \varepsilon _{\pm,k}, \cr \left(\frac{\varepsilon _{\pm,k}}{\varepsilon _{\pm,p}}\right)^{-\frac{p}{4}+\frac{1}{2}} \left(\frac{\varepsilon }{\varepsilon _{\pm,k}}\right)^{-\frac{p}{2}+\frac{3}{4}}, \quad {\rm for}\ \varepsilon > \varepsilon _{\pm,k}. \end{array} \right. \end{equation} \tag{ A33 }$$

The SSC spectrum of the pairs is

$$\begin{eqnarray} \varepsilon F_{\varepsilon } &\simeq& \varepsilon _{\pm,p}^{\rm SC} F_{\varepsilon _{\pm,p}}^{\rm SC}\nonumber\\ && \times \left\lbrace \begin{array}{@{}l@{\quad\!\!}l}\left(\frac{\varepsilon _{\pm,m}^{\rm SC}}{\varepsilon _{\pm,p}^{\rm SC}}\right)^{1/4} \left(\frac{\varepsilon _{a}}{\varepsilon _{\pm,m}^{\rm SC}}\right)^{1/2} \left(\frac{\varepsilon }{\varepsilon _{a}}\right)^3, &{\rm for}\ \varepsilon < \varepsilon _{a}, \cr \left(\frac{\varepsilon _{\pm,m}^{\rm SC}}{\varepsilon _{\pm,p}^{\rm SC}}\right)^{1/4} \left(\frac{\varepsilon }{\varepsilon _{\pm,m}^{\rm SC}}\right)^{1/2}, &{\rm for}\ \varepsilon _{a} < \varepsilon < \varepsilon _{\pm,m}^{\rm SC}, \cr \left(\frac{\varepsilon }{\varepsilon _{\pm,p}^{\rm SC}}\right)^{1/4}, &{\rm for}\ \varepsilon _{\pm,m}^{\rm SC} < \varepsilon < \varepsilon _{\pm,p}^{\rm SC}, \cr \left(\frac{\varepsilon }{\varepsilon _{\pm,p}^{\rm SC}}\right)^{-\frac{p}{4}+\frac{1}{2}}, &{\rm for}\ \varepsilon _{\pm,p}^{\rm SC} < \varepsilon < \varepsilon _{\pm,k}^{\rm SC}, \cr \left(\frac{\varepsilon _{\pm,k}^{\rm SC}}{\varepsilon _{\pm,p}^{\rm SC}}\right)^{-\frac{p}{4}+\frac{1}{2}} \left(\frac{\varepsilon }{\varepsilon _{\pm,k}^{\rm SC}}\right)^{-\frac{p}{2}+\frac{3}{4}}, &{\rm for}\ \varepsilon > \varepsilon _{\pm,k}^{\rm SC}, \end{array} \right.\nonumber\\ \end{eqnarray} \tag{ A34 }$$

where ε^SC _{±, m} ≃ 2γ_{±, m}²ε_{±, m} and ε^SC _{±, k} ≃ 2γ_{±, k}²ε_{±, k}. The IC spectrum of the pairs is

$$\begin{eqnarray} \varepsilon F_{\varepsilon } &\simeq& \varepsilon _{\pm,p}^{\rm IC} F_{\varepsilon _{\pm,p}}^{\rm IC}\nonumber\\ &&\times \left\lbrace \begin{array}{@{}l@{\quad\!}l}\left(\frac{\varepsilon _{\pm,m}^{\rm IC}}{\varepsilon _{\pm,p}^{\rm IC}}\right)^{1/4} \left(\frac{\varepsilon _{a}}{\varepsilon _{\pm,m}^{\rm IC}}\right)^{1/2} \left(\frac{\varepsilon }{\varepsilon _{a}}\right)^3\!\!, &{\rm for}\ \varepsilon < \varepsilon _{a}, \cr \left(\frac{\varepsilon _{\pm,m}^{\rm IC}}{\varepsilon _{\pm,p}^{\rm IC}}\right)^{1/4} \left(\frac{\varepsilon }{\varepsilon _{\pm,m}^{\rm IC}}\right)^{1/2}, &{\rm for}\ \varepsilon _{a} < \varepsilon < \varepsilon _{\pm,m}^{\rm IC}, \cr \left(\frac{\varepsilon }{\varepsilon _{\pm,p}^{\rm IC}}\right)^{1/4}, &{\rm for}\ \varepsilon _{\pm,m}^{\rm IC} < \varepsilon < \varepsilon _{\pm,p}^{\rm IC}, \cr \left(\frac{\varepsilon }{\varepsilon _{\pm,p}^{\rm IC}}\right)^{-\frac{p}{4}+\frac{1}{2}}, &{\rm for}\ \varepsilon _{\pm,p}^{\rm IC} < \varepsilon < \varepsilon _{\pm,k}^{\rm IC}, \cr \left(\frac{\varepsilon _{\pm,k}^{\rm IC}}{\varepsilon _{\pm,p}^{\rm IC}}\right)^{-\frac{p}{4}+\frac{1}{2}} \left(\frac{\varepsilon }{\varepsilon _{\pm,k}^{\rm IC}}\right)^{-\frac{p}{2}+1}, &{\rm for}\ \varepsilon > \varepsilon _{\pm,k}^{\rm IC}, \end{array} \right.\nonumber\\ \end{eqnarray} \tag{ A35 }$$

where ε^IC _{±, m} ≃ 2γ_{±, m}²ε_m and ε^IC _{±, k} ≃ 2γ_{±, k}²ε_m. The IC spectrum of the original electrons is the same as that of the pairs except for the flux normalization. We have superposed these two IC components in Figure 3. The energies ε_a and ε_γγ should be recalculated by taking into account the emission of the pairs. For the adopted parameters, however, we found that ε_a is larger, and ε_γγ is smaller, than the original values only by a factor of ≃ 2, which do not significantly affect the overall spectrum. We have ε_γγ > ε^IC _{±, p}, so that no further significant cascade emission is expected for the parameters adopted here.

We have assumed that the energies of the pairs created in the emitting region are just given by the annihilated photon energies and the shock acceleration of the energetic pairs is not effective. The total pair energy density is comparable to the total injected energy density of the original electrons, while the ratio of the number densities is given by Equation (A29). Thus, the characteristic Lorentz factor achieved by the pairs from their shock acceleration is estimated as γ_{±, ac} ≃ γ_mN/N_± ∼ γ_{±, p}(ε_γγ/ε^SC_m)^1/2[(1 + Y)/Y^SC] ∼ γ_{±, p}. This implies that the shock acceleration does not significantly affect the pair energy distribution given from the annihilating photon energy distribution.
