Improving the stability of nanofluids via surface-modified titanium dioxide nanoparticles for wettability alteration of oil-wet carbonate reservoirs

Titanium isopropoxide (TTIP, Ti (OCH(CH₃)₂)₄, >98%), was purchased from Merck Company as the precursor for synthesizing TiO₂ nanoparticles. AEAPTMS from Sigma-Aldrich was used for surface modification of nanoparticles. Absolute ethanol (EtOH, 99.5%, Merck) and nitric acid (HNO₃, 65% in water, Merck) were employed as other components during the synthesis of nanoparticles. CaCl₂ (93%) and NaCl (99%) were purchased from Sigma-Aldrich to obtain brine. NaCl to CaCl₂ ratio was considered 80%: 20% in the brine formulation according to the ratio of API brine. Outcrop carbonate rock was used as the solid substrate in wettability alteration tests, and crude oil was used to create an oil-wet condition on the outcrop carbonate rock.

Dynamic light scattering (DLS) was used to measure the size distribution of nanoparticles using the Nano ZS90 model from Malvern Instruments. SEM analysis was used to study the morphology of nanoparticles using a digital scanning electron microscope VEGA\\TESCAN model. XRD analysis was used to study the mineralogy of the synthesized nanoparticles using JOEL JDX-8030 x-ray diffrectometer with Cu Kα radiation. The XRD diffractograms were collected in the range of 2°–80° of 2θ. A Marvern Panalytical Zetasizer was used to measure zeta potential. The synthesized nanoparticles will also be characterized by Fourier-transform infrared spectroscopy (FTIR) using Perkin-Elmer spectrum RX1.

When attractive forces between nanoparticles dominate repulsive forces, nanoparticles tend to aggregate. When the forces that repel particles are improved over the forces that attract particles, the particle aggregation is diminished and this will result in enhancing the stability of nanofluids [7]. In this study different amount of AEAPTMS, as a silane coupling agent, was used for surface modification of titanium dioxide nanoparticles to improve the stability of nanoparticles in nanofluids. AEAPTMS is an aminosilane which consists of three ethoxy (hydrolysable group) and one aminoethyl (nonhydrolysable group) [17]. In the surface functionalization of titanium dioxide by AEAPTMS, at first, AEAPTMS is hydrolyzed and silanols are obtained, according to figure 1(a); Then there is a condensation reaction between the obtained silanols and the OH groups on the titanium dioxide surface, as shown in figure 1(b) [18].

Zoom In Zoom Out Reset image size

In this study, un-modified and surface-modified TiO₂ nanoparticles were synthesized via sol-gel process. To synthesize un-modified TiO₂ nanoparticles, two solutions were prepared. 10 ml TTIP was added to 30 ml ethanol and stirred for 30 min (solution I). Furthermore, 3 ml HNO₃ was added to 150 ml deionized water (solution II). For the hydrolysis reaction, solution II was added dropwise into solution I in about 4 h. Stirring was continued for another 2 h until a viscous solution was obtained. To evaporate the solvents, the obtained solution was placed at 100 °C for 24 h and after annealing at 400 °C for 1 h, un-modified titanium dioxide nanoparticles were obtained.

Surface-modified TiO₂ nanoparticles was synthesized by adding AEAPTMS to the hydrolyzed TTIP solution and after stirring for two hours it was heated at 100 °C until the solvents were evaporated. Then, the obtained gel was calcined at 400 °C for 1 h. During this process, AEAPTMS was hydrolyzed and grafted to the surface of the TiO₂ nanoparticles and surface-modified titanium dioxide nanoparticles were obtained. This process may enhance the stability of nanoparticles in the nanofluids and make nanoparticles more hydrophilic and applicable to change the wettability of the rock surface from strongly oil-wet to water-wet. The obtained nanoparticles were dispersed in a base fluid with a 10 wt% salt concentration, which is the highest salinity of formation water in an oil reservoir, and were used for stability tests and wettability alteration experiments.

The main factors in the preparation of nanofluids are the amount of silane, the nanoparticle concentration, temperature, and salinity. Considering these parameters and to investigate the colloidal stability, nanofluids were prepared in a certain amount of AEAPTMS, and varying concentrations of nanoparticles, salinity, and temperature. To prepare the nanofluids, synthesized nanoparticles were dispersed in a base fluid using a magnetic stirrer and an ultrasonic bath. Five different concentrations of nanofluids, 0.1, 0.5, 1, 2, and 3 wt%, were prepared to evaluate the effect of nanoparticles concentration on the stability of nanofluids, as well as their ability to change the rock wettability. To analyze the effect of temperature and salinity on the stability of nanofluids, the nanoparticles were dispersed in a brine solution with salt concentrations of 5, 10, 15, 20, 25, and 30 wt% and the temperature was set to 25 °C and 90 °C for 7 d. To investigate the colloidal stability, the particle size distribution and zeta potential were measured by DLS and zeta potential analyses, respectively. DLS measures the average size and size distribution of nanoparticles. The zeta potential is a very important factor to indicate the colloidal stability. The magnitude of the zeta potential shows the electrostatic repulsion between nearby particles with similar charge in a suspension. For small particles, a high zeta potential will verify the colloidal stability [19]. According to table 1, colloids with zeta potential more positive than 30 mV or more negative than 30 mV are considered to be moderately stable.

Table 1. Colloid stability based on zeta potential. Reproduced with permission from [20] Copyright © 2022 Thermal Science.

Zeta potential (mV)	Stability behavior
0 to $\pm \,$10	Rapid coagulation or flocculation
$\pm \,$10 to $\pm \,$30	Incipient instability
$\pm \,$30 to $\pm \,$40	Moderate stability
$\pm \,$40 to $\pm \,$60	Good stability
>61	Excellent stability

Wettability alteration from oil-wet to natural-wet or water-wet state appears to be a great approach to enhance oil production from oil-wet carbonate rocks [21]. Nanofluids with very low concentrations of nanoparticles can be applied for this purpose [21]. Here, the effect of the nanofluids, as an injection fluid, on the wettability alteration of carbonate rock are investigated. The outcrop carbonate rocks, which were not saturated with oil and initially had a water-wet state, were used in wettability alteration experiments. After cutting the rocks into small plates, 2 × 2 × 0.2 cm³, they were polished with an end face grinder to obtain smooth surfaces. Then, they were aged in crude oil at 90 °C for two weeks and deposition of polar compounds or asphaltenes from the crude oil onto rock surface created oil-wet conditions on the rock samples. The water droplet contact angle was measured to ensure the rock plates were oil-wet. Then, the oil-wet rock samples were aged in nanofluids with different nanoparticles concentrations for one day. To study the effect of nanofluids on wettability of carbonate rock, the water advancing and receding contact angles for each rock sample were measured. A 5–6 μl water droplet was injected into the rock samples using a micro-syringe. The rock samples were placed on a plate and it was inclined to the angle of 17°. The water droplet was injected onto the rock sample and when the water droplet started to move the contact angle was measured. An Attension Theta instrument was used for contact angle measurement.

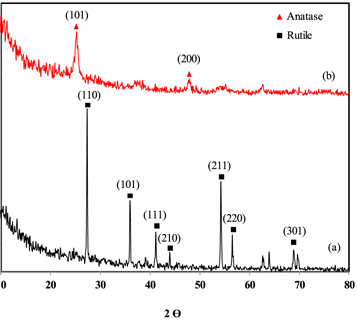

Figure 2 shows the XRD result of un-modified and surface-modified TiO₂. As it can be observed, major crystalline phase of surface-modified and un-modified TiO₂ nanoparticles were anatase and rutile, respectively. For un-modified TiO₂ nanoparticles, figure 2(a), the diffractions were observed at 2θ angles around 27°, 36°, 41°, 44°, 54°, 56°, 62°, 64° and 69° corresponding to 110, 101, 111, 210, 211, 220, 002, 310 and 301 planes, respectively, which is related to rutile crystalline phase [22]. While, in XRD pattern of surface-modified TiO₂, figure 2(b), diffractions were observed at 25° (101), 37° (004), 48° (200), 53° (105), 55° (211), 62° (204), 68° (116), 70° (220), 75° (215), indicate the anatase crystalline phase [23]. In surface-modified TiO₂, phase transformation from anatase to rutile was suppressed, despite heat treatment at 600 °C, due to the formation of Ti-O-Si bond. This bond impedes titanium dioxide particles and prevents the nucleation of rutile phase [24].

Zoom In Zoom Out Reset image size

The SEM image of un-modified and surface-modified TiO₂ nanoparticles were illustrated in figure 3. According to these images, these nanoparticles have spherical morphology. We used Image J software to evaluate the average size of nanoparticles. The results showed that the sizes of un-modified and surface-modified TiO₂ nanoparticles are 42 ± 5 and 23 ± 2 nm, respectively.

Zoom In Zoom Out Reset image size

FTIR analysis, was used to identify the existent bonds in the synthesized nanoparticles. Figure 4(a) shows the FTIR spectrum of un-modified titanium dioxide nanoparticles, the strong peak in the region of 450 and 800 cm⁻¹ is associated to the Ti-O bond and is the indication of TiO₂ formation. In the FTIR spectrum of surface-modified titanium dioxide nanoparticles, as shown in the figure 4(b), the absorption peaks at1070, 770, 700 and 480 cm⁻¹ are related to the Si–O, Si–C, Ti–O–Si and Ti–O bonds, respectively. In both FTIR spectrum, the in the range of 2840 and 3000 cm^–1 is assigned to the C–H bonds and the peaks near 3400 and 1600 cm⁻¹ are related to the hydroxyl bond (Ti–OH) and H–O–H bonds, respectively.

Zoom In Zoom Out Reset image size

A stable nanofluid is the stable dispersion of nanoparticles with insignificant change in nanofluid such as changing the particle size with time. To evaluate the influence of AEAPTMS on the stability of nanofluids, surface-modified and un-modified TiO₂ nanofluids were prepared according to table 2. Then DLS was used to determine the diameter of nanoparticles over time. To evaluate the influence of temperature on the stability of the prepared nanofluids, they were maintained at 25 °C and 90 °C. Equation (1) calculates the maximum theoretical number of moles of grafted silane per gram of TiO₂ nanoparticle [4].

$$\begin{eqnarray}&&{N}_{theory}=\displaystyle \frac{S}{\left(A\,\times \,6.022\,\times \,{10}^{23}\right)}\end{eqnarray} \tag{ 1 }$$

Where N_theory is the maximum number of moles of grafted silane per gram of TiO₂ nanoparticles, S is the specific surface area of TiO₂ particles, and A is the surface area occupied by a silane molecule [4]. Here, S is 213 m² g⁻¹ and A is 32 Ų and N_theory is calculated as 1.105 mmol g⁻¹.

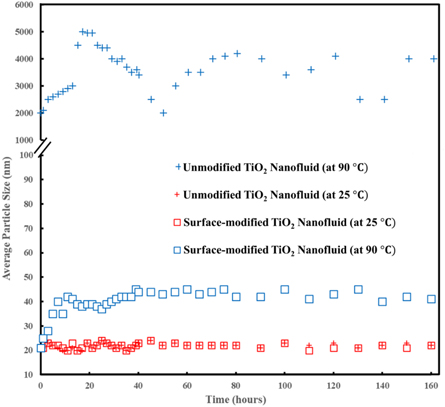

Figure 5 shows the average particle size of surface-modified and un-modified TiO₂ nanoparticles versus time at 25 °C and 90 °C for 7 d. The results indicated that the average particle size of un-modified titanium dioxide nanoparticles remained nearly constant at 25 °C; however, it increased up to 5μm at 90 °C; this means that un-modified TiO₂ nanoparticles aggregated and were unstable in these conditions. In the case of the surface-modified TiO₂ nanofluids, the average particle size of nanoparticles remained relatively constant at 25 °C and nanofluids were stable; and at 90 °C nanoparticles grew up only to 43 nm at the first 10 h and after that, the diameter remained nearly constant and no more evolution of diameter was observed. The results showed that the surface-modified nanoparticles were stable in a nanofluid at high-temperature and high-salinity conditions of oil reservoirs; therefore, they can be a good option to be used as an injection fluid to increase the oil production.

Zoom In Zoom Out Reset image size

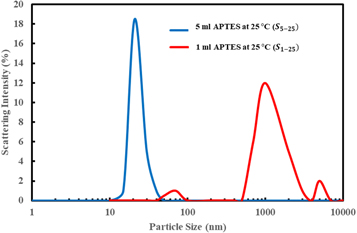

The amount of AEAPTMS as a silane coupling agent, in the surface modification of TiO₂ nanoparticles, affects the stability of nanoparticles in nanofluids. For this purpose, different amounts of silane between 1 to 10 ml, were used in the synthesis of nanoparticles considering the calculated N_theory. The concentration of nanoparticles was set to 0.5 wt%, which is mostly used in enhanced oil recovery experiments. The base fluids had 10 wt% and the temperature was set to 25 °C and 90 °C for 7 d. The prepared nanofluids were labeled as S_a−T and 'a' is the amount of AEAPTMS in the synthesis of nanoparticles and 'T' represents the temperature. Then, the particles size distribution and average particle size of nanoparticles were measured. All the nanofluids showed good stability after 7 at 25 °C. Figure 6 shows the particle size distribution of S_1–25 and S_5–25 samples. In the S_1–25 sample, the sizes of particles are in the range of 40 nm to 7 μm and the average size of nanoparticles is 1 μm while in the S_5–25 sample, the sizes of particles are in the range of 10 nm to 45 nm and the average size of nanoparticles is 20 nm. The average particle size of the S_1–25 sample is about 50 times the average particle size of the S_5–25 sample and this is an indication of aggregation between particles. Figure 7 shows the average particle size of the surface-modified TiO₂ nanoparticles with different amounts of AEAPTMS at 25 and 90 °C. At 25 °C, the particle size does not change significantly with the amount of AEAPTMS at levels above 1 ml.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

In the samples at 90 °C, the samples with less than 5 ml AEAPTMS were stable and for these samples, the average particle size was measured. The average particle size of S_1–90, S_2–90, S_3–90, S_4–90, and S_5–90 samples are 23.2, 25.1, 24.7, 25.2, and 25 nm, respectively. According to this figure, at 90 °C the average particle size of the nanoparticles in the samples decreases with increasing the amount of AEAPTMS and the average particle size of the S_1–90 sample is higher than the S_5–90 sample; which indicates higher stability of S_5–90 sample compared with the S_1–90 sample. According to this results, the optimum amount of AEAPTMS to get the highest stability at 90 °C is 5 ml.

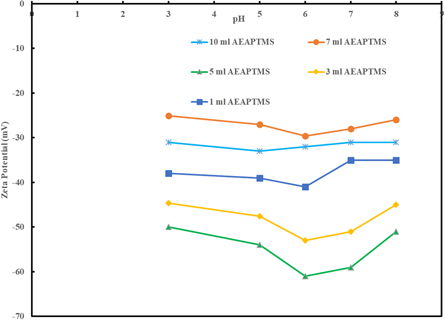

We also measured the zeta potential of nanofluids via a Malvern Panalytical Zetasizer, at 5 different pH values and after 7 d at 90 °C, to check the colloidal stability. Figure 8 shows the zeta potential of 0.5 wt% of surface-modified TiO₂ nanofluids that were synthesized with different amounts of AEAPTMS in the feed. According to figure 8 and table 1, with increasing the amount of AEAPTMS up to 5 ml, the zeta potential became more negative and provided more stable nanofluids. Nanoparticles with 5 ml AEAPTMS are considered to have excellent stability. Besides, nanoparticles with more than 5 ml AEAPTMS were not stable at 90 °C and their zeta potential in different pHs verified that.

Zoom In Zoom Out Reset image size

Hydrophilic surfaces are obtained by modifying the surface energy and surface roughness of the rock. Nanoparticles have high surface energy and by adsorption of nanoparticles on the rock surface, the wettability of the rock is changed.

According to table 1, particles with zeta potentials more negative than−30mV or more positive than +30 mV are considered to be stable. As you can observe in figure 8, the synthesized nanoparticles with 1, 3, 5, and 10 ml AEAPTMS have zeta potentials more negative than−30 mV. Therefore, they are considered to be stable with a negative surface charge.

Several studies have reported the zeta potential of calcite (CaCO₃) surfaces [25, 26]. According to their results, in most ranges of pH, calcite is positively charged. Since nanoparticles have a negative surface charge and carbonate surface has a positive surface charge, nanoparticles are adsorbed on the rock surface. In presence of water, hydroxyl groups (Ti-OH), which are polar and hydrophilic, are formed. As a result, when TiO₂ and surface-modified TiO₂ nanoparticles are adsorbed on the carbonate rock surface, the wettability of rock is changed from oil-wet, with water contact angle value more than 90°, toward the water-wet state, with water contact angle value less than 90°.

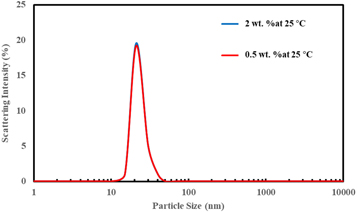

Concentration of nanoparticle is one of the main factors in the application of nanofluid as an injection fluid for EOR. In several reports, researchers have demonstrated that nanofluids with higher concentrations of nanoparticles are more efficient for changing the wettability of rock [10]. Here, nanofluids with five different concentrations of nanoparticles, 0.1, 0.5, 1, 2, and 3 wt%, were prepared; nanoparticles that were used in these experiments were obtained with 5 ml of AEAPTMS in the synthesis process, which is the optimum value according to the previous section. A brine solution with 10% salinity was used as the base fluid, and the temperature was set to 25 °C and 90 °C for 7 d. Figure 9 shows the particle size distribution of nanoparticles in nanofluids with 0.5 and 2 wt% particle concentrations at 25 °C. In both nanofluids, the same particle size distribution and average particle sizes were observed. Figure 10 shows the average particle size in different concentrations of nanoparticles at 25 °C and 90 °C. According to this figure, there is a small change in the average size of the nanoparticles at each temperature. This means the size of the nanoparticles in the nanofluids does not depend on their concentration.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

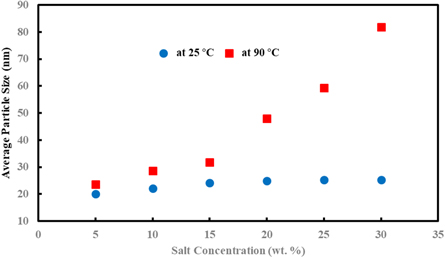

One of the changeless in applying nanofluids for EOR is high salinity of oil reservoirs, which may cause the nanofluids to be unstable. To analyze the effect of salinity on the stability of nanofluids, nanofluids with 0.5 wt% concentration of nanoparticles were prepared in a base fluid with salt concentration of 5, 10, 15, 20, 25, and 30 wt%, and the temperature was set to 25 °C and 90 °C for 7 d. Here, nanoparticles with 5 ml of AEAPTMS were used. Figure 11 shows the average size of nanoparticles in different concentrations of salt at 25 °C and 90 °C. At 25 °C the average particle size remains nearly 20 nm and it does not change significantly with increasing the salt concentration. However, at 90 °C the average particle size increases with increasing the salt concentration up to 80 nm; so, in higher temperature, the aggregation more often occurs between nanoparticles. For the purpose of EOR, nanoparticles with less than 100 nm are required and here, the particle size remained less than 100 nm in all nanofluid samples; so, the prepared nanofluids are great options for EOR.

Zoom In Zoom Out Reset image size

To study the influence of nanofluids on changing the wettability of carbonate rocks, water advancing and receding contact angles in the oil-water-solid three-phase system were measured. Three rock samples were aged in each nanofluid and contact angles were measured for each rock sample and the average value were reported as the contact angle. Nanofluids with five different concentrations of nanoparticles (0.1, 0.5, 1, 2, and 3 wt%.) were prepared to evaluate their effect on wettability of the rock samples. Figure 12 represents the water contact angles on the rock plates, before and after treatment with 3 wt% concentration of surface-modified TiO₂ nanofluid. Water advancing and receding contact angles with the un-treated rock plate were 165.1° and 166.2°, respectively. This demonstrates that the carbonate rock before treatment with nanofluid was strongly oil-wet. Nanofluid with 3 wt% of particle concentration could change the wettability of rock to water-wet state with 37.6° and 48.2° advancing and receding contact angles, respectively.

Zoom In Zoom Out Reset image size

Figures 13 and 14 show advancing and receding water droplet contact angles of the rock plates before and after treatment with nanofluids at different concentrations of nanoparticles; according to the results, water droplet contact angle decreases with an increase in nanoparticle concentration and nanofluids with higher concentrations are more effective in changing the wettability. Besides, in concentrations above 2 wt%, the wettability of the rock changes dramatically toward a more water-wet state. Also, the surface-modified titanium dioxide is more effective than un-modified titanium dioxide in altering the wettability of oil-wet carbonate rocks. Tables 3 and 4 present the results.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size
