Effect of Anions on Lithium Ion Conduction in Poly(ethylene carbonate)-based Polymer Electrolytes

Poly(ethylene carbonate) (PEC, M_n = 3.7×10⁴) was donated by a Japanese company. PEC was dissolved as received in chloroform, and the solution was added to excess methanol. The PEC precipitated was dried in a vacuum oven at 60°C for 24 h. The ¹H and ¹³C NMR spectra of the purified PEC were observed, and the ratio of the carbonate units to all units in the main chain (carbonate and ethylene oxide units) was determined to be approximately 95%.⁹ To prepare the electrolyte samples, the PEC was dissolved in acetonitrile with Lithium Battery Grade Li salts (LiX, X = N(SO₂CF₃)₂ (TFSI), ClO₄, BF₄ and PF₆, all purchased from Kishida Chemical Co.). The ratio of Li⁺ to the EC monomer unit of PEC was chosen as 5 ∼ 80 mol% ([Li⁺]/[EC] = 1/20 ∼ 1/1.25). The homogeneous solution was cast onto a plastic dish, which has placed for several hours in a dry circulation chamber filled with N₂. The sample film was dried in a vacuum at 60°C for 24 h and then introduced into a glove box filled with dry Ar gas.

The ionic conductivities of all electrolytes were measured in the glove box using the complex impedance method with a potentiostat/galvanostat SP-150 (BioLogic) in the frequency range 100 Hz to 1 MHz. Temperature dependences of the conductivity for all electrolytes are summarized in Figure S1 of Supplementary Material. To determine the lithium-ion transference number (t₊) of each sample, we used a conventional electrochemical method combined with DC polarization and AC impedance measurements for Li∣electrolyte∣Li cells. The measurement temperature was set at 80°C because of large direct current and clear electrochemical response between Li electrode and electrolyte. The value of t₊ can be estimated from the following equation:¹¹

where I is the direct current, R is the electron-transfer resistance between the Li electrode and electrolyte, and ΔV is the applied voltage (10 mV). The subscripts 0 and s refer respectively to the initial and steady-state (approx. after 24 hours). Before the first AC impedance measurement, the open circuit voltage of each cell was confirmed to be almost zero. The current and resistance were measured using an Impedance Analyzer 1280C (Solartron). The sample was sandwiched between two stainless plates, with 0.2 mm-thick Li foils as non-blocking electrodes. The entire process was carried out in an Ar gas-filled glove box, with control of the content of water and oxygen below 1 ppm. Differential scanning calorimetry (DSC) measurements of all samples were made using a DSC120 (Seiko Inst.) from −100 to 100°C at a heating rate of 10°C min⁻¹ under dry N₂ gas (see Figure S2 of Supplementary Material). FT-IR spectra of neat PEC and of all electrolytes were recorded on a FT-IR spectrometer (FT/IR-4100, JASCO Co.), using an ATR unit (ZnSe lens) in the region from 400 to 4000 cm⁻¹ with a resolution of 1 cm⁻¹, under dry N₂ gas. The resulting spectra were curve-fitted by a non-linear least-squares method using an original curve resolution program having a straight baseline and a Gaussian product function for each band (see Figure S3 of Supplementary Material).

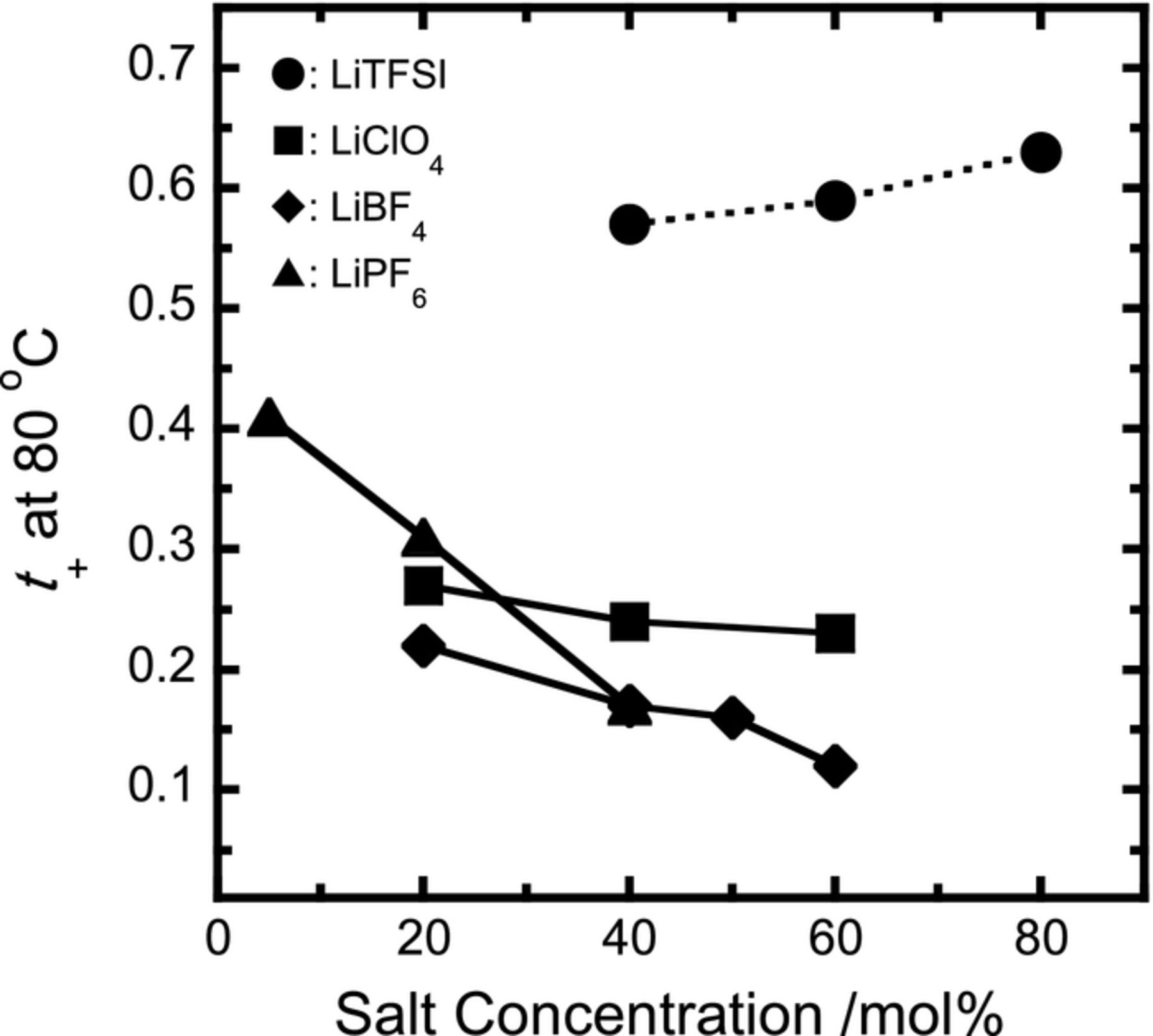

The values of t₊ for all electrolyte samples were successfully estimated from Eq. 1, and are shown as a function of salt concentration in Figure 1. In the case of the LiPF₆ electrolytes, the value of t₊ at a concentration of 5 mol% was relatively high, above 0.4, but the value decreased drastically with increasing concentration. The decrease was also seen in the LiClO₄ and LiBF₄ systems, and the values decreased gradually with increasing concentration to below 0.3. All behavior and values were in good agreement with the polyether-based electrolytes with some Li salts.¹² For the PEO-LiPF₆ electrolyte,¹² the transference number was more than 0.5 at low salt concentrations, but the value decreased with increasing concentration and was close to 0.15 at concentrations higher than 30 mol%. This result implies that the Li⁺ conduction depends strongly on the segmental motion of PEO chains, and the decrease in t₊ gives rise to a decrease in the number of free PEO segments, resulting in a decrease in the mobility of Li⁺. The PEC-LiClO₄, LiBF₄ and LiPF₆ electrolytes are also considered to have the same conduction mechanism as in the PEO system. The LiTFSI system, in contrast, showed completely opposite behavior (see Figure 1). The values of t₊ were greater than 0.5, and increased with increasing concentration to 0.63 at a concentration of 80 mol%. There are no previous reports of such high t₊ values for polyether-based electrolytes, and values are usually lower than 0.5 in PEO-salt mixtures. Watanabe et al. have shown that amorphous polyether-based LiTFSI electrolytes have very low t₊ values less than 0.1.⁵ Munshi et al. have also reported that crystalline PEO-based electrolytes also show low values less than 0.2 at Li salt concentration higher than 30 mol%.¹² It is well known that, in the polyether electrolyte, dissociated Li⁺ stable interact with dipoles of ether oxygens in the polymer chains where the transference number is lowered.

Zoom In Zoom Out Reset image size

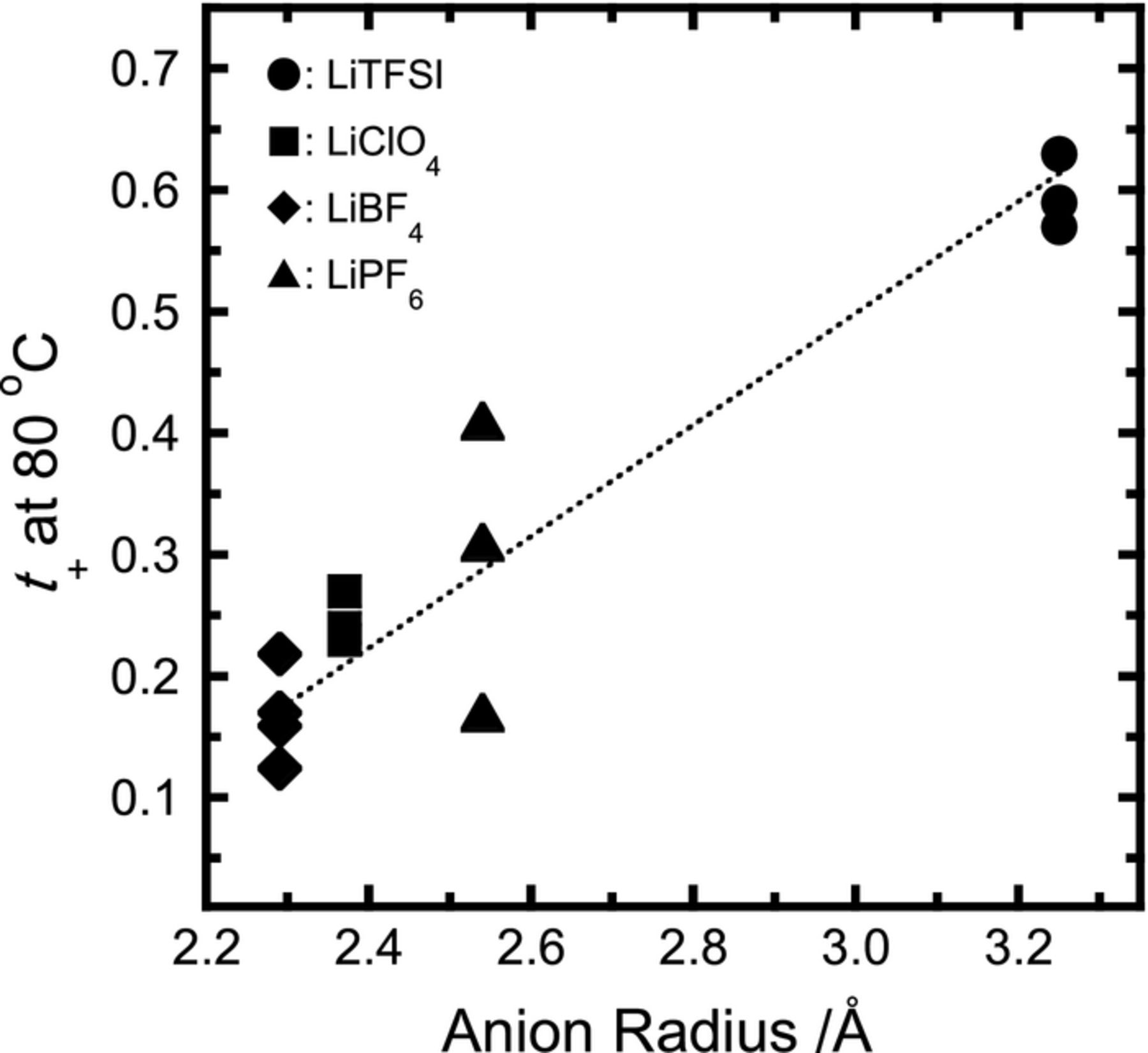

Figure 2 shows the relation between transference numbers and the radius of anions dissociated into PEC electrolytes. Values of the anion radius were quoted from data reported by Ue.¹³ From this figure we confirm that the average t₊ value in each electrolyte sample increases with increasing anion radius. This fact indicates that large anions such as TFSI promote the migration of Li⁺ in PEC. In the case of lithium bis-(fluorosulfonyl) imide (LiFSI) in PEC, we can estimate t₊ to be approximately 0.40∼0.45 from Figure 2, when we calculate the radius of a FSI anion as approximately 2.83 Å from the van der Waals volume.¹⁴ These estimated values are in fairly good agreement with our previous results (0.4∼0.5 at low salt concentrations, unpublished work) and with published reports (0.54 at 188 mol%).¹⁰ Comparison involving two LiTFSI electrolyte systems confirms that there are large differences in the transference numbers between PEO and PEC, exceeding 0.5. In the PEO system, low t₊ values are due to the formation of strong coordination structures which depend on the interactions between Li⁺ and the ether chains. On the other hand, significant high values of t₊ for the PEC electrolytes were observed because of the structure of the polymer chain. The PEC has a single carbonate group in a monomer unit, and interactions probably take place between Li⁺ and dipoles such as carbonyl groups of the main chain. Strong and stable coordination structures of Li⁺ with polymer chains as seen in the PEO system are probably negligible in case of the PEC system.^9,10

Zoom In Zoom Out Reset image size

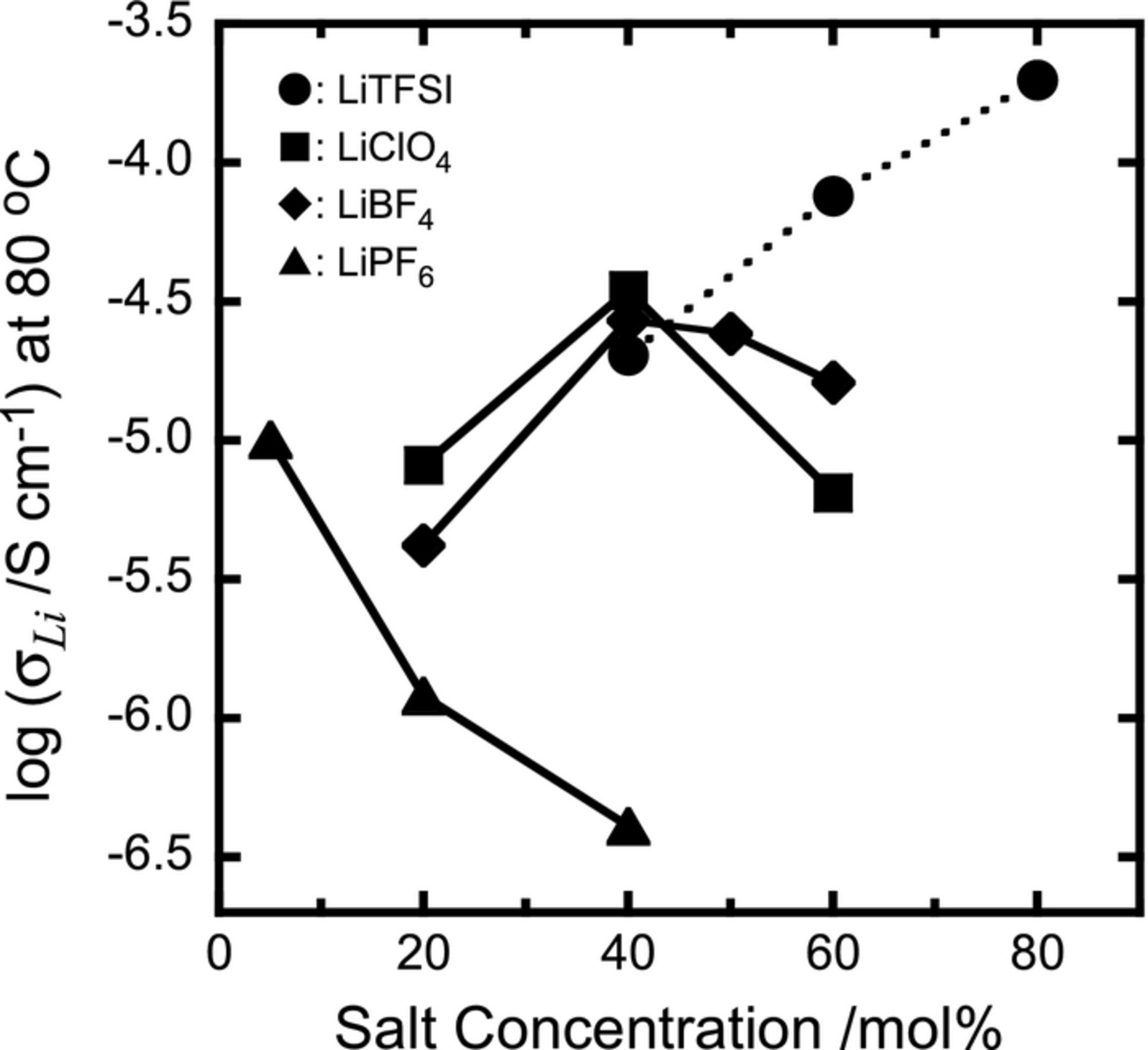

Based on the estimation of t₊ for PEC-based electrolytes with a variety of anions, we can also compare the Li-ion conductivities σ_Li (= t₊ × ionic conductivity (σ) at 80°C) of these electrolytes as a function of salt concentration (Figure 3). The dependency on the salt concentration of σ for PEC-LiX electrolytes has already been reported,⁹ and the dependency for LiClO₄ and LiTFSI electrolytes is similar to those as seen in Figure 3. For the LiPF₆ electrolyte, σ_Li decreased drastically with increasing concentration. For the LiClO₄ and LiBF₄ electrolytes, σ_Li was greatest at a concentration of 40 mol%, which is an extremely high proportion compared with the typical polyether system (approx. 5 mol%).^3–5 The value of σ_Li for LiTFSI electrolytes increased linearly with increasing concentration, and the value at 80 mol% was at least 10⁻⁴ S cm⁻¹. This behavior was also observed in the LiFSI electrolyte system,¹⁰ and the increase in conductivity at very high salt concentrations is due to the decrease in the glass transition temperature, T_g, of PEC.^9,10 For the LiTFSI electrolytes in particular, the plasticizing effect of TFSI anions may influence the decrease in T_g of PEC, but it is impossible to explain such a large decrease on this effect alone. In fact, LiTFSI has a similar effect with polyethers such as PEO, but the T_g value of PEO increases with increasing LiTFSI concentration.⁵

Zoom In Zoom Out Reset image size

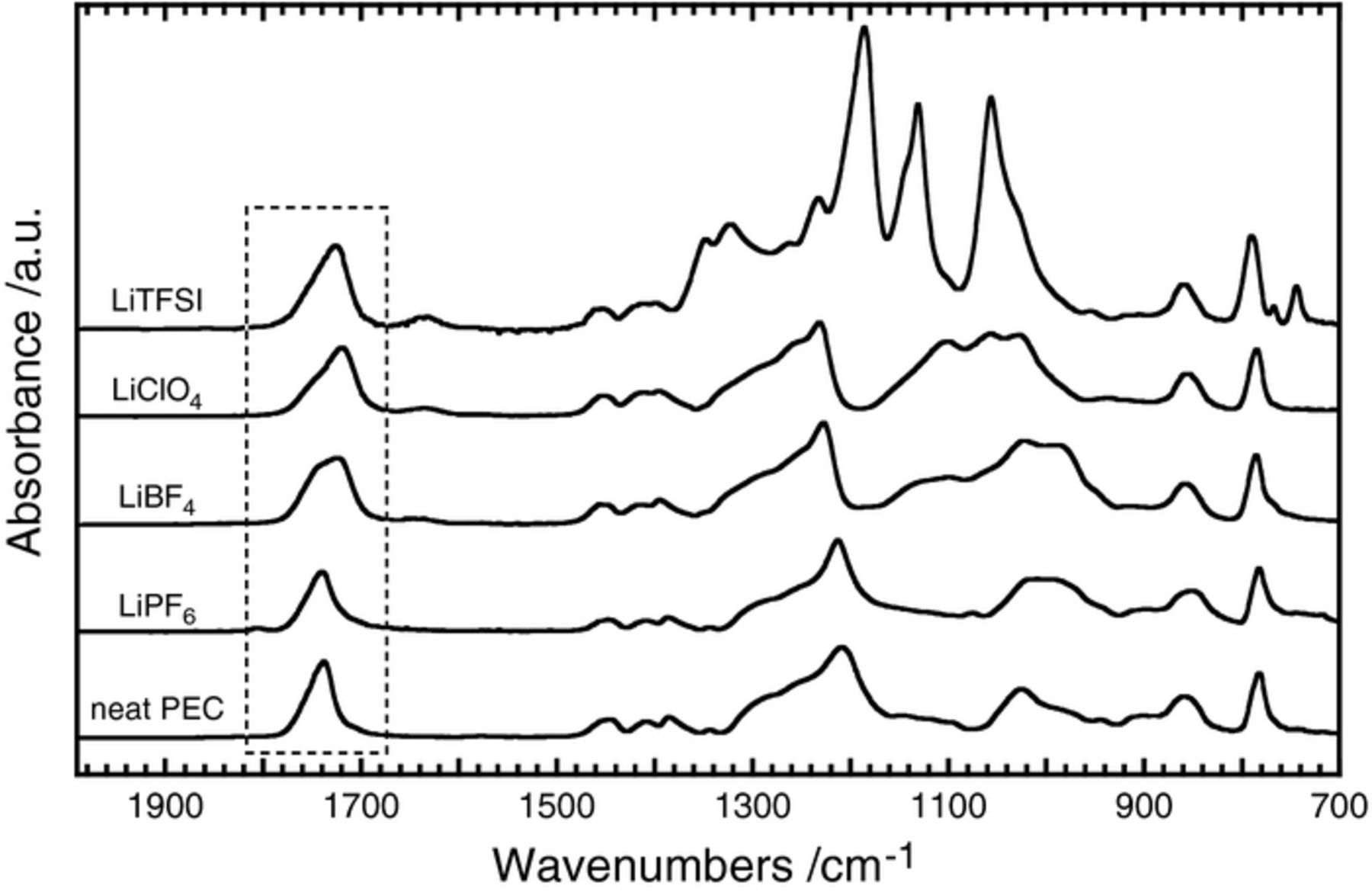

To study the dissociation state of Li⁺ in PEC, we observed the FT-IR spectra of neat PEC and the Li salt electrolytes. Figure 4 shows spectra of these electrolytes at a salt concentration of 40 mol%. It has been reported previously that dissolved Li⁺ usually interacts strongly with dipoles of carbonyl oxygens (C=O) and ether oxygens (O–C–O) in electrolyte solutions such as propylene carbonate (PC) and dimethyl carbonate (DMC).^15,16 The O–C–O asymmetric stretching mode at around 1300 cm⁻¹ in DMC is very sensitive to the interaction with Li⁺,¹⁶ but the band sometimes overlaps with other bands such as the TFSI anion (1300∼1200 cm⁻¹ in Figure 4), making it difficult to characterize interactions. The band of the C=O stretching vibration (ν_C=O) mode at around 1750 cm⁻¹ usually appears without overlaps and is suitable for detailed study, and we focused on this region (highlighted by dot-line square in Figure 4 and summarized separately in Figure 3S of the Supplementary Material). In the case of DMC, the interacting ν_C=O band appears at the lower wavenumber upon addition of Li salt.¹⁵ As seen in Figure 4, the interacting band (C=O — Li⁺) at around 1720 cm⁻¹, shifted from the free C=O band value (in neat PEC at 1740 cm⁻¹), appears very clearly in the LiTFSI, LiClO₄ and LiBF₄ electrolytes. The LiPF₆ electrolyte appears to have no interacting band, but a very small shoulder-like band is included with the free C=O band.

Zoom In Zoom Out Reset image size

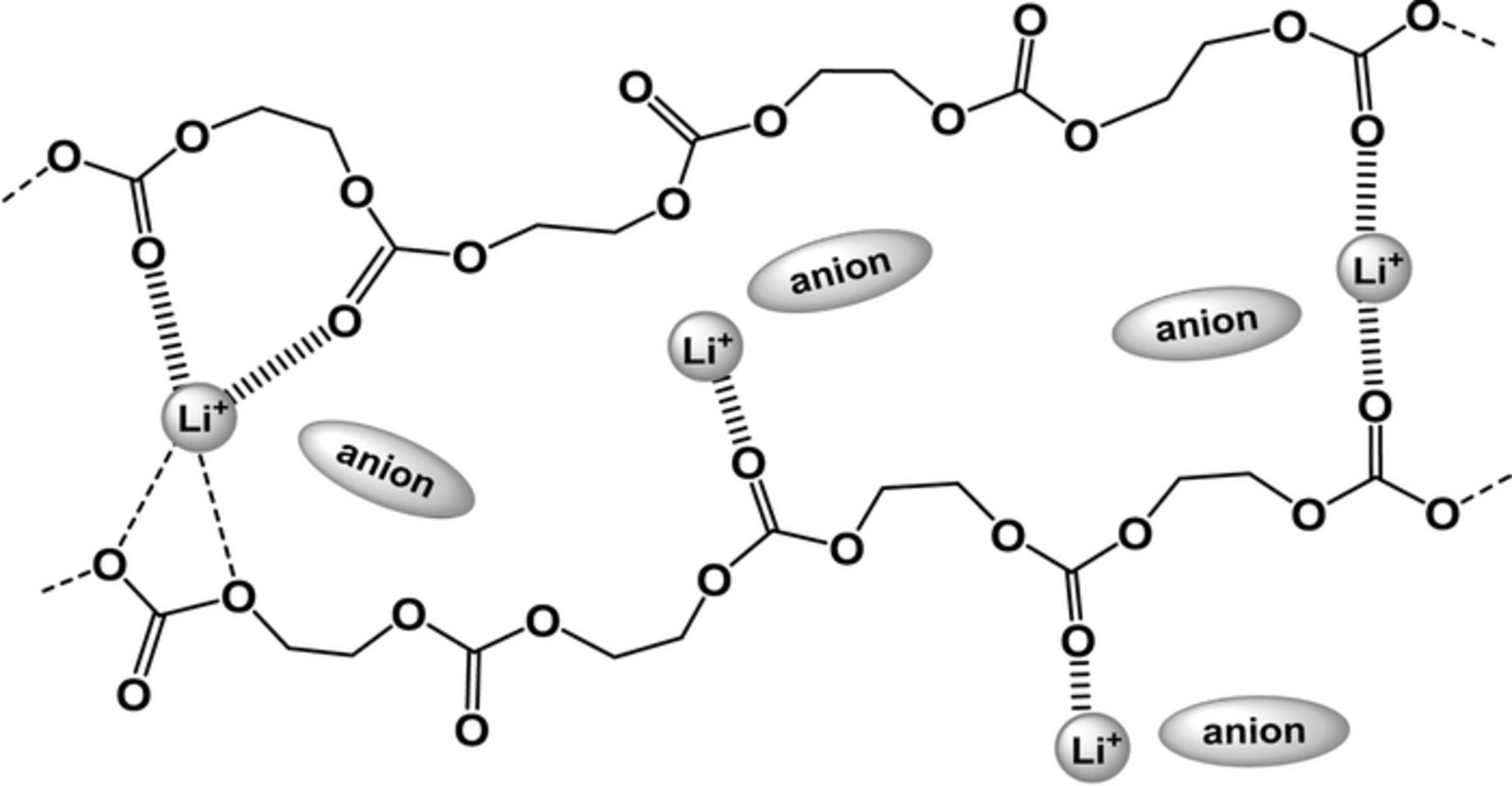

The ν_C=O region of all PEC-based electrolytes is divided into two bands at around 1750 and 1720 cm⁻¹; Table I summarizes each fraction and wavenumber at the peak-top. If the fraction of interacting C=O groups is larger than that for free ones, dissociated Li⁺ (carrier ions) are more numerous than undissociated and aggregated ions in PEC. The average fraction of interacting C=O groups was smallest for LiPF₆ electrolytes, and this probably indicates that LiPF₆ has a low degree of dissociation in PEC. The LiClO₄ and LiBF₄ electrolytes had the largest fractions of interacting C=O groups at a concentration of 40 mol%; these results correlate with the highest values of σ_Li in Figure 3. The LiTFSI electrolytes had continually high fractions of interacting C=O groups, approximately 60% at all salt concentrations. The transference numbers and conductivities of the LiTFSI electrolytes are therefore higher, as seen in Figures 1–3, because of the greater dissociation state of Li⁺. Interacting C=O groups in PEC are considered to enable migration of Li⁺ faster than that coordinated with ether chains in PEO. The TFSI anion (approx. 3.25 Å) is much larger than Li⁺ (approx. 0.76 Å),¹³ and the increase in the transference numbers in PEC may be due simply to the difference in molecular mass between these ions (TFSI anion is more than 44-times heavier than Li⁺). The Li⁺ can therefore migrate faster than the anion in PEC matrix, whereas the Li⁺ interact with C=O groups. The structural image of a PEC-Li salt electrolyte (40 mol%) is finally shown in Figure 5. In case of the carbonate-based liquid electrolytes, Zhou et al. have discussed that the interaction of Li⁺ occurs mainly through oxygens of C=O and ether (O–C–O) groups.¹⁶ In the PEC system, there are complex interactions of Li⁺ with carbonate unit(s). We think that the interacting single C=O groups may exist and this interaction makes Li⁺ easy to migrate faster via the segmental motion of PEC chains.
