Reduction Reactions on Iron Sulfides in Aqueous Acidic Solutions

Saba Navabzadeh Esmaeely; Srdjan Nesic

doi:10.1149/2.1381712jes

Iron sulfides can be found in various forms, the most common being: mackinawite (FeS) that has a tetragonal crystalline structure, cubic ferrous sulfide (FeS), troilite (FeS) with a hexagonal structure, polymorphous pyrrhotite (Fe_1-xS), hexagonal smythite (Fe_3+xS₄), cubic greigite (Fe₃S₄), cubic pyrite (FeS₂) and orthorhombic marcasite (FeS₂).¹ They contain iron in different oxidation states (Fe²⁺ and Fe³⁺), with a broad range of non-stoichiometric compositions and have distinct physicochemical and electrical properties. Iron sulfides are classified as semiconductors¹ with their electrochemistry being an important area of investigation across different fields of application, including clean energy related research,^2–6 corrosion of steel in H₂S containing environments,^7–12 geochemical studies,^12–15 etc. For example pyrite, and pyrrhotite are two most abundant iron sulfides found in the Earth's crust^1,16–18 and are at the same time among the most common corrosion products of steel corrosion due to H₂S.

Pyrite is the most thermodynamically stable stoichiometric iron sulfide,¹ having the lowest solubility in water as compared to other iron sulfides.¹⁹ Pyrite is a semiconductor with a resistivity in the range of 10^{−5 _} 10¹ Ωm^20–22 and is found as both n-type and p-type.²³ Pyrrhotite (Fe_(1-x)S (x = 0–0.2))^17,24–27 is an iron deficient iron sulfide, with a crystalline structure changing from monoclinic to hexagonal depending on its iron deficiency. For example, hexagonal stoichiometric pyrrhotite is known as troilite. Both pyrrhotite and troilite are p-type semiconductors with a resistivity^20–22 in the range of 10^{−6 _} 10⁻¹ Ωm.¹

The electrochemistry of iron sulfides investigated to date, has been mostly focused on anodic reactions, such as phase transformation and dissolution^28–32 which are predominantly important in weathering of iron sulfides in nature, oxidation during mining^33,34 and transportation and metal extraction.^28,29,35 Other researchers in the same field focused almost exclusively on O₂ reduction on the surface of iron sulfides, which is the most important cathodic process in such systems.^36–38 Limited work has been reported on cathodic reactions in acidic media. In a study that was mostly focused on iron sulfide dissolution by both anodic and cathodic currents, Peters³⁰ stated that pyrite facilitates H⁺ reduction due to its low overpotential. Some additional information on rates of hydrogen evolution on iron sulfide surfaces was reported in fuel cell related research, where it was found that pyrite is more active than greigite and pyrrhotite.^5,39

The formation of iron sulfide corrosion product layers on mild steel corroding in aqueous H₂S environment is common across a broad range of conditions. These porous layers offer some degree of protection by presenting a diffusion barrier and by covering the steel surface, leading to retardation in anodic dissolution of iron. However, the semi-conductive nature of the iron sulfide of the corrosion product layers could also result in an acceleration of corrosion by significantly increasing the surface area for the cathodic reactions, leading to a galvanic coupling.⁴⁰ The significance of this effect remains unclear since the electrocatalytic properties of different iron sulfides are unknown. Furthermore, the presence of different iron sulfide layers has been associated with onset of localized corrosion.^8,41–43 The exact mechanism behind this phenomenon is not yet clear. One possible explanation is related to different electroactivity of the various iron sulfides. Therefore, understanding of the rate of cathodic reduction of corrosive species in acidic media on different iron sulfide surfaces, as compared to steel, is of crucial importance. The current study covers an investigation of the cathodic reaction rates on the surfaces of pyrite, pyrrhotite, troilite, and mild steel in HCl, CO₂ and H₂S aqueous solutions at different pH.

Experimental

Experiments were carried out in a glass cell containing 2 liters of deionized water (DI) and 20.2 gram analytical grade sodium chloride (NaCl). The key experimental conditions are summarized in Table I. Prior to each experiment, the solution was deoxygenated with N₂ or CO₂ gas for at least 3 hours. For the H₂S experiments, following the N₂ purge, H₂S was added to the gas stream introduced into the glass cell. The gas flow was maintained continuously throughout the duration of the experiments. Upon exiting the glass cell, the gas containing H₂S was scrubbed by using a 5 molL⁻¹ sodium hydroxide (NaOH) solution and multiple dry carbon scrubbers. The solution pH was monitored by an OMEGA 5992–02 pH probe, deoxygenated hydrochloric acid (HCl) or NaOH solution was used to adjust the pH.

Table I. Experimental Matrix.

Parameters		Conditions
Total pressure		0.1 MPa
Temperature		30°C
Solution		1 wt% NaCl
Test condition		250, 1000 rpm
Material		API 5L X65, pyrite, pyrrhotite, troilite
Methods		EIS, and Potentiodynamic Sweep
Purged gas	HCI solution	0.096 MPa N₂
	aqueous CO₂ solution	0.096 MPa CO₂
	aqueous H₂S solution	0.01 MPa H₂S, 0.086 MPa N₂
pH value		2.0, 3.0, 4.0 and 5.0 (± 0.1)

Four different types of working electrode were used in the current study, made from: API 5L X65 steel, geological specimens of pyrite and pyrrhotite, and synthesized troilite. Scientific grade pyrite was purchased from Alfa Asar, pyrrhotite specimens were provided by Ward's Science and synthesized troilite was purchased from Merck Group. XRD analyses were conducted on the powdered samples of the iron sulfides to assure that there were no substantial impurities present. The results of XRD analyses are shown in Figure 1 confirming that the specimens did not contain any appreciable amount of impurities.

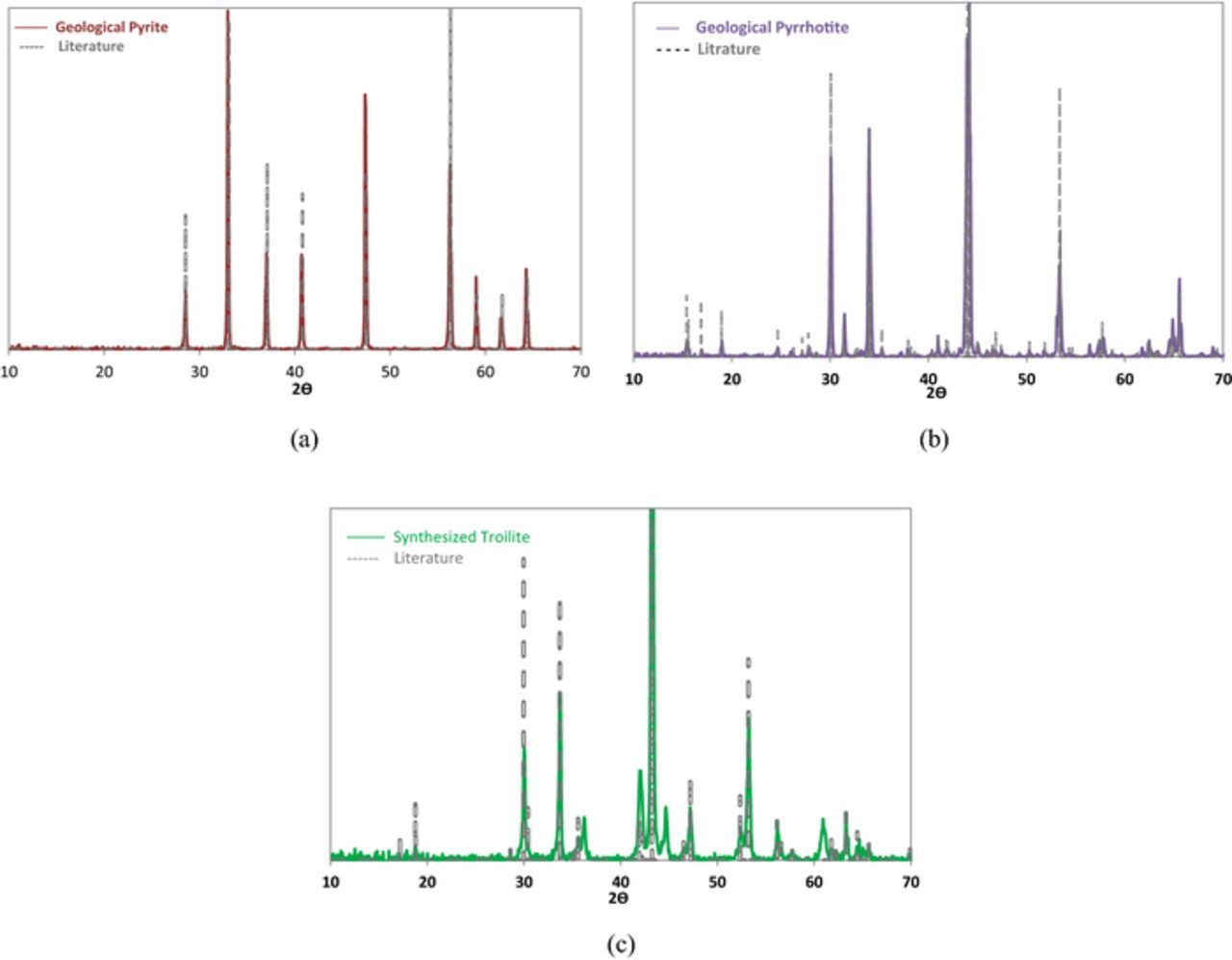

**Figure 1.** XRD data (a) geological pyrite (b) geological pyrrhotite (c) synthesized troilite.

The X65 steel electrode was machined into a disc with a diameter of 5 mm and mounted onto a rotating disc Teflon holder. To make the iron sulfide electrodes, iron sulfide particles 3 to 7 mm in size were selected; they were palladium (Pd) coated on one side and connected to a wire using a silver paste, then embedded in a clear epoxy and mounted onto a rotating disc Teflon holder. The Pd coat was implemented to enhance the wiring connection with the iron sulfide surface, and minimize ohmic drop, which could interfere with the electrochemical measurements. The specimens were then sequentially abraded and polished down to a finish obtained with a 0.25 μm diamond suspension, rinsed with DI water and cleaned with alcohol in an ultrasonic bath. Then they were dried using N₂ and photographed. Soon after, they were inserted into the experimental cell so that the exposure to air was minimized in order to avoid any oxide formation. The photographs were processed using ImageJ open source software, in order to determine the irregularly shaped surface area of the iron sulfide working electrodes. Due to the deviation from a perfect circle, some discrepancy between measured and calculated limiting current densities was to be expected.

Electrochemical measurements were conducted using a Gamry Reference 600 potentiostat on rotating disc electrodes (RDEs) in a conventional three electrode setup, where a platinum mesh was used as a counter electrode and a saturated silver/silver chloride (Ag/AgCl) reference electrode, connected via a KCl salt bridge and a Luggin capillary. Open circuit potential (OCP) measurements were conducted prior to each potentiodynamic sweep, in order to make sure that it was stable, which took typically less than 5 minutes. X65 steel exposed to H₂S environment is subject to formation of iron sulfide in H₂S environments, given the relatively fast kinetics of reactions in such environments. However, due to a short term exposure before each potentiodynamic sweep, the possible interference of the iron sulfide layer on the measurements was minimized as previously demonstrated.^44,45 Electrochemical impedance spectroscopy (EIS) (DC potential 0 mV vs. OCP, AC potential 10 mV, frequency range 10 KHz to 1 Hz at 10 points/dec), was performed in order to determine the ohmic drop in the solution at high frequencies (ca. 10 kHz), which was used to correct the raw potentiodynamic sweep data. Potentiodynamic sweeps were performed by polarizing the working electrode from the OCP in the cathodic direction at a scan rate of 1 mVs⁻¹. The potentiodynamic sweeps were repeated at least three times for each condition, in some cases without removing the electrode from the solution and in other cases by using freshly polished electrodes in a newly prepared solution. The data reported below are the averages obtained in multiple repeats.

Results and Discussion

HCl aqueous solutions

In the first series of experiments shown in Figure 2, cathodic sweeps were obtained on pyrite, pyrrhotite, and X65 steel in NaCl + HCl aqueous solutions purged by N₂ at pH 2.0, pH 3.0, pH 4.0, and pH 5.0; the data were collected at room temperature. The points shown represent the average value of the current density obtained in different repeats at the same potential, while the error bars denote the maximum and minimum values. The lines represent the calculated current density for H⁺ reduction on a mild steel surface obtained by using an electrochemical model previously proposed by Zheng et al.⁴⁶ and Esmaeely et al.⁴⁵

In the current series of experiments, H⁺ reduction was considered as the main cathodic reaction:

and water reduction was neglected.

In the HCl solution at pH 2.0 and pH 3.0, the pyrite surface showed similar electroactivity as the X65 steel surface (Figures 2a and 2b). A full overlap of the H⁺ reduction curves can be seen in both the charge transfer and the mass transfer controlled regions, agreeing well with the model. However, the charge transfer rate for H⁺ reduction on pyrrhotite was approximately an order of magnitude slower, while the limiting current density was the same as on pyrite and X65 steel. Since the limiting current density is mass transfer controlled, one would expect that it is independent of the nature of the substrate. At pH 4.0 this behavior was not as obvious, while at pH 5.0 no clear limiting current density could be observed and the electroactivity of the different surfaces does not appear to follow the trend seen at lower pH(Figures 2c and 2d). This will be discussed in more details further below.

At pH 2.0, pH 3.0, and pH 4.0 the potentiodynamic sweeps on pyrrhotite showed an extra "wave", with a limiting current density in the range much smaller than what was observed for H⁺ mass transfer. In order to understand the nature of the reduction reaction behind this extra wave, the potentiodynamic sweeps were conducted on pyrrhotite at different pH as shown in Figure 3. It can be observed that the position of this wave changes with pH, with a limiting current density decreasing at higher pH values. This was further investigated by conducting potentiodynamic sweeps at different rotational speeds, as shown in Figure 4. There it can be seen that the limiting current densities for both H⁺ reduction and the extra wave approximately halved when the rotational speed decreased by a factor of 4. This is consistent with the RDE mass transfer limiting current density expression defined by Levich.

where i_L is the mass transfer limiting current density (A m⁻²), n is the number moles of electrons transferred in the half reaction, F is the Faraday's constant (C mol⁻¹), D is the diffusion coefficient (m² s⁻¹), ϖ is the rotational velocity (rad s⁻¹), ν is the kinematic viscosity (m² s⁻¹), and C is the concentration of the reactant (mol m⁻³).

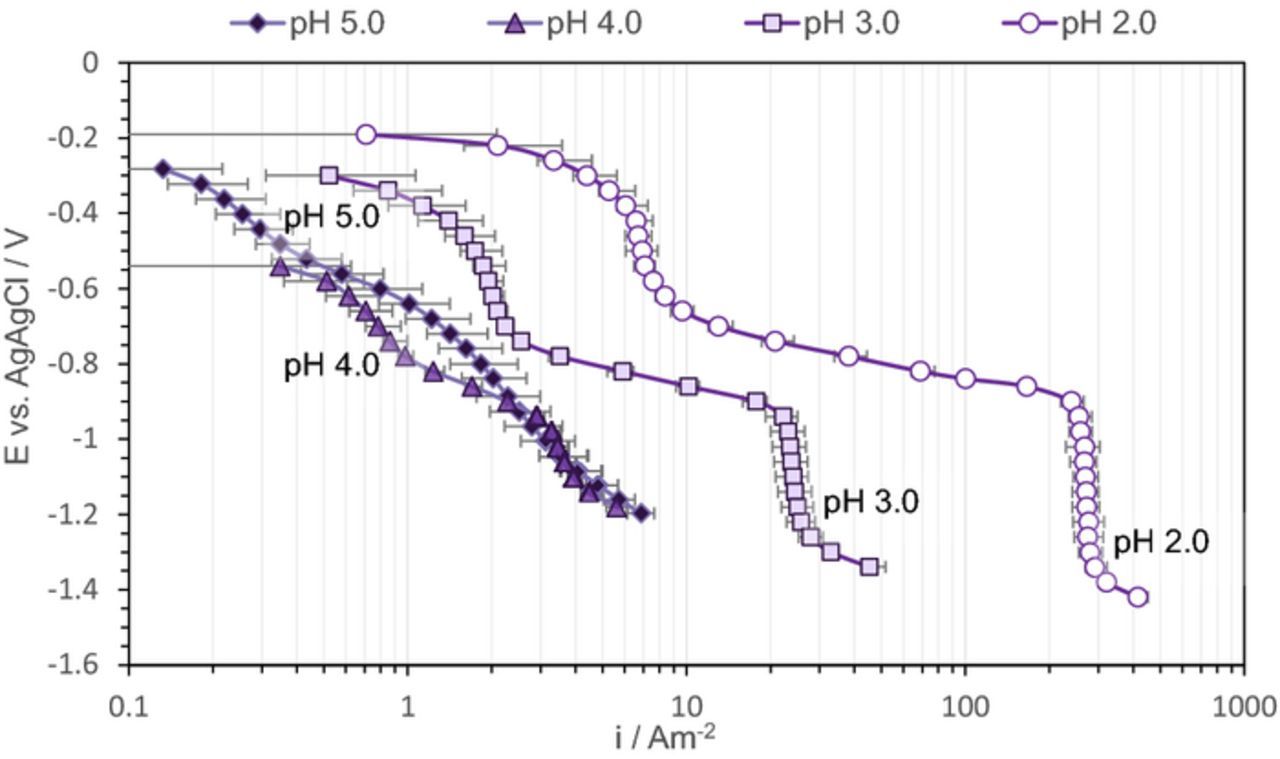

**Figure 3.** Potentiodynamic sweeps on pyrrhotite in N₂ purged solutions, 1 wt% NaCl, 30°C, scan rate 1 mVs⁻¹, 1000 rpm at different pH.

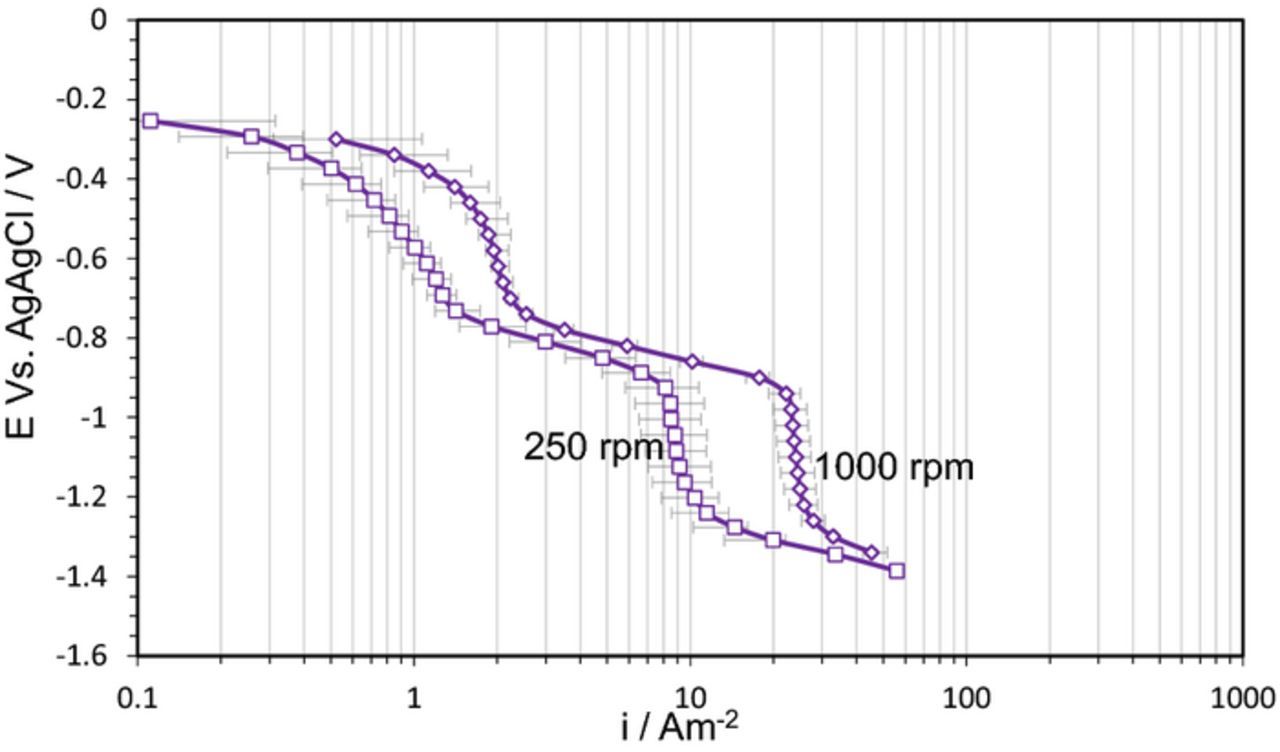

**Figure 4.** Potentiodynamic sweeps on pyrrhotite in N₂ purged solutions, 1 wt% NaCl, 30°C, scan rate 1 mVs⁻¹, pH 3.0, at different rotational velocity.

These experiments provided evidence that the extra wave obtained on the pyrrhotite surface was related, at least in part, to bulk conditions. Considering that in a deoxygenated HCl solution the only reducible species are H⁺ and H₂O, the reaction behind the extra wave must have involved H⁺ as one of the reactants. Given that the extra wave was seen only on pyrrhotite it was presumed that the reaction involved both pyrrhotite and the H⁺ ions. Nicol et al.,⁴⁷ and Mikhlin et al.⁴⁸ proposed that the following reactions take place upon pyrrhotite exposure to an acidic solution: pyrrhotite first reduces to troilite, followed by the chemical dissolution of troilite with release of H₂S.

The first reduction Reaction 3 is pH dependent, with an H⁺ dependency order of 2x (where x = 0 − 0.2 is the extent of Fe²⁺ deficiency in the pyrrhotite crystal lattice).²⁵ This reaction proceeds faster at higher H⁺ concentrations. Therefore, it is here hypothesized that the extra wave was due to reduction of pyrrhotite to troilite according to Reaction 3. The pH and velocity dependency shown in Figure 3 and Figure 4, as well as the order of the reaction are all consistent with this hypothesis.

To confirm that the extra wave is reduction of pyrrhotite to troilite, potentiodynamic sweeps were repeated on troilite electrodes. Results obtained at two different pH values are compared with the ones from a pyrrhotite electrode in Figure 5. The absence of the extra wave on troilite and the overlap of the sweeps at both pH values provided convincing evidence for the abovementioned assumption. Therefore, we can conclude that upon cathodic polarization the surface of pyrrhotite converts to troilite, and the H⁺ reduction on pyrrhotite and troilite surfaces proceeds at practically the same rates.

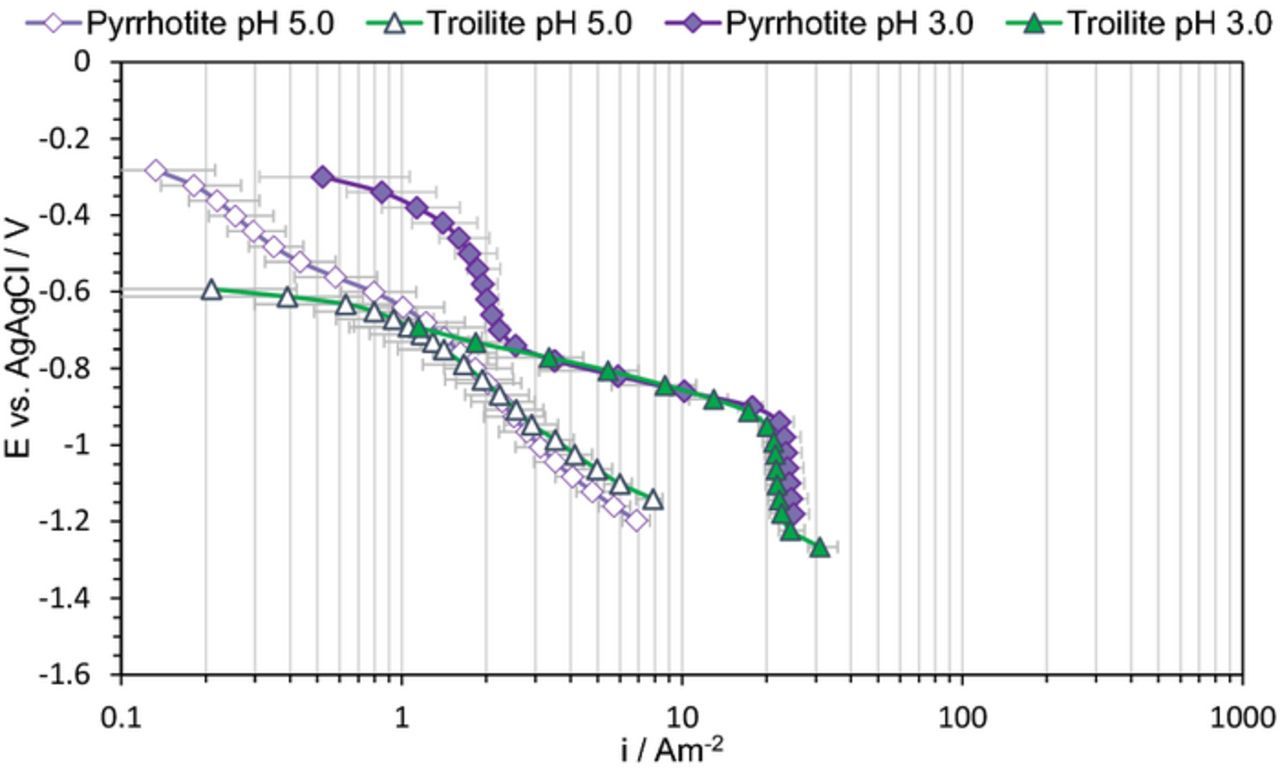

**Figure 5.** Potentiodynamic sweeps on pyrrhotite and troilite in N₂ purged solutions, 1 wt% NaCl, 30°C, scan rate 1 mVs⁻¹, different pH at 1000 rpm.

It should be noted that XRD analysis was not conducted to investigate this transformation process, due to the very thin surface layer of troilite that would have formed. As a result, conventional XRD would not be able to detect such a thin layer of troilite. More sensitive techniques such as XPS would be required for such analyses. Furthermore, preservation of the specimen surface following the removal from the experimental cell and during the ex-situ analyses poses additional challenges that would have made the results questionable.

In all experiments conducted on iron sulfide electrodes, another minor "wave" was obtained in the potentiodynamic sweeps at very low current densities in the OCP range for the iron sulfides, not shown in the graphs; this was presumed to be related to the impurities present at the surface of the electrodes, thus it was ignored. Peters and Majima also observed similar behavior during polarization of iron sulfides and attributed it to minor impurities in the parent material.^29,30

The electroactivity of pyrite at higher pH values (pH 4.0 and pH 5.0) slightly decreased when compared to X65 steel (Figures 2c and 2d) and the reason behind this behavior is unclear. Pyrrhotite at pH 4.0 showed similar behavior to that seen at lower pH values, however, at pH 5.0, the potentiodynamic sweeps on pyrrhotite were very different, as it appeared that there is an acceleration of the H⁺ reduction. It is believed that this is an experimental artifact and is the result of H₂S production due to pyrrhotite conversion to troilite and troilite dissolution according to Reaction 3 and Reaction 4. The produced H₂S, in the vicinity of the electrode surface alters the surface pH through a buffering effect. Moreover, produced H₂S at the surface can be reduced, which leads to even larger overall cathodic current densities. At pH 2.0, pH 3.0, and even pH 4.0, due to a considerably higher H⁺ concentration, the generation of a small amount of H₂S did not produced a significant interference. In summary, the potentiodynamic sweeps obtained at pH 4.0 and particularly at pH 5.0 should be interpreted with this in mind.

Aqueous CO₂ solution

In an aqueous CO₂ solutions, CO₂ hydration results in carbonic acid (H₂CO₃) formation (Reaction 5). H₂CO₃ is a weak acid that contributes to the corrosion process through the buffering effect (Reaction 7) where additional H⁺ ions are produced and possibly via direct reduction at the electrode surface (Reaction 6). The direct reduction of H₂CO₃ mechanism was broadly accepted over the past forty years.⁴⁹ However, it was challenged in recent years.^50–52 The exact mechanism of H₂CO₃ reduction remains open to discussion; in the current study, it was assumed that in addition to H⁺ reduction there was a direct reduction of H₂CO_3. The H₂O reduction was not considered here.

Similar behavior to what was observed in HCl experiments was observed in aqueous CO₂ solutions (Figure 6). At lower pH values pyrite showed similar electroactivity to what was obtained on X65 steel when exposed to the same condition. The measured current densities on pyrrhotite surfaces, were approximately one order of magnitude smaller. The extra wave attributed to reduction of pyrrhotite to troilite was also present across all the experimental conditions in aqueous CO₂ solutions. At pH 2.0 and pH 3.0, the cathodic reaction was dominated by H⁺ reduction, just like what was seen in HCl solutions at the same pH, as indicated by the lines generated using the model. At pH 4.0 and pH 5.0, the potentiodynamic sweeps are more complicated to interpret in the same way as they were in HCl solutions without CO₂. At pH 4.0, the rate of reactions on pyrite appears to be somewhat slower than on X65 steel, for reasons that are not well understood. The same is true at pH 5.0, however, it also seems that the reactions on pyrrhotite are greatly accelerated at this pH. Just like in HCl solutions, this is an artifact of the experimental conditions, where small amounts of H₂S produced by conversion of pyrrhotite to troilite and troilite dissolution (Reaction 3 and Reaction 4 respectively) were immediately reduced leading to higher current densities.

Aqueous H₂S solution

In aqueous H₂S solutions, in addition to H⁺ reduction, the dissolved H₂S is also directly reduced on the surface of the electrode (Reaction 8), which manifests itself in the form of an extra wave on the potentiodynamic sweeps. This was discussed in detail in recent publications by Zheng et al.,^44,46 Kittel et al.⁵³ and Esmaeely et al.⁴⁵

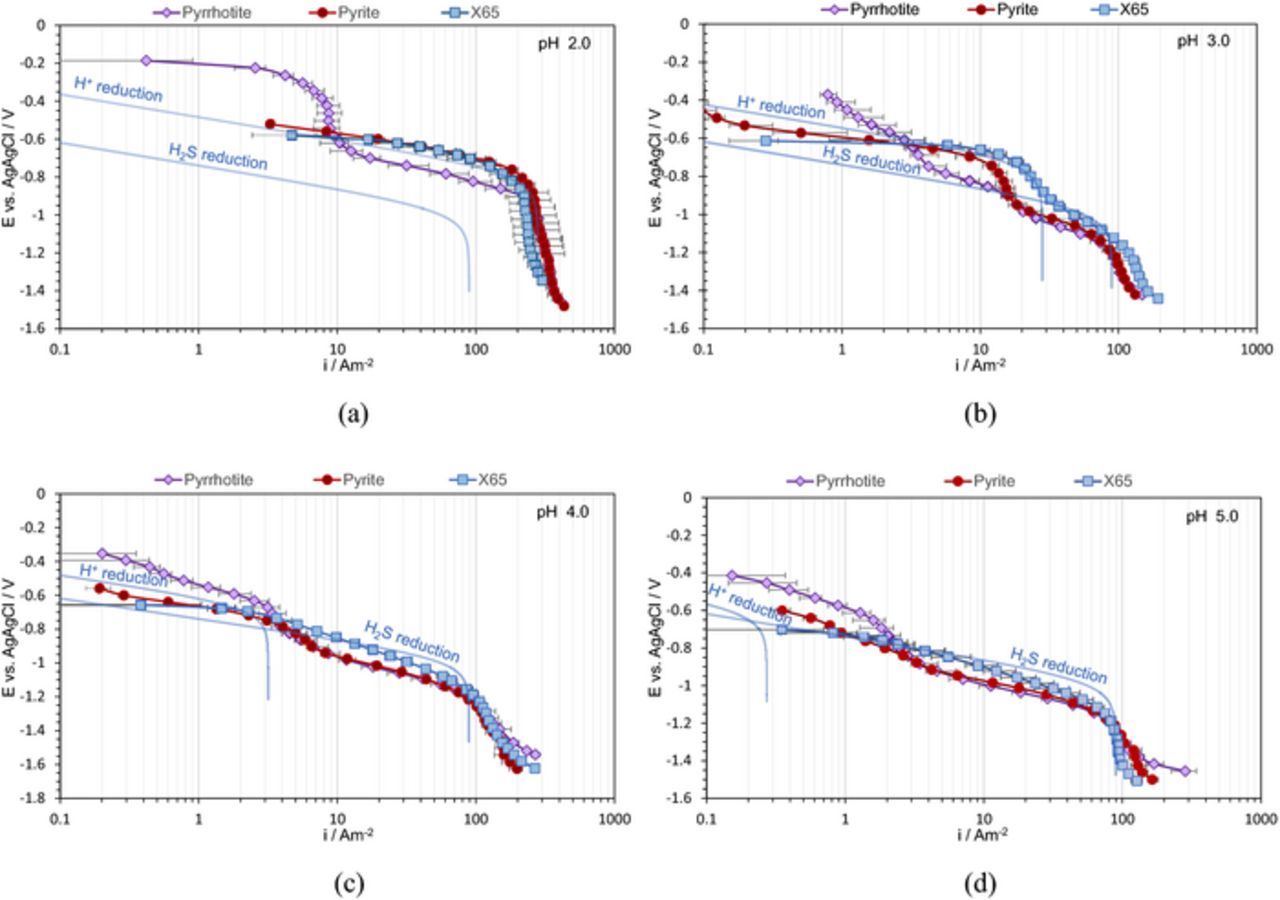

Potentiodynamic sweeps conducted at pH 2.0 in an aqueous H₂S solution are shown in Figure 7a, where the dominant cathodic reaction was H⁺ reduction. The relatively large error in the measured limiting current could be attributed to the irregular surface geometry of the electrodes as was noted above. There, similar behavior was seen to what was observed in HCl solution shown in Figure 5a; reduction rates of H⁺ on pyrite and mild steel overlapped, while on pyrrhotite approximately one order of magnitude smaller current density was observed. The extra wave related to reduction of pyrrhotite to troilite was also present. However, at higher pH values, the H₂S reduction is dominant (Figures 7b–7d). There, it is observed that the H₂S reduction rate is slightly lower (2 to 3 times) on both pyrite and pyrrhotite as compared to the rate on the X65 steel surface. Thus, the H⁺ reduction wave, which was overpowered by the H₂S reduction on X65 steel, was observable on both pyrite and pyrrhotite (Figures 5b–5d). The H₂S reduction rates on pyrrhotite and pyrite were approximately the same. The pyrrhotite to troilite reduction wave was consistently present across all the experimental conditions. However, in aqueous H₂S solutions the artifact related to H₂S production as a result of the reduction of pyrrhotite to troilite and troilite dissolution, which were observed in the HCl and aqueous CO₂ solution, was not observed here; the small amounts of produced H₂S were negligible in H₂S saturated solutions.

Conclusions

Cathodic potentiodynamic sweeps were conducted on the surfaces of different iron sulfides including pyrite, pyrrhotite and troilite in deoxygenated acidic aqueous solutions. A comparison of the data obtained on iron sulfides with what was observed on X65 steel showed that in conditions dominated by H⁺ reduction, pyrite had similar electroactivity as the steel. There was some minor deviation at pH 4.0 and pH 5.0, for reasons that remain unclear. In the same conditions, the cathodic current densities obtained on pyrrhotite were almost the same and approximately one order of magnitude smaller than what was observed on pyrite and X65 steel. Cathodic sweeps data on pyrrhotite showed an extra wave at the lower current densities obtained at more positive range of potentials, which was identified to be due to pyrrhotite reduction to troilite. In aqueous CO₂ solutions, similar results were obtained as in HCl solutions. In H₂S containing aqueous environments, both pyrite and pyrrhotite showed similar electroactivity with corrosion current densities that were slightly smaller than what was measured on X65 steel.

Acknowledgment

The authors acknowledge the financial support from a joint industry project including BP, Champion Technologies, Chevron, ConocoPhillips, DNV GL, ENI S.p.A., ExxonMobil, Hess, MultiChem, NALCO Energy Services, Occidental Petroleum Co., Petrobras, PETRONAS, PTT, Saudi Aramco, Inpex Corporation, SINOPEC, TOTAL, TransCanada, WGIM, Shell. The authors would like to express their appreciation to Dr. Bert Pots, Dr. Bruce Brown and Aria Kahyarian for their contributions to this work.
