Self-supervised learning for classifying paranasal anomalies in the maxillary sinus

The paranasal sinuses, air-filled spaces within the craniofacial complex, vary significantly and include the maxillary, frontal, sphenoid, and ethmoid sinuses [1]. Common pathologies like retention cysts, polyps, and mucosal thickening are identifiable through radiological screenings [2‐4]. However, their diagnosis is challenging due to their incidental nature and the variability in sinus appearance [5]. Research underscores their prevalence and the importance of accurate diagnosis in patient care [6]. 3D imaging from computed tomography (CT) and magnetic resonance images (MRI) is vital for precise diagnosis, and misdiagnosis can lead to patient distress and increased healthcare costs [7, 8]. The anatomical variability of the sinuses [9] necessitates careful application of deep learning for reliable diagnoses.

Convolutional neural networks (CNNs) are recognized for diagnosing paranasal pathologies, evidenced in sinusitis classification [10, 11], differentiating inverted papilloma from carcinomas [12], and detecting MS fungal ball and chronic rhinosinusitis in CT scans [13]. Prior studies have explored contrastive learning and cross-entropy loss for MS anomaly classification [14], and MS extraction techniques from MRI [15]. However, all of the aforementioned methods use supervised learning. Given the difficulty in obtaining well-labelled datasets in clinical settings [16], and the relative ease of acquiring unlabelled data, self-supervised learning (SSL), which learns representations from unlabelled data to improve the downstream task, has not yet been explored for paranasal anomaly classification. SSL efficiently utilizes unlabelled data through tasks like nonlinear compression [17, 18], denoising [19], feature alignment from augmented images [20‐22] and inpainting masked regions of images [23]. However, these methods are designed to improve the performance of models exposed to 2D natural images. Hence, they lack a specific focus on enhancing MS anomaly classification from 3D MRI. Our aim is to design an SSL task that enables the models trained on it to achieve maximum data efficiency in classifying paranasal anomalies. We hypothesize anomaly segmentation within MS could be a good SSL task. Without ground truth segmentation masks, we use a UAD framework, applied in brain [24, 25] and paranasal anomaly detection [26], to localize MS anomalies. A 3D convolutional autoencoder (CAE) trained on a labelled normal dataset is used to reconstruct MS volumes and localize anomalies in an unlabelled dataset by failing to reconstruct anomalies leading to reconstruction errors. These errors, serving as pseudo segmentation masks are used in the SSL task to localize anomalies. We investigate if a 3D CNN, predicting these errors as SSL task, can improve feature discrimination between anomalous and normal MS in our labelled dataset. Our SSL task leverages available normal MS data, essential for supervised downstream task training.

Overall, our main contributions can be summed up as follows:

Tailoring SSL tasks to specific downstream tasks offers distinct advantages [32]. Current SOTA SSL methods [20‐22], primarily developed for 2D image classification on datasets like ImageNet, do not address the unique challenges of 3D MRI modalities and the specifics of paranasal anomalies. Our SSL task is specifically tailored to address the challenges associated with 3D environments, MRI modality, and the classification of paranasal anomalies.

We conjecture that segmentation of anomalies as a SSL task, requiring knowledge of anomaly locations, enhances the learning of class-discriminative features for distinguishing normal and anomalous MS. Our SSL task is a segmentation task therefore, it requires segmentation masks highlighting anomalies. To avoid the high costs of annotation, we use a CAE trained in the UAD framework for generating approximate annotations, effective in localizing paranasal anomalies [26]. This CAE training utilizes labelled normal datasets, typically accessible in supervised settings. Unlike generic SOTA SSL methods, which do not prioritize anomaly localization, our approach demonstrates improved AUROC and AUPRC (as shown in Table 2), suggesting that effective anomaly localization can enhance classification performance, even with limited labelled data. Methods like BYOL and SimSiam, which aim to maximize agreement between augmented views, are less effective for paranasal anomaly classification. SimCLR’s performance shortfall is likely due to smaller batch sizes, a necessity given the impracticality of large batches in 3D settings, despite SimCLR’s recommendation of 4096 [33]. Our method is more suited for such constrained computational resources. AE and DAE, focusing on compression-decompression and denoising, do not guarantee discriminative feature learning for downstream classification [34], and were found less effective in our context. When the entire training set is used, our method, AE, and SimSiam yield comparable results, with ours marginally outperforming. We also explored MAE-style pretraining using SparK. However, the results suggest that fine-tuning performance is notably weaker, particularly when fine-tuning with a training set percentage 40% and above. These findings imply that generating masked regions contributes to representation learning; however, the acquired representations do not appear to enhance downstream classification. It is noteworthy that the SparK framework was initially developed and evaluated for 2D natural images. Although we adapted the framework for 3D applications, our findings underscore the necessity for further methodological advancements to effectively support tasks in the 3D domain. Further, TL models exhibit comparable performance to SSL methods when fine-tuning on training sets exceeding 20%. This suggests that transfer learning methods remain viable for paranasal anomaly classification given an ample supply of labelled samples. However, in the scenario of an extremely limited labelled dataset, such as 10%, our method outperforms TL, indicating that the representations acquired by our approach are especially advantageous in low-data environments. Overall, compared to approaches without pretraining, our tailored SSL task consistently shows superior downstream classification performance, underlining its efficacy.

Our analysis regarding the impact of the CAE training set size shown in Table 3 has demonstrated that the inclusion of a substantial cohort of normal MS volumes yields notable benefits for both the self-supervision task and the subsequent downstream task suggesting that better anomaly localization by the CAE and thereby better representation learning by the CNN in the self-supervision task. We also analysed the influence of the loss function and post-processing used in the self-supervision task which can be found in the supplementary material section 8 and 9.

Our study has limitations that require further investigation. It is based on a single-centre MRI-only study, so multi-centre studies with varied imaging modalities are needed for generalizability. Our methods rely on a cohort of healthy MS volumes, unlike other self-supervised tasks. We focused on convolutional autoencoders, not exploring models like variational autoencoders generative adversarial networks, or transformer-based architectures and diffusion models, which might offer better anomaly localization. We compared L1, L2, and BCE loss functions but not others like the Structural Similarity Index or perceptual loss. Future research should examine these aspects and apply this self-supervision approach to other domains, like brain anomaly detection.

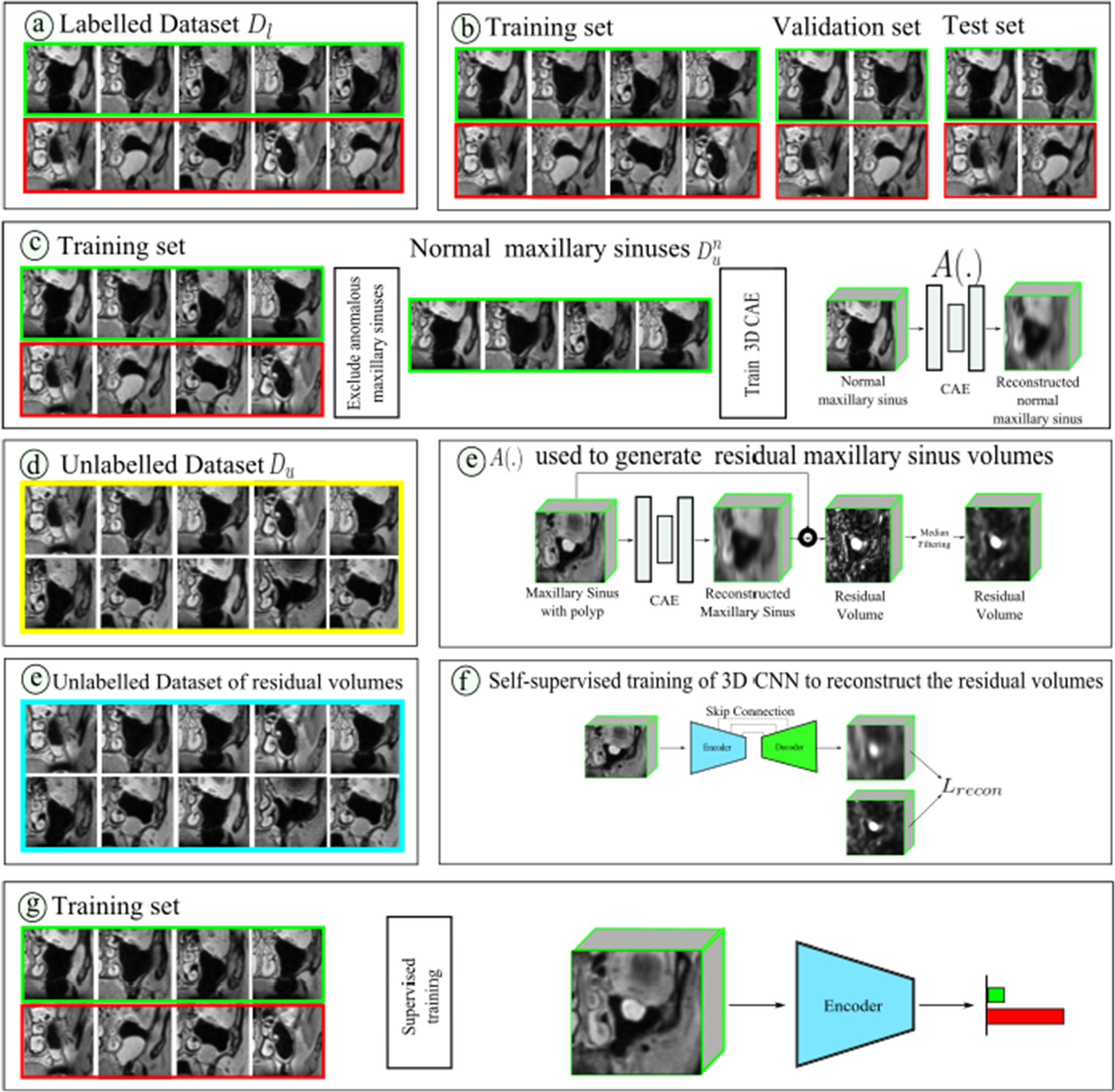

We developed a novel self-supervision task that focuses on anomaly localization to better classify paranasal anomalies in the maxillary sinus, addressing the lack of methods that effectively use unlabelled datasets to learn discriminative features for this purpose. Our approach uses an autoencoder trained on healthy MS volumes to generate residual volumes from an unlabelled dataset. These residuals serve as coarse segmentation masks for localizing anomalies. By training a CNN to reconstruct these volumes, it implicitly learns anomaly localization, thereby developing transferable features for the downstream classification task. Our method outperforms existing self-supervision techniques, proving its effectiveness in this specific domain.
