Dieser Artikel geht auf das Potenzial von Eukalyptusstümpfen als wertvoller Rohstoff für Bioraffinerien ein und beleuchtet ihre chemische Zusammensetzung und Charakterisierung von Lignin. Eukalyptus-Globulus-Stümpfe, die in kurzen Rotationssystemen bewirtschaftet werden, sind reich an Lignin und Extraktiven, die für verschiedene biobasierte Produkte verwendet werden können. Die Studie wendet einen multianalytischen Ansatz an, der traditionelle Methoden und fortschrittliche Techniken wie FTIR-Spektroskopie und analytische Pyrolyse umfasst, um eine gründliche Charakterisierung der Stummelbestandteile zu erreichen. Die Ergebnisse zeigen deutliche Merkmale zwischen Geweben und Stummelniveaus, was auf potenzielle Anwendungen in Bioraffinerien und gesundheitsbezogenen Produkten hindeutet. Die Forschung bietet auch Einblicke in die anatomische Struktur und Ligninzusammensetzung von Baumstümpfen und trägt so zur nachhaltigen Verwertung von Biomasse bei.
KI-Generiert
Diese Zusammenfassung des Fachinhalts wurde mit Hilfe von KI generiert.
Abstract
Eucalyptus globulus stumps are a by-product from the coppice pulp plantation after three generations. In this study a stump was fractionated in three discs (60 cm between them), and their constituent tissues—heartwood, sapwood and bark—were subjected to further chemical characterization by summative analysis, evaluation of the phytochemical profile and antioxidants activities, plus GC/MS and analytical pyrolysis aiming at their valorization. Wood density was similar between tissues and disc level: values ranging from 0.652 to 0.705 g/cm3 (Disc 1) and 0.605 g/cm3 (Disc 5). Bark had high ash (3.5%), extractives (7.5%) and holocellulose (68.4%) but lower lignin contents (22.0%). Original heartwood contained 0.7% ash, 7.0% extractives, 27.1% lignin, and 67.3% holocellulose. Heartwood showed high extractives (12.1–15.8%), less lignin (23.9–24.5%), and high holocellulose (61.7–64.7%) compared to sapwood which contained 3.9–5.4% extractives, 26.9–27.3% lignin and 68.6–71.5% holocellulose. Water extracts had poor antioxidant activity in contrast to ethanol extracts with high activities in heartwood. All tissues presented GS lignin type with S/G ratios varying from 3.0 to 3.4 (heartwood), 3.2–3.4 (sapwood), bark (3.5) and 3.8 (original heartwood). In wood, fibers and vessels were highly lignified with SG and G-lignin respectively; while rays had low lignin with G-type. Light and fluorescence macroscopic observation of the tissues in Disc 1 revealed a lower proportion and larger vessels in sapwood and high emission fluorescence at 488nm. Overall, these results show that stumps are valuable raw material to be used under the biorefinery context.
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Introduction
Eucalyptus globulus is a crucial species for the pulp and paper industry, prized for its rapid growth and superior wood quality, which make it ideal for producing high-quality bleached pulps. In Portugal, eucalypt is managed in short rotation coppice systems (8 to 14 year rotations) with three cutting cycles. However, other trees must be established at the end of the commercial exploitation. Thus, stumps must be removed from the field before soil preparation or be broken into small pieces and incorporated into the soil for fertilization purposes. Stumps are the basal part of the trees and the principal root that remain in the soil after harvesting. In the case of eucalypts, stumps are uprooted by a machine from the soil, removed from the plantation, left to dry, and used as biofuel to produce heat and energy for the pulp and paper industry (Gominho et al. 2014; Agnes et al. 2021). In fact, a study showed that stumps and roots from different Eucalyptus clones had adequate characteristics for bioenergy purposes (Costa et al. 2021). Nevertheless, due to their chemical and anatomical characteristics, stumps have recently been used as feedstock for pulp and paper (Gominho et al. 2014), but more value-added products can be obtained within the concept of a biorefinery (Gominho et al. 2012, 2019; Luís et al. 2014; Pinto et al. 2017). For instance, stump extractive content can reach 15% (Gominho et al. 2012), higher than in eucalypt stemwood, with 3.1% (Morais and Pereira 2012). Luis et al. (2014) reported high concentrations of phenolic compounds (> 200 mg GAE/g extract) and flavonoids (> 10 mg QE/g extract) in stump extracts with antioxidant and antimicrobial activities. Therefore, stump extractives can be collected first, and the bioactive molecules may be used for biomedical purposes. Also, to expand lignin sources not only obtaining it from pulping liquor, a study reported the use of lignin extracted from stumps as a Cr(VI) adsorbent to clean wastewater (Lourenço et al. 2022). In this context, lignin is an important chemical component that requires adequate valorization within the concept of total resource use. Lignin plays a central role in determining the heating value of biomass and offers opportunities for producing a variety of bio-based products such as antioxidants, resins, and polymers (Bajwa et al. 2019). Furthermore, its content and composition significantly impact fractionation and recovery processes (Faustino et al. 2010). Lignin characterization is fundamental groundwork for optimizing its utilization and designing tailored products. To date, the composition of lignin in various fractions of Eucalyptus globulus stumps (including sapwood, heartwood, and bark) remains unexplored. This presents a unique opportunity to obtain an initial insight into the extractives and lignin composition within these distinct stump components. Employing a comprehensive multi-analytical approach, encompassing traditional methods like summative analysis, gas chromatography, thioacidolysis, analytical pyrolysis, and FTIR spectroscopy, alongside light and fluorescence macroscopy, we aim to achieve a thorough characterization of stump constituents, particularly lignin. This holistic approach is essential for maximizing the valorization potential of stumps within the framework of biorefineries.
Materials and methods
Collection of raw material
Eucalyptus globulus stump was obtained from a production site of a Portuguese pulp and paper industry (ALTRI SGPS). The stump was cut into discs at five different levels (totalling about 1.50 cm), transported to the laboratory, and left to dry under air conditions. After that, the bottom of each disc was stained with methyl orange to identify the different tissues: heartwood (stained red) and sapwood (yellow-orange, Fig. 1). In Disc 1, methyl orange staining allowed us to distinguish an older part corresponding to the first tree that was formed (called here as original heartwood, since no sapwood is present) and two trees that have grown after cutting the original wood (heartwood 1 and 2, sapwood 1 and 2). Discs 1, 3, and 5 (60 cm between them) were used for chemical analysis, while only Disc 1 was used for the microscopical analysis. The bark was removed by hand using a chisel, in the Disc and collected for both analyses.
Fig. 1
Discs of Eucalyptus globulus stumps stained with methyl orange for identification of sapwood (yellow) and heartwood (red) regions (colour figure online)
Basic wood density was determined gravimetrically after water immersion of original heartwood, heartwood, and sapwood separately. Due to the physical characteristics of the material, it was not possible to measure the basic density of bark samples. Five aliquots were used to calculate the average value and STDEV.
Chemical composition
The tissues from Discs 1, 3, and 5 were prepared for chemical analysis. In Disc 1, four tissues were selected: original heartwood, sapwood, heartwood, and bark; in Discs 3 and 5, just sapwood and heartwood. These tissues were milled in a knife mill, first sieved with a mesh of 6mm, then subjected to further grinding with a mesh of 1mm, and then sieved again to collect the 40–60 mesh fraction for chemical analysis. Summative analysis was made according to adaptations of Tappi standards: ashes (Tappi 15 os-58); total extractives were determined in 2 g of sample, in a Soxhlet apparatus using sequential extraction with dichloromethane (6 h), ethanol (16 h), and water (16 h) following Tappi standard 211 om-02; total lignin was determined in extractives-free samples, as the sum of Klason lignin (Tappi T222 om-88) and soluble lignin (Tappi UM 250). Polysaccharides were determined by separating the hydrolyzate obtained from Klason lignin. Neutral monosaccharides and galacturonic and glucuronic acids were quantified by high-pressure ion chromatography (DIONEX ICS3000) as described in Costa et al. (2023). Holocellulose was also determined using the chlorite method according to Browning (1967) and after 240 min reaction time. In the bark sample, the amount of suberin was also determined by methanolysis, according to Pereira (2013). All analyses were made in duplicate.
Extracts composition
The DCM extracts from all three discs and tissues were analyzed by GC–MS analysis. Around 1 mg of the DCM extracts was derivatized with pyridine (Sigma-Aldrich) and BSTFA (N,O-bis(trimethylsilyl) trifluoroacetamide with 1% trimethylchlorosilane, Sigma-Aldrich) to form trimethylsilyl ethers/esters (TMS). The mixture was heated at 60 °C for 30 min and then cooled to room temperature. The TMS-extracts were injected into an Agilent 7890 A-5975C MSD GC–MS system equipped with a high-temperature capillary column (Zebron 5 HT, 30 m × 0.25 mm × 0.1 μm), using helium as the carrier gas at a constant flow (1 mL/min) in splitless mode. The detailed conditions can be seen in Gominho et al. (2020).
Extracts activities
The ethanol and water extracts obtained from successive Soxhlet extractions from all the tissues were analysed as total phenolics content using the Folin–Ciocalteau method, total flavonoids content via the aluminium chloride colorimetric assay, and condensed tannins using the vanillin-sulfuric acid procedure (Ferreira et al. 2015). Phenolic content was reported as mg gallic acid equivalents, while flavonoids and condensed tannins as ( +)-catechin equivalents through a calibration curve obtained with the same methodology. All tests were done in duplicate.
Anzeige
The antioxidant activity of the extracts was determined by the ferric-reducing antioxidant power (FRAP) and free radical scavenging activity (DPPH) as described in Miranda et al. (2016). The FRAP measures the potential of the extracts to reduce Fe(III) to Fe(II), and results were reported as mmol Fe(II)/g extract. The DPPH was evaluated by the IC50 (concentration of extract necessary to achieve 50% DPPH inhibition) and by the antioxidant activity index AAI, which describes the antioxidant activity of extracts as poor if AAI < 0.5, moderate if 0.5 < AAI < 1, strong if 1 < AAI < 2 and very strong if AAI > 2 (Scherer and Godoy 2009).
Analytical pyrolysis (PY-GC/MS)
The extractives-free samples (O.Heart, heartwood, sapwood and bark) were dried and finely ball-milled in a Retsch MM200 centrifugal ball mill for 10 min. Around 105 µg of each sample was pyrolyzed in a quartz boat at 550 °C for 1min in a platinum coil Pyroprobe connected to a CDS 5150. The volatiles separation was made in a GC from Agilent (7890B) using a fused-silica capillary column (ZB-1701: 60 m × 0.25 mm i.d. × 0.25 µm film thickness) and applying the chromatography conditions described by Lourenço et al. (2013). For mass spectra analysis (Agilent 5977B MS), electron impact ionization at 70 eV and damping helium gas (1 mL) were used. The total area of the chromatogram was attained by automatic integration (Mass Hunter software), and the lignin and carbohydrates derivatives were identified by comparing their mass spectra with NIST2014, Wiley databases and literature (Faix et al. 1990, 1991; Ralph and Hatfield 1991). The lignin derivatives represented by H, G, and S-lignin units were summed up, and the S/G ratio and the relation H:G:S were determined. Total carbohydrates were determined as the sum of all the carbohydrates derivatives, and the relation carbohydrates-to-lignin ratio was calculated (C/L).
Infrared analysis (FTIR)
O.Heartwood, heartwood, sapwood, and bark-dried samples were ground and analyzed by transmission FTIR carried out using a Nicolet 6700 spectrometer and Omnic software (Thermo Fisher Scientific, USA). KBr pellets were prepared by mixing the sample with potassium bromide. Spectra were obtained through 16 scans from 4000 to 400 cm−1 with 4 cm−1 spectral resolution while subtracting background spectra measured in the air. Spectra were then corrected by baseline subtraction and area normalization to compare samples.
The anatomical studies were made on the tissues collected from Disc 1: sapwood, heartwood, the original heartwood, and bark. Samples were cut into small blocks (1 × 1 × 1.5 cm), then fragments of about 20 mm in length and 3mm in thickness were obtained using blades or saw. The original heartwood could not be cut at once and was conditioned under 85% relative humidity using a solution of KCl. Transverse sections of 30–40 µm thickness were obtained using a microtome equipped with disposable blades (Thermo scientific HM 340E semi-automated microtome). All observations were done using a stereo zoom macroscope (AXIO Zoom.V16, Zeiss) and visible light or fluorescence as described below.
Histochemical analysis (Wiesner and Mäule staining)
The Wiesner and Mäule reactions were used to visualize lignin in each tissue (Day et al. 2005). The Wiesner reaction was performed after staining the sections with phloroglucinol (2% in 96% ethanol) for 5 min and mounting in HCl (2N). For Mäule staining, sections were incubated with KMnO4 (1% in water) for 5 min and washed with water before adding HCl (2N) until the section was partially decoloured. The section was finally mounted in ammonium hydroxide (28–30%). Samples stained with Wiesner and Maule reagents were imaged using a macroscope and visible light. For each tissue, the images of different sections (5–9 images) acquired at 25 × and 63 × magnification were analysed by ImageJ software to determine the proportion and size of the vessels in each tissue.
Fluorescence determination
Sections were mounted in deionised water prior to fluorescence observation. Fluorescence images of four sections were acquired at 63 × magnification and two excitation/emission wavelengths conditions: (1) 365 nm excitation, 420–470 nm emission (blue fluorescence), and exposure time of 1000 ms, 2000 ms, and 3000 ms; (2) 488 nm excitation, 500–550 nm emission (green fluorescence) and exposure time of 500 ms, 1000 ms, and 1500 ms. The field of view, resolution, and depth of field for fluorescence image acquisition was 3.7 mm, 0.7 μm, and 9 μm. Fluorescence images were analysed using ImageJ software, following an automated procedure as described by Audibert et al. (2023). The procedure was applied to the stack of the four images acquired for each excitation and allowed the quantification of average fluorescence intensity. The stack image was converted to an 8-bit grey level, and an automated threshold called “Huang dark” was applied to detect the cell walls and extract a selection that is applied in the unmodified image stack to measure the average grey value.
Statistical analysis
A one-way analysis of variance (ANOVA) followed by Holm-Sidak method for pairwise comparison was performed to compare group mean values for each analysis performed at least in triplicate. Statistical tests were conducted using using SigmaPlot® software (version 12.0, Systat, USA) a significance level of 5%.
Results and discussion
Basic density and chemical analysis
The emergence of new feedstocks, such as biomass from eucalypt stumps, is a crucial development for biorefineries. Eucalypt stump biomass is gaining attention as a valuable raw material due to its unique physical and chemical properties, as illustrated in Tables 1 and 2. One of the key parameters for assessing wood quality is basic density, which generally increases with tree age and varies across species (Lima 1995). In our findings, the basic density values did not show substantial differences between the tissues and Disc levels. For instance, Disc 1, which includes stumps above soil level, exhibited density values ranging from 0.652 to 0.705 g/cm3. A decrease in the density of heartwood was found significant between the three discs, with the lowest values for the deeper sample, Disc 5, whose sapwood density (0.605 g/cm3) is significantly lower than that of Discs 1 and 3 (Table 1). Notably, these values surpass those reported for stumps and roots from different eucalyptus clones in Brazil, which values ranged from 0.357 to 0.365 g/cm3 (Costa et al. 2021); but also, those reported for E. globulus stemwood, 6 and 5.6 years, with 0.478 g/cm3 (Carrillo et al. 2017) and 0.491 g/cm3 (Gominho et al. 2001), respectively. The density of other eucalyptus species, such as E. nitens, was recorded at 0.490 g/cm3 at 6-years-old (Carrillo et al. 2017). When examining different tissues, Lourenço (2009) did not observe any variation in basic density between heartwood and sapwood from 18-year-old E. globulus, with a consistent density of 0.74 g/cm3. In contrast, S. mahogany heartwood presented lower basic density compared to sapwood (Arisandi et al. 2023), highlighting the complexity of this topic. The relationship between density, vessel frequency, and diameter adds another layer of complexity. As noted by Pfautsch et al. (2016), the basic density of sapwood tends to increase alongside vessel frequency; however, mean vessel diameter may decrease in trees growing in mesic environments. The implications of vessel diameter differences will be addressed in subsequent sections.
Table 1
Basic density values of the heartwood (Heart) and the sapwood (Sap) at different heights and of the bark of the Eucalyptus globulus stump. Mean values and standard deviation (STDEV) of five replicates
Disc 1
Disc 3
Disc 5
O.Heart
Heart
Sap
Heart
Sap
Heart
Sap
Density (g/cm3)
0.678
0.695
0.657
0.620
0.654
0.605
0.605
STDEV
0.028
0.026
0.007
0.032
0.019
0.048
0.012
O.Heartwood = original heartwood, i.e. from the first tree grown.
Table 2
Chemical composition of sapwood and heartwood at different heights and of the bark of Eucalyptus globulus stump (mean values of 2 replicates)
Component (% dry matter)
Disc 1
Disc 3
Disc 5
O.Heart
Heart
Sap
Heart
Sap
Heart
Sap
Bark
Ash
0.7
0.3
0.7
0.2
0.3
0.2
0.3
3.5
Extractives
7.0
12.1
5.4
15.6
4.5
15.8
3.9
7.5
Dichloromethane
0.5
0.6
0.3
1.0
0.3
1.2
0.2
0.6
Ethanol
2.1
8.4
1.6
11.7
0.8
11.6
0.6
2.8
Water
4.4
3.1
3.5
2.8
3.4
3.0
3.0
4.1
Total Lignin
27.1
24.5
27.3
24.0
26.0
23.9
26.4
22.0
Klason Lignin
23.5
21.4
24.1
21.3
22.9
21.1
23.1
19.3
Soluble Lignin
3.6
3.1
3.2
2.7
3.1
2.8
3.3
2.7
Holocellulose
67.3
64.7
68.6
61.7
71.5
62.5
71.5
68.4
Suberin
–
–
–
–
–
–
–
0.3
Lignin-to-Holocellulose ratio
0.40
0.37
0.39
0.38
0.36
0.38
0.37
0.32
Sugars (% of Total monosaccharides)
Rhamnose
0.7
0.7
0.5
0.4
0.4
0.4
0.5
0.2
Arabinose
0.6
0.8
0.8
0.4
0.8
0.5
0.5
0.9
Galactose
1.9
2.2
2.6
1.6
1.5
1.4
1.3
1.9
Glucose
63.6
60.8
64.9
66.2
66.1
67.4
66.6
70.1
Xylose
25.6
26.6
22.9
24.6
22.7
23.1
22.8
20.7
Galacturonic acid
1.6
1.6
1.5
1.3
1.2
1.2
1.1
1.2
Acetic acid
6.0
7.5
7.0
5.5
7.2
6.0
7.1
5.0
O.Heart = original heartwood, i.e., from the first tree. Heart = heartwood; Sap = sapwood; In bark, the total lignin value was corrected to extractives and ashes contents
Chemical analysis revealed distinct characteristics among tissues and across the three stump levels (Table 2). Bark had elevated ash content (3.5%) and substantial extractives (7.5%), but a lower lignin content (22.0%) compared to sapwood and heartwood (23.9–27.3%). Stump bark contained 0.3% suberin, typical for E. globulus species (0.98%), yet lower than other barks like Q. faginea (2.9%) and B. pendula (5.9%, Miranda et al. 2013). Holocellulose content in bark (68.4%) fell within the range for eucalypt stem bark (62.6%) but was higher compared to birch (49.8%, Miranda et al. 2013), indicating potential for valorization beyond combustion for power generation. Bark presented the highest concentration of glucose (70.1% of polysaccharides), while displaying the lowest content of xylose (20.7%), as compared to the wood tissues.
Heartwood exhibited a notable abundance of extractives, particularly in Discs 3 and 5 (15.6% and 15.8%), possibly indicating a defensive response or leaching due to rain after tree removal. Interestingly, the original heartwood showed a lower level of extractives (7.0%), likely due to seasoning from previous tree removal (Gutiérrez et al. 1998), allowing the regrowth of the plant. Sapwood consistently had a higher lignin content (26.9–27.3%) compared to heartwood (23.9–24.5%), whatever the Disc analysed. However, original heartwood (27.1%) displayed lignin levels similar to sapwood. Lignin variation between heartwood and sapwood has also been found in a hybrid eucalypt E. urophylla X E. grandis, but in this case, heartwood presented higher values compared to sapwood, reaching values of 33.8 and 26.0% respectively (Xiao et al. 2019), while other studies have reported higher lignin content in the heartwood of Michelia macclurei (Ren et al. 2023). In Disc 1, sapwood exhibited the highest holocellulose content (mean 68.6%), akin to the original heartwood (67.3%), whereas heartwood ranked behind at 64.7%. This trend persisted in Discs 3 and 5, with sapwood exceeding 70% of dry matter. Generally, sapwood across various species displays higher total carbohydrate content than heartwood. For instance, total carbohydrate values of 51.5%, 54.4%, 55.5%, and 61.9% were reported for E. urophylla, E. globulus, A. mangium, and the hybrid E. urophylla x E. grandis sapwood samples respectively (Çetinkol et al. 2012; Xiao et al. 2020). Overall, xylose and glucose predominate among tissues, consistent with the glucuronoxylan type of hemicelluloses found in hardwoods like E. globulus (Rowell et al. 2012). Xylose content prevailed in heartwood polysaccharides (23.1–26.6%), while constant values were reported in sapwood (22.7–22.9%). Glucose content was not clearly consistent between wood tissues (Disc 1: heartwood had the lowest value, but in Disc 3 and 5, the tissues presented similar values). Hemicelluloses isolated from the heartwood, sapwood, and bark of a eucalypt hybrid revealed the highest xylan content mainly in heartwood (73.0%, 58.5%, and 69.9%, respectively), followed by galactose that prevailed in sapwood (3.0%, 14.0% and 3.2%, Xiao et al. 2020). Furthermore, the presence of acetic acid and galacturonic acid, with values exceeding 5% and around 1.5% of total sugars, respectively, suggests partial acetylation of hemicelluloses. Note that the summative composition slightly exceeds 100% since the determination of the different components involves the use of different methods. Also, these are mean values, and we have also to keep in mind that all the chemical components present a range of values, showing the heterogeneity of the material.
Overall, the chemical analysis shows mainly variations between heartwood and sapwood, in particular the contents of extractives, lignin, and holocellulose, but no clear conclusion can be drawn in relation to the distribution of these chemical components along the stump height (data of Disc 3 and 5).
FTIR analysis
FTIR spectra of the samples from Disc 1 are presented in Fig. 2. A broader band appears in all samples at 3416 cm−1 followed by the band at 2915 cm−1. In the fingerprint region more, bands were present. The band associated with carbonyl groups from hemicelluloses (1740 cm−1) and absorbed water (1682 cm−1, Popescu et al. 2009). The cellulose bands were: 1377, 1246, 1054, and 897 cm−1 (Popescu et al. 2009; Rodrigues et al. 1998; Gominho et al. 2019; Rubio-Valle et al. 2024). The lignin bands were 1595 and 1505, 1331, 1124 cm−1, while the bands 1737 and 1265 cm−1 (Schwanninger et al. 2004; Popescu et al. 2009) were not dominating. Also, all samples have a GS lignin type since the band 1465 is higher than 1505 cm−1 (Faix 1991).

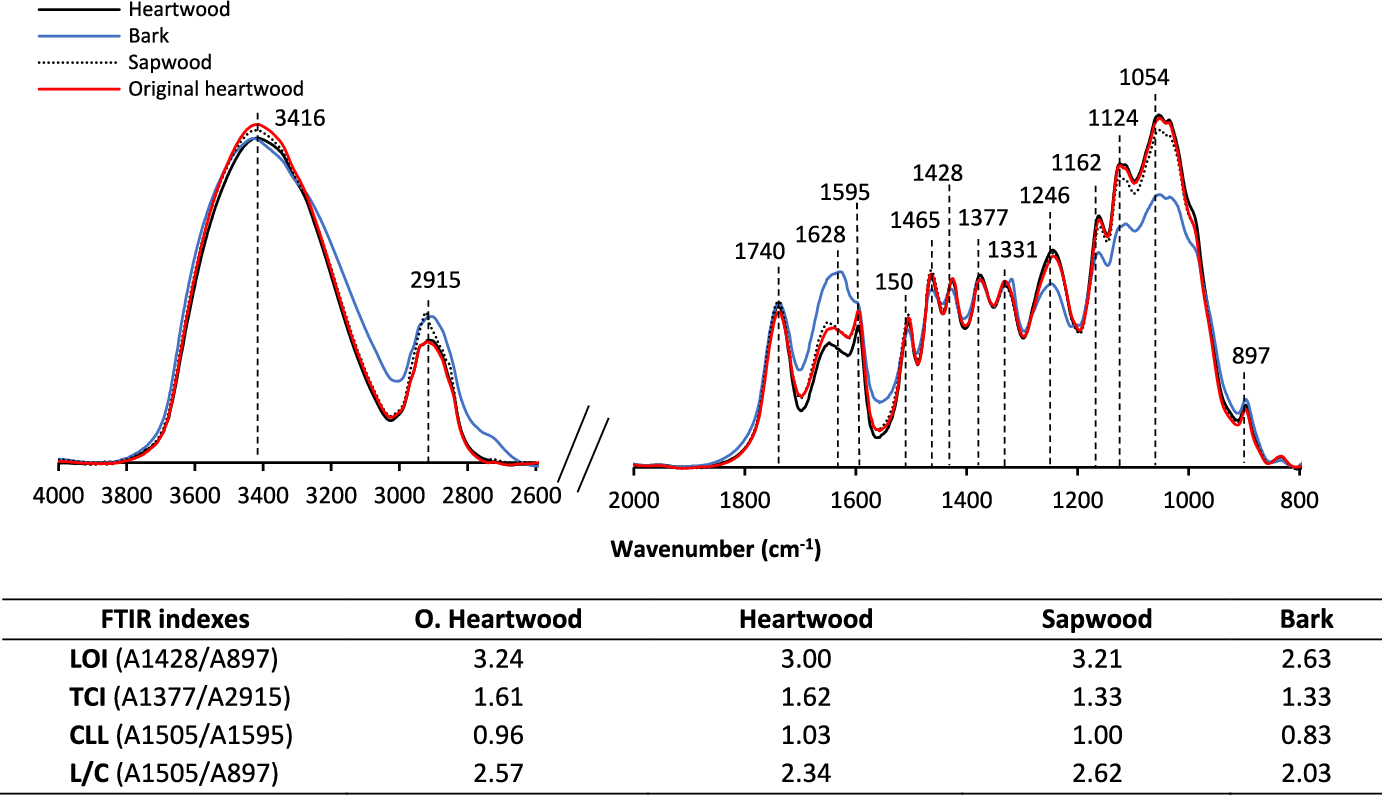

Fig. 2
FTIR spectra of sapwood, heartwood, original heartwood and bark samples from Disc 1. Main bands assignments (cm−1): 3416) O–H stretching and H-bonded; 2915) asymmetric and symmetric stretching vibrations of the methylene groups; 1740) unconjugated C=O stretch in ketons, carbonyl and ester groups in xylans; 1628) adsorbed water and C=O stretching in flavones and calcium oxalate; 1595 and 1505) aromatic skeleton vibration in lignin; 1465 and 1428) C–H deformation in lignin and carbohydrates; 1377) C–H deformation in polysaccharides; 1331) Caryl-O vibration in syringyl derivatives; 1246) C–O stretch in guaiacyl derivatives and O–H in plane in polysaccharides; 1162) C–O–C vibration in polysaccharides; 1124) aromatic skeletal and C-O stretch; 1054) C–O stretch in polysaccharides; 897) C-H deformation in cellulose (amorphous region). FTIR indexes calculated: LOI (lateral order index), TCI (Total crystalline index), CLL (Cross-linked lignin), L/C (Lignin-to-cellulose index)
Using the FTIR bands intensity, it was possible to calculate different indexes: (i) Lateral order index (LOI): an empirical crystallinity index = A1428/A897, where 1428 cm−1 band is associated with the crystalline structure of cellulose, while the band at 897 cm−1 corresponds to the amorphous region of cellulose (Nelson and O’Connor, 1964); (ii) Total crystalline index (TCI) = A1377/A2915, the band 1377 cm−1 is associated with glycosidic bond β-(1,4) in cellulose and the band 2915 cm−1 is related to the crystalline structure of cellulose (Nelson and O’Connor, 1964); (iii) Cross-linked lignin (CLL) indicates the proportion of condensed lignin and cross-linked structures = A1505/A1595; where both bands 1505 cm−1 and 1595 cm−1 relate to aromatic skeletal vibration of lignin (Auxenfans et al. 2017); (iv) Lignin-to-cellulose index (L/C) was determined between A1505/A897, where the 1505 cm−1 band corresponds to the lignin stretching of C=C, and 897 cm−1 is assigned to C–H deformation in cellulose (Gaur et al. 2015). Original heartwood and heartwood attained similar values for LOI and TCI; the LOI values were 3.24 and 3.00, respectively, while their TCI values were 1.61 and 1.62. In bark tissue, the lateral order index (LOI) and total crystalline index (TCI) were the lowest, suggesting that cellulose in bark has a lower degree of crystallinity compared to wood tissues. However, we could not corroborate this with literature for the same tree; E. globulus bark relative crystallinity was reported to be 46.4%, determined by X-ray diffraction (Li et al. 2022), while the cellulose extracted from stemwood had a crystallinity of 87% (Magina et al. 2024). The lignin-to-cellulose index (L/C) was also lower in bark (2.03) compared to heartwood and sapwood (2.34–2.62), which recorded the highest value (2.62). This is consistent with the chemical analysis, where the lignin-to-holocellulose ratio was the lowest in bark (0.32, Table 2). The lowest value of the LCC ratio was obtained in the bark, suggesting that lignin is more condensed with crosslinked G-type lignin structures. These infrared data were in the range of values reported in the literature. For instance, industrial chips derived from E. globulus stump wood exhibited a high degree of crystallinity, with LOI and TCI values reaching 4.31 and 1.49, respectively. Additionally, the CLL stood at 0.87, and the L/C ratio was 3.29 (Gominho et al. 2019). Other hardwoods, such as poplar, presented an LOI of 1.77 and a CLL of 1.32 (Auxenfans et al. 2017).
Extractives composition
Figure 3 illustrates the distribution of the primary compound families in the dichloromethane (DCM) extracts, and a detailed list of compounds identified is available in Supplementary material (Table S1). On average, approximately 76% of the total chromatogram area was identifiable, with compounds primarily belonging to phytosterols, triterpenes, fatty acids, and aromatics families. Sapwood exhibits a higher concentration of triterpenes, with asiatic and arjunolic acids being the most prominent, followed by phytosterols (predominantly β-sitosterol) and fatty acids (notably hexadecanoic acid and cis 9-octadecenoic acid). Conversely, aromatics and monoglycerides are more prevalent in heartwood. This composition pattern of the DCM extract mirrors findings from Gominho et al. (2020) in mature E. globulus trees, indicating that heartwood tends to be richer in triterpenes and aromatic compounds. These compounds, which accumulate in the heartwood region, play a crucial role in providing protection against biotic agents. Overall, there appears to be an axial gradient regarding the type of families present: heartwood has more phytosterols and fatty acids (Disc 1), but there is a prevalence of fatty acids in Disc 3 and Disc 5. Sapwood has more phytosterols and triterpenes (Disc 1), while triterpenes prevail in Disc 3 and phytosterols in Disc 5. In turn, the bark is rich in pentacyclic triterpenes (53.6%, with betulinic acid as the main compound), followed by fatty acids (17%) and phytosterols (13%). Our results are comparable with those of other authors for E. globulus stemwood as well as for other eucalypt species. Santos et al. (2017) focused on E. grandis wood from Portugal, Brazil, and South Africa, which was obtained as the main family sterol, followed by fatty acids, while triterpenic acids were detected only in Brazilian wood. According to Domingues et al. (2010), studying the DCM extracts from eucalypt residues found predominantly triterpenoids and fatty acids type of compounds as mentioned here. Besides, these authors, as well as Gominho et al. (2021), mentioned that this type of biomass could be a good source of bioactive compounds with a wide range of applications from the food to pharmaceutical and biomedical industries.

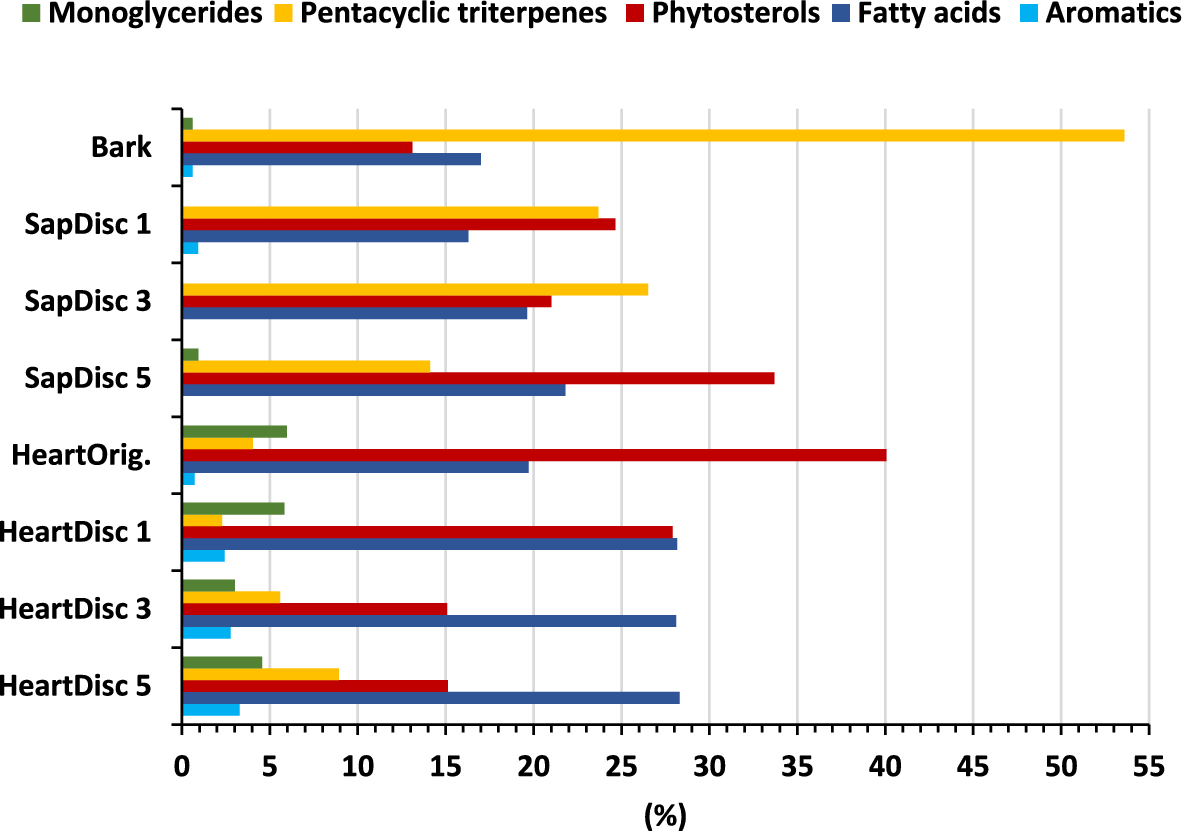

Fig. 3
Distribution of the DCM extract families in the tissues studied and in between discs (% of total chromatographic area)
Table 3 presents the phytochemical profile of ethanol and water extracts, encompassing total phenolics (TP), total flavonoids (TF), and condensed tannins (CT), whose total values were calculated accounting for the percentage of each extract (Table 2). The antioxidant activities were determined using the FRAP and DPPH methods. Notably, ethanol extracts generally exhibited a higher phytochemical profile compared to water extracts across all samples. Heartwood samples exhibited phenolic levels ranging from 866.7 to 1 066.2 mg GAE/g extract for ethanol extracts and 177.4 to 280.8 mg GAE/g extract for water extracts. Similarly, sapwood ethanol extracts ranged from 758.7 to 860.7 mg GAE/g extract, while water extracts ranged from 149.1 to 231.9 mg GAE/g extract. This variation can be attributed to the higher content of phenolics in ethanol extracts compared to water extracts in heartwood (8.4% vs. 3.1%, as shown in Table 2), whereas the opposite is observed in sapwood (1.6% vs. 3.5%). Interestingly, the original heartwood mimics the behavior of sapwood tissue, exhibiting a TP value of 983.3 and 243.6 mg GAE/g extract, respectively, ethanol and water extracts.
Table 3
Phytochemical profile and determination of the antioxidant activities of the phenolic extracts from heartwood, sapwood, and bark of eucalypt stumps (mean values of 2 replicates)
Disc 1
Disc 3
Disc 5
O. Heart
Heart
Sap
Heart
Sap
Heart
Sap
Bark
Phytochemical Profile
Total Phenolics (TP, mg GAE/g extract)
Ethanol
983.3
1 066.2
758.7
866.7
820.2
884.7
860.7
431.4
Water
243.6
280.8
231.9
177.4
149.1
252.0
174.8
201.0
Flavonoids (TF, mg CE/g extract)
Ethanol
145.5
143.9
154.9
108.9
221.7
106.8
173.8
135.3
Water
3.0
11.1
2.4
12.5
1.6
11.5
1.3
72.2
Condensed Tannins (CT, mg CE/g extract)
Ethanol
22.3
21.9
47.5
17.7
45.2
20.3
42.1
149.1
Water
0.5
1.7
0.8
2.0
0.8
2.2
0.3
51.9
Antioxidant Activity
FRAP (mmol Fe(II)/g extract)
Ethanol
12.6
12.1
7.6
10.8
7.5
8.8
7.8
4.4
Water
0.3
0.9
0.1
1.2
0.1
1.0
0.1
2.0
DPPH
IC50 Ethanol (mg/L)
2.6
1.3
2.3
1.9
3.0
2.1
2.5
6.8
AAI Ethanol
9.2
18.3
10.4
12.5
7.9
10.9
9.5
3.5
Water IC50 (mg/L)
12.7
7.3
10.8
17.8
18.8
8.0
13.7
148.4
AAI Water
1.8
3.2
2.6
1.3
1.2
2.9
1.7
0.1
O. Heart—original heartwood; *values reported to the percentage of each extract attained from chemical composition
In terms of total flavonoids (TF) and condensed tannins (CT) compositions, both heartwood and sapwood displayed a similar pattern to that of total phenolics (TP). For instance, heartwood TF levels in the ethanol extract ranged from 106.8 mg CE/g extract (disk 5) to 143.9 mg CE/g extract (disk (1). Conversely, bark exhibited intermediate values for TP of the ethanolic extract (431.4 mg GAE/g ethanolic extract) falling between those of heartwood and sapwood, but with generally higher levels for TF and CT (135.3 and 149.1 mg CE/g extract, respectively). Luís et al. (2014) also studied the phenolic compounds of wood, bark, and stumps from E. globulus, attaining in the ethanol extracts the values 460.0 (stumps) and 253.9 mg GAE/g extract (bark). These authors measured flavonoids by using a different standard (quercetin), and the values reached 33.6 and 8.3 mg QE/g extract for stump wood and bark, respectively (Luís et al. 2014).
Ethanol extracts from heartwood exhibited superior antioxidant activity compared to water-soluble extracts. FRAP values ranged from 8.8 to 12.6 mmol Fe(II)/g extract in heartwood ethanol extracts and 7.5 to 7.8 mmol Fe(II)/g extract in sapwood ethanol extracts. Conversely, bark showed higher antioxidant activity in water extracts (2.0 Fe(II)/g extract) than in ethanol extracts (4.4 Fe(II)/g extract). Regarding the DPPH method, both heartwood and sapwood ethanol extracts displayed strong antioxidant activity, with AAI values exceeding 2. Heartwood ranged from 9.2 to 18.3, while sapwood ranged from 7.9 to 10.4. Bark ethanol extracts exhibited significant antioxidant activity (AAI of 2.4), whereas water extracts showed poorer activity (AAI of 0.1). Studies by Luís et al. (2014) corroborated these findings, showing higher antioxidant activity in ethanol extracts (AAI 7.39) compared to other solvents, such as n-hexane extracts (AAI 0.25) when analyzing stump wood. Also, Fernández-Agulló et al. (2015), while testing several methods to obtain phenolic compounds from E. globulus wood wastes, showed that ethanol was the best solvent compared to water or methanol to yield more compounds with high antioxidant properties. Santos et al. (2017), while studying E. grandis wood obtained differences in antioxidant activities of the phenolic extracts regarding the geographic origin: Brazil wood had the highest antioxidant activities, followed by South African and Portugal (IC50 of 5.08, 6.13 and 6.18 µg/mL).
Pyrolysis analysis
Analytical pyrolysis is a robust methodology for characterizing both wood and bark, offering a rapid analysis that enables a relative quantification of carbohydrates and lignin (Lourenço et al. 2019; Rencoret et al. 2011). While versatile for insights into both components, its main interest lies in determining lignin composition. Therefore, we present in more detail the data for lignin characterization and briefly those of carbohydrates. Based on the pyrolysis findings (refer to Table 4, Table S2, and Figure S1), carbohydrate derivatives accounted for 54.6% of the original heartwood composition, comparable to sapwood (ranging from 52.3 to 54%). However, heartwood displayed slightly lower values, ranging from 48.9% (Disc 5) to 51.1% (Disc 1). For a detailed identification of the derived compounds and their relative quantification, please refer to the supplementary information (Table S2). Lignin content remained consistent across all tissues, with heartwood registering 27.8% (Disc 1) and sapwood slightly higher at 29.7% (Disc 1), while bark exhibited a notably lower percentage at 20.1%. Minimal differences were observed among the other two levels. All these values are in the range obtained by chemical analysis (Table 2). In terms of lignin composition, all tissues showed a prevalence of syringyl (S) over guaiacyl units (G), with a minor presence of p-hydroxyphenyl units (H). Consequently, S/G ratios ranged from 3.1 (heartwood) to 3.5 (bark), with slightly lower values recorded in the wood of Disc 5. These findings align with the range of 1.9–5.5 reported for eucalypt stemwood as determined by Py-GC/MS analysis (del Río et al. 2005; Rencoret et al. 2011; Lourenço et al. 2019). Also, when studying E. globulus stemwood with 1 month, 18 months, and 9 years, Rencoret et al. (2011) identified more H units like methylphenols and dimethylphenol, particularly in the young wood (9%), decreasing in oldest wood (2%). This is in line with our findings here, where only phenol was identified, maybe because stumps are an older material. During wood maturation, there is an increase of G and S-units being deposited in the cells (Terashima et al. 1986).
Table 4
Resume of the results from the pyrolysis analysis (values as % of total chromatogram area)
Disc 1
Disc 3
Disc 5
O. Heart
Heart
Sap
Heart
Sap
Heart
Sap
Bark
Total carbohydrates
54.6
51.1
52.3
49.4
54.0
48.9
52.0
58.9
Total lignin
28.6
27.8
29.7
28.5
28.2
28.2
27.3
20.1
S
22.6
21.3
23.1
21.6
21.7
21.1
20.7
15.4
G
5.9
6.4
6.4
6.9
6.3
7.0
6.5
4.4
H
0.2
0.2
0.2
0.1
0.2
0.1
0.1
0.3
Others
0.8
0.7
0.7
0.9
1.0
0.9
0.9
0.9
S/G ratio
3.8
3.4
3.4
3.1
3.4
3.0
3.2
3.5
H:G:S relation
1:20:79
1:22:77
1:21:78
0:24:76
1:22:77
0:25:75
0:24:76
2:21:77
Data from Disc 1: Heartwood values are the mean values of Heart 1 and Heart 2, the same for Sapwood
Thioacidolysis analysis
Even though pyrolysis is an interesting technique for attaining the lignin monomeric composition of the whole polymer, thioacidolysis can allow the detection of the monolignols that are linked only through labile aryl ether linkages, thereby providing an estimation of the proportion of non-condensed lignin structure (Lapierre 1993). In agreement with pyrolysis data, the β-O-4´ linked lignin structures in all stump tissues contained both G and S units with S/G molar ratio ranging from 3.3 to 4.0 (Table 5), whereas H units were at trace levels (data not shown). This result agrees with a previous study reporting an S/G value close to 3.3 in mature wood of Eucalyptus. Xiao et al. (2019) found that the lignin of sapwood of Eucalyptus displayed increasing S/G ratios of lignin from heartwood to sapwood. Albeit significant, the weak S/G variation shown for the β-O-4´ linked lignin structures in stump tissues indicates that sapwood and heartwood reached quite similar maturity in terms of lignin as the S units increased during lignification (Lourenço et al. 2016).
Table 5
Monolignols quantification after thioacidolysis (as µmol/g Klason lignin ± STDEV)
Sample
G
S
G + S
S/G
Original heartwood
455.6 ± 29.9
1 807.3 ± 107.1
2 262.8 ± 135.3
4.0 ± 0.1
Heartwood
557.1 ± 4.2
2 082.9 ± 21.2
2 640.1 ± 25.2
3.7 ± 0.0
Sapwood
554.6 ± 17.9
1 832.4 ± 7.0
2 387.1 ± 22.1
3.3 ± 0.1
Bark
432.8 ± 31.9
1 518.4 ± 198.4
1 951.2 ± 230.3
3.5 ± 0.2
Based on the total recovery yields from thioacidolysis and an average monolignol molecular weight of around 200, the fraction of non-condensed lignin structure was estimated and accounted for 39 to 53% of Klason lignin with significant variation between wood tissues (Lapierre et al. 1993). The lowest frequency was found in the bark tissue, indicating that lignin is more condensed than other tissues. This result thus confirmed that the FTIR analysis showed the lowest CLL ratio in the bark. However, a higher proportion of β–O–4′ linkages have been reported in lignin isolated from the wood bark of Eucalyptus urophylla × E. grandis (Xiao et al. 2019). A deeper investigation using spectroscopic analysis could allow a more detailed characterization of the bonding pattern of lignin in the different tissues, as shown by 2D NMR analysis of Eucalyptus wood and the constitutive tissues (Rencoret et al. 2011; Xiao et al. 2019).
Histochemical analysis
Lignin was visualized in the stump tissues using Mäule and Wiesner staining techniques (Fig. 5). Wiesner staining imparted a red or dark rose in the cell walls rich in lignin cinnamaldehyde groups (Clifford 1974). This staining method unveiled extensive lignification in both heartwood and sapwood, notably in fibers (F) and vessels (V), whereas rays (R) exhibited a darker brown coloration, indicating lower lignification levels (Fig. 5.a–c). Conversely, sclerenchyma (S) showed a deep rose coloration in bark, indicative of lignification, particularly notable in the middle lamella and cell corners (Fig. 5d). However, other cell types, such as parenchyma, showed less pronounced lignification. Obtaining high-quality microscope sections from original heartwood and bark posed challenges due to their stricter texture, necessitating additional effort during sample preparation.
Fig. 5
Lignin visualization in stump tissues using Wiesner (a-d) and Mäule (e–h) staining (magnification 258x). Legend: V vessel; F fibers; FT fibrotracheides; R ray cell; S sclerenchyma; P parenchyma cells; Tylose in blue arrow. Scale bars are 100 µm
Following Mäule staining (Fig. 5e–h) that gives a purple-red coloration with syringyl unit (Meshitsuka and Nakano 1979), the prevalence of syringyl and guaiacyl lignin types in the cell walls of fibers (F) was evident in original heartwood, heartwood, and sapwood, while vessels (V) and ray cells (R) displayed a G-type lignin, appearing orange to brown as already reported in hardwood vessels (Fergus and Goring 1970; Donaldson 2001). In the bark, sclerenchyma (S) stained red and exhibited lignin of the SG type. Parenchyma cells (P), appearing pink-rose, were at a distinct stage of lignification, while the rays, displaying a brown coloration, were primarily composed of G-lignin. The tyloses observed in vessels of both original and heartwoods (blue arrow) displayed pale staining with Maule reagent. Using an improved Mäule reaction for fluorescence observation, Yamashita et al. (2016) suggested that tyloses differ from vessels in their syringyl proportion.
Image analysis revealed differences between different wood regions in Disc 1 (7 replicates per tissue). Both original heartwood and heartwood had a significantly higher proportion of vessels (7.8 ± 0.3 and 7.2 ± 3.5 vessels/mm2 respectively) then sapwood (3.3 ± 0.8 vessels/mm2). Vessels in sapwood were larger (9.1 × 103 ± 1.4 × 103 µm2) than in original heartwood 5.8 × 103 ± 0.6 × 103 µm2) and in heartwood (4.8 × 103 ± 1.4 × 103 µm2). This result suggests that stump anatomy is very similar to stemwood, for which different studies have reported that vessel diameter increased from heartwood to sapwood (Longui et al. 2014).
Stump tissues were also observed using fluorescence macroscopy at two different excitation wavelength, 353 nm which can be attributed mainly to lignin fluorescence and 488 nm that may correspond to the presence of phenolic extractives such as flavonoids (Donaldson 2020). All the cell walls showing positive reaction with Wiesner and Maule reagents displayed intense blue and green fluorescence when illuminated with 353 and 488 nm respectively (Fig. 6). In contrast to the blue fluorescence, a higher green fluorescence could be observed in ray cells and vessels cell walls as compared to fibers. This observation is consistent with studies reporting that extractives accumulate in rays and impregnate cell walls (Watanabe et al 2004; Koch and Kleist 2001; Mishra et al 2018). Image analysis allowed quantification of the emission fluorescence, thus enabling us to compare samples (Table 6).
Fig. 6
Fluorescence macroscope imaging of stumps tissues at 353 nm (a–d) and 488 nm (e–h). All images were acquired at 1000 ms of exposition, magnification 63x. Scale bars are 500 µm. Intense green fluorescence in rays (arrow)
Values of the fluorescence emission were determined using the images acquired at 63 × magnification. Mean ± STDEV of three to four images. (mean grey value ± STDEV)
63 × magnification; 353 nm excitation
Exposition time (ms)
O. Heartwood
Heartwood
Sapwood
Bark
1000
15.4 ± 0.6
14.2 ± 1.4
12.8 ± 0.4
7.8 ± 0.9
2000
31.4 ± 1.2
28.9 ± 2.9
26.3 ± 0.8
16.0 ± 1.8
3000
43.7 ± 2.1
41.3 ± 3.2
39.4 ± 1.3
24.2 ± 2.8
63 × magnification; 488 nm excitation
500
19.5 ± 4.4
8.6 ± 1.9
10.4 ± 0.6
12.4 ± 2.1
1000
39.7 ± 8.8
17.8 ± 3.6
21.5 ± 1.3
25.1 ± 3.8
1500
56.7 ± 9.5
27.2 ± 5.4
32.9 ± 2.0
37.6 ± 5.2
Fluorescence quantification in stump samples was performed at a standard exposure time and similar magnification (three replicates per tissue). The results indicate significantly stronger fluorescence at 488 nm, except for heartwood. For both excitation wavelengths, the highest fluorescence intensity was obtained for the original heartwood, which contains more lignin than heartwood in Disc 1 and almost similar content of phenolic extractives. Lignin would mainly contribute to the blue fluorescence with maximum excitation at UV wavelength. However, it can still have weak fluorescence at 488 nm excitation, and some phenolic extractives also display autofluorescence under 355 nm excitation (Donaldson, 2020). Thus, stump wood autofluorescence can include lignin and extractives (Donaldson, 2019). Nevertheless, the lowest autofluorescence of bark at 355 nm excitation is consistent with the lowest content in lignin and phenolic extractives. Further investigation combining confocal spectral characterization and chemical extraction of extractives would give more detailed information on the distribution of lignin and extractives in stump tissues as reported for Eucalyptus stemwood (Speranza et al. 2009). Overall, this data, along with those from histochemical, could provide us a first glance at the presence of lignin and extractives on our samples, even before the chemical analysis.
Conclusion
Eucalypt stumps, a by-product of eucalypt wood exploitation valued primarily for pulp production, represent a significant opportunity for biomass valorization encompassing the waste reduction during the management of this species. In this study, we comprehensively characterized the stump tissues, including original heartwood (from the first tree), heartwood, sapwood, and bark, to uncover their potential applications in biorefineries. Our findings revealed chemical differences among these tissues. Specifically, original heartwood presented low extractive content due to the seasoning effect and high lignin content but a holocellulose content near those of sapwood. On the other hand, heartwood exhibited high levels of extractives and holocellulose while containing less lignin compared to sapwood. Conversely, bark was found to have increased ash content alongside higher holocellulose levels. Moreover, the ethanolic and water extracts derived from these wood tissues demonstrated promising antioxidant activities, indicating potential for utilization in health-related applications. Upon analyzing the lignin composition, we observed a predominance of S-units over G-units, with a minor presence of H-units across all sampled tissues. Notably, the bark exhibited a higher degree of condensed lignin compared to the wood components. Histochemical analyses further elucidated that fibers and vessels were highly lignified, in contrast to ray cells, which displayed lower lignin content. Our research also showed that fibers contained both S- and G-lignin types, while vessels and rays primarily exhibited G-lignin. In the bark, sclereids manifested an SG lignin type whereas rays were predominantly composed of G-lignin. Morphologically, sapwood had fewer but larger vessels, whereas heartwood displayed a greater number of smaller vessels. These combined results not only enhance our understanding of Eucalyptus globulus stump anatomy and chemistry but also propose valuable avenues for their industrial application. The insights gained from this comprehensive characterization can be extended to a larger number of samples, paving the way for the effective integration of these various stump regions into biorefinery processes, ultimately contributing to sustainable biomass valorization and waste reduction.
Acknowledgements
The authors thank Edwige Audibert, David Crônier, and François Gaudard for their support during the macroscopy, thioacidolysis, and FTIR analyses respectively.
Declarations
Competing Interest
The authors declare no competing interests.
Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Arisandi R, Marsoem SN, Sutapa JPG, Lukmandaru G (2023) Heartwood formation and its relationship with basic density and green moisture content of young small-leaf mahogany trees. South for J for Sci 85(1):26–39. https://doi.org/10.2989/20702620.2023.2180453CrossRef
Çetinkol ÖP, Smith-Moritz AM, Cheng G, Lao J, Geroge A, Hong K, Henry R, Simmons BA, Heazlewood JL, Holmes BM (2012) Structural and chemical characterization of hardwood from tree species with applications as bioenergy feedstocks. PLoS ONE 7(12):e52820. https://doi.org/10.1371/journal.pone.0052820CrossRefPubMedPubMedCentral
Costa ACLA, Guerra SPS, Spadim ER, Passos JRS, Eufrade-Junior HJ (2021) Physical and chemical characterization of Eucalyptus stumps and roots for bioenergy. Sci for 49(129):3433. https://doi.org/10.18671/scifor.v49n129.19CrossRef
del Rio JC, Gutierrez A, Hernando M, Landín P, Romero J, Martinez AT (2005) Determining the influence of eucalypt lignin composition in paper pulp yield using Py-GC/MS. J Anal Appl Pyrol 74:110–115. https://doi.org/10.1016/j.jaap.2004.10.010CrossRef
Domingues RMA, Sousa GDA, Freire CSR, Silvestre AJD, Neto CP (2010) Eucalyptus globulus biomass residues from pulping industry as a source of high value triterpenic compounds. Ind Crop Prod 31:65–70. https://doi.org/10.1016/j.indcrop.2009.09.002CrossRef
Faix O, Fortman I, Bremer J, Meier D (1990) Thermal degradation products of wood. A collection of electron-impact (EI) mass spectra of monomeric lignin derived products. Holz Roh-Werkst 48:351–354. https://doi.org/10.1007/BF02639897CrossRef
Faix O, Fortman I, Bremer J, Meier D (1991) Thermal degradation products of wood. A collection of electron-impact (EI) mass spectra of polysaccharide derived products. Holz Roh- Werkst 49:299–304. https://doi.org/10.1007/BF02613278CrossRef
Fernández-Agulló A, Freire MS, González-Álvarez J (2015) Effect of the extraction technique on the recovery of bioactive compounds from eucalyptus (Eucalyptus globulus) wood industrial wastes. Ind Crops Prod 64:105–113. https://doi.org/10.1016/j.indcrop.2014.11.031CrossRef
Ferreira JP, Miranda I, Gominho J, Pereira H (2015) Selective fractioning of Pseudotsuga menziesii bark and chemical characterization in view of an integrated valorization. Ind Crop Prod 74:998–1007. https://doi.org/10.1016/j.indcrop.2015.05.065CrossRef
Gaur R, Agrawal R, Kumar RR, Ramu E, Bansal VR, Gupta RP, Kumar RR, Tuli DK, Das B (2015) Evaluation of recalcitrant features impacting enzymatic saccharification of diverse agricultural residues treated by steam explosion and dilute acid. RSC Adv 5:60754–60762. https://doi.org/10.1039/C5RA12475ACrossRef
Gominho J, Figueira J, Rodrigues JC, Pereira H (2001) Within-tree variation of heartwood, extractives and wood density in the eucalypt hybrid urograndis (Eucalyptus grandis x E. urophylla). Wood Fiber Sci 33(1):3–8
Gominho J, Costa R, Lourenço A, Neiva DM, Pereira H (2019) The effect of different pre-treatments to improve delignification of eucalypt stumps in a biorefinery context. Biores Technol Rep 6:89–95. https://doi.org/10.1016/j.biteb.2019.02.004CrossRef
Gominho J, Costa RA, Lourenço A, Quilhó T, Pereira H (2021) Eucalyptus globulus stumps bark: chemical and anatomical characterization under a valorization prespectives. Waste Biomass Valoriz 12:1253–1265. https://doi.org/10.1007/s12649-020-01098-yCrossRef
Gutiérrez A, del Río JC, González-Vila FJ, Romero J (1998) Variation in the composition of wood extractives from Eucalyptus globulus during seasoning. J Wood Chem Technol 18(4):439–446. https://doi.org/10.1080/02773819809349591CrossRef
Koch G, Kleist G (2001) Application of scanning UV microspectrophotometry to localise lignins and extractives in plant cell walls. Holzforschung 55:563–567. https://doi.org/10.1515/HF.2001.091CrossRef
Lapierre C, Monties B, Rolando C (1986) Thioacidolysis of poplar lignins: identification of monomeric syringyl products and characterization of guaiacyl-syringyl lignin fractions. Holzforschung 40(2):113–118. https://doi.org/10.1515/hfsg.1986.40.2.113CrossRef
Lapierre C (1993) Application of new methods for the investigation of lignin structure in forage cell wall structure and digestibility. In: Jung HG, Buxton DR, Hatfield RD, Ralph J. (eds) Forage cell wall structure and digestability. ACSESS Publications, pp 133–166. https://doi.org/10.2134/1993.foragecellwall.c6
Longui EL, Romeiro D, Pfleger P, Lima IL, Silva FG, Garcia JN, Bortoletto G, Freire Neto AOL, Florsheim SMB (2014) Radial variation of anatomical features, physicomechanical properties and chemical constituents and their potential influence on the wood quality of 45-year-old Eucalyptus propinqua. Aust for 77(2):78–85. https://doi.org/10.1080/00049158.2014.905739CrossRef
Lourenço A, Gominho J, Marques AV, Pereira H (2013) Variation of lignin monomeric composition during kraft delignification of Eucalyptus globulus heartwood and sapwood. J Wood Chem Technol 33:1–18. https://doi.org/10.1080/02773813.2012.703284CrossRef
Lourenço A, Kukić D, Vasić V, Costa RA, Antov M, Šćiban M, Gominho J (2022) Valorisation of lignocellulosic wastes, the case study of eucalypt stumps lignin as bioadsorbent for the removal of Cr(VI). Molecules 27(19):6246. https://doi.org/10.3390/molecules27196246CrossRefPubMedPubMedCentral
Lourenço A, Gominho J, Pereira H (2019) Chemical characterization of lignocellulosic materials by ana-lytical pyrolysis. In: Peter Kusch (ed), Chapter 2 of the Book “Analytical pyrolysis”. Publisher: InTechOpen, pp 9–30. ISBN 978-1-78984-958-5. https://doi.org/10.5772/intechopen.80556
Lourenço ACS (2009) The influence of Eucalyptus globulus heartwood in pulp production. Ms.D. Engenharia Florestal e dos Recursos Naturais. Instituto Superior de Agronomia (ISA), Universidade Técnica de Lisboa (UTL)
Luís A, Neiva D, Pereira H, Gominho J, Domingues F, Duarte AP (2014) Stumps of Eucalyptus globulus as a source of antioxidant and antimicrobial polyphenols. Molecules 19(16428):16446. https://doi.org/10.3390/molecules191016428CrossRef
Magina S, Marques S, Gírio F, Lourenço A, Barros-Timmons A, Evtuguin D (2024) Chemical composition and structural characteristics of cellolignin from steam explosion followed by enzymatic hydrolysis of Eucalyptus globulus bark. Ind Crop Prod 211:118217. https://doi.org/10.1016/j.indcrop.2024.118217CrossRef
Meshitsuka G, Nakano J (1979) Studies on the mechanism of lignin color reaction (XIII): Mäule color reaction (9). Mokuzai Gakkaishi 25:588–594
Mishra G, Collings DA, Altaner CM (2018) Cell organelles and fluorescence of parenchyma cells in Eucalyptus bosistoana sapwood and heartwood investigated by microscopy. NZ J for Sci 48:13. https://doi.org/10.1186/s40490-018-0118-6CrossRef
Nelson ML, O’Connor RT (1964) Relation of certain infrared bands to cellulose crystallinity and crystal latticed type. Part I. Spectra of lattice types I, II, III and of amorphous cellulose. J Appl Polym Sci 8:1311–1324. https://doi.org/10.1002/app.1964.070080322CrossRef
Pfautsch S, Harbusch M, Wesolowski A, Smith R, Macfarlane C, Tjoelker MG, Reich PB, Adams MA (2016) Climate determines vascular traits in the ecologically diverse genus Eucalyptus. Ecol Lett 19(3):240–248. https://doi.org/10.1111/ele.12559CrossRefPubMed
Pinto F, Gominho J, André RN, Gonçalves D, Miranda M, Varela F, Neves D, Santos J, Lourenço A, Pereira H (2017) Improvement of gasification performance of Eucalyptus globulus stumps with torrefaction and densification pre-treatments. Fuel 206:289–299. https://doi.org/10.1016/j.fuel.2017.06.008CrossRef
Popescu CM, Singurel G, Popescu MC, Vasile C, Argyropoulos DS, Willfor S (2009) Vibrational spectroscopy and X-ray diffraction methods to establish the differences between hardwood and softwood. Carbohydr Polym 77:851–857. https://doi.org/10.1016/j.carbpol.2009.03.011CrossRef
Ren S, Wang Z, Yan L, Feng Q, Chen Z, Zhao R (2023) Comparison of anatomical characteristics and chemical compositions between sapwood and heartwood of Michelia macclurei. Ind Crop Prod 193:116190. https://doi.org/10.1016/j.indcrop.2022.116190CrossRef
Rencoret J, Gutierrez A, Nieto L, Jimenez-Barbero J, Faulds CB, Kim H, Ralph J, Martinez AT, del Rio JC (2011) Lignin composition and structure in young versus adult Eucalyptus globulus plants. Plant Physiol 155(2):667–682. https://doi.org/10.1104/pp.110.167254CrossRefPubMed
Rowell RM, Pattersen R, Han JS, Rowell S, Tshabalala MA (2012) Cell wall chemistry. In: Rowell RM (ed) Handbook of wood chemistry and wood composites. CRC Press
Rubio-Valle JF, Martín-Alfonso JE, Eugenio ME, Ibarra I, Oliva JM, Manzanares P, Valencia C (2024) Bioethanol lignin-rich residue from olive stones for electrospun nanostructures development and castor oil structuring. Int J Biol Macromol 255:18042. https://doi.org/10.1016/j.ijbiomac.2023.128042CrossRef
Santos SAO, Vilela C, Domingues RMA, Oliveira CSD, Villaverde JJ, Freire CSR, Neto CP, Silvestre AJD (2017) Secondary metabolites from Eucalyptus grandis wood cultivated in Portugal, Brazil and South Africa. Ind Crop Prod 95:357–364. https://doi.org/10.1016/j.indcrop.2016.10.044CrossRef
Schwanninger M, Rodrigues JC, Pereira H, Hinterstoisser B (2004) Effects of short-time vibratory ball milling on the shape of FT-IR spectra of wood and cellulose. Vibr Spectrosc 36:23–40. https://doi.org/10.1016/j.vibspec.2004.02.003CrossRef
Speranza M, Gutiérrez A, del Río JC, Bettucci L, Martínez AT, Martínez MJ (2009) Sterols and lignin in Eucalyptus globulus Labill wood: Spatial distribution and fungal removal as revealed by microscopy and chemical analyses. Holzforschung 63(3):362–370. https://doi.org/10.1515/HF.2009.041CrossRef
Terashima N, Fukushima K, Takabe K (1986) Heterogeneity information of lignin. VIII: an autoradiographic study on the formation of guaiacyl and syringyl lignin in Magnolia kobus DC. Holzforschung 40:101–105
Watanabe Y, Kojima Y, Ona T, Asada T, Sano Y, Fukazawa K, Funada R (2004) Histochemical study on heterogeneity of lignin in eucalyptus species ii. The distribution of lignins and polyphenols in the walls of various cell types. IAWA J 25:283–295. https://doi.org/10.1163/22941932-90000366CrossRef
Yamashita D, Kimura S, Wada M, Takabe K (2016) Improved Mäule color reaction provides more detailed information on syringyl lignin distribution in hardwood. J Wood Sci 62(2):131–137. https://doi.org/10.1007/s10086-016-1536-9CrossRef
