Valorization of oil palm frond ash via alkaline activation as reinforcement in polypropylene composites
- Open Access
- 01.01.2026
- Original Paper
Aktivieren Sie unsere intelligente Suche, um passende Fachinhalte oder Patente zu finden.
Wählen Sie Textabschnitte aus um mit Künstlicher Intelligenz passenden Patente zu finden. powered by
Markieren Sie Textabschnitte, um KI-gestützt weitere passende Inhalte zu finden. powered by (Link öffnet in neuem Fenster)
Abstract
Introduction
According to IndexMundi [1], the global palm oil production showed a significant increment over the last two decades, where its production reaching more than 60 million tons. Malaysia is the second largest palm oil producer and exporter due to the high global demand in various industries such as food, biofuels and cosmetics in the same year [2]. In 2023, Malaysia had exported 24.49 million tons of palm oil and palm-based products particularly to India, China, European Union, Kenya, Turkiye, Japan and Pakistan, generated an income of RM94.95 billion in the same year [3]. Moreover, the export revenue of palm oil and palm-based products is expected to reach RM110 billion in 2024, reflecting the high demand of palm oil industry in the market [3]. Parveez et al. [4] reported that the Malaysia oil palm planted area showed a slightly decline of 0.4%, from 5.67 million hectares reduced to 5.65 million hectares in December, 2023 was due to ongoing site preparation activities for replanting initiatives within the industry. The purpose of replanting the oil palm is to improve the efficiency of palm oil production by replacing aging and less productive oil palm trees with younger trees to boost the productivity.
Oil palm biomass such as oil palm fronds (OPFs), trunks and empty fruit bunches (EFB) from oil palm plantations is one of the major contributors to forest burning, which in turn leads to transboundary haze issue in South-east Asian countries particularly in Indonesia, Malaysia and Singapore [5]. However, instead of contributing to environmental issues, OPFs hold great potential for more sustainable uses. OPFs hold more than 50% of the total biomass among the various types of oil palm biomass produced from oil palm plantations [6]. OPFs offer great potential as alternative materials to the composite boards industry by minimizing the use of wood-based raw materials [7]. Besides, OPFs are available in large quantities, and it is easy to obtain all the year round.
Anzeige
The chemical composition of OPFs mainly consist of cellulose, hemicellulose, and lignin which make it a potential source of lignocellulosic fibers for bio-composites to improve their biodegradability and renewability [8, 9]. Even though OPFs are light weight, abundance and biodegradable, however, their limitations in mechanical properties and thermal stability have restrict them in replacing synthetic fibres in certain applications, particularly in demanding environments [10]. Besides, poor adhesion and compatibility between OPFs and matrix has been reported in the literature on natural fibre-reinforced polymer composites, mainly due to different polarity between OPFs and matrix [11]. Moreover, previous studies have shown that the mechanical and thermal properties of most of the bio-composites can be improved by compositions [12], coupling agents or compatibilizers [13] and surface treatment [14]. Hongsriphan et al. [15] reported alkali treated OPF displayed 75% increment of flexural modulus and higher glass transition temperature Tg compared to OPF without treatment, attributed to the better compatibility and enhanced interfacial adhesion between the OPF and the poly(lactic acid) matrix. Additionally, Ramli et al. [16] pointed out that incorporating maleated polypropylene (MAPP) as a coupling agent in oil palm fiber (empty fruit bunches, frond and trunk)-reinforced polypropylene composites significantly enhanced the thermal stability compared to the composites without coupling agent, which was attributed to a better polymer chain adhesion between fiber and matrix.
Oil palm frond ash (OPFA) is obtained after the combustion of OPFs. According to Olivia et al. [17], the chemical composition of OPFA contains high amount of silica (37.04 wt%), alumina (18.89 wt%) and calcium oxide (27.62 wt%), these siliceous compositions has identified as OPFA as a good pozzolanic material which can undergo geopolymerization through alkali activators as cementitious materials to enhance the properties of concrete. The geopolymerization process involves chemical reactions that take place under highly alkaline conditions, resulting the formation of amorphous gel primarily based on the aluminium-silica (Al-Si) system [18]. These reactions produce a three-dimensional tetrahedral polymeric structure containing Si-O-Si and Si-O-Al bonds, which are responsible for the material’s structural integrity [19]. The alkali activator dosage and curing conditions together with the type and characteristics of the raw materials have a significant influence on the reaction behaviour and microstructure of the alkali-activated materials (AAMs) produced [20]. In addition, the highly alkaline activators interact with the filler surfaces by modifying its chemical or physical properties, thereby affecting the interfacial bonding with the matrix [21, 22]. The AAMs such as alkali-activated fly ash, alkali-activated rice husk ash, alkali-activated ground granulated blast furnace slag, alkali-activated metakaolin offered excellent compressive strength, flexural strength, good acid and fire resistance [23]. Moreover, alkali-activated materials demonstrated excellent heat resistance and maintained high residual strength after exposure to elevated temperature, which was from 400 °C to 800 °C, indicated good thermal stability of AAMs [24, 25].
Polypropylene is one of the most used thermoplastic polymer with excellent properties and widely used in the plastic manufacturing industry to produce different products, particularly in plastic packaging due to cost effectiveness and ease of processing [26, 27]. Despite these advantages, PP has inherent limitations that restrict its performance in high demand applications due to its poor thermal conductivity, low oxidation resistance, limited mechanical strength under specific conditions and poor thermal stability when exposed to elevated temperatures [28]. Due to this, extensive research has been carried out to reinforce or incorporate various types of fillers such as bamboo fibers, basalt fiber, glass fiber, silicone dioxide, fly ash into polypropylene to improve the mechanical strength, durability and performance of polypropylene under stress or heat [29‐33].
In polypropylene composite systems, most fillers exhibit poor compatibility with the PP matrix due to polarity differences. The high polar of fillers causes poor interfacial adhesion between fillers and matrix, which leads to ineffective load transferer, therefore can impair their mechanical performance [34]. Besides, the moisture absorption by fillers affects composites’ properties [35]. The hydrophilic character of fillers enhances the water uptake of the composites, where the absorbed water molecules weaken the interfacial adhesion between matrix and fillers, leading to a reduction in the mechanical performance of the composites [36]. This happens because the overall strength and durability of the composite are highly dependent on the interfacial bonding between fillers and matrix. Moreover, in PP composites, the optimal balance of mechanical properties is challenging to achieve due to most PP composites showing brittle behavior with low fracture toughness which greatly restrict their performance, particularly for long-term and special applications [37]. Pérez et al. [38] reported the incorporation of rigid fillers into PP matrix enhanced the stiffness of the composites while decreased the ductility and fracture of the composites due to poor interfacial adhesion between the filler and matrix. Therefore, achieving a suitable property balance requires proper surface modification [39, 40], silane coupling agent [41] and compatibilizer [42] in the composite system.
Anzeige
With growing interest in sustainable polymer composites, oil palm by-products such as OPFA have been investigated as potential reinforcements. Abbas et al. [43] observed that the addition of oil palm frond-based biochar (OPF-BC) in recycled polyethylene terephthalate (rPET) matrix improved the crystallization of the composite, attributed to the nucleating effect and improved thermal transfer due to better heat conduction by the biochar as the OPF-BC loading increased. Furthermore, Sahari and Maleque [44] showed that the stiffness and thermal stability of the oil palm ash (OPA) filled unsaturated polyester increased with increasing filler content due to the presence of inorganic materials such as silica which can only decompose at high temperatures.
Previous studies have demonstrated that surface treatments and compatibilizers, such as alkali treatment and maleated polypropylene (MAPP), are effective in improving the compatibility and performance of OPFs based PP composites. However, limited attention has been given to the use of alkali-activated oil palm fond ash (AAOPFA) as a functional filler in polypropylene. OPFA has low embodied carbon with high silica, alumina, and calcium content, making it an attractive candidate for alkali-activation material [45]. The alkali activation process modifies the surface chemistry and morphology of the OPFA, thereby enhancing its interaction and interfacial adhesion with the PP matrix. To fill this gap, this study aims to investigate and evaluate the mechanical properties, thermal stability, microstructure analysis, water absorption behavior, changes of chemical functional groups and electrical properties of AAOPFA reinforced polypropylene composites.
Experimental
Materials
The polypropylene pellet was purchased from Lotte Chemical Titan (M) Sdn. Bhd., Tanjung Langsat Industrial Pasir Gudang, Johor, Malaysia, with a melt flow index (MFI) of 12 g/10 min. Oil palm fronds were supplied from Grenoh Solution, Jementah, Johor, Malaysia.
Preparation of oil palm frond Ash (OPFA)
Oil palm fronds were washed thoroughly with water to remove dust and other impurities. Then, they were dried under direct sunlight for 2 days to eliminate the water content. Next, dried oil palm fronds were burned in furnace at temperature of 700˚C for 3 h to obtain the OPFA. OPFA was sieved using a 200-mesh stainless steel screen to obtain the average particle size of 75 μm as shown in Fig. 1.

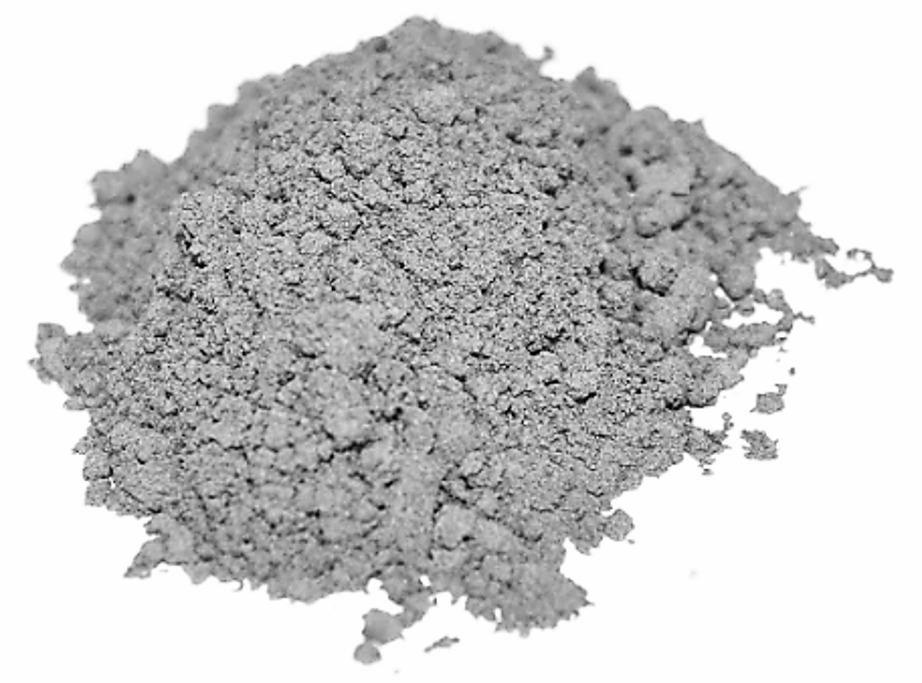

Fig. 1
Oil palm fronds ash (OPFA)
Preparation of alkali-activated oil palm fronds Ash (AAOPFA)
Alkaline activators (AA) were prepared by mixing sodium hydroxide (NaOH) and sodium silicate (Na2SiO3) solutions at ratio of 2.5 in a volumetric. The solution was stirred until a clear solution was formed. Then, it was cooled down to room temperature. This alkaline activator was prepared just before it was mixed with oil palm frond ash to ensure the reactivity of the solution. The liquid/liquid ratio used for AA was 2.5 and the molarity of sodium hydroxide (NaOH) was 10 M. The ratio of solid/liquid (OPFA/AA) used in this research was 0.6 g/g and the mixture was stirred until homogeneity was achieved. The alkali-activated paste was formed, and it was poured rapidly into a plastic container. Then, the paste was cured in the oven for 48 h at the temperature of 60˚C. The harden AAOPFA paste was crushed and sieved into average size of 75 μm as shown in Fig. 2.

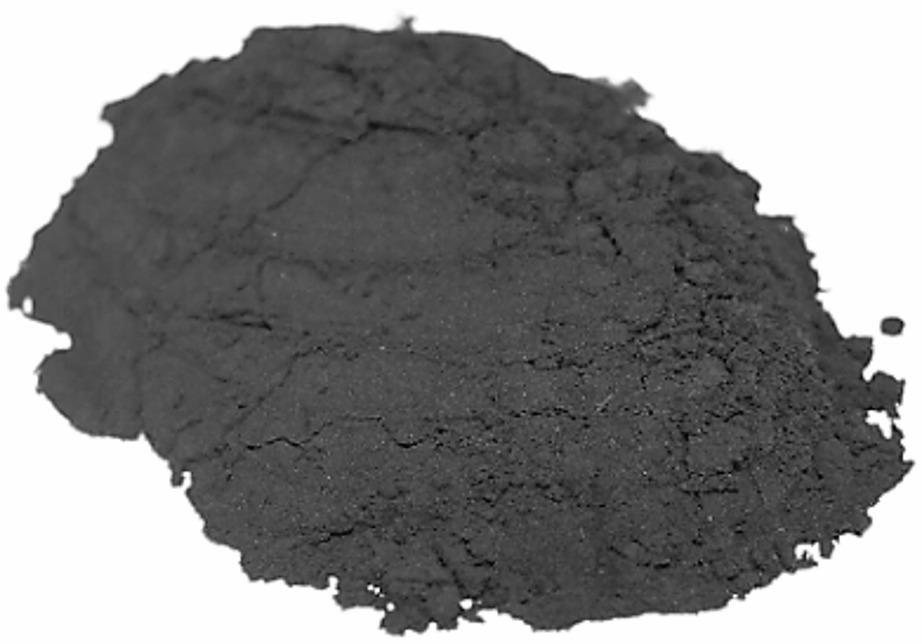

Fig. 2
Alkali-activated oil palm fronds ash (AAOPFA)
Fabrication of PP/OPFA and PP/AAOPFA composites
The OPFA filler was mixed with polypropylene (PP) pellet according to Table 1 through twin screw extruder to produce PP/OPFA composites. The processing temperature of extrusion was set between 170 and 190 ˚C with a screw speed of 60 rpm, and the extruded PP/OPFA composites were cut into 2 mm size using pelletizer. Then, PP pellet and PP/OPFA pellet were loaded into injection molding process to produce dumbbell shaped. The barrel temperature profile of injection molding was set between 170 and 190 ˚C (nozzle: 190 ˚C, front zone: 185 ˚C, middle zone: 180˚C, rear zone: 170 ˚C) with a mold temperature of 40 ˚C. The injection pressure, holding pressure, holding time and cooling time were set at 70 MPa, 60 MPa, 10 s and 20 s, respectively. The same fabrication procedure was applied to PP/AAOPFA composites according to the formulation in Table 1.
Table 1
Formulation of PP/OPFA and PP/AAOPFA composites samples
Materials | Composition | |||||
|---|---|---|---|---|---|---|
PP (phr) | 100 | |||||
OPFA (phr) | 0 | 5 | 10 | 15 | 20 | 25 |
AAOPFA (phr) | 0 | 5 | 10 | 15 | 20 | 25 |
Characterization
Tensile test
The tensile properties of PP, PP/OPFA and PP/AAOPFA composites were obtained from the tensile test by using Shimadzu’s 50KN AG-X plus series universal tester equipped with Trapezium X software. The tensile strength, Young’s modulus and elongation at break of the composites were obtained. The tensile test was conducted according to ASTM D-638 with a crosshead speed of 50 mm/min.
Water absorption analysis
The water absorption test on PP, PP/OPFA and PP/AAOPFA composites were cut into a dimension of 20 × 10 × 1 mm and were weighed to measure the initial weight according to ASTM D570. Five samples of each composition were immersed in distilled water for 48 h. Then, the samples were weighed to measure the final weight. The following equation was used to measure the percentage of water absorption for each sample.
$$\:\text{P}\text{e}\text{r}\text{c}\text{e}\text{n}\text{t}\text{a}\text{g}\text{e}\:\text{o}\text{f}\:\text{w}\text{a}\text{t}\text{e}\text{r}\:\text{a}\text{b}\text{s}\text{o}\text{r}\text{p}\text{t}\text{i}\text{o}\text{n}=\frac{{\text{W}}_{\text{f}}-{\text{W}}_{\text{i}}}{{\text{W}}_{\text{i}}}\times\:100\%$$
(1)
Wf = Initial weight of the sample.
Wi = Final weight of the sample.
Microscopy analysis
Scanning electron microscope model JOEL JSM-6010LV was used to analyze the morphology of OPFA and AAOPFA fillers, and the tensile fracture surface of the PP, PP/OPFA composites and PP/AAOPFA composites at 15 kV accelerating voltage. The samples were coated with gold layer of 20 nm by using Auto Fine Coater machine before the analysis was carried out to prevent electrostatic charges during examination.
Fourier transform infrared (FTIR) spectroscopy
Perkin-Elmer Spectrum 400 Series instrument was used to measure the functional groups of PP, PP/OPFA and PP/AAOPFA composites by using attenuated total reflectance (ATR) technique. The spectrum resolution and the scanning range were set at 4 and 400–4000 cm− 1, respectively.
Electrical properties
Four-point probe method was used to measure the conductance of the OPFA, GOPFA, PP/OPFA and PP/AAOPFA composites. This method was setup based on EECS 143 instructional lab which consists of four equally spaced tungsten metal tips with a tip spacing of 1 mm and average sample thickness of 1 mm. A direct current of 5 V supplied from Keithley 2400 sourced meter was used. The composite specimens had a thickness comparable to the probe spacing (t/s = 1), indicating bulk-type behaviour. According to Smits [46], a small thickness correction factor f (t/s) = 0.93 was applied. As the ratio in this study was close to 1, the correction factor was approximately unity, and its effect on the calculated resistance and conductivity was minimal. Therefore, the following equations were used to determine the conductance of the samples:
$$\:\text{R}\text{e}\text{s}\text{i}\text{s}\text{t}\text{a}\text{n}\text{c}\text{e},\:R=\:\frac{V}{I}$$
(2)
$$\:\text{C}\text{o}\text{n}\text{d}\text{u}\text{c}\text{t}\text{a}\text{n}\text{c}\text{e},\:\text{C}=\frac{1}{R}$$
(3)
R = resistance, Ohm (Ω).
V = voltage, Volt (V).
I = current, Ampere (A).
C = conductance, Siemens (S).
Thermogravimetric analysis (TGA)
Thermogravimetry analysis (TGA) of PP, PP/OPFA and PP/AAOPFA composites were conducted using a PerkinElmer Pyris 6 TGA analyser. 10 mg of samples were scanned from 30 to 800 °C in alumina pan with a heating rate of 10 °C/min under a constant nitrogen gas flow of 50 ml/min to prevent thermal oxidation. Temperature of 50% weight loss (T − 50%wt), final decomposition temperature and residual mass were recorded.
Results and discussion
Physical analysis of OPFA and AAOPFA fillers
Elemental analysis
The oxide compositions of OPFA and AAOPFA were determined using X-ray fluorescence (XRF, MiniPAL 4, PANalytical), and the results are summarized in Table 2. As can be seen in Table 2, the primary elements of OPFA and AAOPFA were SiO2, K2O, ClO2, CaO, MgO and Al2O3, respectively. Minor elements such as P2O5, SO3, MnO and FeO were found in OPFA and AAOPFA. However, the percentage of SiO2 in AAOPFA increased 330.64% compared with OPFA was due to the combination of SiO2 from OPFA with SiO2 molecules from the alkaline activators to form more Si-O-Si network, therefore amount of SiO2 was increased in AAOPFA [47]. The SiO2 influences the formation of the filler interaction, yielding better Al2O3- SiO2 bonds that result in better mechanical properties [48]. The increment of SiO2 also capable to improve the thermal stability of the fillers, it remains stable and decomposes only at high temperature [49]. Klapiszewsk et al. [50] discussed that the presence of SiO2 in the polypropylene matrix promotes the formation of an interlayer zone at the filler surface thus the immobilization of polymeric chains on the filler surface. This interfacial interaction enhances the thermal stability of the polymeric phase. Besides, it can be observed that LOI for AAOPFA was lower than OPFA, this was attributed to the removal of organic and carbonaceous residues after the alkali activation, thus enhanced the fillers surface reactivity and promotes interfacial properties with the PP matrix [51].
Table 2
Oxide compositions of OPFA and AAOPFA
Oxide Elements | % | |
|---|---|---|
OPFA | AAOPFA | |
MgO | 5.31 | 4.26 |
Al2O3 | 4.37 | 3.20 |
SiO2 | 10.38 | 44.70 |
P2O5 | 1.48 | 0.54 |
SO3 | 1.74 | 0.78 |
ClO2 | 29.69 | 14.58 |
K2O | 39.20 | 23.70 |
CaO | 7.41 | 7.66 |
MnO | 0.11 | 0.16 |
FeO | 0.13 | 0.19 |
Others | 0.18 | 0.23 |
LOI | 5.82 | 2.86 |
Morphological analysis

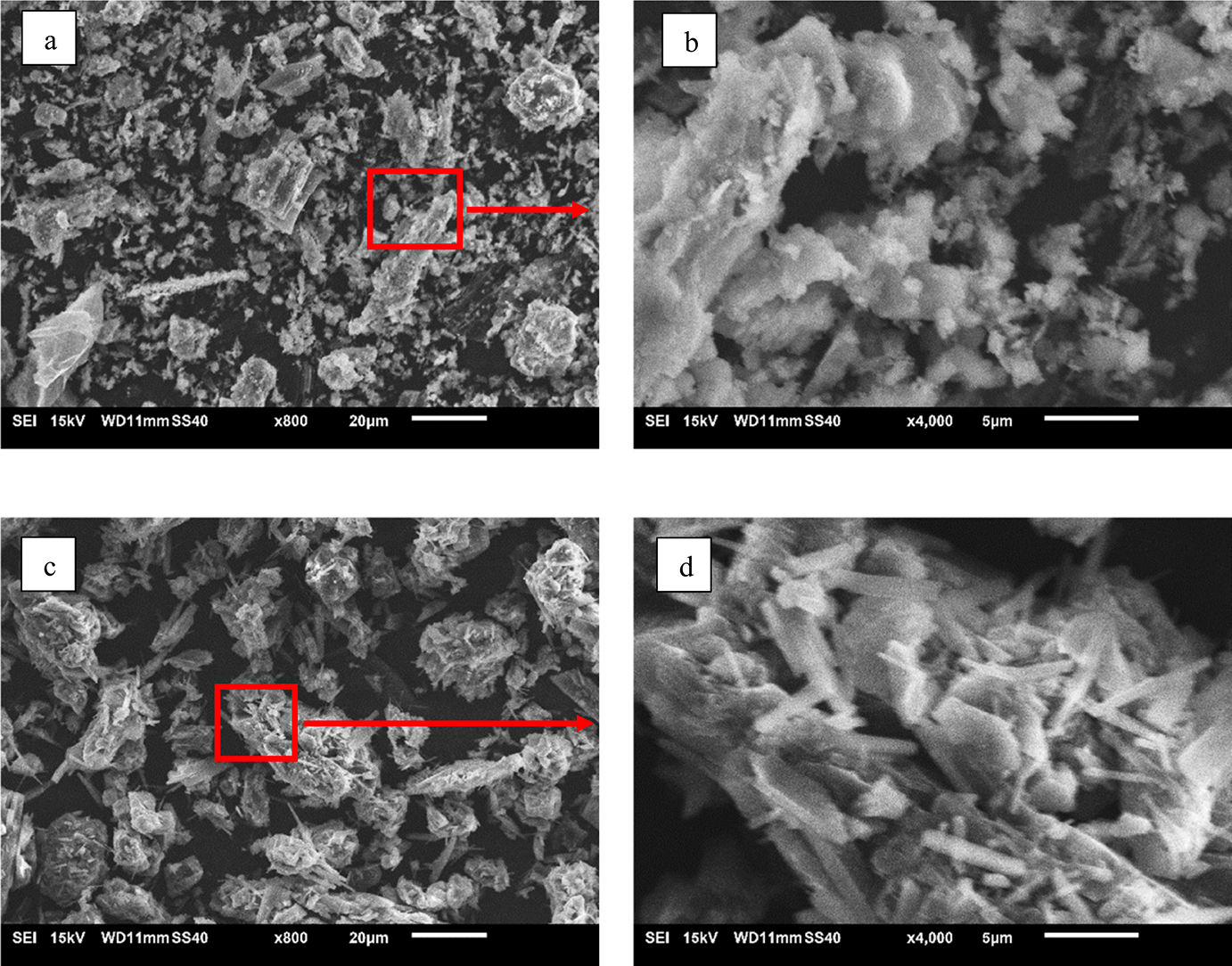

Based on Fig. 3(a), OPFA particles were irregular in shape. SEM microstructure of OPFA also revealed that the small size particles tended to attach to each other as shown in Fig. 3(b). On the other hand, Fig. 3(c) displays a rougher surface after the alkaline activation process, whereas 3(d) indicates AAOPFA tended to form needle-like structure under 4000 times magnification. Rougher surface of fillers indicates larger effective area and more active sites on the fillers’ surfaces, which provides more contact sites for the interaction between fillers and matrix [52]. Furthermore, the rougher surface of fillers improves the interfacial adhesion and enhances mechanical interlocking effect, where resists fillers pull-out from matrix under stress, therefore improves the stress transfer efficiency and tensile strength of the composites [53, 54]. According to Edoziuno et al. [55], they reported that water absorption of composite is not directly proportional to the amount of fillers that added but it depends on interfacial properties between fillers and matrix. Rough surface promotes good interfacial adhesion among fillers-matrix, therefore reduces interfacial gaps and limits the water molecules penetrate the composite.
Fig. 3
SEM micrographs: (a) OPFA under 800X magnification, (b) OPFA under 4000X magnification, (c) AAOPFA under 800X magnification and (d) AAOPFA under 4000X magnification
Fourier transform infrared (FTIR) spectroscopy analysis

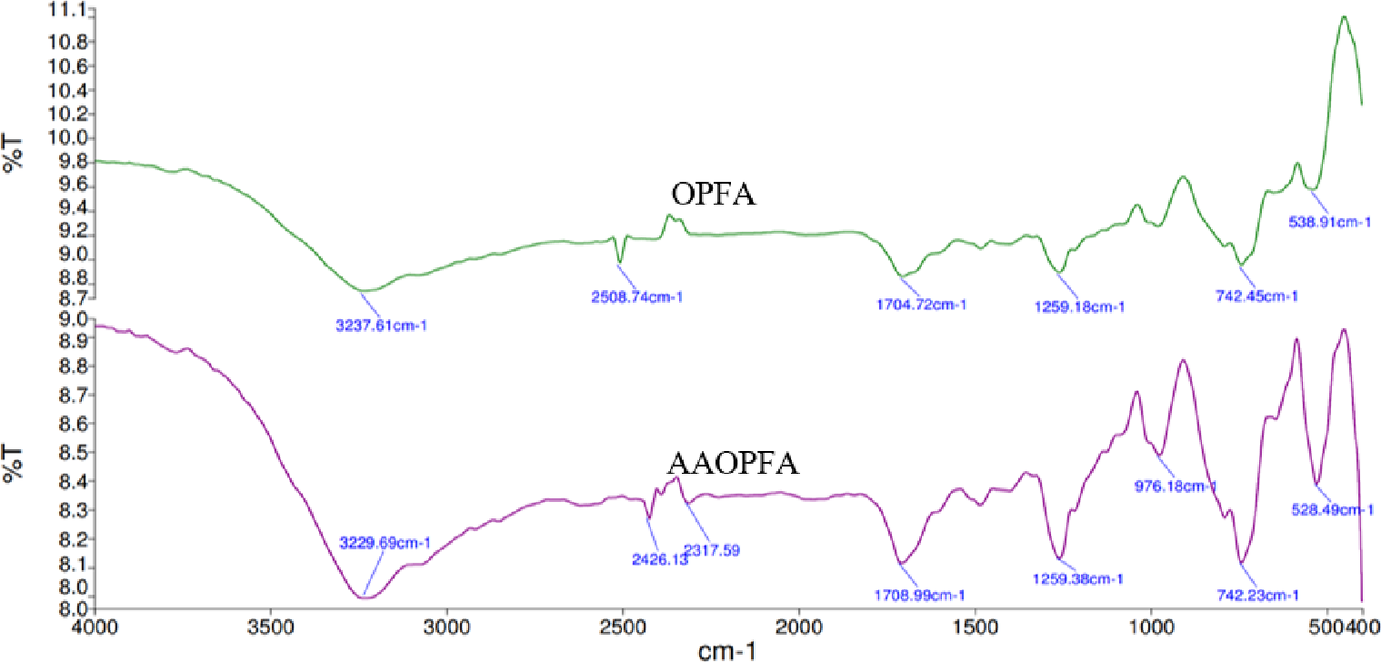

Figure 4 shows the FTIR spectra of OPFA and AAOPFA that recorded from 400 cm1 to 4000 cm−1 and the functional groups are summarized in Table 3. It can be observed that both fillers exhibited almost similar spectra pattern but have different intensity. OPFA has six main peaks at wavelength of 538.91 cm−1, 742.45 cm−1, 1259.18 cm−1, 1704.72 cm−1, 2508.74 cm−1, and 3237.61 cm−1. The peaks at wavelength of 538.91 cm−1 and 742.45 cm−1 were assigned to S-S stretching and C-H bending, respectively. The peaks observed at 1259.18 cm−1 was attributed to C-O stretching vibration of aromatic ester [56]. There was also C = O stretching of conjugated acid in OPFA that can be observed at 1704.72 cm−1. Besides, the sharp peak at 2508.74 cm−1 and the broad peak at 3237.61 cm−1 were referred to the O-H stretching vibration [57]. Meanwhile, AAOPFA has eight major peaks. The peaks were at 528.49 cm−1, 742.23 cm−1, 976.18 cm>−1, 1259.38 cm−1, 1708.99 cm−1, 2317.59 cm−1, 2426.13 cm−1, and 3229.69 cm−1. The peak at 976.18 cm−1 was attributed to the C = C bending vibration. Besides, there was a new peak appeared at 2317.59 cm−1 which was assigned to O = C = O stretching vibration [58]. The peaks at 2426.13 cm>−1 and 3229.69 cm−1 were referred to O-H group where they displayed a lower transmittance percentage than the similar peaks appeared in OPFA. The appearance of more intense spectrum of AAOPFA compared to OPFA was attributed to the improvement of surface reactivity of the fillers as the activation process produced more reactive surface sites for the interaction with the polypropylene matrix, thus it helps to improve the interfacial properties of the composites [59].
Fig. 4
FTIR spectra of OPFA and AAPFA
Table 3
Functional groups and wavelengths data of OPFA and AAOPFA
Fillers | Functional Groups and Wavenumber (cm−1) | ||||||
|---|---|---|---|---|---|---|---|
S-S | C-H | C = C | C-O | C = O | O = C = O | O-H | |
OPFA | 538.91 | 742.45 | - | 1259.18 | 1704.72 | - | 2508.74, 3237.61 |
AAOPFA | 528.49 | 742.23 | 976.18 | 1259.38 | 1708.99 | 2317.59 | 2426.13, 3229.69 |
Electrical conductivity
As can be seen from Fig. 5, the conductance for OPFA and AAOPFA are 2.48\(\:\times\:\)10−7 S and 6.78\(\:\times\:\)10−7 S, respectively. OPFA demonstrated a lower conductivity value due to its carbon content. Carbon is a material with excellent conductivity, the higher the carbon content in the ash, the darker its resulting colour [60, 61]. The colour of AAOPFA (Fig. 2) displayed darker colour due to higher carbon content, whereas OPFA (Fig. 1) showed light grey, indicating lower carbon content.
Fig. 5
Conductance of OPFA and AAOPFA
Geopolymerization process plays a crucial role in enhancing electrical conductivity of AAOPFA. Fundamentally, the mechanism of conductivity in alkali-activated materials is through Na+ ions hopping between the cation’s sites [62]. Geopolymerization process through alkali-activators transform solid aluminosilicate (AAOPFA) into an alkali aluminosilicate inorganic polymer, produces an amorphous material consisting of [SiO4]4− and [AlO4]⁵⁻ tetrahedra framework [63]. A part of the Na+ ions from the alkali solution present in the framework cavities to balance the negatively charged aluminosilicate structure, while the remaining ions become mobile and able to move freely and contribute to the ionic conductivity of the system [64]. Therefore, the conductivity mechanism in powder form of AAOPFA is mainly contributed by ion mobility, which creating a continuous ionic pathway within the activated fillers network [65].
Effect of OPFA and AAOPFA reinforced polypropylene (PP) composites
Tensile strength

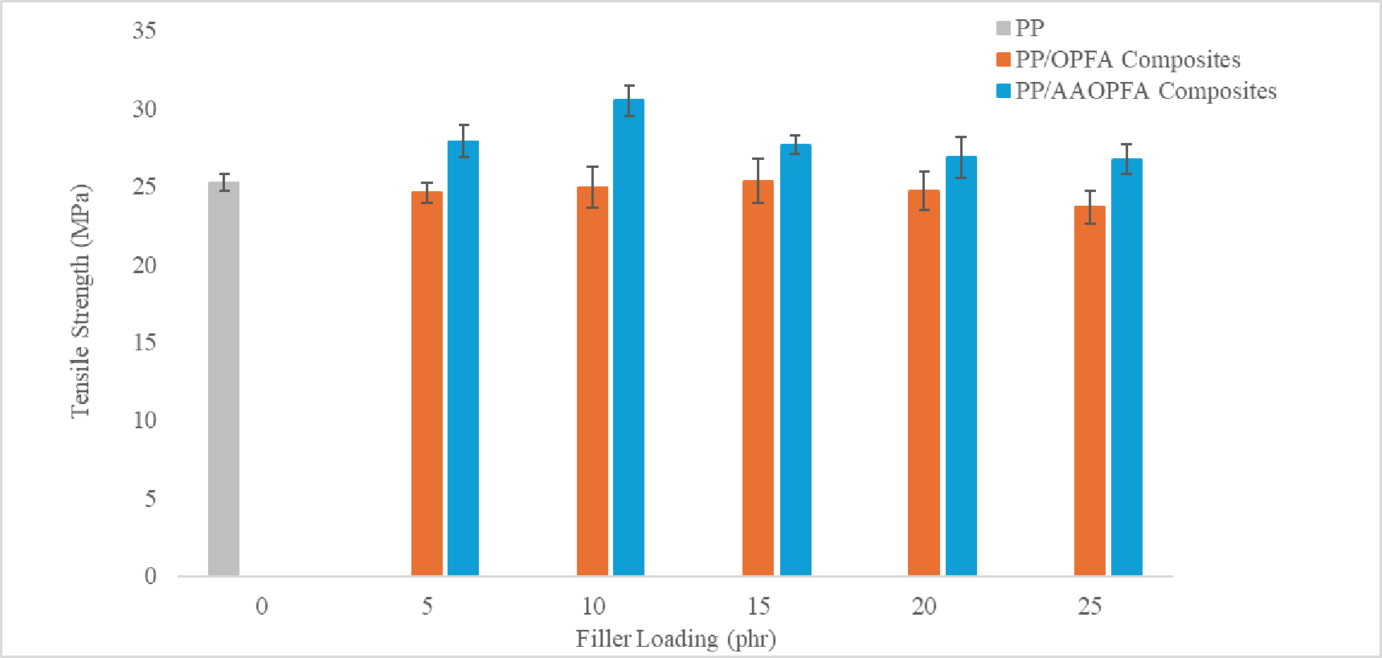

Based on the Fig. 6, PP/OPFA composites with filler loading of 15 phr had the highest tensile strength, indicating the optimum filler content for PP/OPFA composites. Tensile strength can be defined as the ability of a composites’ interface to transfer shear strength [66]. For PP/OPFA composites with 5phr and 10phr filler loading, the tensile strength was lower compared to pure PP. This was due to the insufficient amount of OPFA in the matrix-filler stress transfer. The insufficient amount of OPFA reduced the interfacial adhesion within the matrix, therefore limited the efficiency of stress transfer from matrix to the fillers. As the result of poor bonding between filler and the matrix, the efficiency in transferring the stress from PP matrix to OPFA filler decreased [67]. In addition, non-uniform filler dispersion and air entrapment in the composites affected composites’ properties [68].
Fig. 6
Tensile strength of PP, PP/OPFA and PP/AAOPFA composites at different filler loading
PP/AAOPFA composites at 10 phr exhibited highest tensile strength due to AAOPFA had a good interfacial adhesion with PP, therefore produced homogeneous composites [11]. Thus, the stress applied to the composites can be distributed evenly throughout the matrix and the filler and leads to better tensile properties [69]. However, as the fillers loading increased from 15 to 25 phr, the tensile strength of the PP/AAOPFA composites decreased due to filler-filler interactions rather than matrix-filler interactions [70]. Furthermore, increasing amount above optimum range of filler loading caused the inability for the fibres to mix homogenously with the matrix and caused agglomeration [71]. This may lead to the void creation in the composites which reduced the efficiency of stress transfer from the matrix to the fibres [72].

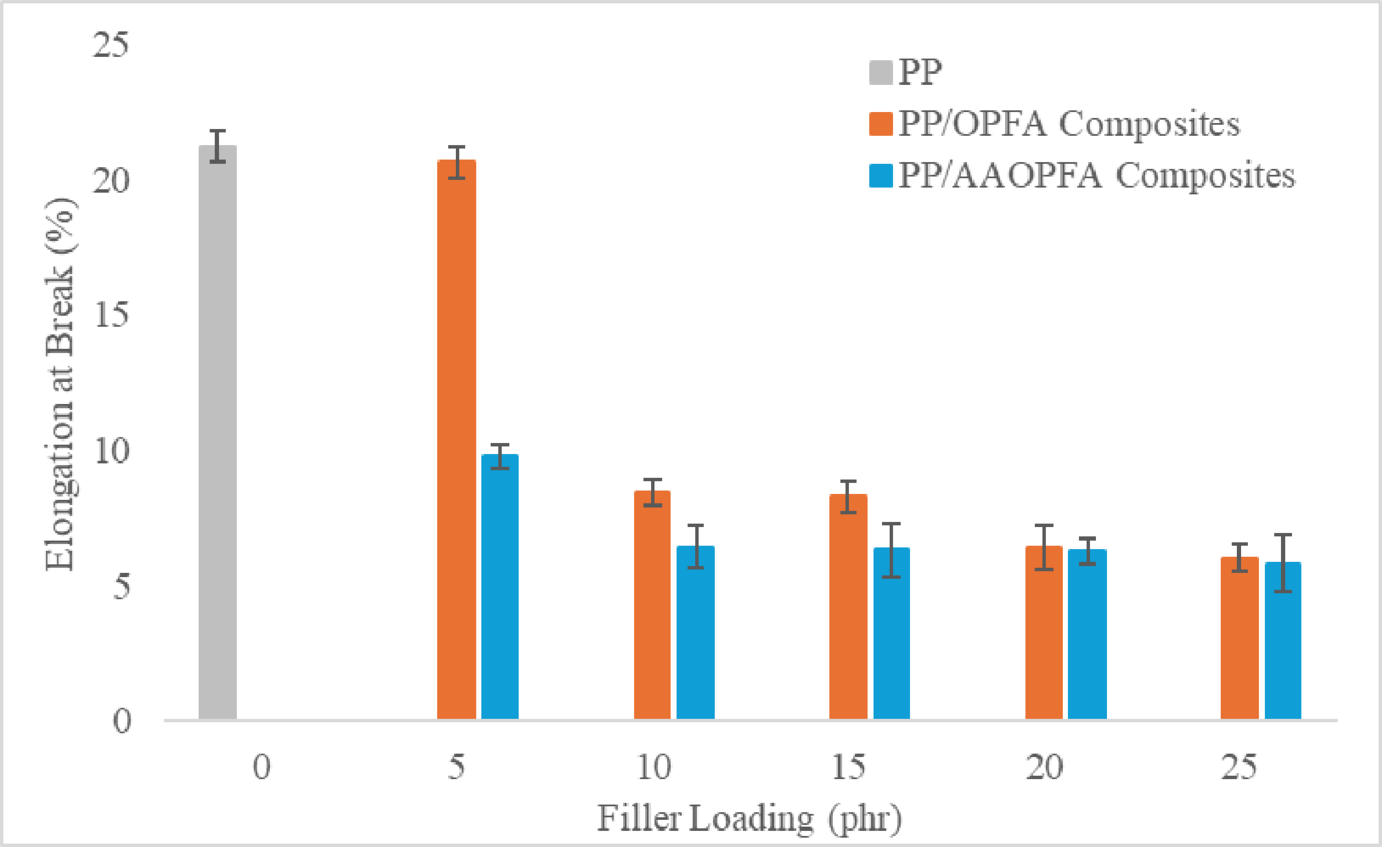

Figure 7 displays the elongation at break of PP, PP/OPFA and PP/AAOPFA composites with different filler loading. It was found that the elongation of break of PP/OPFA and PP/AAOPFA composites decreased as the filler loading increased. The reduction of the elongation at break indicated the mobility and ductility of the polymer chains of the matrix was hindered by the fillers [73]. The lower elongation at break of PP/AAOPFA composites compared to PP/OPFA composites was due to AAOPFA impart a greater stiffening effect to PP/AAOPFA composites [74].
Fig. 7
Elongation at break of PP, PP/OPFA and PP/AAOPFA composites at different filler loading

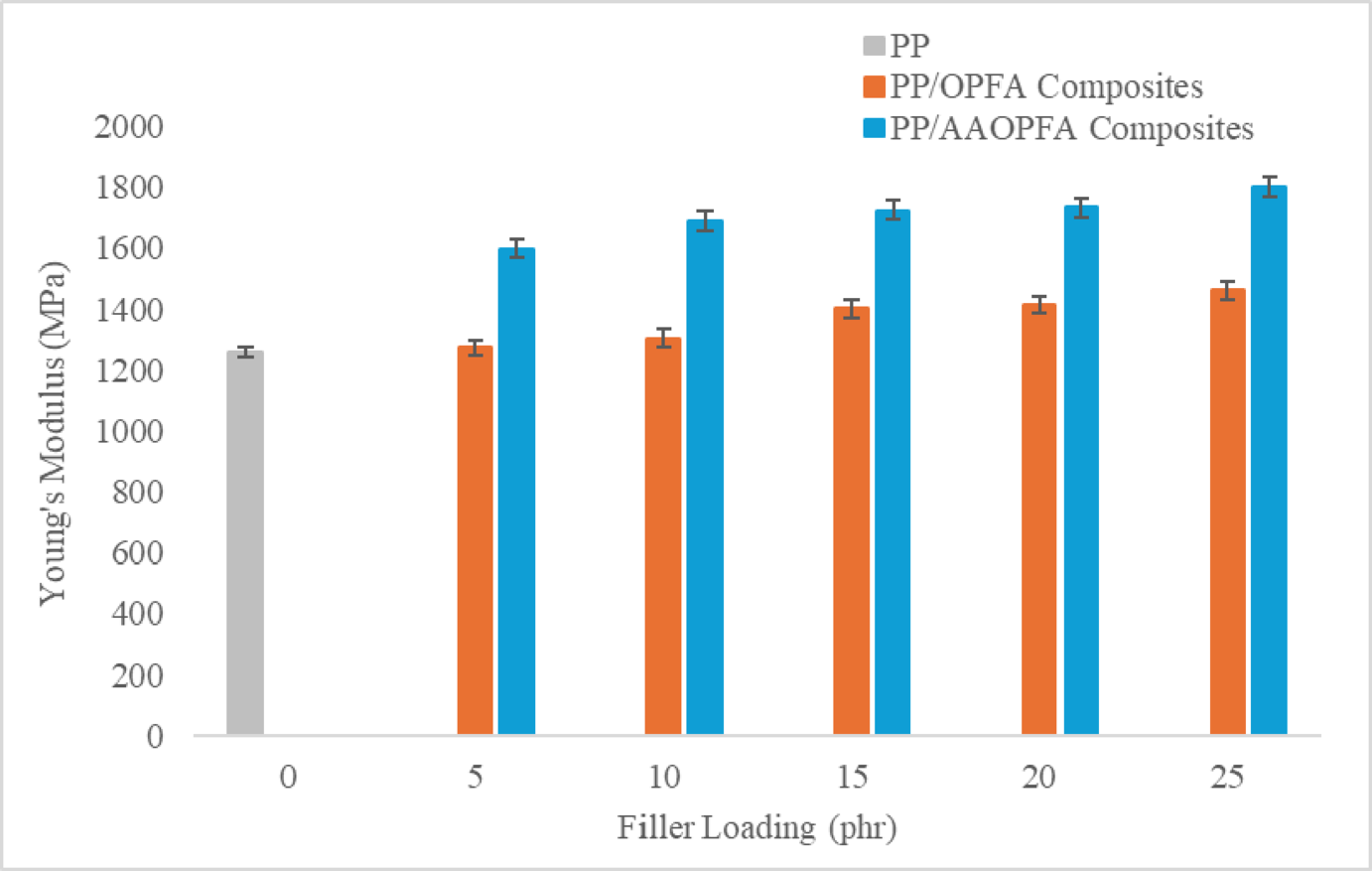

The Young’s modulus of PP/OPFA and PP/AAOPFA composites increased with increasing of the filler loading as shown in Fig. 8. Generally, fillers are stiffer than matrix because they impart inherent rigidity, therefore improved the Young’s modulus of the composites [75, 76]. As the filler increased, Young’s modulus of PPPP/AAOPFA composites showed higher Young’s modulus compared to PP/OPFA composites at any filler loading was due to better interfacial adhesion among AAOPFA filler and PP matrix, thus significantly enhancing the composites stiffness [77]. Additionally, the result in Fig. 8 supports the finding of the elongation at break in Fig. 7 where higher filler loading caused the reduction in ductility of the composites.
Fig. 8
Young’s modulus of PP, PP/OPFA and PP/AAOPFA composites at different filler loading
Water absorption

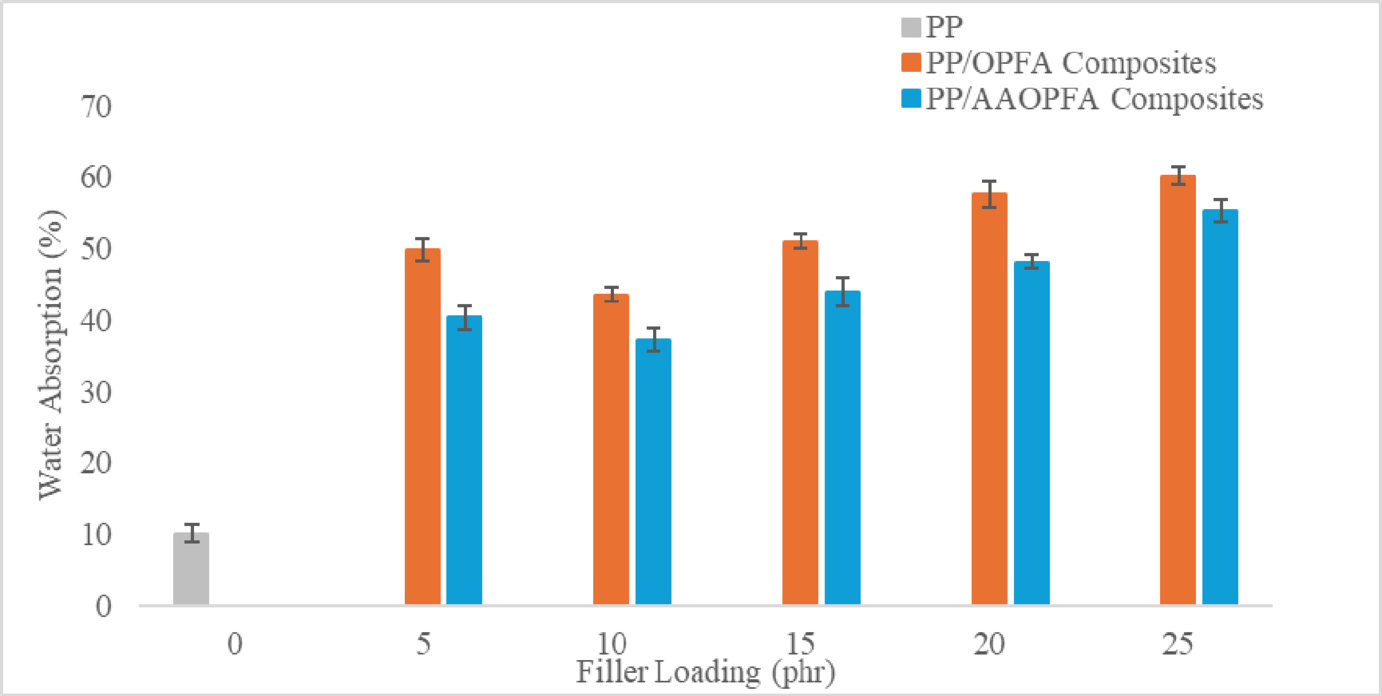

Figure 9 shows the water absorption of PP, PP/OPFA and PP/AAOPFA composites at different filler loading. Water absorption is used to determine the porosity, interfacial voids, and polymer free volumes of composites [78]. The water is absorbed by the pores or cracks occurred within the matrix, diffusion inside the capillarity, or through the fibre-matrix interfaces [79]. As can be seen from Fig. 9, PP has the lowest water absorption compared to PP/OPFA and PP/AAOPFA composites due to its hydrophobic properties. Moreover, it can be observed that the water absorption decreased from 5 to 10 phr followed by an increment from 15 to 25 phr. The increment of water absorption was due to the agglomeration of the filler tend to form at the interfacial voids between filler and matrix where the filler-filler interaction rather than filler-matrix interaction promotes agglomeration at high filler loading [80]. Besides, PP/AAOPFA composites demonstrate lower water absorption compared to PP/OPFA composites in all filler loading variations. This was due to good interfacial adhesion formed between AAOPFA fillers and PP matrix, therefore there were less voids and gaps between fillers and matrix that limit the penetration of water molecules to diffuse into composites [81]. This finding also supports the tensile results where PP/OPFA composites had lower tensile strength compared to PP/AAOPFA composites due to poor interface adhesion between fiber and matrix. The presence of higher intensity of OH groups in FTIR revealed more surface-active OH groups in PP/AAOPFA composites than PP/OPFA composites. This suggests more surface-active OH groups presence after the alkali activation, which promotes more interfacial interaction of AAOPFA with PP matrix [82]. This is consistent with the SEM observations in Fig. 10, where better interfacial adhesion among filler-matrix in PP/AAOPFA composites, minimizes the filler pill-out and reduces voids formation, therefore restricts the penetration of water molecules, as evidenced by SEM morphology analysis.
Fig. 9
Water absorption of PP, PP/OPFA and PP/AAOPFA composites at different filler loading
Fig. 10
Tensile fracture surface of SEM micrographs: (a) PP, (b) 5 phr PP/OPFA composites, (c) 5phr PP/AAOPFA composites, (d) 15 phr PP/OPFA composites, (e) 15 phr PP/AAOPFA composites (f) 25phr PP/OPFA composites and (g) 25phr PP/AAOPFA composites under 800X magnification. (a) PP, (b) 5 phr PP/OPFA composites, (c) 5 phr PP/AAOPFA composites, (d) 15 phr PP/OPFA composites, (e) 15 phr PP/AAOPFA composites, (f) 25 phr PP/OPFA composites, (g) 25 phr PP/AAOPFA composites
Morphological analysis

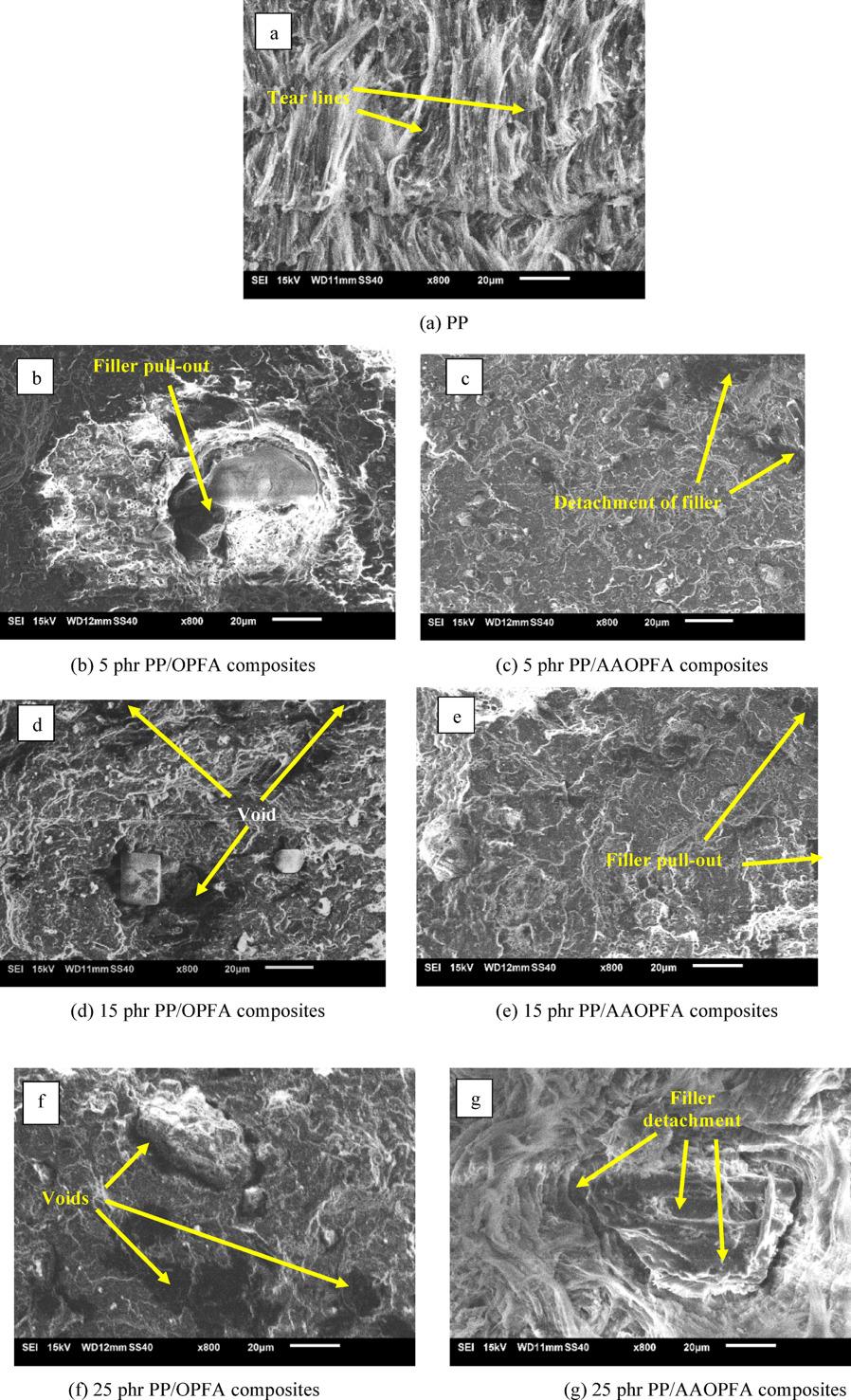

Figure 10 exhibits the tensile fracture surface of PP, PP/OPFA and PP/AAOPFA composites after performing tensile test. The tear lines can be observed in Fig. 10 (a) of PP indicated the ductility of the thermoplastic where polymer chains were stretched and deformed under stress. As more fillers were added into the composites particularly at 25phr of PP/OPFA and PP/AAOPFA composites, more voids were observed due to the detachment of fillers. The presence of voids was due to the filles were pulled out during the tensile test [83]. This indicates that poor interfacial adhesion between filler and matrix, resulting in less efficient stress transfer from the matrix to the fillers at high filler loading. Besides, fillers tend to agglomerate at high filler loading due to filler-filler interaction rather than filler-matrix interaction. The PP/AAOPFA composites showed better dispersion of AAOPFA fillers in the PP matrix compared to PP/OPFA composites at the same filler loading (at 5, 15, and 25phr). The surface reactivity of AAOPFA was improved, it provides more reactive sites to interact with PP matrix, therefore promote stronger filler-matrix interactions and better interfacial adhesion among filler-matrix. As a result, AAOPFA reduces filler pull-out and void formation, leading to a more efficiency of stress transfer from matrix to fillers. This observation is consistent with the tensile strength results, where PP/AAOPFA composites exhibited higher tensile strength compared to PP//OPFA composites at any filler loading.
Fourier transform infrared (FTIR) spectroscopy analysis

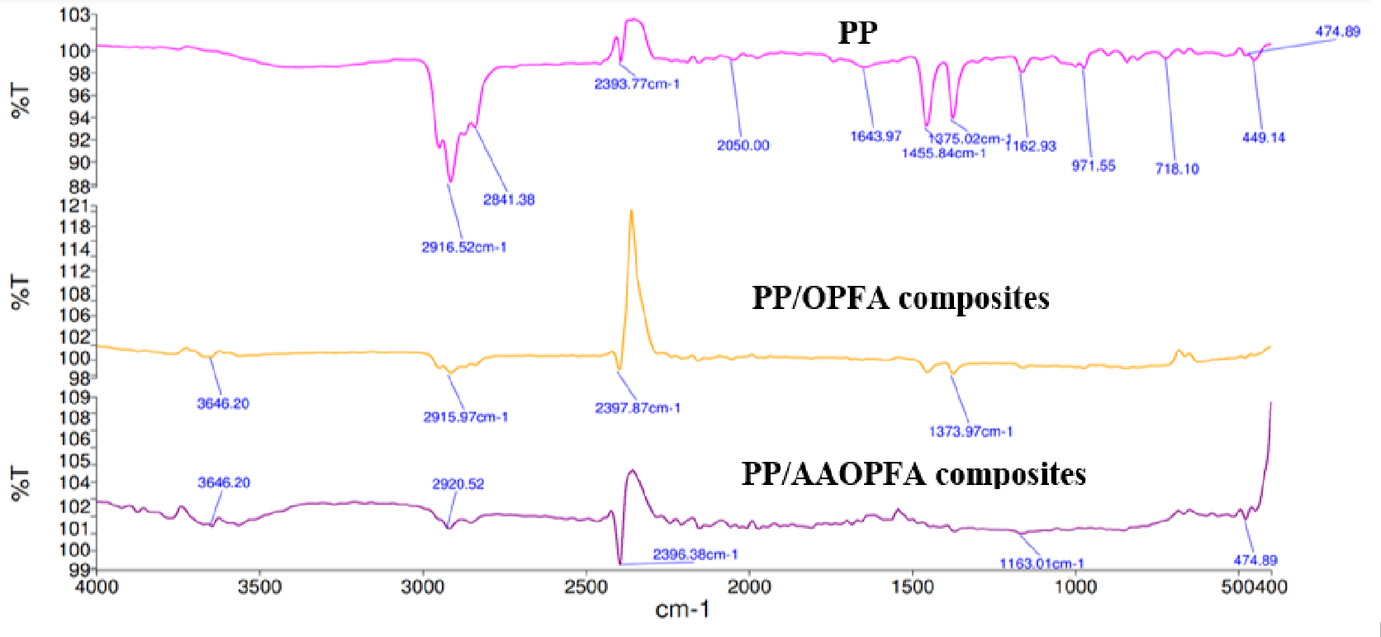

Figure 11 shows the FTIR spectra of PP, PP/OPFA composites and PP/AAOPFA composites that recorded from 400 cm− 1 to 4000 cm− 1. Table 4 displays the summary of functional groups and the wavenumbers of all three samples. In PP, the peaks at 449.14 cm− 1 and 474.89 cm− 1 indicate the S-S stretching, while peaks at 718.10 cm− 1 and 971.55 cm− 1 indicate the C = C bending of alkene. Besides, the spectrum of PP also has peaks at 1162.93 cm− 1, 1375.02 cm− 1, 1455.84 cm− 1, and 1643.97 cm− 1 which are assigned to C-O stretching of tertiary alcohol, O-H banding of phenol, C-H bending of alkane, and C = C stretching of alkene, respectively [84]. The peak at 2050.00 cm− 1 is due to C = C = N stretching of ketenimine. The O = C = O stretching of carbon dioxide is presented at vibration band of 2393.77 cm− 1. Finally, vibration bands at 2841.38 cm− 1 and 2916.52 cm− 1 are referring to C-H stretching [85]. The presence of OH groups can be observed in PP/OPFA and PP/AAOPFA composites, whereas no OH group is detected in PP. This absence of OH group in PP can be attributed to hydrophobic properties [86]. The peaks appeared in the spectra of PP/OPFA and PP/AAOPFA composites were almost the same; however, the intensity of the OH band at 3646.20 cm− 1 was more pronounced in PP/AAOPFA composites, indicating a higher concentration of hydroxyl groups due to the alkaline activation process. This can be attributed to the formation of silanol groups (Si–OH) on the filler surface resulting from the partial dissolution of silica during the alkaline activation process, as well as the possible presence of residual unreacted NaOH from the activator [87].
Fig. 11
FTIR spectra of PP, PP/OPFA composites and PP/AAOPFA composites
Table 4
Functional groups and wavenumbers of PP, PP/OPFA composite and PP/AAOPFA composites
Samples | S-S | C = C | C-O | O-H | C-H | C = C | C = C = N | O = C = O | C-H | O-H |
|---|---|---|---|---|---|---|---|---|---|---|
PP | 449.14, 474.89 | 718.10, 971.55 | 1162.93 | 1375.02 | 1455.84 | 1643.97 | 2050.00 | 2393.77 | 2841.38 | - |
PP/OPFA composites | - | - | - | 1373.97 | - | - | - | 2397.87 | 2915.97 | 3646.20 |
PP/AAOPFA composites | 474.89 | - | 1163.01 | 1372.00 | - | - | - | 2396.38 | 2920.52 | 3646.20 |
Electrical conductivity

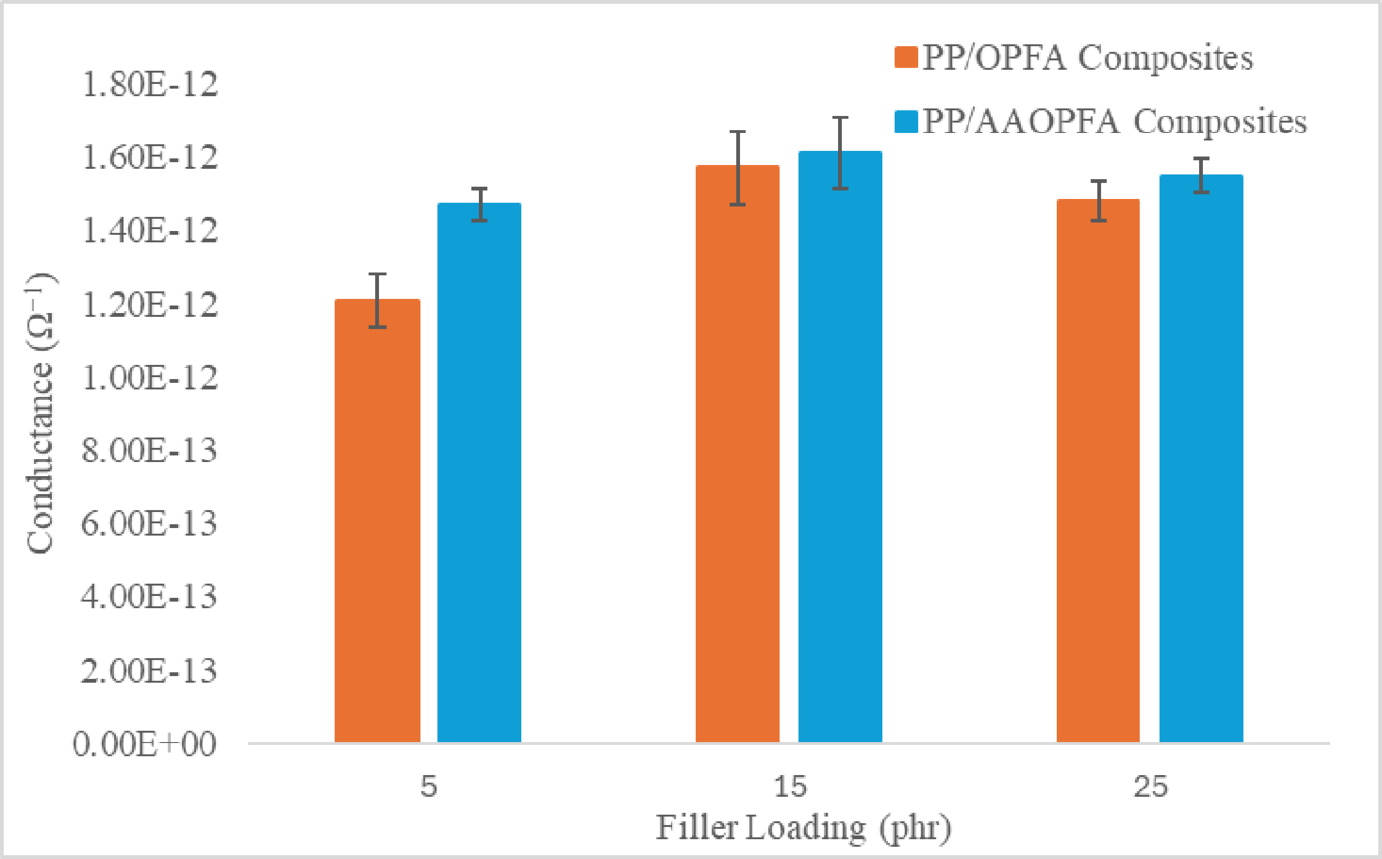

Figure 12 shows the conductance of PP/OPFA and PP/AAOPFA composites at different filler loading. As can be seen from Fig. 12, PP/OPFA composites with 5phr of OPFA loading has the lowest conductance. Low loading of OPFA in the PP/OPFA composites cause small number of conductive pathways that could exist in the composite [60]. By increasing the filler loading at 15phr, the conductance of PP/OPFA composites increased due to the increasing of the carbon content and provided more conductive paths in the composite. However, at high filler loading particularly at 25phr, PP/OPFA composites at showed a decrement in conductance due to the void formation between the OPFA filler and PP matrix produced high resistance to electrical current flow [88]. Besides, agglomeration at high filler loading produced a non-uniform filler dispersion and reduce the conductive paths in the composite [89, 90].
Fig. 12
The conductance of PP/OPFA and PP/AAOPFA composites in different filler loading
PP/AAOPFA composites had better electrical conductivity compared to PP/OPFA composites at different filler loading. The conductivity of AAOPFA filler was enhanced by the presence of Na + ions as the ionic conductor [64]. Moreover, PP/AAOPFA composites had better interfacial adhesion among filler and matrix compared to PP/OPFA composites. The good matrix-filler interactions promote better conductive pathways throughout the composite [88]. Furthermore, better dispersion of AAOPFA filler in matrix lower the resistance and allow more electric currents to be transmitted through the composite [62]. The conductivity mechanism in the composites is different compared to filler powder. In the composites form, PP matrix is electrically insulating, therefore the electrical conductivity mainly depends on the filler dispersion and interaction in the matrix [91]. When AAOPFA was added, its rougher surface and higher ionic activity improved the interfacial adhesion among fillers and matrix. The AAOPFA enhanced the electrical performance of the PP matrix by bridging the insulating polymer regions and establish electron transport pathways [92]. However, the overall conductivity of PP/AAOPFA composites were still lower than AAOPFA in powder form, as the polymer matrix limits the ionic pathways.
Thermal degradation

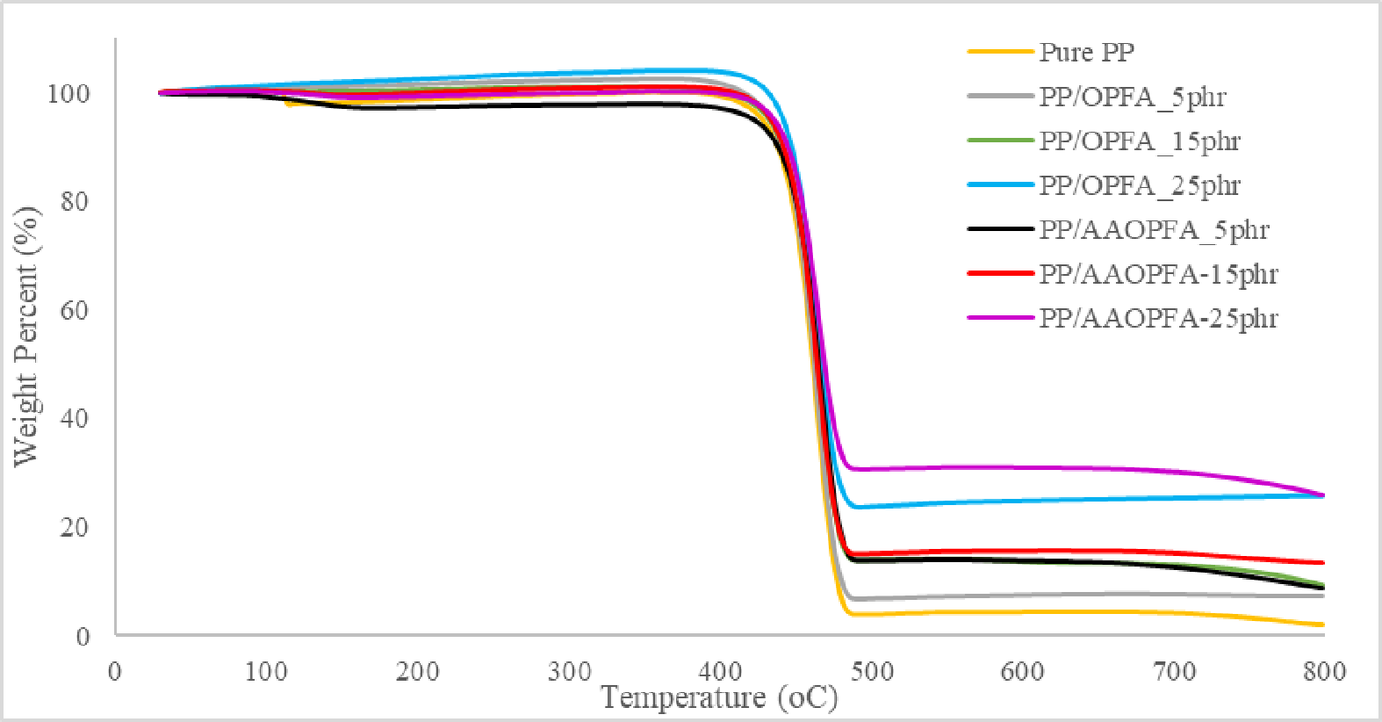

Figure 13 illustrates the thermogravimetric curves of PP, PP/OPFA and PP/AAOPFA composites at varying filler loading. Table 5 shows the temperature of 50% weight loss, residual mass and final decomposition temperature for PP/OPFA and PP/AAOPFA composites at different amount of filler. PP/AAOPFA composites gave the highest temperature of 50% weight loss, final decomposition temperature and residual mass compared to AA/OPFA composites at 5-25phr of filler loading, whereas PP showed the lowest reading among all. It can be observed that addition of fillers (OPFA and AAOPFA) improved the thermal stability of the composites by improving T− 50%wt, residual mass and final decomposition temperature. The presence of Si (from previous elemental analysis) in OPFA and AAOPFA significantly inhibited the thermal decomposition of PP [93]. PP/AAOPFA composites displayed better thermal stability in comparison to PP/OPFA composites at the same filler loading, this was attributed to the higher Si content in AAOPFA compared to OPFA as evidenced in XRF analysis. Besides, it is suggested that the good interfacial adhesion of AAOPFA and PP where AAOPFA formed a protective barrier that restricts volatile gas released during degradation, therefore provided better thermal stability to PP/AAOPFA composites [94].
Fig. 13
Thermogravimetric curves of PP/OPFA and PP/AAOPFA composites with different amount of filler
Table 5
The temperature of 50% weight loss (T-50%wt), residual mass and final decomposition temperature for PP/OPFA and PP/AAOPFA composites at different amount of filler
Materials | T-50%wt (oC) | Final decomposition temperature (oC) | Residual mass (%) |
|---|---|---|---|
PP | 463.360 | 792.549 | 1.876 |
PP/OPFA_5 phr | 468.341 | 793.192 | 5.847 |
PP/OPFA_15 phr | 470.745 | 793.360 | 7.335 |
PP/OPFA_25 phr | 478.071 | 793.481 | 21.354 |
PP/AAOPFA_5 phr | 478.541 | 793.960 | 6.385 |
PP/AAOPFA_15 phr | 489.331 | 794.186 | 16.591 |
PP/AAOPFA_25 phr | 499.095 | 794.375 | 22.286 |
Conclusion
The results indicate that effect of alkaline activation and different loading of fillers significantly affect the tensile properties, water absorption, microstructure analysis, FTIR analysis, electrical conductivity and thermal degradation of PP/OPFA and PP/AAOPFA composites. PP/AAOPFA composites showed the highest tensile strength, with increment of 20.8% compared to PP and 22.3% compared to PP/OPFA composites at 10 phr filler loading. This enhancement was attributed to the good dispersion of AAOPFA fillers and good filler-matrix interaction throughout the composites. At the filler loading of 25 phr, PP/AAOPFA composites demonstrated the greatest enhancement in Young’s modulus with 42.7% improvement over PP and 23.2% over PP/OPFA composites because of fillers imparted inherent rigidity, restricted polymer chain mobility and reduced ductility of the composites. The PP/AAOPFA composites showed a 14.5% reduction in water absorption compared to PP/OPFA composites at 10 phr filler loading, attributed to the improved filler–matrix interaction that restricted the diffusion of water molecules into the composites. Moreover, PP/AAOPFA composites displayed better dispersion of AAOPFA in PP matrix, as evidenced by fewer voids and reduced filler pull-out compared to PP/OPFA composites in SEM micrographs. The PP/AAOPFA composites exhibited a 2.5% enhancement in electrical conductivity compared to PP/OPFA composites, attributed to the better filler dispersion and improved interfacial interactions that facilitated greater transmission of electric current through the composite. Besides, PP/AAOPFA composites exhibited greater thermal stability compared to PP/OPFA composites due to higher Si content in AAOPFA and the formation of a protective barrier that restricts the release of volatile gases during degradation.
