How household thermal routines shape UK home heating demand patterns

The long tradition of work on thermal comfort offers insights into the thermal conditions preferred by building occupants. ASHRAE Standard 55-2013 Thermal Environmental Conditions for Human Occupancy defines thermal comfort as ‘that condition of mind which expresses satisfaction with the thermal environment’ (ASHRAE 2013, p. 3). The ‘heat balance' model of thermal comfort is based on equations for heat exchange with the environment (Fanger 1970), and relates the comfort rating reported by building occupants to six ‘primary factors’: air and radiant temperature, air movement, relative humidity, and an individual’s clothing level and metabolic rate.

The adaptive approach to thermal comfort ‘starts with the biological insight that the human being is a comfort-seeking animal who will, given the opportunity, interact with the environment in ways that secure comfort’ (Humphreys and Nicol 1998). In most homes in the UK, running a central heating system is the main way that residents alter the indoor thermal environment in their homes. The adaptive thermal comfort approach recognises that operating central heating is not the only option open to residents: they have other ways to alter their thermal environment (e.g. opening a window) or adjust their personal thermal conditions (e.g. wearing more clothes). A key tenet of this approach is the principle that ‘if a change occurs such as to produce discomfort, people react in ways which tend to restore their comfort’(Nicol et al. 2012, p. 8). This view of ‘thermal comfort as part of a self-regulating system’ (Humphreys and Nicol 1998) is particularly relevant to the management of domestic indoor environments since ‘householders are usually in charge of their own comfort’ (Tweed et al. 2014) with a variety of options available to them to change their environment.

Much adaptation involves changing the ‘primary factors' in the heat balance equation, for instance wearing additional clothing when the temperature drops, but there is an additional psychological dimension (not included in the heat balance model) based on the occupants’ perception of the opportunities available to control their conditions (Hellwig 2015) and on their expectations of typical or appropriate conditions (Nicol et al. 2012). Oseland (1995) found that his British respondents chose (and reported feeling comfortable at) lower temperatures in their homes than in the office when the heat balance approach predicted the same comfort temperature in both locations. The work of de Dear et al. (1991) in Singapore showed that preferred temperatures varied between home and office, suggesting that residents have context-specific expectations for indoor climate.

Most UK homes experience significant swings in temperature over 24 h, and this dynamic thermal environment is very different to the static conditions investigated in much of the thermal comfort research. Findings from historic comfort studies, which have mostly taken place in climate chambers and non-domestic buildings, are therefore less directly useful to understanding how householders might adapt to and change their thermal environments.

The focus of much thermal comfort research is on measuring occupants’ assessment of their thermal environment (typically self-reported thermal sensation and preference)—and less on occupants’ actions to create their thermal environment, i.e. investigating what they do to achieve an acceptable state. Studying comfort response is more relevant for buildings where occupants have limited opportunities to control conditions (e.g. large office environments) than for domestic settings with adequately sized heating systems.

Social practice theory offers an explanation of how heating energy use is linked to everyday activities in the home. That there is a regular temporal pattern to many practices is highlighted in Reckwitz’ frequently cited definition of practice as ‘a routinised type of behaviour’ (Reckwitz 2002, p. 249).

Shove and Walker (2014) point out that ‘energy is used, not for its own sake, but as part of, and in the course of, accomplishing social practices’. In recent years, social practice theory has been widely applied to studies of energy demand (e.g. Shove 2003; Strengers 2013; Torriti et al. 2015). Shove et al. (2009) discuss the links between the timing of practices in the home and wider social rhythms. Heating is used to provide an appropriate thermal environment for activities in the home and so is linked to a suite of different practices (for example getting dressed, preparing and eating meals, caring for children, watching television). Some practices may have an impact on heating demand even though they are not directly related to achieving thermal comfort. For example, opening a window to ventilate cooking odours will create extra heating demand as cold air enters the house, or the heating thermostat may be turned to a higher setting because of a need to dry laundry hung on radiators. People operate heating not just for their own thermal comfort but for that of guests, pets and (in examples quoted by Strengers et al. (2014)) ‘curious’ consumers such as wine collections and pot plants.

Daily patterns in energy use in the home will be influenced by patterns of everyday practices (e.g. when the occupants are out at work, or asleep) which are in turn influenced by social rhythms (Shove et al. 2009). Zerubavel points out the influence of social factors on the schedules of individuals: ‘parts of one's schedule are obviously going to be shared by others who belong to the same social circles’ (Zerubavel 1985, p. 68).

Thermal routines, as considered in this study, are defined as regular patterns in time of heating use and other actions taken to achieve thermal requirements. The term ‘thermal requirements’ is used rather than ‘thermal comfort’ to indicate that heating may be operated to satisfy requirements beyond individual thermal comfort, for example to dry laundry.

Shove makes a useful distinction between ‘routine’ and ‘a routine’: ‘the term “routine” represents and describes the regularity with which a practice is enacted. (…) “a routine” like a morning routine, or the Wednesday routine, has to do with the way in which multiple practices are ordered and scheduled’ (Shove 2012, p. 103). Household thermal routines follow this definition of ‘a routine’ and are created by regular practices in the home, which are linked to demand for space heating.

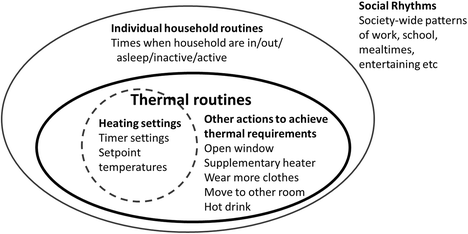

Figure 1 indicates how thermal routines include both setting heating controllers and also actions not directly linked to the central heating, such as use of supplementary heat sources in addition to the main heating system (e.g. a wood burner or electric fan heater) or wearing extra clothing. The diagram shows how thermal routines, including the operation of heating systems, are a subset of the more general set of all regular activities carried out in the home.³ The practices in individual homes are influenced by society-wide rhythms of activity.

The concept of thermal routines brings a time dimension to the normally static consideration of thermal comfort. It recognises that demand for domestic space heating is linked to patterns of practices in the home. It offers a language for talking to householders about their regular activities and how these interact with their energy use for heating.

Households with a PassivLiving HEAT unit are told not to set boiler on and off times, but instead to program the time they plan to wake up, go out etc. and the controller will operate the boiler to provide the temperature levels required in these periods. The user sets up an ‘occupancy schedule’, entering what times each day they will be IN, OUT and ASLEEP and the temperature they would like at that time. These terms are capitalised throughout the paper to indicate the controller ‘occupancy’ states; these may or may not coincide with the actual times that residents are at home, out or asleep. The user can manually override the current scheduled temperature, either directly on the control unit or via a mobile phone app and web portal. Figure 2 shows a view of the app, which provides a straightforward way to change current setpoint temperature or shift between occupancy states.

The main focus of the analysis was the timing and length of IN ‘occupancy’ periods, since this is the period that the residents have decided they wish the heating to run as necessary to maintain their chosen thermal conditions. It should be noted that the boiler may also operate during OUT or ASLEEP periods if the temperature drops below the setpoints for those periods; this is most likely to happen if the home is poorly insulated or left unoccupied for an extended period, or if the setpoint for those periods is not much lower than the IN setpoint.

Data for 40 weekdays in January and February 2016, from 4/1/16 to 26/2/16, were analysed from controllers from 337 homes geographically distributed across the whole of the UK. The data were anonymised and no data about the buildings or residents were available.

The controller data provided by PassivSystems comprised readings for the temperature setpoint, internal temperature (measured at the unit), as well as the ‘call for heat’ and ‘call for hot water’ signals generated by the controller. This data was sampled at 5-min intervals. A total of 500 homes were randomly selected from the complete list of PassivSystems installations (which are geographically dispersed across the whole of the UK). Pre-processing was carried out to remove data sets with > 4000 (6.2%) missing data points. A small number of datasets where the PassivSystems unit was not in fact controlling the heating in the home during the period of interest were removed. These homes showed a steady fall in the internal temperature over a period of at least 2 days even though the control unit was calling for heat—possibly because the boiler was faulty or out of action.

Following this pre-processing, the main analysis was carried out on data for 337 homes for 40 weekdays in January and February 2016, from 4/1/16 to 26/2/16. This period was chosen to represent part of the heating season, with no major holiday periods included. Data from weekends was excluded as the focus of the analysis was on regular routines during the week.

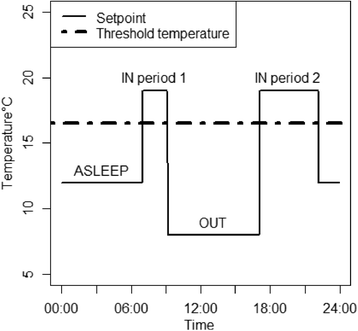

The timing of the IN ‘occupancy’ period was inferred from the temperature setpoint data. Figure 3 shows the default operating pattern programmed in the controllers when they are installed, which shows clear steps in setpoint between IN and other periods. Since the actual setpoints are very variable between homes, visual inspection was used to determine a threshold which distinguished between the periods of highest setpoint (assumed to be IN) and other periods with relatively lower setpoints (assumed to be ASLEEP or OUT—for the purposes of the analysis, the only requirement was to distinguish between IN and ‘not IN’). The data were analysed to determine the time at the beginning and end of each IN period for each home on each day.

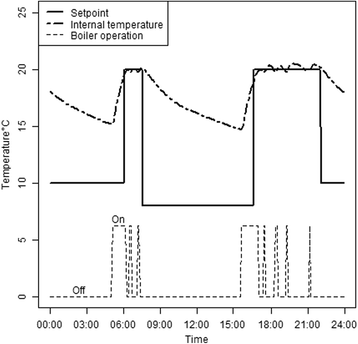

The boiler will cut in and out as required by the control system to maintain the desired temperature so it will not be running all the time during IN periods. Figure 4 shows a typical pattern of calls for heat in which the boiler initially operates continuously until the setpoint temperature is reached and then operates intermittently to maintain temperature. In this example, the boiler starts in the morning before the setpoint rises. This shows the operation of the (optional) ‘optimum start’ feature of PassivSystems controllers. The principle is to start the heating up to an hour before the beginning of an IN period, so that the home has been brought close to the desired temperature at the beginning of the period.

PassivSystems controllers are not connected to energy meters so direct energy use data were not available. The call for heat signal from the unit was used to determine the coincidence of boiler operation as a proxy for space heating demand. A boiler coincidence factor (the proportion of homes with the boiler running at the same point in time) is calculated for each 5-min period in the day. There is not a simple linear relationship between this boiler coincidence factor and the absolute level of total space heating energy demand. The boiler may modulate its heat output, and hence its fuel consumption, and may be simultaneously supplying hot water. Nevertheless, the ‘call for heat’ data can be used to investigate the pattern of demand over time, since increases and decreases in number of boilers running will lead to increases and decreases in the total amount of power used.

Complementing the quantitative data analysis, the study included interviews with volunteers recruited by e-mails sent out by PassivSystems to groups of customers. Semi-structured telephone interviews were carried out with seven householders with a range of house types, location and household size. The interviewees are referred to by pseudonyms in this paper. The interviews, which were carried out in March to June 2016, included open questions about how respondents decided on time and temperature settings when setting heating controls.

The results from this study are not generalisable to a wider group of homes. While the PassivSystems controllers are fitted in dwellings of a wide variety of types and ages, there is no reason to expect that the sample of homes is representative of the overall UK building stock. The controllers were installed for a variety of motives, including as an option alongside solar panel installation and active choice by homeowners, so many of the users could be considered ‘early adopters’ rather than representative of the general population. The expectations built into the design of the PassivSystems user interface, with its ‘script’ (Akrich 1992) asking for an ‘occupancy schedule’, may shape user interaction in a way that differs from households with less sophisticated control systems and those who operate their heating manually. The optimum start feature added complexity to the analysis as different homes had different strategies for whether or not the home was heated in advance of an IN occupancy period.

The sample for interviews was small. The responses represent the point of view of only one member of each household. Volunteers who responded to the request to participate in the study may be more aware of energy use in the home than the general population.

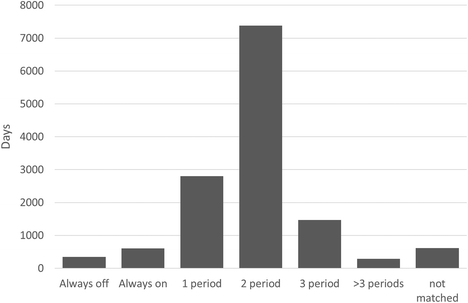

Figure 5 shows the breakdown of running modes in the sample. It shows that the most common mode is to operate the heating for two periods in the day (two IN periods are set in the controller). This two period operation is in line with the default assumption of two ‘demand periods’ (morning and evening) commonly used in the BREDEM modelling which is a foundation for many UK building stock models (Kavgic et al. 2010; Shipworth 2013). It should be noted, however, that 45% of the N = 13,480 days in the sample do not show two period operation.

The start and end times of weekday heating periods set in controllers were analysed to investigate the synchronicity of space heating operation.⁴ Table 1 shows the statistics for four time periods which are important in defining the schedule of intermittent heating operation: the start of the first IN period in the day, the start of the final IN period (for those homes with more than one operating period in the day) and the end of the final (or only) IN period in the day. The median and inter-quartile range (IQR) were used as the measures of central tendency and degree of variation for these parameters since (as can be seen from the histograms in Figs. 6 and 7) the distributions are not normal, and have outliers.

Figure 6, the histogram of the time at which the first IN period starts shows a concentration of starting times around 07:00. An even more synchronous pattern is seen for the end of the final IN period in the day in Fig. 7.⁵

The first time the heating switches on and the last time it switches off show a clear relationship to society-wide patterns that influence when people are asleep. As Shove (2009 p21) points out in a discussion of Lefebvre (2004) ‘going to sleep and waking up are effectively collective processes – even for those who do them alone’.

Following the example of research linking energy use with time use studies (e.g. Torriti et al. 2015), the results were compared with the 2005 UK Time Use Survey (Lader et al. 2006). This shows that the point at which 50% of people are no longer in the ‘sleep, resting’ state occurs at approximately 07:10, close to the median ‘heating on time’ of 07:00 found in this study. The point at which half the population have gone to bed is approximately 22:50, nearly an hour later than the median final heating off time in this study. This may indicate that some householders decide to let the heating turn off and allow the temperature to start falling some time before the actual time they go to bed.

The median last heating on time—the beginning of the final heating period for days with two or more running periods—is 16:00. The histogram in Fig. 8 shows that the variation in this second time is much wider than the first on time and the difference in the inter-quartile ranges is clear in Table 1. This is likely to be linked to the more variable end times (compared to the highly consistent start times) for the ‘employment, study’ period evident in the Time Use Survey (Lader et al. 2006).

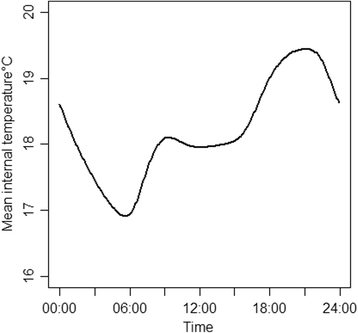

The pattern of temperature during the day which results from this can be seen in Fig. 9, which shows the mean temperature (at the control unit) across all homes for all days in the sample. The mean temperature peaks in the evening, with a smaller, lower peak in the morning. This profile is very similar to the profile of the largest cluster found in Huebner et al.’s (2015) analysis of data from 275 living rooms in English homes.

Interviews with householders enabled exploration of the extent to which heating time settings matched recollection of actual activity patterns for the households concerned, in particular the times when the occupants are asleep and out of the house. It soon became clear that, for some interviewees, heating schedules did not match actual times in/out/asleep. Eleanor is usually in the house during the day but still chooses to have two heating periods as this ‘seems sensible’ and she is not ‘sitting round feeling the cold’ during the middle of the day when she has the controller set to OUT even though she is normally in the house. John (who is a shift worker, leaving for work at variable times of day, and whose wife is often in during the day) says the default two period setting ‘tends to suit us’ even though there is often someone in the house in the OUT period in the middle of the day. He was not concerned about the occasions when he had to get up early and the heating was not on. Similarly, David, who sometimes has to leave for work very early in the morning, did not set the heating to come on earlier than usual on these occasions—his stated intention was to program a regular routine to suit his wife and children.

It is apparent that, at least for a proportion of this small interview sample, heating time and occupancy patterns are not the same. Their thermal routines involved heating time settings which deliver a satisfactory result for the household, even though they do not map to actual occupancy patterns of the residents. This shows how an apparently clear story about society-wide patterns becomes more complex when individual households are considered. It also questions the basic principle underlying the occupancy assumptions used in many building energy models, which assume that heating operation coincides with times when the dwelling is occupied and the occupants are not asleep (e.g. McKenna et al. 2015). Rather than matching their actual patterns of occupation, it seems that at least some users programme a two period operation schedule, because this offers an acceptable level of comfort and conforms to their expectations of how a heating system should be run.

The interviews brought to light thermal routines not visible in the data for controller settings since they did not involve operating the heating controller. Two respondents mentioned regular use of supplementary heating. John said that he and his wife frequently use a wood burner ‘when it’s cold’ but that they will only light this in the evening and Hugh reported using the wood burner in the living room ‘every evening’. One response highlighted heating energy use which was for another purpose than thermal comfort: Catherine said she sometimes increases the thermostat temperature when she has ‘emergency laundry’ to dry for the next day.

The interview included open questions about temperature preferences at different times and in different parts of the home. A theme mentioned by four respondents was a preference for lower temperatures in the bedroom when sleeping at night. This preference for lower temperatures when sleeping has also been noted by other researchers (Fell 2016; Owen et al. 2012).

The final stage of the analysis was to examine patterns of weekday space heating demand for the whole sample, to investigate how the aggregation of individual household running patterns shapes the pattern of cumulative demand.

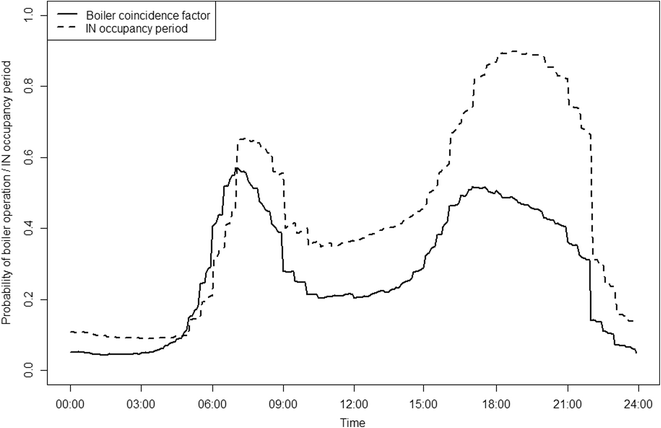

Figure 10 shows the mean for the 40 weekday period of the boiler coincidence factor (proportion of boilers running) for each 5-min period in the day. The graph shows that there are particular times of day when demand across many homes coincides. The mean proportion of homes with ‘occupancy’ set to IN is also plotted (as explained above, the boiler is not necessarily running continuously during IN periods). It is noticeable that both parameters have a clear pattern of morning and evening peaks.⁶ However, the morning peak in boiler coincidence (at 07:00) is higher than that in the evening (at 17:00), while the peak proportion of IN ‘occupancy’ occurs in the evening (at 18:55), not the morning. The mean rise in internal temperature in the second half of the day (3.2 °C) is slightly higher than the mean increase in the morning period (2.8 °C) (see Fig. 8), so the higher peak in the morning cannot be explained by a greater temperature increase.⁷ A key factor contributing to the relative height of the morning peak is the synchronous starting of the heating at around 07:00 in many homes, which contrasts with the less synchronous starting up of heating systems in the early evening. This ‘staggered start’ in the evening spreads the demand for energy over a longer period and underlies the relatively lower peak.

If the interview findings that supplementary heat sources are more likely to be used in the evening can be extrapolated to the whole sample, this would suggest that supplementary heater use is another factor likely to be causing a difference between morning and evening demand patterns. In homes where supplementary heating (such as a wood burner) is the main heat source in the living room in the evening, the demand on the boiler is likely to be lower at this time of day than in the morning. In addition, the evening temperature rise may be partly enabled by solar or internal gains during the day, so reducing the load on the boiler.

The pattern of demand is mediated by the heating technology. Householders in the UK are familiar with the rapid response of boiler which typically have capacities of 15–40 kW and flow temperatures around 70 °C (Orr et al. 2009). Electric heat pumps have lower capacities and output temperatures and it might be expected that usage patterns would be different.⁸ Nevertheless, despite the different operating characteristics of heat pumps, Love et al. (2017) show that demand peaks morning and evening (with the highest peak in the morning) are present among a sample of 696 UK homes with heat pumps. Their simulation of the impact of HPs in 20% of UK dwellings shows the heat pump demand ‘beginning to create a morning peak in the grid load where there was not one before’ (Love et al. 2017 p338).

The results described are specific to the UK context of gas boilers as the predominant central heating technology; however, the concepts introduced are also relevant to the analysis of heating use in other countries. Two examples suggest that heating demand also varies in a regular pattern over the day in countries with a much higher proportion of electric heating. Morch et al. (2013, Fig. 4) shows morning and evening peaks in electricity demand for space heating in Norway and modelling for RTE (2016) suggests that domestic space heating demand in France at the peak time of 20:00 is 34% higher than that at 16:00.
