Hardware implementation of radial-basis neural networks with Gaussian activation functions on FPGA

Neural network control systems represent a new high-tech direction in control theory and relate to a class of nonlinear dynamical systems [1‐3]. The realization of parallel processing of input data in neural networks will transform them into high-speed devices for information processing. This property, together with the ability of neural networks to learn and approximate a wide class of continuous functions with given accuracy, makes this technology very attractive for the creation of adaptive control devices in automatic systems [4‐7].

Neural networks can be used, Fig. 1, in robotics, drone control, vehicle control, pattern recognition, analysis and decision-making in the Internet of things systems, spacecraft control, military equipment and other different applications in modern technology [8‐12]. In these systems, neural networks can be used to identify objects, predict the state of objects, recognition, clustering, classification, analysis of large amounts of data coming at high speed from a large number of devices and sensors and so on [11‐17].

Neural networks can be used to implement various components of control systems. On the basis of neural networks, we can construct adaptive, nominal, inverse-dynamic models of control objects. Such components can perform a wide range of functions.

First, they can be used for monitoring, evaluating the control object parameters and disturbances and deviations in the control systems. Second, with their help, the optimal control function can be implemented. Third, for the purpose of predicting the state of the object, its identification can be carried out. Besides, other operations can be performed on the base of these models [12‐19].

Nowadays, the main implementation method of neural network control systems is to implement the special software, using universal computers or specialized controllers built on their basis. Such implementation significantly narrows the circle of the practical application of neural network control systems, due to the considerable cost of such regulators, and makes them virtually inexpedient and inaccessible for use in control systems. Computer-based neural network regulators have limited performance and require a certain amount of time to research. Recurrence and sequence of actions of the neural network learning procedure during the implementation into the whole set of parameters do not allow to solve the problem completely in the pace with the dynamics of the control object. Although increased performance of systems with a consistent Von Neumann architecture allows the implementation of large ANNs, a large number of ANN applications require high speed, compactness, low cost and energy consumption. The only alternative to this is the introduction of parallel learning and operation of internal elements of neural networks. Such capabilities emerge with the development of digital technologies such as field-programmable gate array (FPGAs), digital signal processors (DSPs) and application-specific integrated circuit (ASICs) [20‐22]. In addition, the creation of hardware description languages (HDL) has allowed engineers to develop and encode the ANN model once and use it on any hardware platform.

ANNs can be implemented on any of these devices using VHDL [22‐25]. VHDL is a standard independent language, also portable and reusable. After writing the VHDL code, it can be used either to implement the circuit in the FPGA, or can be submitted for the manufacture of the ASIC chip [26]. VHDL is based on the principles of software design, but contrary to conventional computer programs that are consistent, its description is essentially parallel.

However, nonlinear multilayer neural networks have certain disadvantages. Due to the nonlinear dependence of the network outputs on the given parameters, the problem of approximation becomes one of the extreme problems. Along with the possible global minimum learning criterion, the standard learning algorithm can stop on one from many local minimum. The interconnection of the adjustment of the weight coefficients of all major elements of the network greatly increases the time of learning, which is critical for real-time systems. The neural networks with radial activation functions discussed below have no such deficiencies.

RBF networks are also universal approximators and can be used for approximation of any continuous function with given accuracy [27‐35]. RBF networks in their structure belong to two-layer networks that use a hidden layer with fixed nonlinear transformations of the input vector with constant weight coefficients. This layer performs a function of the static display of input variables \({\mathbf{r}} \in R^{n}\) in new variables \({\mathbf{q}}_{1}^{(l)} = {\text{col}}\left( {q_{1}^{(l)} , \ldots , \, q_{m}^{(l)} } \right)\). The second linear output layer is the one that delivers these variables with adjustable weights \({\mathbf{w}}_{i} = {\text{col}}\left( {w_{i,1} ,w_{i,2} , \ldots ,w_{i,m} } \right)\) so that, for example, the ith scalar output of the RBF network is written as:

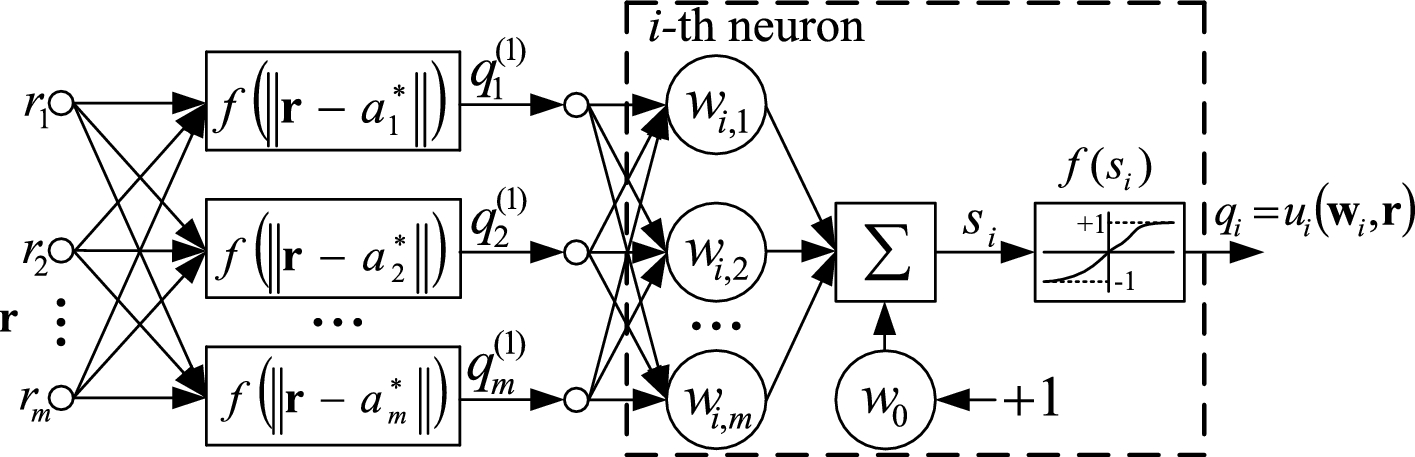

Structure of the RBF network with the input vector \({\mathbf{r}} \in R^{n}\) and the output vector \({\mathbf{q}}^{{(2)}} = {\mathbf{q}} \in R^{n}\) is shown in Fig. 2. Activation functions \(f_{j} \left( r \right):R^{n} \to R^{1}\) are selected from the class of radial-symmetric functions:

They have an extremum when changing the inputs r only near the set values of the weight coefficients of the hidden layer neurons:

Weight coefficients of the second layer are \(w_{i,j} = w_{i,j}^{(2)}\), where parameter h is the position of the so-called ‘centers of susceptibility fields.’ They depend on the set of the weight coefficients values in the first layer \({\mathbf{w}}_{j}^{(1)} = {\mathbf{a}}_{j}^{ * }\). It is here that we can form functions \(f_{j} \left( \cdot \right)\), selecting their number m, to provide the RBF network with the required properties.

As functions \(f\left( z \right)\) one of the functions is selected:

In practice, the first of these functions is widely used—the Gaussian functions: where \({\mathbf{a}}_{j}^{*} = {\text{col}}\left( {a_{j,1}^{*} ,a_{j,2}^{*} , \ldots ,a_{j,n}^{*} } \right)\) is a numeric vector and \(\sigma_{j,k}^{{}}\)—deviation of the Gaussian function. The specificity of the RBF network is that they learn in operating mode only to determine the weight coefficients of the output layer. The approximation error is calculated directly on the output of the network as in the multilayer neural networks, by parameters of the output layer. Therefore, learning only this layer, we eliminate the problem of a functional criterion (usually quadratic) global minimum search. In turn, it helps to accelerate the network learning process.

The paper [36] proposes a Gauss–Sigmoid neural network for learning with continuous input signals. The input signals are put into an RBF network, and then, the outputs of the RBF network are put into a sigmoid-based multilayered neural network. After learning based on back-propagation, the localized signals by the RBF network are integrated and an appropriate space for the given learning is reconstructed in the hidden layer of the sigmoid-based neural network. Once the hidden space is constructed, both the advantage of the local learning and the global generalization ability can exist together. Therefore, for further implementation, we will use the sigmoidal activation function in the initial layer.

The problem with RBF networks is to select the number of radial-basis functions required for approximation. This becomes a critical factor in the use of RBF networks in identification and control tasks where information required to determine the dimension of RBF networks is generally absent. The number of necessary radial-basic functions increases exponentially with increasing the number of input variables, with increasing n. This allows us to make the next conclusion that RBF networks can be applied only in those problems where the dimension of the input set r is limited and known (there is no such restriction in multilayer neural networks).

The rest of the paper is structured as follows, Sect. 2 reviews existing hardware implementation artificial neuron RBF network on FPGA in more detail, formulation of the problem and aim of the work, Sect. 3 provides a description of the proposed method and algorithm for hardware implementation of an artificial neuron of the RBF network on the FPGA, Sect. 4 presents the results and discussion, and finally Sect. 5 summaries the conclusions and discusses future work.

As noted above, the RBF networks are universal approximators and, with slight restrictions, can be applied to approximate any continuous function. RBF networks in their structure refer to two-layer networks, which use a hidden layer with a fixed nonlinear transformation of the input vector with constant weight coefficients. This layer carries a static display of input variables \({\mathbf{r}} \in R^{n}\) in new variables \({\mathbf{q}}_{1}^{(l)} = {\text{col}}(q_{1}^{(l)} , \ldots , \, q_{m}^{(l)} )\).

One of the problems of hardware implementation of neural network control systems based on RBF networks is the implementation of an artificial neuron and its nonlinear activation functions using an FPGA. Existing approaches to the digital implementation of nonlinear functions use different methods of approximation, such as tabular method, Taylor series, piecewise linear approximation and BRAM method [37‐52]. Taylor series require many multiplications and therefore unacceptable for implementation in FPGA, since the multiplication block occupies a large amount of resources [38, 39, 44, 49]. So the best method for the implementation of activation functions of a nonlinear type is a piecewise linear approximation.

This paper [46] discusses the hardware implementation of the RBF type neural network, the architecture and parameters and the functional modules of the hardware-implemented neuroprocessor. An RBF type hardware-implemented network with three inputs has been developed. The neural network was implemented on an XSA-3S1000 development board. The system was designed in VHDL language, with the Xilinx WebPack program. In the paper [47], hardware-implemented artificial neural network used for trajectory control of a mobile robot is presented. As controller RBF type hardware-implemented artificial neural network in [46] has been used.

This study [48] presents a digital hardware implementation of an RBF network with learning mechanism. A high accuracy method, which combines Taylor series expansion technique and LUT technique to compute the Gaussian function in RBF network, is proposed. Computational ability for a complicated RBF network is presented by using the digital hardware implementation. For example, an RBF network with three inputs, five neurons, one output and one learning mechanism structure that the computational time only needs 500 ns in performing the function of the forward computation. Implementation is based on the Altera FPGA kit (DE2-Cyclone IV—EP4CE115F29C7).

This paper [49] presents the hardware implementation of the floating-point processor to develop the RBF function neural network for the general purpose of pattern recognition and nonlinear control. The floating-point processor is designed on a FPGA chip to execute nonlinear functions required in the parallel calculation of the back-propagation algorithm. The paper uses the 50th order in the Taylor series to approximate a nonlinear function. This approximation requires a large amount of computing resources.

In paper [50], the implementation of RBF network, which is used for image recognition, has been presented. Several implementations of the neural network on the Xilinx FPGA Virtex 4 with indicators for estimating the speed and occupied resource of the FPGA chip have been presented.

In [51], the hardware implementation on FPGA RBF neural networks using fixed-point numbers has been described. Speed RBF neural networks with hardware implementation on the FPGA and used chip resources for different formats of fixed-point numbers have been presented. The hardware implementation of the RBF neural network is made using a chip Virtex-6 xc6vcx240t-1ff1156.

In [52], the machine vision system in real time has been described, which allows you to locate faces in video sequences and verify their identity. The machine vision system is based on image processing methods and RBF neural networks. The reliability of this system has been quantified in eight video sequences. The paper describes three hardware implementations of the machine vision system in real-time embedded systems based, respectively, on the FPGA, computers with zero instruction set (ZISC) and digital signal processor (DSP) TMS320C62. The success rate of face tracking and identity verification is 92% (FPGA), 85% (ZISC) and 98.2% (DSP), respectively. For the three embedded systems, the processing speed for 288 × 352 images is 14 images/s, 25 images/s and 4.8 images/s, respectively.

The aim of this work is to increase the speed of RBF neural networks by developing a method of parallel hardware implementation on the FPGA, with minimal use of computing resources.

In the paper [53], a general method for the implementation of nonlinear activation functions of artificial neurons has been developed and described. The algorithm has been developed for the implementation of an artificial neuron with the sigmoid activation function, and the learning of hardware neurons and neural networks implemented on the FPGA.

For the implementation of the Gaussian activation functions of RBF neural networks, the method [30, 43] has been modified. The modified developed method is as follows.

At the first stage, the study of the activation function is carried out on symmetry with respect to the axes. If the condition is fulfilled:we can consider \(f\left( x \right)\) only for positive arguments. For its negative values of the argument of the activation function, its value can be found by the formula (4). That significantly accelerates the calculation of the value of the function and reduces the occupied resource of the FPGA.

To approximate the activation function, we set the piecewise linear function at each of the intervals \(\left( { - \infty ;x_{1} } \right),\left( {x_{1} ;x_{2} } \right); \ldots \left( {x_{n} ; + \infty } \right)\) with the separate formula. The general description of the piecewise linear approximation of the activation function is:

For each linear function, the coefficients k and b are introduced, which are written in a chip memory (RAM). Then, the calculation of value \(f\left( x \right)\) is performed according to the formula (5). For the input value x of the activation function, the coefficients k and b of the formula are selected from the memory (5). If the argument of function \(f\left( x \right)\) has a negative value, the final value of the function \(f\left( x \right)\) is calculated by the formula (4).

One of the main problems with the hardware implementation of the RBF network is the implementation of hidden layers and nonlinear activation functions \(f_{i} \left( r \right)\), in particular the implementation of the Gaussian function.

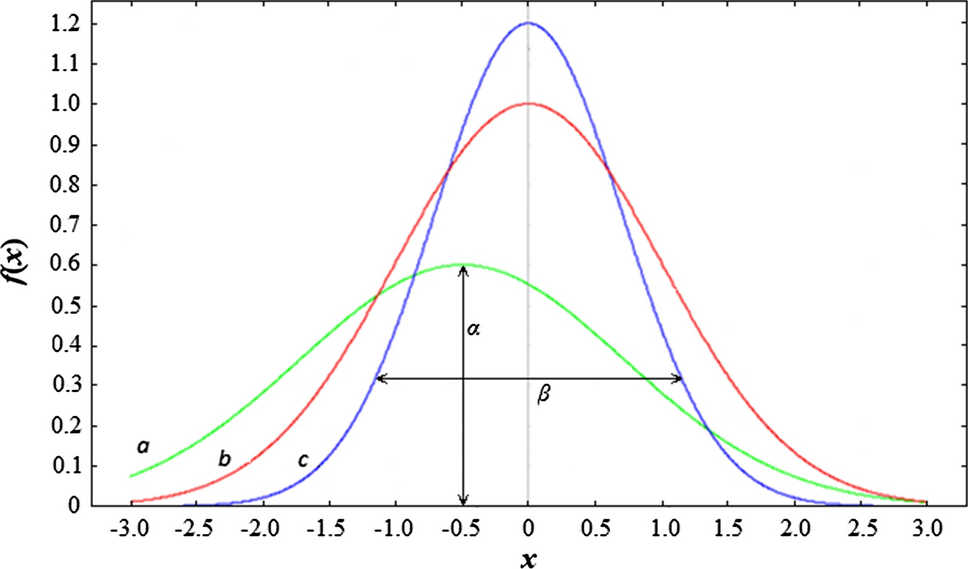

The Gaussian function, the graphical representation of which is shown in Fig. 3 is described by the formula:where \(\alpha\)—the height of the function, \(\beta\)—the shift of the function along x-axis and σ is the decay rate of the function when the vector is removed from the center.

Let us consider the features of the Gaussian functions graphically represented by the curves a, b, c in Fig. 3. So, the Gaussian function, which corresponds to curve a, has a low decay rate and a biasing along the x-axis. In this case, the expression (6) becomes the following:

In turn, the curve b has a more elongated shape and is not shifted relative to the x-axis. The expression (6) of the Gaussian function, to which it corresponds, becomes the following:

Finally, the curve c has a more height and is not shifted relative to the x-axis. The expression (6) of the Gaussian function, to which it corresponds, becomes the following:

The coefficients of the formula (6), which give Gaussian function the desired properties, for example, one of the combinations of such properties is illustrated by the curves a, b, c in Fig. 3, are determined by learning the neural network.

For hardware implementation of ANN, for inputs, weights and activation functions it is necessary to take into account the format of numbers that will be used (floating point or fixed point) and the number of bits (accuracy), which can range from 16 bits, 32 bits or 64 bits, number format floating-point or fixed-point format. Increasing the accuracy, the number of bits per number significantly increases the resources used.

The format of floating-point numbers requires significant hardware resources but has high accuracy, while the format of fixed-point numbers requires minimal resources but has poorer accuracy. The minimum allowable accuracy and the minimum allowable range should be determined to optimize the hardware resource used and the computational speed without affecting the ANN performance. The accuracy of numbers with a fixed point does not depend on the number, but depends on the position of the point, what the number of numbers will be allocated to the whole part and how many to the fractional. In [40], it was shown that the need for hardware resources of networks implemented using fixed-point numbers is significantly less than when using floating-point numbers with similar accuracy and range of values. Also, fixed-point calculations provide better convergence for smaller clock cycles. For normalized input and output in the range [0, 1] for the implementation of the nonlinear activation function, a 16-bit representation of numbers with a fixed point is acceptable accuracy.

We propose the following step-by-step algorithm for hardware implementation of FPGA artificial neuron RBF network with hidden layer and Gaussian function activations. The steps of this algorithm for implementing the artificial neuron of the network are described in detail below.

Step 1. Submit the corresponding value of the input vector on the input of artificial neurons and set the variable x. Numbers with a fixed point are used for implementation. Numbers are 16-bit, 9 bits are used for the decimal part, and 7 are needed for the fractional part.

Step 2. Calculate the module from the Gaussian function argument and define the variable x′:

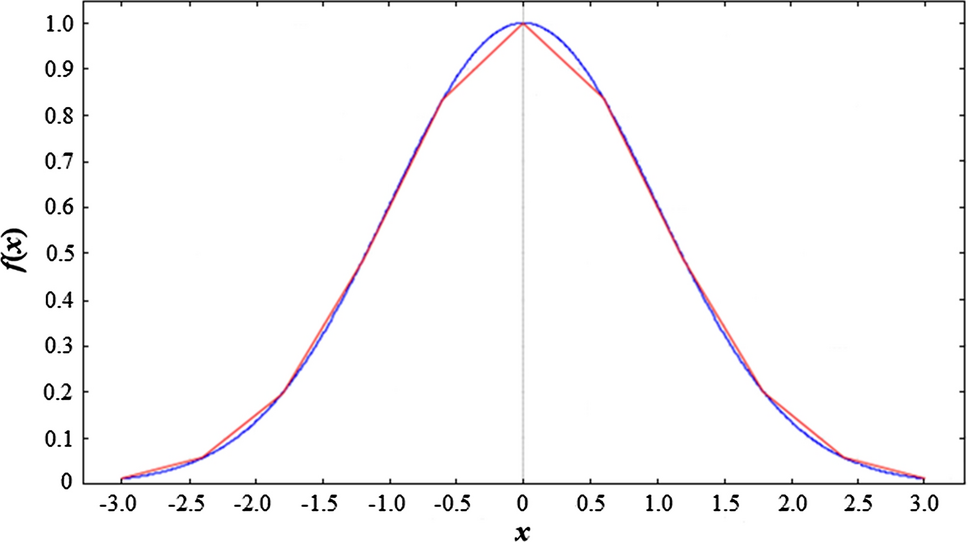

Step 3. Split the Gaussian activation function into linear pieces and determine the coefficients k and b of the linear equations. Piecewise linear approximation consists in finding the coefficients k and b of the equation such that all experimental points lie closest to the approximating straight line. The Gaussian function was divided into five linear segments, and the coefficients of these segments were calculated (11). The results of the piecewise linear approximation of the Gaussian function are shown in Fig. 4.

Determine the coefficients of the linear equations:

Step 4. Determine the variable f, calculate the values by the formula:

Step 5. Submit the resulting value of the function \(f\left( {x^{\prime } } \right)\) calculation on the neuron with a sigmoid activation function.

The hardware implementation on FPGA of the Gaussian activation functions of the hidden layer of the RBF network occupies 106 logic matrices (LUTs—Look Up Table), and the speed of the Gaussian activation functions is 29.33 ns. The detailed hardware resource results for Gaussian functions implemented on FPGA Xilinx Spartan 3—xc3s5000-4fg1156 chip shown in Table 1. Chips of this family is characterized by increased performance, a large volume of standard logical resources and specialized embedded hardware units at a relatively low cost. They are focused primarily on the use in mass-produced equipment. Chips of different families have different architecture and performance. In particular, the architecture of LUTs differs. In the chips of the Spartan 3 and Virtex-4 family, the logic cells are based on four input LUTs. Starting with the Virtex-5 and Spartan-6 series, the new chips are built on more complex six input LUTs. Detailed hardware specifications will be presented for the Spartan-3 family of chips. Also, the main characteristics, such as speed and resource used, for chips of other families will be presented.

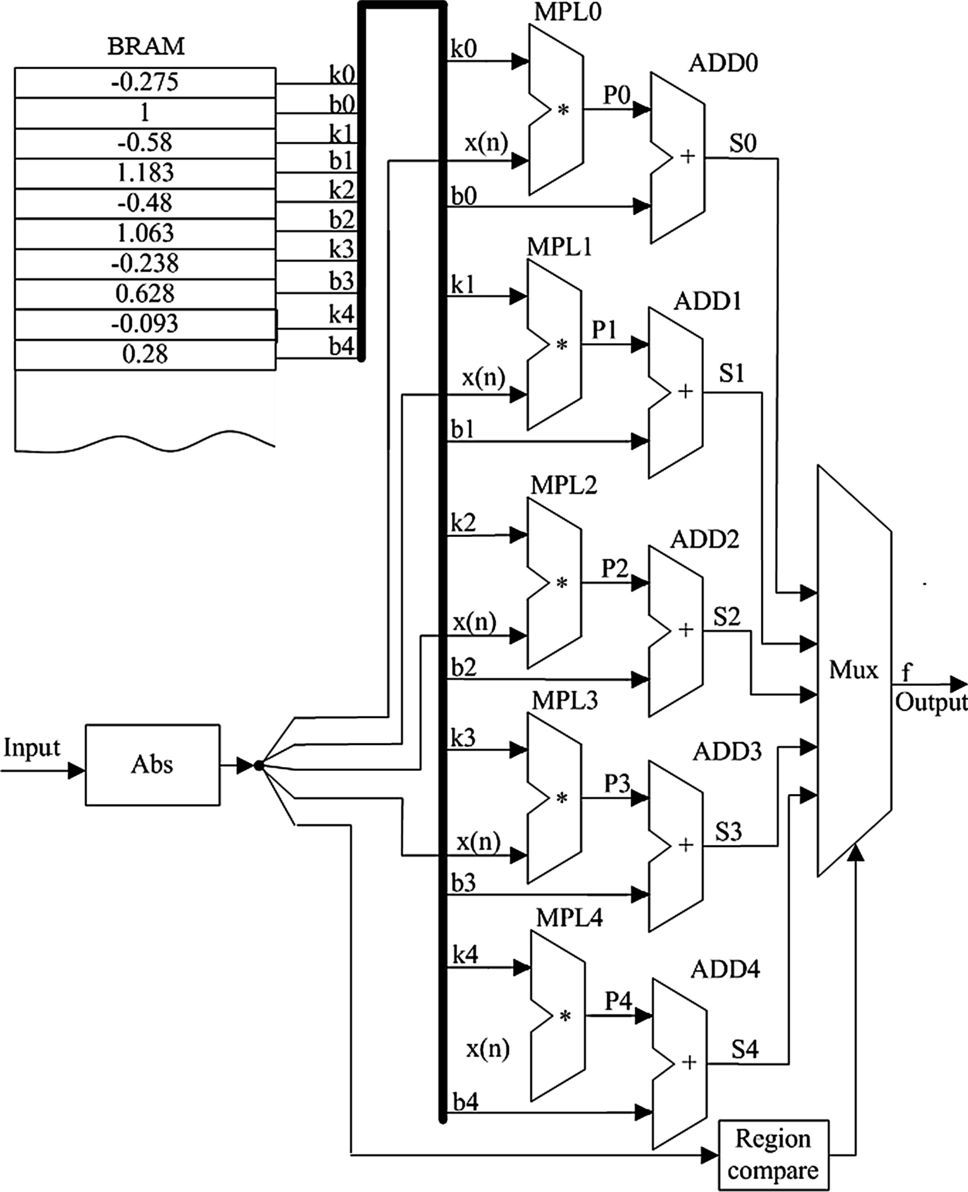

Figure 5 shows computational modules of the Gaussian function. The computational modules consist of a BRAM memory unit, which stores the coefficients of linear equations, a unit of calculation of the input value module (Abs), multiplication (MPL0-MPL4), addition units (ADD0-ADD4) and multiplexer (Mux).

With the help of the developed method, the Gaussian functions were modeled in FPGAs of different series. The results are shown in Table 2.

The general view of the RBF network with four hidden neurons and one neuron with a sigmoid activation function is shown in Fig. 5. Figure 6neur4sigm shows a neuron with a sigmoidal activation function and with four input values × 1, × 2, × 3, × 4. For training of a neural network in hardware block of a neuron special ports are provided. Special training ports are shown in Fig. 6 hardware block of the neuron neur4sigm: syngetw—port for reading the value of the weight of the synapse of the neuron; synsetw—input port for recording the value of the weight of the synapse of the neuron; synaddr—input port which indicates the synapse address of the neuron from which the value is currently read or written; synwren—port of permission of record of value of weight in a neuron, at input value 0 record of weight is forbidden, at 1 record of weight to-allowed.

Let us take a closer look at the hardware component implemented by the developed method on the FPGA, Fig. 6. This is an RBF neural network with four intrinsic neurons with Gaussian activation functions and one neuron with a sigmoid activation function. The neuron of the output layer has four inputs, respectively, and four weights. Weighting factors, as well as coefficients of linear approximation of activation functions, are written in the BRAM memory of each neuron.

The detailed results of modeling the 4–1 network using 16-bit numbers with a fixed point on FPGA Xilinx Spartan 3—xc3s5000-4fg1156 chip are presented in Table 3. Each hidden layer neuron of the RBF network is designed on an FPGA as a separate computing unit. The speed as a total delay of the combination scheme of the block RBF network is 101.579 ns. The absolute error is ± 0.005. From these results, it can be seen that the number of LUTs increased by 63% when compared with one neuron of the sigmoid activation function, while the time increased by only 50%, due to the fact that the hidden layer neurons can be calculated in parallel.

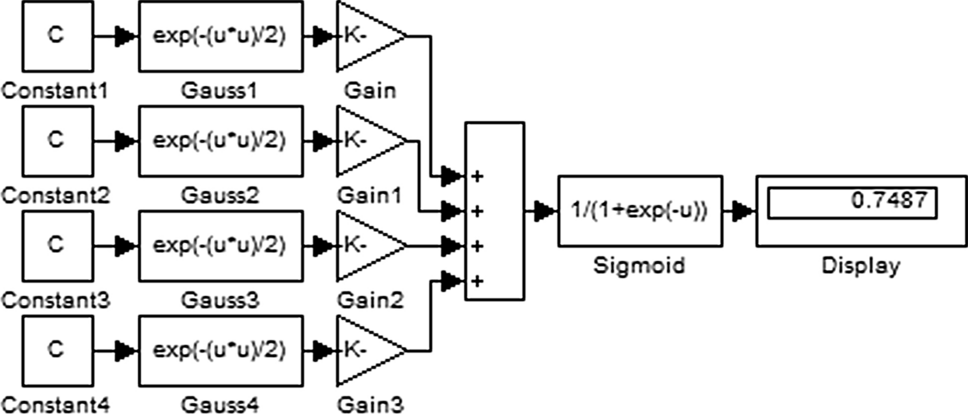

Synthesis and simulation of a neural network with four neurons of a hidden layer and one neuron with a sigmoidal activation function are performed on the software of the Xilinx ISE Design Suite 13.2 and ISE Simulator (ISIM) using the Spartan 3 family of chips. The Spartan 3 family chip has high performance, which involves the implementation of projects with system frequencies up to 326 MHz.

One of the main features of neural networks is parallel signal processing. Multilayer neural networks are a homogeneous computing environment. In the terminology of neuroinformatics, these are universal parallel computing structures designed to solve various classes of problems. Consider the basic principles of parallel signal processing on the FPGA and the concept of implementing neural networks on the FPGA.

In this regard, the method of conveyor processing is of interest, because when used, the processor can simultaneously process several instructions or data packets. To do this, the whole procedure of processing one command is divided into several stages, at the end of each of which the result is stored in temporary registers, through which the individual stages pass and switch between them.

Moreover, the known method of internal cycle’s deployment in some cases can lead to a significant increase in productivity. The essence of the method is to present cyclic processing algorithms with a finite number of iterations in the form of a long combinational chain, which is processed in one cycle.

In real multiprocessor systems, the processing of input instructions is done by more than one processor, which allows you to implement completely parallel processing.

In each neuron with a sigmoidal activation function, the process of multiplying the input value by the weight of the synapse is separate parallel processors. Calculating the multiplication of the input value by the weight of the synapse, finding the sum of these values and calculating the activation function work parallel on the principle of the conveyor.

In VHDL, each parallel process is represented by a separate operator process(in), when the input value in changes, the calculation begins in the block process(in).

VHDL code is synthesized by an automated design system Xilinx ISE Design Suite into an electrical digital circuit, which is then configured in the FPGA.

In the hardware implementation of RBF networks on the FPGA, each layer of the network works in parallel with the other, here the principle of the conveyor is used. Neurons in each layer also work in parallel on the principle of multiprocessor data processing. That is, each artificial neuron of the network is a separate processor and the processing of information in each neuron takes place simultaneously.

The artificial neurons have been configured according by the developed method in the FPGA of different series. Table 4 shows the results of this configuration.

The developed method of hardware implementation of the neuron and neural networks allows regulating the accuracy of calculations for different tasks, determining the occupied resource of the FPGA in the number of gate valves of the logical matrix LUTs.

One of the main features of the neural network is the parallel processing of signals. Multilayer neural networks represent a homogeneous computing environment. In terms of neuroinformatics, a neural network is a universal parallel computing structure, designed to solve a variety of task classes.

The hardware implementation of artificial neural networks into the FPGA means that each layer of the network can work in parallel with another. This allows using the principle of the conveyor during calculations. Neurons in each layer also work in parallel with the principle of multiprocessor data processing. That is, each artificial neural network is a separate processor and the processing of information in each neuron passes simultaneously.

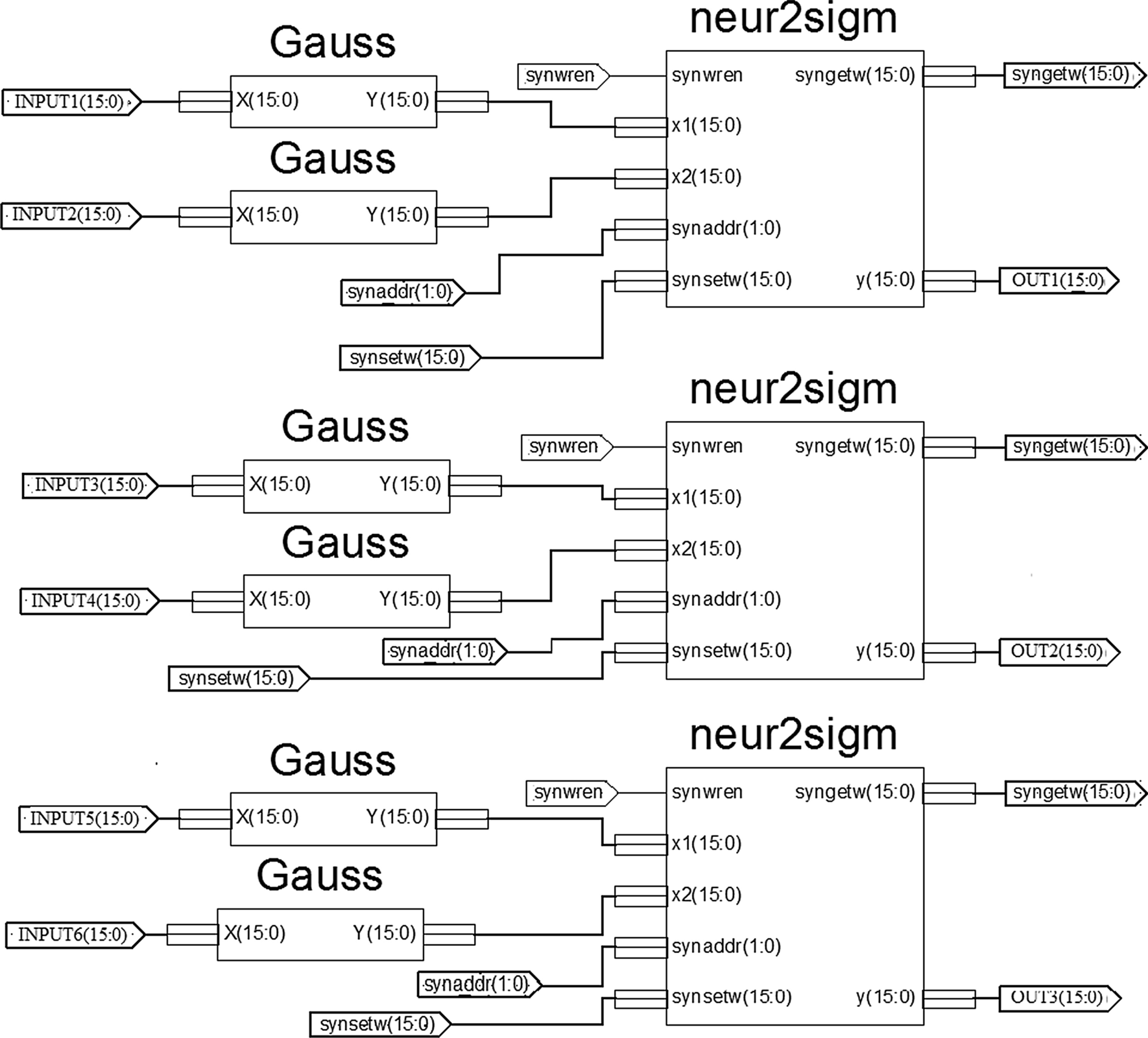

Each neuron is represented as a separate block, as shown in Fig. 7, which in turn consists of several parallel processes, and the neural network is a multiprocessor system. The programming language allows you to explicitly specify the signals that start the process. To start the process of calculating a neuron, the input signal of this neuron is used.

Testing of hardware-implemented RBF networks was as follows:

Table 5 shows the results of the research of the RBF neural networks implemented on FPGA Xilinx Spartan 3—xc3s5000-4fg1156 chip obtained by means of the developed method. The table presents the neural networks of various architectures, the resources used by them and their speed. The topology of neural networks is represented by two numbers, where the first number is the number of Gaussian functions in the input layer, and the second—number of neurons with sigmoid activation functions in the initial layer. To obtain the error of the hardware-implemented RBF network in the FPGA, a test model was collected in the software package MATLAB, Fig. 8. Testing of the neural network implemented on the FPGA was performed in specialized software ISE simulator (ISIM). System-level testing was performed with ISIM logic simulator, and such test programs also written in HDL languages. Test bench programs include simulated input signal waveforms and monitor which observe and verify the outputs of the hardware component under test. ISIM was used to perform the following types of simulations: logical verification, to ensure the hardware component produces expected results; behavioral verification, to verify logical and timing issues; post-place and route simulation, to verify behavior after placement of the hardware component within the reconfigurable logic of the FPGA.

Table 5 presents the output values of the RBF network implemented on the FPGA, and in MATLAB, with the same RBF network inputs and parameters, their difference in the column ‘Error.’ When configuring RBF neural networks, the Spartan 3 family chip is used. The values obtained in LUTS may vary slightly when the constants are changed, which define the synaptic weights of the neurons.

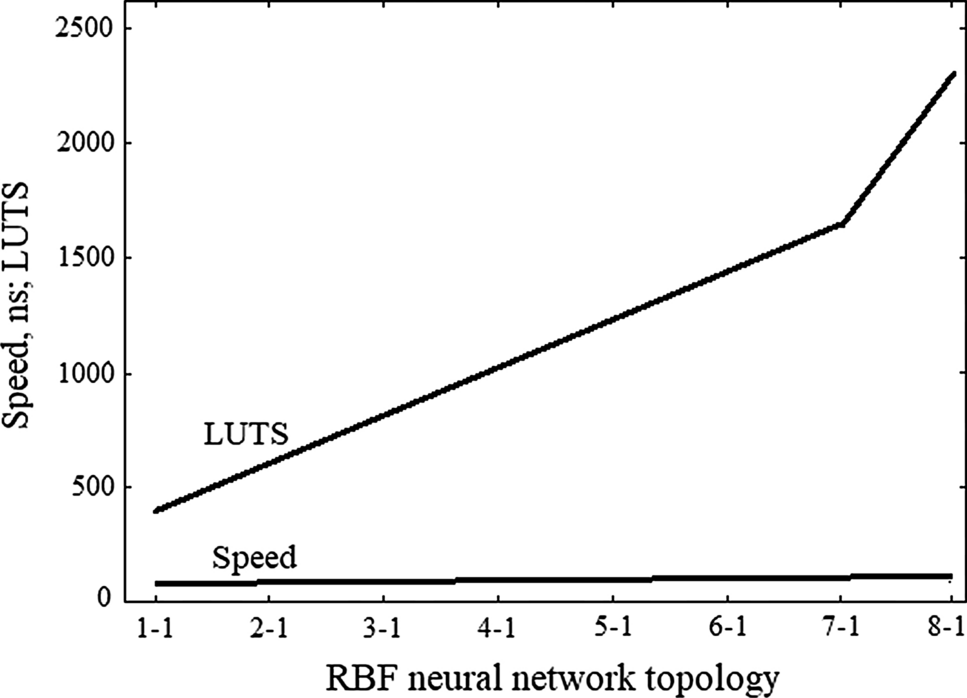

Figures 9 and 10 show the dependence of the amount of used resources on the number of neurons and the speed of the RBF neural network on the number of neurons. As it can be seen with the increase in the number of neurons in the network, the performance is almost unchanged since each neuron and computational operations in it are separate parallel processes.

The method of designing nonlinear Gaussian activation functions of an artificial neuron of the RBF neural network on an FPGA using VHDL is developed in the work. Implementation of the Gaussian function by this method takes as much of the used resource LUTs of the FPGA chip as in the works [46, 47], but allows significantly reduce memory usage from 9 to 1 bloc BRAM. That will increase the number of network neurons when using the same amount of hardware resources. That will solve more complex problems using neural networks. Indicators of the speed of hardware units with neural networks in the works [46, 47] are not specified.

Table 6 presents a comparison of the results of modeling the RBF neural network on a chip implemented by the closest known analogue [51] (Analog) and implemented RBF neural network according to the developed method and algorithm in this work (Proposed). The simulation was performed on the same chip Virtex-6 xc6vcx240t-1ff1156.

As it can be seen from Table 6, the implementation of the developed method and the algorithm has a higher speed and requires less of used resource chip. The implemented neural networks in this work used nonlinear, sigmoidal functions of the source layer in contrast to the linear ones in a similar work [51].

Hardware implementation of neural networks RBF provides high-speed information processing. This allows them to be used in real-time computing systems for controlling high-speed objects. In particular, such calculators can be used to create control systems in robotics, drone control, vehicle control, pattern recognition, analysis and decision-making in the Internet of things systems, spacecraft control, military equipment, and many other different applications in modern technology. In these systems, they will help solve the problem of recognition, control, approximation and classification of received data from video cameras and sensors.

This paper presented a novel approach to increase the speed of RBF neural networks by developing a method of parallel hardware implementation on the FPGA, with minimal use of computing resources. In the future work, the hardware component of training of neural networks on FPGA will be developed and investigated. A model of the current neurocontroller of the high-speed object control system in real time will be developed. The central element of the controller will be the FPGA. The controller will include regulators based on the neural networks developed in this work and components of their training.
