Model-based analysis of the limits of recycling for its contribution to climate change mitigation

The Circular Economy (CE) concept and its main strategy recycling have gained momentum. Meanwhile they are considered as one of the most important measures to achieve sustainable development (Ghisellini et al. 2016; Murray et al. 2017) and are anchored in numerous national (Kalmykova et al. 2018; Lieder and Rashid 2016) and supranational strategies, action plans and laws (EC 2014, 2015, 2020). Famous book publications such as Cradle-to-Cradle (Braungart and McDonough 2002) and, in particular, the work of the Ellen MacArthur Foundation (EMF 2012, 2013a, 2013b, 2014; Webster 2017) are making a significant contribution to the growing importance of the CE concept in the corporate and social environment and are promoting the vision of completely closed material cycles (Lazarevic and Valve 2017).

Meanwhile, in the literature, many scientists express their concerns about the inconsistencies in the conceptualization of CE as well as its contribution to sustainable development (Allwood 2014; Blomsma and Brennan 2017; Bocken et al. 2017; Cullen 2017; Kirchherr et al. 2017; Korhonen et al. 2018b). A broad literature review by Geissdoerfer et al. (2017) concludes that three opinions can be found on how CE activities and sustainable development might be related: (1) conditional, (2) beneficial and (3) as a trade-off relation. The first two imply that the more advanced the CE, the more it contributes to sustainable development. The trade-off relation assumes that the contribution of CE to sustainable development has not necessarily to be positive, but can also be negative above a certain level. This unclear situation of the CE concept is aptly summarized by Korhonen et al. (2018a): “CE is important for its power to attract both the business community and policy-making community to sustainability work, but it needs scientific research to secure that the actual environmental impacts of CE work toward sustainability.” In other words, it must be ensured that CE works as a means to climate change mitigation and sustainable development, and not an end in itself.

The concerns raised by the scientific community are, of course, not unfounded. Over the last decades, products were become more and more complex and the material used to ensure their functionality increased in number. Moreover, the concentrations of the materials used decreased, inter alia due to miniaturization and material efficiency measures. It is known that these developments hinder recycling (Dahmus and Gutowski 2007; Johnson et al. 2007). It is also known, based on physical laws, that the concentration of a material in particular affects the energy requirements of its extraction (Moreau et al. 2017). These energy requirements are directly linked to greenhouse gas (GHG) emissions, and in the case of cumulative energy demands (CEDs), also to several other environmental impacts (Huijbregts et al. 2010). As long as the energy production system is mainly based on fossil fuels, and this is definitely the case for the following decades (IEA 2020), this situation will only slightly change. This issue is intensified by the fact that not only resource extraction requires energy, but energy production also requires resources. Especially for renewable energy technologies the resource consumption is particularly high (Kleijn et al. 2011; The World Bank 2020; IEA 2021).

To make a contribution to this ongoing discussion on CE we focus in this article on how metal recycling relates to climate change mitigation. Metals are of high relevance in this context as their production contributes with up to 10% significantly to annual global GHG emissions (IRP 2019), which is due to the high energy demand of this sector with up to 7% of global (IEA 2019). In future, the society’s metal demand will increase, especially if the sustainable development goals (SDGs) will be pursued (Elshkaki et al. 2018). A recent study shows that despite progress in low-carbon metal production, it will be very difficult to achieve the 2 °C climate target while meeting society’s metal needs. CE strategies, especially recycling, are definitely important measures to mitigate this problem (Watari et al. 2020). However, the assumption that increasing end-of-life recycling rates (EOL-RRs) to their theoretical maximum will lead to constant GHG emission reduction in overall metal production, like done in Watari et al. (2020), van der Voet et al. (2019) or Ciacci et al. (2016), is quite uncertain in regard to the developments described above. Since it is already an enormous challenge to achieve the 2 °C target without neglecting societal metal needs, it is important to ensure that too high EOL-RRs do not further thwart climate goals. Because optimizing EOL-RRs for climate change mitigation does not necessarily mean maximizing EOL-RRs.

In this article, we summarize the results of the previous works of the authors (Schäfer 2021; Schäfer and Schmidt 2020) in the three consecutive chapters. First, we show how metals getting diluted during their use phase in the technosphere and how this relates to their EOL-RRs. Second, based on data from life cycle assessment and substance flow models, we present how the energy requirements relate to increasing EOL-RR for copper as an example metal. Using this data for a comparative analysis with the energy requirements for primary production of copper, we determine energetic optimized EOL-RRs for the scope of Germany and the year 2014. Third, we integrate the results from the previous chapters in a more holistic perspective.

Metals can be produced from two sources: from ores (primary sources), so called primary production or from end-of-life products (secondary sources), so called recycling or secondary production. Secondary sources can be very different in their material composition and metal concentrations. This becomes clear after a brief contemplation of all existing products and infrastructures were metals are incorporated. Like secondary sources, primary sources also differ from each other, although the range of their metal concentrations is rather small. An analysis of the concentrations of 48 metals in their primary and secondary sources is depicted in Fig. 1. For the mentioned reasons, the secondary sources are considered differentiated, while the primary sources are indicated by an average concentration for each metal. Each data point therefore displays the concentration of a metal in one of its secondary sources in relation to the average concentration of its primary sources. Additionally, for each metal in each secondary source the current global EOL-RR is included by the shape and color of the data points.

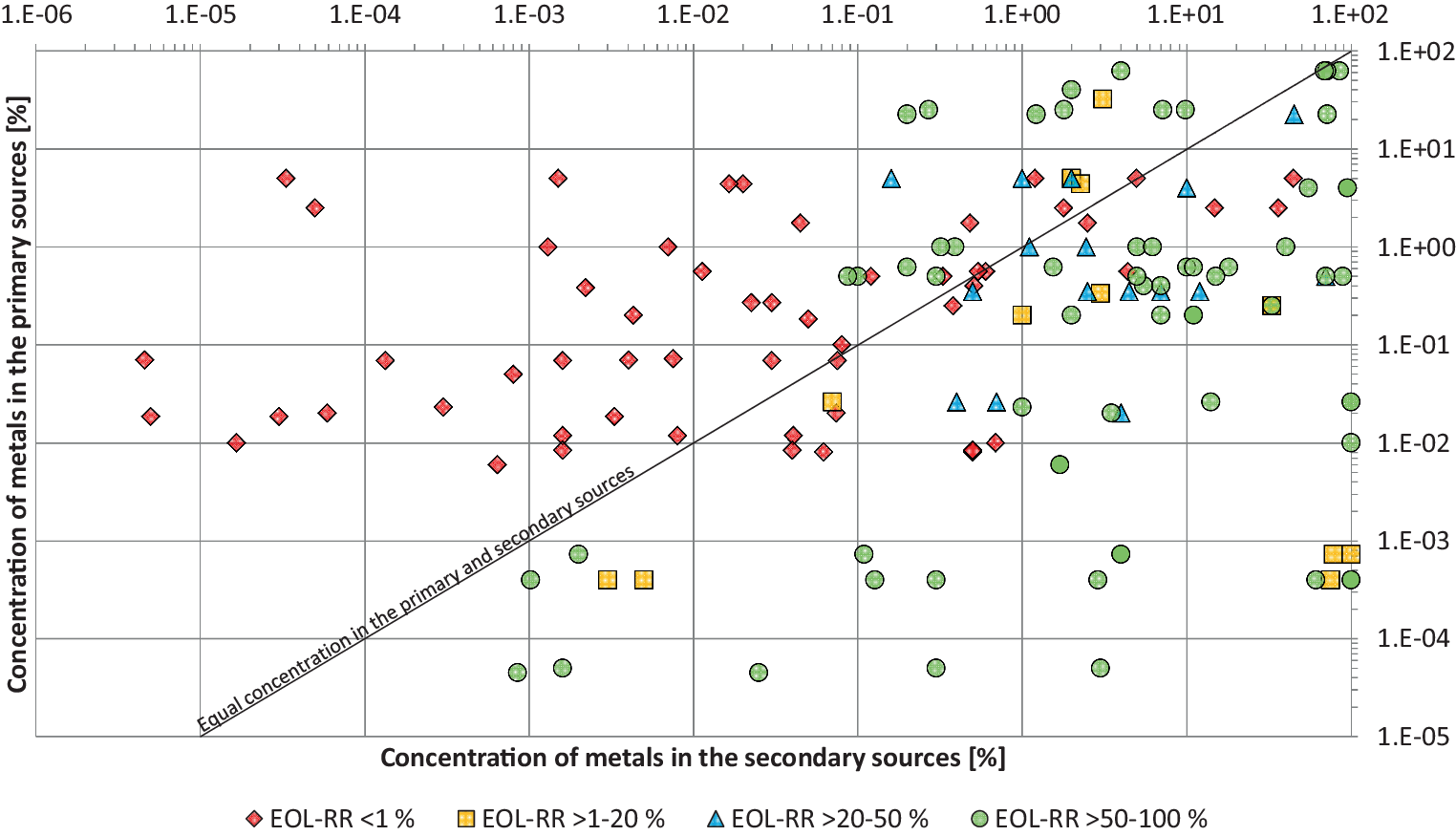

The analysis in Fig. 1 provides three important information. First, it illustrates that the metal concentrations of the secondary sources can vary greatly and are in most cases quite low. Second, in several cases metals are more dilute in secondary sources than in primary sources, in some cases by magnitudes. This is especially true for specialty metals that are needed for advanced technologies. Third, the EOL-RR of a metal seems to be determined by the concentration ratio of primary and secondary sources. If a metal is higher concentrated in a secondary source than in its primary source, recycling tends to occur and vice versa. Especially for higher concentrations, however, there are several exceptions from this tendency, which we address in Chap. 4.

Since the concentration of a material directly determines the energy required to extract it, as we mentioned in the introduction, this analysis is a first indication that recycling could in some cases require much more energy resulting in higher GHG emissions than alternative primary production.

In order to shed light on the issue, further sharpened in the previous chapter, of whether recycling above a certain EOL-RR is counterproductive for climate protection, this chapter takes a closer look at the example metal copper. To capture GHG emissions as well as other environmental impacts of primary and secondary copper production, we use the CED as an indicator (Huijbregts et al. 2006). In the following analysis we will answer two questions: (1) how the CED of copper recycling relates to its EOL-RR and (2) is there a point at which the CED of copper recycling exceeds the CED of its primary production?

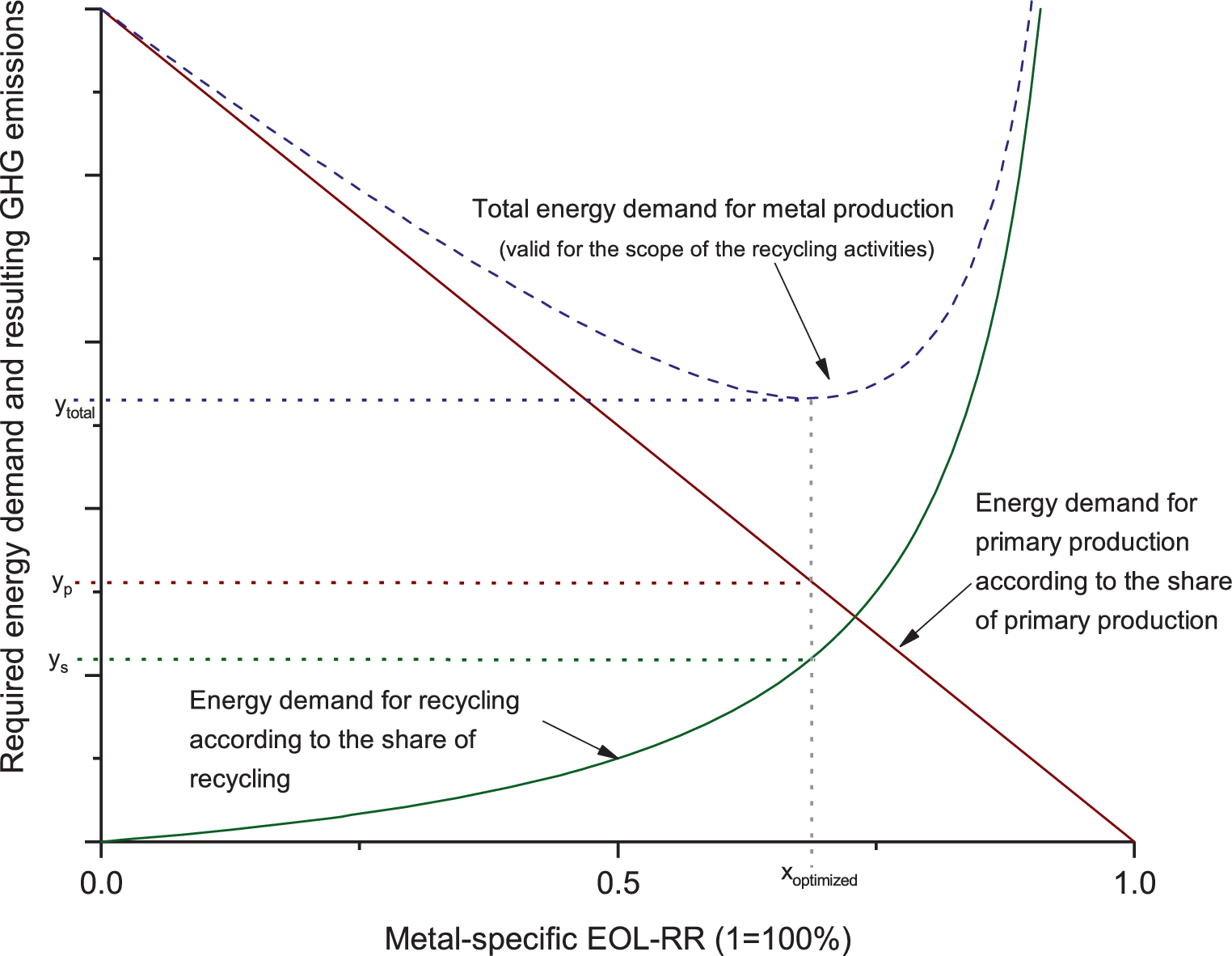

To determine whether recycling a metal from a specific secondary source is more energetically advantageous compared to primary production, no special method is required. A simple comparison of the two options is sufficient. In contrast, determining an energetically optimal EOL-RR of a metal for a specific scope (time period and region) requires a methodological approach. The basis for this method is provided by the article by Stumm and Davis (1991), its graphical illustration is shown in Fig. 2. The general consideration of this method is that the quantity of a metal in all its available secondary sources can be provided by recycling these sources or else by primary production. The CED associated with recycling increases disproportionately with an increasing EOL-RR. This is due to the assumption that the high-quality secondary sources are exploited first—i.e. the sources with high metal concentrations. Further EOL-RR increases, the more diluted sources need to be exploited. To achieve an EOL-RR of 100%, all secondary sources have to be fully recycled, even those that contain only very small amounts of the target metal. In proportion to the EOL-RR increase, the CED of primary production is reduced by substitution with metal recycling and therefore linearly decreases. The addition of both functions results in the total CED of metal production, which is valid within the scope of the recycling activities. The minimum of this line indicates the optimal combination of primary and secondary metal production for a specific metal regarding the CED (i.e., the CED-optimized EOL-RR). Recycling beyond this point would lead to a further increase in the overall CED and therefore to negative trade-offs. From the qualitative description of Fig. 2, the CED-optimized EOL-RR is achieved at x_optimized. In this case, approximately 70% of the theoretically available metal mass in the secondary sources is recycled; the remaining 30% is produced from primary sources. The total CED to recycle 70% occurs at y_s, and the total CED of the remaining 30% of primary production is at y_p. The resulting y_total = y_s + y_p is thus the average CED of the total mass of metal production (equivalent to an EOL-RR of 100%).

Of course, due to the several different secondary sources of a specific metal, the description of the CED-EOL-RR relation by a function can only be an approximation in the best case. Therefore, for the following analysis we use discrete data points. The further assumptions underlying the method as well as further concrete mathematical descriptions can be found in the previous publications (Schäfer 2021; Schäfer and Schmidt 2020).

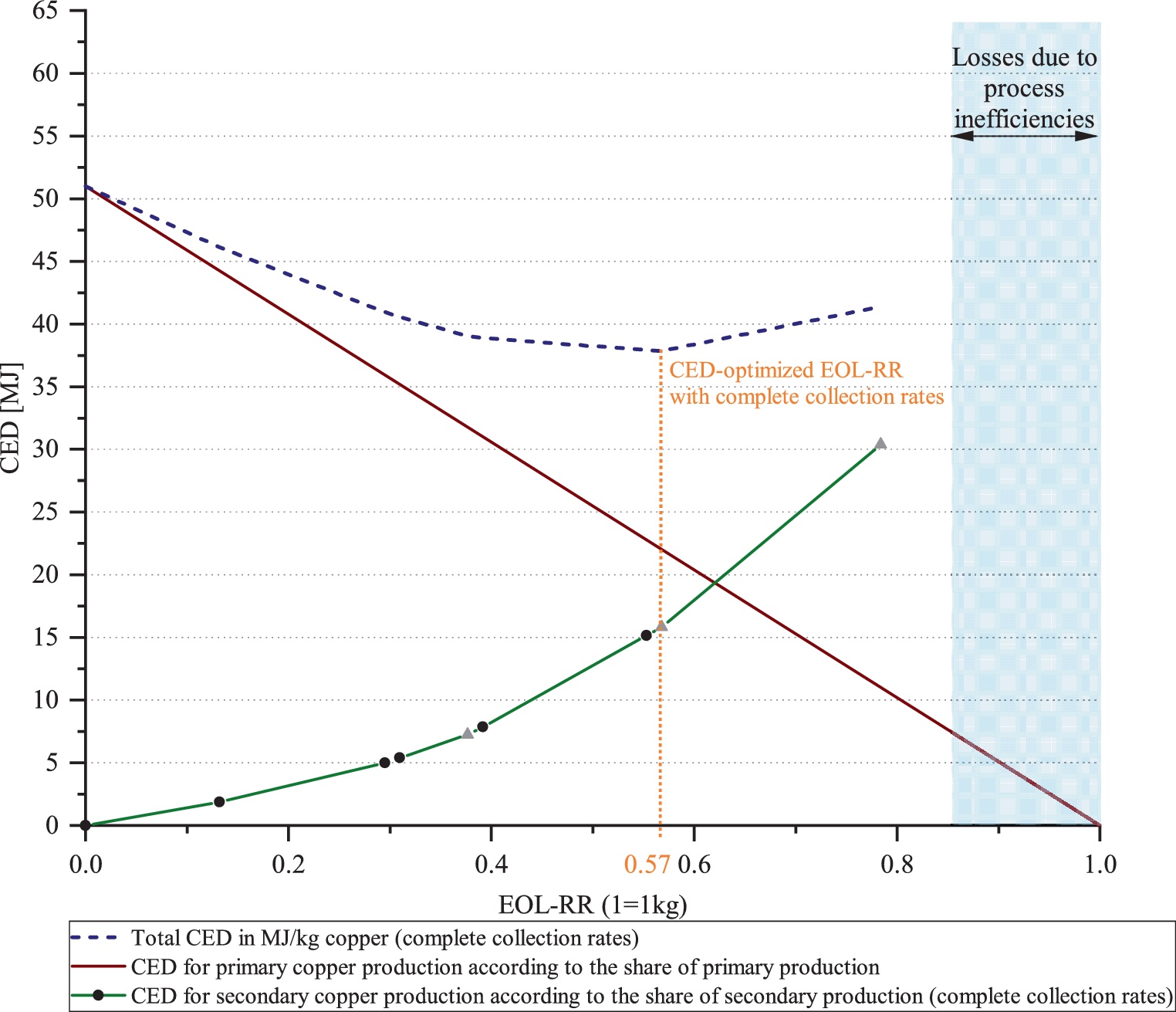

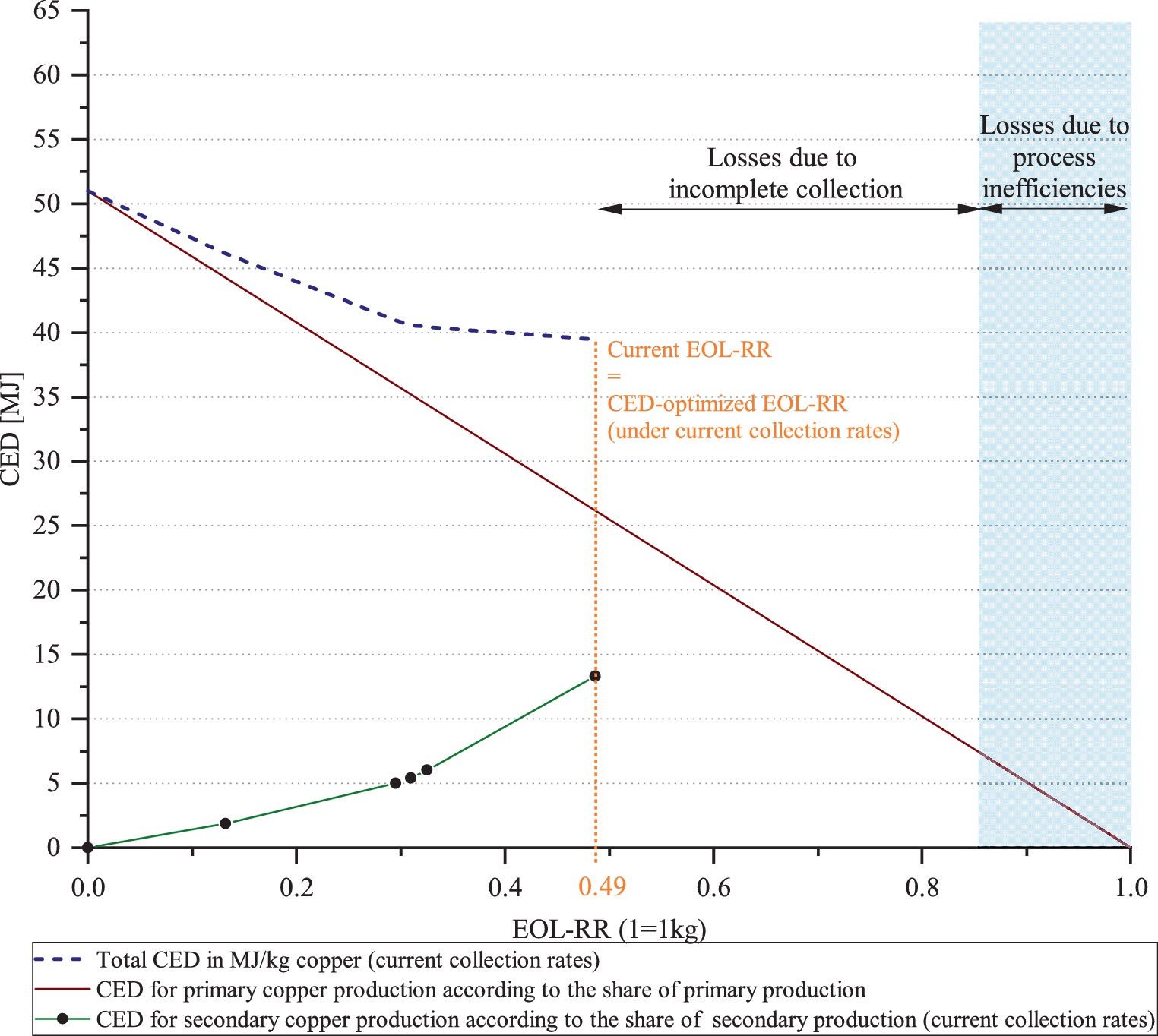

For applying this method to specific metals, extensive data is needed, generated in the previous works by life cycle assessment and substance flow models for three metals, copper, tantalum and cobalt. The results for copper for the scope of Germany and the year 2014 are displayed in Fig. 3. This analysis shows, that copper is currently recycled from all its secondary sources (every data point represents one secondary source), resulting in overall CED savings. Thus, the current EOL-RR of copper in Germany is the same as its CED-optimized EOL-RR, under the current collection rates and process efficiencies. The latter ones determine the losses during the mechanical and metallurgical recycling process steps. Nevertheless, the curve describing the total CED of copper production is almost horizontal in the range of the current EOL-RR, indicating that the CEDs for recycling the last secondary sources in the order is close to the CED of primary production. If further increases in e.g. process efficiencies lead to higher CEDs for recycling, recycling of the last sources may be more energy intensive than primary production. For increases in collection rates, we simulated different scenarios of how the increase in collection rate relates to the CED of collection. One scenario is shown in Fig. 4, which assumes that the CED for collection increases with the increase in collection rate. Under this scenario, the CED-optimized EOL-RR only slightly changes from 49% to 57% with complete collection rates. The amount of secondary sources which are additionally collected in this fictive scenario are displayed as separate data points (grey triangles). One of these data points is outside the CED-optimized EOL-RR. Due to its increased CED for complete collection, the recycling of this secondary source needs a higher total CED than the alternative primary production and would therefore lead to negative impacts on climate protection.

Of course, these analyses are based on models and are therefore only close to reality. Nevertheless, the results clearly indicate on an empirical basis that recycling is limited in its contribution to mitigate climate change; moreover, it can thwart it. Furthermore, copper as a bulk metal is relatively highly concentrated in its secondary sources and is therefore located on the right-hand side of Fig. 1 below or close to the diagonal line. Anyway, its recycling is already close to its limits. This seems to be a strong indication that recycling metals from secondary sources, which are located on the left-hand side of Fig. 1 and above the diagonal line, will probably increase climate change. However, there are several aspects that need to be considered. These are further discussed in the following chapter.

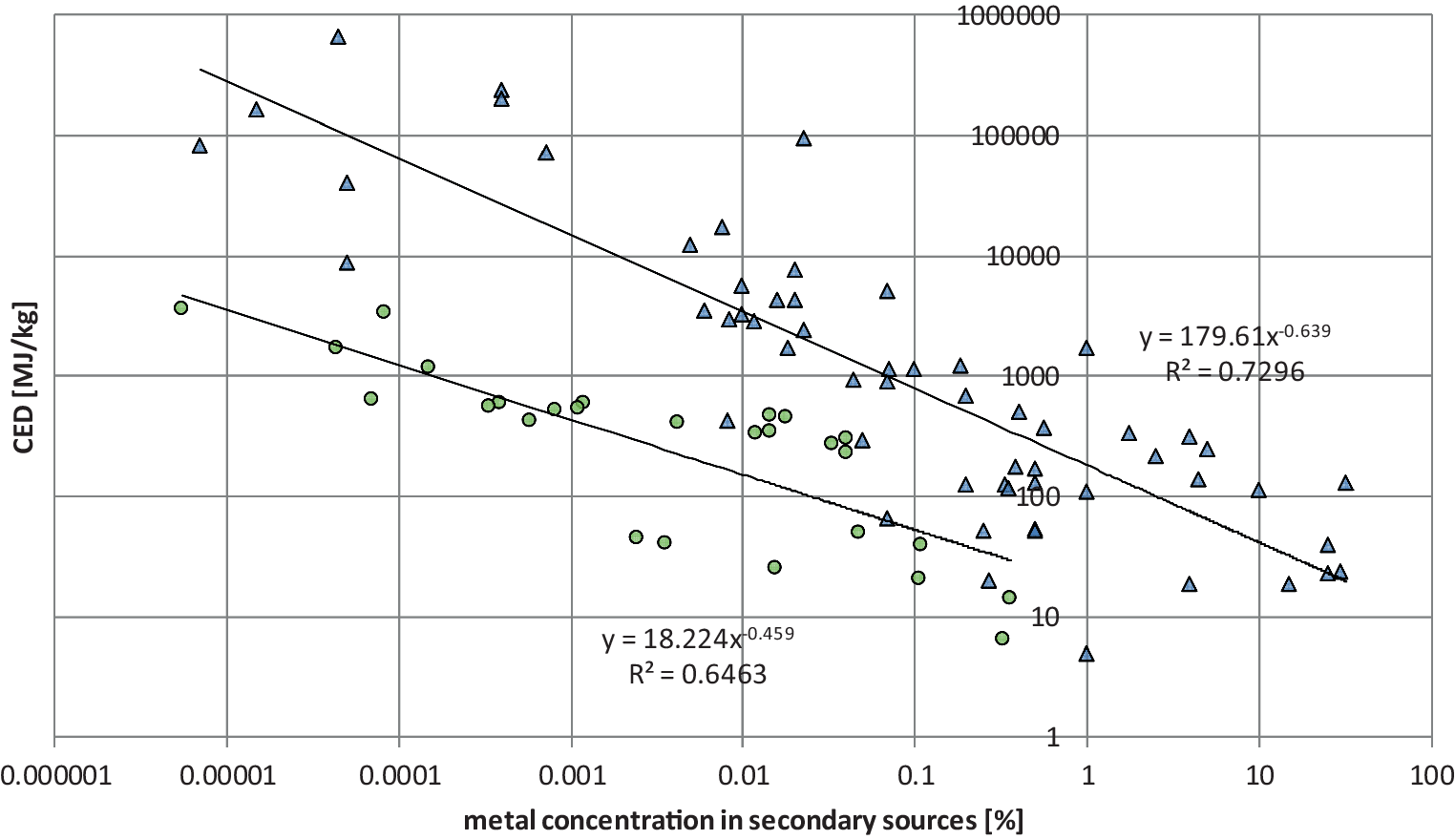

Besides copper, we have also modelled the recycling of tantalum and cobalt in our previous works and calculated the CEDs for recycling for each of their secondary sources. In the following Fig. 5 we have displayed all these calculated CEDs for recycling (copper, cobalt, tantalum) in relation to the concentration of the metal being recycled from its secondary source (green points). These values are compared to the CEDs and concentrations of the primary production of several metals (blue triangles). There are two main findings in this comparative analysis. First, the CEDs for metal production are dependent on the metal concentrations. This is true for both, the primary and secondary metal production. Second, the tendency can be seen that recycling requires less CED than primary production at the same metal concentration. This mainly is due to two effects occurring during recycling: dismantling and allocation effects. Dismantling effects are best explained by an example: tantalum is quite low concentrated in electronic products, but located on a specific component—the printed wiring board. With relatively small effort, this component can be dismantled and thus the tantalum concentration can be significantly increased. In case of primary production such effort efficient concentration increases are not possible. The ore has to be mined, crushed and further processed as a whole. Unlike the dismantling effect, the allocation effect also occurs in primary production. Secondary sources as well as primary sources usually consist of several different metals and materials. These metals and materials, are, if technically and economically feasible, produced together from their sources in so-called multi-output processes. To calculate separate CEDs for each of these metals, an allocation method is needed, as in most cases the metal production processes support the production of all metals at the same time, such as collection or mining and shredding or crushing. In our models, we followed the recommendation of ISO 14040/44 (DIN 2009, 2018) and the argumentation by Bigum et al. (2012) and used economic allocation for all processes that provide economic benefits. For all other processes, especially collection processes, which are in fact disposal measures of end-of-life products from an end-consumer perspective, we applied mass allocation. Secondary sources usually contain many more valuable materials, in number and mass, than ores do (in general, the largest proportion in ores is gangue), and thus more materials are usually produced or recycled within the same process chain. Therefore, allocation effects usually have a stronger impact in recycling processes than in primary production.

Of course, the findings of this comparative analysis are limited to a certain extent, as we only have data for the recycling of three metals. To minimize these uncertainties, the three metals analyzed were chosen as typical example metals (copper for bulk metals, tantalum and cobalt for specialty metals). Thus, despite a limited number of metals, a representative overview can be given. Nevertheless, there will be numerous individual cases that deviate from the identified tendencies. One example is indium in LCD screens. Its concentration in this secondary source is about 10–100 ppm (Ciacci et al. 2018). The indium concentration in the ores varies between 20 and 350 ppm and is therefore only slightly higher (Frenzel et al. 2017; Werner et al. 2018). However, according to the current technology, indium recycling from screens, which would be carried out by dismantling, inter alia, would require considerably more CED than primary indium production (Amato et al. 2017; ecoinvent 2016).

Since recycling is done by private companies, it can generally be assumed that recycling is only practiced when it is economical. In the past, the studies by Johnson et al. (2007) and Dahmus and Gutowski (2007) have already pointed out on the basis of exemplary studies that cost-intensive recycling only takes place for metals with correspondingly high market prices. The revenue that is achieved through these market prices must therefore be greater than the costs for recycling.

Fig. 1 in Chap. 2 shows that a metal from a secondary source tends to be recycled if its concentration is higher than that of the alternative primary source. This phenomenon is due to the fact that the concentration is directly related to the (energetic) effort required for metal recycling, which in turn is related to the costs. However, this illustration also shows that there are several exceptions, as we mentioned already in the previous chapter. Of course, one reason is that the concentration ratio can only be an approximate indicator for the energy requirements and therefore for the variable cost. In order to be able to operate economically, however, the degression of fixed costs (investment costs, etc.) is also crucial, which can only be achieved through correspondingly high revenues. The amount of metal available for recycling from a secondary source must therefore be sufficiently high, as well as the market price of the metal.

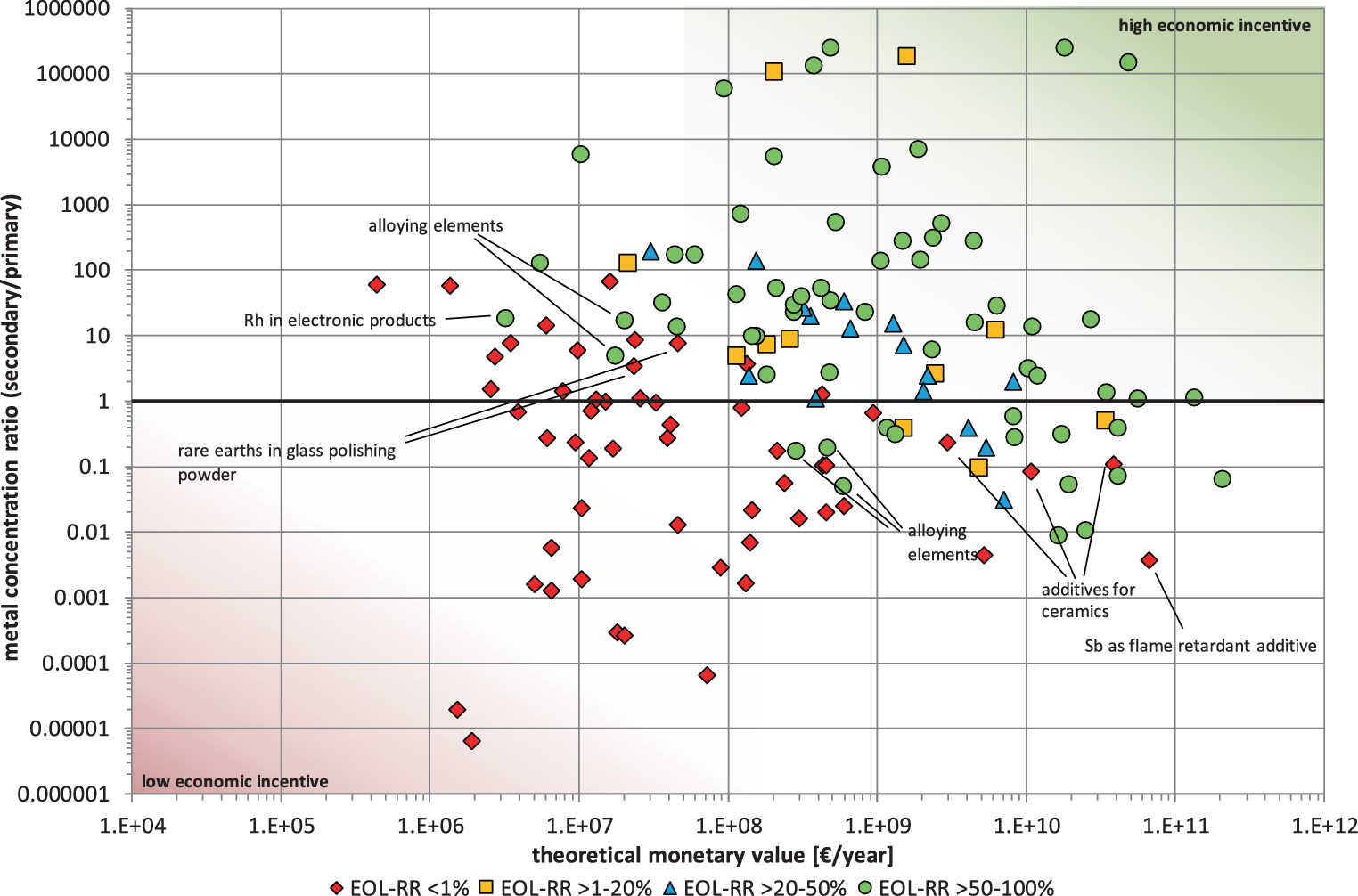

Fig. 6 is a modified version of Fig. 1. In this analysis we included the theoretically available monetary value of the several metals in its several secondary sources on the x‑axis. The concentration ratio is plotted on the y‑axis. If the ratio equals 1, the metal has the same concentration in its primary and secondary source. For values below 1, the metal is less concentrated in its secondary source than in its primary source; for values above 1, vice versa.

Fig. 6 shows that recycling tends not to take place when the available monetary values are low, even if the metal concentrations in the secondary sources are higher than in the primary sources. Exceptions here are precious metals, such as rhenium in electronic waste. These metals are produced as co-products via the copper production route (Langner 2011) and can be understood as side effects of the copper metallurgy that would also take place in the absence of precious metals. Thus, their concentrations and their available monetary values are not decisive for their EOL-RRs. A similar case exists with alloying elements, such as niobium in steel alloys. Here, no recycling of the individual alloying element takes place, but of the alloy as a whole. Above an annual monetary value of more than one billion euros, metal recycling from secondary sources also increasingly takes place at high EOL-RRs when its concentrations are lower compared to those of primary sources. The fact that their recycling can nevertheless compete with primary production is explained by the effects identified in this chapter, which, despite lower concentrations, enable recycling to be more effort- and thus also more cost-efficient than primary production. In addition, we are dealing here almost exclusively with bulk metals whose concentration ratios are below 1, but their concentrations in the secondary sources are nevertheless relatively high (usually significantly above 1%). Thereby, recycling is generally favored. Metals in this range of high annual monetary values that are not recycled despite of moderate concentration ratios are e.g. used as additives in ceramics. Recycling of these metals is not possible for technical reasons. Another example for missing recycling technologies is antimony which is used as a flame retardant (Ciacci et al. 2015). However, the antimony concentration in such applications is decisively lower than in primary sources.

Fig. 6 provides valuable information on the framework conditions of recycling and is therefore an empirical explanation of the famous periodic table picture of metal EOL-RRs published by UNEP (2011). The higher the concentration ratio (secondary > primary) and the higher the monetary value, the higher the economic incentive to recycle and the higher the EOL-RRs. Furthermore, Fig. 6 in combination with Fig. 5 provides insightful information on what needs to be done to realize further GHG emission savings through recycling. It is shown in Fig. 5 that at concentration ratio of higher 1 and also just below 1, recycling tends to be more energy efficient than primary production. Fig. 6 shows, however, that these potential savings will only be realized if correspondingly high monetary values are available. In order to also use the remaining GHG emission savings, i.e. the secondary sources whose concentration ratios are higher 1, but whose available monetary values are rather low, political interventions may be necessary. It is a matter of influencing the economically acting recycling system, whose current EOL-RR basically represent economic optima, in such a way that energetic and thus ecological optima are achieved. Examples of remaining GHG emission saving potentials are rare earth metals used in glass polishing powders or as glass additives. Recycling processes for these secondary sources already exist (Binnemans et al. 2013). Their dissipation rates in the use phase are also negligible (Ciacci et al. 2015). The available monetary values seem to be the only obstacle to their recycling. Possible political interventions should aim, inter alia, at a better interconnection of the national and transnational recycling system in order to realize material flow bundling for the relevant secondary sources to achieve monetary values in a sufficient order of magnitude for an economic centralized recycling.

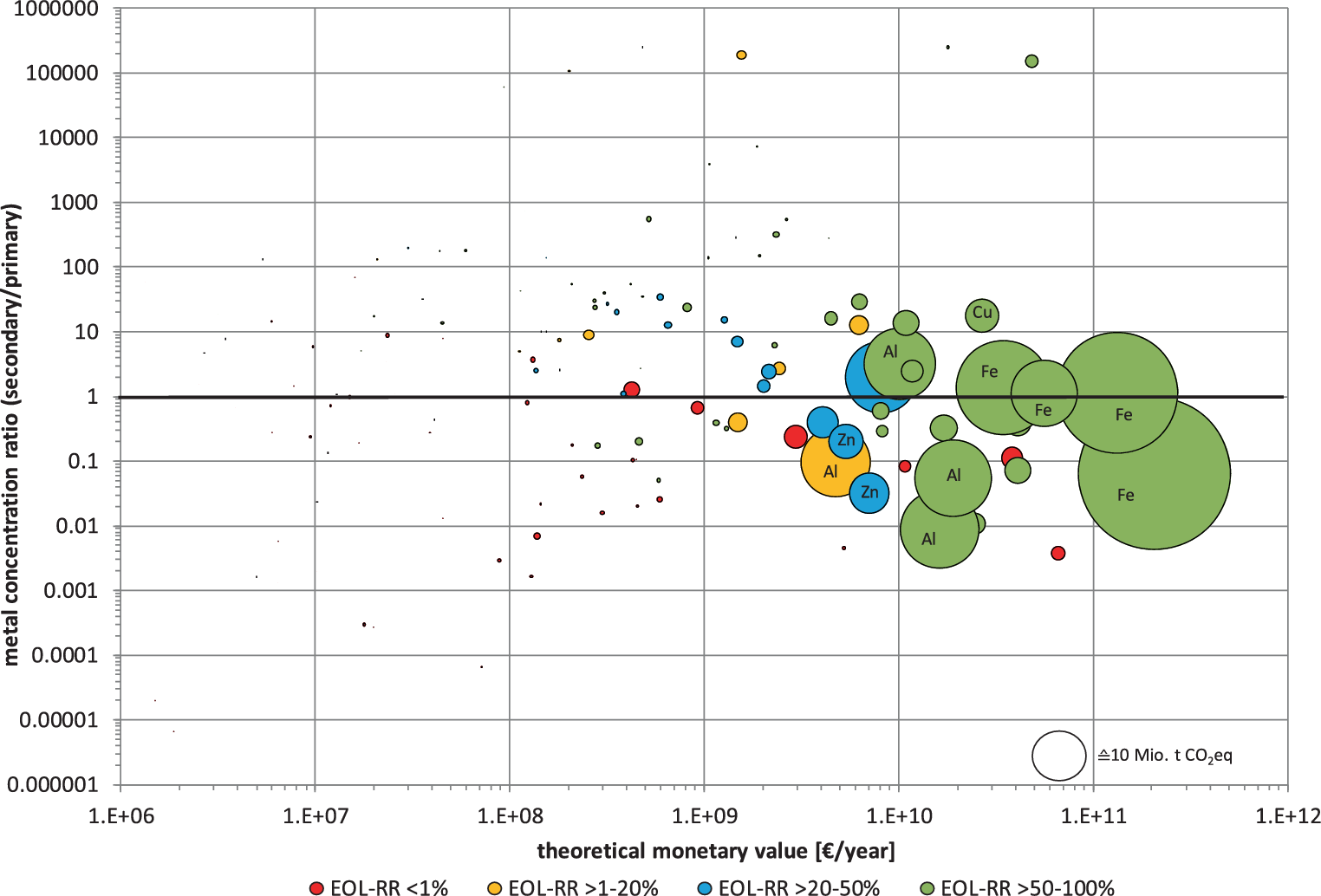

The question remains where the greatest remaining saving potentials are located. The answer is depicted in Fig. 7, a further modified version of Fig. 6. The size of the bubbles indicates the remaining theoretical GHG savings potential of the respective metal in the respective secondary source. These GHG saving potentials were calculated by multiplying the remaining available mass for recycling by the inherent GHG emissions of the metal (GHG emissions of primary production). It is obvious that the bulk metals, especially iron and aluminum, have the greatest remaining savings potential, even though they are already recycled at high percentages. From a perspective of an effective climate protection measure, the recycling of specialty metals is rather subordinate. Their recycling is more relevant for increasing the resilience for possible supply risks, as specialty metals are often rated as critical (Graedel et al. 2015).

There is one big issue, we have not addressed yet—the narrative of resource depletion. It is a decades-old and still ongoing discussion about peak production, declining ore grades and calculated lifetimes as indicators for scarcity (Tilton 1996; Schmidt 2019). Of course, the amount of resources on earth is limited. If we would run out of important resources in the near future, there would be good reasons to practice recycling to the maximum extent at all costs. Otherwise we would not be able to maintain our economy and society. In the past, the depletion of certain resources has often been predicted (e.g. Meadows et al. 1972). Today we know that these predictions did not come true. So is there any truth about the impending resource depletion? To give a short answer to this complex topic, we would like to quote Meinert et al. (2016): “We do not know what the limits to mineral resources might be, but we do know that we have not come close to reaching them yet.” The biggest misunderstanding, and thus the reason for wrong predictions, is that we still know too less about the resource deposits that can be mined under current and future conditions. A recent study by Jowitt et al. (2020) has empirically proven that there is no evidence of resource depletion and therefore refute statements by other researchers that a range of metals will become scarce within the next 50 years (Kerr 2014; Sverdrup et al. 2014, 2019).

In addition to the focused energy requirements and GHG emissions, there are of course several local social and environmental aspects which are also important to consider. This is especially true for metals that are mined in regions of the world with unstable political conditions or weak environmental governance. Think, for example, of cobalt mining in the Congo or gold mining in Burkina-Faso. Such poor local conditions are complex issues determined by numerous historical, cultural, political and socio-economic factors. Improving these conditions are typically social, cultural and political tasks and thus not physical phenomena like e.g. the energy consumption and ore grade relation that determines GHG emissions. Nevertheless, they are highly relevant and should be assessed and evaluated in further research to complement our results.

The analysis presented is primarily a spotlight on the current situation, with the current technology. Further developments in recycling technologies need to be analyzed, as it can be assumed that technologies will become more efficient and thus, in future, it will probably be possible to recycle more material from a secondary source with less energy input. Such developments may compensate for further increases in product complexity and decreasing metal concentrations.

Coming back to our initial research question on how metal recycling relates to climate change mitigation. The recycling of metals can and currently does contribute to climate change mitigation, there is no doubt about that. However, we have shown that this contribution is limited. Depending on their applications, metals can be highly diluted in the technosphere. In many cases, this is due to the intended strategy of dematerialization to save resources and the associated environmental impacts. However, if metals are much lower concentrated in the technosphere than in the ecosphere, i.e. their natural primary sources, this is a strong indication that their recycling requires more energy and thus leads to more GHG emissions than primary production. In general, the energy requirements of metal recycling are highly dependent on the quality, especially the metal concentration, of the secondary sources. Consequently, as secondary sources further decrease in quality and dematerialization progresses, more and more trade-offs with recycling and its climate protection potential will occur. These findings, underpinned by empirical data, are crucial for the ongoing scientific discussion on the conceptualization and orientation of recycling and CE.
