Stochastic Optimisation for the Design of Energy-Efficient Controllers for Cooperative Truck Platoons

For the remainder of the article we consider a platoon of N identical vehicles V₀, \(\mathrm {V}_{1}, \dots , \mathrm {V}_{N-1}\), where V₀ is the lead vehicle of the platoon. It is assumed that the lead vehicle follows a certain trajectory. Cut-ins of other vehicles are not considered. Furthermore, it is assumed that no information about traffic, the future trajectory of the lead vehicle or the street is available. A suitable CACC-scheme for the described situation can be found in [8]. Let s_i,v_i,a_i,L_i denote the position, velocity, acceleration and length of vehicle \(V_{i}, i=0,\dots , N-1\). A simple vehicle model for controller design is given by where u_i is the control input and represents the desired acceleration, and τ is an engine time constant. The desired inter-vehicle distance d_ref(t) is assumed by the following linear spacing policy, where h is the time headway which is chosen considerably larger than τ:

The spacing error e_i(t) between vehicle V_i and its front vehicle V_i− 1 is defined as The controller with parameters \(K = \left (k_{p}, k_{d}, k_{dd}\right )\) is defined using a fictional input q_i: The actual input u_i is determined by the relation Note that u_i depends on the controller input u_i− 1 of the respective front vehicle. For more details and a full derivation refer to [8].

Energy efficiency is expressed in terms of savings in consumed mechanical power. The considered forces are aerodynamic drag, rolling resistance and kinetic energy. Potential energy is not included, because it is assumed that there is no geographical information available. Power is therefore given by where ρ is air density, A is the cross-sectional area of the vehicle, μ_R is the rolling resistance coefficient, and m is the vehicle’s mass. Note that road gradients and therefore potential energy are not considered in this work. However, if elevation information is available, above formulas can be adapted accordingly. C(d) is the inter-vehicle distance-dependent air drag coefficient determined by (see [23]) with constants C_j,j ∈{a,b,c}. C_a is the drag coefficient of the vehicle in the absence of any slipstream (i.e. C_a is the drag coefficient of the lead vehicle). If desired, more elaborate models for the air drag coefficient could be used as well (see [27]).

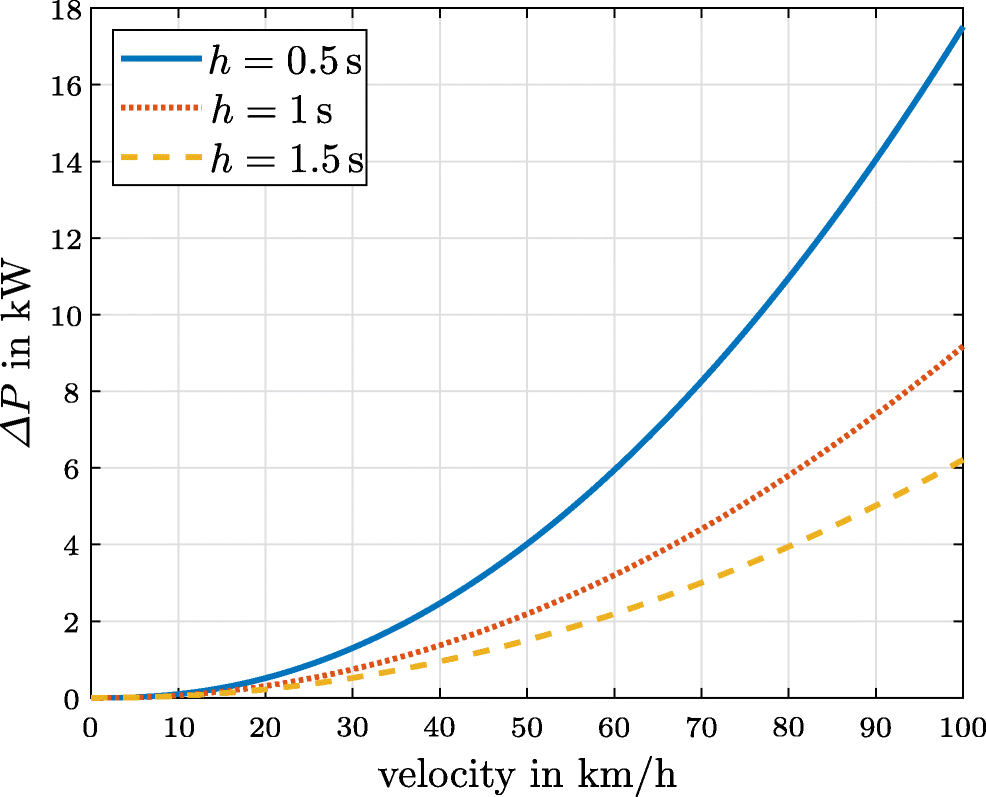

For two identical vehicles moving at the same constant velocity v, the savings in power consumption are given by where P_leader is the power of the freely moving lead vehicle and P_follower is the power of the follower. Figure 1 and Eq. 10 show that the power savings increase with higher velocity v and smaller time headway h. Consequently, for constant velocity a minimal distance policy should be pursued in order to minimise energy consumption of the platoon. However, for non-constant travelling speeds minimal distances might be counter-productive because a lot of energy can be wasted when the acceleration is changing frequently.

As a foundation for measuring the controller’s performance a criterion has to be formulated, which can be used for optimisation. In the case at hand the goal is to reduce energy consumption while also considering driving comfort and safety.

Firstly, the combined mechanical work J_W of all the following vehicles in the platoon should be minimised with where W_i is the work associated with the respective vehicle. The variables W_i depend on the inter-vehicle distances d_i(t) which affect the aerodynamic drag of each vehicle except the leading vehicle.

Secondly, for driving comfort, the accumulated changes in acceleration of all followers over the time interval [0,T] are penalised: Alternatively, acceleration could also be penalised directly.

Thirdly, in order to ensure that the vehicles follow each other at all, a velocity deviation cost term is added, where \(\bar {v}\) denotes the average velocity in the time interval [0,T]: It suffices to consider the velocities of first and last vehicle of the platoon.

Lastly, in terms of safety, a penalty is added to the performance criterion, penalising too small distances between successive vehicles: where d_crit(v) is defined as the danger zone, that determines whether a penalty is active or not. If the distance is larger than d_crit(v), no penalty is applied, but if the distance becomes lower, the integral in Eq. 14 becomes positive and hence a penalty is applied to the performance criterion. In terms of the design of the danger zone it is important that it is smaller than the reference distance d_ref, defined in Eq. 2, which the controller tries to achieve. Otherwise the optimisation might lead to a controller that does not follow the reference properly. Therefore, for small velocities, the danger zone should be smaller than r. For higher velocities, it should be larger, because otherwise there is not enough time for the penalty (14) to accumulate in order for the optimisation to find a controller setting that prevents collisions. Taking these aspect into account, the danger zone d_crit(v) is here simply defined as The design of the danger zone (15) can, of course, also take other forms.

To sum up, for a given, single trajectory of the lead vehicle the performance criterion can be written as a weighted sum. It is emphasised that a smaller value of J here implies better performance. Note that this configuration of the performance criterion is but one example and the suggested optimisation approach is not limited to this formulation.

The weights in Eq. 16 naturally influence the optimisation results and the possible savings. For example, increasing the weight w_W leads to higher energy savings due to shorter time-gaps. Safety and comfort deteriorate in return. A higher weight on comfort, on the other side, implies higher distances and therefore less savings but a lower safety penalty. These relations can be used as a baseline for empirically tuning the weights in order to achieve a desired trade-off between savings, comfort and safety.

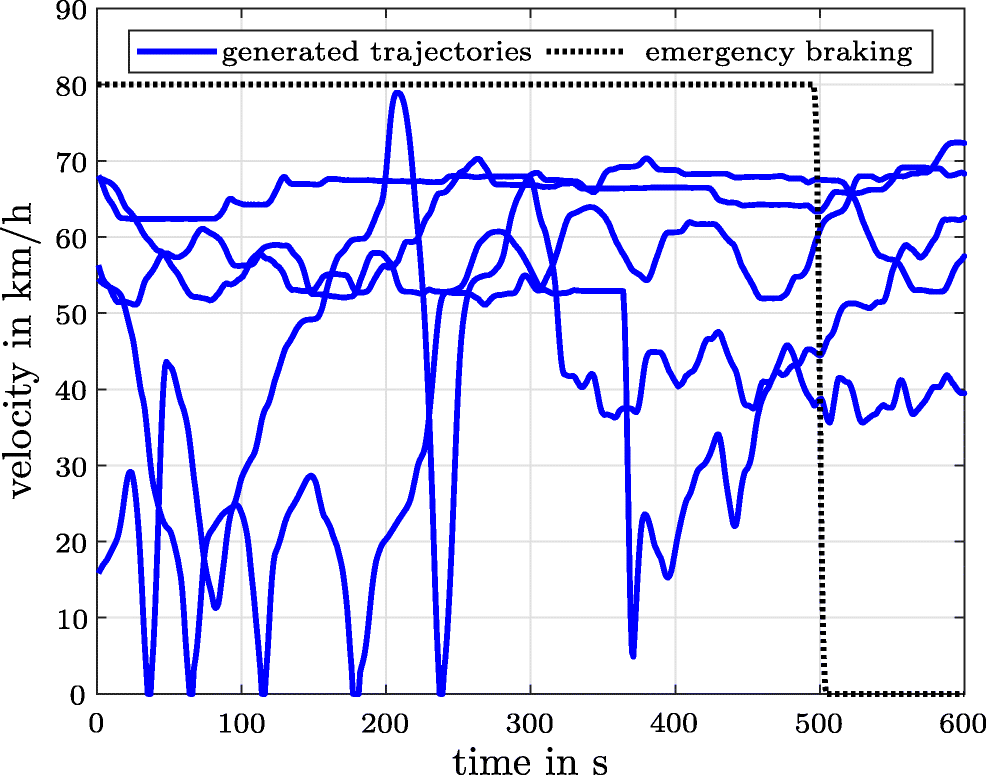

Several uncertainties arise when CACC systems are operated in practice. The most important one is the unpredictable behaviour of the lead vehicle. It is critical that the controller functions in a wide range of possible scenarios. Since the performance criterion (16) is always related to a trajectory of the lead vehicle, the optimisation based on one single trajectory will generally lead to highly specialised results that cannot be applied to a broad range of traffic scenarios. Therefore, the optimisation is rather based on a sample of trajectories which covers many different velocity profiles including extreme events such as emergency braking. Some exemplary, randomly generated trajectories are depicted in Fig. 2. They were created using the algorithm presented in [28], which makes use of modelling conditional probabilities of further accelerating and decelerating given past information, which allows the generation of highly realistic drive cycles. In addition, trajectories with constant cruising speed followed by an emergency braking manoeuvre were added to the sample as well in order to also consider this unlikely, but safety-relevant case. Alternatively, in [29] the authors present a framework that automatically generates platooning scenarios. Such a system or similar could of course also be implemented here. Furthermore, if available, naturalistic driving data can be used instead of generated drive cycles.

Since power consumption and hence the optimal controller calibration depend on vehicle specific parameters like the vehicle mass m, this uncertainty should be considered as well. The mass m can vary greatly from trip to trip depending on the cargo. The dependence of power consumption on mass is given by Eqs. 7–8. Higher mass increases rolling resistance and especially inertia resistance. Therefore, with a higher mass it is presumably less energy efficient to closely follow the lead vehicle and react to every movement immediately. Instead, a higher distance and smoother velocity trajectory seem preferable.

Apart from that, for the operation of the controller, the actual inter-vehicle distance d_i(t) has to be measured and is subjected to measurement noise. Consequently, the resulting spacing error e_i(t), which the controller relies on, as well as the estimated derivatives of e_i(t) are disturbed and not precisely known.

Additionally, the controller (3)–(4) needs knowledge of the desired acceleration u_i− 1 of the vehicle in front of it. This information might be corrupted though, due to unknown transmission delays or a total loss of communication, leading to suboptimal performance of the controller. A control calibration that relies heavily on the inter-vehicle communication is prone to errors if the communication fails.

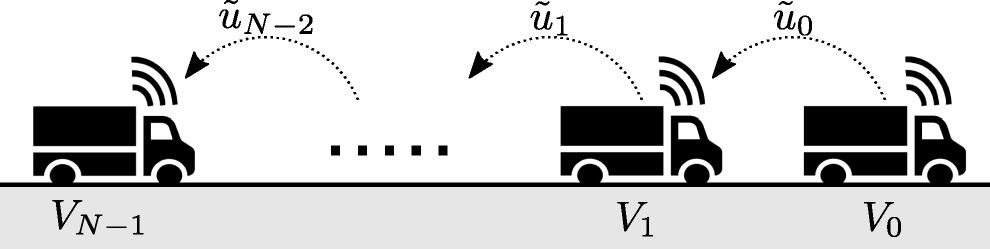

A graphic representation of the platoon is given in Fig. 3. Each of the N vehicles communicates with the vehicle behind itself and transmits its own control input u_i. Due to transmission errors or delays a disturbed version \(\tilde {u}_{i}\) is received by the following vehicle. Additionally, each vehicle measures the distance between its predecessor and itself.

Since most related uncertainties are not analytically tractable, a simulation-based optimisation is suggested. By simulating the N vehicles \(\mathrm {V}_{0}, \dots , \mathrm {V}_{N-1}\) with numerous different lead vehicle trajectories, vehicles masses, and measurement noise, a sample of performance values J is obtained. Consequently, being a random variable, J cannot be minimised directly. Instead, the distribution of J has to be considered. Statistics that describe key aspects of the estimated probability distribution, can then be optimised since they are again deterministic values. Suitable statistics, commonly referred to as risk measures, are for example the expected value, the Value-at-Risk and the Conditional Value-at-Risk:

The precise definitions generally vary a bit from author to author (see [31, 32]). Different risk measures quantify different levels of risk-aversion. For example, minimizing the expected value leads to good average values, but extreme values of J are still possible and not necessarily unlikely. In contrast, minimizing the Conditional Value-at-Risk is a more risk-averse approach, as the focus here lies exclusively on the highest outcomes of J. For example, minimizing CVaR at a confidence level of 90% means minimizing the average of the worst 10%. Therefore, the resulting calibration can lead to higher average values but also reduces the probability of entering the penalised danger zone and thus also lowers the risk of crashing into the lead vehicle.

Since Eq. 16 consists of a performance and a safety part, applying different risk measures to the two components appears reasonable. For J_performance, an optimal expected value is demanded, since occasional high values are only inconvenient but not dangerous. For J_safety, on the other side, it is more reasonable to account for the worst cases by applying the CVaR, since in terms of safety the extreme events matter most. Therefore, for a selected confidence level α the final optimisation formulation is Any suitable solver can be used in order to solve (17). For each evaluation of the objective function in Eq. 17, each trajectory has to be simulated using an average heavy duty vehicle and the performance criterion (16) needs to be calculated. Vehicle mass is altered from trajectory to trajectory randomly following a uniform distribution in the interval [13,000;40,000], where mass is measured in kilograms. From the resulting sample of performance values, the objective can be determined using numeric approximations of the expected value and the conditional value-at-risk. Note that this optimisation is carried out off-line and not during the operation of an actual platoon. Therefore, the computational complexity is not of importance for the real world applicability of the proposed optimisation formulation.

In this section the results of the stochastic optimisation are presented and discussed. The considered decision variables are the controller parameters k_p,k_d and the time headway h. The third controller parameter k_dd is set to zero in order to exclude feedback of the vehicle’s jerk (see [8]). Furthermore, the desired distance at standstill is set to r = 0.6 m. Three different information flow topologies regarding the transmission of the front vehicle’s control input u are examined: In case (b) a new time delay for each vehicle is drawn from a uniform distribution for each simulation run. The upper limit of the random time delay is set to 1 s, which is well above the time delays typically considered in the literature [33‐35] and therefore covers all relevant scenarios. Case (c) is a hypothetical situation in which the controller should not be operated in general and it could not be called CACC any more, because there is no cooperation between the platoon members. However, it is still interesting to analyse the optimal controller configuration for the case that communication is lost. For specialised platooning solutions based on model predictive or sliding mode control that are robust against communication loss or that do not use communication at all, the reader is referred to [24, 36].

For all three information flow topologies the same optimisation including all other uncertainties as discussed in Section 2.4 is conducted in Matlab®;/Simulink. The optimisation uses a pattern-search algorithm based on repeated simulations of the platoon.

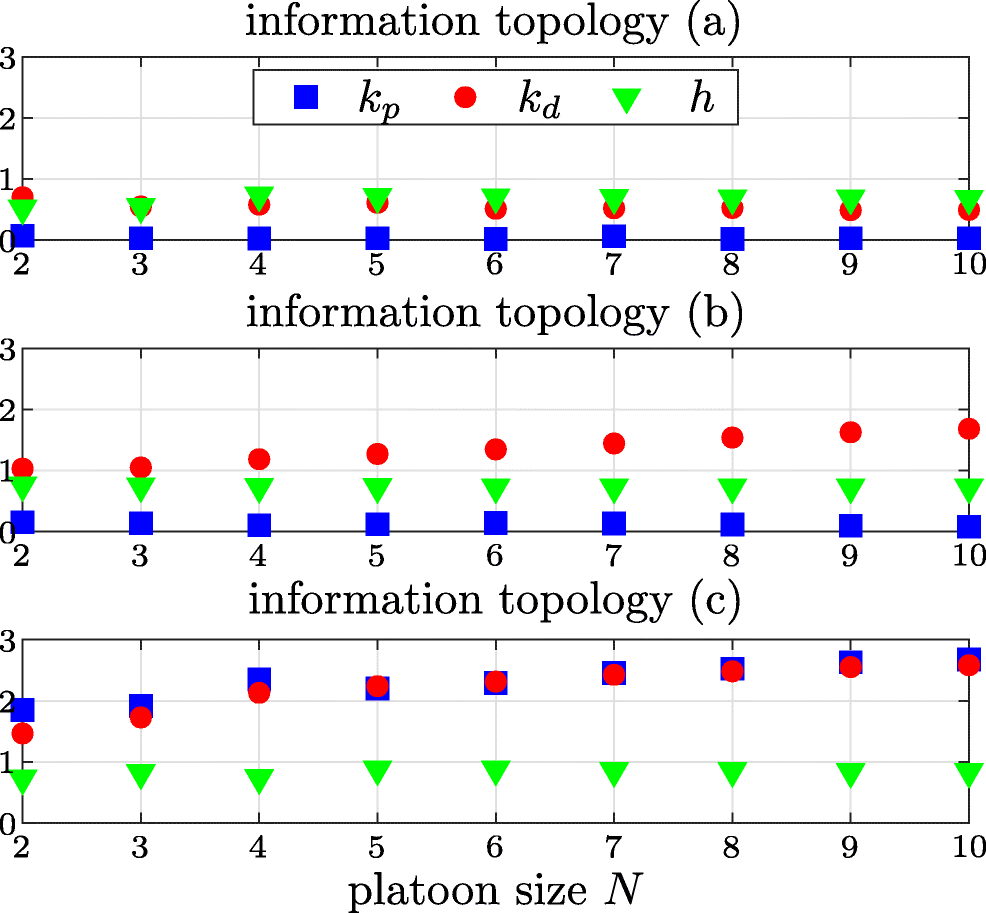

The resulting calibrations \(u_{a}^{*}\), \(u_{b}^{*}\) and \(u_{c}^{*}\), depending on the platoon size N, are presented in Fig. 4. Additionally, the actual controller values for a platoon consisting of N = 5 vehicles are listed in Table 1. As expected, the time headway h increases with worse communication. Simultaneously, the controller gains k_p and k_d increase. This reflects the fact that the controller needs to react more aggressively to the measured distance errors and their derivatives when no or only delayed feed-forward information about the front vehicle’s control input is available. In the case of perfect information, k_p is almost zero, indicating that the position measurement is basically not used. The impact of the platoon size on the optimal calibration is much smaller than the influence of the information flow topology. With perfect information, the size of the platoon is practically irrelevant for the calibration, as can be seen in Fig. 4. For non-perfect information, larger platoon sizes imply slightly increased optimal time headways h. The controller parameters k_p and k_d also increase. The differences in the optimal calibration are most significant for information topology (c), where there is no information and the controller has to rely on measurements exclusively. The controller becomes slightly more aggressive for larger platoons.

The optimal calibrations \(u_{a}^{*}\), \(u_{b}^{*}\) and \(u_{c}^{*}\) were tested on approximately 45 h of heavy duty vehicle drive cycles measured on real roads. This was done using all possible combinations of calibration and information flow topology. The vehicles are simulated using the linear model (1), which was also used in the optimisation. The validation results are presented in Table 2.

For each combination, the probability of entering the danger zone (15) per kilometre, the probability of a collision within the platoon per kilometre and the average savings in work due to aerodynamic drag are given. Additionally, \(J^{*} = \mathbb {E}\left [ J_{\text {performance}} \right ] + \text {CVaR}_{\alpha }\left (J_{\text {safety}} \right )\) is stated. For all three controller configurations there is no collision for the first information topology (a). In case (b) with time delays the calibration \(u_{a}^{*}\) which relies primarily on the feed-forward information of its front vehicle already introduces a substantial risk of collision. In case (c), however, when there is no communication at all, the risk of collisions increases dramatically in the two calibrations that assume and rely on perfect or delayed communication. In that case, only \(u_{c}^{*}\) provides acceptable safety. Interestingly, however, in scenario (b) the probability of entering the danger zone and of collision is increased by \(u_{c}^{*}\) (compared to \(u_{b}^{*}\)) even though the time headway is considerably larger. It is also remarkable, that controller \(u_{c}^{*}\) has a higher probability of entering the danger zone in topology (b) than in (c). This means that more information is not beneficial for the controller \(u_{c}^{*}\) in that respect. For each information flow topology J^∗ is minimal for the calibration that was designed for this topology, which is indicated in bold. The aggregated energy savings of the whole platoon are greatest in the case of perfect information flow but generally do not vary strongly. Furthermore, the higher objective values and the higher controller gains hint at the fact that driving comfort deteriorates with worse information flow.

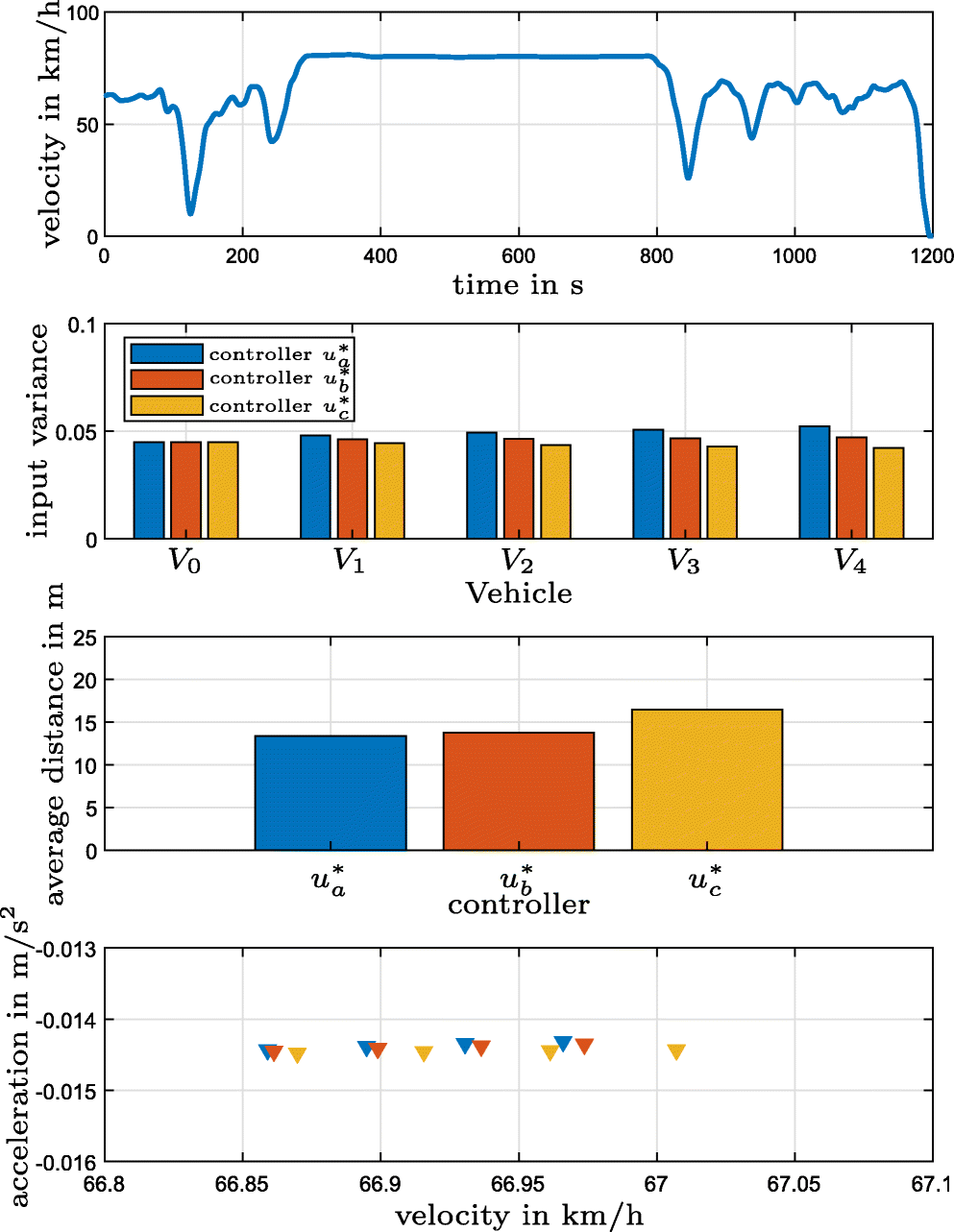

In Fig. 5, one of the cycles used in the validation presented in Table 2 is analysed in more detail. The platoon consisting of five vehicles was simulated using model (1), which was also used for the design and optimisation of the controllers given in Table 1. The lead vehicle follows the defined velocity trajectory and the other platoon members follow. The simulation was executed with an information transfer delay of 0.5 s. The controller input variance over the entire drive cycle is almost equal for all vehicles of the platoon and also for the three different controllers. This implies that there are no increasing oscillations in the platoon. The main difference can be seen in the average distance, where controller \(u_{a}^{*}\) implies significantly smaller distances than \(u_{c}^{*}\), which is a consequence of the different desired time headways (see Table 1). Average velocity and acceleration are also fairly similar among all vehicles and controllers. Furthermore, during the simulations no collision occurred in any of the three cases. These results indicate that all three controllers work reasonably well in the simulated setting.

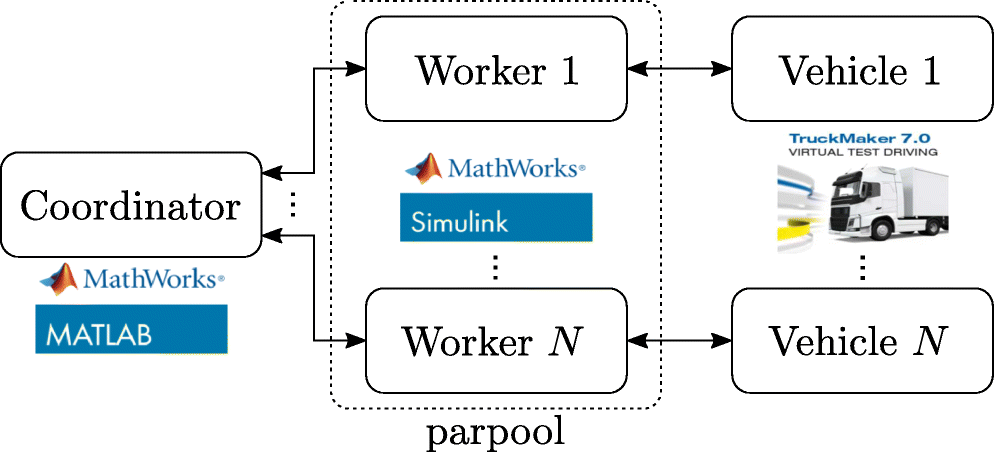

The results presented in Sections 3.1 and 3.2 were all obtained using the simple linear vehicle model (1). Also the controller structure itself was derived from that model. Consequently, it is not surprising that the simulation used in Table 2 and Fig. 5 shows satisfying results. However, this unfortunately does not guarantee the same performance under real driving conditions with real vehicles, whose powertrain and internal dynamics differ from the simplistic model (1). Since expensive and time-consuming real world tests are often not feasible in early development stages, an alternative approach is to use more elaborate vehicle dynamics simulations instead. One possible solution is provided by the commercial software IPG Truckmaker®;. It provides very detailed simulation models for single heavy duty vehicles. The simulation of entire platoons can be realised by running multiple instances of Truckmaker®;, one for each platoon member, simultaneously, as in [24]. The utilised simulation framework is illustrated in Fig. 6. The coordination of the platoon is governed by a central Matlab®; session which communicates with the individual vehicles using the Truckmaker®; for Simulink interface. The respective control actions are calculated in the Coordinator-Matlab®; session and distributed to the respective parallel Truckmaker®; instances.

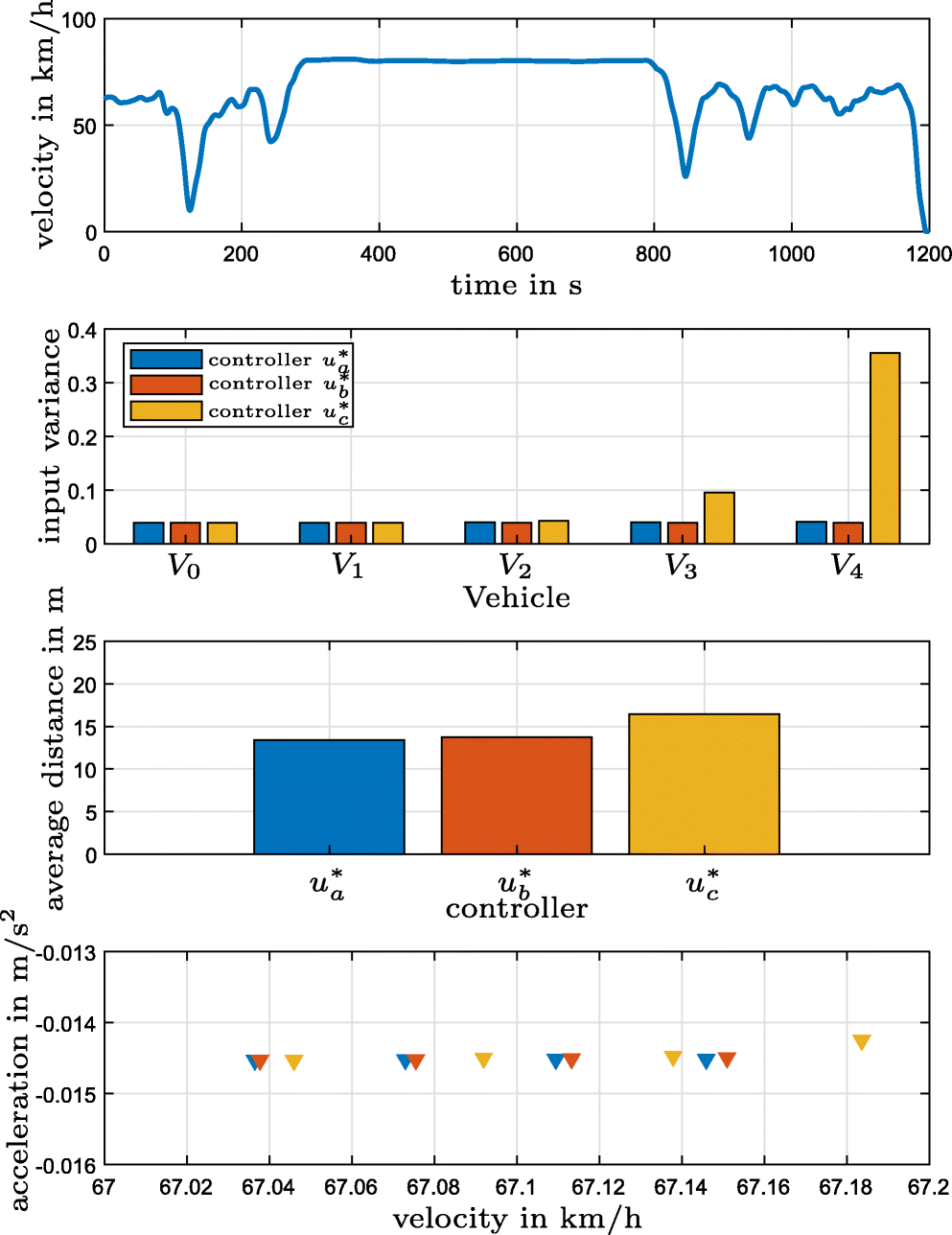

Using this co-simulation framework the same real world drive cycle as in Fig. 5 was analysed again using a transmission delay of 0.5 s. The results are depicted in Fig. 7. In contrast to the simulations with the simple linear vehicle model, the more elaborate simulation reveals that controller \(u_{c}^{*}\) is not effective in practice. This can be seen in the bar plots of the controller input variance, which increases a lot for the vehicles at the end of the platoon.

The oscillations of the control inputs increase with every vehicle in the platoon leading to strong oscillations in the last platoon member. The average distances are virtually the same as in Fig. 5, though. In the bottom panel of Fig. 7 one can see how the average acceleration per vehicle is more or less constant for the different vehicles for the first two controllers. However, for the third controller \(u_{c}^{*}\) the average acceleration varies among the vehicles. The reason for the bad performance of the third controller are the large gains in \(u_{c}^{*}\). The vehicle strongly reacts to distance measurements but the vehicle now behaves differently than assumed in the derivation of the controller because of the more detailed non-linear simulation model. In this situation the controller gains are too large and induce oscillations. The other two controllers show satisfying performance also in the high fidelity simulation. In fact, the results of both the simple and elaborate simulation look almost identical. None of the three controllers lead to a collision within the platoon in this test scenario.

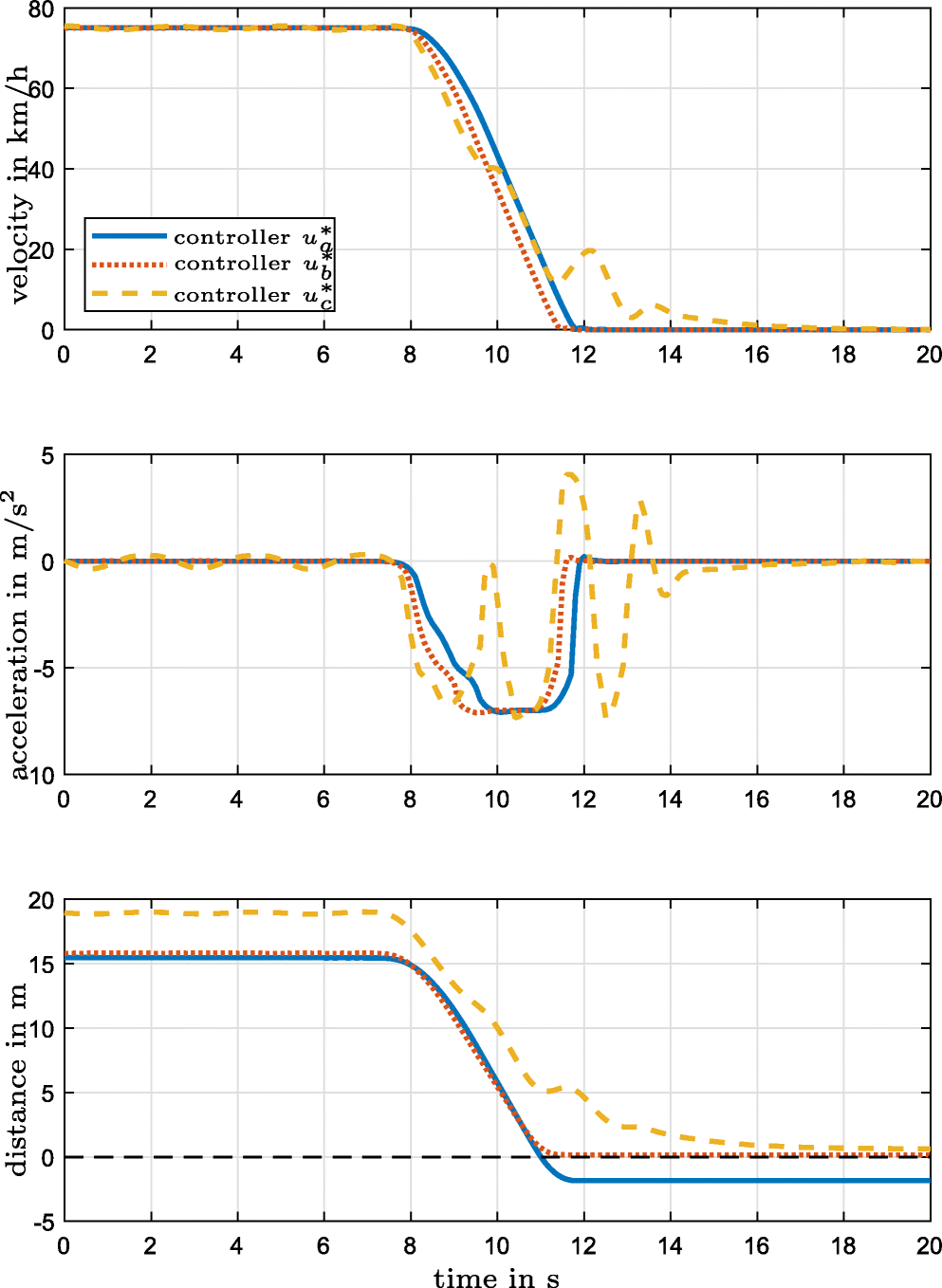

Finally, in order to further compare the controllers, an emergency braking manoeuvre was simulated using the Truckmaker®; co-simulation. The results for all three controller configurations are depicted in Fig. 8 for the last platoon member. In this scenario, the platoon travels at roughly 80 km/h when the platoon leader suddenly brakes with a negative acceleration of − 7 m/s until it comes to a complete halt. Once again, a transmission time delay of 0.5 s was assumed. Controller \(u_{a}^{*}\), which was designed for perfect information flow, reacts slowest which can be seen in the top two panels of Fig. 8. This is due to the small controller gains and the delayed information coming from the front vehicle. Controllers \(u_{b}^{*}\) and \(u_{c}^{*}\) react faster but \(u_{c}^{*}\) again introduces oscillations. In the bottom panel the inter-vehicle distance between the last platoon member V₄ and its predecessor V₃ is depicted. The first controller leads to a collision which is indicated by the negative distance. The other two controllers can prevent a collision. Only controller \(u_{b}^{*}\), which was optimised for this information topology, exhibits a satisfactory performance in this test scenario. The trajectories are smooth and no collision occurs even though the desired distances are only marginally larger than with controller \(u_{a}^{*}\).

To sum up, the results clearly show how important the information topology and thorough testing through simulation are. The findings of the high fidelity validation with Truckmaker®; can be used in order to select more suitable optimisation weights in Eq. 16. For example, increased weight on driving comfort will lower a controller’s tendency to large and oscillating control inputs.
